Abstract
本实用新型涉及一种外墙真石漆仿面砖，可有效用于建筑物外墙的装饰，以解决外装饰成本高、保温效果差，颜色不一致、起皮、脱落问题，其解决的技术方案是，包括有底板和真石漆层，底板正面上有腻子层，腻子层上有底漆层，底漆层上有真石漆层，真石漆层上面有透明面层，底板与各层紧密结合构成牢固的复合体，本实用新型结构简单，成本低，坚固耐用、美观，保温效果好，是建筑用材上的一大创造，经济和社会效益显著。
The utility model relates to a real stone paint imitation brick for exterior walls, which can be effectively used for decoration of exterior walls of buildings to solve the problems of high exterior decoration cost, poor heat preservation effect, inconsistent color, peeling and falling off. The technical solution is , including base plate and real stone paint layer, there is a putty layer on the front of the base plate, a primer layer on the putty layer, a real stone paint layer on the primer layer, a transparent surface layer on the real stone paint layer, the base plate and each layer are closely combined to form a firm The composite body of the utility model has the advantages of simple structure, low cost, firmness, durability, appearance and good heat preservation effect. It is a great creation in building materials and has remarkable economic and social benefits.
Description
一、技术领域 1. Technical field
本实用新型涉及建筑领域，特别是一种外墙真石漆仿面砖。The utility model relates to the construction field, in particular to a real stone paint imitation brick for an exterior wall.
二、背景技术 2. Background technology
随着人们生活的提高和建筑业的迅速发展，对建筑材料要求越来越高，节能、环保、住着舒适、美观已是人们普遍希望，因此，在许多公共建筑以及住宅楼工程中采用了外墙粘贴保温板的保温系统，为了确保外墙保温系统的安全性，对外墙饰面层涂料的质量要求较高，现多采用一种真石漆进行装饰，但该原料价格贵、成本高，而且仅是一种外装饰层，保温效果并不尽人意，同时还易出现颜色不一致、起皮、脱落现象，特别是当今建筑材料日益涨价和对室内保温要求更高、外表美观的情况下，研制新的保温装饰建筑用材(砖)是业内所关心。With the improvement of people's life and the rapid development of the construction industry, the requirements for building materials are getting higher and higher. Energy saving, environmental protection, comfortable living and beautiful appearance are the general wishes of people. Therefore, many public buildings and residential buildings are used. In order to ensure the safety of the thermal insulation system of the external wall, the thermal insulation system of the thermal insulation board on the external wall requires higher quality requirements for the coating of the external wall finish layer. Now a kind of real stone paint is used for decoration, but the raw material is expensive and costly. Moreover, it is only an outer decorative layer, the thermal insulation effect is not satisfactory, and it is also prone to color inconsistency, peeling, and peeling off, especially when the price of building materials is increasing day by day and the requirements for indoor thermal insulation are higher and the appearance is beautiful. , the development of new thermal insulation and decorative building materials (bricks) is the industry's concern.
三、实用新型内容3. Contents of utility model
针对上述情况，为克服现有技术缺陷，本实用新型之目的就是提供一种新型的外墙真石漆仿面砖，可有效用于建筑物外墙的装饰，以解决外装饰成本高、保温效果差，颜色不一致、起皮、脱落问题，其解决的技术方案是，包括有底板(又称基板层)和真石漆层，底板正面上有腻子层，腻子层上有底漆层，底漆层上有真石漆层，真石漆层上面有透明面层(又称罩层)，底板与各层紧密结合构成牢固的复合体，本实用新型结构简单，成本低，坚固耐用、美观，保温效果好，是建筑用材上的一大创造，经济和社会效益显著。In view of the above situation, in order to overcome the defects of the existing technology, the purpose of this utility model is to provide a new type of real stone paint imitation brick for exterior walls, which can be effectively used for decoration of exterior walls of buildings, so as to solve the problem of high cost of exterior decoration and poor heat preservation effect. , the color is inconsistent, peeling, and falling off. The technical solution is to include a bottom plate (also known as a substrate layer) and a real stone paint layer. There is a putty layer on the front of the bottom plate, a primer layer on the putty layer, and a primer layer on the primer layer. There is a real stone paint layer, and there is a transparent surface layer (also known as a cover layer) on the real stone paint layer. The bottom plate is closely combined with each layer to form a firm composite body. The utility model has simple structure, low cost, durable, beautiful appearance, and good heat preservation effect. It is a great creation of building materials, with remarkable economic and social benefits.
四、附图说明 4. Description of drawings

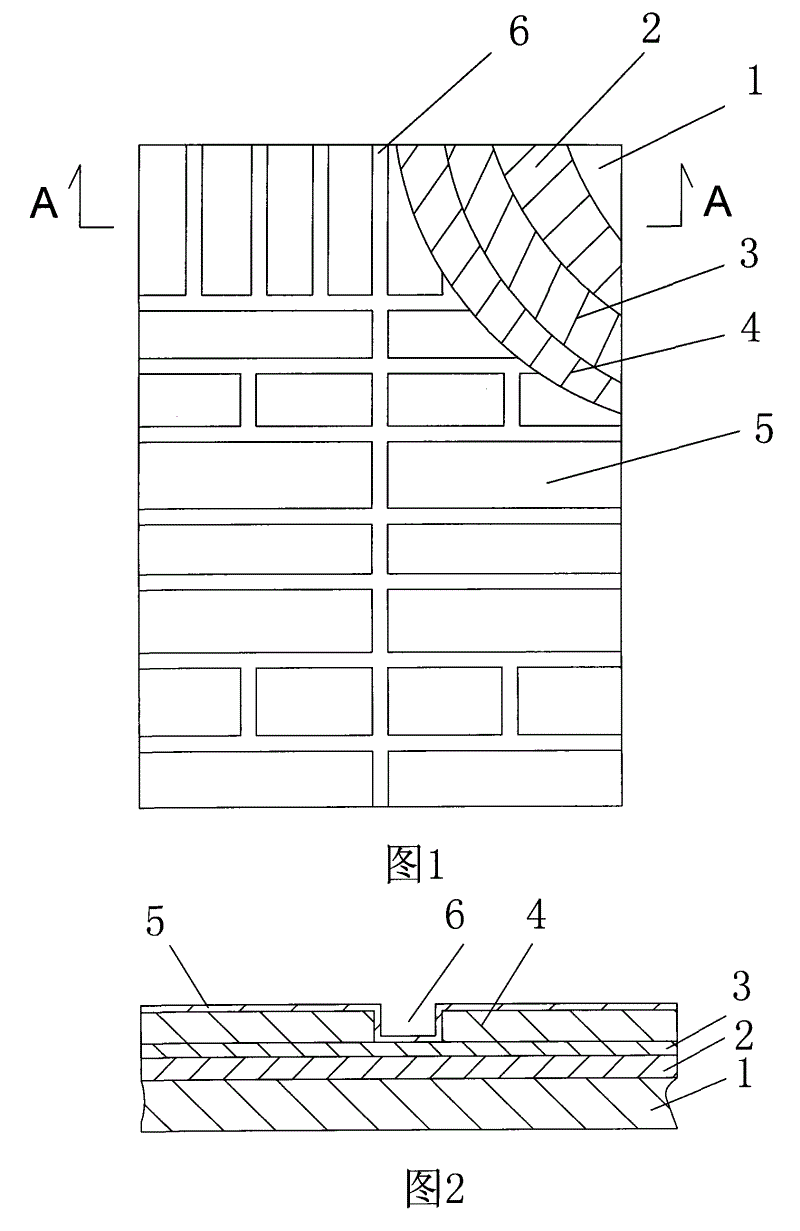

图1为本实用新型的结构主视图(局部剖开)。Fig. 1 is a structural front view (partial cutaway) of the present utility model.
图2为图1中A-A向剖面视图。Fig. 2 is a sectional view along A-A in Fig. 1 .
五、具体实施方式 5. Specific implementation
以下结合附图对本实用新型的具体实施方式作详细说明。Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described in detail.
由图1、图2给出，本实用新型是，包括有底板(又称基板层)和真石漆层，底板1正面上有腻子层2，腻子层上有底漆层3，底漆层上有真石漆层4，真石漆层上面有透明面层5(又称罩层)，底板与各层紧密结合构成牢固的复合体。Provided by Fig. 1 and Fig. 2, the utility model is to include base plate (also known as substrate layer) and real stone paint layer,
为了保证装饰使用效果，所说的底漆层3上面的真石漆层4由装饰凹槽6分隔成格子状；所说的底板1可以是长方形、或方形、或菱形以及其他几何形状的EPS板或水泥板，透明面层5由透明面漆喷涂而成。In order to ensure the decorative effect, the real
所说的真石漆层、底漆、透明面漆(罩漆)均为市售产品；如广东省中山市华石涂料有限公司的“华石”牌产品，腻子也为市售产品，如北京德科振邦科技发展有限公司产品，本实用新型贡献在于将它们进行有机结合成外墙真石漆仿面砖，替代现有外墙装饰砖或喷涂真石漆层，使用方便，施工速度快、效率高、成本低、美观、坚固耐用、寿命长，既能有良好的保温、安全效果，又能达到外墙面的装饰效果，功能多、用途广，其推广应用，有显著的经济和社会效益。The so-called real stone paint layer, primer, and transparent topcoat (overcoat paint) are all commercially available products; such as the "Huashi" brand products of Zhongshan Huashi Paint Co., Ltd., Guangdong Province, putty is also commercially available products, such as Beijing It is a product of Deke Zhenbang Technology Development Co., Ltd. The contribution of this utility model is to organically combine them into real stone paint imitation bricks for exterior walls, which can replace existing decorative bricks for exterior walls or spray real stone paint layers. It is easy to use, fast in construction speed and high in efficiency. , low cost, beautiful, durable, long life, can not only have good thermal insulation and safety effects, but also can achieve the decorative effect of the outer wall, multi-function, wide application, its popularization and application, have significant economic and social benefits.
