Garbage bin with waste battery and waste fluorescent tube collection device, used for classified collection of household waste. The garbage bin is composed of four boxes, each box is equipped with a corresponding iron inner bucket, and the top of the box is equipped with a garbage collection and transportation top cover and a daily garbage input cover (the collection boxes for waste batteries and waste fluorescent tubes are the same) Combine the garbage collection and transportation top cover with the daily garbage input cover). The dustbin can provide a separate collection space for harmful substances—batteries, fluorescent tubes, etc.—while realizing the classification and collection of garbage by ordinary sorting dustbins. It can provide a collection facility guarantee for avoiding harmful substances such as batteries and fluorescent tubes from being mixed into general garbage in the process of garbage collection; in addition, it also lays a foundation for the separate treatment of waste batteries and the reasonable recycling of useful metals. The necessary collection channel foundation. The dustbin is particularly suitable for being used as a garbage collection device in a civilized living quarter.

Description

Dustbin with waste battery and waste fluorescent tube collection unit

technical field

The utility model relates to a dustbin with a collection device for waste batteries and waste fluorescent tubes. The utility model relates to a device which can simply classify and collect household garbage, and realize the separate collection and placement of harmful garbage such as waste batteries and waste fluorescent tubes from other garbage.

Background technique

At present, streets, outdoor squares, tourist attractions, and living quarters in major cities in China are equipped with garbage bins. The garbage bins can collect the domestic garbage discarded by people in time, and play a great role in keeping the city clean and tidy. Although the cities in our country have basically not realized the classified collection and transportation of garbage at present, the use of classified garbage bins has played a certain role in the preparation of equipment and the public ideological education of garbage classification for the future realization of the classified collection, transportation and treatment of urban garbage. . The composition of domestic waste is complex. In addition to recyclable waste, such as: paper, plastic, glass, iron sheets, fabrics, bottles, etc.; non-recyclable harmless waste, such as: fruit peels, vegetable leaves, etc.; it also contains batteries , fluorescent tubes and other hazardous waste. However, the currently widely used classified garbage bins are not equipped with separate harmful garbage collection devices, so harmful substances are often mixed into other garbage, which not only brings hidden dangers to the routine treatment of ordinary garbage, but also makes useful metals in waste batteries Reasonable resource recovery cannot be obtained.

Utility model content

The main purpose of the utility model is to provide a garbage bin with a collection device for waste batteries and waste fluorescent tubes. The garbage box can collect garbage in ordinary classified garbage bins while collecting harmful substances—waste batteries, waste fluorescent tubes, etc. Provide a separate collection space.

In order to achieve the above object, the technical solution of the utility model is: a dustbin with waste batteries and waste fluorescent tube collection devices is designed. The garbage bin is a large iron cabinet. The cabinet is divided into four relatively independent and connected boxes by welding with iron sheets. Inside each box are placed corresponding iron inner buckets for storing garbage. The top of the box body is provided with the top cover opened when collecting and transporting garbage and the input cover of daily garbage (because the top cover of the collection box for waste batteries and waste fluorescent tubes is relatively small, only one cover is provided, namely: Garbage collection and transportation top cover and daily garbage input cover are integrated). Open the different daily garbage input covers to put different types of garbage into the corresponding garbage collection iron inner barrels, open the garbage collection and transportation top cover to take out the iron inner barrels containing garbage, and further dump them on specific garbage transport vehicles Complete the garbage collection process. Considering that the amount of waste batteries and waste fluorescent tubes is less than that of conventional recyclable garbage and non-recyclable garbage, the volumes of the waste battery collection box and the waste fluorescent tube collection box are respectively the volume of the entire garbage bin (large cabinet) One-fifteenth and two-fifteenths of the volume of the recyclable garbage collection box and the non-recyclable harmless garbage collection box are two-fifths of the volume of the entire dustbin (big cabinet).

After adopting the above scheme, the utility model adopts the welding method to separate the garbage bin with the waste battery and waste fluorescent tube collection device into four relatively independent and connected boxes with iron sheets, which are recyclable garbage and non-recyclable garbage. The sorted collection of harmless garbage, waste batteries and waste fluorescent tubes provides a relatively independent collection space; the top of the box is equipped with a garbage collection and transportation top cover and a daily garbage input cover (the collection boxes for waste batteries and waste fluorescent tubes will be The garbage collection and transportation top cover and the daily garbage input cover are combined into one, called: garbage input and collection and transportation cover). The dustbin can provide a separate collection space for harmful substances such as waste batteries and waste fluorescent tubes while realizing the classification and collection of garbage by ordinary sorting dustbins. It can provide a collection facility guarantee for avoiding harmful substances such as batteries and fluorescent tubes from being mixed into ordinary garbage during the garbage collection process, thereby promoting the improvement of the efficiency of ordinary garbage disposal; The rational recycling of useful metals has laid the foundation for the necessary collection channels. The dustbin with waste battery and waste fluorescent tube collection device is especially suitable as a waste collection device in civilized living quarters.

Description of drawings

Accompanying drawing 1 is the front view of the dustbin with waste battery and waste fluorescent tube collecting device;

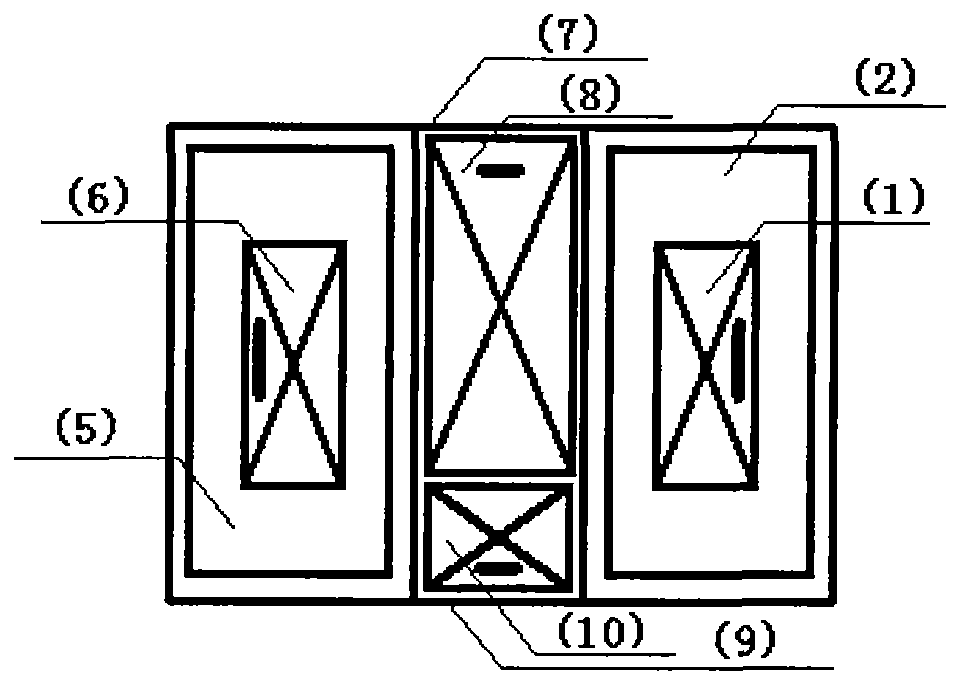

Accompanying drawing 2 is the top view of the dustbin with waste battery and waste fluorescent tube collecting device.

Detailed ways

As shown in accompanying drawing 1 and accompanying drawing 2, the dustbin of the utility model with waste battery and waste fluorescent tube collecting device is made up of four relatively independent but connected together four box bodies, and they are recyclable garbage respectively The collection box (3), the non-recyclable harmless garbage collection box (4), the waste battery collection box (9) and the waste fluorescent tube collection box (7), each box is welded and separated by iron sheets and form; the inside of the box body is respectively placed with a corresponding iron sheet inner barrel; the top of the collection box (3) of the recyclable garbage is provided with a recyclable garbage collection and transportation top cover (2) and a daily input cover (1) of the recyclable garbage; The top of the recovered harmless garbage collection box (4) is provided with a non-recyclable garbage collection and transportation top cover (5) and a non-recyclable garbage daily input cover (6); waste battery collection box (9) and waste fluorescent tube collection box The top of (7) is only provided with a cover body, which is respectively the input and collection cover (10) of waste batteries and the input and collection cover (8) of waste fluorescent tubes; each garbage input cover is welded with a handle, By pulling the handle at ordinary times, people can open the cover body and put in the garbage. When collecting and transporting all kinds of garbage, firstly open the collection and transportation cover fastened on the top of each garbage bin, and then take out the corresponding iron inner bucket to dump all kinds of garbage. The volume of the waste battery collection box (9) and the waste fluorescent tube collection box (7) is respectively 1/15th and 2/15th of the whole dustbin volume, and the collection box (3) and The volume of the non-recyclable harmless garbage collection box (4) is 2/5 of the volume of the whole garbage box.

The dustbin can realize the classification and collection of garbage by ordinary sorting dustbins, and at the same time provide a separate collection space for harmful substances—waste batteries and waste fluorescent tubes. It can provide favorable collection facilities for avoiding harmful substances such as batteries and fluorescent tubes from being mixed into general garbage in the process of garbage collection, so that the conventional treatment efficiency of general garbage is improved; in addition, it also provides a separate treatment for waste batteries The rational recycling of useful metals has laid the foundation for the necessary collection channels.

Claims (2)

1. A dustbin, characterized in that: the dustbin is composed of waste battery collection box (9), waste fluorescent tube collection box (7), recyclable garbage collection box (3) and non-recyclable waste The harmful garbage collection box (4) is formed by connecting the iron sheet welding; the four boxes that make up the garbage box are relatively independent, and there are corresponding iron inner barrels inside each box, and the top is equipped with a garbage daily delivery cover and a garbage collection box. Ship the top cover. 2. The dustbin according to claim 1, characterized in that the volumes of the waste battery collection box (9) and the waste fluorescent tube collection box (7) are respectively one-fifteenth and tenth of the volume of the entire dustbin. Two-fifths, the volume of the collection box (3) of recyclable garbage and the collection box (4) of non-recyclable harmless garbage is two-fifths of the volume of the whole dustbin.
