CN201182369Y

CN201182369Y - Integrated kitchen tool

Info

Publication number: CN201182369Y
Application number: CNU2008201118710U
Authority: CN
Inventors: 黄冬珍
Original assignee: Individual
Current assignee: Individual
Priority date: 2008-05-03
Filing date: 2008-05-03
Publication date: 2009-01-21
Anticipated expiration: 2018-05-03

Abstract

Disclosed is an integrated kitchen ware, which comprises a bottom delivery type range hood, a stove 1, a sterilizing cabinet 14, a storage cabinet 3 and a bearing body, and is characterized in that the sterilizing cabinet and the storage cabinet are embedded into the bearing body left and right; the stove is positioned on the sterilizing cabinet and the storage cabinet; a fume collection box 10 of the range hood is obliquely positioned on the rear face at one side of the storage cabinet; a fume hooding plate 13 showing a shape of 7 is vertically arranged at the rear side of a cooking bench top, and a fume collection port 12 is disposed on the fume hooding plate for connecting with the fume collection box; and a fan 9 is positioned in the fume collection box, and a wind outlet is arranged at the bottom part of the fume collection box for connecting with a wind outlet pipe 7. The integrated kitchen ware integrates the range hood, the stove, the sterilizing cabinet and the storage cabinet together, and has advantages of compact structure, reasonable layout, energy saving, environmental protection, and convenient use and maintenance.

Description

A kind of integrated kitchenware

Technical field

The utility model relates to a kind of kitchen tools.

Background technology

Along with the progress of society, people more pay attention to environmental protection, energy-conservation and to the rational deployment of the confined space when sprucing up.Particularly be subjected to the restriction of kitchen space, when selecting kitchen appliance, be difficult to choose products such as suitable lampblack absorber, kitchen range, disinfection cabinet.

Kitchen appliances such as traditional range hood, kitchen range, disinfection cabinet respectively are integral, and appearance and size and appearance and modeling are also inharmonious, and this just brings very big inconvenience to the kitchen finishing.The tradition range hood mainly contains the top and sucts two kinds of suction modes of air draft on air draft and the side draught.Collection smoke box and blower fan all are positioned at the top of kitchen range, and be near from people's head, so noise is big especially.Inhale and side draught upper discharging type oil smoke machine wall hanging or be hung on the kitchen range top on the top, and the height that has not only occupied kitchen cabinet space but also extension also is difficult to hold, hang height the smoking effect bad, and gauge tap high inconvenient operation; Hung low and can meet and discuss block vision.Drip, leakage of oil also is the problem that the upper discharging type oil smoke machine is difficult to avoid since lampblack absorber above the kitchen range top, condense upon the oil droplet on cigarette machine surface can drip on the kitchen range top or the pot of cooking in, extremely unhygienic.

Summary of the invention

Technical problem to be solved in the utility model provides a kind of integral type integrated kitchenware.

A kind of integrated kitchenware comprises lower discharging type ventilator, kitchen range, disinfection cabinet, locker and supporting mass, it is characterized in that disinfection cabinet, locker are embedded in the supporting mass about dividing; Kitchen range be positioned at disinfection cabinet and locker above; The collection smoke box of range hood is offset to the back of locker one side; Cover cigarette plate is " 7 " font and stands on kitchen range top face rear side, has smoke collecting port on the cover cigarette plate, and smoke collecting port connects ventilating duct, and ventilating duct links to each other with the collection smoke box; Blower fan is positioned at the collection smoke box, and collection smoke box bottom has air outlet to link to each other with discharge pipe.

Described kitchen range can be gas kitchen ranges, also can be the utensils that electric range, electromagnetic stove etc. have heating function.Described kitchen range can be higher than kitchen range top face, be lower than kitchen range top face or equal with kitchen range top face.Described kitchen range can be single-hole ranges, also can be the combinations of eyes kitchen range or multi-hole kitchen range.

There is boss described collection smoke box bottom with the blower fan junction, has air outlet to link to each other with discharge pipe in the middle of the boss; Collection smoke box bottom minimum point has oil leaking hole to link to each other with oil pipe; The collection smoke box has service hatch towards the face of air inlet.

Described smoke collecting port exceeds kitchen range top face, and there is web plate at described smoke collecting port place, and web plate can be that individual layer also can be that multilayer be arranged in parallel.

The integrated kitchenware of this structure makes down the discharge flue of lampblack absorber into the row mode by traditional last row's mode, and making oil smoke function and kitchen range, disinfection cabinet, locker collection is one; Because collection smoke box and blower fan are offset to the back of locker one side, make the volume of disinfection cabinet bigger, the fume inlet passage lengthening, oil smoke is cooled off fully, and oil droplet condenses and is imported into lubricating cup, makes to discharge outdoor oil smoke environmental protection more; The collection smoke box has service hatch towards the face of air inlet, opens service hatch when maybe needing to change motor and goes out wind wheel and motor with regard to desirable when the blower fan wind wheel need clean; Cover cigarette plate is " 7 " font and stands on kitchen range top face rear side, can effectively cover the oil smoke of rising.

This integrated kitchenware combines lampblack absorber, kitchen range, disinfection cabinet and locker, and compact conformation is rationally distributed, has not only improved resource and utilization of space, and energy-conserving and environment-protective, uses easy to maintenance.

Description of drawings

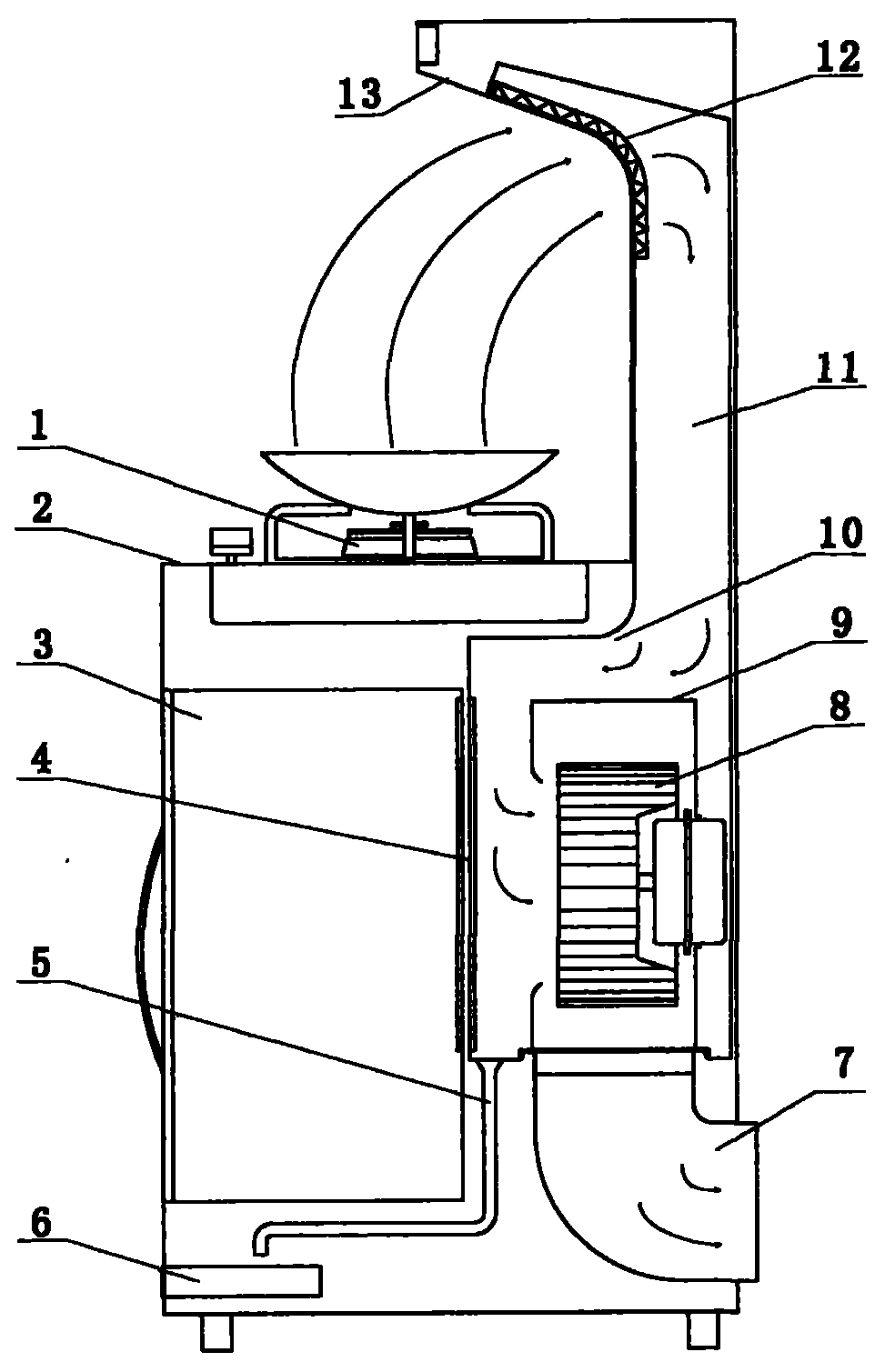

Fig. 1 is the side view of the utility model integrated kitchenware;

Fig. 2 is the front view of the utility model integrated kitchenware;

Fig. 3 is the utility model disinfection cabinet, locker, collection smoke box layout schematic diagram.

The specific embodiment

Be described further below in conjunction with accompanying drawing 1, Fig. 2 and Fig. 3.

The utility model integrated kitchenware is made up of side-suction lower discharging type lampblack absorber, kitchen range 1, disinfection cabinet 14, locker 3 and supporting mass.Described disinfection cabinet 14, locker were embedded in the supporting mass about 3 minutes, and lampblack absorber collection smoke box 10 is positioned at locker 3 back.Range hood cover cigarette plate 13 is " 7 " font and stands on kitchen range top face 2 rear sides.Described cover cigarette plate 13 has a fixed angle of altitude, and throat is provided with smoke collecting port 12, and web plate is housed on the smoke collecting port; In the cover cigarette plate ventilating duct 11 is arranged, the up big and down small infundibulate that is of described ventilating duct, the upper end is connected with smoke collecting port 12, and the lower end links to each other with the air inlet of collection smoke box 10.Described collection smoke box 10 bottoms have a boss to be used to install blower fan 9, and air outlet is arranged in the middle of the boss, and the hole flanging diameter of air outlet is less than the internal diameter of discharge pipe 7, and discharge pipe 7 closely is enclosed within the hole flanging outside.Described discharge pipe 7 has left, to the right, three directions can pick out body backward; Described collection smoke box 10 bottoms have tubing interface and oil pipe 5 to link, and the oil of collection smoke box inner accumulated imports lubricating cup 6 through oil pipe 5; Described blower fan 9 has forward in the smoke box 10 and two kinds of fixed forms backwards at collection, blower fan forward fixedly the time front of collection smoke box 10 be provided with service hatch 4, open service hatch 4 through locker 3, wind wheel 8 can take out from the front.Blower fan backwards fixedly the time back side of collection smoke box 10 be provided with service hatch 4, wind wheel 8 can take out from the back side of body.

Claims

1, a kind of integrated kitchenware comprises lower discharging type ventilator, kitchen range (1), disinfection cabinet (14), locker (3) and supporting mass, it is characterized in that disinfection cabinet (14), locker (3) are embedded in the supporting mass about dividing; Kitchen range be positioned at disinfection cabinet and locker above; The collection smoke box (10) of range hood is offset to the back of locker (3) one sides; Cover cigarette plate (13) is " 7 " font and stands on kitchen range top face (2) rear side, has smoke collecting port (12) on the cover cigarette plate, and smoke collecting port connects ventilating duct (11), and ventilating duct links to each other with the collection smoke box; Blower fan (9) is positioned at collection smoke box (10), and collection smoke box bottom has air outlet to link to each other with discharge pipe (7).

2, integrated kitchenware according to claim 1, its feature are that also described kitchen range (1) can be gas kitchen ranges, also can be the utensils that electric range, electromagnetic stove etc. have heating function.Described kitchen range (1) can be higher than kitchen range top face (2), be lower than kitchen range top face or equal with kitchen range top face.Described kitchen range can be single-hole ranges, also can be the combinations of eyes kitchen range or multi-hole kitchen range.

3, integrated kitchenware according to claim 1, its feature are that also there is boss described collection smoke box bottom with the blower fan junction, has air outlet to link to each other with discharge pipe in the middle of the boss; Collection smoke box bottom minimum point has oil leaking hole to link to each other with oil pipe; The collection smoke box has service hatch towards the face of air inlet.

4, integrated kitchenware according to claim 1, its feature are that also smoke collecting port exceeds kitchen range top face, and there is web plate at described smoke collecting port place, and web plate can be that individual layer also can be that multilayer be arranged in parallel.
