CN201177395Y

CN201177395Y - Rod type dual vacuum pipe solar water heater

Info

Publication number: CN201177395Y
Application number: CNU2007201461585U
Authority: CN
Inventors: 罗永清
Original assignee: Individual
Current assignee: Individual
Priority date: 2007-04-11
Filing date: 2007-04-11
Publication date: 2009-01-07
Anticipated expiration: 2017-04-11

Abstract

The utility model belongs to the solar heat collector field, particularly relating to a solar water heater in which working fluids flow by a tubular heat absorption pipeline. The water heater comprises a shell, an outer seal head, a heat preservation layer, a condensation or heat exchange end, a hammer-shaped heat storage water tank, an air discharge and overflow pipe, a water filling and water service pipe, an inner vacuum pipe, an outer vacuum pipe, a double vacuum pipe, a sealing ring, a tail support, a bracket, a tail support cushion and a decorative ring; the water heater is characterized in that the hammer-shaped heat storage water tank is big in the upper part and small in the lower part and is not round; a full-glass double vacuum heat collection pipe is used as a solar heat collector, the double vacuum pipe is inserted in the sealing ring of the hammer-shaped heat storage water tank, and the tail part of the double vacuum pipe is arranged in the tail support; the water heater utilizes the macro molecular heat conduction coating treatment and combines the technologies of the hammer-shaped solar water heater and the full-glass double vacuum solar heat collection pipe so as to increase the pressure bearing capability of the water tank, inhibit the heated water temperature gradient and improve the comfort while utilizing the hot water; moreover, the water heater also has the advantages of free and flexible time of filling cold water, no breakage of the vacuum pipe, no scale formation in the heat collection pipe, convenient mounting and maintenance, good interchangeability of the heat collection pipe and long service life, and the hot water produced by the solar water heater can be applied to production and life.

Description

Club-type duplex tube solar water heater

Technical field

The utility model belongs to field of solar collectors, relates in particular to the solar water heater that a kind of working fluid flows through the tubulose heat absorbing conduit.

Background technology

Present solar water heater, mostly be that the thermal-arrest part partly is separated with heat accumulation, it has, and the thermal efficiency is low, the water temperature gradient big, use uncomfortable shortcoming, and adopts traditional all-glass vacuum thermal-collecting tube to have the shortcoming that water can't be discharged as the incrusted deposit of medium appearance.February nineteen ninety, the Chinese patent 89208809.5 of Granted publication on the 7th disclosed a kind of club-type passive solarenergy water heater, the upper end of its heat collection water storage case is an orthodrome, and the lower end is little circular arc, and the left and right sides is the plane, vertical section forms a club-type structure, is furnished with diaphragm plate in the water tank; In August, 1993, the Chinese patent 92235560.6 of Granted publication on the 25th disclosed a kind of club-type passive solarenergy water heater, it overcomes in original club-type passive solarenergy water heater casing dividing plate and tee T aqueduct is set, it has the shell of band transparent cover plate, heat-insulation layer is installed in the shell, a heat collection water storage case is installed in the heat-insulation layer, the similar inverted rod hammer of its vertical section, one upper lateral part of heat collection water storage case has an exhaustion spill mouth, and opposite side has and can be used as into or the mouth of a river of water outlet; Above club-type solar water heater all has the bearing capacity that improves water tank, the advantage of the comfort when suppressing formed water temperature gradient in the solar energy heating process and improving water; In June, 2000, the Chinese patent 99221421.1 of Granted publication on the 7th disclosed the two vacuum solar collector tubes of a kind of full glass, it comprises glass outer tube and glass inner tube, glass outer tube ring-type sealed knot is on the outer wall of glass inner tube, glass inner tube is than the outer pipe range of glass, have the last cold water time freely make things convenient for, vacuum tube does not burst, thermal-collecting tube non-scaling, installation and maintenance are convenient, the advantage of good, the interior pipe long service life of thermal-collecting tube interchangeability.

Summary of the invention

The utility model provides a kind of club-type duplex tube solar water heater, and it has solved the heat storage water tank sealing and heat-insulating property is bad, the hot water radiation loss big, the heat-exchange end outer surface adheres to incrustation scale and causes the problem that the heat-exchange end heat exchange property is bad and service life is short in the heat transfer process.

The technical scheme that the utility model adopted is as follows:

A kind of club-type duplex tube solar water heater, comprise shell 2, outer end socket 3, heat-insulation layer 4, condensation or heat-exchange end 5, club-type heat storage water tank 6, exhaust and overflow pipe 7, go up water and water pipe 8, interior vacuum tube 9 and outer vacuum tube 10, duplex tube 11, sealing ring 12, tail carriage 13 and support 14, it is characterized in that: adopt up big and down small non-orbicular club-type structure to do heat storage water tank 6, adopt the two vacuum heat collection pipes 11 of full glass to do solar thermal collector, duplex tube 11 inserts in the sealing ring 12 of club-type heat storage water tank 6, and its pipe tail is put into tail carriage 13.

Described club-type duplex tube solar water heater, the condensation or the heat-exchange end 5 of the two vacuum heat collection pipes 11 of full glass adopt the heat treatment of macromolecule thermal-conducting coating.

Like this under effect of sunlight, the low boiling superconductive medium in the thermal-collecting tube is evaporated to condensation end, carries out heat exchange with water in the case, after water in the case is heated, under the effect of " density contrast ", constantly microcirculation, make that water temperature continues to raise club-type heat storage water tank Totally enclosed heat-preserving; Superconducting fluid in two vacuum solar collector tubes, get back at the bottom of the thermal-collecting tube during no sunlight, institute's heat accumulation water can not pass through the reverse heat radiation of duplex tube in the case, even in high and cold severe winter, hot water radiation loss in the heat storage water tank is also minimum, and having guaranteed provides productions as usual, lives and use hot water in the winter of severe cold the weather of the sun being arranged.

Club-type duplex tube solar water heater of the present utility model, its technology with club-type solar water heater and the two vacuum solar collector tubes of full glass combines, this club-type duplex tube solar water heater had both had the bearing capacity that improves water tank, the advantage of the comfort when suppressing formed water temperature gradient in the solar energy heating process and improving water, having the last cold water time again simultaneously freely makes things convenient for, vacuum tube does not burst, the thermal-collecting tube non-scaling, installation and maintenance are convenient, thermal-collecting tube interchangeability is good, the advantage of interior pipe long service life, it is widely used in production, life hot water.

Description of drawings

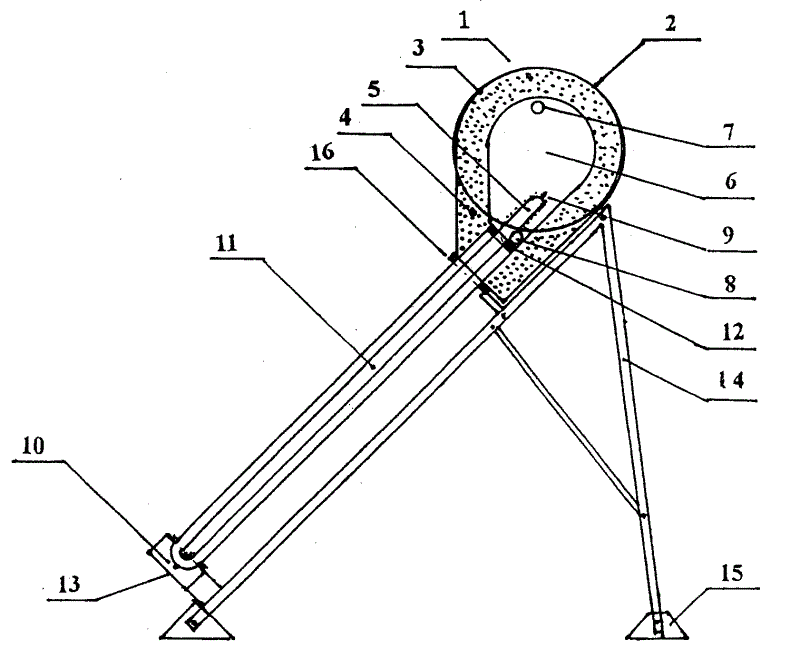

Fig. 1 is the utility model structural representation;

Fig. 2 is the utility model front view;

Fig. 3 is the utility model principle schematic;

Fig. 4 is that the utility model uses schematic diagram;

Among the figure, 1 club-type duplex tube solar water heater, 2 shells, 3 outer end sockets, 4 heat-insulation layers, 5 condensations or heat-exchange end, 6 club-type heat storage water tanks, 7 exhausts and overflow pipe, water and water pipe on 8, vacuum tubes in 9,10 outer vacuum tubes, 11 duplex tubes, 12 sealing rings, 13 tail carriages, 14 supports, 15 tail pads, 16 case rings, water and heat control valve on 17,18 standby normally open valves, 19 automatic water stopping valves, 20 use water valve, and 21 use water valve, 22 shower nozzles, water evacuated tube in the 23 manual emptying handwheels, 24 automatic water stopping valves, 25 electrothermal tubes, 26 water temperatures and water-level probe rod, 27 water temperatures and water level signal call wire, 28 temperature controllers, the 29 electrical heating anti-dry upper limits cut off the power supply automatically for controlling and show that 30 water temperatures and water level show, 31 attaching plugs, 32 power lines, 33 magnetic valves, 34 wall facade mounting means, 35 flat roof deck mounting means, 36 pitched roof mounting means.

The specific embodiment

The utility model is described in further detail below in conjunction with drawings and embodiments:

Embodiment 1:

As shown in Figures 1 to 4, a kind of club-type duplex tube solar water heater 1, comprise shell 2, outer end socket 3, heat-insulation layer 4, condensation or heat-exchange end 5, club-type heat storage water tank 6, exhaust and overflow pipe 7, last water and water pipe 8, interior vacuum tube 9 and outer vacuum tube 10, duplex tube 11, sealing ring 12, tail carriage 13 and support 14, it is characterized in that: adopt up big and down small non-orbicular club-type structure to do heat storage water tank 6, adopt the two vacuum heat collection pipes 11 of full glass to do solar thermal collector, duplex tube 11 inserts in the sealing ring 12 of club-type heat storage water tank 6, its pipe tail is put into tail carriage 13, and the condensation or the heat-exchange end 5 of the two vacuum heat collection pipes 11 of full glass adopt the heat treatment of macromolecule thermal-conducting coating.

So in use, connect water pipe and temperature control system, behind the filling up water ne-leakage, carry out system's insulation, enter normal operation, it can be installed in pitched roof 36, flat roof deck 35 or southern wall face 34.During water, open valve 17 on the first time, running water enters club-type heat storage water tank 6 through normally open valve 18, after water is full, flows into water supply valves 19 through exhaust and overflow pipe 7, and last water stops automatically, and the personnel of need not wait; During water, open with

water valve

20 and 21, hot water flows out through shower nozzle 22, when water temperature is too high, opens water and heat control valve 17, mixes with the hot water that flows out with water valve 20 at threeway place cold water, transfers to suitable water temperature; When adding water after the bathing, open handwheel 23, with waters in the automatic water stopping valve 19 after evacuated tube 24 drains, close handwheel 23, open water and heat control valve 17, running water again, enter club-type heat storage water tank 6 through standby normally open valve 18, after water is full, flow back to automatic water stopping valve 9 through exhaust and overflow pipe 7, last water stops automatically, and it is stand-by to continue heating.During no sunlight, water temperature is on the low side to need the auxiliary heating of electricity, presses the auxiliary heat button 29 of electricity, and the auxiliary heating tube 25 of electricity begins heating, and water temperature rises to when 50 ℃ of the water temperature upper limits or 60 ℃ of water temperatures are set, outage automatically, and heating stops; During water, attaching plug is pulled up, charged in the anti-sealing, use hot water bathing to guarantee to be perfectly safe.Water temperature and level sensor 26 reach temperature controller 28 with the water storage temperature in the club-type heat storage water tank, moisture storage capacity by lead 27 and demonstrate water temperature and water level at display surface 30 places, for reference before the bathing.When in the club-type heat storage water tank when anhydrous, water level signal is during to lower limit, and temperature controller 28 is opened magnetic valve 33 automatically and added water automatically, supreme in limited time automatically outage stop to add water; Anhydrous in the case, when temperature surpassed 50 ℃, magnetic valve 33 was opened automatically, and behind the upper limit full water, magnetic valve 33 cuts out automatically, and last water stops; When manually going up water, open water and heat control valve 17, when seeing overflow pipe 7 backwater, the manual sealing valve 17 of tube wall.

Claims

1, a kind of club-type duplex tube solar water heater, comprise shell (2), outer end socket (3), heat-insulation layer (4), condensation or heat-exchange end (5), club-type heat storage water tank (6), exhaust and overflow pipe (7), last water and water pipe (8), interior vacuum tube (9) and outer vacuum tube (10), duplex tube (11), sealing ring (12), tail carriage (13) and support (14), it is characterized in that: adopt up big and down small non-orbicular club-type structure to do heat storage water tank (6), adopt the two vacuum heat collection pipes (11) of full glass to do solar thermal collector, duplex tube (11) inserts in the sealing ring (12) of club-type heat storage water tank (6), and its pipe tail is put into tail carriage (13).

2, club-type duplex tube solar water heater according to claim 1 is characterized in that: the condensation or the heat-exchange end (5) of the two vacuum heat collection pipes (11) of full glass adopt the heat treatment of macromolecule thermal-conducting coating.
