Abstract

A nine-grid basketball machine, the basketball machine at least comprises a main body, a movable main frame, a first basket frame group, a second basket frame group and a third basket frame group. The movable main frame is connected with a power unit, the power unit can provide power for the movable main frame to slide forward and backward in a first pulley group; the first basket frame group can move forward and backward by the power unit; the second basket frame group can move left and right by the power unit; the basket of the third basket frame group can move up and down by the power unit. The basket frame group is moved forward and backward, left and right, and up and down to improve the efficiency of shooting practice, and can have the functions of both exercise and entertainment.

Description

Jiugong basketball machine

【Technical field】

The utility model relates to a Jiugong basketball machine, in particular to a basketball machine which can move back and forth, left and right and up and down in the basket group.

【Background technique】

A kind of shooting machine 1 that can be used for basketball can be seen everywhere in playgrounds at present, please refer to shown in Fig. 1, its main structure is to comprise in the body 10 that has electronic control circuit (not shown in the figure) inside: A slightly forward-sloping fairway 11, a backboard 12 that is upright at the end of the backboard 11, a basket 13 arranged on the front side of the backboard, a fairway 11 above the front of the basket 13 and The data display 14 for displaying the number of pitches and the score value and the ball blocking element (not shown) controlled by the electronic control circuit for opening and closing between the fairways 11, several of which are blocked behind the ball blocking element before starting Several basketballs 15, and a coin slot 16 for starting the action of the shooting machine.

Wherein, the basket frame 13 is also preset with a sensing element (not shown) that communicates with the above-mentioned electronic control circuit so as to know the action of throwing the basketball in real time. Moreover, the activated state of the above-mentioned electronic control circuit is controlled by a time delay device (not shown in the figure). When the preset time expires, the activated state of the electronic control circuit will be terminated, which is a practice program. If you want to continue to operate the pitching, you need to insert the coin again, and then the machine can start running again.

By the composition of the above-mentioned components, when the user stands at the front position of the coin slot 16, as long as a sufficient amount of coins (or tokens) are inserted in the coin slot 16, the electronic control circuit inside the body 10 can be activated to control the digital position. The ball-blocking element (not shown) below the display 14 is blocked in advance by several basketballs 15 behind the ball-blocking element, and it rolls out to the user's front by the alleyway 11. The electronic control circuit And start the data display 14 at the same time to present the preparatory counting state of zeroing, wait for the user to pick up the basketball 15 one by one and throw the ball to the basket 13, as long as a ball is thrown in the basket 13, it will be received by the sensing element on the basket 13 The signal is conveyed to the electronic control circuit, and the number of pitches and the score value are displayed on the data display 14 immediately, and it continues until the activated state of the above-mentioned electronic control circuit is controlled. It is a practice program, and on the data display 14, the Displays the total pitching score and scoring value. As long as you invest enough coins (or tokens) once, you can continue to the next practice procedure.

However, the above-mentioned existing shooting training machine 1 is in a static state because its basket 13 is always fixed at the same height position, and the user can become familiar with the consistent height position after several times of practice. and distance, fully control the proper throwing power and angle, and then can improve the header rate and score, and even get the full number of balls and full points. As a result, the shooting machine 1 gradually loses its challenge to the user, and the user's practice benefits no longer exist, resulting in limited durability (practicability) and entertainment of the shooting machine 1.

【Content of utility model】

The purpose of this utility model is to provide a Jiugong basketball machine to overcome the disadvantages of the existing shooting training machine that the basket frame is always fixed at the same height without challenging and entertaining. The basket group can be used to move back and forth, left and right and up and down, which can improve the challenge and entertainment of shooting practice.

In order to achieve the above purpose, the utility model provides a Jiugong basketball machine, which is characterized in that it includes at least:

A body, equipped with a first pulley block and a power unit;

A mobile main frame, equipped with a second pulley block, several power units, slide rail sets and cross bars;

A first basket frame group has a moving rod seat, a support column is provided on the mobile rod seat, a backboard and a basket are arranged on the support column, and the mobile rod seat can be placed between the second pulley blocks of the mobile main frame ;

A second basket frame group has a moving rod, a supporting column is provided on the moving rod, a backboard and a basket frame are arranged on the supporting column, and the moving rod is erected on the slide rail group of the mobile main frame; and

A third basket frame group is provided with a support column on the cross bar of the mobile main frame. A moving sleeve is set on the support column. The support column is connected to the power unit by a shaft rod. There are backboards and baskets, and the power unit drives the first basket group to move back and forth, the second basket group to move left and right, the third basket group to move up and down, and then the moving main frame drives the first basket group , The second basket group and the third basket group move back and forth at the same time.

In combination with the above, the main technical means used in the utility model is to provide a Jiugong basketball machine, the Jiugong basketball machine is provided with a guard net on the left and right sides and in front, and a slant plate is provided in the guard net, and the slant plate can be used for The basketball is rolled down in the ball-collecting area, and a sloping table top is provided above the ball-collecting area. The table is equipped with a data display, a checkpoint display seat, etc., so that the user can know the score of the game and the progress of the electronic category. There is a coin slot under the ball collection area.

Another technical means of the present utility model is to provide a Jiugong basketball machine, the basketball machine structure at least includes a body, a mobile main frame, a first basket group, a second basket group and a third basket group, the mobile main frame is connected with a power unit, and the power unit can provide power for the mobile main frame to slide back and forth in the first pulley block; the first basket group can move forward and backward by the power unit; the second basket The basket can move left and right by the power unit; the basket of the third basket group can move up and down by the power unit, and the basket group can move back and forth, left and right, and up and down to improve the effectiveness of shooting practice and can also It has the effect of exercising and improving entertainment.

The effect of the utility model is that the first basket group moves back and forth, the second basket group moves left and right, and the third basket group moves up and down, and then the moving main frame drives the first basket group and the second basket group to move up and down. The basket group and the third basket group move back and forth at the same time, and can randomly prompt the user to throw different baskets, so that the user can simulate various shooting actions at different positions, angles, heights and distances to improve And increase the pitching difficulty produced by its displacement change, and have both sports and entertainment, so as to achieve the interest and benefit of greatly stimulating consumers to use.

【Description of drawings】

Fig. 1 is a perspective view of a conventional shooting machine.

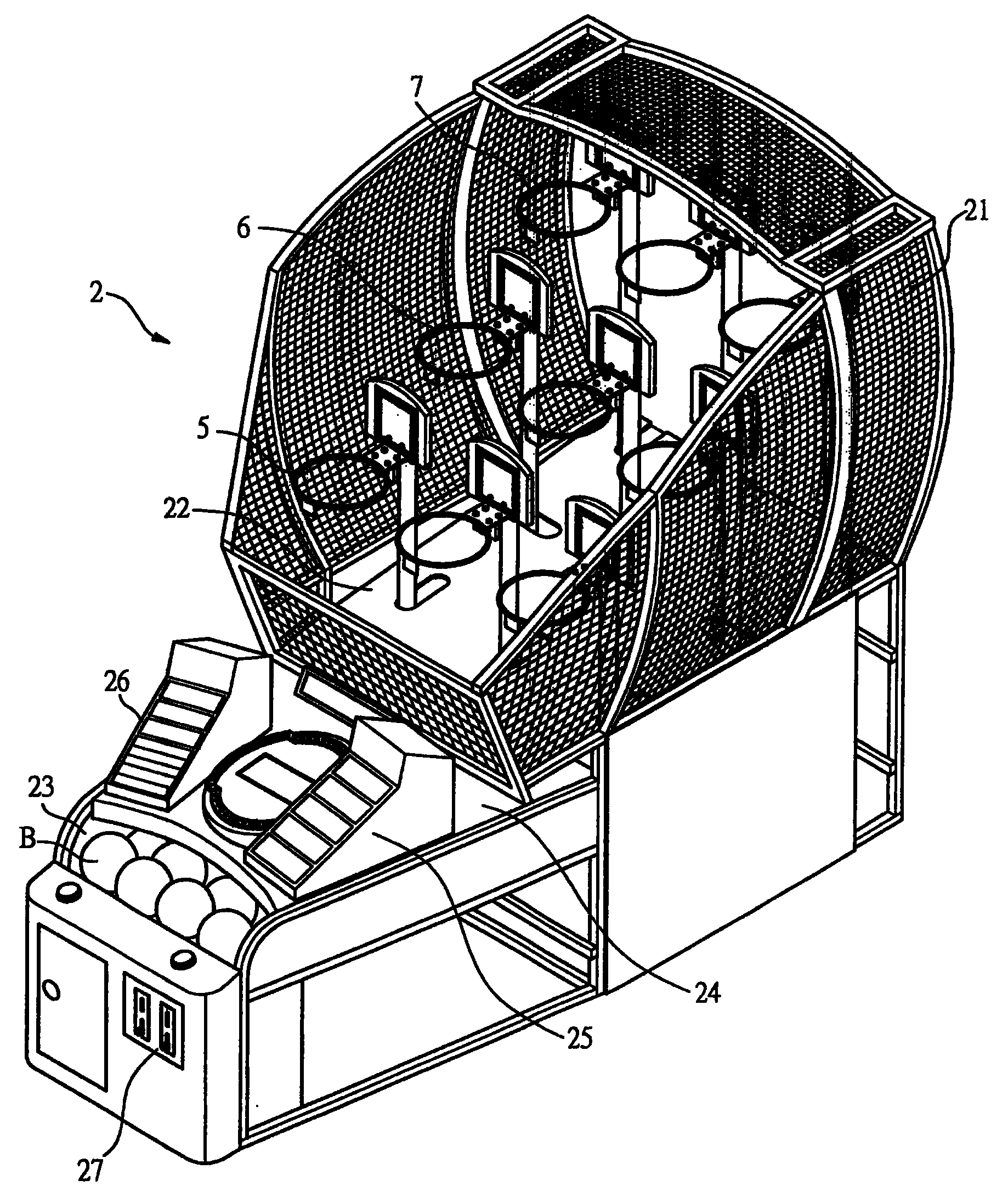

Fig. 2 is a schematic diagram of the appearance of the Jiugong basketball machine of the present invention.

Fig. 3 is a three-dimensional exploded view of the internal structure of the Jiugong basketball machine of the present invention.

Fig. 4 is a perspective view of the mobile main frame of the Jiugong basketball machine of the present invention.

Fig. 5 is a perspective view of the first basket group of the Jiugong basketball machine of the present invention.

Fig. 6 is a three-dimensional exploded view of the basket of the Jiugong basketball machine of the present invention.

Fig. 7 is a perspective view of the second basket group of the Jiugong basketball machine of the present invention.

Fig. 8 is a three-dimensional exploded view of the third basket frame group of the Jiugong basketball machine of the present invention.

Fig. 9 is a three-dimensional exploded view of the third basket group of the Jiugong basketball machine of the present invention.

【Detailed ways】

In order to make it easier to understand the structure of the utility model and the effect that can be achieved, it is described as follows in conjunction with the accompanying drawings:

First of all, please refer to Fig. 2, which is a schematic view of the appearance of the Jiugong basketball machine 2 of the present invention. The Jiugong basketball machine 2 is provided with a guard net 21 on the left and right sides and in front, and a slant plate 22 is arranged in the guard net 21. The inclined plate 22 can be used for the basketball B to roll down in the ball collection area 23, and an inclined table top 24 is provided above the ball collection area 23. The table top 24 is provided with a data display 25, a checkpoint display seat 26, etc. A coin slot 27 is provided below the ball collection area 23 for the user to know the score of the game and the electronic device for progress.

Please refer to Figures 3 and 4 for the second time. The internal structure of the Jiugong basketball machine 2 of the present utility model at least includes a body 3, a mobile main frame 4, a first basket group 5, a second basket group 6 and a first basket group. Three-basket set 7.

Main body 3, this main body 3 is a frame body, is provided with the first pulley group 31 of up-and-down symmetry on two sides of main body 3, is provided with a power unit 32 on the frame body of main body 3 in addition, and this power unit 32 is to move main frame 4-connected set.

The mobile main frame 4, the rods 41 on both sides can be placed between the first pulleys 31 of the body 3, and driven by the power unit 32, the mobile main frame 4 can be moved back and forth between the first pulleys 31, Wherein, the two sides of this mobile main frame are provided with second pulley block 42, and are provided with induction sheet 43 at the appropriate position of mobile main frame 4, and this induction sheet 43 can be provided with the sensing element 33 on the main body 3 and sense, when When the sensor 331 of the sensing element 33 detects the sensor sheet 43, the power element 32 immediately moves the main frame 4 to move forward, and when the sensor 332 of the sensor element 33 detects the sensor sheet 43, the power element 32 can Make the mobile main frame 4 move backwards, reciprocate like this, on the mobile main frame 4, be fixedly provided with slide rail group 44, cross bar 45 and a power unit 46 in addition.

The first basket frame group 5, please refer to Fig. 3, shown in 5 at the same time, this first basket frame group 5 has a moving bar seat 51, and the two side bars 511 of this mobile bar seat 51 can be placed on the mobile main frame 4 Between the second pulley block 42, three support columns 52 are provided on the forward and backward moving rod seat 51, and each support column 52 is respectively provided with a backboard 53, a basket frame 54 and a fixed seat 55, as shown in Figure 6, this backboard 53 is The screw element is used to lock on the fixing seat 55, and the basket 54 extends a fixing plate 541 which can be fixed on the fixing seat 55. The fixing seat 55 is fixed on the top of the support column 52, wherein the fixing seat A specular reflection sensor 551 is provided below, and a wing 542 is provided directly in front of the basket frame 54 corresponding to the position of the specular reflection sensor 551, and a reflective sheet 543 is attached to the wing 542. The mobile rod seat 51 of 5 is connected with the power unit 46 on the mobile main frame 4, and the power unit 46 can drive the mobile rod seat 51 to move back and forth between the second pulley block 42, and set the rod body 511 at an appropriate place. There is a sensing piece 56 which can be sensed by the sensors 341 and 342 of the sensing element 34 provided on the main body 3 .

The second basket group 6, please refer to shown in Fig. 7, this second basket group 6 has a moving bar 61, and this moving bar 61 is to be erected on the slide rail group 44 on the mobile main frame 4, and when moving A power unit 47 is fixedly installed on the main frame 4 in addition, and the power unit 47 is connected with the moving rod 61. The moving rod 61 can be driven to move left and right on the slide rail group 44 by the power unit 47. The moving rod 61 An induction sheet 62 is provided at the appropriate place, and the induction sheet 62 can be used for sensing by the sensors 351, 352, 353 of the sensing element 35 on the body 3. Three supporting columns 63 are arranged on the top of the moving rod 61, each supporting The post 63 is respectively provided with a backboard 64, a basket frame 65 and a fixed seat 66. The structure of the backboard 64, the basket frame 65 and the fixed seat 66 is the same as that of the backboard 53, the basket frame 54 and the fixed seat 55 of the first basket group 5. , so it will not be described here.

The 3rd basket frame group 7, referring also to shown in Fig. 8, 9, this 3rd basket frame group 7 is to be provided with three support columns 71 on the cross bar 45 of moving main frame 4 (the figure is an example), the A movable sleeve 72 is sleeved above the support column 71, and a backboard 73, a basket frame 74 and a fixed seat 75 are respectively arranged on the movable sleeve 72, and the backboard 73, the basket frame 74 and the fixed seat 75 are combined with the first basket frame. The backboard 53 of 5, basket frame 54 and fixed seat 55 are identical, so do not repeat them here. The third basket group 7 is also fixed with a power unit 48 on the cross bar 45, the power unit 48 is connected with a shaft 481, the top of the shaft 481 is a screw part 482, and the screw part 482 is provided with several shaft sleeves 483 is fixed with the moving sleeve 72, and several bearings 484 are fixed with the support column 71 on the shaft rod 481, and a long rod 76 is fixed on the moving sleeve 72, and an induction rod 76 is arranged below the long rod 76. piece 77, the induction piece 77 can be provided on the sensor 361,362 of the sensing element 36 on the body 3 to sense, when the power unit 48 starts, it will drive the shaft 481 and the screw part 482 to rotate, and the screw part 482 The shaft sleeve 483 can drive the moving sleeve 72 to move up and down.

The action of the Jiugong basketball machine 2 of the present utility model is that after the user puts in a sufficient amount of coins (or tokens) from the coin slot 27, the internal electronic control circuit (not shown) can be started, and at the same time Start the data display 25 and present the pre-counting state of zeroing. When the game starts, the utility model can make the first basket group 5 be set on the first basket group 5 by the induction sheet 56 on the rod body 511 through the setting of the electronic control circuit. The sensors 341 and 342 of the sensing element 34 on the main body 3 are sensed, and the power unit 46 can drive the mobile rod seat 51 to move back and forth between the second pulley blocks 42; when the throwing of the first basket group 5 is finished, The second basket frame group 6 can be sensed by the sensors 351, 352, 353 of the sensing element 35 provided on the body 3 of the moving rod 61, and the power unit 47 drives the moving rod 61 on the slide rail group 44 After finishing the throwing of the second basket group 6, the third basket group 7 will start the power unit 48, and drive the shaft 481 and the screw part 482 to rotate, and the screw part 482 can be used to The shaft sleeve 483 drives the moving sleeve 72 to move up and down; finally, the first basket group 5, the second basket group 6, the third basket group 7 and the moving main frame 4 move simultaneously again, thereby achieving Increase the difficulty of shooting, enhance the challenge and entertainment of the game.

In addition, when the backboards 53, 65, and 73 of the present invention are implemented, they can be implemented with transparent acrylic plates (or light guide plates) and equipped with cold-cathode lamp tubes to produce different lighting effects, and the cold-cathode lamps The tube can be connected with the electronic control circuit, and the electronic control circuit can make the cold cathode lamp emit light at random to prompt the user to throw the basket, thereby increasing the fun of shooting.

Furthermore, when the present invention is implemented, the first basket frame group 5 in the front is moved left and right, and the second basket frame group 6 is configured to move forward and backward.

The effect of the utility model is that the first basket group 5 moves back and forth, the second basket group 6 moves left and right, the third basket group 7 moves up and down, and then the moving main frame 4 drives the first basket Group 5, the second basket group 6 and the third basket group 7 move back and forth at the same time, and can randomly prompt the user to throw different baskets, so that the user can simulate various positions, angles, heights and The shooting action of the distance, in order to improve and increase the difficulty of shooting caused by the change of its position, and has both sports and entertainment, so as to achieve the interest and benefit of greatly stimulating consumers to use.

To sum up, the utility model can indeed achieve the desired purpose and effect by virtue of the structure of the above-mentioned Jiugong basketball machine.

[Description of main component symbols]

1 Shooting machine 10 Main body 11 For the fairway



                                                    15 Basketball



2 Jiugong basketball machine 21 Guard net 22 Inclined board



                                                            26 level display seats

                        27 coin slots

3 body 31 first pulley block 32 power unit

                    33 sensing elements

                                                      331, 332 sensors

34 sensing elements

                                                              341, 342 sensors

35 sensing elements

                                                  351, 352, 353 sensors

36 sensing elements

                                                    361, 362 sensors

4 mobile main frame 41 rod body 42 second pulley block



          46, 47, 48 power units





5 The first basket group 51 Moving rod seat 511 Rod body





551 mirror reflection sensor



6 second basket group 61 moving rod



64 rebounds 65 baskets



7 The third basket group 71 Support column 72 Mobile casing

73 rebounds 74 baskets





Bbasketball

Claims (7)

1. palace basketball machine is characterized in that: include at least:

One body is provided with first assembly pulley and a power unit;

One moves body frame, is provided with second assembly pulley, several power units, slide rail set and cross bar;

One first hoop group has the pole socket of moving, and this moves pole socket and is provided with support column, and this support column is provided with backboard and hoop, and this mobile pole socket places between second assembly pulley of mobile body frame;

One second hoop group has a carriage release lever, and this carriage release lever is provided with support column, and this support column is provided with backboard and hoop, and this carriage release lever is to be set up on the slide rail set of mobile body frame; And

One the 3rd hoop group, be on the cross bar of mobile body frame, support column to be set, this support column is arranged with one and moves sleeve pipe, this support column is to be connected with power unit with an axostylus axostyle, be respectively equipped with backboard and hoop on this mobile sleeve pipe, drive by power unit that the first hoop group moves forward and backward, the second hoop group is made move left and right, the 3rd hoop group moves up and down, drive the first hoop group, the second hoop group and the 3rd hoop group moving before and after doing simultaneously by mobile body frame again.

2. nine palace basketball machines as claimed in claim 1 is characterized in that: this backboard is transparent acrylic plate or LGP.

3. nine palace basketball machines as claimed in claim 2, it is characterized in that: this backboard is provided with CCFL.

4. nine palace basketball machines as claimed in claim 1 is characterized in that: moving about this first hoop group can be done.

5. nine palace basketball machines as claimed in claim 1 is characterized in that: moving before and after this second hoop group can be done.

6. nine palace basketball machines as claimed in claim 1 is characterized in that: this axostylus axostyle top is a threaded shank.

7. nine palace basketball machines as claimed in claim 6, it is characterized in that: this threaded shank is provided with several axle sleeves and mobile sleeve pipe sets firmly.
