The utility model relates to a safety protection device for 5G distribution network communication, which belongs to the technical field of distribution network communication and comprises a box body and a controller, wherein a heat conducting plate which is vertically arranged is fixed in the box body, a plurality of groups of distribution network communication modules are fixed on one side of the heat conducting plate at vertical intervals, a plurality of temperature sensor assemblies are also fixed on the heat conducting plate, each temperature sensor assembly is arranged in one-to-one correspondence with each distribution network communication module, a circulating cooling mechanism is arranged on the other side of the heat conducting plate, the circulating cooling mechanism and each temperature sensor assembly are electrically connected with the controller, and the controller is used for controlling the circulating cooling mechanism to dissipate heat of the distribution network communication module corresponding to the corresponding temperature sensor assembly according to temperature data sent by the temperature sensor assembly. The utility model can effectively improve the heat dissipation rate of the 5G distribution network communication device and prevent the 5G distribution network communication device from being damaged due to high temperature.
Description
Technical Field
The utility model relates to a safety protection device for 5G distribution network communication, and belongs to the technical field of distribution network communication.
Background
The 5G network is a fifth generation mobile communication network, and the peak theoretical transmission speed can reach 1GB per 8 seconds, which is hundreds of times faster than the transmission speed of the 4G network. Compared with the prior generation mobile communication technology, the 5G has the characteristics of super large bandwidth, super high speed, super low time delay, super multiple connections and the like, and is beneficial to improving the power supply quality and the flexibility of a power system.
Because the operating frequency of 5G distribution network communication equipment is very high, it must produce a large amount of heat at the during operation, and current 5G distribution network communication equipment is mostly radiating effect not good, uses for a long time and causes the inside high temperature of equipment easily, and then causes the damage of internal circuit and electronic components, influences communication equipment's use.
The utility model discloses a join in marriage net communication equipment cabinet in chinese utility model patent of publication No. CN208766363U, including upper cover, the cabinet body, main cabinet door, side cabinet door, diaphragm, erect baffle, bottom plate, battery, radiator fan and optical network unit, the upper cover welds at cabinet body top, the cabinet body openly is the installation zone, the installation zone surface passes through hinged joint main cabinet door, bottom plate surface threaded connection erects the baffle, erects baffle quantity and passes through the diaphragm to be connected between the baffle, divide into the three-layer through the diaphragm, the battery has been placed to cabinet body bottom layer, and cabinet body top layer is the reservation layer, the diaphragm outside corresponds the installation zone.
The above-mentioned reference example only carries out the forced air cooling through the radiator fan, and not only the radiating rate is slow, and the radiating effect is poor, can't dispel the heat to the internal distribution network communication part of cabinet accurately moreover, causes the part to damage easily, consequently the urgent need carries out improvement.
Disclosure of Invention
In order to overcome the defects that the existing distribution network communication equipment cabinet cannot form targeted heat dissipation, low heat dissipation speed, poor heat dissipation effect and the like according to the heating condition of distribution network communication equipment, the utility model designs a safety protection device for 5G distribution network communication, which can effectively improve the heat dissipation rate of a 5G distribution network communication device and prevent the 5G distribution network communication device from being damaged due to high temperature.
In order to achieve the above purpose, the present utility model adopts the following technical scheme:
the utility model provides a safety protection device of network communication is joined in marriage to 5G, includes box and controller, the inside heat-conducting plate that is fixed with vertical setting of box, heat-conducting plate one side is fixed with a plurality of group's network communication module along vertical interval, just still be fixed with a plurality of temperature sensor subassembly on the heat-conducting plate, each temperature sensor subassembly sets up with each network communication module one-to-one, the heat-conducting plate opposite side is provided with circulation cooling mechanism, circulation cooling mechanism and each temperature sensor subassembly all are connected with the controller electricity, the controller is used for cooling the network communication module that joins in marriage corresponding temperature sensor subassembly according to the temperature data control circulation cooling mechanism that temperature sensor subassembly sent.
Further, the circulation cooling mechanism comprises a back plate, a liquid pump and a plurality of sealing covers, wherein the back plate is fixed in the box body, a containing cavity is formed in the back plate, cooling liquid is arranged in the containing cavity and each sealing cover, each sealing cover is installed on one side of the heat conducting plate away from the distribution network communication module in a sealing mode, the installation positions of each sealing cover are in one-to-one correspondence with the installation positions of the distribution network communication modules, each sealing cover is communicated with a liquid outlet of the liquid pump through a branch pipe, an electric control valve for controlling on-off of the corresponding branch pipe is arranged on each branch pipe, a liquid inlet of the liquid pump is communicated with the containing cavity, any two adjacent sealing covers are connected through a three-way electromagnetic valve, a third port of each three-way electromagnetic valve is communicated with the containing cavity, and the liquid pump, the electric control valve and each three-way electromagnetic valve are electrically connected with a controller.
Further, each branch pipe is provided with a hydraulic sensor for detecting the cooling liquid pressure in the pipe, and the hydraulic sensor is electrically connected with the controller.
Further, a plurality of through holes communicated with the sealing covers are formed in the heat conducting plate, a flow guiding strip is covered on one side, close to the distribution network communication module, of the through holes, the flow guiding strip is in sealing connection with the heat conducting plate, and the section shape of the flow guiding strip is an arc-shaped bulge.
Further, the air inlet is formed in the bottom of the box and located at one side of the distribution network communication module, the air suction fan is installed at the air inlet, the air outlet is formed in the top of the box and located at the position right above the air inlet, the exhaust fan is installed at the air outlet, the air suction fan and the exhaust fan are electrically connected with the controller, and the controller controls the air suction fan and the exhaust fan to start when the guide strip is extruded by cooling liquid and stretches out to one side far away from the sealing cover.
Further, the heat conducting plate comprises a plurality of mutually independent plate bodies, any two adjacent plate bodies are separated by heat insulation strips, and each group of network communication modules and corresponding sealing covers are correspondingly arranged on each plate body one by one.
Further, an auxiliary heat dissipation layer is arranged on one side, away from the heat conducting plate, of the back plate.
Further, the auxiliary heat dissipation layer is a graphite layer.
Further, a radiating fin is arranged in the sealing cover, and the radiating fin is fixed with and contacted with the heat conducting plate.
Further, the upper part of the guide strip is also provided with an elastic telescopic part, and the elastic coefficient of the telescopic part is smaller than that of the guide strip.
Compared with the prior art, the utility model has the following characteristics and beneficial effects:
1. according to the utility model, the controller, the temperature sensor and the electromagnetic valves are arranged, so that the controller can determine that the temperature of a certain distribution network communication module is abnormal according to the temperature detected by the temperature sensor, and further the controller controls the opening and closing of the corresponding electromagnetic valve to realize accurate heat dissipation and temperature reduction of the certain distribution network communication module, thereby greatly improving the heat dissipation effect and effectively preventing damage caused by overheat of distribution network communication equipment; meanwhile, when one or more distribution network communication modules are at low temperature, the controller can control the opening and closing of the corresponding electromagnetic valves, and the hot cooling liquid of the distribution network communication module which is in working heating is conveyed to the corresponding low-temperature distribution network communication module, so that the distribution network communication module at low temperature is heated, is separated from a low-temperature state and enters a normal working temperature range, and therefore the working stability of the whole distribution network communication module and the protection capability on a low-temperature environment are improved.
2. According to the utility model, mixed heat dissipation is realized on the 5G distribution network communication module in a mode of combining liquid cooling and multi-azimuth air cooling, the cooling liquid plays a main cooling role, and meanwhile, the primary cooling and cooling of the distribution network communication module are realized by arranging the heat conducting plate, the back plate and the auxiliary heat dissipation layer to be matched; when the heat radiation capacity of the cooling liquid reaches the limit, the fan is started by the controller, the hydraulic pressure sensor is arranged, the hydraulic pressure of the cooling liquid in the pipeline is controlled by the controller while the fan is started, so that the rising air flow can form air vortex when flowing through the flow guide strip, the air flow in the air vortex area can be in contact with the bottom surface and corner parts of the distribution network communication module and take away the heat of the bottom surface and the corner parts, and the air flow which is not blocked by the flow guide strip is directly blown to the front surface of the distribution network communication module, the omnibearing air cooling of the distribution network communication module is realized, the good cooling effect is achieved, the cooling liquid and the combination of the air cooling mode can improve the heat radiation rate of the 5G distribution network communication module, the high temperature of the distribution network communication module is effectively restrained, and the 5G distribution network communication module is prevented from being damaged due to the high temperature, and the good protection effect is achieved on the 5G distribution network communication module.
Drawings

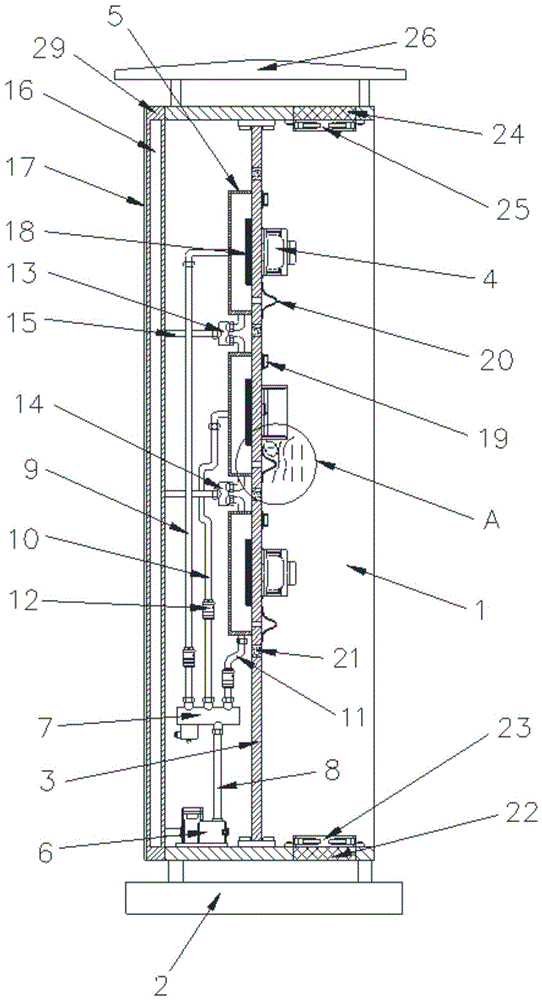

FIG. 1 is a schematic overall structure of a first embodiment of the present utility model;
FIG. 2 is an enlarged partial schematic view at A of FIG. 1;
FIG. 3 is a schematic diagram of the connections of the controller of the present utility model;
fig. 4 is a schematic structural diagram of a flow guiding strip according to a second embodiment of the present utility model.
Wherein the reference numerals are as follows: 1. a case; 2. a base; 3. a heat conductive plate; 4. a distribution network communication module; 5. a sealing cover; 6. a liquid pump; 7. a four-way electromagnetic valve; 8. a liquid outlet pipe; 9. a first branch pipe; 10. a second branch pipe; 11. a third branch pipe; 12. a hydraulic pressure sensor; 13. a three-way electromagnetic valve I; 14. a three-way electromagnetic valve II; 15. a return pipe; 16. a receiving chamber; 17. an auxiliary heat dissipation layer; 18. a heat sink; 19. a temperature sensor assembly; 20. a flow guiding strip; 21. a heat insulating strip; 22. an air inlet; 23. an exhaust fan; 24. an exhaust port; 25. an exhaust fan; 26. a top cover; 27. a through hole; 28. a telescopic part; 29. a back plate.
Detailed Description
The present utility model will be described in more detail with reference to examples.
Example 1
As shown in fig. 1-2, the safety protection device for 5G distribution network communication in this embodiment includes a box 1 and a controller, a vertically disposed heat conducting plate 3 is fixed inside the box 1, three groups of distribution network communication modules 4 are fixed on one side of the heat conducting plate 3 along a vertical interval (in other embodiments, the number of the distribution network communication modules 4 may be two groups, four groups or more), the distribution network communication modules 4 are in contact with the heat conducting plate 3, so that heat on the distribution network communication modules 4 can be conducted onto the heat conducting plate 3, and three temperature sensor assemblies 19 are fixed on the heat conducting plate 3, the three temperature sensor assemblies 19 are arranged in one-to-one correspondence with the three distribution network communication modules 4, a circulating cooling mechanism is arranged on the other side of the heat conducting plate 3, the circulating cooling mechanism and each temperature sensor assembly 19 are electrically connected with the controller, and the controller is used for controlling the circulating cooling mechanism to dissipate heat of the distribution network communication modules 4 corresponding to the corresponding temperature sensor assemblies 19 according to temperature data sent by the temperature sensor assemblies 19.
Further, the circulation cooling mechanism comprises a back plate 29, a liquid pump 6 and three seal covers 5, the back plate 29 is fixed in the box body 1, a containing cavity 16 is formed in the back plate 29, cooling liquid is arranged in the containing cavity 16 and each seal cover 5, each seal cover 5 is installed on one side, far away from the distribution network communication module 4, of the heat conducting plate 3 in a sealing mode, accordingly, a closed space is formed between the seal cover 5 and the heat conducting plate 3, the installation positions of the seal covers 5 are in one-to-one correspondence with the installation positions of the distribution network communication modules 4, each seal cover 5 is communicated with a liquid outlet of the liquid pump 6 through a branch pipe, each branch pipe is provided with an electric control valve for controlling on-off of the corresponding branch pipe, a liquid inlet of the liquid pump 6 is communicated with the containing cavity 16, any two adjacent seal covers 5 are connected through three-way electromagnetic valves, a third port of each three-way electromagnetic valve is communicated with the containing cavity 16, and the liquid pump 6, the electric control valve and each three-way electromagnetic valve are electrically connected with the controller.
Specifically, a liquid pump 6, a first branch pipe 9, a second branch pipe 10 and a third branch pipe 11 are arranged in the box body 1, a containing cavity 16 is arranged in a back plate 29 of the box body 1, and the back plate 29 is made of a high heat conduction material so as to have good heat dissipation performance; the liquid outlet of the liquid pump 6 is connected with a first port of the four-way electromagnetic valve 7 through a liquid outlet pipe 8, the liquid inlet of the liquid pump 6 is communicated with the inside of the accommodating cavity 16 through a pipeline, one end of the first branch pipe 9 is connected with a second port of the four-way electromagnetic valve 7, and the other end of the first branch pipe 9 is communicated with the inside of the first group of sealing covers 5; one end of the second branch pipe 10 is connected with the third port of the four-way electromagnetic valve 7, and the other end of the second branch pipe is communicated with the inside of the second group of sealing covers 5; one end of the third branch pipe 11 is connected with the fourth port of the four-way electromagnetic valve 7, and the other end of the third branch pipe is communicated with the inside of the third group of sealing covers 5;
a three-way electromagnetic valve I13 is arranged between the first group of sealing covers 5 and the second group of sealing covers 5, a first port of the three-way electromagnetic valve I13 is communicated with the interior of the first group of sealing covers 5, a second port of the three-way electromagnetic valve I13 is communicated with the interior of the second group of sealing covers 5, and a third port of the three-way electromagnetic valve I13 is communicated with the interior of the accommodating cavity 16 through a return pipe 15; a three-way electromagnetic valve II 14 is arranged between the second group of sealing covers 5 and the third group of sealing covers 5, a first port of the three-way electromagnetic valve II 14 is communicated with the inside of the second group of sealing covers 5, a second port of the three-way electromagnetic valve II 14 is communicated with the inside of the third group of sealing covers 5, and a third port of the three-way electromagnetic valve II 14 is communicated with the inside of the accommodating cavity 16 through a return pipe 15.
Further, each branch pipe is provided with a hydraulic pressure sensor 12 for detecting the pressure of the cooling fluid in the pipe, and the hydraulic pressure sensor 12 is electrically connected to the controller.
Further, the heat conducting plate 3 is provided with a plurality of through holes 27 communicated with the sealing covers 5, one side, close to the distribution network communication module 4, of each through hole 27 is covered with a guide strip 20, the guide strips 20 are in sealing connection with the heat conducting plate 3, the cross section of each guide strip 20 is in an arc-shaped bulge, and cooling liquid passes through the through holes 27 and enters the guide strips 20.
Further, an air inlet 22 is formed in the bottom of the box 1 and located at one side of the distribution network communication module 4, an exhaust fan 23 is installed at the air inlet 22, an exhaust port 24 is formed in the top of the box 1 and located right above the air inlet 22, an exhaust fan 25 is installed at the exhaust port 24, the exhaust fan 23 and the exhaust fan 25 are electrically connected with a controller, and the controller controls the exhaust fan 23 and the exhaust fan 25 to start when the guide strip 20 is extruded by cooling liquid and stretches out to the side far away from the sealing cover 5.
Specifically, referring to fig. 3, the controller includes a main control module, and further includes a motor driving module, a power module and a communication module connected with the main control module, where the motor driving module is connected with the liquid pump 6 and is used for driving the liquid pump 6; the communication module is used for communicating with external equipment; the power supply module is used for supplying power;
the controller also comprises a fan driving module, the input end of the fan driving module is connected with the control signal output end of the main control module, and the driving end of the fan driving module is connected with the exhaust fan 23 and the exhaust fan 25 and used for driving the exhaust fan 23 and the exhaust fan 25 to rotate.
The output end of each temperature sensor assembly 19 is connected with a sampling port of the main control module, and the three-way electromagnetic valve I13, the three-way electromagnetic valve II 14 and the control end of the four-way electromagnetic valve 7 are connected with the control signal output end of the uniform main control module; the output end of the hydraulic sensor 12 is connected with a sampling port of the main control module.
Specifically, the utility model also provides a control method of the controller, which specifically comprises the following steps:
initially, the liquid pump 6 is in a stop state, a large amount of heat is generated by the distribution network communication module 4 in the working process, so that the temperature of the distribution network communication module 4 rises, the temperature of the heat conducting plate 3 rises along with the temperature rise, the temperature sensor assembly 19 detects the temperature of the heat conducting plate 3 in real time, the detected temperature value is fed back to the main control module, the main control module compares the detected temperature with a preset first preset temperature value, and when the detected temperature value is larger than the first preset temperature value, the main control module controls the liquid pump 6 to start and controls the four-way electromagnetic valve 7 and the three-way electromagnetic valve to be started, and the liquid pump 6 drives cooling liquid to circularly flow between the sealing cover 5 and the accommodating cavity 16;
when the cooling liquid carrying heat flows into the accommodating cavity 16, the backboard 29 has good heat dissipation performance and the backboard 29 has a larger heat dissipation area, and the temperature of the cooling liquid in the accommodating cavity 16 is higher than the external environment temperature, so that the backboard 29 can rapidly and efficiently dissipate heat, the cooling liquid in the accommodating cavity 16 is rapidly cooled down, the cooled cooling liquid flows back into the sealing cover 5, and the circulation is performed, so that the heat generated by the network communication module 4 can be rapidly dissipated out of the box body 1;
because the working states of the distribution network communication modules 4 are different, the temperature rising conditions of the distribution network communication modules 4 are different, and for the distribution network communication modules 4 which do not need to dissipate heat and cool, the cooling liquid can not flow through the corresponding sealing covers 5, but is intensively conveyed to the distribution network communication modules 4 which need to cool, so that the cooling mode can be flexibly selected according to the working condition difference of the distribution network communication modules 4, the application of the device is more flexible, and the diversified cooling requirements are met.
Specifically, in this embodiment, since each seal cover 5 is connected with a branch pipe, the flow direction of the cooling liquid can be controlled according to different conditions, which is specifically as follows:
when the temperature detected by only one group of temperature sensor assemblies 19 is too high, the situation that the distribution network communication module 4 in the area where the temperature sensor assemblies 19 are located has high temperature and needs to dissipate heat and cool is indicated, at the moment, the main control module controls the four-way electromagnetic valve 7 to enable the branch pipe of the sealing cover 5 corresponding to the distribution network communication module 4 to be conducted, controls the three-way electromagnetic valve to enable the sealing cover 5 to be conducted with the accommodating cavity 16, cooling liquid can only circulate between the sealing cover 5 and the accommodating cavity 16 after the liquid pump 6 is started, the cooling liquid in a low-temperature state can flow to the sealing cover 5 in a concentrated mode, the situation that the distribution network communication module 4 is subjected to targeted concentrated heat dissipation and cooling is guaranteed, local overheating in the area is avoided, the distribution network communication module 4 is effectively protected, and the distribution network communication module 4 is prevented from being high Wen Shousun;
when the temperature detected by at least two groups of temperature sensor assemblies 19 is too high, the main control conducts the sealing cover 5 of the corresponding area with the accommodating cavity 16 through the control of the four-way electromagnetic valve 7 and the three-way electromagnetic valve, the liquid pump 6 drives cooling liquid to circularly flow in the sealing cover 5 and the accommodating cavity 16, and the simultaneous heat dissipation and cooling of each group of network communication modules 4 are realized, so that the overall rapid heat dissipation and cooling in the box body 1 are facilitated.
Particularly, when the external temperature is low, the low temperature may affect the normal operation of the distribution network communication module 4, and because the heat productivity of each distribution network communication module 4 during operation is different, the heat of the distribution network communication module 4 with high temperature can be partially transferred to the distribution network communication module 4 with low temperature in the low temperature environment, so as to heat the low temperature distribution network communication module 4, which is specifically as follows:
the main control module compares the output values of the temperature sensor assemblies 19, and when the temperature value of one group of the temperature sensor assemblies 19 is lower than a preset low temperature value, the main control module indicates that the low temperature condition occurs in the distribution network communication module 4 of the area where the temperature sensor assemblies 19 are positioned, and the main control module needs to heat the distribution network communication module;
at this time, the main control module controls the corresponding electromagnetic valve to enable the liquid outlet of the liquid pump 6 to be communicated with the sealing cover 5 (hereinafter referred to as a high-temperature sealing cover 5) behind the distribution network communication module 4 with the highest temperature, and enable the sealing cover 5 (hereinafter referred to as a low-temperature sealing cover 5) behind the distribution network communication module 4 to be communicated with the high-temperature sealing cover 5 under the low-temperature condition, so that the liquid pump 6 drives the cooling liquid to sequentially flow through the high-temperature sealing cover 5, the low-temperature sealing cover 5 and the accommodating cavity 16;
the cooling liquid absorbs the heat of the high-temperature distribution network communication module 4 when flowing through the high-temperature sealing cover 5, and the heat is released when flowing into the low-temperature sealing cover 5 along with the cooling liquid, so that the low-temperature distribution network communication module 4 is heated, and is separated from a low-temperature condition, and then can work normally.
Particularly, in the process of cooling the liquid of a certain distribution network communication module 4, if the temperature of the distribution network communication module 4 is detected to be still rising, which indicates that the liquid cooling rate at the moment is difficult to meet the requirement of the distribution network communication module 4, the distribution network communication module 4 may be damaged due to continuous heating, and then the controller further controls the cooling, specifically as follows;
in the liquid cooling process, if the main control module detects that the temperature of a certain assembly network communication module 4 (hereinafter referred to as an abnormal assembly network communication module 4) continues to rise to a preset second preset temperature value (the second preset temperature value is larger than the first preset temperature value), at this time, the main control module sends a command to the motor driving module to enable the motor driving module to drive the liquid pump 6 to operate at a higher rotating speed so as to increase the pumping pressure of the cooling liquid, so that the hydraulic pressure in the sealing cover 5 behind the abnormal communication module is increased along with the abnormal assembly network communication module, the corresponding hydraulic pressure sensor 12 on the branch pipe detects the hydraulic pressure of the sealing cover 5 in real time (the hydraulic pressure in the branch pipe can reflect the hydraulic pressure in the sealing cover 5), the hydraulic pressure sensor 12 feeds back the detected hydraulic pressure value to the main control module, and when the hydraulic pressure is increased to the preset pressure, the main control module sends a command to the motor driving module to control the liquid pump 6 to maintain the current rotating speed, so that the cooling liquid is kept at the current pressure;
the cooling liquid in the guide strip 20 pushes the guide strip 20 outwards under the current pressure, so that the guide strip 20 extends towards the front of the heat conducting plate 3; at the same time, the main control module controls the exhaust fan 23 and the exhaust fan 25 to start, external cold air starts to flow into the box body 1 from the air inlet 22, and hot air in the box body 1 starts to be discharged from the air outlet 24, so that upward air flow is generated in the box body 1;
referring to fig. 2, when the rising air flows through the guide strips 20, air vortex (indicated by dotted arrows in fig. 2) is formed, the air flow in the air vortex area can contact with the bottom surface and corner parts of the distribution network communication module 4 and take away heat of the bottom surface and the corner parts, and the air flow not blocked by the guide strips 20 is directly blown to the front surface of the distribution network communication module 4, so that the distribution network communication module 4 can be blown in multiple directions, and a good air cooling effect is achieved;
in addition, the existence of the air vortex can avoid the condition that the bottom surface and corners of the abnormal distribution network communication module 4 cannot be effectively blown due to shielding of other module components of the lower air flow;
when the temperature of the distribution network communication module 4 is lower than a second preset temperature value, the rotation speed of the liquid pump 6 is reduced to the rotation speed required by the liquid cooling mode, the fan stops running, and the guide strip 20 contracts under the action of self elastic force; when the temperature of the distribution network communication module 4 is lower than a first preset temperature, the liquid pump 6 is stopped, and each electromagnetic valve is closed.
In conclusion, the abnormal distribution network communication module 4 can be effectively restrained from further heating up in a mode of combining liquid cooling and multi-azimuth air cooling, and a better protection effect is achieved.
Further, the heat conducting plate 3 comprises a plurality of mutually independent plate bodies, any two adjacent plate bodies are separated by the heat insulating strip 21, and each group of distribution network communication modules 4 and the corresponding sealing covers 5 are arranged on each plate body in a one-to-one correspondence manner.
Further, an auxiliary heat dissipation layer 17 is arranged on one side of the back plate 29 away from the heat conducting plate 3, so that heat dissipation capacity is improved.
Further, the auxiliary heat dissipation layer 17 is a graphite layer, and the heat dissipation performance of the back plate 29 is enhanced by the arrangement of the graphite layer.
Further, the heat radiating fins 18 are arranged in the sealing cover 5, the heat radiating fins 18 are fixed and contacted with the heat conducting plate 3, when the cooling fluid flows through the sealing cover 5, the heat radiating fins 18 can enlarge the heat exchange area in the sealing cover 5, so that the heat on the heat conducting plate 3 can be more efficiently transferred to the cooling fluid, and the heat radiating effect is improved.
Example two
Referring to fig. 4, the present embodiment differs from the first embodiment in that: the upper part of the guide strip 20 in this embodiment is further provided with an elastic telescopic part 28, and the elastic coefficient of the telescopic part 28 is smaller than that of the guide strip 20.
As can be seen from the above description, when the air cooling is performed, the main control module controls the rotation speed of the liquid pump 6 to make the hydraulic pressure of the cooling liquid alternately become larger and smaller above the preset pressure value, so that the telescopic portion 28 of the guide strip 20 is cyclically and alternately lengthened and shortened, the rising height and the downward inclination angle of the guide strip 20 are periodically changed, and the range and the intensity of the air vortex caused by the rising airflow when the rising airflow flows through the guide strip 20 are periodically changed, so that the air cooling effect can be further improved by alternately and effectively blowing all the parts of the abnormal distribution network communication module 4.
In the description of the present utility model, it should be noted that the directions or positional relationships indicated by the terms "inner", "outer", "upper", etc. are based on the directions or positional relationships shown in the drawings, are merely for convenience of describing the present utility model and simplifying the description, and do not indicate or imply that the apparatus or element in question must have a specific orientation, be constructed and operated in a specific orientation, and thus should not be construed as limiting the present utility model.
In the description of the present utility model, it should be noted that, unless explicitly stated and limited otherwise, the term "connected" should be interpreted broadly, and for example, it may be a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium, and can be communication between two elements. The specific meaning of the above terms in the present utility model can be understood by those of ordinary skill in the art according to the specific circumstances.
It will be apparent that the described embodiments are only some, but not all, embodiments of the utility model. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Claims (10)
1. A safety protection device for 5G distribution network communication is characterized in that: including box (1) and controller, the inside heat-conducting plate (3) that is fixed with vertical setting of box (1), heat-conducting plate (3) one side is fixed with a plurality of group's net communication module (4) along vertical interval, just still be fixed with a plurality of temperature sensor subassembly (19) on heat-conducting plate (3), each temperature sensor subassembly (19) and each net communication module (4) one-to-one setting of joining in marriage, heat-conducting plate (3) opposite side is provided with circulation cooling mechanism, circulation cooling mechanism and each temperature sensor subassembly (19) all are connected with the controller electricity, the controller is used for cooling to the net communication module (4) of joining in marriage that corresponding temperature sensor subassembly (19) correspond according to the temperature data control circulation cooling mechanism that temperature sensor subassembly (19) sent.
2. The security protection apparatus for 5G network communications according to claim 1, wherein: the circulating cooling mechanism comprises a back plate (29), a liquid pump (6) and a plurality of sealing covers (5), wherein the back plate (29) is fixed in a box body (1), a containing cavity (16) is formed in the back plate (29), cooling liquid is arranged in the containing cavity (16) and each sealing cover (5), each sealing cover (5) is installed on one side, away from a distribution network communication module (4), of a heat conducting plate (3), the installation position of each sealing cover (5) corresponds to the installation position of each distribution network communication module (4) one by one, each sealing cover (5) is communicated with a liquid outlet of the liquid pump (6) through a branch pipe, each branch pipe is provided with an electric control valve for controlling the on-off of the corresponding branch pipe, a liquid inlet of the liquid pump (6) is communicated with the containing cavity (16), any two adjacent sealing covers (5) are connected through a three-way electromagnetic valve, and a third port of each three-way electromagnetic valve is communicated with the containing cavity (16), and the liquid pump (6), the electric control valve and each three-way electromagnetic valve are electrically connected with a controller.
3. The security protection apparatus for 5G distribution network communications according to claim 2, wherein: and each branch pipe is provided with a hydraulic pressure sensor (12) for detecting the cooling liquid pressure in the pipe, and the hydraulic pressure sensors (12) are electrically connected with a controller.
4. A security protection apparatus for 5G network communications according to claim 3, wherein: the heat conducting plate (3) is provided with a plurality of through holes (27) communicated with the sealing covers (5), one side, close to the distribution network communication module (4), of each through hole (27) is covered with a guide strip (20), the guide strips (20) are in sealing connection with the heat conducting plate (3), and the cross section of each guide strip (20) is in an arc-shaped bulge.
5. A security protection apparatus for 5G network communications according to any one of claims 1-4, wherein: the utility model discloses a novel air distribution network communication module, including box (1), air inlet (22) have been seted up to the position that just is located distribution network communication module (4) one side to box (1), air exhaust fan (23) are installed to air inlet (22) department, box (1) top just is located air inlet (22) top position and has been seted up gas vent (24), exhaust fan (25) are installed to gas vent (24) department, air exhaust fan (23) and exhaust fan (25) all are connected with the controller electricity, the controller receives coolant extrusion and stretches out to keeping away from sealed cowling (5) one side control air exhaust fan (23) and exhaust fan (25) start at water conservancy diversion strip (20).
6. The security protection apparatus for 5G distribution network communications according to claim 2, wherein: the heat conducting plate (3) comprises a plurality of mutually independent plate bodies, any two adjacent plate bodies are separated by a heat insulating strip (21), and each group of network communication modules (4) and corresponding sealing covers (5) are arranged on each plate body in a one-to-one correspondence manner.
7. The security protection apparatus for 5G distribution network communications according to claim 2, wherein: an auxiliary heat dissipation layer (17) is arranged on one side of the back plate (29) away from the heat conducting plate (3).
8. The security protection apparatus for 5G network communications according to claim 7, wherein: the auxiliary heat dissipation layer (17) is a graphite layer.
9. The security protection apparatus for 5G distribution network communications according to claim 2, wherein: and radiating fins (18) are arranged in the sealing cover (5), and the radiating fins (18) are fixed with and contacted with the heat conducting plate (3).
10. The safety protection device for 5G network communications according to claim 4, wherein: the upper part of the guide strip (20) is also provided with an elastic telescopic part (28), and the elastic coefficient of the telescopic part (28) is smaller than that of the guide strip (20).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202310257038.6A CN116437626A (en) | 2023-03-16 | 2023-03-16 | Safety protection device for 5G distribution network communication |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202310257038.6A CN116437626A (en) | 2023-03-16 | 2023-03-16 | Safety protection device for 5G distribution network communication |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN116437626A true CN116437626A (en) | 2023-07-14 |
Family
ID=87093425
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202310257038.6A Pending CN116437626A (en) | 2023-03-16 | 2023-03-16 | Safety protection device for 5G distribution network communication |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN116437626A (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN117060256A (en) * | 2023-10-12 | 2023-11-14 | 四川正禹电气设备有限公司 | Power distribution cabinet |
-
2023
- 2023-03-16 CN CN202310257038.6A patent/CN116437626A/en active Pending
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN117060256A (en) * | 2023-10-12 | 2023-11-14 | 四川正禹电气设备有限公司 | Power distribution cabinet |
| CN117060256B (en) * | 2023-10-12 | 2023-12-29 | 四川正禹电气设备有限公司 | Power distribution cabinet |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN106299411B (en) | Fuel cell thermal management system and vehicle with same | |
| CN108766946B (en) | Liquid cooling heat abstractor and motor controller | |
| CN116437626A (en) | Safety protection device for 5G distribution network communication | |
| CN111050514B (en) | High temperature resistant type industrial ethernet switch | |
| CN217086707U (en) | Device for slowing down thermal runaway of battery pack | |
| CN210075867U (en) | Liquid-cooled frequency converter system | |
| CN107197610B (en) | Layered cooling radiator device | |
| CN114688636A (en) | Electric control box device, outdoor unit and air conditioner | |
| CN205620577U (en) | Automatic control formula optical fiber splicer temperature regulation apparatus | |
| CN212930295U (en) | Refrigeration module and data center | |
| CN219572283U (en) | High-efficient radiating water-cooling heat exchanger | |
| WO2020019579A1 (en) | Liquid cooling heat radiating apparatus and motor controller | |
| CN218526652U (en) | Electrical apparatus box and air conditioner | |
| CN112382803B (en) | Power battery pack system | |
| CN220556804U (en) | Energy storage inverter case with heat radiation structure | |
| CN216981732U (en) | Motor water-cooling heat abstractor | |
| CN215571367U (en) | Variable frequency heat pump system and heat pump water heater | |
| CN217357628U (en) | System capable of conducting cold and heat through medium | |
| CN117039269B (en) | Energy storage system, temperature control method thereof and computer readable storage medium | |
| CN215773958U (en) | Motor controller and vehicle | |
| CN221074684U (en) | Energy-saving fan with automatic heat dissipation function | |
| CN219555450U (en) | High-power PCS outdoor cabinet | |
| CN217347555U (en) | Battery thermal management system and operation machine | |
| CN219205064U (en) | Electrical apparatus box and air conditioning unit | |
| CN214379646U (en) | Internal circulation airflow guiding device of intelligent temperature adjusting system |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
