CN116252539A

CN116252539A - Fluorocarbon paint overprinting technology positioner

Info

Publication number: CN116252539A
Application number: CN202211538982.0A
Authority: CN
Inventors: 李琦; 刘印桥
Original assignee: Shandong Lanqiao Environmental Protection Building Material Technology Co ltd
Current assignee: Shandong Lanqiao Environmental Protection Building Material Technology Co ltd
Priority date: 2022-12-02
Filing date: 2022-12-02
Publication date: 2023-06-13

Abstract

The invention discloses a fluorocarbon paint overprinting process positioning device, which belongs to the technical field of overprinting equipment and comprises a protective shell, a overprinting mechanism, a conveying mechanism, a positioning mechanism, a blanking mechanism and a drying mechanism; the overprinting mechanism comprises an overprinting die, the overprinting die is used for overprinting a workpiece, and the overprinting die is arranged on the lifting assembly; the positioning mechanism comprises a horizontal frame, two symmetrically arranged positioning components are arranged on the horizontal frame, and the positioning components are used for positioning a workpiece. The invention automatically completes overprinting and drying of the workpiece through the overprinting mechanism, the conveying mechanism, the positioning mechanism, the blanking mechanism and the drying mechanism, and has simple structure and convenient operation.

Description

Fluorocarbon paint overprinting technology positioner

Technical Field

The invention belongs to the technical field of overprinting equipment, and particularly relates to a fluorocarbon paint overprinting process positioning device.

Background

When the fluorocarbon paint overprinting treatment is carried out on the workpiece, the overprinted workpiece needs to be fixed, so that the inaccurate overprinting caused by the position deviation of the workpiece is prevented. Therefore, when overprinting the workpiece, the workpiece needs to be accurately positioned, so that the overprinting quality is ensured.

The invention patent with the publication number of CN215397584U discloses a parallel overprinting production system, which comprises a first conveying mechanism, a silk-screen mechanism group and a second conveying mechanism, wherein the first conveying mechanism is used for receiving a plate material and transmitting the plate material to be silk-screened to the silk-screen mechanism, and the second conveying mechanism is used for transmitting the plate material with the silk-screen process completed at the silk-screen mechanism to a post-treatment process end. The Chinese patent publication No. CN110920285A discloses a secondary positioning overprinting process for transfer paper, and provides a secondary positioning holographic anti-counterfeit printing method and a secondary positioning holographic anti-counterfeit printing paper for manufacturing patterns with different anti-counterfeit characters and shapes, wherein the patterns with precisely ensured position and size among the patterns are positioned and printed on the paper by using ink patterns and holographic patterns according to design requirements, and the whole surface of the packaging paper is provided with the anti-counterfeit characters and patterns. Although the invention can finish overprinting, the workpiece can not be positioned, and loading and unloading are inconvenient. Aiming at the problems, the invention provides a fluorocarbon paint overprinting process positioning device.

Disclosure of Invention

Aiming at the technical problems, the invention adopts the following technical scheme: a fluorocarbon paint overprinting process positioning device comprises a protective shell; the automatic printing machine also comprises a overprinting mechanism, a conveying mechanism, a positioning mechanism, a blanking mechanism and a drying mechanism which are arranged in the protective shell.

The overprinting mechanism comprises an overprinting die, the overprinting die is used for overprinting a workpiece, and the overprinting die is arranged on the lifting assembly.

The positioning mechanism comprises a horizontal frame, two symmetrically arranged positioning components are arranged on the horizontal frame, and the positioning components are used for positioning a workpiece.

Further, lifting unit include two-way rack, two-way rack and overprinting mould fixed connection, two-way rack slidable mounting on vertical guide bar, vertical guide bar fixed mounting be in the inside upper end of protecting crust, the outer lane cover of vertical guide bar is equipped with reset spring one, reset spring one-to-one end fix on two-way rack, reset spring one's the other end is fixed on vertical guide bar, one side and the cooperation of incomplete gear engagement of two-way rack, incomplete gear rotation install on the mounting bracket, mounting bracket fixed mounting in the inside of protecting crust, the output shaft fixed connection of incomplete gear and motor, the inside at the protecting crust is installed to the motor.

Further, the overprinting mechanism also include cylindrical gear, cylindrical gear and incomplete gear be located the both sides of two-way rack respectively, cylindrical gear install at the transmission shaft outer lane, and the spacing ratchet that the inner circle of cylindrical gear set up forms ratchet pawl cooperation with the pawl that sets up on the transmission shaft, the transmission shaft rotate and install on the mounting bracket.

Further, the driving frame is slidably arranged below the bidirectional rack, the driving frame is positioned between the overprinting die and the bidirectional rack, and a reset spring II is arranged between the driving frame and the bidirectional rack.

Further, conveying mechanism include belt assembly, belt assembly one end be connected with the transmission shaft, form the band pulley cooperation, belt assembly's the other end is connected with the horizontal axis, form the band pulley cooperation, the horizontal axis other end be connected with the input of bevel gear group, the output of bevel gear group be connected with the one end of conveyer belt, the conveyer belt install the inside bottom at the protecting crust.

Further, the locating component include the locating plate, the locating plate on the one end of two connecting rods of fixed mounting, the other end and the stripper plate fixed connection of connecting rod, connecting rod slidable mounting on the horizontal frame, just stripper plate and horizontal frame between be provided with reset spring three.

Further, unloading mechanism include push rod, bulb pole, push rod and a stripper plate fixed connection, the one end of bulb pole rotate and install the ball, ball and push rod sliding fit, the other end and the tripod fixed connection of bulb pole, bulb pole slidable mounting on the leading truck, leading truck fixed mounting on the horizontal stand, the tripod on keep away from one side of push rod and be the inclined plane, the groove sliding fit of tripod and storage barrel below, the inside a plurality of machined parts that wait to process of having placed of storage barrel, the storage barrel set up the inside at the protecting crust.

Further, drying mechanism include the outer box, outer box fixed mounting in the inside of protecting crust, and the motor is located the inside of outer box, be connected with the one end of heat pipe on the outer box, the other end slidable mounting of heat pipe have the pressfitting head, be provided with reset spring five between pressfitting head and the heat pipe, the top fixed mounting of pressfitting head has the one end of sliding plate, the other end setting of sliding plate is in the drive frame below, sliding plate and U-shaped guide bar sliding fit, U-shaped guide bar fixed mounting in the inside bottom of protecting crust.

Compared with the prior art, the invention has the beneficial effects that: (1) The invention automatically completes overprinting and drying of the workpiece through the overprinting mechanism, the conveying mechanism, the positioning mechanism, the blanking mechanism and the drying mechanism, and has simple structure and convenient operation; (2) The overprinting mechanism, the conveying mechanism, the positioning mechanism, the blanking mechanism and the drying mechanism are driven by one power source of the motor, so that power is saved, and heat generated by the motor can also be used for drying the overprinted workpiece through the drying mechanism, so that the energy utilization is realized; (3) And when the positioning mechanism is used for positioning the workpiece, the tripod in the blanking mechanism is used for sending out the workpiece in the storage cylinder, so that the conveying time is saved.

Drawings

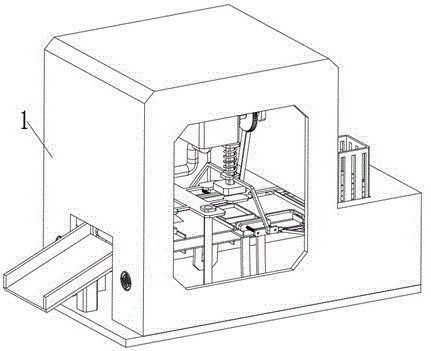

FIG. 1 is a schematic diagram of the overall structure of the present invention.

Fig. 2 is a schematic structural view of a drying mechanism.

Fig. 3 is a schematic view of the structure of fig. 1 except for omitting the protective shell.

Fig. 4 is a schematic view of another angle structure of fig. 3.

Fig. 5 is a schematic view of a partial enlarged structure at a in fig. 4.

Fig. 6 is a schematic structural view of the overprinting mechanism.

Fig. 7 is a schematic view of a part of the overprinting mechanism.

Fig. 8 is a schematic structural view of the positioning mechanism.

Fig. 9 is a schematic diagram of a blanking mechanism.

Fig. 10 is a schematic view of a partially enlarged structure at B in fig. 9.

Reference numerals: 1-protecting a shell; 2-overprinting mechanism; 201-a motor; 202-incomplete gear; 203-mounting rack; 204-a bidirectional rack; 205-vertical guide bar; 206-reset spring one; 207-cylindrical gear; 208-limit ratchet wheel; 209-a drive shaft; 210-overprinting a die; 211-a second reset spring; 212-a drive rack; 3-a conveying mechanism; 301-a belt assembly; 302-horizontal axis; 303-a bevel gear set; 304-a conveyor belt; 4-a positioning mechanism; 401-horizontal rack; 402-positioning plates; 403-connecting rods; 404-squeeze plate; 405-a return spring III; 5-a blanking mechanism; 501-push rod; 502-a club head stem; 503-reset spring IV; 504-tripod; 505-a storage cartridge; 506-a guide frame; 6-a drying mechanism; 601-an outer box; 602-a heat pipe; 603-pressing the head; 604-return spring five; 605-a sliding plate; 606-U-shaped guide bar; 7-clamping frames; 8-machining a workpiece.

Detailed Description

The technical scheme of the invention is further described below by the specific embodiments with reference to the accompanying drawings.

In which the drawings are schematic representations, not physical drawings, and are not to be construed as limiting the present patent, and in which certain elements are omitted, enlarged or reduced in order to better illustrate the embodiments of the present invention, and not to represent the actual product dimensions, it will be understood by those skilled in the art that certain well-known structures in the drawings and descriptions thereof may be omitted.

Examples: the fluorocarbon paint overprinting process positioning device shown in fig. 1-10 comprises a protective shell 1, and further comprises a overprinting mechanism 2, a conveying mechanism 3, a positioning mechanism 4, a blanking mechanism 5 and a drying mechanism 6 which are arranged in the protective shell 1.

The overprinting mechanism 2 comprises an overprinting die 210, the overprinting die 210 is used for overprinting the workpiece 8, and the overprinting die 210 is installed on the lifting assembly.

The positioning mechanism 4 comprises a horizontal frame 401, and two symmetrically arranged positioning assemblies are arranged on the horizontal frame 401 and are used for positioning the workpiece 8.

The lifting assembly comprises a bidirectional rack 204, the bidirectional rack 204 is fixedly connected with a overprinting die 210, the bidirectional rack 204 is slidably mounted on a vertical guide rod 205, the vertical guide rod 205 is fixedly mounted at the upper end inside the protective shell 1, a reset spring I206 is sleeved on the outer ring of the vertical guide rod 205, one end of the reset spring I206 is fixed on the bidirectional rack 204, the other end of the reset spring I206 is fixed on the vertical guide rod 205, one side of the bidirectional rack 204 is meshed and matched with an incomplete gear 202, the incomplete gear 202 is rotatably mounted on a mounting frame 203, the mounting frame 203 is fixedly mounted inside the protective shell 1, the incomplete gear 202 is fixedly connected with an output shaft of a motor 201, and the motor 201 is mounted inside the protective shell 1.

The overprinting mechanism 2 further comprises a cylindrical gear 207, the cylindrical gear 207 and the incomplete gear 202 are respectively located on two sides of the bidirectional rack 204, the cylindrical gear 207 is installed on the outer ring of the transmission shaft 209, a limit ratchet 208 arranged on the inner ring of the cylindrical gear 207 is matched with a ratchet pawl formed by a pawl arranged on the transmission shaft 209, and the transmission shaft 209 is rotatably installed on the installation frame 203.

A driving frame 212 is slidably arranged below the bidirectional rack 204, the driving frame 212 is positioned between the overprinting die 210 and the bidirectional rack 204, and a second reset spring 211 is arranged between the driving frame 212 and the bidirectional rack 204.

The conveying mechanism 3 comprises a belt assembly 301, one end of the belt assembly 301 is connected with a transmission shaft 209 to form pulley matching, the other end of the belt assembly 301 is connected with a horizontal shaft 302 to form pulley matching, the other end of the horizontal shaft 302 is connected with the input end of a bevel gear set 303, the output end of the bevel gear set 303 is connected with one end of a conveyor belt 304, and the conveyor belt 304 is arranged at the bottom end inside the protective shell 1.

The locating component includes locating plate 402, and fixed mounting has the one end of two connecting rods 403 on the locating plate 402, and the other end and the stripper plate 404 fixed connection of connecting rod 403, connecting rod 403 slidable mounting on horizontal frame 401, and be provided with reset spring three 405 between stripper plate 404 and the horizontal frame 401.

The blanking mechanism 5 comprises a push rod 501 and a ball rod 502, the push rod 501 is fixedly connected with a squeeze plate 404, one end of the ball rod 502 is rotationally provided with a ball, the ball is in sliding fit with the push rod 501, the other end of the ball rod 502 is fixedly connected with a tripod 504, the ball rod 502 is slidably arranged on a guide frame 506, the guide frame 506 is fixedly arranged on a horizontal frame 401, one side, far away from the push rod 501, of the tripod 504 is an inclined plane, the tripod 504 is in sliding fit with a groove below a storage barrel 505, a plurality of workpieces 8 to be processed are placed inside the storage barrel 505, and the storage barrel 505 is arranged inside a protective shell 1.

The drying mechanism 6 includes outer box 601, outer box 601 fixed mounting is in the inside of protecting crust 1, and motor 201 is located the inside of outer box 601, be connected with the one end of heat pipe 602 on the outer box 601, the other end slidable mounting of heat pipe 602 has pressfitting head 603, be provided with reset spring five 604 between pressfitting head 603 and the heat pipe 602, the top fixed mounting of pressfitting head 603 has the one end of sliding plate 605, the other end setting of sliding plate 605 is in the drive frame 212 below, sliding plate 605 and U-shaped guide bar 606 sliding fit, U-shaped guide bar 606 fixed mounting is in the inside bottom of protecting crust 1.

Working principle: when the motor 201 is started to drive the incomplete gear 202 to rotate, and the toothed part of the incomplete gear 202 rotates to be meshed with the bidirectional rack 204, the bidirectional rack 204 can slide downwards along the vertical guide rod 205 under the driving of the incomplete gear 202, and in the process, a return spring I206 positioned between the bidirectional rack 204 and the vertical guide rod 205 can be compressed, and the return spring I206 is used for assisting the return of the bidirectional rack 204. During the downward movement of the bi-directional rack 204, the overprinting mold 210 installed under the bi-directional rack 204 is moved, and the driving frame 212 slidably installed under the bi-directional rack 204 is moved downward together.

Since the two ends of the driving frame 212 are inclined surfaces, the driving frame 212 moves the squeeze plates 404 located at two sides of the horizontal frame 401 in the approaching direction in the downward moving process, the squeeze plates 404 are connected with the positioning plates 402 through the connecting rods 403, so that the two positioning plates 402 are gradually approaching, and at this time, the workpiece 8 conveyed by the conveyor belt 304 is clamped by the two positioning plates 402, so as to complete the fixing and positioning. It should be noted that, the conveyor 304 is provided with a plurality of holding frames 7, the holding frames 7 are used for loading the workpieces 8, and the width of the positioning plate 402 ensures that the positioning plate 402 can slide inside the holding frames 7.

The downwardly moving overprinting die 210 touches the workpiece 8 positioned by the positioning plate 402, and overprinting of the workpiece 8 is completed when the overprinting die 210 is moved downwardly. It should be noted that, since the driving rack 212 is slidably mounted on the bidirectional rack 204, when the driving rack 212 pushes the extrusion plate 404 to the maximum, the driving rack 212 is clamped by the extrusion plate 404, and the second return spring 211 is compressed during the downward movement of the bidirectional rack 204 and the overprinting die 210, so that the movement of the overprinting die 210 is not limited even if the driving rack 212 is not moved downward any more, and the second return spring 211 also helps to assist the resetting of the driving rack 212.

In addition, since the limit ratchet 208 on the cylindrical gear 207 forms a ratchet-pawl engagement with the pawl on the drive shaft 209, even if the cylindrical gear 207 rotates during the downward movement of the bi-directional rack 204, the drive shaft 209 is not rotated, and thus the belt assembly 301 is not rotated, and the conveyor 304 is not rotated, which is to keep the conveyor 304 stationary, providing a stationary environment for the overprinting of the workpiece 8 by the overprinting die 210.

When the motor 201 drives the incomplete gear 202 to rotate to the position where no teeth are formed to face the bidirectional rack 204, at this time, the incomplete gear 202 is no longer meshed with the bidirectional rack 204, so that the bidirectional rack 204 is reset under the action of the first reset spring 206, that is, the bidirectional rack 204 slides upwards along the vertical guide rod 205, meanwhile, the overprinting die 210 and the driving frame 212 move upwards, when the bidirectional rack 204 moves upwards, the bidirectional rack 204 pushes the first reset spring 206 to rotate in the direction, and at this time, the limiting ratchet 208 and the driving shaft 209 which form ratchet pawl matching enable the driving shaft 209 to drive the belt assembly 301 to rotate.

When the belt assembly 301 rotates, the horizontal shaft 302 engaged with the belt assembly 301 is rotated, so that the bevel gear set 303 rotates along with the horizontal shaft 302, and the bevel gear set 303 drives the conveyor belt 304 to rotate, so that the conveyor belt 304 rotating forward conveys the workpiece 8 to be overprinted next forward to the position below the overprinting die 210, and simultaneously conveys the workpiece 8 to be overprinted forward to the position below the pressing head 603.

Specifically, the process that the workpiece 8 to be overprinted arrives on the conveyor belt 304 is that, during the process that the overprinting die 210 moves downward to finish the overprinting of the previous workpiece 8, there are two pressing plates 404 moving toward each other, during the moving of the pressing plates 404, a push rod 501 fixedly installed on the pressing plates 404 will also move, then the push rod 501 slides along the ball on the ball rod 502, and since the push rod 501 is in a state of being obliquely arranged, the push rod 501 pushes the ball rod 502 to slide along the guide frame 506, the sliding direction is that the ball rod 502 gradually approaches the storage cylinder 505, in this process, a return spring four 503 will be compressed, and the function of the return spring four 503 is to assist the reset of the ball rod 502. Since the ball rod 502 is fixedly connected with the tripod 504, the tripod 504 also moves, and one side of the inclined surface on the tripod 504 faces the storage cylinder 505, so that the tripod 504 slides into the storage cylinder 505 and pushes a workpiece 8 out of the blanking mechanism 5 into the clamping frame 7 on the conveyor 304, and one feeding is completed. During the upward movement of the overprinting die 210, the pressing plate 404 slides in a direction away from each other, the push rod 501 and the tripod 504 are reset, and the tripod 504 slides out of the cartridge 505. This completes the feeding.

The motor 201 generates heat during operation, the generated heat is stored in the outer box 601, and because the outer box 601 is communicated with the heat conducting pipe 602, the heat can reach the pressing head 603 through the heat conducting pipe 602 and flows out of the pressing head 603, in the process that the motor 201 and the driving frame 212 move downwards, the driving frame 212 pushes the sliding plate 605 downwards, the sliding plate 605 slides downwards along the U-shaped guide rod 606 and simultaneously presses the pressing head 603 downwards, the pressing head 603 slides out of the heat conducting pipe 602 and stretches the reset spring five 604, the pressing head 603 moving downwards sleeves the workpiece 8 which is finished with the last one, namely, when the overprinting die 210 overprints a new workpiece 8, the pressing head 603 heats the workpiece 8 which is finished with the last one and dries the surface of the workpiece 8, and in the process, the reset spring five functions to assist reset of the pressing head 603 and the sliding plate 605.

It should be noted that, the bevel gear set 303 includes a driving bevel gear and a driven bevel gear, the driving bevel gear is fixedly connected with the horizontal shaft 302 as an input end, and the driven bevel gear is fixedly connected with the rotating shaft on the conveyor belt 304 as an output end. Meanwhile, the belt assembly 301 includes one belt and two pulleys fixedly connected to the horizontal shaft 302 and the driving shaft 209, respectively, and the two pulleys are connected by the belt, which will be apparent to those skilled in the art.

Claims

1. The utility model provides a fluorocarbon paint overprinting technology positioner, includes protective housing (1), its characterized in that: the automatic printing machine also comprises a overprinting mechanism (2), a conveying mechanism (3), a positioning mechanism (4), a blanking mechanism (5) and a drying mechanism (6) which are arranged in the protective shell (1);

the overprinting mechanism (2) comprises an overprinting die (210), the overprinting die (210) is used for overprinting the workpiece (8), and the overprinting die (210) is arranged on the lifting assembly;

the positioning mechanism (4) comprises a horizontal frame (401), wherein two symmetrically arranged positioning assemblies are arranged on the horizontal frame (401), and the positioning assemblies are used for positioning a workpiece (8).

2. A fluorocarbon paint overprinting process positioning apparatus as claimed in claim 1, wherein: the lifting assembly comprises a bidirectional rack (204), the bidirectional rack (204) is fixedly connected with a overprinting die (210), the bidirectional rack (204) is slidably mounted on a vertical guide rod (205), the vertical guide rod (205) is fixedly mounted at the upper end of the inside of the protective shell (1), a return spring I (206) is sleeved on the outer ring of the vertical guide rod (205), one end of the return spring I (206) is fixed on the bidirectional rack (204), the other end of the return spring I (206) is fixed on the vertical guide rod (205), one side of the bidirectional rack (204) is meshed with an incomplete gear (202), the incomplete gear (202) is rotatably mounted on a mounting frame (203), the mounting frame (203) is fixedly mounted inside the protective shell (1), the incomplete gear (202) is fixedly connected with an output shaft of a motor (201), and the motor (201) is mounted inside the protective shell (1).

3. A fluorocarbon paint overprinting process positioning apparatus as claimed in claim 2, wherein: the overprinting mechanism (2) also include cylindrical gear (207), cylindrical gear (207) and incomplete gear (202) be located the both sides of two-way rack (204) respectively, cylindrical gear (207) install in transmission shaft (209) outer lane, and spacing ratchet (208) that the inner circle of cylindrical gear (207) set up forms ratchet pawl cooperation with the pawl that sets up on transmission shaft (209), transmission shaft (209) rotate and install on mounting bracket (203).

4. A fluorocarbon paint overprinting process positioning device as claimed in claim 3, wherein: the two-way rack (204) is characterized in that a driving frame (212) is slidably arranged below the two-way rack (204), the driving frame (212) is positioned between the overprinting die (210) and the two-way rack (204), and a return spring II (211) is arranged between the driving frame (212) and the two-way rack (204).

5. A fluorocarbon paint overprinting process positioning device as claimed in claim 3, wherein: conveying mechanism (3) include belt assembly (301), belt assembly (301) one end be connected with transmission shaft (209), form the band pulley cooperation, the other end and horizontal axle (302) of belt assembly (301) are connected, form the band pulley cooperation, the input of horizontal axle (302) other end and conical gear group (303) be connected, the output of conical gear group (303) be connected with the one end of conveyer belt (304), conveyer belt (304) install the inside bottom at protecting crust (1).

6. A fluorocarbon paint overprinting process positioning apparatus as claimed in claim 1, wherein: the positioning assembly comprises a positioning plate (402), one end of two connecting rods (403) is fixedly arranged on the positioning plate (402), the other end of each connecting rod (403) is fixedly connected with a squeezing plate (404), the connecting rods (403) are slidably arranged on a horizontal frame (401), and a reset spring III (405) is arranged between each squeezing plate (404) and the horizontal frame (401).

7. The fluorocarbon paint overprinting process positioning apparatus of claim 6, wherein: unloading mechanism (5) include push rod (501), bulb pole (502), push rod (501) and a stripper plate (404) fixed connection, the one end rotation of bulb pole (502) install the ball, ball and push rod (501) sliding fit, the other end of bulb pole (502) and tripod (504) fixed connection, bulb pole (502) sliding mounting on guide frame (506), guide frame (506) fixed mounting on horizontal frame (401), tripod (504) on keep away from one side of push rod (501) be the inclined plane, the groove sliding fit of tripod (504) and storage barrel (505) below, storage barrel (505) inside place a plurality of machined parts (8) of waiting to process, storage barrel (505) set up the inside at protecting crust (1).

8. A fluorocarbon paint overprinting process positioning apparatus as claimed in claim 4, wherein: drying mechanism (6) include outer container (601), outer container (601) fixed mounting in the inside of protecting crust (1), and motor (201) are located the inside of outer container (601), be connected with the one end of heat pipe (602) on outer container (601), the other end slidable mounting of heat pipe (602) have pressfitting head (603), be provided with reset spring five (604) between pressfitting head (603) and heat pipe (602), the one end that slide plate (605) was installed to the top fixed mounting of pressfitting head (603), the other end setting of slide plate (605) is in driving frame (212) below, slide plate (605) and U-shaped guide bar (606) sliding fit, U-shaped guide bar (606) fixed mounting in the inside bottom of protecting crust (1).
