Abstract

The invention relates to the technical field of clothes treatment, and specifically provides a drying system and drying equipment of drying equipment, aiming to solve the problem of poor ventilation effect of the fresh air function of the existing drying equipment. For this reason, the drying system of the present invention includes a drying air duct, a blower fan, an air inlet pipeline, an air outlet pipeline, and a driving structure. The drying air duct is provided with a first communication hole, and one end of the air inlet pipeline is connected to the drying air duct. The outside of the cabinet of the equipment is connected, the other end of the air inlet pipeline is connected with the drying air duct, one end of the outlet pipeline is connected with the outside of the cabinet, and the other end of the outlet pipeline is connected with the first communication hole. The swinging structure is arranged close to the first communication hole and can block the airflow flowing along the drying air duct, so as to increase the airflow entering the air outlet pipeline. With such an arrangement, more airflow can enter the air outlet pipeline through the first communication hole, increase the air flow into the air outlet pipeline, absorb more fresh air, and improve the ventilation effect.

Description

Drying system and drying equipment of drying equipment

technical field

The invention relates to the technical field of clothes treatment, and specifically provides a drying system of a drying device and the drying device.

Background technique

Drying equipment is equipment that can dry clothes. Common drying equipment includes clothes dryers, washing and drying machines, and the like.

Taking the all-in-one washing and drying machine as an example, the existing all-in-one washing and drying machines can not only wash the clothes, but also dry the clothes after washing. Some all-in-one washing and drying machines have the function of fresh air. And the air outlet pipeline communicates the drying air duct with the outside of the box body, so that fresh air can be introduced.

However, when the existing all-in-one washer-dryer performs the fresh air function, the airflow discharged from the air outlet pipeline is small, so the air volume of the fresh air sucked in is also small, and the actual ventilation effect is poor.

Therefore, a new technical solution is needed in the art to solve the above problems.

Contents of the invention

The present invention aims to solve the above-mentioned technical problem, that is, to solve the problem of poor ventilation effect of the fresh air function of the existing drying equipment.

In the first aspect, the present invention provides a drying system for drying equipment, the drying system includes a drying air duct and a fan installed on the drying air duct, and the drying system also includes an air inlet pipe Road, the air outlet pipeline and the driving structure located in the drying air duct, the drying air duct is provided with a first communication hole, one end of the air inlet pipeline and the outside of the box of the drying equipment The other end of the air inlet pipeline communicates with the drying air duct, one end of the air outlet pipeline communicates with the outside of the box of the drying equipment, and the other end of the air outlet pipeline In communication with the first communication hole, the windward structure is arranged close to the first communication hole, and the windward structure can block the airflow flowing along the drying air duct, so as to increase the air flow into the outlet air. Air flow in the pipeline.

In a preferred technical solution of the drying system of the above-mentioned drying equipment, the swing structure is a swing opening arranged at the other end of the air outlet pipeline.

In a preferred technical solution of the drying system of the above-mentioned drying equipment, the swing structure is a swing opening arranged at the other end of the air outlet pipeline.

In a preferred technical solution of the drying system of the above drying equipment, the diameter of the air opening becomes smaller along the flow direction of the airflow.

In a preferred technical solution of the drying system of the above-mentioned drying equipment, the caliber of the airflow opening gradually becomes smaller along the flow direction of the airflow.

In a preferred technical solution of the drying system of the above drying equipment, the first communicating hole is located at the downstream end of the fan.

In the preferred technical solution of the drying system of the above-mentioned drying equipment, one end of the air outlet pipeline extends to the front panel of the box body, and a second communication hole is arranged on the front panel, and the air outlet pipe The passage communicates with the outside of the box through the second communication hole.

In a preferred technical solution of the drying system of the above-mentioned drying equipment, one end of the air outlet pipeline is provided with a gas deceleration structure to reduce the velocity of the airflow discharged from the air outlet pipeline.

In the preferred technical solution of the drying system of the above-mentioned drying equipment, one end of the air inlet pipe extends to the back plate of the box body, and a third communication hole is arranged on the back plate, and the air inlet pipe The passage communicates with the outside of the box through the third communication hole.

In a preferred technical solution of the drying system of the above drying equipment, one end of the air inlet pipeline is provided with a gas speed-up structure to increase the velocity of the airflow entering the air inlet pipeline.

In the preferred technical solution of the drying system of the above-mentioned drying equipment, the drying air duct is provided with a fourth communication hole at the upstream end of the fan, and the fourth communication hole is connected to the other side of the air inlet pipeline. One end communicates with and is arranged close to the air inlet end of the fan.

In the preferred technical solution of the drying system of the above drying equipment, the drying system is a heat pump drying system, and the heat pump drying system includes a drainage pipe for discharging condensed water in communication with the drying air duct The other end of the air inlet pipeline communicates with the drying air duct through the drainage pipeline.

In the preferred technical solution of the drying system of the above-mentioned drying equipment, the drying system further includes a first electric control valve installed on the air inlet pipeline, and the first electric control valve is used to control the On-off status of the air duct.

In the preferred technical solution of the drying system of the above-mentioned drying equipment, the drying system further includes a second electric control valve installed on the air outlet pipeline, and the second electric control valve is used to control the air outlet On-off status of the air duct.

In a second aspect, the present invention also provides a drying device, which includes the above-mentioned drying system.

In a preferred technical solution of the above drying equipment, the drying equipment is a clothes dryer or an all-in-one washing and drying machine.

In the case of adopting the above technical solution, the integrated washing and drying machine of the present invention can block the airflow flowing along the drying air duct by setting a swing structure in the drying air duct near the first communication hole, so that the More air flow enters the air outlet pipeline through the first communication hole, thereby increasing the air flow entering the air outlet pipeline, thereby inhaling more fresh air and improving the ventilation effect.

Further, the swinging structure is a swinging opening arranged at the other end of the air outlet pipeline. With such a setting, the air outlet can not only block the airflow flowing along the drying air duct, but also effectively guide the airflow, so that more airflow can enter the air outlet pipeline.

Still further, the diameter of the wind-riding opening becomes smaller along the flow direction of the airflow. Through such an arrangement, the flow velocity of the airflow can be increased, thereby facilitating more airflow to flow into the air outlet pipeline.

Still further, one end of the air outlet pipeline is provided with a gas deceleration structure to reduce the velocity of the airflow discharged from the air outlet pipeline. Through such a setting, the airflow discharged from the air outlet pipeline can be avoided from affecting the user.

Still further, one end of the air inlet pipeline is provided with a gas speed-increasing structure to increase the velocity of the airflow entering the air inlet pipeline. Through such a setting, it is beneficial to allow more fresh air to enter the air intake pipeline.

In addition, the drying equipment further provided by the present invention on the basis of the above-mentioned technical solution includes the above-mentioned drying system, and further possesses the technical effects of the above-mentioned drying system. Compared with the drying equipment before improvement, the present invention The ventilation effect of the fresh air function of the drying equipment is better.

Description of drawings

The preferred embodiment of the present invention will be described below in conjunction with the integrated washing and drying machine and the accompanying drawings. In the accompanying drawings:

Fig. 1 is a schematic structural view of Embodiment 1 of the all-in-one washing and drying machine of the present invention;

Fig. 2 is the enlarged schematic diagram of place A in Fig. 1;

Fig. 3 is the enlarged schematic diagram of place B in Fig. 1;

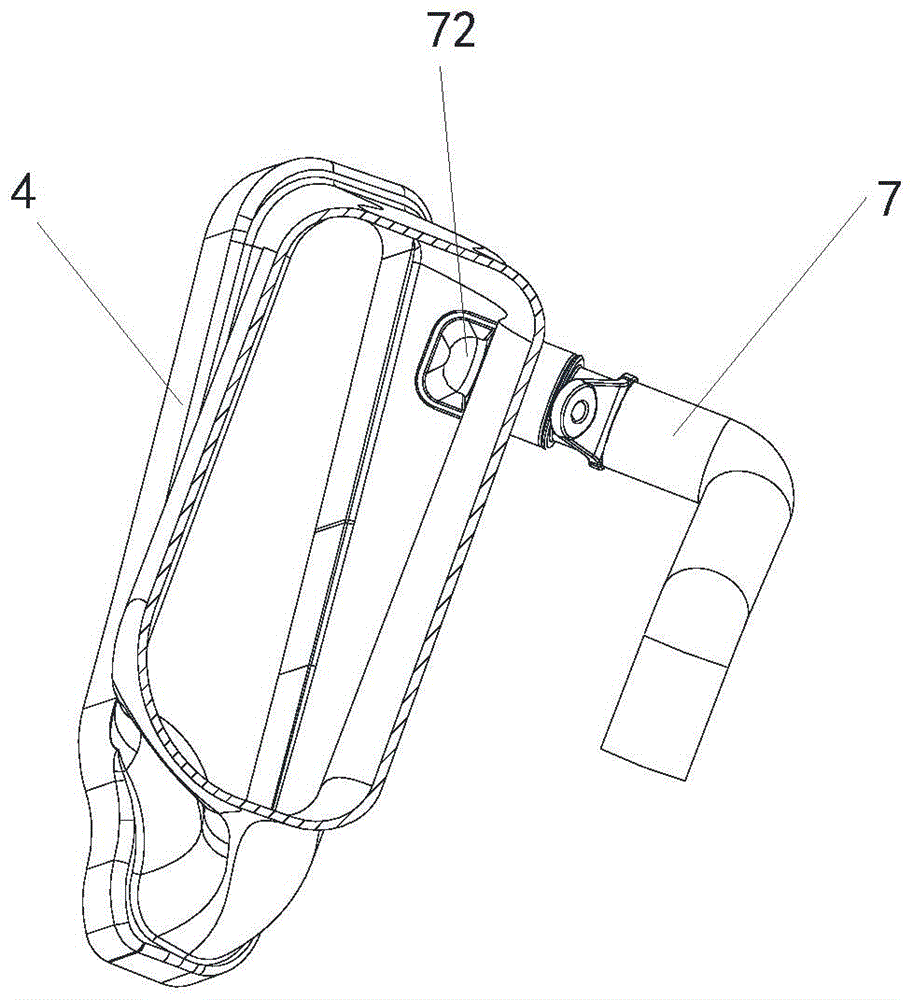

Fig. 4 is a schematic diagram of the assembly of the air outlet pipeline and the drying air duct of the present invention;

Fig. 5 is the sectional view of A-A place among Fig. 4;

Fig. 6 is a schematic structural view of the air outlet pipeline of the present invention;

Fig. 7 is a schematic structural view of Embodiment 2 of the all-in-one washing and drying machine of the present invention;

Fig. 8 is the enlarged schematic diagram of place C in Fig. 7;

FIG. 9 is an enlarged schematic view at point D in FIG. 7 .

List of reference signs:

1. Box body; 11. Front panel; 12. Back panel; 111. Second communication hole; 121. Third communication hole; 2. Outer cylinder; 3. Inner cylinder; 4. Drying air duct; 41. First Connecting hole; 42, the fourth connecting hole; 4A, condensation air duct; 4B, heating air duct; 5, fan; 6, air inlet pipeline; 61, gas speed-up structure; 7, air outlet pipeline; Deceleration structure; 72, the air outlet; 81, the heater; 82, the condenser; 83, the evaporator; 84, the drainage pipeline; 91, the first electric control valve; 92, the second electric control valve.

Detailed ways

Preferred embodiments of the present invention are described below with reference to the accompanying drawings. Those skilled in the art should understand that these embodiments are only used to explain the technical principles of the present invention, and are not intended to limit the protection scope of the present invention.

For example, although the embodiments described below are introduced in conjunction with an integrated washer-dryer, the technical solutions of the present invention are also applicable to other types of drying equipment, such as clothes dryers, etc., such adjustments and changes to the applicable objects Without departing from the principle and scope of the present invention, all should be limited within the protection scope of the present invention.

It should be noted that, in the description of the present invention, the terms "inner", "outer", "upper", "lower", "left", "right" and other terms indicating direction or positional relationship are based on the terms shown in the accompanying drawings. Orientation or positional relationship, which is only for convenience of description, and does not indicate or imply that the device or element must have a specific orientation, be constructed and operated in a specific orientation, and thus should not be construed as a limitation of the present invention. In addition, the terms "first", "second", "third", and "fourth" are used for descriptive purposes only, and should not be construed as indicating or implying relative importance.

In addition, it should be noted that in the description of the present invention, unless otherwise clearly specified and limited, the terms "setting", "connection" and "installation" should be understood in a broad sense, for example, it can be fixed connection or It is a detachable connection, or an integral connection. Those skilled in the art can understand the specific meanings of the above terms in the present invention according to specific situations.

Based on the problem pointed out by the background technology, the ventilation effect of the fresh air function of the existing all-in-one washer-dryer is poor. The present invention provides a drying system of an integrated washer-dryer and an integrated washer-dryer, which aims to block the flow of airflow by setting a wind-up structure near the first communication hole, so that more airflow can pass through the first communication hole. The communication hole enters into the air outlet pipeline, so that the air flow into the air outlet pipeline can be increased, and more fresh air can be sucked in, so as to improve the ventilation effect.

Specifically, the all-in-one washer-dryer of the present invention includes a box body, a laundry processing cylinder installed in the box, and a drying system. The drying system can deliver hot air to the laundry processing cylinder to dry the clothes in the laundry processing cylinder. .

Wherein, the drying system of the present invention includes a drying air duct, a blower fan, an air inlet pipeline, an air outlet pipeline and a driving structure, the fan is installed on the drying air duct, the drying air duct is provided with a first communicating hole, and One end of the pipeline communicates with the outside of the cabinet of the washer-dryer, the other end of the air inlet pipeline communicates with the drying air duct, and one end of the outlet pipeline communicates with the outside of the cabinet of the washer-dryer, and the air outlet The other end of the pipeline communicates with the first communication hole, and the wind-up structure is located in the drying air duct and is set close to the first communication hole. The wind-up structure can block the airflow flowing along the drying air duct, so as to increase air flow of the road.

By arranging a swing structure in the drying air duct near the first communication hole to block the flow of airflow, so that more airflow enters the air outlet pipeline through the first communication hole, thereby increasing the number of airflow into the air outlet pipeline The air flow can absorb more fresh air and improve the ventilation effect.

The technical solution of the present invention will be described in detail below in conjunction with two specific embodiments.

Embodiment one

The first embodiment of the all-in-one washing and drying machine of the present invention will be described in detail below with reference to FIGS. 1 to 6 .

As shown in FIG. 1 , the integrated washer-dryer of this embodiment includes a box body 1 , an outer cylinder 2 , an inner cylinder 3 and a drying system disposed in the box body 1 , and the inner cylinder 3 is rotatably disposed in the outer cylinder 2 .

Among them, the drying system includes a drying air duct 4, a fan 5, an air inlet pipeline 6 and an air outlet pipeline 7, and the fan 5 is installed on the drying air duct 4, and one end of the air inlet pipeline 6 is connected to the box body 1. The other end of the air inlet pipeline 6 communicates with the drying air duct 4, and one end of the air outlet pipeline 7 communicates with the outside of the cabinet 1. The drying air duct 4 is provided with a first communication hole 41, and the air outlet The other end of the pipeline 7 communicates with the first communication hole 41 , so as to realize the communication with the drying air duct 4 .

As shown in Fig. 1, Fig. 2, Fig. 4 to Fig. 6, the drying system of this embodiment also includes a swinging structure located in the drying air duct 4, wherein the swinging structure is set close to the first communication hole 41, and the swinging structure is set The airflow flowing along the drying air duct 4 can be blocked so as to increase the airflow entering the air outlet pipeline 7 .

It should be noted that in practical applications, those skilled in the art can set the swing structure as a swing opening, or can also set the swing structure as a swing board, etc., the adjustment of the specific structural form of the swing structure and Changes that do not deviate from the principle and scope of the present invention should be limited within the protection scope of the present invention.

Preferably, as shown in FIGS. 4 to 6 , the swinging structure is a swinging opening 72 provided at the other end of the air outlet pipeline 7 .

By arranging the swinging structure in the form of the swinging opening 72, in addition to blocking the airflow flowing along the drying air duct 4, the airflow can also be effectively guided so that the airflow flows toward the air outlet pipeline 7, which is beneficial Make more air flow enter in the air outlet pipeline 7.

Preferably, as shown in FIG. 4 to FIG. 6 , the diameter of the airflow opening 72 becomes smaller along the flow direction of the airflow.

By reducing the caliber of the airflow opening 72 along the air flow direction, the flow velocity of the air flow can be increased, thereby facilitating more air flow to flow into the air outlet pipeline 7 .

It should be noted that, in practical applications, the caliber of the windshield opening 72 can be gradually reduced step by step, or the caliber of the windshield mouth 72 can be gradually reduced smoothly, etc., such flexible adjustment and change Without departing from the principle and scope of the present invention, all should be limited within the protection scope of the present invention.

Preferably, as shown in FIG. 4 to FIG. 6 , the diameter of the airflow opening 72 gradually becomes smaller along the flow direction of the airflow.

By making the diameter of the swing opening 72 gradually decrease smoothly, the airflow entering the swing opening 72 can be made to flow smoothly.

Preferably, as shown in FIG. 1 , the first communication hole 41 is located at the downstream end of the fan 5 .

By making the first communication hole 41 connected with the air outlet pipeline 7 located at the downstream end of the fan 5 , it is more convenient for the airflow in the drying air duct 4 to flow into the air outlet pipeline 7 .

Exemplarily, as shown in FIG. 1 , the drying air duct 4 of this embodiment includes a condensation air duct 4A and a heating air duct 4B, the first communication hole 41 is arranged on the heating air duct 4B, and the fan 5 is installed on the condensation air duct Between 4A and the heating air duct 4B, one end of the condensing air duct 4A communicates with the rear of the inner tube 3, the other end of the condensing air duct 4A communicates with the air inlet end of the fan 5, and one end of the heating air duct 4B communicates with the rear of the fan 5. The air outlet is connected, and the other end of the heating air duct 4B is in communication with the front end of the inner cylinder 3, that is to say, the condensation air duct 4A is located at the upstream end of the fan 5, and the heating air duct 4B is located at the downstream end of the fan 5, and, at the heating A heater 81 is provided in the air duct 4B.

In the process of drying clothes, under the action of the fan 5, the air flow circulates along the inner cylinder 3, the condensing air duct 4A and the heating air duct 4B, and the hot and humid air flows through the condensing air duct 4A. Moisture is condensed to become dry air. When the dry air flows through the heating air duct 4B, it is heated by the heater 81 installed in the heating air duct 4B to become hot air. The hot air is blown into the inner tube 3 , to dry the clothes in the inner tub 3 .

The other end of the air inlet pipeline 6 communicates with the condensing air duct 4A, and the other end of the air outlet pipeline 7 communicates with the heating air duct 4B through the first communication hole 41. After the clothes are dried, the fan 5 continues to run, but the setting The heater 81 in the heating air duct 4B stops running. Under the action of the fan 5, the cold air outside the cabinet 1 enters the condensing air duct 4A along the air inlet pipeline 6, and mixes with the high-temperature gas in the condensing air duct 4A. Entering the heating air duct 4B, when the mixed gas flows through the connection between the heating air duct 4B and the air outlet pipeline 7, part of the gas continues to flow into the inner cylinder 3 along the heating air duct 4B, and part of the gas flows along the air inlet pipe The passage 6 is discharged to the outside of the box body 1 , thereby forming two circulations inside the box body 1 , inner and outer, so that the temperature in the box body 1 can be lowered as soon as possible.

It should be noted that setting the air inlet pipeline 6 and the air outlet pipeline 7 to connect the drying air duct 4 with the outside of the box body 1 has other functions besides the functions described above.

For example, if the user does not select a drying program, by setting the air inlet pipeline 6 and the air outlet pipeline 7, the functions of dehumidification, drying clothes and deodorization can also be achieved, reducing the growth of bacteria in the cylinder.

Specifically, after the user finishes washing the clothes, the inside of the drum is wet. At this time, the fan 5 is turned on to strengthen the air exchange between the inside of the drum and the external environment. The two circulations have different functions. The inner circulation has a large air volume and high wind speed, which can quickly take away the moisture on the surface of the clothes. The function of the outer circulation is mainly to discharge the moisture and prevent the air in the cylinder from reaching saturation. state, so that the moisture on the surface of the clothes can be continuously taken away, and the environment inside the cylinder can be dried to avoid the generation of peculiar smell, mold, etc. 3 rotations can avoid clothes wrinkling, reduce the moisture content of clothes, and a small amount of clothes can be worn in the morning; therefore, the fresh air function can operate with low noise and low power consumption.

Preferably, as shown in FIG. 1 , one end of the air outlet pipeline 7 extends to the front panel 11 of the box body 1 , and the front panel 11 is provided with a second communication hole 111 , and the outlet pipeline 7 connects with the air outlet pipeline 7 through the second communication hole 111 . The outside of the box body 1 communicates.

Exemplarily, as shown in FIG. 1 , a first communication hole 41 is provided on the heating air duct 4B, a second communication hole 111 is provided on the front panel 11 of the box body 1 , and the right end of the air outlet pipeline 7 is connected to the second communication hole 111 . A communication hole 41 communicates, and the left end of the air outlet pipeline 7 communicates with the second communication hole 111 .

Preferably, as shown in FIG. 1 and FIG. 2 , an air deceleration structure 71 is provided at one end of the air outlet pipeline 7 to reduce the velocity of the airflow discharged from the air outlet pipeline 7 .

By setting the air deceleration structure 71 at the air outlet end of the air outlet pipeline 7 to reduce the air outlet speed, the airflow discharged from the air outlet pipeline 7 can avoid affecting the user.

Exemplarily, as shown in Figures 1 and 2, the left end of the air outlet pipeline 7 is configured as a bell mouth, and the end with a large diameter of the bell mouth communicates with the second communication hole 111 provided on the front panel 11, and the bell mouth That is, the gas deceleration structure 71 is formed.

Preferably, as shown in FIG. 1 , one end of the air inlet pipeline 6 extends to the back plate 12 of the box body 1 , and the back plate 12 is provided with a third communicating hole 121 , and the air inlet pipeline 6 communicates with the air inlet pipeline 6 through the third communicating hole 121 . The outside of the box body 1 communicates.

The air inlet pipeline 6 is communicated with the outside of the box body 1 through the third communication hole 121 provided on the back plate 12, which not only helps to reduce the length of the air inlet pipeline 6, but also avoids affecting the aesthetics of the box body 1 .

Preferably, as shown in FIGS. 1 and 3 , one end of the air inlet pipeline 6 is provided with a gas speed-up structure 61 to increase the velocity of the airflow entering the air inlet pipeline 6 .

By arranging a gas speed-increasing structure 61 at the air inlet end of the air inlet pipeline 6 to increase the air intake speed, more fresh air can enter the air inlet pipeline 6 .

Exemplarily, as shown in FIGS. 1 and 3 , the right end of the air outlet pipeline 7 is configured as a bell mouth, and the end of the bell mouth with a large diameter communicates with the third communicating hole 121 provided on the back plate 12 , and the bell mouth The gas speed-up structure 61 is formed there.

Preferably, as shown in FIGS. 1 and 3 , the drying air duct 4 is provided with a fourth communication hole 42 at the upstream end of the fan 5 , and the fourth communication hole 42 communicates with the other end of the air inlet pipeline 6 and is close to the fan 5 air inlet settings.

By arranging the fourth communication hole 42 communicating with the air inlet pipeline 6 at a position close to the air inlet end of the fan 5 , more cool air can be sucked in.

Exemplarily, as shown in FIG. 1 and FIG. 3 , the fourth communication hole 42 is arranged on the condensing air duct 4A, the third communication hole 121 and the fourth communication hole 42 are located on the same horizontal plane, and the air inlet pipeline 6 extends along the horizontal direction. , the path is short.

Preferably, as shown in Figures 1 and 3, the drying system of this embodiment further includes a first electronically controlled valve 91 installed on the air inlet pipeline 6, and the first electrically controlled valve 91 is used to control the air inlet pipeline 6 on-off status.

Wherein, the first electric control valve 91 is electrically connected with the controller of the washer-dryer, and the controller can control the first electric control valve 91 to turn the air inlet pipe 6 If it is disconnected, the drying air passage 4 is prohibited from communicating with the outside of the box body 1 through the air inlet pipeline 6, so as to avoid affecting the drying efficiency of the clothes due to the entry of cold air.

After the clothes are dried, the controller controls the first electric control valve 91 to connect the air inlet pipeline 6, so that the air inlet pipeline 6 connects the drying air duct 4 with the outside of the box body 1, so that the box body The cold air outside the body 1 is introduced.

Preferably, as shown in Figures 1 and 2, the drying system of this embodiment further includes a second electronically controlled valve 92 installed on the air outlet pipeline 7, and the second electronically controlled valve 92 is used to control the air outlet pipeline 7 on-off status.

Wherein, the second electric control valve 92 is electrically connected with the controller of the washer-dryer, and the controller can control the second electric control valve 92 to turn the air outlet pipeline 7 If it is disconnected, the drying air passage 4 is prohibited from communicating with the outside of the box body 1 through the air outlet pipeline 7, so as to avoid affecting the drying efficiency of the clothes due to the loss of hot air.

After the clothes are dried, the controller controls the second electric control valve 92 to connect the air inlet pipeline 6, so that the air outlet pipeline 7 communicates the drying air duct 4 with the outside of the box body 1, so that the box body The hot air inside the body 1 is exhausted.

Embodiment two

The second embodiment of the all-in-one washing and drying machine of the present invention will be described in detail below with reference to FIGS. 4 to 9 .

As shown in FIG. 7 , the all-in-one washing and drying machine of this embodiment includes a box body 1 , an outer cylinder 2 , an inner cylinder 3 and a drying system arranged in the box body 1 , and the inner cylinder 3 is rotatably arranged in the outer cylinder 2 .

Wherein, the drying system of this embodiment is a heat pump drying system. The heat pump drying system includes a drying air duct 4, a fan 5, an air inlet pipeline 6 and an air outlet pipeline 7. The fan 5 is installed in the drying air duct 4. Above, one end of the air inlet pipeline 6 communicates with the outside of the box body 1, the other end of the air inlet pipeline 6 communicates with the drying air duct 4, and one end of the air outlet pipeline 7 communicates with the outside of the box body 1. The air duct 4 is provided with a first communication hole 41 , and the other end of the air outlet pipeline 7 communicates with the first communication hole 41 .

As shown in Figure 7, the heat pump drying system of this embodiment also includes a compressor (not shown in the figure), a condenser 82 and an evaporator 83 connected in sequence, wherein the evaporator 83 and the condenser 82 are both installed in the oven. In the dry air duct 4, when the hot and humid air flows through the evaporator 83, the moisture carried by it is condensed, thereby becoming dry air, and the dry air is heated when flowing through the condenser 82, thereby becoming hot air, and the hot air blows into the inner tub 3 to dry the clothes in the inner tub 3 .

Exemplarily, as shown in FIG. 7 , one end of the drying air duct 4 communicates with the rear of the inner cylinder 3 , the other end of the drying air duct 4 communicates with the front end of the inner cylinder 3 , the evaporator 83 , the condenser 82 and the The fan 5 is arranged in the drying air duct 4 along the flow direction of the airflow.

As shown in Figures 4 to 8, the drying system of this embodiment also includes a swing structure located in the drying duct 4, wherein the swing structure is arranged close to the first communication hole 41, and the swing structure is set to be able to The air flow coming from the dry air duct 4 is blocked to increase the air flow entering the air outlet pipeline 7 .

It should be noted that in practical applications, those skilled in the art can set the swing structure as a swing opening, or can also set the swing structure as a swing board, etc., the adjustment of the specific structural form of the swing structure and Changes that do not deviate from the principle and scope of the present invention should be limited within the protection scope of the present invention.

Preferably, as shown in FIGS. 4 to 6 , the swinging structure is a swinging opening 72 provided at the other end of the air outlet pipeline 7 .

By arranging the swinging structure in the form of the swinging opening 72, in addition to blocking the airflow flowing along the drying air duct 4, the airflow can also be effectively guided so that more airflow enters the air outlet pipeline within 7.

Preferably, as shown in FIG. 4 to FIG. 6 , the diameter of the airflow opening 72 becomes smaller along the flow direction of the airflow.

By reducing the caliber of the airflow opening 72 along the air flow direction, the flow velocity of the air flow can be increased, thereby facilitating more air flow to flow into the air outlet pipeline 7 .

It should be noted that, in practical applications, the caliber of the windshield opening 72 can be gradually reduced step by step, or the caliber of the windshield mouth 72 can be gradually reduced smoothly, etc., such flexible adjustment and change Without departing from the principle and scope of the present invention, all should be limited within the protection scope of the present invention.

Preferably, as shown in FIG. 4 to FIG. 6 , the diameter of the airflow opening 72 gradually becomes smaller along the flow direction of the airflow.

By making the diameter of the swing opening 72 gradually decrease smoothly, the airflow entering the swing opening 72 can be made to flow smoothly.

Preferably, as shown in FIG. 7 , the first communication hole 41 is located at the downstream end of the fan 5 .

Preferably, as shown in Figures 7 and 9, the heat pump drying system of this embodiment further includes a drainage pipeline 84 for discharging condensed water in communication with the drying air duct 4, and the other end of the air inlet pipeline 6 is The drainage pipeline 84 communicates with the drying air duct 4 .

By connecting the air inlet pipeline 6 with the drying air duct 4 through the drainage pipeline 84 , it is possible to avoid opening another communication hole in the drying air duct 4 to communicate with the air inlet pipeline 6 , and to simplify the structural design.

In the process of drying clothes, under the action of the fan 5, the airflow circulates along the inner cylinder 3 and the drying air duct 4, and when the hot and humid air flows through the evaporator 83, the moisture carried by it is condensed, thus becoming Drying air, the dry air is heated when flowing through the condenser 82 , so as to become hot air, and the hot air is blown into the inner tub 3 to dry the clothes in the inner tub 3 .

After the clothes are dried, the fan 5 continues to run, but the compressor stops, and the condenser 82 no longer heats the air. 84 enters the drying air duct 4, mixes with the high-temperature gas in the drying air duct 4 and continues to flow along the drying air duct 4, when the mixed gas flows through the connection between the drying air duct 4 and the air outlet pipeline 7 , a part of the gas continues to flow into the inner cylinder 3 along the drying air duct 4, and a part of the gas is discharged to the outside of the box body 1 along the air inlet line 6, thereby forming two circulations inside the box body 1. , the temperature in the casing 1 can be lowered as soon as possible.

Preferably, as shown in FIG. 7 , one end of the air outlet pipeline 7 extends to the front panel 11 of the box body 1 , and the front panel 11 is provided with a second communication hole 111 , and the outlet pipeline 7 communicates with the air outlet through the second communication hole 111 . The outside of the box body 1 communicates.

Preferably, as shown in FIGS. 7 and 8 , an air deceleration structure 71 is provided at one end of the air outlet pipeline 7 to reduce the velocity of the airflow discharged from the air outlet pipeline 7 .

By setting the air deceleration structure 71 at the air outlet end of the air outlet pipeline 7 to reduce the air outlet speed, the airflow discharged from the air outlet pipeline 7 can avoid affecting the user.

Exemplarily, as shown in FIGS. 7 and 8 , the left end of the air outlet pipeline 7 is configured as a bell mouth, and the end with a large diameter of the bell mouth communicates with the second communicating hole 111 provided on the front panel 11 , and the bell mouth That is, the gas deceleration structure 71 is formed.

Preferably, as shown in FIG. 7 , one end of the air inlet pipeline 6 extends to the back plate 12 of the box body 1 , the back plate 12 is provided with a third communicating hole 121 , and the air inlet pipeline 6 communicates with the air inlet pipeline 6 through the third communicating hole 121 . The outside of the box body 1 communicates.

The air inlet pipeline 6 is communicated with the outside of the box body 1 through the third communication hole 121 provided on the back plate 12, which not only helps to reduce the length of the air inlet pipeline 6, but also avoids affecting the aesthetics of the box body 1 .

Preferably, as shown in FIG. 7 and FIG. 9 , one end of the air inlet pipeline 6 is provided with a gas speed-up structure 61 to increase the velocity of the airflow entering the air inlet pipeline 6 .

By arranging a gas speed-increasing structure 61 at the air inlet end of the air inlet pipeline 6 to increase the air intake speed, more fresh air can enter the air inlet pipeline 6 .

Exemplarily, as shown in FIG. 7 and FIG. 9 , the right end of the air outlet pipeline 7 is set as a bell mouth, and the end with a large diameter of the bell mouth communicates with the third communicating hole 121 provided on the back plate 12 , and the bell mouth The gas speed-up structure 61 is formed there.

Preferably, as shown in Figures 7 and 9, the drying system of this embodiment further includes a first electronically controlled valve 91 installed on the air inlet pipeline 6, and the first electrically controlled valve 91 is used to control the air inlet pipeline 6 on-off status.

Wherein, the first electric control valve 91 is electrically connected with the controller of the washer-dryer, and the controller can control the first electric control valve 91 to turn the air inlet pipe 6 If it is disconnected, the drying air passage 4 is prohibited from communicating with the outside of the box body 1 through the air inlet pipeline 6, so as to avoid affecting the drying efficiency of the clothes due to the entry of cold air.

After the clothes are dried, the controller controls the first electric control valve 91 to connect the air inlet pipeline 6, so that the air inlet pipeline 6 connects the drying air duct 4 with the outside of the box body 1, so that the box body The cold air outside the body 1 is introduced.

Preferably, as shown in Figures 7 and 8, the drying system of this embodiment further includes a second electronically controlled valve 92 installed on the air outlet pipeline 7, and the second electronically controlled valve 92 is used to control the air outlet pipeline 7 on-off status.

Wherein, the second electric control valve 92 is electrically connected with the controller of the washer-dryer, and the controller can control the second electric control valve 92 to turn the air outlet pipeline 7 If it is disconnected, the drying air passage 4 is prohibited from communicating with the outside of the box body 1 through the air outlet pipeline 7, so as to avoid affecting the drying efficiency of the clothes due to the loss of hot air.

After the clothes are dried, the controller controls the second electric control valve 92 to connect the air inlet pipeline 6, so that the air outlet pipeline 7 communicates the drying air duct 4 with the outside of the box body 1, so that the box body The hot air inside the body 1 is exhausted.

Those skilled in the art will understand that although some embodiments described herein include some features included in other embodiments but not others, combinations of features from different embodiments are meant to be within the scope of the present application And form different embodiments. For example, in the claims of this application, any one of the claimed embodiments can be used in any combination.

So far, the technical solutions of the present invention have been described in conjunction with the preferred embodiments shown in the accompanying drawings, but those skilled in the art will easily understand that the protection scope of the present invention is obviously not limited to these specific embodiments. Without departing from the principles of the present invention, those skilled in the art can make equivalent changes or substitutions to relevant technical features, and the technical solutions after these changes or substitutions will all fall within the protection scope of the present invention.

Claims (15)

1. A drying system of drying equipment, the drying system includes a drying air duct and a fan installed on the drying air duct, characterized in that the drying system also includes an air inlet pipeline, The air outlet pipeline and the driving structure located in the drying air duct, the drying air duct is provided with a first communication hole, one end of the air inlet pipeline communicates with the outside of the box of the drying equipment, The other end of the air inlet pipeline communicates with the drying air duct, one end of the air outlet pipeline communicates with the outside of the box, and the other end of the air outlet pipeline communicates with the first The holes are connected, and the swing structure is arranged close to the first communication hole, and the swing structure can block the air flow flowing along the drying air duct, so as to increase the air flow entering the air outlet pipeline. 2 . The drying system of drying equipment according to claim 1 , wherein the wind-ride structure is a wind-ride opening arranged at the other end of the air outlet pipeline. 3 . 3 . The drying system of drying equipment according to claim 2 , characterized in that, the caliber of the wind opening becomes smaller along the flow direction of the airflow. 4 . 4 . The drying system of drying equipment according to claim 3 , characterized in that, the diameter of the wind opening gradually becomes smaller along the flow direction of the airflow. 5. The drying system of drying equipment according to claim 1, characterized in that, the first communication hole is located at the downstream end of the fan. 6. The drying system of drying equipment according to claim 1, wherein one end of the air outlet pipeline extends to the front panel of the box body, and a second communication hole is arranged on the front panel , the air outlet pipeline communicates with the outside of the box through the second communication hole. 7. The drying system of drying equipment according to claim 1, characterized in that, one end of the air outlet pipeline is provided with a gas deceleration structure to reduce the velocity of the airflow discharged from the air outlet pipeline. 8. The drying system of drying equipment according to claim 1, wherein one end of the air inlet pipeline extends to the back plate of the box body, and a third communication hole is arranged on the back plate , the air inlet pipeline communicates with the outside of the box through the third communication hole. 9. The drying system of drying equipment according to claim 1, characterized in that, one end of the air inlet pipeline is provided with a gas speed-increasing structure to increase the velocity of the airflow entering the air inlet pipeline. 10. The drying system of drying equipment according to claim 1, characterized in that, the drying air channel is provided with a fourth communication hole at the upstream end of the fan, and the fourth communication hole is connected to the The other end of the air inlet pipeline communicates with and is arranged close to the air inlet end of the fan. 11. The drying system of drying equipment according to claim 1, characterized in that, the drying system is a heat pump drying system, and the heat pump drying system includes a A drainage pipeline for discharging condensed water, the other end of the air inlet pipeline communicates with the drying air duct through the drainage pipeline. 12. The drying system of drying equipment according to any one of claims 1 to 11, characterized in that, the drying system further comprises a first electronically controlled valve installed on the air inlet pipeline, so that The first electronically controlled valve is used to control the on-off state of the air inlet pipeline. 13. The drying system of drying equipment according to any one of claims 1 to 11, characterized in that, the drying system further comprises a second electrically controlled valve installed on the air outlet pipeline, so that The second electronically controlled valve is used to control the on-off state of the air outlet pipeline. 14. A drying device, characterized by comprising the drying system according to any one of claims 1-13. 15. The drying device according to claim 14, characterized in that, the drying device is a clothes dryer or an all-in-one washing and drying machine.
