CN115771959A - Wastewater treatment circulating system for intelligent car washer and treatment method thereof - Google Patents

Abstract

The invention relates to a water recycling technology, in particular to a wastewater treatment circulating system for an intelligent car washer and a treatment method thereof, wherein the system comprises a cabin body, and also comprises a grid treatment cabin, a flocculation cabin, an aeration cabin and a circulating cabin which are arranged in the cabin body; three medicine boxes are suspended above the flocculation cabin; the upper edges of the three medicine boxes are connected with the lower surface of the upper cover; the bottoms of the three medicine boxes are provided with medicine feeding holes, and a movable bottom plate is arranged between the medicine boxes and the top of the flocculation cabin and is attached to the bottoms of the medicine boxes; the movable bottom plate is matched with the dosing mechanism; the bottom of the flocculation cabin is also provided with a dissolution reaction component which is also matched with the dosing mechanism. The dosing mechanism and the dissolution reaction component establish a mechanical matching relationship between the addition and the mixing reaction of the three medicines, ensure that the medicines can be put into the flocculation chamber according to a set sequence, and continuously generate turbulence in the wastewater of the flocculation chamber in the process of putting the medicines, and ensure that the medicines are fully combined with the wastewater.

Description

Wastewater treatment circulating system for intelligent car washer and treatment method thereof

Technical Field

The invention relates to a water recycling technology, in particular to a wastewater treatment circulating system for an intelligent car washer and a treatment method thereof.

Background

Although car washing is still mainly manual in most of domestic car service stores, the intelligent car model has been developed at an accelerated speed. In foreign countries, the intelligent car washer belongs to a popular car washing mode and is distributed in life service areas. Domestic car washers mainly cover specific places such as gas stations, 4S shops at present, lack the application scene of liveness.

The intelligent car washer cannot cover in a large scale, so that application scenes are lacked, and the method mainly comprises two aspects; on the one hand, the price of the equipment and on the other hand, the treatment of the wastewater; the main reason is the subsequent treatment of the wastewater. Although the equipment cost is low, the labor cost is high; although the intelligent car washer is high in equipment price, a large amount of labor cost is saved.

Because the efficiency of manual service car washing in stores is generally low, the number of cars washed every day is not too large, and the amount of generated waste water is not too large; most of the waste water generated by car washing in stores is basically discharged to a municipal sewage pipe network, and the waste water from car washing and other common domestic sewage are discharged to a sewage treatment plant together by the municipal sewage pipe network for indiscriminate treatment.

The number of the intelligent car washer for washing the car per day can be increased by times or even tens of times, and the amount of the generated car washing waste water is increased correspondingly; therefore, the waste water can not be directly discharged into the urban sewage pipe network, and can be discharged into the sewage pipe network only after the waste water is pretreated to reach the standard.

At present, no treatment system for car washing sewage exists in the market, and pretreatment for the car washing sewage cannot be carried out, so that the invention provides a wastewater treatment circulating system for an intelligent car washer and a treatment method thereof.

Disclosure of Invention

The invention aims to provide a wastewater treatment circulating system for an intelligent car washer and a treatment method thereof, so as to solve the problems in the background technology.

In order to achieve the purpose, the invention provides the following technical scheme:

a wastewater treatment circulating system for an intelligent car washer comprises a cabin body with the top and the bottom communicated, and further comprises a grid treatment cabin, a flocculation cabin, an aeration cabin and a circulating cabin which are arranged in the cabin body; the grid treatment cabin, the flocculation cabin, the aeration cabin and the circulation cabin are communicated with each other; a lifting type grid structure is arranged in the grid treatment cabin and is used for removing larger suspended matters in the wastewater from the grid treatment cabin in a lifting and dumping mode;

three medicine boxes are suspended above the flocculation cabin, and a coagulant, a magnetic seed and a coagulant aid are respectively placed in the three medicine boxes; the upper part of the cabin body is detachably provided with an upper cover through bolts, and the upper edges of the three medicine boxes are connected with the lower surface of the upper cover; the bottoms of the three medicine boxes are provided with medicine feeding holes, and a movable bottom plate is arranged between the medicine boxes and the top of the flocculation cabin and is attached to the bottoms of the medicine boxes; the movable bottom plate is matched with the dosing mechanism;

the bottom of the flocculation cabin is also provided with a dissolution reaction component which is also matched with the dosing mechanism so as to accelerate the combination of the medicine thrown into the flocculation cabin and the wastewater when the medicine is thrown into the flocculation cabin.

A waste water treatment circulation system for intelligent car washer as above: a suspension is arranged above the flocculation cabin, the suspension is connected below the upper cover through a suspension beam, and a plurality of belt wheels are distributed below the suspension;

the medicine feeding mechanism comprises a transmission belt connected with a plurality of belt wheels, the belt wheels are rotationally connected with the suspension frame, one surface of the transmission belt, which faces the medicine chest, is connected with a fixed column, and the fixed column is matched with a track arranged on the movable bottom plate;

the dosing mechanism also comprises a motor arranged on the suspension and a main shaft connected with the output end of the motor, and the main shaft is connected with one belt wheel;

the main shaft penetrates through the suspension and is in rotating fit with the suspension.

A waste water treatment circulation system for intelligent car washer as above: the outer side wall of the medicine box is connected with at least two vertical rods, the vertical rods are connected with guide pillars, the guide pillars are perpendicular to the medicine feeding pore space, the upper surface of the movable bottom plate is connected with lifting lugs, the lifting lugs are in sliding fit with the guide pillars, a spring is sleeved on each guide pillar, and the spring is elastically connected with the lifting lugs and the vertical rods.

A waste water treatment circulation system for intelligent car washer as above: the dissolution reaction component comprises a stirring shaft which is horizontally and rotatably arranged at the center of the bottom of the flocculation cabin, and the stirring shaft is connected with the lower end of the main shaft through a bevel gear set; a plurality of groups of straight blades are arranged on the stirring shaft along the circumference;

the bevel gear set comprises a first bevel gear connected to the lower end of the main shaft and a second bevel gear connected to the stirring shaft, and the two bevel gears are meshed with each other.

A waste water treatment circulation system for intelligent car washer as above: the dissolution reaction component also comprises side shafts symmetrically arranged at two sides below the stirring shaft, a plurality of groups of torsion blades are arranged on the side shafts along the circumference, and the side shafts are connected with second gears which are meshed with first gears connected on the stirring shaft.

A waste water treatment circulation system for intelligent car washer as above: the lifting type grating structure comprises a lifting cylinder vertically arranged below the interior of the grating processing cabin, a support rod with the lower end connected with the upper end of the lifting cylinder, a fixed shaft rotatably sleeved with the upper end of the support rod, and a lifting grating plate with one side edge connected with the fixed shaft;

two ends of the fixed shaft are respectively and rotatably provided with an embedded wheel, two sides of the inner wall of the grid processing cabin are symmetrically provided with embedded grooves, and the embedded wheels are embedded in the embedded grooves in a rolling manner; the lifting grid plate is overlapped with a telescopic grid plate in a sliding embedded manner; the lower part of the telescopic grid plate is connected with a connecting column, and the connecting column is inserted into a column sleeve connected to the lower part of the lifting grid plate in a sliding manner; the outside cover of spliced pole is equipped with No. two springs, no. two spring elastic connection the column cover and spliced pole.

The wastewater treatment circulating system for the intelligent car washer comprises: a third gear is rotatably arranged at the joint of the lower end of the supporting rod and the upper end of the lifting cylinder, and the third gear is connected with the lifting grating plate through a connecting rod; one end of the connecting rod is rotationally connected with the lifting grating plate through a rotating pin, and the other end of the connecting rod is rotationally connected with an eccentric part at one side of the third gear; and a toothed plate is connected on the inner wall of the grid treatment cabin, a roller is rotatably arranged at the edge of one side of the telescopic grid plate, which is far away from the fixed shaft, and the roller is in rolling fit with the inner wall of the grid treatment cabin.

The wastewater treatment circulating system for the intelligent car washer comprises: a liquid pumping structure is further arranged among the grid treatment cabin, the flocculation cabin, the aeration cabin and the circulation cabin, the liquid pumping structure comprises impeller pumps arranged on the outer walls of the flocculation cabin, the aeration cabin and the circulation cabin, and a water injection flange joint is arranged at the upper part of the grid treatment cabin; the water injection flange joint penetrates through the cabin body and protrudes out of the cabin body;

the liquid pumping structure also comprises a lifting pipe, wherein the lifting pipe is divided into two sections, namely a lifting pipe and a lifting pipe; the lower lifting pipe is connected with a water inlet of the impeller pump, and the upper lifting pipe is connected with a water outlet of the impeller pump;

the pump liquid structures are three groups, impeller shafts of impeller pumps in the three groups of pump liquid structures are coaxially connected through a connecting shaft, and one impeller shaft is connected with the output end of the motor;

the circulation cabin is communicated with the grid treatment cabin through a backflow structure, the backflow structure comprises a backflow pump installed on the outer wall of the circulation cabin, the backflow pump is communicated with the middle position of the circulation cabin and the bottom of the grid treatment cabin through a backflow pipe, and an impeller shaft of the backflow pump is in synchronous transmission with the connecting shaft through a belt.

The wastewater treatment circulating system for the intelligent car washer comprises: the bottom of the aeration cabin is provided with an air distribution disc, a filter frame is further arranged in the aeration cabin and arranged above the air distribution disc, and after wastewater enters the aeration cabin, the magnetic floc is separated from the liquid wastewater through the filter frame; the air distribution disc forcibly transfers oxygen in the air from the bottom of the aeration cabin to the separated liquid wastewater so as to increase the dissolved oxygen of the wastewater and oxidize and decompose organic matters in the wastewater.

A method for circularly treating wastewater of an intelligent car washer by using the system comprises the following steps:

injecting waste water to the upper part of a grid treatment cabin in a cabin body from the outside of the cabin body through a water injection flange joint, wherein the injection amount of the waste water is kept to be higher than a lifting pipe and lower than a lifting grid plate;

starting a lifting cylinder to drive a third gear, a support rod, a connecting rod and a fixed shaft to ascend, and removing larger suspended matters in the wastewater from a grid treatment cabin; then, the lifting cylinder is decompressed, so that the third gear, the support rod, the connecting rod and the fixed shaft are reset;

respectively putting a coagulant, a magnetic seed and a coagulant aid in the three medicine boxes in predetermined parts, pre-starting a motor, and adjusting a fixed column to a position close to the medicine box loaded with the coagulant;

starting a motor to enable the wastewater to stably and circularly flow among the grid treatment cabin, the flocculation cabin, the aeration cabin and the circulation cabin; then starting the air pump and the motor, and operating wastewater treatment;

and step five, sampling the water liquid on the upper layer of the circulation cabin and detecting the water quality after circulating for a plurality of periods.

Compared with the prior art, the invention has the beneficial effects that: through the three sets of pump liquid structures and the set of backflow structure, the wastewater can stably and circularly flow among the grid treatment cabin, the flocculation cabin, the aeration cabin and the circulation cabin.

In addition, the dosing mechanism and the dissolution reaction component provided by the invention enable the three medicines to be sequentially added into the flocculation cabin and establish a mechanical matching relationship with the mixing reaction, ensure that the medicines can be put into the flocculation cabin according to a set sequence, and continuously generate turbulence in the wastewater of the flocculation cabin in the process of putting the medicines, and ensure that the medicines are fully combined with the wastewater.

Finally, the lifting type grid structure provided by the invention can separate larger suspended matters in the wastewater from the wastewater and automatically tilt and dump the wastewater.

Drawings

FIG. 1 is an isometric view of a wastewater treatment cycle system for an intelligent car washer;

FIG. 2 is a schematic structural diagram of a wastewater treatment circulation system for an intelligent car washer;

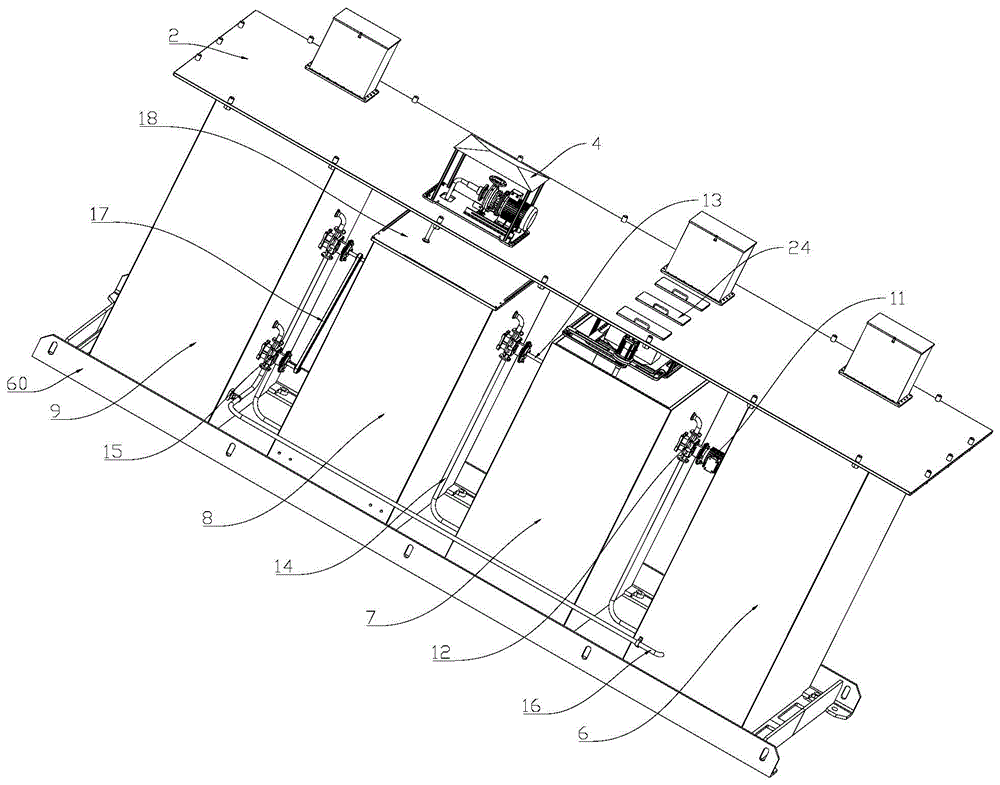

FIG. 3 is a schematic structural view of the cabin removed from the wastewater treatment circulation system for the intelligent car washer;

FIG. 4 is a schematic view of the structure of FIG. 3 in yet another orientation;

FIG. 5 is a schematic view of the structure of FIG. 4 with the upper lid removed and the chimney inspected;

FIG. 6 is a schematic view of the grid treatment module after being separated from the skid-mounted base;

FIG. 7 is a schematic view of a raised grid structure in a grid processing chamber;

FIG. 8 is a schematic view of a half-section of a grid treatment chamber;

FIG. 9 is a schematic structural view of a flocculation tank and an upper cover;

FIG. 10 is a schematic view of the structure of FIG. 9 in yet another orientation;

fig. 11 is a disassembled view of the administration mechanism;

FIG. 12 is a schematic view of the dissolution reaction assembly in connection with the dosing mechanism;

FIG. 13 is a schematic illustration of the engagement of the administration mechanism with three of the medicine boxes;

FIG. 14 is a schematic view of the movable floor under the medicine chest after being separated from the guide posts;

FIG. 15 is a schematic view of the structure of FIG. 14 in yet another orientation;

FIG. 16 is a schematic structural view of the inside of the flocculation tank after the partition is removed;

FIG. 17 is a schematic structural view of an aeration chamber;

FIG. 18 is a schematic view of the structure of the aeration chamber shown in FIG. 17 after the filter frame is removed;

in the figure: 1. a cabin body; 2. an upper cover; 3. checking the chimney; 4. a ceiling; 5. an air pump; 6. a grid treatment cabin; 7. a flocculation chamber; 8. an aeration cabin; 9. a circulation cabin; 10. a separation port; 11. a motor; 12. a vane pump; 13. a connecting shaft; 14. a riser tube; 15. a reflux pump; 16. a return pipe; 17. a belt; 18. a partition plate; 19. gangway ladder; 20. a trapezoidal guide groove; 21. a suspension; 22. a hanging beam; 23. a medicine chest; 24. a box door; 25. a motor; 26. a transmission belt; 27. fixing a column; 28. a pulley; 29. a main shaft; 30. a first bevel gear; 31. a second bevel gear; 32. turning over a stirring shaft; 33. a straight blade; 34. a first gear; 35. a second gear; 36. a side shaft; 37. twisting the blades; 38. a movable base plate; 39. a track; 40. a guide post; 41. a first spring; 42. lifting lugs; 43. a lifting grid plate; 44. a telescopic grid plate; 45. a roller; 46. connecting columns; 47. a second spring; 48. a column sleeve; 49. a fixed shaft; 50. embedding a wheel; 51. a strut; 52. a lift cylinder; 53. a third gear; 54. a connecting rod; 55. a toothed plate; 56. caulking grooves; 57. a filter frame; 58. an air pipe; 59. a gas distribution plate; 60. and (4) a ground beam.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

Referring to fig. 1 to 18, as an embodiment of the present invention, the wastewater treatment circulation system for an intelligent car washer includes a cabin 1 with a top and a bottom through, wherein the cabin 1 is used as a square cabin of the wastewater treatment circulation, and has the same shape as a container, or can be directly formed by transforming a waste container;

the specific transformation mode is that the tail door of the container is welded, and then the bottom and the top of the container are cut to be communicated up and down; the reutilization of abandonment container can be realized, and the transformation degree of difficulty is less, and it is with low costs to reform transform. Of course, the shelter 1 of this construction can be produced directly for use.

The ground beams 60 with equal height are arranged at the bottom of the inner wall of the cabin body 1, the number of the ground beams 60 is four, the ground beams are connected end to end and are arranged at the bottom of the cabin body 1 through bolts, so that a skid-mounted base is formed, and the installation and the disassembly are convenient.

The system is still including installing grid processing cabin 6, flocculation cabin 7, aeration cabin 8 and circulation cabin 9 in the cabin body 1, above-mentioned four cabins distribute in cabin body 1 along the length direction of the cabin body 1 in proper order, and the bottom in four cabins all is installed through the bolt on the sled dress base.

The grid treatment cabin 6, the flocculation cabin 7, the aeration cabin 8 and the circulation cabin 9 are communicated with each other; specifically, the bottom of the grid treatment cabin 6 is communicated with the upper part of the flocculation cabin 7, the bottom of the flocculation cabin 7 is communicated with the upper part of the aeration cabin 8, the bottom of the aeration cabin 8 is communicated with the upper part of the circulation cabin 9, and the middle position of the circulation cabin 9 is communicated with the bottom of the grid treatment cabin 6; the four parts form the circulation communication between the cabin and the cabin so as to circularly and circularly treat the waste water.

Wherein, a lifting type grating structure is arranged in the grating treatment cabin 6 and is used for removing larger suspended matters in the wastewater from the grating treatment cabin 6 in a lifting and dumping mode; as a large amount of sundries including soil, straws in the soil, dead branches and fallen leaves, stones and the like are attached to the car body to be cleaned, the sundries are mixed in the waste water generated by car washing, and the sundries including the straws, the dead branches and fallen leaves, the stones and the like can be separated through the grid treatment cabin 6.

Three medicine boxes 23 are suspended above the flocculation cabin 7, and a coagulant, a magnetic seed and a coagulant aid are respectively placed in the three medicine boxes 23; the wastewater with larger suspended matters separated by the lifting type grid structure is discharged into the flocculation cabin 7, and the medicines in the three medicine boxes 23 are respectively thrown into the flocculation cabin 7 according to the sequence of firstly throwing the coagulant, then throwing the magnetic seeds and finally throwing the coagulant aid;

in detail, the action mechanism of the wastewater and the coagulant is as follows: the small suspended colloid and dispersed particle in waste water are made to produce floccule under the mutual action of molecular force and to collide with each other for coagulation in the deposition process, and this results in ever increased size and mass and raised deposition speed.

The mechanism of action with the magnetic species is as follows: magnetic substances or weak magnetic substances in the wastewater are combined with magnetic seeds to increase the specific surface area, and are attached to a floccule with a larger volume to form a magnetic floccule; is beneficial to reducing the substances such as chroma, turbidity and the like of the wastewater.

Since many vehicle body members are steel or iron, oxides (for example, rust) on the surface of the vehicle body are detached during washing, and a small amount of ferromagnetic substances are contained in the wastewater; the magnetic substances in the wastewater can be separated by the arranged magnetic seeds.

The sewage demagnetizing technology is widely applied to the treatment of wastewater in the steel industry such as steel hot rolling, continuous casting wastewater, cold rolling emulsion and the like; different from the invention, because the proportion of the strong Magnetic wastewater in the wastewater generated in the steel-making and iron-making industry can reach 98 percent, the invention needs to be matched with a High Gradient Magnetic separation technology (HGMS technology), namely a Kolm-Marston type modern High Gradient Magnetic Separator (High Gradient Magnetic Separator) which is formed by combining a steel wool type miniature Magnetic gathering medium and an iron armor coil; the wastewater in the invention has extremely low content of strong magnetic substances, so that a small amount of strong magnetic substances can be removed only by adding magnetic seeds.

Finally, the coagulant aid is put in the wastewater, so that a small amount of incompletely condensed impurities and medicines still exist in the liquid wastewater after most suspended substance colloids, dispersed particles and magnetic substances in the wastewater form magnetic flocs; at the moment, the coagulant aid is put into the flocculation cabin 7, so that the combination of unreacted medicines and uncondensed impurities in the liquid wastewater can be improved, on one hand, the action efficiency of the medicines can be improved, and the wastewater is prevented from containing a large amount of unreacted medicines; on the other hand, the content of colloid, particles and magnetic substances in the wastewater can be further reduced.

The bottom of the aeration chamber 8 is provided with an air distribution disc 59, the aeration chamber 8 is also internally provided with a filter frame 57, the filter frame 57 is arranged above the air distribution disc 59, and after wastewater enters the aeration chamber 8, the magnetic flocs are separated from the liquid wastewater through the filter frame 57; the air distribution plate 59 forcibly transfers oxygen in the air from the bottom of the aeration tank 8 to the separated liquid wastewater, so that the dissolved oxygen amount of the wastewater is increased, and organic matters in the wastewater are oxidized and decomposed.

Finally, the wastewater enters the circulation cabin 9 for sedimentation, the sedimentation objects mainly include impurities which have larger mass and cannot form floccules, such as gravel and the like, and the sediments have larger mass and relatively stably stay at the bottom of the circulation cabin 9 to be separated from the wastewater;

thereby completing a full cycle of processing.

Then the wastewater in the circulating cabin 9 enters the grid treatment cabin 6 again to be treated for a second period, so that circulating purification is realized; because the middle position of the circulation cabin 9 is communicated with the bottom of the grid treatment cabin 6, impurities precipitated at the bottom of the circulation cabin 9 cannot enter the grid treatment cabin 6.

In addition, since the wastewater in the circulation tank 9 is already the wastewater treated by the elevating type grid structure, it is not necessary to elevate it to the upper portion of the grid treatment tank 6; but only needs to be sent to the bottom of the grid treatment chamber 6 to be sent to the flocculation chamber 7 for secondary dosing.

The upper part of the cabin body 1 is detachably provided with an upper cover 2 through bolts, the surface of the upper cover 2 is provided with three inspection chimneys 3, and the three inspection chimneys 3 respectively correspond to a grid treatment cabin 6, a flocculation cabin 7 and a circulation cabin 9; a top cover is hinged to the top of each inspection chimney 3;

each inspection chimney 3 is communicated with the interior of the cabin body 1, so that the interiors of the grid treatment cabin 6, the flocculation cabin 7 and the circulation cabin 9 can be inspected conveniently by opening the top cover on the premise of not disassembling the upper cover 2, or faults in the interiors of the grid treatment cabin 6, the flocculation cabin 7 and the circulation cabin 9 can be eliminated.

The surface of the upper cover 2 is also provided with a ceiling 4, and the ceiling 4 corresponds to the aeration cabin 8; an air pump 5 is arranged between the ceiling 4 and the upper cover 2, and the air pump 5 is mounted on the upper cover 2 and is communicated with an air distribution disc 59 through an air pipe 58;

the top of the aeration chamber 8 is provided with a clapboard 18, and an air pipe 58 passes through the upper cover 2, the clapboard 18 and a filter frame 57 to be communicated with an air distribution disc 59.

Note that the air inlet end of the air pump 5 is vertically upward, and the dust and suspended matters in the air can be effectively reduced to enter the air pump 5 through the air inlet end of the air pump 5 by the arranged ceiling 4; in addition, substances outside the cabin body 1 can be prevented from falling into the air pump 5 through the arranged ceiling 4, and the air pump 5 is protected safely.

The air distribution disc 59 continuously introduces air into the aeration chamber 8 from the bottom of the aeration chamber 8, and part of undissolved air overflows from the wastewater in the aeration chamber 8 and is discharged from a gap between the partition plate 18 and the top of the aeration chamber 8; the baffle plate 18 can reduce the air discharge speed from the aeration chamber 8, and prolong the stay time of the air in the aeration chamber 8 as much as possible to increase the dissolved oxygen in the wastewater.

A pump liquid structure is further arranged among the grid treatment cabin 6, the flocculation cabin 7, the aeration cabin 8 and the circulation cabin 9, the pump liquid structure comprises impeller pumps 12 which are arranged on the outer walls of the flocculation cabin 7, the aeration cabin 8 and the circulation cabin 9, and a water injection flange joint is arranged at the upper part of the grid treatment cabin 6; the water injection flange joint penetrates through the cabin body 1 and protrudes out of the cabin body 1.

Waste water is injected into the upper part of the grid treatment cabin 6 outside the cabin body 1 and inside the cabin body 1 through the water injection flange joint.

The liquid pumping structure further comprises a lifting pipe 14, wherein the lifting pipe 14 is divided into two sections, namely a lifting pipe and a descending pipe; the lower riser pipe is connected with the water inlet of the impeller pump 12, and the upper riser pipe is connected with the water outlet of the impeller pump 12.

The first group of pump liquid structures are communicated with the bottom of the grid treatment cabin 6 and the upper part of the flocculation cabin 7; the second group of pump liquid structure is communicated with the bottom of the flocculation cabin 7 and the upper part of the aeration cabin 8; the third group of pump liquid structure is communicated with the bottom of the aeration cabin 8 and the upper part of the circulation cabin 9; and the three groups of pump liquid structures are arranged at the same height.

The impeller shafts of the impeller pumps 12 in the three groups of pump liquid structures are coaxially connected through a connecting shaft 13, and one of the impeller shafts is connected with the output end of the motor 11.

The motor 11 works to drive the impeller shafts which are prefabricated and connected to rotate, the impeller shafts are rotated to drive the impeller shafts in the other two impeller pumps 12 to rotate by utilizing the connecting shaft 13, so that the three impeller pumps 12 work synchronously at the same speed, the waste water flows at the same speed among the flocculation cabin 7, the aeration cabin 8 and the circulation cabin 9, and the liquid level height of each cabin is kept relatively stable.

The circulation cabin 9 is communicated with the grid treatment cabin 6 through a backflow structure, the backflow structure comprises a backflow pump 15 installed on the outer wall of the circulation cabin 9, the backflow pump 15 is communicated with the middle position of the circulation cabin 9 and the bottom of the grid treatment cabin 6 through a backflow pipe 16, and an impeller shaft of the backflow pump 15 is in synchronous transmission with the connecting shaft 13 through a belt 17.

As can be seen from the attached drawings, the connecting shaft 13 respectively penetrates through the flocculation tank 7 and the aeration tank 8, and an O-shaped sealing ring hermetically and rotatably connected with the connecting shaft 13 is further arranged at the penetrating position of the connecting shaft 13, and the O-shaped sealing ring is respectively arranged on the side walls of the flocculation tank 7 and the aeration tank 8.

The belt 17 realizes a constant speed transmission between the connecting shaft 13 and the impeller shaft of the reflux pump 15.

Namely, the flow rates of the wastewater pumped into the flocculation chamber 7 from the grid treatment chamber 6, the flocculation chamber 7 pumped into the aeration chamber 8, the aeration chamber 8 pumped into the circulation chamber 9 and the circulation chamber 9 pumped into the grid treatment chamber 6 are the same. And the three impeller pumps 12 and the return pump 15 work synchronously, so that the waste water circulates among the four chambers stably.

The upper edges of the three medicine boxes 23 are connected with the lower surface of the upper cover 2, so that the medicine boxes are suspended above the flocculation cabin 7; the upper cover 2 is provided with a medicine feeding port corresponding to each of the three medicine boxes 23, and each medicine feeding port is hinged with a box door 24.

The box door 24 is provided to isolate the medicines in the medicine box 23 from the outside air, so as to prevent the outside contaminants from being immersed in the medicines, and prevent the medicines in the medicine box 23 from being oxidized or wetted. When the delivery of the medicine in the medicine boxes 23 is exhausted, the medicine boxes 23 can be added by opening the box doors 24.

Medicine feeding holes are formed in the bottoms of the three medicine boxes 23, a movable bottom plate 38 is further arranged between the medicine boxes 23 and the top of the flocculation cabin 7, and the movable bottom plate 38 is attached to the bottoms of the medicine boxes 23; the movable bottom plate 38 is fitted with a dosing mechanism so that the movable bottom plates 38 at the bottoms of the three medicine boxes 23 are opened and closed in sequence, and the medicines are respectively dosed into the flocculation tank 7 in the order of dosing the coagulant, then dosing the magnetic seeds, and finally dosing the coagulant aid.

The bottom of the flocculation chamber 7 is also provided with a dissolution reaction component which is also matched with the dosing mechanism so as to accelerate the combination of the medicine put into the flocculation chamber 7 and the wastewater when the medicine is put into the flocculation chamber 7.

A suspension 21 is arranged above the flocculation cabin 7, the suspension 21 is connected below the upper cover 2 through a suspension beam 22, and a plurality of belt wheels 28 are distributed below the suspension 21;

the dosing mechanism comprises a transmission belt 26 connected with a plurality of belt wheels 28, the belt wheels 28 are rotatably connected with the suspension frame 21, one surface of the transmission belt 26 facing the medicine chest 23 is connected with a fixed column 27, and the fixed column 27 is matched with a track 39 arranged on the movable bottom plate 38;

the dosing mechanism further comprises a motor 25 arranged on the suspension 21 and a main shaft 29 connected with the output end of the motor 25, wherein the main shaft 29 is connected with one belt wheel 28;

the spindle 29 passes through the suspension 21 and is in rotational engagement with the suspension 21.

Wherein the track 39 is divided into an initial section, a middle section, and a final section, the final section and the initial section are collinear, the middle section is parallel to the final section and the initial section, and the middle section is close to the administration aperture; the middle section and the initial section and the final section are smoothly transited.

Further, at least two hanging rods are connected to the outer side wall of the medicine box 23, guide posts 40 are connected to the hanging rods, the guide posts 40 are perpendicular to the medicine feeding pore space, lifting lugs 42 are connected to the upper surface of the movable bottom plate 38, the lifting lugs 42 are in sliding fit with the guide posts 40, first springs 41 are sleeved on the guide posts 40, and the first springs 41 are elastically connected with the lifting lugs 42 and the hanging rods.

When the motor 25 works, the main shaft 29 can be driven to rotate, and the rotating main shaft 29 drives the belt wheel 28 connected with the rotating main shaft to rotate, so that the driving belt 26 is driven to run; the belt 26 moves to move the fixing posts 27 along the belt 26.

When the fixed column 27 moves to the initial section of the track 39, the fixed column 27 is embedded into the initial section, and when the fixed column 27 transits from the initial section to the middle section of the track 39, the movable bottom plate 38 is driven to move along the guide post 40 under the guiding action of the lifting lug 42, so that the dosing pore is opened, and the medicine is dosed into the flocculation tank 7;

when the fixed post 27 transits from the middle section to the end section of the rail 39, the movable bottom plate 38 is driven to reset under the assistance of the first spring 41, so as to close the dosing hole again, and the dosing is finished.

The fixing posts 27 are sequentially matched with the rails 39 on the three movable bottom plates 38, so that the coagulant, the magnetic seeds and the coagulant aid are respectively put into the flocculation tank 7 by the medicines in the three medicine boxes 23 in sequence.

The dissolution reaction component comprises a stirring shaft 32 which is horizontally and rotatably arranged at the center of the bottom of the flocculation cabin 7, and the stirring shaft 32 is connected with the lower end of the main shaft 29 through a bevel gear set; a plurality of groups of straight blades 33 are arranged on the stirring shaft 32 along the circumference;

the bevel gear group comprises a first bevel gear 30 connected to the lower end of the main shaft 29 and a second bevel gear 31 connected to the stirring shaft 32, and the two bevel gears are meshed with each other.

Wherein, the inner wall of the flocculation cabin 7 is provided with a shaft seat, and one part of the lower part of the main shaft 29, which is close to the first bevel gear 30, passes through the shaft seat and is rotationally connected with the shaft seat.

When the main shaft 29 rotates, the first bevel gear 30 is driven to rotate, the second bevel gear 31 is driven to rotate by the first bevel gear 30, so that the stirring shaft 32 and the plurality of groups of straight blades 33 on the stirring shaft 32 rotate, and the plurality of groups of straight blades 33 mix the dosed medicines and the wastewater along the circumferential direction of the stirring shaft 32.

Since the straight blades 33 are provided along the radial direction of the agitation shaft 32, the wastewater and the chemicals in the wastewater are agitated up and down during the rotation thereof.

The dissolution reaction component also comprises side shafts 36 which are symmetrically arranged at two sides below the stirring shaft 32, a plurality of groups of twisting blades 37 are arranged on the side shafts 36 along the circumference, a second gear 35 is connected on the side shafts 36, and the second gear 35 is meshed with the first gear 34 connected on the stirring shaft 32.

When the stirring shaft 32 rotates, the first gear 34 is driven to rotate, the rotating first gear 34 drives the second gear 35 to rotate, so that the side shafts 36 on the two sides rotate, and the side shafts 36 drive the torsion blades 37 thereon to rotate.

Because the twisting blades 37 have the twisting inclination angle, the twisting blades can not only stir the wastewater and the medicine, but also give a component force to the wastewater along the axial direction when the twisting blades rotate, so that the wastewater can flow left and right at the bottom of the flocculation chamber 7, and a turbulent flow is formed in combination with the stirring of the straight blades 33, so that the medicine can be uniformly dispersed at the bottom of the flocculation chamber 7 and is sufficiently and uniformly combined with the wastewater.

The lifting type grating structure comprises a lifting cylinder 52 vertically arranged below the interior of the grating processing cabin 6, a support rod 51 with the lower end connected with the upper end of the lifting cylinder 52, a fixed shaft 49 rotationally sleeved with the upper end of the support rod 51, and a lifting grating plate 43 with one side edge connected with the fixed shaft 49;

two ends of the fixed shaft 49 are respectively provided with an embedded wheel 50 in a rotating way, two sides of the inner wall of the grid processing cabin 6 are symmetrically provided with embedded grooves 56, and the embedded wheels 50 are embedded in the embedded grooves 56 in a rolling way; the lifting grid plate 43 is overlapped and slidably embedded with a telescopic grid plate 44; the lower part of the telescopic grid plate 44 is connected with a connecting column 46, and the connecting column 46 is inserted with a column sleeve 48 connected to the lower part of the lifting grid plate 43 in a sliding manner; the outer part of the connecting column 46 is sleeved with a second spring 47, and the second spring 47 is elastically connected with the column sleeve 48 and the connecting column 46.

A third gear 53 is rotatably provided at the joint between the lower end of the rod 51 and the upper end of the lift cylinder 52, and the third gear 53 is connected to the lift grid plate 43 via a connecting rod 54.

Specifically, one end of the connecting rod 54 is rotatably connected with the lifting grid plate 43 through a rotating pin, and the other end is rotatably connected with an eccentric part at one side of the third gear 53; and a toothed plate 55 is connected on the inner wall of the grid treatment cabin 6, a roller 45 is rotatably arranged at the edge of one side of the telescopic grid plate 44 away from the fixed shaft 49, and the roller 45 is in rolling fit with the inner wall of the grid treatment cabin 6.

Wherein lift cylinder 52 includes, but is not limited to, conventional hydraulic, electromagnetic, pneumatic cylinders, and the like.

The lifting cylinder 52 drives the third gear 53, the support rod 51, the connecting rod 54 and the fixed shaft 49 to ascend, the fixed shaft 49 drives the lifting grid plate 43 to ascend under the action of the embedded wheel 50 and the embedded groove 56, the telescopic grid plate 44 is further driven to ascend along with the fixed shaft, and at the beginning of ascending, the third gear 53 is not in contact with the toothed plate 55; in this process, the center of rotation of the third gear 53, one end of the connecting rod 54, and the other end of the connecting rod 54 are in the same straight line, so that the weight loaded on the grille plates 43 and 44 cannot drive the grille plates 43 and 44 to turn downwards.

When the lifting cylinder 52 drives the third gear 53 to rise to the top of the stroke, the third gear 53 starts to be engaged with the toothed plate 55, and then the third gear 53 rises continuously to rotate, so that the lifting grid plate 43 is driven by the connecting rod 54 to deflect upwards around the fixed shaft 49, and the telescopic grid plate 44 is driven to turn upwards together; in the process that the telescopic grid plate 44 is turned upwards, the second spring 47 is utilized to drive the telescopic grid plate 44 to extend towards the direction far away from the lifting grid plate 43, the roller 45 is always attached to the inner wall of the grid treatment cabin 6, and a gap is prevented from being formed between the edge of the telescopic grid plate 44 and the inner wall of the grid treatment cabin 6, so that heavy objects fall into the bottom of the grid treatment cabin 6.

When the lifting cylinder 52 drives the third gear 53, the rod 51, the connecting rod 54 and the fixed shaft 49 to ascend to the top of the stroke, the telescopic grid plates 44 and the lifting grid plates 43 are inclined so that the heavy objects thereon can be discharged from the grid processing chamber 6.

When the lifting cylinder 52 drives the third gear 53, the strut 51, the connecting rod 54 and the fixed shaft 49 to descend from the top end of the stroke, firstly, the third gear 53 and the toothed plate 55 cooperate to drive the telescopic grid plate 44 and the lifting grid plate 43 to reversely deflect while moving downwards; when the third gear 53 is separated from the toothed plate 55, the telescopic grid plate 44 and the lifting grid plate 43 are restored to the horizontal position, the elastic force given to the telescopic grid plate 44 by the second spring 47 is in the horizontal direction, and the connecting rod 54 is restored to the rotation center of the third gear 53, one end of the connecting rod 54 and the other end of the connecting rod 54 which are collinear, so that the telescopic grid plate 44 and the lifting grid plate 43 are in the balanced position; in addition, under the action of the self-weight of the expansion grating plate 44 and the lifting grating plate 43, the expansion grating plate 44 and the lifting grating plate 43 can be kept in a horizontal state all the time.

One side of the grid processing cabin 6 close to the fixed shaft 49 is provided with a trapezoidal guide groove 20, the trapezoidal guide groove 20 penetrates through a separation port 10 formed in the cabin body 1, and the trapezoidal guide groove 20 is equal to the top of the caulking groove 56 in height.

When the expansion grid plate 44 and the lifting grid plate 43 rise to the top of the stroke, they form an inclined shape, and the heavy objects thereon are discharged from the grid treatment chamber 6 through the separation opening 10 through the trapezoidal guide grooves 20.

In order to facilitate the maintainers to climb on the top of the cabin 1 and inspect the interior of the cabin 1 through the inspection chimney 3 arranged on the upper cover 2, the outer wall of the cabin 1 is also welded with a gangway 19.

Finally, the invention also provides a method for circularly treating the wastewater of the intelligent car washer by using the system, which comprises the following steps:

injecting waste water into the upper part of a grid treatment cabin in the cabin body from the outside of the cabin body through a water injection flange joint, wherein the injection amount of the waste water is required to keep the liquid level higher than a lifting pipe and lower than a lifting grid plate;

step two, starting the lifting cylinder to drive the third gear, the support rod, the connecting rod and the fixed shaft to ascend, and removing larger suspended matters in the wastewater from the grid treatment cabin; then, the lifting cylinder is decompressed, so that the third gear, the support rod, the connecting rod and the fixed shaft are reset;

respectively putting a coagulant, a magnetic seed and a coagulant aid in the three medicine boxes in predetermined parts, pre-starting a motor, and adjusting a fixed column to a position close to the medicine box loaded with the coagulant;

step four, starting a motor to enable the wastewater to stably flow in a circulating manner among the grid treatment cabin, the flocculation cabin, the aeration cabin and the circulation cabin; then starting the air pump and the motor, and operating wastewater treatment;

step five, after circulating for a plurality of cycles, sampling the water liquid on the upper layer of the circulating cabin and detecting the water quality, and if the water quality reaches the standard, discharging the water liquid in the circulating cabin through a pump for further treatment; if the wastewater does not reach the standard, performing cycle treatment on the wastewater for a plurality of periods again according to the water quality parameters.

The above embodiments are exemplary rather than limiting, and embodiments of the invention may be embodied in other specific forms without departing from the spirit or essential characteristics thereof.

Claims (10)

1. A wastewater treatment circulating system for an intelligent car washer comprises a cabin body (1) with a top part and a bottom part communicated with each other, and further comprises a grid treatment cabin (6), a flocculation cabin (7), an aeration cabin (8) and a circulating cabin (9) which are arranged in the cabin body (1); through three group pump liquid structures and a set of backflow structure intercommunication between grid processing cabin (6), flocculation cabin (7), aeration chamber (8) and circulation cabin (9) to carry out the cyclic processing of cycle, its characterized in that to waste water:

three medicine boxes (23) are suspended above the flocculation cabin (7), an upper cover (2) is detachably mounted at the upper part of the cabin body (1) through bolts, and the upper edges of the three medicine boxes (23) are connected with the lower surface of the upper cover (2); dosing holes are formed in the bottoms of the three medicine boxes (23), a movable bottom plate (38) is further arranged between the medicine boxes (23) and the top of the flocculation cabin (7), and the movable bottom plate (38) is attached to the bottoms of the medicine boxes (23); the movable bottom plate (38) is matched with the dosing mechanism;

the bottom of the flocculation cabin (7) is also provided with a dissolution reaction component which is also matched with a dosing mechanism so as to accelerate the combination of the medicine put into the flocculation cabin (7) and the wastewater when the medicine is put into the flocculation cabin (7).

2. The wastewater treatment circulating system for the intelligent car washer as defined in claim 1, wherein a suspension (21) is arranged above the flocculation tank (7), the suspension (21) is connected below the upper cover (2) through a hanging beam (22), and a plurality of belt wheels (28) are distributed below the suspension (21);

the dosing mechanism comprises a transmission belt (26) connected with a plurality of belt wheels (28), the belt wheels (28) are rotatably connected with a suspension frame (21), one surface of the transmission belt (26) facing the medicine chest (23) is connected with a fixed column (27), and the fixed column (27) is matched with a track (39) arranged on a movable bottom plate (38);

the dosing mechanism further comprises a motor (25) arranged on the suspension (21) and a spindle (29) connected with the output end of the motor (25), and the spindle (29) is connected with one of the belt wheels (28);

the spindle (29) passes through the suspension (21) and is in rotational engagement with the suspension (21).

3. The wastewater treatment circulating system for the intelligent car washer as defined in claim 2, wherein the outer side wall of the medicine box (23) is connected with at least two vertical rods, the vertical rods are connected with guide pillars (40), the guide pillars (40) are perpendicular to the dosing pore space, the upper surface of the movable bottom plate (38) is connected with lifting lugs (42), the lifting lugs (42) are in sliding fit with the guide pillars (40), the guide pillars (40) are sleeved with first springs (41), and the first springs (41) elastically connect the lifting lugs (42) and the vertical rods.

4. The wastewater treatment circulating system for the intelligent car washer as defined in claim 2, wherein the dissolution reaction assembly comprises a stirring shaft (32) horizontally and rotatably arranged at the center of the bottom of the flocculation chamber (7), and the stirring shaft (32) is connected with the lower end of the main shaft (29) through a bevel gear set; a plurality of groups of straight blades (33) are arranged on the stirring shaft (32) along the circumference;

the bevel gear set comprises a first bevel gear (30) connected to the lower end of the main shaft (29) and a second bevel gear (31) connected to the stirring shaft (32), and the two bevel gears are meshed with each other.

5. The wastewater treatment circulating system for the intelligent car washing machine according to claim 4, characterized in that the dissolution reaction assembly further comprises side shafts (36) symmetrically arranged at two sides below the stirring shaft (32), a plurality of groups of torsion blades (37) are arranged on the side shafts (36) along the circumference, a second gear (35) is connected to the side shafts (36), and the second gear (35) is meshed with the first gear (34) connected to the stirring shaft (32).

6. The wastewater treatment circulation system for the intelligent car washer as defined in claim 1, characterized in that a lifting type grid structure is arranged in the grid treatment cabin (6) for removing larger suspended matters in the wastewater from the grid treatment cabin (6) by lifting and dumping; the lifting type grating structure comprises a lifting cylinder (52) vertically arranged below the interior of the grating processing cabin (6), a support rod (51) with the lower end connected with the upper end of the lifting cylinder (52), a fixed shaft (49) rotatably sleeved with the upper end of the support rod (51), and a lifting grating plate (43) with one side edge connected with the fixed shaft (49);

two ends of the fixed shaft (49) are respectively and rotatably provided with an embedded wheel (50), two sides of the inner wall of the grid processing cabin (6) are symmetrically provided with embedded grooves (56), and the embedded wheels (50) are embedded in the embedded grooves (56) in a rolling manner; the lifting grid plate (43) is overlapped and slidably embedded with a telescopic grid plate (44); the lower part of the telescopic grid plate (44) is connected with a connecting column (46), and the connecting column (46) is inserted in a sliding way with a column sleeve (48) connected to the lower part of the lifting grid plate (43); the outside cover of spliced pole (46) is equipped with No. two spring (47), no. two spring (47) elastic connection post cover (48) and spliced pole (46).

7. The wastewater treatment circulating system for the intelligent car washer as defined in claim 6, wherein a third gear (53) is rotatably arranged at the joint of the lower end of the supporting rod (51) and the upper end of the lifting cylinder (52), and the third gear (53) is connected with the lifting grid plate (43) through a connecting rod (54); one end of the connecting rod (54) is rotationally connected with the lifting grating plate (43) through a rotating pin, and the other end of the connecting rod is rotationally connected with the eccentric part at one side of the third gear (53); and a toothed plate (55) is connected on the inner wall of the grid processing cabin (6), a roller (45) is rotatably arranged at the edge of one side of the telescopic grid plate (44) far away from the fixed shaft (49), and the roller (45) is in rolling fit with the inner wall of the grid processing cabin (6).

8. The wastewater treatment circulating system for the intelligent car washer as defined in claim 1, wherein the pump liquid structure comprises a vane pump (12) installed on the outer walls of the flocculation tank (7), the aeration tank (8) and the circulating tank (9), and a water injection flange joint is installed on the upper part of the grid treatment tank (6); the water injection flange joint penetrates through the cabin body (1) and protrudes out of the cabin body (1);

the liquid pumping structure also comprises a lifting pipe (14), wherein the lifting pipe (14) is divided into two sections, namely a lifting pipe and a lifting pipe; the lower lifting pipe is connected with a water inlet of the impeller pump (12), and the upper lifting pipe is connected with a water outlet of the impeller pump (12);

impeller shafts of impeller pumps (12) in the three groups of pump liquid structures are coaxially connected through a connecting shaft (13), and one of the impeller shafts is connected with the output end of a motor (11);

the backflow structure comprises a backflow pump (15) installed on the outer wall of the circulation cabin (9), the backflow pump (15) is communicated with the middle position of the circulation cabin (9) and the bottom of the grid treatment cabin (6) through a backflow pipe (16), and an impeller shaft of the backflow pump (15) is in synchronous transmission with the connecting shaft (13) through a belt (17).

9. The wastewater treatment circulating system for the intelligent car washer as claimed in claim 1, characterized in that an air distribution disc (59) is arranged at the bottom of the aeration chamber (8), and a filter frame (57) is further installed in the aeration chamber (8), wherein the filter frame (57) is arranged above the air distribution disc (59); the air distribution disc (59) is used for forcibly transferring oxygen in the air from the bottom of the aeration cabin (8) to the separated liquid wastewater so as to increase the dissolved oxygen amount of the wastewater and oxidize and decompose organic matters in the wastewater.

10. A method for recycling waste water of an intelligent car washer by using the system as claimed in any one of claims 1-9, characterized by comprising the following steps:

injecting waste water into the upper part of a grid treatment cabin in the cabin body from the outside of the cabin body through a water injection flange joint, wherein the injection amount of the waste water is required to keep the liquid level higher than a lifting pipe and lower than a lifting grid plate;

step two, starting the lifting cylinder to drive the third gear, the support rod, the connecting rod and the fixed shaft to ascend, and removing larger suspended matters in the wastewater from the grid treatment cabin; then, the lifting cylinder is decompressed, so that the third gear, the support rod, the connecting rod and the fixed shaft are reset;

respectively adding a coagulant, a magnetic seed and a coagulant aid in a predetermined number of parts into the three medicine boxes, pre-starting a motor, and adjusting a fixing column to a position close to the medicine box loaded with the coagulant;

starting a motor to enable the wastewater to stably and circularly flow among the grid treatment cabin, the flocculation cabin, the aeration cabin and the circulation cabin; then starting the air pump and the motor, and operating the wastewater treatment;

and step five, sampling the water liquid on the upper layer of the circulation cabin and detecting the water quality after circulating for a plurality of periods.
