The invention relates to the technical field of medical examination and treatment, in particular to an internal medicine disease examination and treatment device which comprises a main protection box body, wherein an electrocardiogram treatment instrument is placed in the main protection box body, an upper sliding cover is connected to the upper end surface of the main protection box body in a left-right sliding mode, an inclined bin is fixedly installed on the outer wall of the left side of the upper end surface of the main protection box body, an active lifting mechanism is arranged at the bottom of the electrocardiogram treatment instrument, when the upper sliding cover slides in opposite directions, a supporting plate and the electrocardiogram treatment instrument are driven to synchronously move upwards and vertically under the traction of a pull rope, finally, after a binding post moves to the inside of a straight groove part, the supporting plate and the electrocardiogram treatment instrument are located at the highest point in the main protection box body, and the electrocardiogram treatment instrument located in the main protection box body synchronously ascends for being directly used by medical staff, so that the convenience of the medical staff when the electrocardiogram treatment instrument is used is greatly improved, and the patient examination efficiency of the medical staff using the electrocardiogram treatment instrument is further improved.
Description
Technical Field
The invention relates to the technical field of medical examination and treatment, in particular to an internal medicine disease examination and treatment device.
Background
Medical conditions specifically encompass a wide range of conditions, such as: the treatment process of hypertension, cardiomyopathy, aneurysm, arrhythmia, myocardial infarction and the like can use an electrocardiogram examination treatment mode, and the electrocardiogram is widely applied in clinic at present, so that a plurality of diseases can be examined;
the main components of the electrocardiograph include: (1) a power supply section: the charging circuit comprises an alternating current power supply circuit, a direct current power supply circuit, an alternating current and direct current power supply switching circuit and a direct current storage battery charging circuit; (2) an electrocardiosignal detection part: the device comprises a signal input circuit, a buffer amplification circuit, a lead selection circuit, a pre-amplification circuit, a filter circuit, a base line control circuit and the like; (3) a keying part: control of each function key, selection of operation program, and the like;
most of the current electrocardiographs still have a few weak points when using, the protective effect of most of current electrocardiographs is relatively poor, either deposit through simple box body and keep, or just directly put on the medical care shallow of using in the medical care place, the mode of depositing is relatively poor to electrocardiograph's protective properties, in addition the in-process of using electrocardiograph also is comparatively loaded down with trivial details, need be in the external connection other connecting wires of organism for using when the organism uses, and there is the unexpected condition of droing of connecting wire when using, influence electrocardiograph's use.
Disclosure of Invention
In order to solve the technical problems, the technical scheme provides a device for examining and treating the internal medicine diseases, and solves the corresponding technical problems in the background technology.
In order to achieve the purpose, the invention adopts the technical scheme that: an electrocardiogram treatment instrument is placed in the main protection box body and serves as an instrument main body required for internal disease examination, an electrocardiogram drawing is guided out of the instrument by the left side of the electrocardiogram treatment instrument, a connecting wire access end of the instrument is arranged on the right side of the electrocardiogram treatment instrument, an upper sliding cover is connected to the upper end face of the main protection box body in a sliding mode and can cover the upper portion of the main protection box body, an inclined bin is fixedly installed on the outer wall of the left side of the upper end face of the main protection box body, an auxiliary plate is connected to the bottom of the front side of the main protection box body in a sliding mode, a movable base is fixedly installed at the bottom of the main protection box body and used for moving the device, an active lifting mechanism is arranged at the bottom of the electrocardiogram treatment instrument, an off-line reminding mechanism is arranged on the outer wall of the right side of the electrocardiogram treatment instrument and located on the right side of the main protection box body, and an auxiliary take-up mechanism is arranged on the back side of the electrocardiogram treatment instrument and located on the bottom of the main protection box body;
the active lifting mechanism comprises: the layer board, tie up post, chute part, straight slot part, stay cord, the bottom of electrocardiogram treatment instrument is provided with the layer board, and this electrocardiogram treatment instrument is placed in the upper surface of layer board, and the leading flank fixedly connected with of layer board ties up the post, tie up post front side and be located the front side inner wall of main protection box body and be provided with the chute part, and chute part upper end is close to the upper end horizontal plane of main protection box body and sets up to the chute part, tie up the outside fixedly connected with stay cord of front end of post, and the upper end fixed connection of stay cord is in the front side inner wall of last sliding closure.
Preferably, the inner diameter of the supporting plate is adapted to the appearance of the electrocardiogram treatment instrument, and the whole supporting plate is made of soft damping materials.
Preferably, the chute part is from bottom to top slope and is bilateral symmetry distribution in the front side inner wall of main protection box body, tie up the front end sliding connection of post in the inside of chute part.
Preferably, the thread-off reminding mechanism includes: line card board, pillar, contact controller, vocal ware, the right side outer wall sliding connection of main protection box body has the line card board, and the line card board passes through spring sliding connection in the right side outer wall of main protection box body to the bottom fixedly connected with pillar of line card board, the below of pillar is provided with the contact controller, line card board below is provided with vocal ware.
Preferably, the wire clamping plate and the upper end face of the main protection box body tend to be horizontal, a plurality of groups of arc notches are uniformly formed in the wire clamping plate, and the arc notches are made of rubber elastic materials, so that the connecting wire can be clamped and fixed through manually opening the arc notches.
Preferably, the wire clamping plate is connected to the outer wall of the right side of the main protection box body in a sliding mode through a spring, and the bottom column and the contact controller are located on the same middle vertical line.
Preferably, the contact controller is electrically connected with the sounder, and the sounder is fixedly mounted on the outer wall of the right side of the main protection box body.
Preferably, the auxiliary take-up mechanism includes: the servo-actuated slip ring strip comprises a servo-actuated slip ring strip, a ratchet shaft, a matched ratchet, a first gear, a second gear and a take-up pulley, wherein the servo-actuated slip ring strip is fixedly connected to the back side face of the supporting plate, the back end of the servo-actuated slip ring strip is provided with the ratchet shaft, the ratchet shaft is formed by a ratchet which is rotatably connected to the bottom of the main protective box body and a ball threaded rod which is fixedly connected to the upper side of the ratchet shaft, the back side of the lower end of the ratchet shaft is rotatably connected to the bottom of the main protective box body and is rotatably connected to the matched ratchet, the first gear is fixedly connected to the upper end face of the matched ratchet and is mutually meshed with the ratchet at the lower end of the ratchet shaft, the second gear is meshed with the right side of the first gear, the bottom of the second gear is rotatably connected to the bottom of the main protective box body, the take-up pulley is fixedly connected to the upper end of the second gear, a first line head clamping plate is fixedly connected to the bottom of the main protective box body on the front side of the take-up pulley, and circular arc openings are uniformly formed in the upper end face of the line head clamping plate.
Preferably, the lower end of the ratchet shaft is rotatably connected to the bottom surface of the main protective box body, and the back end of the follow-up collar strip is in threaded connection with the ratchet shaft.
Compared with the prior art, the invention has the beneficial effects that:
(1) The invention adopts the following active lifting mechanism: when the upper sliding cover slides in opposite directions to displace, the supporting plate and the electrocardiogram therapeutic apparatus are driven to synchronously move upwards to generate vertical displacement under the traction of the pull rope, finally, after the binding post moves to the inside of the straight groove part, the supporting plate and the electrocardiogram therapeutic apparatus are both positioned at the highest point in the main protection box body, the electrocardiogram therapeutic apparatus can be used for medical staff to carry out internal disease examination on heart diseases of patients, after the upper sliding cover is manually opened and pushed to displace in opposite directions by the medical staff, the electrocardiogram therapeutic apparatus positioned in the main protection box body can be automatically driven to synchronously ascend so as to be directly used by the medical staff, so that the convenience of the medical staff when using the electrocardiogram therapeutic apparatus is greatly improved, and the efficiency of the medical staff for examining the patients by using the electrocardiogram therapeutic apparatus is further improved;
(2) The invention adopts the arranged off-line reminding mechanism: when the electrocardiogram therapeutic apparatus is used by medical personnel, the right side of the electrocardiogram therapeutic apparatus is required to be inserted into a corresponding connecting line, and in the process of inserting the connecting line, the part of the connecting line, which is close to the connecting line access end on the right side of the electrocardiogram therapeutic apparatus, can be smoothly clamped into the wire clamping plate, so that the connecting line can be stably inserted into the access end on the right side of the electrocardiogram therapeutic apparatus, the phenomenon that the connecting line accidentally drops due to an accidental condition in the use process of the electrocardiogram therapeutic apparatus can be effectively reduced, and the electrocardiogram therapeutic apparatus can provide better stability for the medical personnel to check and treat patients;
(3) The invention adopts the sounder that: when the bottom pillar is in contact with the contact controller, the contact controller can control the sounder to give out an alarm sound to remind people that the connecting wire is pulled at the moment, so that the situation that the connecting wire is accidentally damaged at the part connected with the electrocardiogram therapeutic apparatus due to continuous pulling of the people is avoided, and meanwhile, the situation that the connecting wire falls off due to pulling is further avoided;
(4) The invention adopts the following auxiliary wire-rewinding mechanism: the gear drives the gear II and the take-up pulley to synchronously rotate, and the take-up pulley drives the connecting wire wound outside the take-up pulley to automatically wind after rotating, so that the semi-automatic winding effect of the connecting wire is realized, the complicated steps of the medical personnel for collecting the connecting wire are reduced, meanwhile, the connecting wire can be reasonably stored in the main protection box body, and the condition that the connecting wire is lost or damaged due to disordered storage of the connecting wire is reduced;
(5) The invention is characterized in that the main protection box body and the upper sliding cover are arranged: the electrocardiogram therapeutic apparatus can be under the mask guard action of main protection box body and last sliding closure, be in comparatively safe space, thereby play the protective effect effectively to the electrocardiogram therapeutic apparatus, and the electrocardiogram therapeutic apparatus is in the inner chamber of the main protection box body in relative sealed space, also can reduce outside dust and impurity and drop to the surface of electrocardiogram therapeutic apparatus, not only reduce the required time of manual cleaning electrocardiogram therapeutic apparatus and energy, and can reduce the condition that the sanitary degree when appearing leading to the whole use of electrocardiogram therapeutic apparatus reduces because of the dust.
Drawings

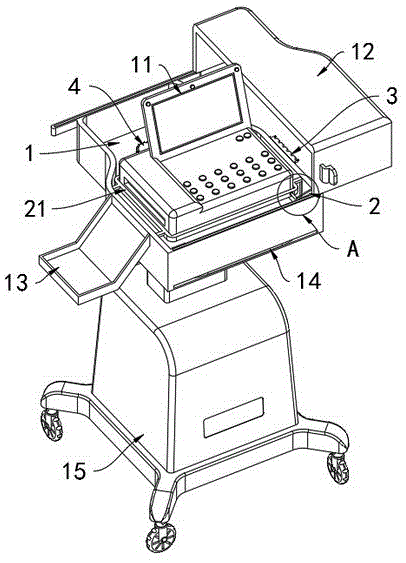

FIG. 1 is a schematic view of a front perspective structure of the inside of a deformity of an upper slide cover in the present invention;
FIG. 2 is a schematic diagram of a right-view three-dimensional structure of the inside of the upper slide cover in the invention;
FIG. 3 is a schematic left-side view of the inside of the upper slide lid stub of the present invention;
FIG. 4 is a schematic perspective view of the upper slide cover of the present invention in a closed state;
FIG. 5 is a schematic diagram of a right-view perspective structure of the present invention with the upper slide cover closed;
FIG. 6 is a schematic diagram of a partial top perspective view of the active lifting mechanism of the present invention;
FIG. 7 is a partially schematic perspective view of the bevel portion of the present invention;
FIG. 8 is a schematic view of the enlarged partial perspective view at A of FIG. 1 according to the present invention;
FIG. 9 is a schematic view of a partially-shown three-dimensional structure of the off-line reminder mechanism of the present invention;
fig. 10 is a partially-shown three-dimensional schematic view of the auxiliary take-up mechanism of the present invention.
The reference numbers in the figures are: 1. a main protection box body; 11. an electrocardiogram therapeutic apparatus; 12. an upper sliding cover; 13. inclining a bin; 14. an auxiliary plate; 15. moving the base; 2. an active lifting mechanism; 21. a support plate; 22. binding a column; 23. a chamfer section; 24. a straight groove part; 25. pulling a rope; 3. a thread-off reminding mechanism; 31. a wire clamping plate; 32. a bottom pillar; 33. a contact controller; 34. a sound generator; 4. an auxiliary take-up mechanism; 41. a follower collar strip; 42. a ratchet shaft; 43. matching with a ratchet wheel; 44. a first gear; 45. a second gear; 46. a take-up pulley; 47. stub cardboard.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be obtained by a person skilled in the art without making any creative effort based on the embodiments in the present invention, belong to the protection scope of the present invention.
As an embodiment of the present invention
Referring to fig. 1, 6 to 8, an active lifting mechanism 2 is disposed at the bottom of the electrocardiograph 11, and the active lifting mechanism 2 includes: layer board 21, tie up post 22, chute portion 23, straight flute portion 24, stay cord 25, the bottom of electrocardiogram treatment instrument 11 is provided with layer board 21, the internal diameter adaptation of layer board 21 is in electrocardiogram treatment instrument 11's appearance, the whole material of layer board 21 is soft shock attenuation material, this electrocardiogram treatment instrument 11 is placed in the upper surface of layer board 21, and the leading flank fixedly connected with of layer board 21 ties up post 22, tie up post 22 front side and be located the front side inner wall of main protection box body 1 and be provided with chute portion 23, chute portion 23 is the slope from bottom to top and be bilateral symmetry distribution in the front side inner wall of main protection box body 1, the front end sliding connection who ties up post 22 is in chute portion 23's inside, and chute portion 23 upper end is close to main protection box body 1's upper end horizontal plane and sets up to straight flute portion 24, tie up post 22's front end outside fixedly connected with stay cord 25, and the upper end fixed connection of stay cord 25 is in the front side inner wall of last sliding closure 12.
The working principle is as follows: when the portable electrocardiogram treatment device is used, when a medical worker needs to use the portable electrocardiogram treatment device, the device can be pushed to move portably by the outer wall of the main protective box body 1 and the moving base 15 arranged at the bottom of the main protective box body 1, then after the portable electrocardiogram treatment device moves to the bedside of a patient, the medical worker opens the upper sliding cover 12 positioned at the upper end face of the main protective box body 1 in an opposite direction, and after the upper sliding cover 12 slides in an opposite direction, the pull rope 25 fixedly connected with the inner wall of the front side of the portable electrocardiogram treatment device can be driven to pull the binding column 22 to gradually slide upwards along the track of the chute part 23, the binding column 22 simultaneously drives the electrocardiogram treatment device 11 arranged inside the support plate 21 to gradually ascend along the track of the chute part 23, because the support plate 21 is slidably connected with the inner wall of the main protective box body 1 and the support plate 21 is fixedly connected with the inner walls of the pull rope 25 and the upper sliding cover 12 through the binding column 22 of the front side, therefore, when the upper sliding cover 12 is moved in opposite directions, the supporting plate 21 and the electrocardiographic treatment device 11 are driven by the pulling rope 25 to move upwards synchronously to generate vertical displacement, when the binding post 22 moves to the inside of the straight groove portion 24, the straight groove portion 24 is horizontally arranged, and in addition, the sliding friction resistance between the upper sliding cover 12 and the main protection box body 1 is combined, so that the supporting plate 21 and the electrocardiographic treatment device 11 are always positioned at the highest point inside the main protection box body 1 under the effect of no external force, namely, in the state shown in fig. 1 to fig. 2, at this time, the electrocardiographic treatment device 11 can be used by medical staff for examining the medical diseases of the heart of the patient, after the medical staff manually opens and pushes the upper sliding cover 12 to move in opposite directions, the electrocardiographic treatment device 11 positioned inside the main protection box body 1 can be automatically driven to ascend synchronously for the medical staff to use directly, thereby greatly improving the convenience of the medical personnel when using the electrocardiogram treatment instrument 11 and further improving the efficiency of the medical personnel when using the electrocardiogram treatment instrument 11 to check patients.
As example two of the present invention
Referring to fig. 2, fig. 5 and fig. 9, the right side of the electrocardiographic treatment apparatus 11 and the outer wall of the right side of the main protective box 1 are provided with a wire-off reminding mechanism 3, and the wire-off reminding mechanism 3 comprises: the clamp plate 31, the bottom pillar 32, the contact controller 33 and the sounder 34 are arranged on the outer wall of the right side of the main protection box body 1, the clamp plate 31 is connected with the outer wall of the right side of the main protection box body 1 in a sliding mode, the clamp plate 31 and the upper end face of the main protection box body 1 tend to be horizontal, a plurality of groups of arc notches are evenly formed in the clamp plate 31, the arc notches are made of rubber elastic materials, namely, a connecting line required by the electrocardiogram therapeutic apparatus 11 in use can be clamped and fixed through manually breaking the arc notches, namely, one end, connected with the electrocardiogram therapeutic apparatus 11, of the connecting line can be under the clamping supporting effect of the clamp plate 31, the connecting line can be stably connected with the connecting end of the right side of the electrocardiogram therapeutic apparatus 11 in an inserting mode, the bottom pillar 32 is fixedly connected with the bottom pillar 31, the contact controller 33 is arranged below the bottom pillar 32, the clamp plate 31 is connected with the outer wall of the right side of the main protection box body 1 in a sliding mode through a spring, the bottom pillar 32 and the contact controller 33 are arranged on the same perpendicular line, the sounder 34 is arranged below the clamp plate 31, the contact controller 33 is electrically connected with the sounder 34, and the outer wall of the right side of the main protection box body 1.
The working principle is as follows: when in use, when a medical worker uses the electrocardiogram treatment apparatus 11, the right side of the electrocardiogram treatment apparatus 11 needs to be inserted into a corresponding connecting line, and in the process of inserting the connecting line, the part of the connecting line close to the connecting line access end on the right side of the electrocardiogram treatment apparatus 11 can be clamped into the wire clamping plate 31 along with the potential, a plurality of groups of circular arc notches are uniformly arranged on the wire clamping plate 31, and the circular arc notches are made of rubber elastic materials, namely, one end of the connecting line required when the electrocardiogram treatment apparatus 11 is used can be clamped and fixed by manually opening the circular arc notches, namely, one end of the connecting line connected with the electrocardiogram treatment apparatus 11 can be stably inserted into the connecting end on the right side of the electrocardiogram treatment apparatus 11 under the clamping and supporting effect of the wire clamping plate 31, so that the phenomenon that the connecting line is accidentally dropped due to unexpected conditions in the use process of the electrocardiogram treatment apparatus 11 can be effectively reduced, and then can make the electrocardiogram treatment instrument 11 provide better stability when medical personnel inspect the treatment patient, and the connecting wire that is located on the right side of the electrocardiogram treatment instrument 11 in the use is dragged by medical personnel or other circumstances, the connecting wire that is dragged and located at the arc notch of the line clamping plate 31 and is clamped can drive the line clamping plate 31 to slide and displace downwards along the outer wall of the right side of the main protection box body 1, and the bottom pillar 32 is located at the bottom of the line clamping plate 31 at this moment, and the bottom pillar 32 and the contact controller 33 are located on the same middle vertical line, after the connecting wire drives the line clamping plate 31 and the bottom pillar 32 of the line clamping plate 31 to gradually move downwards, the bottom pillar 32 contacts the contact controller 33, and the contact controller 33 can control the sounder 34 to send out the alarm sound to remind personnel at this moment, the connecting wire at this moment is in the condition of being dragged, avoid personnel to continue to drag and cause the unexpected damage to the part that the connecting wire connects with the electrocardiogram treatment instrument 11 And meanwhile, the condition that the connecting wire falls off due to pulling is further avoided.
Example three of the invention
Referring to fig. 1 to 10, a medical examination and treatment device includes a main protective case 1, an electrocardiogram treatment apparatus 11 is disposed inside the main protective case 1, the electrocardiogram treatment apparatus 11 is used as an apparatus main body required for examining medical diseases, the left side of the electrocardiogram treatment apparatus 11 is used for guiding an electrocardiogram drawing of the apparatus, the right side of the electrocardiogram treatment apparatus 11 is used as a connecting line access end of the apparatus, the upper end surface of the main protective case 1 is connected with an upper sliding cover 12 in a left-right sliding manner, the upper sliding cover 12 can cover the upper side of the main protective case 1, the electrocardiogram treatment apparatus 11 can be located in a better storage space through the cooperation of the upper sliding cover 12 and the main protective case 1, so as to improve the safety before and after the usage of the electrocardiogram treatment apparatus 11, reduce the accidental damage to the electrocardiogram treatment apparatus 11, an inclined cabin 13 is fixedly installed on the left outer wall of the upper end surface of the main protective case 1, the inclined cabin 13 can be used for containing the electrocardiogram drawing guided out of the main protective case 1 when the main protective case 1 is used, so as to facilitate the user to take the electrocardiogram drawing, the auxiliary board 14 is slidably connected to the front side of the main protective case 1, the auxiliary board 14 is moved from the bottom of the main protective case 1, even if the main protective case is moved, the auxiliary board 14 is moved from the main protective case 1, the main protective case is moved to the side, the auxiliary board 1, and the auxiliary board 15 is moved, so as the user can be moved, the auxiliary board is moved, the user can be moved, the auxiliary board is moved from the user can be conveniently used for the user can be conveniently to be moved, and the user can be conveniently;
the bottom of electrocardiogram treatment instrument 11 is provided with initiative lifting mechanism 2, and initiative lifting mechanism 2 includes: the electrocardiogram therapeutic apparatus comprises a supporting plate 21, a binding post 22, an inclined groove part 23, a straight groove part 24 and a pulling rope 25, wherein the supporting plate 21 is arranged at the bottom of the electrocardiogram therapeutic apparatus 11, the inner diameter of the supporting plate 21 is adapted to the appearance of the electrocardiogram therapeutic apparatus 11, the whole material of the supporting plate 21 is soft damping material, the electrocardiogram therapeutic apparatus 11 is placed on the upper surface of the supporting plate 21, the binding post 22 is fixedly connected to the front side surface of the supporting plate 21, the inclined groove part 23 is arranged on the front side of the binding post 22 and is positioned on the front inner wall of the main protective box body 1, the inclined groove part 23 is inclined from bottom to top and is symmetrically distributed on the front inner wall of the main protective box body 1 from left to right, the front end head of the binding post 22 is slidably connected to the inside of the inclined groove part 23, the upper end of the inclined groove part 23 is arranged to be the straight groove part 24 close to the upper horizontal plane of the main protective box body 1, the pulling rope 25 is fixedly connected to the outer part of the front end of the binding post 22, and the upper end of the pulling rope 25 is fixedly connected to the front inner wall of the upper sliding cover 12;
11 right sides of heart electrograph therapeutic instrument and the right side outer wall that is located main protection box body 1 are provided with out-of-line and remind mechanism 3, and out-of-line reminds mechanism 3 to include: the electrocardiogram instrument comprises a wiring clamping plate 31, a bottom pillar 32, a contact controller 33 and a sounder 34, wherein the wiring clamping plate 31 is connected to the outer wall of the right side of a main protection box body 1 in a sliding mode, the upper end faces of the wiring clamping plate 31 and the main protection box body 1 tend to be horizontal, a plurality of groups of arc notches are uniformly formed in the wiring clamping plate 31, the arc notches are made of rubber elastic materials, namely, a connecting wire required by the electrocardiogram instrument 11 in use can be clamped and fixed through manual breaking of the arc notches, namely, one end, connected with the electrocardiogram instrument 11, of the connecting wire can be clamped and supported by the arc notches of the wiring clamping plate 31, the connecting wire can be stably inserted into an access end on the right side of the electrocardiogram instrument 11, the bottom of the wiring clamping plate 31 is fixedly connected with the bottom pillar 32, the contact controller 33 is arranged below the bottom pillar 32, the wiring clamping plate 31 is connected to the outer wall of the right side of the main protection box body 1 in a sliding mode through a spring, the wiring clamping plate 31 can be reset through the spring, namely, the wiring clamping plate 31 and the bottom pillar 32 and the contact controller 33 are electrically connected with the outer wall of the sounder 1, and the main protection box body 34;
11 dorsal sides of electrocardiogram treatment instrument and the bottom that is located main protection box body 1 are provided with supplementary admission machine and construct 4, and supplementary admission machine constructs 4 and includes: the back side surface of the supporting plate 21 is fixedly connected with the follow-up lantern ring strip 41, the ratchet shaft 42, the matching ratchet wheel 43, the first gear 44, the second gear 45 and the take-up wheel 46, the back end of the follow-up lantern ring strip 41 is provided with the ratchet shaft 42, the back side of the lower end of the ratchet shaft 42 and the bottom surface of the main protective box body 1 are rotatably connected with the matching ratchet wheel 43, the upper end surface of the matching ratchet wheel 43 is fixedly connected with the first gear 44, the back end of the follow-up lantern ring strip 41 is internally provided with a ball nut structure, the ratchet shaft 42 consists of a ratchet wheel rotatably connected to the bottom of the main protective box body 1 and a ball threaded rod fixedly connected above the ratchet wheel, the back side of the lower end of the ratchet shaft 42 and the bottom surface of the main protective box body 1 are rotatably connected with the first gear 44, the first gear 44 is mutually meshed with the ratchet wheel at the lower end of the ratchet shaft 42, the right side of the first gear 44 is meshed with the second gear 45, the bottom of the second gear 45 is rotatably connected to the bottom surface of the main protective box body 1, the upper end of the second gear 45 is fixedly connected with the take-up wheel 46, the connecting wire 47 is fixedly connected with the circular arc head of the electrocardiogram therapeutic instrument, and the connecting end of the electrocardiogram instrument is provided with the connecting wire.
The complete use steps and the working principle of the invention are as follows:
firstly, as shown in fig. 3, 4 and 5, before the device is used, the initial position of the electrocardiographic treatment apparatus 11 is located inside the main protective box 1, the electrocardiographic treatment apparatus 11 before being used can be located in a safer space under the shielding protection action of the main protective box 1 and the upper sliding cover 12, so that the electrocardiographic treatment apparatus 11 can be effectively protected, and the external dust and impurities can be reduced from falling to the outer surface of the electrocardiographic treatment apparatus 11 when the electrocardiographic treatment apparatus 11 is located in the inner cavity of the main protective box 1 in a relatively sealed space, so that the time and energy required for manually cleaning the electrocardiographic treatment apparatus 11 can be reduced, and the condition that the sanitation degree of the electrocardiographic treatment apparatus 11 is reduced when the whole electrocardiographic treatment apparatus 11 is used due to the dust can be reduced;
when the medical care personnel need to use the device, the medical care personnel can hold the outer wall of the main protection box body 1 by hand and push the device to carry out portable movement through the moving base 15 arranged at the bottom of the main protection box body 1, then after the device is moved to the bedside of a patient, the medical care personnel open the upper sliding cover 12 which is positioned on the upper end surface of the main protection box body 1 in a sliding way in an opposite way, when the upper sliding cover 12 is in opposite sliding displacement, the pull rope 25 which is fixedly connected with the inner wall of the front side of the upper sliding cover can be driven to pull the binding post 22 to gradually and upwards slide along the track of the chute part 23, the binding post 22 drives the electrocardiogram treatment instrument 11 which is positioned in the supporting plate 21 to gradually ascend along the track of the chute part 23, because the supporting plate 21 is in sliding connection with the inner wall of the main protection box body 1 and the supporting plate 21 is fixedly connected with the pull rope 25 and the inner wall of the upper sliding cover 12 through the pull rope 22 at the front side, therefore, when the upper sliding cover 12 is slid and displaced oppositely, the supporting plate 21 and the electrocardiogram therapeutic apparatus 11 are driven to move upwards synchronously under the traction of the pulling rope 25 to generate vertical displacement, finally the binding post 22 moves to the inside of the straight groove portion 24, the straight groove portion 24 is horizontally arranged, and in addition, the sliding friction resistance between the upper sliding cover 12 and the main protective box body 1 is combined, so that the supporting plate 21 and the electrocardiogram therapeutic apparatus 11 are always positioned at the highest point inside the main protective box body 1 under the effect of no external force, as shown in the state of figures 1 and 2, the electrocardiogram therapeutic apparatus 11 at the moment can be used for medical examination of heart diseases of patients by medical staff, after the medical staff manually opens and pushes the upper sliding cover 12 to displace oppositely, the electrocardiogram therapeutic apparatus 11 positioned inside the main protective box body 1 can be automatically driven to ascend synchronously for direct use of the medical staff, thereby greatly improving the convenience of the medical care personnel when using the electrocardiogram treatment instrument 11 and further improving the efficiency of the medical care personnel when using the electrocardiogram treatment instrument 11 to check the patient;
when a medical worker uses the electrocardiogram treatment apparatus 11, the right side of the electrocardiogram treatment apparatus 11 needs to be inserted into a corresponding connecting line, and in the process of inserting the connecting line, the part of the connecting line, which is close to the connecting line access end on the right side of the electrocardiogram treatment apparatus 11, can be clamped into the wire clamping plate 31 along the same potential, a plurality of groups of circular arc notches are uniformly arranged on the wire clamping plate 31, and the circular arc notches are made of rubber elastic materials, namely, one end of the connecting line, which is required when the electrocardiogram treatment apparatus 11 is used, can be clamped by manually breaking the circular arc notches, namely, one end of the connecting line, which is connected with the electrocardiogram treatment apparatus 11, can be stably inserted into the access end on the right side of the electrocardiogram treatment apparatus 11 under the clamping and supporting action of the wire clamping plate 31, so that the connecting line can be effectively prevented from falling off accidentally in the use process of the electrocardiogram treatment apparatus 11, and the electrocardiogram treatment apparatus 11 can provide better stability for the medical worker to examine and treat patients, when the connecting wire on the right side of the electrocardiogram treatment apparatus 11 is pulled by medical staff or other conditions during use, the pulled connecting wire clamped at the arc notch of the wire clamping plate 31 drives the wire clamping plate 31 to slide downwards along the outer wall of the right side of the main protection box body 1, the bottom column 32 is positioned at the bottom of the wire clamping plate 31, the bottom column 32 and the contact controller 33 are positioned on the same middle vertical line, after the connecting wire drives the wire clamping plate 31 and the bottom column 32 at the bottom of the wire clamping plate to gradually move downwards until the bottom column 32 contacts the contact controller 33, the contact controller 33 controls the sounder 34 to give an alarm sound so as to remind the staff that the connecting wire is in the pulled condition, thereby avoiding accidental damage of the connecting part of the connecting wire and the electrocardiogram treatment apparatus 11 caused by continuous pulling of the staff, meanwhile, the situation that the connecting wire falls off due to pulling is further avoided;
meanwhile, when the supporting plate 21 ascends synchronously, the follower collar strip 41 fixedly connected to the back side of the supporting plate 21 ascends synchronously, the inside of the back end of the follower collar strip 41 is of a ball nut structure, the ratchet shaft 42 is composed of a ratchet wheel rotatably connected to the bottom of the main protective box body 1 and a ball screw rod fixedly connected to the upper side of the ratchet wheel, so that when the supporting plate 21 and the electrocardiogram treatment apparatus 11 are lifted for use, the ratchet wheel at the bottom of the ratchet shaft 42 is driven to rotate under the transmission action of the ball nut inside the back end of the follower collar strip 41 and the ratchet shaft 42, and the ratchet wheel at the bottom of the ratchet shaft 42 is meshed with the outer side of the matching ratchet wheel 43 fixedly connected to the bottom of the gear wheel 44, so that the meshing characteristic of the ratchet wheel is combined, that the gear wheel 44 cannot be driven to rotate synchronously when the ratchet wheel at the bottom of the ratchet shaft 42 is driven to rotate by the supporting plate 21 in the ascending process, after the medical staff finishes using the electrocardiogram treatment apparatus 11, the medical staff can pull out the connection line when the electrocardiogram treatment apparatus 11 is used, then fasten the head end of the connection line to the inside of the arc opening uniformly opened on the upper end surface of the head line clamping plate 47, and then wind and fix the other end of the connection line to the outside of the take-up pulley 46, and after the medical staff closes the electrocardiogram treatment apparatus 11 and synchronously closes the upper sliding cover 12 in opposite directions, the upper sliding cover 12 will drive the supporting plate 21 to move reversely through the pulling rope 25, i.e. the supporting plate 21 and the electrocardiogram treatment apparatus 11 are reset to return to the inside of the main protective box body 1, during the process, the supporting plate 21 synchronously drives the ratchet wheel at the bottom of the ratchet shaft 42 to rotate, and the ratchet shaft 42 at this time can synchronously drive the matching ratchet wheel 43 engaged with the ratchet shaft 42 and the gear wheel 44 to rotate, the second gear 45 and the take-up pulley 46 are driven to rotate synchronously by the first gear 44, and the connecting wire wound outside the first gear is driven to be wound automatically after the take-up pulley 46 rotates, so that the semi-automatic winding effect of the connecting wire is achieved, the tedious steps of collecting the connecting wire by medical staff are reduced, meanwhile, the connecting wire can be reasonably contained into the main protection box body 1, and the situation that the connecting wire is lost or damaged due to disordered storage of the connecting wire is reduced.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides an internal medicine disease examination treatment device, includes main protection box body (1), its characterized in that: an electrocardiogram therapeutic apparatus (11) is placed inside the main protective box body (1), the upper end face of the main protective box body (1) is connected with an upper sliding cover (12) in a left-right sliding mode, an inclined bin (13) is fixedly installed on the outer wall of the left side of the upper end face of the main protective box body (1), an auxiliary plate (14) is connected to the bottom of the front side of the main protective box body (1) in a sliding mode, a movable base (15) is fixedly installed at the bottom of the main protective box body (1), an active lifting mechanism (2) is arranged at the bottom of the electrocardiogram therapeutic apparatus (11), an off-line reminding mechanism (3) is arranged on the outer wall of the right side of the electrocardiogram therapeutic apparatus (11) and located on the right side of the main protective box body (1), and an auxiliary take-up mechanism (4) is arranged on the back side of the electrocardiogram therapeutic apparatus (11) and located on the bottom of the main protective box body (1); the active lifting mechanism (2) comprises: the electrocardiogram therapeutic apparatus comprises a supporting plate (21), a binding post (22), an inclined groove part (23), a straight groove part (24) and a pull rope (25), wherein the supporting plate (21) is arranged at the bottom of the electrocardiogram therapeutic apparatus (11), the binding post (22) is fixedly connected to the front side surface of the supporting plate (21), the inclined groove part (23) is arranged on the inner wall of the front side of the binding post (22) and positioned on the main protective box body (1), the horizontal plane of the upper end of the inclined groove part (23) close to the upper end of the main protective box body (1) is arranged to be the straight groove part (24), the pull rope (25) is fixedly connected to the outer part of the front end of the binding post (22), and the upper end of the pull rope (25) is fixedly connected to the inner wall of the front side of an upper sliding cover (12);
the off-line reminding mechanism (3) comprises: the anti-theft alarm device comprises a wire clamping plate (31), a bottom column (32), a contact controller (33) and a sounder (34), wherein the wire clamping plate (31) is connected to the outer wall of the right side of the main protection box body (1) in a sliding mode, the bottom of the wire clamping plate (31) is fixedly connected with the bottom column (32), the contact controller (33) is arranged below the bottom column (32), and the sounder (34) is arranged below the wire clamping plate (31);
the auxiliary take-up mechanism (4) comprises: follow-up lantern ring strip (41), ratchet axle (42), cooperation ratchet (43), gear (44), gear two (45), take-up pulley (46), the back side fixedly connected with follow-up lantern ring strip (41) of layer board (21), and the back end of follow-up lantern ring strip (41) is provided with ratchet axle (42), the bottom surface rotation that ratchet axle (42) lower extreme dorsal part just was located main protection box body (1) is connected with cooperation ratchet (43), and the up end fixedly connected with gear one (44) of cooperation ratchet (43), the right side meshing of gear one (44) has gear two (45), and the bottom rotation of gear two (45) connects in the bottom surface of main protection box body (1), the upper end fixedly connected with take-up pulley (46) of gear two (45), take-up pulley (46) front side just is located the bottom surface fixedly connected with end cardboard (47) of main protection box body (1), and the up end side of end cardboard (47) has evenly seted up the circular arc opening.
2. The medical examination and treatment device according to claim 1, wherein: the inner diameter of the supporting plate (21) is adapted to the appearance of the electrocardiogram therapeutic apparatus (11), and the whole material of the supporting plate (21) is soft damping material.
3. The medical examination and treatment device according to claim 1, wherein: chute part (23) are the slope from bottom to top and are bilateral symmetry and distribute in the front side inner wall of main protection box body (1), tie up the inside of front end sliding connection in chute part (23) of post (22).
4. The medical examination and treatment device according to claim 3, wherein: the upper end face of wire clamping plate (31) and main protection box body (1) tends to the level, wire clamping plate (31) are elastic materials, and multiple groups of circular arc notches are evenly arranged on wire clamping plate (31).
5. The medical examination and treatment device according to claim 4, wherein: line card board (31) pass through the right side outer wall of spring sliding connection in main protection box body (1), sill pillar (32) and contact controller (33) are in on the same plumb line.
6. The medical examination and treatment device according to claim 5, wherein: the contact controller (33) is electrically connected with the sounder (34), and the sounder (34) is fixedly installed on the outer wall of the right side of the main protection box body (1).
7. The medical examination and treatment device according to claim 1, wherein: the lower end of the ratchet shaft (42) is rotatably connected to the bottom surface of the main protective box body (1), and the back end of the follow-up ring strip (41) is in threaded connection with the ratchet shaft (42).
