The invention discloses a steel structure accurate drilling device which comprises a base, a fixing plate, a vertical plate, a connecting column, a clamping and positioning assembly and an adjusting and drilling assembly, wherein the clamping and positioning assembly comprises a forward and reverse motor I, a worm, a forward and reverse screw rod, a worm wheel, a moving frame, a limiting rod, a placing table, a clamping rod and a clamping disc, and the adjusting and drilling assembly comprises a threaded rod, a moving block, a connecting plate, a telescopic rod, a moving frame, a forward and reverse motor II, an adjusting rod, a rotating motor and a drill bit. The invention belongs to the technical field of steel structure machining, and particularly relates to a steel structure accurate drilling device which can accurately and quickly clamp and fix or loosen a steel structure to be taken out, improves the fixing effect, further improves the drilling accuracy and can perform drilling work at different positions on the fixed steel structure according to actual drilling requirements.
Description
Technical Field
The invention belongs to the technical field of steel structure machining, and particularly relates to a steel structure accurate drilling device.
Background
The steel structure is a structure formed by steel materials, is one of main building structure types, and mainly comprises steel beams, steel columns, steel trusses and other members made of section steel, steel plates and the like, wherein all the members or parts are usually connected by welding seams, bolts or rivets. Traditional drilling equipment, the precision is not high, appears drilling skew easily, has increased the proportion of occuping of unqualified steel construction, has reduced work efficiency when increasing the cost, brings inconvenience for user's use.
Disclosure of Invention
Aiming at the situation, in order to overcome the defects of the prior art, the invention provides the accurate drilling device for the steel structure, which can accurately and quickly clamp and fix the steel structure or loosen and take out the steel structure, improves the fixing effect, further improves the accurate drilling rate, and can drill the fixed steel structure at different positions according to the actual drilling requirement.
The technical scheme adopted by the invention is as follows: the utility model provides an accurate drilling equipment of steel construction, includes base, fixed plate, riser, spliced pole, presss from both sides tight locating component and regulation drilling subassembly, fixed plate fixed connection is in the pedestal roof, riser fixed connection is in the pedestal roof, spliced pole fixed connection is between fixed plate and riser relative lateral wall, the inside cavity setting that is of base, the pedestal roof is equipped with the through-hole, the through-hole is the symmetry setting, press from both sides tight locating component and include positive and negative motor one, worm, positive and negative screw rod, worm wheel, carriage, gag lever post, place the platform, press from both sides tight pole and press from both sides tight dish, a positive and negative motor fixed connection is diapire in the base, worm fixed connection is in a positive and negative motor output end, the articulated base relative inside wall of locating in positive and negative screw rod both ends, worm wheel fixed connection is in positive and negative screw rod intermediate position, worm wheel and worm mesh mutually, the carriage runs through positive and negative screw rod and locates on positive and negative screw rod, carriage and positive and negative screw rod threaded connection, the carriage upper end is passed the through-hole and is located the base top, the carriage is the symmetry setting, gag lever fixed connection is in the tight bottom wall of carriage.
Further, adjust drilling subassembly includes threaded rod, movable block, connecting plate, telescopic link, removal frame, positive and negative motor two, adjusts pole, rotating electrical machines and drill bit, the riser lateral wall is located in the articulated of threaded rod one end, the threaded rod other end passes the fixed plate and rotates with the fixed plate to be connected, the movable block passes threaded rod and spliced pole and locates on the threaded rod, connecting plate fixed connection is in the movable block diapire, telescopic link fixed connection is in the connecting plate diapire, the telescopic link is the symmetry setting, remove frame fixed connection in telescopic link lower extreme, two fixed connection of positive and negative motor are in the connecting plate diapire, adjust pole one end fixed connection in positive and negative motor output, adjust the pole lower extreme and pass and remove the frame and with movable block threaded connection, rotating electrical machines fixed connection is in removing the frame diapire, drill bit fixed connection is in the rotating electrical machines output.
Further, the moving block is in threaded connection with the threaded rod, and the moving block is in sliding connection with the connecting column.
Further, the moving frame and the placing table are at the same height.
Further, place the bench roof and be equipped with the recess, the recess is the align to grid setting, is convenient for carry out the drilling work of different positions.
Furtherly, the diapire is equipped with the spacing groove in the base, the spacing groove is the symmetry and sets up, the spacing inslot portion is located to the gag lever post for carry on spacingly to removing the frame, prevent to remove a rotational offset.
After adopting the structure, the invention has the following beneficial effects: the steel structure accurate drilling device provided by the invention can be used for accurately and quickly clamping and fixing a steel structure or loosening and taking out the steel structure, the self-locking property between the worm and gear can prevent the moving frame from offsetting, the fixing effect is improved, the drilling accuracy is further improved, the fixed steel structure can be drilled according to the actual drilling requirement, the position of a drill bit can be adjusted up and down or left and right through the rotation of the threaded cylinder during adjustment, the whole structure is simple, the operation is convenient, and the working efficiency is improved.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention.
FIG. 1 is a schematic structural view of a steel structure precision drilling device provided by the invention;

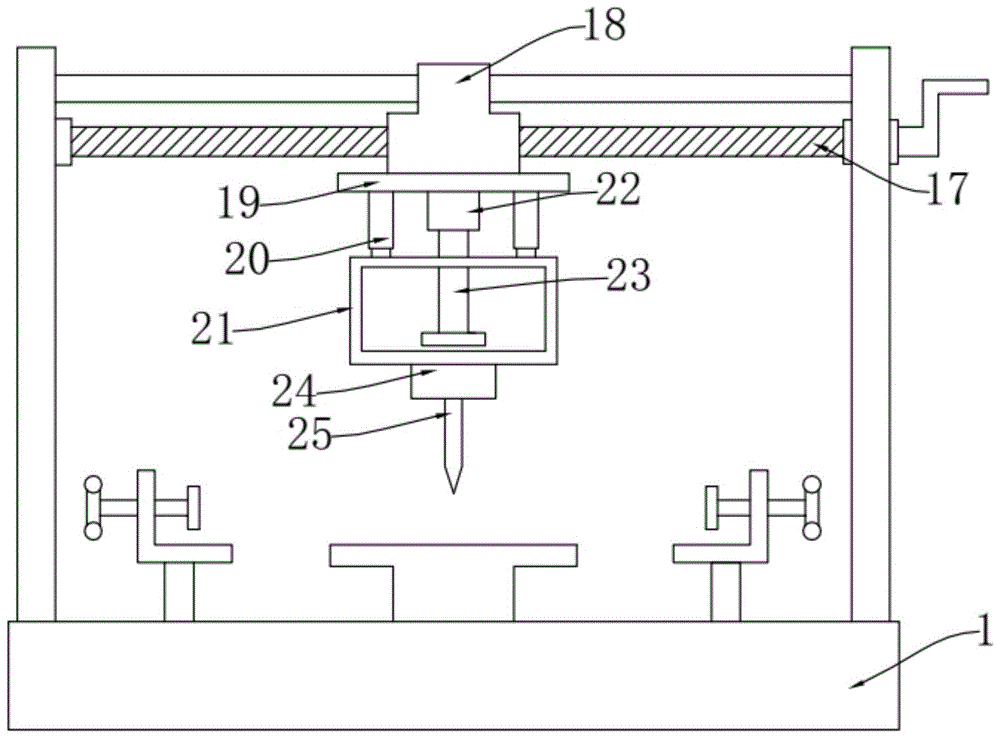

fig. 2 is a sectional view of a steel structure precision drilling device provided by the invention.
In the drawings: 1. the base, 2, the fixed plate, 3, the riser, 4, the spliced pole, 5, press from both sides tight locating component, 6, adjust drilling subassembly, 7, the through-hole, 8, positive and negative motor one, 9, the worm, 10, positive and negative screw rod, 11, the worm wheel, 12, the removal frame, 13, the gag lever post, 14, place the platform, 15, the clamp bar, 16, press from both sides tight dish, 17, the threaded rod, 18, the movable block, 19, the connecting plate, 20, the telescopic link, 21, remove the frame, 22, positive and negative motor two, 23, adjust the pole, 24, the rotating electrical machines, 25, the drill bit, 26, the recess, 27, the spacing groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
As shown in fig. 1-2, an accurate drilling equipment of steel construction, it includes base 1, fixed plate 2, riser 3, spliced pole 4, press from both sides tight locating component 5 and adjust drilling subassembly 6, fixed plate 2 fixed connection is in base 1 roof, riser 3 fixed connection is in base 1 roof, spliced pole 4 fixed connection is between fixed plate 2 and riser 3 relative lateral wall, the inside cavity setting that is of base 1, base 1 roof is equipped with through-hole 7, through-hole 7 is the symmetry setting, press from both sides tight locating component 5 and include positive and negative motor 8, worm 9, positive and negative screw rod 10, worm wheel 11, removal frame 12, gag lever post 13, place platform 14, clamping rod 15 and clamping disk 16, it includes threaded rod 17 to adjust drilling subassembly 6, the movable block 18, connecting plate 19, the telescopic link 20, remove frame 21, positive and negative motor two 22, adjust pole 23, rotating electrical machines 24 and drill bit 25.
Preferably, in order to can be accurate quick press from both sides tight fixed or loosen the steel construction and take out, improve the rate of accuracy of drilling, diapire in base 1 is fixed connection to positive and negative motor 8, worm 9 fixed connection is in positive and negative motor 8 output, positive and negative screw rod 10 both ends are articulated to be located between the relative inside wall of base 1, worm wheel 11 fixed connection is in positive and negative screw rod 10 intermediate position, worm wheel 11 and worm 9 mesh mutually, carriage 12 runs through positive and negative screw rod 10 and locates on positive and negative screw rod 10, carriage 12 and positive and negative screw rod 10 threaded connection, carriage 12 upper end is passed through-hole 7 and is located the base 1 top, carriage 12 is the symmetry setting, gag lever post 13 fixed connection is in carriage 12 diapire, place 14 fixed connection in base 1 roof, clamping rod 15 passes carriage 12 threaded connection on carriage 12, clamping disk 16 fixed connection is in clamping rod 15 one end.
Preferentially, in order to carry out the drilling work of different positions to the steel construction that fixes according to the drilling demand of reality, threaded rod 17 one end is articulated to be located 3 lateral walls of riser, the threaded rod 17 other end passes fixed plate 2 and rotates with fixed plate 2 and is connected, movable block 18 passes threaded rod 17 and spliced pole 4 and locates on threaded rod 17, movable block 18 and threaded rod 17 threaded connection, movable block 18 and spliced pole 4 sliding connection, 19 fixed connection in movable block 18 diapalls of connecting plate, 20 fixed connection in 19 diapalls of connecting plate of telescopic link, telescopic link 20 is the symmetry setting, remove frame 21 fixed connection in 20 lower extremes of telescopic link, two 22 fixed connection in 19 diapalls of positive and negative motor, adjust 23 one end fixed connection in positive and negative motor output of pole, it passes to adjust 23 lower extremes of pole and removes frame 21 and with 18 threaded connection of movable block, 24 fixed connection in the frame 21 diapalls of removal, drill bit 25 fixed connection in the output of rotating electrical machines 24.
Preferably, in order to limit the movable frame 12 and prevent the movable frame 12 from rotating and deviating, the inner bottom wall of the base 1 is provided with a limiting groove 27, the limiting grooves 27 are symmetrically arranged, and the limiting rod 13 is arranged inside the limiting groove 27.
The movable frame 12 and the placing table 14 are at the same height, the top wall of the placing table 14 is provided with grooves 26, and the grooves 26 are uniformly arranged, so that drilling work at different positions is facilitated.
When the drilling machine is used specifically, a steel structure is placed on the placing table 14, the forward and reverse motor I8 is started subsequently, the forward and reverse motor I8 drives the worm 9 to rotate, the worm 9 drives the worm wheel 11 to rotate, the worm wheel 11 drives the forward and reverse screw rods 10 to rotate, the moving frames 12 which are symmetrically arranged move relatively, until the clamping disc 16 is contacted with the steel structure, the clamping rod 15 is rotated subsequently, the clamping rod 15 drives the clamping disc 16 to move towards one side close to the steel structure until the steel structure is clamped, the left and right positions of the drill bit 25 are adjusted according to drilling requirements, the threaded rod 17 is rotated, the threaded rod 17 drives the moving block 18 to move on the connecting column 4 until the drill bit 25 is adjusted to the position above a drilling hole, the forward and reverse motor II 22 is started, the forward and reverse motor II 22 drives the adjusting rod 23 to rotate, the adjusting rod 23 drives the moving frame 21 to move downwards, the moving frame 21 drives the telescopic rod 20 to stretch out, the moving frame 21 to limit, the rotating motor 24 is started subsequently, the rotating motor 24 drives the drill bit 25 to rotate, drilling work is performed on the steel structure, after drilling work, the steel structure is finished, the clamping rod 15 enables the clamping disc 16 to be separated from the steel structure to be reversely rotated, the steel structure, the forward and the steel structure 12 can move downwards, and can be moved downwards.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents. In summary, those skilled in the art should appreciate that they can readily use the disclosed conception and specific embodiments as a basis for designing or modifying other structures for carrying out the same purposes of the present invention without departing from the spirit and scope of the invention as defined by the appended claims.
Claims (6)
1. The utility model provides an accurate drilling equipment of steel construction which characterized in that: including base, fixed plate, riser, spliced pole, press from both sides tight locating component and regulation drilling subassembly, fixed plate fixed connection is in the pedestal roof, riser fixed connection is in the pedestal roof, spliced pole fixed connection is between fixed plate and riser relative lateral wall, the inside cavity setting that is of base, the pedestal roof is equipped with the through-hole, the through-hole is the symmetry setting, press from both sides tight locating component and include positive and negative motor one, worm, positive and negative screw rod, worm wheel, carriage, gag lever post, place the platform, press from both sides tight dish, a positive and negative motor fixed connection is diapire in the base, worm fixed connection is in a positive and negative motor output, the articulated base inside wall of locating between the positive and negative screw rod both ends, worm wheel fixed connection is in positive and negative screw rod intermediate position, worm wheel and worm mesh mutually, the carriage runs through positive and negative screw rod and locates on positive and negative screw rod, carriage and positive and negative screw rod threaded connection, the carriage upper end is passed the through-hole and is located the base top, the carriage is the symmetry setting, gag lever post fixed connection is in carriage diapire, place a fixed connection in the pedestal roof, it passes to press from both sides tight dish fixed connection on the tight carriage.
2. The accurate drilling equipment of a steel construction of claim 1 characterized in that: the adjustable drilling component comprises a threaded rod, a moving block, a connecting plate, a telescopic rod, a moving frame, a positive and negative motor II, an adjusting rod, a rotating motor and a drill bit, wherein one end of the threaded rod is hinged to the outer side wall of the vertical plate, the other end of the threaded rod penetrates through the fixed plate and is rotatably connected with the fixed plate, the moving block penetrates through the threaded rod and the connecting column and is arranged on the threaded rod, the connecting plate is fixedly connected to the bottom wall of the moving block, the telescopic rod is fixedly connected to the bottom wall of the connecting plate, the telescopic rod is symmetrically arranged, the moving frame is fixedly connected to the lower end of the telescopic rod, the positive and negative motor II is fixedly connected to the bottom wall of the connecting plate, one end of the adjusting rod is fixedly connected to the output end of the positive and negative motor, the lower end of the adjusting rod penetrates through the moving frame and is in threaded connection with the moving block, the rotating motor is fixedly connected to the output end of the rotating motor.
3. The accurate drilling equipment of steel construction of claim 2, characterized in that: the movable block is in threaded connection with the threaded rod, and the movable block is in sliding connection with the connecting column.
4. The accurate drilling equipment of a steel construction of claim 1 characterized in that: the movable rack and the placing platform are at the same height.
5. The accurate drilling equipment of steel construction of claim 1, characterized in that: the top wall of the placing table is provided with grooves which are uniformly arranged.
6. The accurate drilling equipment of a steel construction of claim 1 characterized in that: the diapire is equipped with the spacing groove in the base, the spacing groove is the symmetry and sets up, the gag lever post is located the spacing inslot portion.
