Abstract
A comprehensive sewage processor relates to the technical field of sewage treatment; including the barrel, the inside water purification case that is equipped with of barrel, the barrel outside is equipped with the inlet tube of connecting the water purification case, water purification bottom of the case portion is equipped with the blow off pipe and extends to the barrel outside, the barrel bottom is equipped with the delivery port, be equipped with the clearance between water purification case and the barrel, be equipped with filter chamber and drip chamber in the water purification case, filter chamber upper end and drip chamber intercommunication, the grid subassembly is installed to the filter chamber upper end, the lower extreme to the grid subassembly is installed to the inlet tube, piston rod one end runs through to the piston cylinder outside and is connected with the connecting plate, the piston rod has cup jointed reset spring in being located the piston cylinder, it runs through to the barrel outside to advance pencil one end, and it is equipped with the valve group that intermittent type switch supplied water to advance pencil upper end. The problem of among the prior art generalized type sewage treatment ware have sewage and filter through filter screen or grid after getting into, the dirt causes the jam filter screen to with filter screen and grid setting in the below of water inlet, cause unable intaking or intake inefficiency after the dirt is deposited up is solved.
Description
Technical Field
The invention relates to the technical field of sewage treatment, in particular to a comprehensive sewage treatment device and a treatment system thereof.
Background
The sewage needs to be treated to reach the discharge standard, the sewage treatment is widely applied, and the comprehensive sewage treatment device is used for treating refrigeration, cooling, heating, water supply, underground water, industrial water and the like in various fields of buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, so as to achieve the purposes of scale prevention and scale removal, corrosion prevention and rust removal, sterilization and algae removal and ultra-clean filtration.
The comprehensive sewage treatment ware that adopts at present has that sewage filters through filter screen or grid after getting into, and the dirt causes the jam filter screen to set up filter screen and grid in the below of water inlet, cause unable intaking or the inefficiency of intaking after the dirt accumulates, consequently, proposes a comprehensive sewage treatment ware and solves the problem.
Disclosure of Invention
The invention aims to solve the technical problems that after sewage enters the comprehensive sewage treatment device in the prior art, the sewage is filtered through a filter screen or a grating, the filter screen is blocked by dirt, the filter screen and the grating are arranged below a water inlet, and after the dirt is accumulated, the water cannot enter or the water inlet efficiency is low.
The purpose and the effect of the invention are achieved by the following specific technical means:
the utility model provides a comprehensive sewage treatment ware, which comprises a cylindrical shel, the inside water purification case that is equipped with of barrel, the barrel outside is equipped with the inlet tube of connecting the water purification case, water purification bottom of the case portion is equipped with the blow off pipe and extends to the barrel outside, the barrel bottom is equipped with the delivery port, be equipped with the clearance between water purification case and the barrel, be equipped with filter chamber and drip chamber in the water purification case, filter chamber upper end and drip chamber intercommunication, the grid subassembly is installed to the filter chamber upper end, the inlet tube is installed to the lower extreme of grid subassembly, the grid subassembly includes connecting plate and folding otter board, 3 groups are no less than in order vertical parallel arrangement setting to the connecting plate, it all is equipped with folding otter board to go up the lower extreme between the connecting plate, and be located wherein to be equipped with into the pencil in the clearance between a set of connecting plate, it is located the position body coupling between the connecting plate to advance the pencil, it has the piston rod that receives rivers extrusion removal to slide in the piston cylinder, piston rod one end runs through to be connected with reset spring in the piston rod position in the piston cylinder, it runs through to the barrel outside to advance pencil, and be equipped with the valve group that intermittent type switch supplied water.
Preferably, install the descending ladder baffle step by being close to filter chamber one side to keeping away from filter chamber one side in the precipitation chamber in proper order, be equipped with the adsorbent that highly is less than the ladder baffle in the filter chamber, the water purification case outside corresponds the precipitation chamber in the lower extreme of the lowest ladder baffle be equipped with the delivery port, the delivery port outside corresponds the clearance between water purification case and the barrel.
Preferably, the valve group includes valve box, seal piece and through-hole, advances the pencil upper end and is equipped with valve box, is equipped with rotatory seal piece in the valve box, is equipped with the through-hole that the intercommunication entered the pencil in the seal piece, and the seal piece lower extreme is equipped with drive shaft two, and drive shaft two runs through to the intraductal guide pulley that is fixed with of intaking.
Preferably, the folding net plate is formed by rotationally connecting two groups of grid plates through a rotating shaft.
Preferably, the sewage draining pipe is connected with the bottom of the water purifying chamber and the bottom of the settling chamber, and the outer side of the sewage draining pipe is connected with a sludge pump.
Preferably, a spray pipe is arranged at the lower end of the water purifying tank in the cylinder body and communicated with the medicine inlet pipe.
Preferably, the inside of the lower end of the clean water tank of the sewage draining pipe is rotatably provided with an impeller, the impeller is rotatably arranged through a first driving shaft, the lower end of the first driving shaft penetrates through the outer side of the sewage draining pipe to be connected with a driving gear, the lower end of the inside of the barrel is provided with a rotating inner gear ring, the lower end of the inner gear ring is connected with a stirring rod, and the inner side of the inner gear ring is in meshing clamping connection with the driving gear.
The utility model provides a processing system of comprehensive sewage treatment ware, its characterized in that, the controller is installed in the barrel outside, and the controller includes central processing unit, sludge treatment module, flow control module, water quality testing module, and central processing unit is used for receiving the data of handling sludge treatment module, flow control module, water quality testing module, and sludge treatment module is used for controlling opening and close of sludge pump, and flow control module is used for receiving flow data and the flow size of sewage in the control tube way, and water quality testing module is used for detecting quality of water.
A treatment method of a comprehensive sewage treatment device comprises the following steps:
s1: the water inlet pipe is arranged at the lower end of the grating in the filtering chamber, and water flows into the settling chamber after flowing through the grating;
s2: filtering through a grating and blocking most of dirt to a filtering chamber;
s3: sewage flows through the filtering chamber and enters the settling chamber, sequentially passes through the step baffles, is settled and finally is discharged into the lower end of the cylinder through the water outlet;
s4: enters the spraying pipe through the medicine inlet pipe to spray medicine and sterilize, and is finally discharged through the water outlet.
Has the advantages that:
1. the utility model provides a comprehensive sewage treatment ware is provided with grid assembly, the inlet tube sets up in grid assembly lower extreme, water gets into the drip chamber by the filter chamber after crossing grid assembly, the dirt is located grid assembly below and more does benefit to the clearance, secondly, grid assembly comprises multiunit connecting plate and folding otter board, the inlet tube is intake and is driven the guide pulley and rotate, and then drive two rotations of drive shaft, and then drive the blocking piece rotatory, make through-hole intermittent type intercommunication inlet pipe, liquid medicine stops in the piston cylinder, and then the drive piston rod removes, and then promote the connecting plate and remove, extrude sewage, can erode the dirt that blocks up in grid assembly upper end, the mesh of grid board has been prevented to block up the dirt, and can assault the blow off pipe blowdown more smoothly under the water impact, the piston rod can reset through reset spring's effect, can extrude the liquid medicine in the piston cylinder, reach the effect of stirring liquid medicine, the shower is installed to the barrel is located water purification case lower extreme, the shower is communicated with the inlet pipe and is set up, it disinfects to spray liquid medicine through the shower to the sewage that deposits.
2. This kind of generalized type sewage treatment ware is provided with the ladder baffle, and the ladder baffle makes what sewage can be in proper order deposit, can deposit more dirt.
Description of the drawings:
FIG. 1 is an internal view of an integrated sewage treatment apparatus according to the present invention.
FIG. 2 is a schematic side view of an integrated sewage treatment apparatus according to the present invention.
Fig. 3 is a top view of the inside of the fresh water tank of the present invention.
Fig. 4 is a schematic top view of a piston cylinder of the present invention.
Fig. 5 is a schematic view of a grill assembly of the present invention.
FIG. 6 is a schematic flow chart of an integrated sewage treatment apparatus according to the present invention.

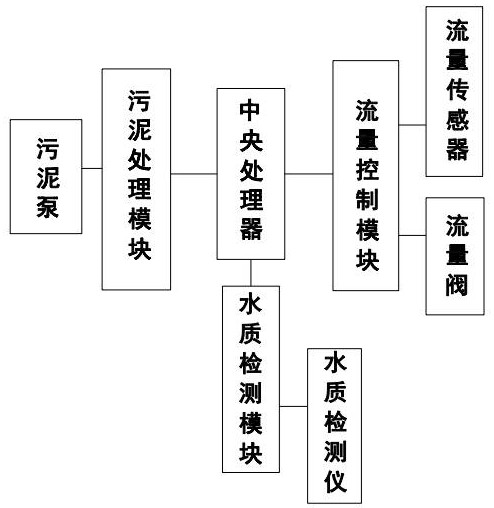

FIG. 7 is a schematic view of an integrated wastewater treatment system according to the present invention.
In FIGS. 1-7: the device comprises a cylinder body 1, a cover body 101, a water purification tank 2, a water outlet 201, a partition plate 3, a grid component 4, a connecting plate 41, a folding screen plate 42, a step baffle plate 5, an adsorbent 6, a water inlet pipe 7, a sewage discharge pipe 8, a sludge pump 9, a spray pipe 10, a first driving shaft 11, an inner gear ring 12, a stirring rod 13, a medicine inlet pipe 14, a valve box 141, a sealing block 142, a through hole 143, a second driving shaft 144, a guide wheel 145, a piston cylinder 15, a piston rod 16 and a controller 17.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-7, the comprehensive sewage treatment device comprises a cylinder 1, a cover body 101 covered on the upper end of the cylinder 1, is fixed by bolts and is convenient to disassemble, a square water purifying tank 2 is fixed in the cylinder body 1, a water inlet pipe 7 is fixedly connected at the outer side of the cylinder body 1, the water inlet pipe 7 penetrates into the barrel body 1 to be communicated with the purified water tank 2, the bottom of the purified water tank 2 is connected with a drain pipe 8 and extends to the outer side of the barrel body 1, the drain pipe 8 is connected with the bottom of a purified water chamber and a settling chamber, a sludge pump 9 is arranged on the outer side of the drain pipe 8, a water outlet is arranged at the bottom of the barrel body 1, gaps are formed in the periphery between the purified water tank 2 and the barrel body 1, a partition plate 3 is fixed in the purified water tank 2 and divides the purified water tank 2 into a filtering chamber and a settling chamber, the height of the partition plate 3 is lower than that of the purified water tank 2, the filtering chamber is communicated with the settling chamber, a grid assembly 4 is fixedly arranged at the upper end of the filtering chamber, the water inlet pipe 7 is arranged at the lower end of the grid assembly 4, the grid assembly 4 comprises connecting plates 41 and folding net plates 42, the connecting plates 41 are vertically arranged in parallel in sequence, the connecting plates 41 at the left side and the right side are fixed with the inner wall of the filtering chamber, no less than the folding net plates 42 in a manner, the upper end and the lower end between the connecting plates 41, the folding net plates 42 are rotatably connected through a rotating shaft, a medicine inlet pipe 14 is arranged in a gap between one group of connecting plates 41 in a penetrating way, a piston cylinder 15 is integrally connected with the medicine inlet pipe 14 between the connecting plates 41, piston rods 16 which are extruded and moved by water flow are arranged on two sides in the piston cylinder 15 in a sliding way, one end of the outer side of the piston rod 16 penetrates to the outer side of the piston cylinder 15 and is fixedly connected with the connecting plate 41, the piston rod 16 is positioned in the piston cylinder 15 and is internally sleeved with a return spring, one end of the medicine inlet pipe 14 penetrates to the outer side of the barrel body 1, and the upper end of the medicine inlet pipe 14 is provided with a valve group for intermittently switching on and off water supply; get into the filter chamber through inlet tube 7 intaking, water flows into the drip chamber after overflowing grid assembly 4, grid assembly 4 can intercept most dirt, advance medicine through advancing pencil 14, open and close the valve group simultaneously, make the liquid medicine can strike the piston rod 16 removal in the piston cylinder 15, and then promote connecting plate 41 and remove, the clearance between the in-process extrusion connecting plate 41 that connecting plate 41 removed, and then promote rivers and strike folding otter board 42 fast, can erode the dirt of folding otter board 42 upper end, the mesh of grid board has been prevented to the dirt, and can strike blow off 8 blowdown of blow off pipe more smoothly under rivers impact.
The valve group comprises a valve box 141, a sealing block 142 and a through hole 143, the upper end of the medicine inlet pipe 14 is provided with the hollow cylindrical valve box 141, the valve box 141 is rotatably provided with the cylindrical sealing block 142, the sealing block 142 is provided with the through hole 143 communicated with the medicine inlet pipe 14, the bottom of the sealing block 142 is provided with a second driving shaft 144, and the bottom of the second driving shaft 144 penetrates into the water inlet pipe 7 and is fixedly provided with a guide wheel 145; inlet tube 7 is intake and is driven guide pulley 145 and rotate, and then drive shaft two 144 and rotate, and then it is rotatory to drive sealing block 142, make through-hole 143 intermittent type intercommunication advance pencil 14, liquid medicine stops in piston cylinder 15, and then drive piston rod 16 removes, and then promote connecting plate 41 and remove, extrude sewage, can erode the dirt that grid subassembly 4 upper end blockked up, piston rod 16 can reset through reset spring's effect, can extrude the liquid medicine in the piston cylinder 15, reach the effect of stirring liquid medicine, lie in 2 lower extremes of water purification case in the barrel 1 and install shower 10, shower 10 and the setting of advancing pencil 14 intercommunication, it disinfects to depositing in the sewage to spray the liquid medicine through shower 10.
Wherein, the inside of the blow-off pipe 8 which is positioned at the lower end of the water purification tank 2 is provided with an impeller, the impeller is rotationally arranged in the blow-off pipe 8 through a first driving shaft 11, the lower end of the first driving shaft 11 penetrates to the outer side of the blow-off pipe 8 and is connected with a driving gear, the lower end of the inside of the barrel 1 is slidably provided with an inner gear ring 12 which is attached to the inner wall of the barrel 1, the lower end of the inner gear ring 12 is connected with a stirring rod 13, and the inner side of the inner gear ring 12 is engaged and clamped with the driving gear; after the sludge pump 9 is started, sludge enters the sewage discharge pipe 8 and then drives the impeller to rotate, the driving shaft I11 is driven to rotate, the inner gear ring 12 is driven to rotate through the driving gear, the stirring rod 13 is driven to stir liquid medicine and sewage, and the sterilization effect is quickly achieved.
The utility model provides a processing system of comprehensive type sewage treatment ware, controller 17 is installed in the 1 outside of barrel, controller 17 includes central processing unit, the sludge treatment module, the flow control module, the water quality testing module, central processing unit is used for receiving processing sludge treatment module, the flow control module, the data of water quality testing module, the sludge treatment module is used for controlling opening and close of sludge pump 9, the flow control module is used for receiving flow data and the interior flow size of sewage of control pipeline, set up flow sensor through the pipeline and carry out transmission flow data, through setting up the flow valve and then the size of controlled flow, the water quality testing module is used for detecting quality of water, through install water quality testing appearance in barrel 1 and monitor whether compound water standard of quality of water.
A treatment method of a comprehensive sewage treatment device comprises the following steps:
s1: a water inlet pipe 7 is arranged at the lower end of a grating in the filtering chamber, and water flows into the settling chamber after overflowing the grating;
s2: filtering through a grating and blocking most of dirt to a filtering chamber;
s3: sewage flows through the filtering chamber and enters the settling chamber to sequentially settle through the step baffles 5, and finally is discharged into the lower end of the cylinder 1 through the water outlet 201;
s4: enters the spraying pipe 10 through the medicine inlet pipe 14 for spraying medicine and sterilizing, and finally is discharged through the water outlet.
Claims (9)
1. The utility model provides a comprehensive sewage treatment ware, includes barrel (1), and barrel (1) inside is equipped with water purification case (2), and the barrel (1) outside is equipped with inlet tube (7) of connecting water purification case (2), and water purification case (2) bottom is equipped with blow off pipe (8) and extends to the barrel (1) outside, and barrel (1) bottom is equipped with the delivery port, its characterized in that, be equipped with the clearance between water purification case (2) and barrel (1), be equipped with filter chamber and drip chamber in water purification case (2), filter chamber upper end and drip chamber intercommunication, grid assembly (4) are installed to the filter chamber upper end, inlet tube (7) are installed to the lower extreme of grid assembly (4), grid assembly (4) are including connecting plate (41) and folding otter board (42), connecting plate (41) are according to vertical parallel arrangement setting in proper order and are no less than 3 groups, and the upper and lower extreme all is equipped with folding otter board (42) between connecting plate (41), and is equipped with into medicine pipe (14) in the clearance that is located between one set of connecting plate (41), and medicine pipe (14) are located position between connecting plate (41) and integrative connection has been connected with piston cylinder (15), and piston cylinder (15) and the one end is provided with the piston rod (16) and the piston rod (16) outside is connected, a return spring is sleeved in the piston rod (16) which is positioned in the piston cylinder (15), one end of the medicine inlet pipe (14) penetrates to the outer side of the barrel body (1), and the upper end of the medicine inlet pipe (14) is provided with a valve group for intermittent switch water supply.
2. An integrated sewage treatment device as claimed in claim 1, wherein step baffles (5) with gradually decreasing heights are sequentially arranged in the settling chamber from the side close to the filtering chamber to the side far away from the filtering chamber, an adsorbent (6) with a height lower than that of the step baffles (5) is arranged in the filtering chamber, a water outlet (201) is arranged on the outer side of the water purifying tank (2) corresponding to the lower end of the lowest step baffle (5) in the settling chamber, and a gap between the water purifying tank (2) and the cylinder (1) is arranged on the outer side of the water outlet (201).
3. A comprehensive sewage processor as claimed in claim 1, wherein the valve set comprises a valve box (141), a sealing block (142) and a through hole (143), the valve box (141) is arranged at the upper end of the medicine inlet pipe (14), the rotating sealing block (142) is arranged in the valve box (141), the through hole (143) communicated with the medicine inlet pipe (14) is arranged in the sealing block (142), a second driving shaft (144) is arranged at the lower end of the sealing block (142), and a guide wheel (145) is fixed in the water inlet pipe (7) through the second driving shaft (144).
4. An integrated sewage treatment plant according to claim 1, characterized in that said folding net panel (42) is composed of two sets of grid panels rotatably connected by a rotary shaft.
5. An integrated sewage treatment device as claimed in claim 1, characterized in that the sewage discharge pipe (8) connects the water purification chamber with the bottom of the sedimentation chamber, and the outside of the sewage discharge pipe (8) is connected with a sludge pump (9).
6. An integrated sewage treatment device as claimed in claim 1, wherein a shower pipe (10) is installed in the cylinder (1) at the lower end of the water purifying tank (2), and the shower pipe (10) is communicated with the chemical inlet pipe (14).
7. An integrated sewage treatment device as claimed in claim 1, characterized in that the inside of the sewage draining pipe (8) at the lower end of the water purifying tank (2) is rotatably provided with an impeller, the impeller is rotatably arranged by a first driving shaft (11), the lower end of the first driving shaft (11) penetrates to the outside of the sewage draining pipe (8) to be connected with a driving gear, the lower end of the inside of the barrel (1) is provided with a rotary inner gear ring (12), the lower end of the inner gear ring (12) is connected with a stirring rod (13), and the inside of the inner gear ring (12) is engaged and clamped with the driving gear.
8. The treatment system of the comprehensive sewage treatment device according to any one of claims 1 to 7, wherein a controller (17) is installed outside the cylinder (1), the controller (17) comprises a central processing unit, a sludge treatment module, a flow control module and a water quality detection module, the central processing unit is used for receiving data of the sludge treatment module, the flow control module and the water quality detection module, the sludge treatment module is used for controlling the opening and closing of a sludge pump (9), the flow control module is used for receiving flow data and controlling the flow of sewage in a pipeline, and the water quality detection module is used for detecting water quality.
9. The treatment method of an integrated sewage treatment apparatus as claimed in any one of claims 1 to 7, comprising the steps of:
s1: a water inlet pipe (7) is arranged at the lower end of a grating in the filtering chamber, and water flows into the settling chamber after overflowing the grating;
s2: filtering through a grating and blocking most of dirt to a filtering chamber;
s3: sewage flows through the filtering chamber and enters the settling chamber to sequentially settle through the step baffles (5), and finally is discharged into the lower end in the cylinder body (1) through the water outlet (201);
s4: enters the spray pipe (10) through the medicine inlet pipe (14) for spraying medicine and sterilization, and is finally discharged through the water outlet.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210690364.1A CN115159719A (en) | 2022-06-18 | 2022-06-18 | Comprehensive sewage treatment device and treatment system thereof |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210690364.1A CN115159719A (en) | 2022-06-18 | 2022-06-18 | Comprehensive sewage treatment device and treatment system thereof |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN115159719A true CN115159719A (en) | 2022-10-11 |
Family
ID=83484945
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202210690364.1A Pending CN115159719A (en) | 2022-06-18 | 2022-06-18 | Comprehensive sewage treatment device and treatment system thereof |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN115159719A (en) |
Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN202070250U (en) * | 2011-04-12 | 2011-12-14 | 宝钢集团新疆八一钢铁有限公司 | Filter filtrate water purification device |
| CN206570131U (en) * | 2017-03-22 | 2017-10-20 | 新昌县谷泰生物科技有限公司 | A kind of domestic sewage treatment device |
| CN107285537A (en) * | 2017-06-05 | 2017-10-24 | 浙江水利水电学院 | A kind of integral type sewage processing system and its method |
| CN208667326U (en) * | 2018-06-22 | 2019-03-29 | 无锡市鸣腾园林工程股份有限公司 | A kind of river sewage purification system |
| CN212315810U (en) * | 2020-05-08 | 2021-01-08 | 江苏拓嘉工程设计研究院有限公司 | Processing apparatus for water pollution |
| WO2021174722A1 (en) * | 2020-03-04 | 2021-09-10 | 湖南恒凯环保科技投资有限公司 | Regulation, storage, and purification system and method for controlling rain and sewage confluence and overflow pollution |
| CN216038887U (en) * | 2020-12-31 | 2022-03-15 | 安徽珍珠水泥集团股份有限公司 | Sewage treatment system device for production |
| CN114314993A (en) * | 2022-01-25 | 2022-04-12 | 毛彦 | Seawater desalination equipment based on resource cyclic utilization |
| CN216722849U (en) * | 2022-03-01 | 2022-06-14 | 河南及时雨节水灌溉设备有限公司 | Agricultural adds medicine and irrigates mechanism |
-
2022
- 2022-06-18 CN CN202210690364.1A patent/CN115159719A/en active Pending
Patent Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN202070250U (en) * | 2011-04-12 | 2011-12-14 | 宝钢集团新疆八一钢铁有限公司 | Filter filtrate water purification device |
| CN206570131U (en) * | 2017-03-22 | 2017-10-20 | 新昌县谷泰生物科技有限公司 | A kind of domestic sewage treatment device |
| CN107285537A (en) * | 2017-06-05 | 2017-10-24 | 浙江水利水电学院 | A kind of integral type sewage processing system and its method |
| CN208667326U (en) * | 2018-06-22 | 2019-03-29 | 无锡市鸣腾园林工程股份有限公司 | A kind of river sewage purification system |
| WO2021174722A1 (en) * | 2020-03-04 | 2021-09-10 | 湖南恒凯环保科技投资有限公司 | Regulation, storage, and purification system and method for controlling rain and sewage confluence and overflow pollution |
| CN212315810U (en) * | 2020-05-08 | 2021-01-08 | 江苏拓嘉工程设计研究院有限公司 | Processing apparatus for water pollution |
| CN216038887U (en) * | 2020-12-31 | 2022-03-15 | 安徽珍珠水泥集团股份有限公司 | Sewage treatment system device for production |
| CN114314993A (en) * | 2022-01-25 | 2022-04-12 | 毛彦 | Seawater desalination equipment based on resource cyclic utilization |
| CN216722849U (en) * | 2022-03-01 | 2022-06-14 | 河南及时雨节水灌溉设备有限公司 | Agricultural adds medicine and irrigates mechanism |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN114573135B (en) | Industrial park sewage cycle processing apparatus | |
| CN114249459A (en) | Emission standard quality-improving and efficiency-increasing process for urban sewage treatment plant | |
| CN212610058U (en) | Sewage peculiar smell removal environment-friendly device for water treatment | |
| CN212246610U (en) | Sewage treatment device | |
| CN211676462U (en) | Sludge discharge device for wastewater treatment | |
| CN211311156U (en) | Multi-stage treatment type sewage treatment device | |
| CN211644923U (en) | Aluminum industry effluent treatment plant | |
| CN115159719A (en) | Comprehensive sewage treatment device and treatment system thereof | |
| CN214829672U (en) | Water treatment filter equipment | |
| CN216944526U (en) | Drainage device for spring type floating roof storage tank | |
| CN215517061U (en) | Hospital sewage totally-enclosed processing integrated equipment | |
| CN212924733U (en) | Novel integrated equipment capable of treating sewage discharge and utilizing | |
| CN114230047A (en) | Deep sewage purification device | |
| CN114162484A (en) | Drainage device for spring type floating roof storage tank | |
| CN112939289A (en) | Rural environmental protection is with concentrated and dual-purpose formula sewage treatment system of dispersion | |
| CN208485718U (en) | A kind of double purification sewage disposal devices | |
| CN111943459A (en) | High concentration sewage treatment plant | |
| CN213950836U (en) | Sedimentation reaction tank for active sludge sewage treatment | |
| CN212102299U (en) | Sedimentation tank for chemical production sewage treatment | |
| CN215559489U (en) | Sewage treatment purifier of municipal works construction | |
| CN220812147U (en) | Industrial sewage inclined tube precipitation device | |
| CN215627373U (en) | Industrial waste water treatment facilities of environmental protection | |
| CN109607866A (en) | A kind of sewage treatment pot | |
| CN217323591U (en) | Sewage purification device | |
| CN219784012U (en) | Self-flowing sewage purifying device |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
