Abstract
The invention discloses a calibration method, a calibration device and calibration equipment applied to an online monitoring device. The online monitoring device comprises a first partial discharge sensor and a second partial discharge sensor, and the method comprises the following steps: when first data collected when an analog partial discharge signal is transmitted at a first partial discharge sensor based on an analog signal generator is received, a first partial discharge map is obtained; when the analog signal generator emits an analog partial discharge signal, acquiring the analog partial discharge signal based on a second partial discharge sensor, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received; and determining a target verification report based on the first partial discharge map and the second partial discharge map. According to the technical scheme, the first partial discharge sensor emits the analog partial discharge signal, the first partial discharge map and the second partial discharge map are respectively obtained based on the analog partial discharge signal detected by the first partial discharge sensor and the second partial discharge sensor, the verification report is determined, and the automatic verification of the online monitoring device is realized.
Description
Technical Field
The present invention relates to the field of technologies, and in particular, to a calibration method, device and apparatus applied to an online monitoring device.
Background
The sulfur hexafluoride closed type combined electric appliance plays an important role in the operation of a power grid, and in recent years, the partial discharge online monitoring device plays an important role in ensuring the stable and reliable operation of the sulfur hexafluoride closed type combined electric appliance.
With the popularization of the partial discharge online monitoring device, problems in the aspects of sensor faults, acquisition unit faults, communication abnormity and the like are gradually exposed in application. In order to continuously improve the operation quality of the partial discharge online monitoring device, annual check work in the operation of the monitoring device needs to be carried out, the operation quality of each partial discharge online monitoring device is mastered, and problems existing in the operation of the device are found in time. Therefore, the partial discharge monitoring apparatus needs to be verified. The existing checking mode usually needs a worker to repeatedly inject signals on site and check the screenshot in the background, and the process is complicated. And secondly, the installation height of part of sulfur hexafluoride closed type combined electrical appliances is higher, and the high falling risk exists when personnel ascend the height to inject the checking analog signals.
Disclosure of Invention
The invention provides a verification method, a device and equipment applied to an online monitoring device, and aims to automatically verify the effectiveness of the online monitoring device.
According to an aspect of the present invention, there is provided a calibration method applied to an online monitoring device, the online monitoring device including a first partial discharge sensor and a second partial discharge sensor, the method including:
when first data collected when an analog partial discharge signal is transmitted at a first partial discharge sensor based on an analog signal generator is received, a first partial discharge map is obtained;
when the analog partial discharge signal is transmitted based on the analog signal generator, the analog partial discharge signal is collected based on the second partial discharge sensor, and a second partial discharge map is determined when second data corresponding to the analog partial discharge signal is received;
and determining a target verification report based on the first partial discharge map and the second partial discharge map.
According to another aspect of the present invention, there is provided a verification apparatus applied to an online monitoring apparatus, the online monitoring apparatus including a first partial discharge sensor and a second partial discharge sensor, the verification apparatus including:
the first partial discharge map determining module is used for obtaining a first partial discharge map when receiving first data acquired when an analog signal generator transmits an analog partial discharge signal at a first partial discharge sensor;
the second partial discharge map determining module is used for acquiring the analog partial discharge signal based on the second partial discharge sensor when the analog signal generator transmits the analog partial discharge signal, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received;
and the target verification report determining module is used for determining a target verification report based on the first partial discharge map and the second partial discharge map.
According to another aspect of the present invention, there is provided an electronic apparatus including:
at least one processor;
and a memory communicatively coupled to the at least one processor;
wherein the memory stores a computer program executable by the at least one processor, and the computer program is executed by the at least one processor to enable the at least one processor to execute the verification method applied to the online monitoring device according to any embodiment of the present invention.
According to another aspect of the present invention, there is provided a computer-readable storage medium storing computer instructions for causing a processor to implement the verification method applied to an online monitoring device according to any one of the embodiments of the present invention when the computer instructions are executed.
According to the technical scheme of the embodiment of the invention, when first data acquired when an analog partial discharge signal is emitted at a first partial discharge sensor based on an analog signal generator is received, a first partial discharge map is obtained; when the analog signal generator emits an analog partial discharge signal, acquiring the analog partial discharge signal based on a second partial discharge sensor, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received; and determining a target verification report based on the first partial discharge map and the second partial discharge map. According to the technical scheme, the first partial discharge sensor emits the simulation partial discharge signal, the first partial discharge map and the second partial discharge map are respectively obtained based on the simulation partial discharge signal detected by the first partial discharge sensor and the second partial discharge sensor, and the verification report is determined, so that the problem that the online monitoring device is low in verification efficiency manually in the prior art is solved, the online monitoring device is automatically verified, and the verification efficiency of the online monitoring device is improved.
It should be understood that the statements in this section do not necessarily identify key or critical features of the embodiments of the present invention, nor do they necessarily limit the scope of the invention. Other features of the present invention will become apparent from the following description.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings based on these drawings without creative efforts.

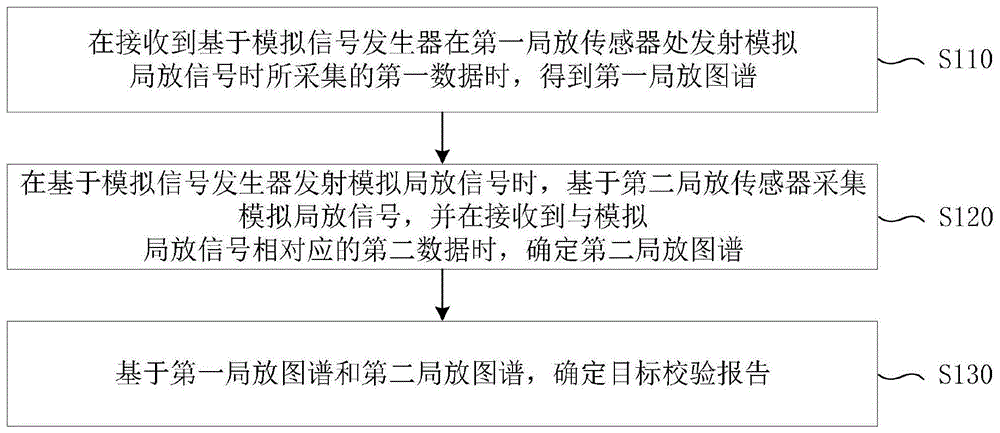

Fig. 1 is a flowchart of a verification method applied to an online monitoring device according to an embodiment of the present invention;
fig. 2 is a flowchart of a verification method applied to an online monitoring device according to a second embodiment of the present invention;
fig. 3 is a schematic structural diagram of a calibration apparatus applied to an online monitoring apparatus according to a third embodiment of the present invention;
FIG. 4 shows a schematic block diagram of an electronic device that may be used to implement an embodiment of the invention.
Detailed Description
In order to make the technical solutions of the present invention better understood, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that the terms "first," "second," and the like in the description and claims of the present invention and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It is to be understood that the data so used is interchangeable under appropriate circumstances such that the embodiments of the invention described herein are capable of operation in sequences other than those illustrated or described herein. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed, but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.
Before the technical solution of the embodiment of the present invention is introduced, an application scenario is exemplarily described. The technical scheme of the embodiment of the invention can be applied to the condition that the on-line monitoring device needs to be checked so as to ensure the normal operation of the on-line monitoring device. It can be understood that sulfur hexafluoride gas is used as an insulating medium in the commonly used closed combined electricity in the power grid, and partial discharge of the sulfur hexafluoride gas can be monitored by adopting a partial discharge online monitoring device, so that the normal operation of the closed combined electricity is ensured. Furthermore, in order to ensure the effectiveness of the partial discharge online monitoring device, the effectiveness of the online monitoring device can be verified, the specific verification mode can be that the partial discharge sensor in the online monitoring device is verified, and the technical scheme can automatically verify the effectiveness of the partial discharge sensor in the online monitoring device.
Example one
Fig. 1 is a flowchart of a verification method applied to an online monitoring device according to an embodiment of the present invention, where the method is applicable to a situation that an online monitoring device needs to be verified, the method may be executed by a verification device applied to the online monitoring device, the verification device may be implemented in a form of hardware and/or software, and the verification device may be configured in the online monitoring device and a server. As shown in fig. 1, the method includes:
s110, when first data collected when the analog partial discharge signal is emitted at the first partial discharge sensor based on the analog signal generator is received, a first partial discharge map is obtained.
The analog signal generator may be a generator for generating an analog partial discharge signal, the analog partial discharge signal may be a partial discharge signal that is simulated by the analog signal generator, the partial discharge signal may generally be a pulse signal, the first partial discharge sensor refers to a sensor for collecting the analog partial discharge signal, and the first data may be signal data obtained by collecting and converting the analog partial discharge signal by the first partial discharge sensor. The first partial discharge spectrum may be understood as a spectrum for characterizing a partial discharge.
Specifically, the analog signal generator can transmit an analog partial discharge signal at the position of the first partial discharge sensor, the first partial discharge sensor can acquire the analog partial discharge signal, filter and amplify the analog partial discharge signal to obtain first data corresponding to the analog partial discharge signal, and send the first data to the background system, so that the background system can analyze and calculate the data, and then generate a first partial discharge map.
On the basis of the above technical solution, obtaining the first partial discharge map when receiving the first data acquired when the analog signal generator transmits the analog partial discharge signal at the first partial discharge sensor includes: sending a control signal to an analog signal controller to cause the analog signal controller to control the analog signal generator to emit an analog partial discharge signal at the first partial discharge sensor based on the control signal.
The control signal may be a signal sent by a background system, and the analog signal controller may receive the signal, so that the background system may remotely control the analog signal controller. The analog signal controller may be configured to trigger the analog signal generator to emit an analog partial discharge signal.
Specifically, for convenience of checking the online monitoring device, communication between the background system and the analog signal controller may be established in advance, for example, the communication mode may be 5G communication or micropower wireless communication, so that the background system may remotely control the analog signal controller. Specifically, the background system may send a control signal to the analog signal controller, and the analog signal controller may trigger the analog signal generator based on the received control signal, so that the analog signal generator may transmit the analog partial discharge signal at the first partial discharge sensor. The online monitoring device has the advantages that the analog signal generator can be remotely controlled through the background system, so that the online monitoring device can be checked, and the analog signal generator does not need to be manually triggered.
S120, when the analog signal generator emits the analog partial discharge signal, the analog partial discharge signal is collected based on the second partial discharge sensor, and when second data corresponding to the analog partial discharge signal is received, a second partial discharge map is determined.
The second partial discharge sensor may be understood as a sensor for collecting an analog partial discharge signal, the second data may be signal data obtained by collecting and converting the analog partial discharge signal at the first partial discharge sensor by the second partial discharge sensor, the second partial discharge sensor and the first partial discharge sensor are arranged at different positions, and the second partial discharge map may be understood as a map for representing partial discharge.
Specifically, when the first partial discharge sensor emits the analog partial discharge signal, the analog partial discharge signal may be acquired by the second partial discharge sensor, and after the analog partial discharge signal is acquired, the analog partial discharge signal is processed, for example, filtered and amplified, to obtain second data corresponding to the analog partial discharge signal, and the second data is sent to the background system, so that the background system may analyze and calculate the data, and further generate a second partial discharge map.
On the basis of the technical scheme, the analog signal generator is arranged at a position adjacent to the first partial discharge sensor and far away from the second partial discharge sensor.
In particular, the analog signal generator may be arranged at a close distance from the first partial sensor, for example, around the first partial sensor. And the position of the analog signal generator is far away from the second partial discharge sensor, so that the channel validity check can be carried out on the first partial discharge sensor, and the coverage range check can be carried out on the second partial discharge sensor.
In practical application, an analog signal generating device, namely a plurality of analog signal generating devices, can be arranged around each partial discharge sensor or on the corresponding insulating basin in the sulfur hexafluoride closed type combined electrical appliance in advance, so that when an analog partial discharge signal needs to be transmitted at a certain partial discharge sensor, the analog signal generating device around the partial discharge sensor or on the corresponding insulating basin can be controlled to transmit the partial discharge signal. The advantage of such setting lies in, set up corresponding analog signal generating device in each partial discharge sensor department in advance, can direct remote control corresponding analog signal generating device, can launch partial discharge signal.
S130, determining a target verification report based on the first partial discharge map and the second partial discharge map.
The target verification report may be understood as a verification report of the online monitoring device, and the target verification report may be a document file, and the target verification report includes verification specific information of the online monitoring device.
Specifically, a first partial discharge map and a second partial discharge map can be displayed on a display interface of the background system, and the first partial discharge map and the second partial discharge map are subjected to screenshot, so that a target verification report is generated.
On the basis of the technical scheme, the first partial discharge map and the second partial discharge map comprise amplitude information and phase information of the analog partial discharge signal. The partial discharge map contains the amplitude and the phase of a partial discharge pulse signal, and whether the partial discharge condition of the current closed combined electrical is serious or not is judged usually based on the amplitude, the phase and the like, and the closed combined electrical is enough to be maintained, so that accidents caused by equipment failure are avoided.
On the basis of the above technical solution, the determining a target verification report based on the first partial discharge map and the second partial discharge map includes: deriving the first partial discharge map and the second partial discharge map to generate the target verification report.
Specifically, the first partial discharge map and the second partial discharge map may be exported to a standardized file by an export method, or whether the first partial discharge map and the second partial discharge map are qualified or not may be judged according to a judgment standard of the partial discharge maps, so as to generate a verification report.
According to the technical scheme, when first data acquired when an analog partial discharge signal is transmitted at a first partial discharge sensor based on an analog signal generator is received, a first partial discharge map is obtained; when the analog signal generator emits an analog partial discharge signal, acquiring the analog partial discharge signal based on a second partial discharge sensor, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received; and determining a target verification report based on the first partial discharge map and the second partial discharge map. According to the technical scheme, the first partial discharge sensor emits the simulation partial discharge signal, the first partial discharge map and the second partial discharge map are respectively obtained based on the simulation partial discharge signal detected by the first partial discharge sensor and the second partial discharge sensor, and the verification report is determined, so that the problem that the online monitoring device is low in verification efficiency manually in the prior art is solved, the online monitoring device is automatically verified, and the verification efficiency of the online monitoring device is improved.
Example two
Fig. 2 is a flowchart of a verification method applied to an online monitoring device according to a second embodiment of the present invention, in which a detailed description is provided for channel validity verification of a first partial discharge sensor and coverage verification of a second partial discharge sensor in this embodiment, and a specific implementation manner of the verification method may refer to a technical solution in this embodiment. The technical terms that are the same as or corresponding to the above embodiments are not repeated herein.
As shown in fig. 2, the method includes:
s210, when first data collected when the analog partial discharge signal is emitted at the first partial discharge sensor based on the analog signal generator is received, a first partial discharge map is obtained.
S220, when the analog signal generator emits the analog partial discharge signal, the analog partial discharge signal is collected based on the second partial discharge sensor, and when second data corresponding to the analog partial discharge signal is received, a second partial discharge map is determined.
And S230, determining a channel validity check result of the first local sensor based on the first local map.
The channel validity check can be understood as checking the acquisition of the first partial discharge sensor and the transmission channel, determining whether the first partial discharge sensor can acquire the analog partial discharge signal, and sending the analog partial discharge signal to the background system after processing.
On the basis of the above technical solution, the determining a result of checking validity of a channel of the first localized sensor based on the first localized map includes: detecting the analog partial discharge signal based on the first partial discharge sensor, and if first data corresponding to the analog partial discharge signal is received and a first partial discharge map is generated based on the first data, determining that validity check of a first partial discharge sensor channel is successful.
Specifically, if the first partial discharge sensor can normally detect an analog partial discharge signal, and process and convert the analog partial discharge signal into a first data transmission background system, and the background system can normally receive the signal, generate a first partial discharge map based on the signal, which indicates that the channel verification of the first partial discharge sensor is successful. It can be understood that, if the first local discharge sensor can normally detect the analog local discharge signal, the corresponding background system may also receive and process the signal sent by the first local discharge sensor, which indicates that a detection channel of the first local discharge sensor to the analog local discharge signal is normal, that is, the first local discharge sensor in the online monitoring device may have a capability of detecting the local discharge. The method has the advantages that the validity of the channel is checked for the first partial sensor, so that the first partial sensor can normally detect, and the situation that the detection is wrong or cannot be detected is avoided.
S240, determining a coverage verification result of the second partial discharge sensor based on the second partial discharge map.
It should be noted that a plurality of partial discharge sensors are arranged in the closed combined electrical system, and the closed combined electrical system includes a plurality of electrical devices, and the partial discharge sensor at the current position can detect the electrical device at the current position generally, but after the sensor at the current position goes wrong, the partial discharge phenomenon occurs in the electrical device at the current position, and the partial discharge phenomenon cannot be detected, which may cause device damage and damage to the power grid, resulting in power failure. Therefore, the partial discharge sensor at the current position is required to normally detect the analog partial discharge signals at other positions, that is, when the partial discharge sensor at other positions is damaged, the analog partial discharge signals at other positions can still be detected by the partial discharge sensor at the current position.
The coverage verification may be understood as verifying a coverage of the partial discharge sensor, that is, whether the partial discharge sensor at the current position can detect analog partial discharge signals at other positions.
On the basis of the above technical solution, the determining a coverage verification result of the second partial discharge sensor based on the second partial discharge map includes: and detecting the analog partial discharge signal based on the second partial discharge sensor, and if second data corresponding to the analog partial discharge signal is received and a second partial discharge map is generated based on the second data, determining that the coverage verification of the second partial discharge sensor is successful.
Specifically, the analog partial discharge signal at the first partial discharge sensor can be detected by the second partial discharge sensor, and if the analog partial discharge signal can be detected, the second data is obtained by processing the analog partial discharge signal, and the second data is sent to the background system, so that the background system can generate a second partial discharge map based on the second data, which indicates that the coverage verification of the second partial discharge sensor is successful, that is, the second partial discharge sensor can normally detect the analog partial discharge signal at the first partial discharge sensor.
And S250, determining a target verification report based on the channel validity verification result and the coverage verification result.
Specifically, after determining that the channel validity check of the first partial discharge sensor is successful and the coverage verification of the second partial discharge sensor is successful, the corresponding first partial discharge map, the second partial discharge map, the channel validity check result, and the range check result may be stored in a document, and the document may be used as a target check report.
In this embodiment, after checking the channel validity of the first partial discharge sensor and checking the coverage of the second partial discharge sensor, the analog partial discharge signal may be transmitted at the position of the second partial discharge sensor, and the analog partial discharge signal is not transmitted at the position of the first partial discharge sensor.
In practical application, the technical scheme can not only carry out coverage verification between two partial discharge sensors, but also carry out coverage verification between three or more partial discharge sensors. It is understood that, the partial discharge sensors included in the enclosed combined electrical interior are usually multiple, and the method described above can be adopted for checking the channel validity of each partial discharge sensor. For the coverage verification of the partial discharge sensor, because the analog partial discharge signal is attenuated along with the distance, when the coverage verification is performed on the current partial discharge sensor, analog partial discharge signals can be transmitted at other partial discharge sensors within a certain range from the current partial discharge sensor, and if the current partial discharge sensor can detect the analog partial discharge signal, the coverage verification of the current partial discharge sensor can be considered to be successful.
For example, the distance range may be set to be 5m or 8m, the current partial discharge sensor is an a partial discharge sensor, in the closed combined circuit, the other partial discharge sensors at a position less than 5m or 8m from the a partial discharge sensor are a B partial discharge sensor, a C partial discharge sensor, and a D partial discharge sensor, at this time, analog partial discharge signals may be transmitted at positions of the B partial discharge sensor, the C partial discharge sensor, and the D partial discharge sensor, and if the a partial discharge sensor can detect the analog partial discharge signals at three positions, it may be considered that the coverage verification of the a partial discharge sensor is successful. According to the technical scheme of the embodiment of the invention, when first data acquired when an analog partial discharge signal is emitted at a first partial discharge sensor based on an analog signal generator is received, a first partial discharge map is obtained; when the analog signal generator emits an analog partial discharge signal, acquiring the analog partial discharge signal based on a second partial discharge sensor, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received; and determining a target verification report based on the first partial discharge map and the second partial discharge map.
According to the technical scheme, the first partial discharge sensor emits the simulation partial discharge signal, the first partial discharge map and the second partial discharge map are respectively obtained based on the simulation partial discharge signal detected by the first partial discharge sensor and the second partial discharge sensor, and the verification report is determined, so that the problem that the online monitoring device is low in verification efficiency manually in the prior art is solved, the online monitoring device is automatically verified, and the verification efficiency of the online monitoring device is improved.
EXAMPLE III
Fig. 3 is a schematic structural diagram of a calibration apparatus applied to an online monitoring apparatus according to a third embodiment of the present invention. The on-line monitoring device includes a first partial discharge sensor and a second partial discharge sensor, as shown in fig. 3, the verifying device includes:
the first partial discharge map determining module is used for obtaining a first partial discharge map when receiving first data acquired when an analog signal generator transmits an analog partial discharge signal at a first partial discharge sensor;
the second partial discharge map determining module is used for acquiring the analog partial discharge signal based on the second partial discharge sensor when the analog signal generator transmits the analog partial discharge signal, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received;
and the target verification report determining module is used for determining a target verification report based on the first partial discharge map and the second partial discharge map.
On the basis of the above device, the first local map determination module includes:
and the analog signal control module is used for sending a control signal to the analog signal controller so that the analog signal controller controls the analog signal generator to emit an analog partial discharge signal at the first partial discharge sensor based on the control signal.
On the basis of the above device, the target verification report determination module includes:
a channel validity checking module for determining a channel validity checking result of the first localized sensor based on the first localized map;
the coverage verification module is used for determining a coverage verification result of the second partial discharge sensor based on the second partial discharge map;
and the target checking module is used for determining a target checking report based on the channel validity checking result and the coverage checking result.
On the basis of the device, the channel validity checking module comprises:
a channel validity checking unit, configured to detect the analog partial discharge signal based on the first partial discharge sensor, and determine that validity checking of a channel of the first partial discharge sensor is successful if first data corresponding to the analog partial discharge signal is received and a first partial discharge map is generated based on the first data.
On the basis of the above device, the coverage verification module includes:
and the coverage verification unit is used for detecting the analog partial discharge signal based on the second partial discharge sensor, and if second data corresponding to the analog partial discharge signal is received and a second partial discharge map is generated based on the second data, it is determined that the coverage verification of the second partial discharge sensor is successful.
On the basis of the device, the first partial discharge map and the second partial discharge map comprise amplitude information and phase information of the analog partial discharge signal.
On the basis of the above device, the target verification report determination module further includes:
a derivation module, configured to derive the first partial discharge map and the second partial discharge map to generate the target verification report.
On the basis of the device, the analog signal generator is arranged at a position adjacent to the first partial discharge sensor and far away from the second partial discharge sensor.
According to the technical scheme of the embodiment of the invention, when first data acquired when an analog partial discharge signal is emitted at a first partial discharge sensor based on an analog signal generator is received, a first partial discharge map is obtained; when the analog signal generator emits an analog partial discharge signal, acquiring the analog partial discharge signal based on a second partial discharge sensor, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received; and determining a target verification report based on the first partial discharge map and the second partial discharge map. According to the technical scheme, the first partial discharge sensor emits the simulation partial discharge signal, the first partial discharge map and the second partial discharge map are respectively obtained based on the simulation partial discharge signal detected by the first partial discharge sensor and the second partial discharge sensor, and the verification report is determined, so that the problem that the online monitoring device is low in verification efficiency manually in the prior art is solved, the online monitoring device is automatically verified, and the verification efficiency of the online monitoring device is improved.
The verification device applied to the online monitoring device provided by the embodiment of the invention can execute the verification method applied to the online monitoring device provided by any embodiment of the invention, and has corresponding functional modules and beneficial effects of the execution method.
Example four
FIG. 4 shows a schematic block diagram of an electronic device 40 that may be used to implement an embodiment of the invention. Electronic devices are intended to represent various forms of digital computers, such as laptops, desktops, workstations, personal digital assistants, servers, blade servers, mainframes, and other appropriate computers. The electronic device may also represent various forms of mobile devices, such as personal digital assistants, cellular phones, smart phones, wearable devices (e.g., helmets, glasses, watches, etc.), and other similar computing devices. The components shown herein, their connections and relationships, and their functions, are meant to be exemplary only, and are not meant to limit implementations of the inventions described and/or claimed herein.
As shown in fig. 4, the electronic device 40 includes at least one processor 41, and a memory communicatively connected to the at least one processor 41, such as a Read Only Memory (ROM)42, a Random Access Memory (RAM)43, and the like, wherein the memory stores a computer program executable by the at least one processor, and the processor 41 may perform various suitable actions and processes according to the computer program stored in the Read Only Memory (ROM)42 or the computer program loaded from the storage unit 48 into the Random Access Memory (RAM) 43. In the RAM 43, various programs and data necessary for the operation of the electronic apparatus 40 can also be stored. The processor 41, the ROM 42, and the RAM 43 are connected to each other via a bus 44. An input/output (I/O) interface 45 is also connected to bus 44.
A plurality of components in the electronic device 40 are connected to the I/O interface 45, including: an input unit 46 such as a keyboard, a mouse, etc.; an output unit 47 such as various types of displays, speakers, and the like; a storage unit 48 such as a magnetic disk, an optical disk, or the like; and a communication unit 49 such as a network card, modem, wireless communication transceiver, etc. The communication unit 49 allows the electronic device 40 to exchange information/data with other devices via a computer network such as the internet and/or various telecommunication networks.
In some embodiments, the verification method applied to the online monitoring device may be implemented as a computer program tangibly embodied in a computer-readable storage medium, such as storage unit 48. In some embodiments, part or all of the computer program may be loaded and/or installed onto the electronic device 40 via the ROM 42 and/or the communication unit 49. When the computer program is loaded into the RAM 43 and executed by the processor 41, one or more steps of the verification method as described above as applied to an online monitoring device may be performed. Alternatively, in other embodiments, the processor 41 may be configured by any other suitable means (e.g., by means of firmware) to perform the verification method applied to the online monitoring device.
Various implementations of the systems and techniques described here above may be implemented in digital electronic circuitry, integrated circuitry, Field Programmable Gate Arrays (FPGAs), Application Specific Integrated Circuits (ASICs), Application Specific Standard Products (ASSPs), system on a chip (SOCs), load programmable logic devices (CPLDs), computer hardware, firmware, software, and/or combinations thereof. These various embodiments may include: implemented in one or more computer programs that are executable and/or interpretable on a programmable system including at least one programmable processor, which may be special or general purpose, receiving data and instructions from, and transmitting data and instructions to, a storage system, at least one input device, and at least one output device.
A computer program for implementing the methods of the present invention may be written in any combination of one or more programming languages. These computer programs may be provided to a processor of a general purpose computer, special purpose computer, or other programmable data processing apparatus, such that the computer programs, when executed by the processor, cause the functions/acts specified in the flowchart and/or block diagram block or blocks to be performed. A computer program can execute entirely on a machine, partly on the machine, as a stand-alone software package, partly on the machine and partly on a remote machine or entirely on the remote machine or server.
In the context of the present invention, a computer-readable storage medium may be a tangible medium that can contain, or store a computer program for use by or in connection with an instruction execution system, apparatus, or device. A computer readable storage medium may include, but is not limited to, an electronic, magnetic, optical, electromagnetic, infrared, or semiconductor system, apparatus, or device, or any suitable combination of the foregoing. Alternatively, the computer readable storage medium may be a machine readable signal medium. More specific examples of a machine-readable storage medium would include an electrical connection based on one or more wires, a portable computer diskette, a hard disk, a Random Access Memory (RAM), a read-only memory (ROM), an erasable programmable read-only memory (EPROM or flash memory), an optical fiber, a portable compact disc read-only memory (CD-ROM), an optical storage device, a magnetic storage device, or any suitable combination of the foregoing.
To provide for interaction with a user, the systems and techniques described here can be implemented on an electronic device having: a display device (e.g., a CRT (cathode ray tube) or LCD (liquid crystal display) monitor) for displaying information to a user; and a keyboard and a pointing device (e.g., a mouse or a trackball) by which a user can provide input to the electronic device. Other kinds of devices may also be used to provide for interaction with a user; for example, feedback provided to the user can be any form of sensory feedback (e.g., visual feedback, auditory feedback, or tactile feedback); and input from the user may be received in any form, including acoustic, speech, or tactile input.
The systems and techniques described here can be implemented in a computing system that includes a back-end component (e.g., as a data server), or that includes a middleware component (e.g., an application server), or that includes a front-end component (e.g., a user computer having a graphical user interface or a web browser through which a user can interact with an implementation of the systems and techniques described here), or any combination of such back-end, middleware, or front-end components. The components of the system can be interconnected by any form or medium of digital data communication (e.g., a communication network). Examples of communication networks include: local Area Networks (LANs), Wide Area Networks (WANs), blockchain networks, and the internet.
The computing system may include clients and servers. A client and server are generally remote from each other and typically interact through a communication network. The relationship of client and server arises by virtue of computer programs running on the respective computers and having a client-server relationship to each other. The server can be a cloud server, also called a cloud computing server or a cloud host, and is a host product in a cloud computing service system, so that the defects of high management difficulty and weak service expansibility in the traditional physical host and VPS service are overcome.
It should be understood that various forms of the flows shown above may be used, with steps reordered, added, or deleted. For example, the steps described in the present invention may be executed in parallel, sequentially, or in different orders, and are not limited herein as long as the desired results of the technical solution of the present invention can be achieved.
The above-described embodiments should not be construed as limiting the scope of the invention. It should be understood by those skilled in the art that various modifications, combinations, sub-combinations and substitutions may be made in accordance with design requirements and other factors. Any modification, equivalent replacement, and improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. A calibration method applied to an online monitoring device, wherein the online monitoring device comprises a first partial discharge sensor and a second partial discharge sensor, and the method comprises the following steps:
when first data collected when an analog partial discharge signal is transmitted at a first partial discharge sensor based on an analog signal generator is received, a first partial discharge map is obtained;
when the analog partial discharge signal is transmitted based on the analog signal generator, the analog partial discharge signal is collected based on the second partial discharge sensor, and a second partial discharge map is determined when second data corresponding to the analog partial discharge signal is received;
and determining a target verification report based on the first partial discharge map and the second partial discharge map.
2. The method of claim 1, wherein obtaining the first partial discharge map upon receiving first data acquired based on the analog signal generator transmitting the analog partial discharge signal at the first partial discharge sensor comprises:
sending a control signal to an analog signal controller to cause the analog signal controller to control the analog signal generator to emit an analog partial discharge signal at the first partial discharge sensor based on the control signal.
3. The method of claim 1, wherein determining a target verification report based on the first partial discharge map and the second partial discharge map comprises:
determining a channel validity check result of the first partial sensor based on the first partial map;
determining a coverage verification result of the second partial discharge sensor based on the second partial discharge map;
and determining a target verification report based on the channel validity verification result and the coverage verification result.
4. The method of claim 3, wherein the determining a channel validity check result for the first localized sensor based on the first localized map comprises:
detecting the analog partial discharge signal based on the first partial discharge sensor, and if first data corresponding to the analog partial discharge signal is received and a first partial discharge map is generated based on the first data, determining that validity check of a first partial discharge sensor channel is successful.
5. The method of claim 3, wherein determining a coverage verification result for the second partial discharge sensor based on the second partial discharge map comprises:
and detecting the analog partial discharge signal based on the second partial discharge sensor, and if second data corresponding to the analog partial discharge signal is received and a second partial discharge map is generated based on the second data, determining that the coverage verification of the second partial discharge sensor is successful.
6. The method of claim 1, comprising:
the first partial discharge map and the second partial discharge map comprise amplitude information and phase information of the analog partial discharge signal.
7. The method of claim 1, wherein determining a target verification report based on the first partial discharge map and the second partial discharge map comprises:
deriving the first partial discharge map and the second partial discharge map to generate the target verification report.
8. The method of claim 1, comprising:
the analog signal generator is arranged at a position adjacent to the first partial discharge sensor and far away from the second partial discharge sensor.
9. A calibration device applied to an online monitoring device, wherein the online monitoring device comprises a first partial discharge sensor and a second partial discharge sensor, and the calibration device comprises:
the first partial discharge map determining module is used for obtaining a first partial discharge map when receiving first data acquired when an analog signal generator transmits an analog partial discharge signal at a first partial discharge sensor;
the second partial discharge map determining module is used for acquiring the analog partial discharge signal based on the second partial discharge sensor when the analog signal generator transmits the analog partial discharge signal, and determining a second partial discharge map when second data corresponding to the analog partial discharge signal is received;
and the target verification report determining module is used for determining a target verification report based on the first partial discharge map and the second partial discharge map.
10. An electronic device, characterized in that the electronic device comprises:
at least one processor;
and a memory communicatively coupled to the at least one processor;
wherein the memory stores a computer program executable by the at least one processor, the computer program being executable by the at least one processor to enable the at least one processor to perform the verification method as claimed in any one of claims 1 to 8 as applied to an online monitoring device.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210877781.7A CN115015821A (en) | 2022-07-25 | 2022-07-25 | Verification method, device and equipment applied to online monitoring device |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210877781.7A CN115015821A (en) | 2022-07-25 | 2022-07-25 | Verification method, device and equipment applied to online monitoring device |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN115015821A true CN115015821A (en) | 2022-09-06 |
Family
ID=83081286
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202210877781.7A Pending CN115015821A (en) | 2022-07-25 | 2022-07-25 | Verification method, device and equipment applied to online monitoring device |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN115015821A (en) |
-
2022
- 2022-07-25 CN CN202210877781.7A patent/CN115015821A/en active Pending
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN110763958A (en) | Direct current arc detection method, device, equipment, system and storage medium | |
| CN117169651A (en) | Cable fault determining method and device, electronic equipment and storage medium | |
| CN115015821A (en) | Verification method, device and equipment applied to online monitoring device | |
| CN116465367A (en) | Equipment checking method, device, equipment and medium | |
| CN115267431A (en) | Loop network fault detection method and device, electronic equipment and storage medium | |
| CN114399660A (en) | Fault type determination method and device, electronic equipment and storage medium | |
| CN115802191A (en) | Equipment port testing method and device, electronic equipment and storage medium | |
| CN116990744B (en) | Electric energy meter detection method, device, equipment and medium | |
| CN117408674A (en) | Method, device, system and storage medium for checking power grid protection device | |
| CN117538643A (en) | Elevator component detection method, device, electronic equipment and storage medium | |
| CN115097243A (en) | Grounding grid detection method and device, electronic equipment and storage medium | |
| CN115237932A (en) | Data updating method, device, equipment and medium applied to transformer substation | |
| CN117092451A (en) | Fault power grid node positioning method, device, equipment and storage medium | |
| CN117761456A (en) | Power distribution network fault diagnosis method, device, equipment and storage medium | |
| CN114910156A (en) | Disturbance monitoring method, device and equipment for underground pipeline and storage medium | |
| CN118070098A (en) | Interference signal detection method, model training method, device, equipment and medium | |
| CN116643105A (en) | Equipment fault detection method and device, electronic equipment and storage medium | |
| CN105203867A (en) | Simulation test method and device for quality detection of online monitoring apparatus | |
| CN117579147A (en) | Fault positioning method and device, electronic equipment and storage medium | |
| CN118133181A (en) | Abnormality processing method, device, equipment and medium for power grid equipment | |
| CN117216699A (en) | Abnormality detection method, device, equipment and medium based on sample data | |
| CN115270980A (en) | Training method of residual life prediction model of connector and residual life prediction method | |
| CN117471217A (en) | Card testing method, device, equipment and storage medium | |
| CN117687853A (en) | Firmware detection method, device, equipment and medium | |
| CN117647700A (en) | Cable outer sheath fault identification method, device, equipment and medium |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
