Abstract
The invention discloses a BIPV roof power generation tile component, which comprises a power generation panel, an upper connecting piece, a left connecting piece, a right connecting piece and a lower connecting piece, wherein the upper connecting piece, the left connecting piece, the right connecting piece and the lower connecting piece are fixed on the periphery of the power generation panel, the four connecting pieces are fixedly connected by an L-shaped corner code, the upper connecting piece is clamped with the lower connecting piece, the left connecting piece is clamped with the right connecting piece, water vapor sealing is realized at the clamping and overlapping positions, a heat dissipation space is formed between the side walls of fixing holes of the four connecting pieces, heat dissipation is realized for the power generation panel, the power generation efficiency is improved, a water guide groove is arranged at the connecting position of the left connecting piece and the right connecting piece, and a semi-surrounding type flow guide frame is arranged at the bottom of the lower connecting piece, so that the water guide effect is realized, and the waterproof effect is further realized. The invention can directly assemble the power generation panel on the building through the four connecting pieces, namely the upper connecting piece, the lower connecting piece, the left connecting piece and the right connecting piece, thereby not only solving the waterproof problem of the installation of the power generation panel on the roof, but also solving the problems of overhigh fragment rate and overhigh installation cost of the power generation panel in the construction process.
Description
Technical Field
The invention relates to the field of solar power generation, in particular to a BIPV roof power generation tile component.
Background
BIPV (building Integrated photovoltaic) is a solar photovoltaic power generation system which is designed, constructed and installed simultaneously with a building and forms perfect combination with the building, and is also called as a construction type or a building material type solar photovoltaic building. The energy-saving building has the functions of generating electricity, building components and building materials as a part of the external structure of the building, and can even improve the aesthetic feeling of the building and form a perfect unity with the building.
The BIPV roofing tile product on the current market is mostly on the basis of the normal roof, and is additionally provided with a layer of power generation tile product, and the waterproof and heat preservation functions of the roof are all completed by the basic functions of the original roof, so that the repeated cost waste is caused. And because the power generation tile is additionally arranged on the original basis, the installation and cooling space is limited, the power generation performance of the power generation tile is greatly influenced due to overhigh temperature, the power generation cost is increased, and the popularization of the power generation tile product is influenced.
Disclosure of Invention
In order to solve the problems in the prior art, the invention provides a BIPV roof power generation tile component, which can directly assemble a power generation panel on a building through four connecting pieces, namely an upper connecting piece, a lower connecting piece, a left connecting piece and a right connecting piece, so that the waterproof problem of a roof is solved at one time, and the problems of overhigh fragment rate and overhigh installation cost of the power generation panel in the construction process are solved.
The invention adopts the following technical scheme: the utility model provides a BIPV roofing electricity generation tile component, includes connecting piece, left connecting piece, right connecting piece, lower connecting piece and electricity generation panel, last connecting piece, left connecting piece, down by L shape angle sign indicating number fixed connection between connecting piece and the right connecting piece, form the quadrilateral frame who bears the electricity generation panel, specifically do: the upper connecting piece is fixedly connected with the adjacent left connecting piece through an L-shaped angle code, the left connecting piece is fixedly connected with the adjacent lower connecting piece through an L-shaped angle code, the lower connecting piece is fixedly connected with the adjacent right connecting piece through an L-shaped angle code, and the right connecting piece is fixedly connected with the adjacent upper connecting piece through an L-shaped angle code;
the left connecting piece is provided with a left fixing hole, a left clamping head, a left clamping groove and a left bearing platform, the right connecting piece is provided with a right fixing hole, a right clamping head, a right clamping groove and a right bearing platform, the left end and the right end of the power generation panel are born on the left bearing platform and the right bearing platform and clamped in the left clamping groove and the right clamping groove, the left clamping head is clamped with the right clamping head, an independent sealing space is formed at the overlapped part of the left connecting piece and the right connecting piece, and sealing rubber strips are filled in the sealing space to realize water vapor sealing;
the upper connecting piece is provided with an upper fixing hole, an upper clamping groove and an upper bearing platform, the lower connecting piece is provided with a lower fixing hole, a lower clamping head and a lower bearing platform, the upper end and the lower end of the power generation panel are respectively borne on the upper bearing platform and the lower bearing platform, the upper end of the power generation panel is clamped in the upper clamping groove, the lower end of the power generation panel is abutted against the side wall of the lower clamping head, the lower clamping head is clamped on the upper wall of the upper clamping groove, an independent sealing space is formed at the overlapped part of the upper connecting piece and the lower connecting piece, and sealing rubber strips are filled in the sealing space to realize water vapor sealing;
the upper fixing hole, the left fixing hole, the lower fixing hole and the right fixing hole are all located below the connecting piece, and a heat dissipation space is formed among the side walls of the upper fixing hole, the left fixing hole, the lower fixing hole and the right fixing hole.
According to the BIPV roof power generation tile component, the upper connecting piece and the left connecting piece, the left connecting piece and the lower connecting piece, the lower connecting piece and the right connecting piece, and the right connecting piece and the upper connecting piece are fixed by adopting the L-shaped corner connectors, so that the structure is firm; the upper connecting piece and the lower connecting piece as well as the left connecting piece and the right connecting piece are clamped, so that the assembly is simple, convenient and efficient; sealing rubber strips are filled at the overlapping part of the upper connecting piece and the lower connecting piece and the overlapping part of the left connecting piece and the right connecting piece, so that the water-gas sealing is realized, and the waterproof problem of the installation of the power generation panel on a roof is solved; and a heat dissipation space is formed among the side walls of the upper fixing hole, the lower fixing hole, the left fixing hole and the right fixing hole, so that the heat dissipation of the power generation panel is facilitated, and the power generation efficiency is improved.
Preferably, the left dop have the left buckle of kickdown, the right dop has the right buckle of kickdown, left buckle and right buckle collude each other fixedly, the joint department packing joint strip of left buckle and right buckle form the steam sealing area, form vertical guiding gutter between the outer wall of left buckle and right draw-in groove, be convenient for the rainwater to flow down.
Preferably, the bottom of the upper connecting piece is provided with a mounting seat, the mounting seat and the upper connecting piece are integrally formed, the included angle between the mounting seat and the power generation panel is an acute angle, the acute angle is preferably 30 degrees, the bottom angle of the upper connecting piece and the roof purline can form embedded installation, and the installation is more convenient.
Preferably, the bottom of lower connecting piece has half enclosed water conservancy diversion frame, can make the granule such as earth of rainwater smoothly flow out the electricity generation panel when atmospheric environment is rainy, promotes the actual generating efficiency of electricity generation panel.
Preferably, the sealing rubber strips are filled in an expansion plug mode, so that sealing is tighter, and indoor and outdoor water vapor interaction is avoided.
Preferably, the upper bearing table, the left bearing table, the lower bearing table and the right bearing table are also milled with accommodating grooves for accommodating the wiring boards.
Preferably, the metal protection frame is arranged on the periphery of the power generation panel, so that the defect of a fragile corner of the glass-based power generation panel can be overcome in the installation process.
Preferably, the left connecting piece and the right connecting piece are designed to be supported by low-strength frames, so that the positive and negative leads of the power generation panel can be connected conveniently, and the cost can be saved under the condition of ensuring the stress strength.
Preferably, the special purlin is integrally in an 'ya' shape, a clamping groove used for being connected with the upper connecting piece is formed in the upper surface of the special purlin, an included angle between the side wall and the bottom wall of the clamping groove is 30 degrees, the mounting efficiency is greatly improved under the condition that the stress strength is guaranteed, and the investment cost is saved.
Drawings
FIG. 1 is a schematic view of a BIPV roofing power tile assembly unit of the present invention.
Fig. 2 is a schematic view of the connection mode of the left connecting piece and the right connecting piece.

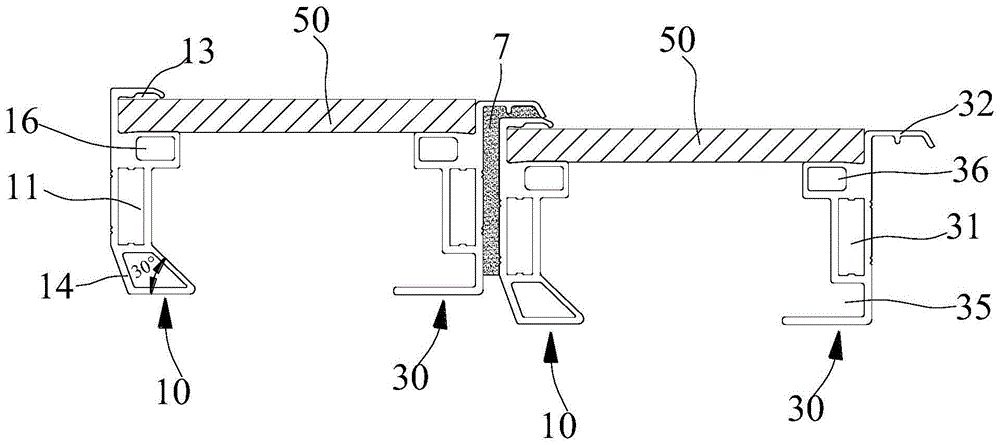

Fig. 3 is a schematic view of the connection manner of the upper and lower connection members.
Fig. 4 is a perspective view of the upper connector.
Fig. 5 is a structural cross-sectional view of a tailored purlin.
Detailed Description
The following detailed description of embodiments of the invention refers to the accompanying drawings. It should be understood that the detailed description and specific examples, while indicating the present invention, are given by way of illustration and explanation only, not limitation.
A BIPV roof power generation tile component is shown in figures 1-5 and comprises an upper connecting piece 10, a left connecting piece 20, a lower connecting piece 30, a right connecting piece 40 and a power generation panel 50, wherein metal protection frames are arranged around the power generation panel 50, and the defect of fragile corners of a glass-based power generation panel can be overcome in the installation process. The upper connecting piece 10, the left connecting piece 20, the lower connecting piece 30 and the right connecting piece 40 jointly form a quadrangular frame for mounting the power generation panel 50;
the left connecting piece 20 and the right connecting piece 40 adopt a low-strength frame support design, so that the positive and negative electrode wires of the power generation panel can be connected conveniently, and the cost can be saved under the condition of ensuring the stress strength. The left connecting piece 20 is provided with a left fixing hole 21, a left clamping head 22, a left clamping groove 23 and a left bearing platform 26, the right connecting piece 40 is provided with a right fixing hole 41, a right clamping head 42, a right clamping groove 43 and a right bearing platform, the left end and the right end of the power generation panel 50 are respectively born on the left bearing platform 26 and the right bearing platform 46 and clamped in the left clamping groove 23 and the right clamping groove 43, the left clamping head 22 is provided with a left clamping head 221 bent downwards, the right clamping head 42 is provided with a right clamping head 421 bent upwards, the left clamping head 221 and the right clamping head 421 are mutually hooked and fixed and sealed by a sealing rubber strip, so that the left connecting piece 20 and the right connecting piece 40 are clamped and fixed, a longitudinal water guide groove 8 is formed between the outer walls of the left clamping head 221 and the adjacent right clamping groove 43, rainwater can flow down conveniently, the hooked part of the left clamping head 221 and the right clamping head 421 and the overlapped part of the left fixing hole 21 and the right fixing hole 41 are provided with independent sealing spaces, the sealing rubber strip 7 is filled in the sealing spaces, forming a moisture seal.
The upper connecting piece 10 is provided with an upper fixing hole 11, an upper clamping groove 13 and an upper bearing platform 16, the lower connecting piece 30 is provided with a lower fixing hole 31, a lower clamping head 32 and a lower bearing platform 36, the upper end and the lower end of the power generation panel 50 are respectively born on the upper bearing platform 16 and the lower bearing platform 36, the upper end of the power generation panel 50 is clamped in the upper clamping groove 13, the lower end of the power generation panel 50 is propped against the side wall of the lower clamping head 32, the lower clamping head 32 is clamped on the upper wall of the upper clamping groove 13, independent sealing spaces are formed between the outer walls of the lower clamping head 32 and the upper clamping groove 13 and at the overlapped positions of the upper fixing hole 11 and the lower fixing hole 31, sealing rubber strips 7 are filled in the sealing spaces, and water vapor sealing is realized. The upper bearing table 16, the left bearing table 26, the lower bearing table 36 and the right bearing table 46 are used for bearing the weight of the power generation panel 50 and workers during installation. The upper bearing table 16 is also milled with a receiving slot 161 for receiving a patch panel, and the upper surfaces of the left bearing table 26, the lower bearing table 36 and the right bearing table 46 are also milled with a receiving slot for receiving a patch panel. The bottom of the upper connecting piece 10 is also provided with a mounting seat 14, the mounting seat 14 and the upper connecting piece 10 are integrally formed, the included angle between the mounting seat 14 and the power generation panel 50 is 30 degrees, and the bottom of the upper connecting piece 10 and a roof purline can be installed in an embedded mode by matching with a special purline 100, so that the installation is more convenient. The bottom of lower connecting piece 30 has half enclosed water conservancy diversion frame 35, can make granule such as earth of rainwater flow out smoothly when atmospheric environment is rainy, promotes the actual generating efficiency of electricity generation panel.
The upper fixing hole 11, the left fixing hole 21, the lower fixing hole 31 and the right fixing hole 41 are all located below the power generation panel 50, one end of the L-shaped corner code 6 penetrates through the upper fixing hole 11, the other end of the L-shaped corner code penetrates through the left fixing hole 21, and the upper connecting piece 10 and the left connecting piece 20 are fixed; one end of the L-shaped corner connector 6 penetrates into the left fixing hole 21, and the other end of the L-shaped corner connector penetrates into the lower fixing hole 31, so that the left connecting piece 20 and the lower connecting piece 30 are fixed; one end of the L-shaped corner connector 6 penetrates through the lower fixing hole 31, and the other end of the L-shaped corner connector penetrates through the right fixing hole 41, so that the lower connecting piece 10 and the right connecting piece 40 are fixed; one end of the L-shaped corner connector 6 penetrates into the right fixing hole 41, the other end of the L-shaped corner connector penetrates into the upper fixing hole 11, and the right connecting piece 40 and the upper connecting piece 10 are fixed, so that the upper connecting piece 10, the left connecting piece 20, the lower connecting piece 30 and the right connecting piece 40 are surrounded to form a quadrilateral waterproof frame for installing the power generation panel 50. And a heat dissipation space is formed among the side walls of the upper fixing hole 11, the left fixing hole 21, the lower fixing hole 31 and the right fixing hole 41, so that the heat dissipation of the power generation panel 50 is facilitated, and the power generation efficiency is improved.
The special purlin 100 is integrally in an 'ya' shape, the clamping groove 101 used for being connected with the upper connecting piece 10 is formed in the upper surface of the special purlin 100, an included angle between the side wall and the bottom wall of the clamping groove 101 is 30 degrees, the special purlin 100 and the upper connecting piece 10 are clamped mutually, the mounting efficiency is greatly improved under the condition that the stress strength is guaranteed, and the investment cost is saved.
The sealing rubber strips 7 are filled in an expansion plug mode, so that sealing is more tight, and water-vapor interaction is avoided.
According to the BIPV roof power generation tile component, the upper connecting piece 10 and the left connecting piece 20, the left connecting piece 20 and the lower connecting piece 30, the lower connecting piece 30 and the right connecting piece 40 and the upper connecting piece 10 are fixed by the L-shaped corner connectors 6, and the structure is firm; the upper connecting piece 10 and the lower connecting piece 30 as well as the left connecting piece 20 and the right connecting piece 40 are clamped, so that the assembly is simple, convenient and efficient; the overlapping part of the upper connecting piece 10 and the lower connecting piece 30 and the overlapping part of the left connecting piece 20 and the right connecting piece 40 are filled with sealing rubber strips 7 in an expansion plug mode, so that water-gas sealing is realized, water-gas interaction is avoided, and the waterproof problem of the installation of the power generation panel 50 on a roof is solved; and a heat dissipation space is formed among the side walls of the upper fixing hole 11, the lower fixing hole 31, the left fixing hole 21 and the right fixing hole 41, so that the heat dissipation of the power generation panel 50 is facilitated, and the power generation efficiency is improved.
The preferred embodiments of the present invention have been described in detail with reference to the accompanying drawings, however, the present invention is not limited to the specific details of the above embodiments, and various simple modifications can be made to the technical solution of the present invention within the technical idea of the present invention, and these simple modifications are within the protective scope of the present invention.
Claims (9)
1. A BIPV roof power generation tile component comprises an upper connecting piece, a left connecting piece, a right connecting piece, a lower connecting piece and a power generation panel, wherein the upper connecting piece, the left connecting piece, the lower connecting piece and the right connecting piece are fixedly connected through L-shaped corner connectors to form a quadrilateral frame for mounting the power generation panel;
the method is characterized in that:
the left connecting piece is provided with a left fixing hole, a left clamping head, a left clamping groove and a left bearing platform, the right connecting piece is provided with a right fixing hole, a right clamping head, a right clamping groove and a right bearing platform, the left end and the right end of the power generation panel are borne on the left bearing platform and the right bearing platform and clamped in the left clamping groove and the right clamping groove, the left clamping head is clamped with the right clamping head, an independent sealing space is formed at the overlapped part of the left connecting piece and the right connecting piece, and a sealing rubber strip is filled in the sealing space;
the upper connecting piece is provided with an upper fixing hole, an upper clamping groove and an upper bearing platform, the lower connecting piece is provided with a lower fixing hole, a lower clamping head and a lower bearing platform, the upper end and the lower end of the power generation panel are respectively borne on the upper bearing platform and the lower bearing platform, the upper end of the power generation panel is clamped in the upper clamping groove, the lower end of the power generation panel is abutted against the side wall of the lower clamping head, the lower clamping head is clamped on the upper wall of the upper clamping groove, an independent sealing space is formed at the overlapped part of the upper connecting piece and the lower connecting piece, and a sealing rubber strip is filled in the sealing space;
the upper fixing hole, the left fixing hole, the lower fixing hole and the right fixing hole are all located below the power generation panel, and a heat dissipation space is formed among the side walls of the upper fixing hole, the left fixing hole, the lower fixing hole and the right fixing hole.
2. The BIPV roofing power tile assembly of claim 1, wherein: the left clamping head is provided with a left buckle bent downwards, the right clamping head is provided with a right buckle bent upwards, the left buckle and the right buckle are mutually hooked and fixed, the hooked joint of the left buckle and the right buckle is filled with sealing rubber strips, and a longitudinal water guide groove is formed between the outer wall of the left buckle and the outer wall of the right clamping groove.
3. The BIPV roofing power tile assembly of claim 1, wherein: the bottom of the upper connecting piece is provided with a mounting seat, the mounting seat and the upper connecting piece are integrally formed, and the included angle between the mounting seat and the power generation panel is an acute angle.
4. The BIPV roofing power tile assembly of claim 3, wherein: the acute angle is 30 degrees.
5. The BIPV roofing power tile assembly of claim 3, wherein: the bottom of the lower connecting piece is provided with a semi-surrounding type flow guide frame.
6. The BIPV roofing power tile assembly of claim 2, wherein: the sealing strips are filled in an expansion plug mode.
7. The BIPV roofing power tile assembly of claim 1, wherein: the upper bearing, the left bearing platform, the lower bearing platform and the right bearing platform are also milled with accommodating grooves for accommodating wiring boards.
8. The BIPV roofing power tile assembly of claim 1 or 2, wherein: and metal protection frames are arranged around the power generation panel.
9. The BIPV roofing power tile assembly of claim 4 wherein: the purlin is integrally in an 'ya' shape, the upper surface of the purlin is provided with a clamping groove used for being connected with an upper connecting piece, and an included angle between the side wall and the bottom wall of the clamping groove is 30 degrees.
