CN114587885A

CN114587885A - Gynaecology and obstetrics's obstetrical examination is with regulation formula supporting equipment

Info

Publication number: CN114587885A
Application number: CN202210264856.4A
Authority: CN
Inventors: 曹晓彬
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-03-17
Filing date: 2022-03-17
Publication date: 2022-06-07

Abstract

The invention belongs to the technical field of medical instruments, and particularly relates to adjustable supporting equipment for obstetrical and gynecological delivery tests, which comprises a base, an elevator case fixedly arranged on the surface of the base, a bottom plate fixedly arranged on one side of the elevator case, far away from the base, a backup plate arranged on one side of the bottom plate, and a waist pad and a head pad fixedly arranged on the surface of one side of the backup plate, wherein an adjusting and supporting assembly is added on the basis; meanwhile, an adjusting assembly is added on the basis, the servo motor is controlled to operate, and the elevation angle between the backup plate and the bottom plate can be changed under the matching of the adjusting screw, the sliding block, the ejector rod and the hinge block, so that medical staff can conveniently check the pregnant woman in an all-round manner.

Description

Gynaecology and obstetrics's obstetrical examination is with regulation formula supporting equipment

Technical Field

The invention belongs to the technical field of medical instruments, and particularly relates to adjustable supporting equipment for obstetrical and gynecological obstetrical examination.

Background

When carrying out the puerperal examination, generally there is lying down examination item and sitting examination item, when the puerperal needs the examination of lying down, lie in bed usually and let the doctor inspect, and when the puerperal needs the examination of sitting, sit on the inspection seat usually, adopt the formula of lying down or half the formula of lying down to inspect, and when the inspection, often need to deal with the pregnant woman and lift up the both legs to open, be difficult for the interval of two legs of accuse, and increase pregnant woman's intensity of labour.

For this reason, the adjustable supporting equipment for obstetrical and gynecological examinations is designed to solve the above problems.

Disclosure of Invention

To solve the problems set forth in the background art described above. The invention provides adjustable supporting equipment for obstetrical and gynecological obstetrical examination, which is convenient for supporting and lifting the legs of pregnant women so as to be suitable for the pregnant women with different heights and be convenient for medical staff to carry out all-round examination on the pregnant women.

In order to achieve the purpose, the invention provides the following technical scheme: an adjustable supporting device for obstetrical and gynecological obstetrical examination comprises a base, an elevator case fixedly mounted on the surface of the base, a bottom plate fixedly mounted on one side of the elevator case, far away from the base, a backup plate mounted on one side of the bottom plate, a waist pad and a head pad fixedly mounted on the surface of one side of the backup plate, and an adjusting and supporting assembly symmetrically arranged on one side of the bottom plate;

adjust the supporting component and include spout two, lead screw, slider, regulation part, mounting, slide, leg support and lock portion of dying, two have been seted up to a side surface of bottom plate spout two, the both ends of lead screw all rotate through the bearing and connect in the spout two, the lead screw runs through the one end fixedly connected with of bottom plate the regulation part, just the surface of lead screw is located two female connection of spout have the slider, two the equal fixedly connected with of same side surface of slider the mounting, the mounting is kept away from the inside sliding connection of one end of slider has the slide, just the surface threaded connection of mounting has the lock portion of dying, the lock portion of dying runs through the one end and the butt of mounting are in the surface of slide, the slide is kept away from the one end fixed mounting of bottom plate has the leg support.

Preferably, an embedded groove is formed in one side surface of the sliding plate, an embedded strip is embedded in the embedded groove, and one end of the locking part penetrating through the fixing part abuts against the surface of the embedded strip.

Preferably, the side of the leg support, which is far away from the sliding plate, is of an inwards concave arc structure, and a rubber pad is bonded on the inwards concave surface.

Preferably, the slide block is slidably connected in the second sliding groove.

Preferably, the adjustable supporting device for obstetrical and gynecological examinations of the invention further comprises an adjusting component mounted on one side surface of the base plate, the adjusting component comprises a hinge block, a first sliding chute, a screw rod, a threaded sleeve, a servo motor, a top rod and a hinge block, the backup plate is hinged with the fixed blocks symmetrically arranged on the two side surfaces of the bottom plate, the first sliding groove is arranged on one side surface of the bottom plate, the screw rod is rotatably connected with the inner side wall of the first sliding groove and penetrates through one end of the bottom plate and is fixedly connected with the servo motor, the servo motor is fixedly arranged on one side of the bottom plate, the threaded sleeve is connected with the surface of the screw rod and positioned in the sliding groove through internal threads, the surface of the threaded sleeve is hinged with the ejector rod, and one end of the ejector rod is hinged with the hinge block fixedly arranged on the surface of one side, deviating from the waist pad, of the backup plate.

Preferably, the two ends of the ejector rod are both arc structures.

Preferably, the adjustable supporting device for obstetrical and gynecological examinations is provided with armrests fixedly connected to the inner surfaces of the two sides of the bottom plate.

Preferably, bearings are embedded at two ends of the screw rod and are rotatably connected into the first sliding groove through the bearings.

Compared with the prior art, the invention has the beneficial effects that: on the basis, the adjusting and supporting assembly is added, the leg support can keep the pregnant woman to move in a leg bending manner, the leg support can lift the two legs of the pregnant woman so as to facilitate medical staff to carry out delivery examination on the pregnant woman, meanwhile, the sliding plate is pulled out of the fixing piece, and the leg support can be matched with the embedded strip embedded in the sliding plate through the locking part, so that the height of the leg support can be adjusted, the stabilizing effect after adjustment is enhanced, the leg support is suitable for the pregnant women with different heights, meanwhile, the sliding block on the screw rod can be driven to move in the second sliding groove by rotating the adjusting plate, and the leg support above the sliding block can be matched to slowly support the two legs of the pregnant woman so as to facilitate the medical staff to carry out examination; meanwhile, an adjusting assembly is added on the basis, the elevation angle between the backup plate and the bottom plate can be changed under the matching motion of the adjusting screw rod, the sliding block, the ejector rod and the hinging block by controlling the operation of the servo motor, so that the state that the pregnant woman lies, semi-lies or bends the knee on the supporting equipment can be adjusted, and the pregnant woman can be conveniently examined by medical staff in all directions.

Drawings

The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention.

In the drawings:

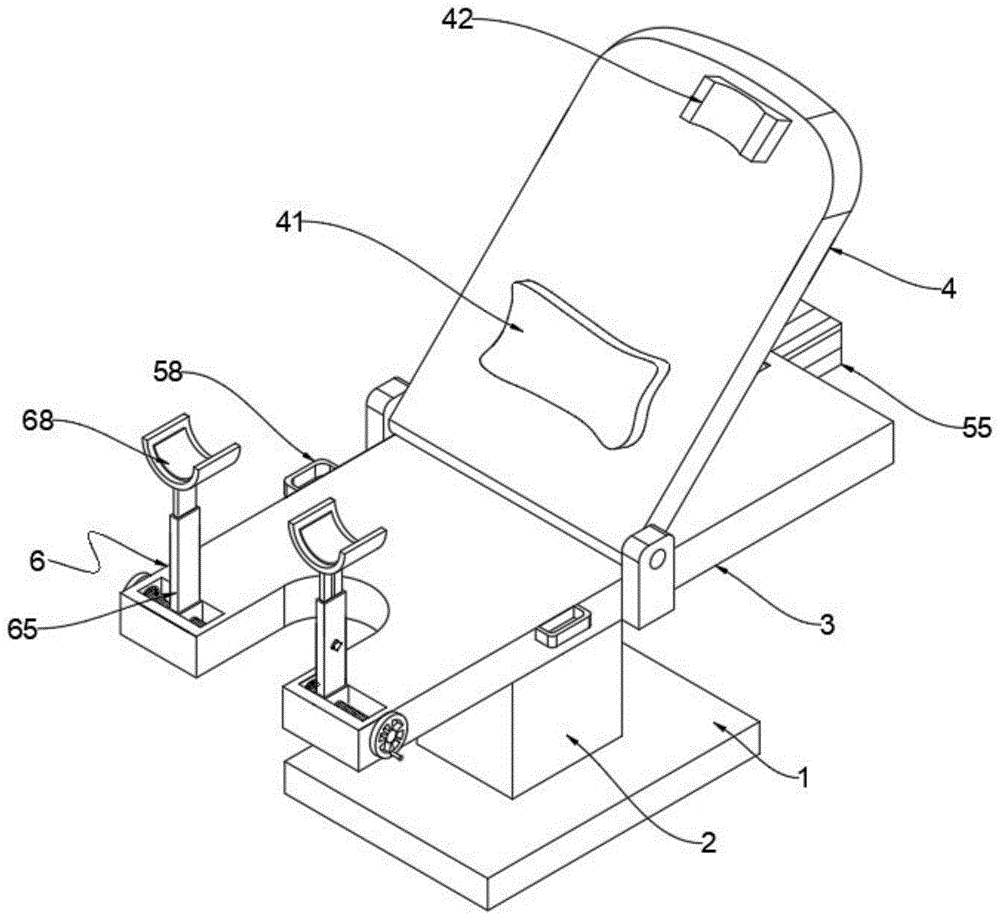

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the backup plate and the bottom plate of the present invention;

FIG. 3 is a schematic view of the adjusting assembly of the present invention;

FIG. 4 is a partial schematic view of a support assembly of the present invention;

FIG. 5 is a schematic view of a support assembly according to the present invention;

FIG. 6 is a partial schematic view of the support assembly of the present invention;

FIG. 7 is a partial schematic view of a support assembly of the present invention;

in the figure:

1. a base;

2. an elevator car;

3. a base plate;

4. a backup plate; 41. a waist pad; 42. a head pad;

5. an adjustment assembly; 51. a fixed block; 52. a first sliding chute; 53. a screw; 54. a threaded sleeve; 55. a servo motor; 56. a top rod; 57. a hinged block; 58. a handrail;

6. adjusting the support assembly; 61. a second chute; 62. a screw rod; 63. a slider; 64. an adjustment section; 65. a fixing member; 66. a slide plate; 661. embedding a groove; 67. embedding the strips; 68. a leg rest; 681. a rubber pad; 69. a locking part.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be obtained by a person skilled in the art without making any creative effort based on the embodiments in the present invention, belong to the protection scope of the present invention.

As shown in fig. 1;

the utility model provides a gynaecology and obstetrics's obstetrical examination is with regulation formula supporting equipment, includes base 1, and fixed mounting is at the elevator case 2 on base 1 surface, and one side fixed mounting's of base 1 bottom plate 3 is kept away from to elevator case 2, the backup plate 4 of one side installation of bottom plate 3 and install bustle 41 and headrest 42 at backup plate 4 one side fixed surface installation.

In this embodiment: when the puerpera is subjected to obstetric examination, generally, lying-down examination items and sitting examination items are available, when the puerpera needs to be subjected to lying-down examination, a doctor usually lies on a bed to perform examination, when the puerpera needs to be subjected to sitting examination, the puerpera usually sits on an examination seat, the lying-down type or semi-lying type is adopted for examination, and when the parturient needs to be subjected to examination, the pregnant woman is usually required to lift and stretch the legs, the distance between the two legs is not easy to control, the labor intensity of the pregnant woman is increased, on the basis, the adjusting and supporting component 6 is added, the legs of the pregnant woman can be conveniently supported and lifted through the adjusting and supporting component, so that the pregnant woman is suitable for being used by pregnant women with different heights; meanwhile, an adjusting component 5 is added on the basis, so that the state of the pregnant woman lying, semi-lying or bending knees on the supporting equipment can be adjusted conveniently through the component, and the pregnant woman can be examined comprehensively by medical staff conveniently.

It should be noted that: the elevator case 2 contains hydraulic lifting device (hydraulic rod or pneumatic rod) so as to adjust the height of the bottom plate 3, so that the pregnant woman can climb the bottom plate 3, and the height of the bottom plate 3 is convenient for medical staff to check the pregnant woman.

As shown in fig. 1, 4, 5, 6 and 7:

in combination with the above, in order to facilitate the support and elevation of the legs of the pregnant woman, the leg support is suitable for pregnant women with different heights, the leg support further comprises an adjusting and supporting assembly 6 symmetrically arranged on one side of the bottom plate 3, the adjusting and supporting assembly 6 comprises two sliding grooves 61, a screw rod 62, a sliding block 63, an adjusting portion 64, a fixing member 65, a sliding plate 66, a leg support 68 and a locking portion 69, two sliding grooves 61 are formed in the surface of one side of the bottom plate 3, two ends of the screw rod 62 are rotatably connected in the sliding grooves 61 through bearings, the adjusting portion 64 is fixedly connected to one end, penetrating through the bottom plate 3, of the screw rod 62, the sliding block 63 is in threaded connection with the surface of the sliding groove 61, the fixing member 65 is fixedly connected to the same side surface of the two sliding blocks 63, the sliding plate 66 is in the inner sliding connection of one end, far away from the sliding block 63, of the fixing member 65 is in threaded connection with the locking portion 69, the locking portion 69 penetrates through one end of the fixing member 65 and abuts against the surface of the sliding plate 66, the end of the slide plate 66 remote from the base plate 3 is fixedly mounted with a leg rest 68.

In this embodiment: when the leg support type pregnant woman lying on the arc-shaped backup plate 4 is used, the pregnant woman can lean on the arc-shaped backup plate 4, the leg support 68 can keep the pregnant woman to move in a leg bending mode, the leg support 68 lifts the two legs of the pregnant woman, the fixing piece 65 is fixedly connected to the same side surface of the sliding block 63, the sliding plate 66 is connected to the inner portion of the end, far away from the sliding block 63, of the fixing piece 65 in a sliding mode, the sliding plate 66 is pulled out of the fixing piece 65 until the leg support 68 is fixedly mounted at the end, far away from the bottom plate 3, of the sliding plate 66 to be lifted to a certain position, the surface of the fixing piece 65 is in threaded connection with the locking portion 69, the locking portion 69 penetrates through one end of the fixing piece 65 and abuts against the surface of the sliding plate 66, the height of the leg support 68 is limited through the manual rotation locking portion 69, meanwhile, the adjusting portion 64 is rotated, the lead screw 62 penetrates through one end of the bottom plate 3 and is fixedly connected with the adjusting portion 64, the lead screw 62 can be driven to rotate, the two ends of the lead screw 62 are rotatably connected in the second sliding groove 61, the surface of the lead screw 62 and located in the second groove 61, the sliding block 63 is connected with the internal threads of the internal thread of the lead screw 62, and thereby make slider 63 remove in two 61 in the spout, the equal fixedly connected with mounting 65 of the same side surface through two sliders 63 simultaneously, the inside sliding connection of one end that slider 63 was kept away from to mounting 65 has slide 66, the one end fixed mounting that bottom plate 3 was kept away from to slide 66 has the cooperation that the leg held in the palm 68, be convenient for with slow strutting between pregnant woman's the both legs, need not medical personnel to carry out the auxiliary stay, the medical personnel of being convenient for observe.

It should be understood that: one side surface of slide 66 has been seted up and has been inlayed the dress groove 661, inlays the dress strip 67 of being adorned in the dress groove 661, and the one end that dead lock portion 69 runs through mounting 65 butts on the surface of dress strip 67, and the height-adjusting of leg support 68 reaches suitable position hand, and through the surface of manual rotatory dead lock portion 69 one end that dead lock portion 69 runs through mounting 65 butt at the dress strip 67, carries out spacingly with the height of leg support 68, can prevent that the landing from appearing in the use of leg support 68.

It should be noted that: one side that slide 66 was kept away from to leg support 68 is the arcuation structure of indent, and the arc wall accords with the shape of human shank, and the concave surface bonds including and has rubber pad 681, can improve pregnant woman's comfort, and evenly is provided with the non-skid projection at rubber pad 681 upper surface, and the non-skid projection is rubber bulge, and the shank can be avoided in leg support 68 to slide in rubber bulge's setting, plays the effect fixed to the shank.

It should be noted that: the sliding block 63 is slidably connected in the second sliding groove 61, and the circumferential freedom degree of the sliding block 63 is limited so that the sliding block can only slide in the second sliding groove 61 along the axial direction of the screw rod 62 during adjustment.

As shown in fig. 1, 2 and 3:

in combination with the above, in order to facilitate the adjustment of the lying, half lying or knee bending state of the pregnant woman on the supporting device, so that medical staff can carry out all-around examination on the pregnant woman, and also comprises an adjusting component 5 arranged on the surface of one side of the bottom plate 3, wherein the adjusting component 5 comprises a fixed block 51, a first sliding groove 52, a screw 53, a threaded sleeve 54, a servo motor 55, a top rod 56 and a hinge block 57, the backup plate 4 is hinged with the fixed block 51 symmetrically arranged on the surfaces of the two sides of the bottom plate 3, the surface of one side of the bottom plate 3 is provided with the first sliding groove 52, and the inner side wall of the first sliding groove 52 is rotatably connected with a screw 53, the screw 53 penetrates through one end of the bottom plate 3 and is fixedly connected with a servo motor 55, the servo motor 55 is fixedly arranged at one side of the bottom plate 3, the surface of the screw 53 and positioned in the first sliding groove 52 is connected with a threaded sleeve 54 in a threaded manner, the surface of the threaded sleeve 54 is hinged with a mandril 56, and one end of the top rod 56 is hinged with a hinge block 57 fixedly arranged on the surface of the side of the backup plate 4, which is far away from the waist pad 41.

In this embodiment: by starting the operation of the servo motor 55, the screw 53 penetrates through one end of the bottom plate 3 and is fixedly connected with the servo motor 55, the inner side wall of the first sliding groove 52 is rotatably connected with the screw 53, and further the screw 53 is driven to rotate, the screw 53 is connected with the screw sleeve 54 in a threaded manner on the surface of the screw 53 and positioned on the first sliding groove 52, the screw sleeve 54 slides in the first sliding groove 52 while driving the screw sleeve 54 to move along the axial direction of the screw 53, the surface of the screw sleeve 54 is hinged with the ejector rod 56, one end of the ejector rod 56 is hinged with the hinge block 57 fixedly arranged on the surface of one side of the backup plate 4 departing from the waist pad 41, through matching with the hinging between one end of the backup plate 4 and the fixed blocks 51 symmetrically arranged on the surfaces of the two sides of the bottom plate 3, when the screw sleeve 54 moves towards one side away from the servo motor 55 in the first sliding groove 52, the included angle between the backup plate 4 and the bottom plate 3 is smaller, otherwise, the included angle between the backup plate 4 and the bottom plate 3 is larger, and then can adjust the elevation angle of the backup plate 4 according to the examination requirement of medical personnel, and can also adjust according to the comfort level of the pregnant woman.

It should be understood that: the two ends of the ejector rod 56 are both arc structures, so that dead points can be avoided when the adjusting is carried out, the adjusting efficiency is improved, and the adjusting process is more stable.

It should be noted that: armrests 58 are fixedly connected to the inner surfaces of both sides of the bottom plate 3, so that a pregnant woman can apply strength through the armrests 58, and the position of the lower body can be adjusted by matching with the armrests 58, so that the detection of medical staff is facilitated.

It should be noted that: the bearings are embedded at the two ends of the screw 53 and are rotatably connected into the first sliding groove 52 through the bearings, and the two ends of the screw 53 are connected with the bearings in an interference fit manner, so that on one hand, the overall centering performance is improved, the coaxiality is good, the positioning connection is easy to disassemble and assemble, on the other hand, the abrasion between the screw 53 and the bottom plate 3 is reduced, and the service life of the screw 53 is prolonged.

It should be noted that: the servo motor 55 is electrically connected to an external power source.

It should be noted that: one side of the bottom plate 3 is arranged in an inwards concave manner, and medical staff can conveniently carry out all-around examination on the lower part of a pregnant woman through the inwards concave part.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a gynaecology and obstetrics's obstetrical examination is with regulation formula support equipment, includes base (1), fixed mounting be in elevator case (2) on base (1) surface, elevator case (2) are kept away from one side fixed mounting's of base (1) bottom plate (3), backup plate (4) of one side installation of bottom plate (3) with install backup plate (4) one side fixed surface mounting's bustle (41) and headrest (42), its characterized in that: the adjustable support component (6) is symmetrically arranged on one side of the bottom plate (3);

the adjusting and supporting assembly (6) comprises a second sliding groove (61), a screw rod (62), a sliding block (63), an adjusting part (64), a fixing part (65), a sliding plate (66), a leg support (68) and a locking part (69), wherein two sliding groove (61) are arranged on one side surface of the bottom plate (3), two ends of the screw rod (62) are rotatably connected into the second sliding groove (61) through bearings, the screw rod (62) penetrates through one end of the bottom plate (3) and is fixedly connected with the adjusting part (64), the surface of the screw rod (62) is located in the second sliding groove (61) and is in internal thread connection with the sliding block (63), the fixing part (65) is fixedly connected onto the same side surface of the sliding block (63), the fixing part (65) is far away from the internal sliding connection of one end of the sliding block (63) and is connected with the sliding plate (66), and the surface of the fixing part (65) is in thread connection with the locking part (69), the locking part (69) penetrates through one end of the fixing part (65) and abuts against the surface of the sliding plate (66), and the leg support (68) is fixedly mounted at one end, far away from the bottom plate (3), of the sliding plate (66).

2. The adjustable support apparatus for obstetrics and gynecology department according to claim 1, wherein: one side surface of the sliding plate (66) is provided with an embedded groove (661), an embedded strip (67) is embedded in the embedded groove (661), and the locking part (69) penetrates through one end of the fixing part (65) and abuts against the surface of the embedded strip (67).

3. The adjustable support apparatus for obstetrics and gynecology department according to claim 1, wherein: one side of the leg support (68) far away from the sliding plate (66) is of a concave arc structure, and a rubber pad (681) is bonded on the inner concave surface.

4. The adjustable support apparatus for obstetrics and gynecology department according to claim 1, wherein: the sliding block (63) is connected in the second sliding groove (61) in a sliding mode.

5. The adjustable support apparatus for obstetrics and gynecology department according to claim 1, wherein: the adjusting device is characterized by further comprising an adjusting component (5) arranged on the surface of one side of the bottom plate (3), the adjusting component (5) comprises a hinge block (51), a first sliding groove (52), a screw rod (53), a threaded sleeve (54), a servo motor (55), a top rod (56) and a hinge block (57), the backup plate (4) is hinged to fixing blocks (51) symmetrically arranged on the surfaces of the two sides of the bottom plate (3), the first sliding groove (52) is formed in the surface of one side of the bottom plate (3), the screw rod (53) is rotatably connected to the inner side wall of the first sliding groove (52), the screw rod (53) penetrates through one end of the bottom plate (3) and is fixedly connected with the servo motor (55), the servo motor (55) is fixedly arranged on one side of the bottom plate (3), and the surface of the screw rod (53) is positioned on the surface of the first sliding groove (52) and is internally connected with the threaded sleeve (54), the surface of the threaded sleeve (54) is hinged with the ejector rod (56), and one end of the ejector rod (56) is hinged with the hinge block (57) fixedly installed on the surface of one side, away from the waist pad (41), of the backup plate (4).

6. The adjustable support apparatus for obstetrics and gynecology department according to claim 5, wherein: both ends of the ejector rod (56) are of arc structures.

7. The adjustable support apparatus for obstetrics and gynecology department according to claim 5, wherein: armrests (58) are fixedly connected to the inner surfaces of the two sides of the bottom plate (3).

8. The adjustable support apparatus for obstetrics and gynecology department according to claim 5, wherein: and bearings are embedded at two ends of the screw rod (53) and are rotatably connected in the first sliding groove (52) through the bearings.
