Abstract

The invention relates to the technical field of Chinese herbal medicine processing devices, and discloses Chinese herbal medicine cleaning equipment which comprises a base, wherein support frames are fixedly arranged on two sides of the upper end of the base, a cleaning barrel is rotatably arranged between the upper ends of the support frames, rotary gear rings are respectively arranged on the outer sides of the cleaning barrel, a power shaft is rotatably arranged between the lower sides of the support frames, a power gear meshed with the power gear is arranged on the power shaft, knocking components used for knocking the cleaning barrel are further arranged on two sides of the power shaft, and one end of the right side of the power shaft is connected with a water spraying component arranged in the cleaning barrel through a belt pulley group. According to the invention, the self-rotation of the cleaning barrel is realized, the effective cleaning of Chinese herbal medicines is ensured, the cleaning shaft can rotate in the opposite direction in the cleaning barrel under the matching of the pulley group, the cleaning quality of the Chinese herbal medicines is further increased, and meanwhile, the Chinese herbal medicines can be prevented from being attached to the inner wall of the cleaning barrel in the cleaning process under the matching of the knocking component, so that the effective discharge of the Chinese herbal medicines in the later period is facilitated.

Description

Chinese herbal medicine cleaning equipment
Technical Field
The invention relates to the technical field of Chinese herbal medicine treatment devices, in particular to Chinese herbal medicine cleaning equipment.
Background
Traditional Chinese medicines are traditional Chinese medicinal materials, have long-flowing and extensive traditional Chinese medicine culture sources, are unique cultural phenomena of traditional Chinese medicines and western medicines created by combining traditional Chinese medicines and western medicines for thousands of years, are important components of excellent Chinese culture, gradually increase large and medium-sized traditional Chinese medicine production enterprises along with the development of social economy and technology, and traditional Chinese medicine processing machinery is rapidly developed, so that the traditional Chinese medicines are generally dried for convenience of storage and transportation, and need to be cleaned before being processed.
In the traditional Chinese medicine cleaning process, the traditional Chinese medicine is placed in a vertical stirring barrel to be stirred and cleaned by the existing device, the herbal medicines are easily accumulated at the bottom, the herbal medicines cannot be cleaned in all directions, the cleaning effect of the Chinese herbal medicines is seriously affected, and therefore further improvement is needed.
Disclosure of Invention
The invention aims to provide Chinese herbal medicine cleaning equipment to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a chinese herbal medicine cleaning equipment, includes the base, base upper end both sides fixed mounting support frame rotates the installation between the support frame upper end and washs the bucket, the rotatory ring gear is installed respectively in the washing bucket outside, rotate the installation power axle between the support frame downside, be provided with the rotatory ring gear with power gear intermeshing on the power axle, the subassembly that strikes that is used for striking the washing bucket is still installed to the power axle both sides, power axle right side one end is connected with the water spray subassembly that sets up inside the washing bucket through band pulley group.
As a further scheme of the invention: the knocking component comprises a crank arranged on a power shaft, a crank sleeve is sleeved on the crank, a crank rod is installed on the crank sleeve, a knocking rod is hinged to the crank rod, and a knocking hammer is fixedly installed at one end, far away from the crank rod, of the knocking rod.
As a further scheme of the invention: and the knocking rod is connected with a limiting frame in a penetrating way, and the limiting frame is fixed on the supporting frame.
As a further scheme of the invention: and one end of the power shaft, which is far away from the belt pulley set, is provided with a power motor, and the power motor is fixed on the support frame.
As a further scheme of the invention: the cleaning barrel is provided with a material inlet and a material outlet, and the material inlet and the material outlet are provided with a switch valve.
As a further scheme of the invention: the belt pulley group comprises a driving belt pulley fixed at the end part of the power shaft, and the driving belt pulley is connected with a driven belt pulley through a belt.
As a further scheme of the invention: the water spray component comprises a water spray column horizontally arranged on the central axis of the cleaning barrel, the inside of the water spray column is of a hollow structure, one end of the water spray column, which is far away from the driving belt wheel, penetrates out of the outer wall of the cleaning barrel and is arranged inside the water inlet box fixed on the support frame, and a plurality of cleaning blades are arranged outside the water spray column positioned inside the cleaning barrel.
As a further scheme of the invention: the cleaning blade is provided with a plurality of cleaning holes and is communicated with the inside of the water spraying column.
As a still further scheme of the invention: the water inlet tank is communicated with a water inlet pipe, and the water inlet pipe is also provided with a check valve.
Compared with the prior art, the invention has the beneficial effects that:
the Chinese herbal medicine cleaning equipment is reasonable in structure, and novel in design, mutually support between power gear and the rotatory ring gear through setting up, realized the self rotation of wasing the bucket, ensured the effective washing to the Chinese herbal medicine, and under the cooperation of band pulley group, make and wash the axle and can be in the inside opposite direction rotation of washing bucket, the cleaning quality of Chinese herbal medicine has further been increased, simultaneously under the cooperation of knocking the subassembly, can avoid the Chinese herbal medicine to adhere to at the washing bucket inner wall in the cleaning process, the effective discharge of later stage Chinese herbal medicine has been made things convenient for.
Drawings

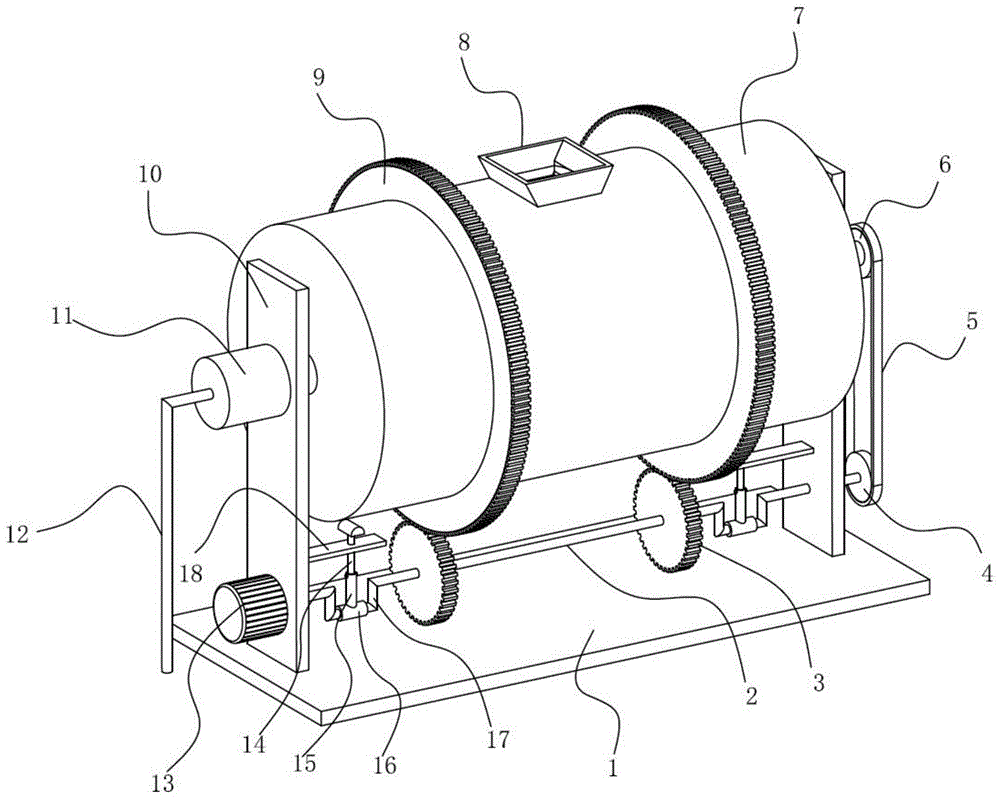

FIG. 1 is a schematic diagram of a side view of a Chinese herbal medicine cleaning apparatus.
Fig. 2 is a schematic view of a front view structure of a Chinese herbal medicine cleaning device.
FIG. 3 is a schematic top view of a Chinese herbal medicine cleaning apparatus.
FIG. 4 is a schematic view of the internal cross-sectional structure of a Chinese herbal medicine cleaning apparatus.
In the figure: 1. a base; 2. a power shaft; 3. a power gear; 4. a driving pulley; 5. a belt; 6. a driven pulley; 7. a washing barrel; 8. feeding and discharging ports; 9. rotating the gear ring; 10. a support frame; 11. a water inlet tank; 12. a water inlet pipe; 13. a power motor; 14. a knock bar; 15. a curved bar; 16. sheathing with a curved sleeve; 17. a crank; 18. a limiting frame; 19. a water spray column; 20. washing the leaves; 21. cleaning the holes; 22. knocking hammer.
Detailed Description
It should be noted that the embodiments and features of the embodiments may be combined with each other without conflict.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", etc., indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing and simplifying the description, but do not indicate or imply that the devices or elements referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore are not to be construed as limiting the invention, and further, the terms "first", "second", etc., are used only for descriptive purposes and are not intended to indicate or imply relative importance or to implicitly indicate the number of technical features indicated, whereby the features defined as "first", "second", etc., may explicitly or implicitly include one or more of such features, in the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; the two elements may be directly connected or indirectly connected through an intermediate medium, and the two elements may be communicated with each other, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art through specific situations.
The present invention will be described in detail below with reference to the embodiments with reference to the attached drawings.
Referring to fig. 1 to 4, in the embodiment of the invention, a Chinese herbal medicine cleaning device comprises a base 1, wherein support frames 10 are fixedly arranged on two sides of the upper end of the base 1, a cleaning barrel 7 is rotatably arranged between the upper ends of the support frames 10, the cleaning barrel 7 is used for placing Chinese herbal medicines to be cleaned, rotary gear rings 9 are respectively arranged on the outer sides of the cleaning barrel 7, a power shaft 2 is rotatably arranged between the lower sides of the support frames 10, a power gear 3 which is meshed with the rotary gear rings 9 is arranged on the power shaft 2, so that the power shaft 2 can drive the rotary gear rings 9 to rotate in the rotating process, finally the cleaning barrel 7 generates rotary motion, knocking components for knocking the cleaning barrel 7 are further arranged on two sides of the power shaft 2, the outer wall of the cleaning barrel 7 is further knocked, the falling of the cleaned Chinese herbal medicines is accelerated, and the stability of the device is further improved, 2 right side one ends of power shaft are connected with through band pulley group and set up the water spray subassembly in washing 7 insides for carry out effectual washing to the chinese herbal medicine that washs 7 insides.
The knocking component comprises a crank 17 arranged on the power shaft 2, a crank sleeve 16 is sleeved on the crank 17, a curved rod 15 is installed on the crank sleeve 16, a knocking rod 14 is hinged to the curved rod 15, a knocking hammer 22 is fixedly installed at one end, far away from the curved rod 15, of the knocking rod 14, the power shaft 2 drives the crank 17 to rotate in the rotating process, then the knocking rod 14 is driven by the curved rod 15 to move up and down under the action of the crank sleeve 16, and knocking on the outer wall of the cleaning barrel 7 is achieved.
The knocking rod 14 is connected with a limiting frame 18 in a penetrating mode, the limiting frame 18 is fixed on the supporting frame 10, the limiting frame 18 is used for limiting and guiding the up-and-down movement of the supporting frame 10, and the knocking rod 14 is prevented from shaking in the moving process.
Power shaft 2 is kept away from band pulley group one end and is installed power motor 13, and power motor 13 is fixed on support frame 10, power motor 13 has been used for driving power shaft 2 and has been rotated, and then provides the power source for the work of whole device.
Install into business turn over material mouth 8 on the washing bucket 7, install the ooff valve on business turn over material mouth 8, business turn over material mouth 8 is used for the leading-in of chinese herbal medicine, the ooff valve is used for going on the control that opens and shuts to business turn over material mouth 8, has satisfied the cleaning performance that seals among the cleaning process.
The belt pulley group is including fixing driving pulley 4 at 2 tip of power axle, and driving pulley 4 is connected with from driving pulley 6 through belt 5, through the cooperation of driving pulley 4 and from driving pulley 6 for give the water spray subassembly with the power transmission of power axle 2, finally satisfied the water spray washing needs of water spray subassembly.
The water spray component comprises a water spray column 19 horizontally arranged on the central axis of the cleaning barrel 7, the water spray column 19 is internally of a hollow structure, so that the water for cleaning is guided in the circulation of the water spray column 19, the water spray column 19 is far away from the outer wall of the cleaning barrel 7 and is arranged inside the water inlet box 11 fixed on the support frame 10, a plurality of cleaning leaves 20 are arranged on the outer side of the water spray column 19 inside the cleaning barrel 7, a plurality of cleaning holes 21 are formed in the cleaning leaves 20, the cleaning leaves 20 are communicated with the water spray column 19, the water spray column 19 rotates the cleaning leaves 20, and then under the action of the cleaning holes 21, the cleaning water is sprayed out to realize the effective cleaning effect on the Chinese herbal medicines inside the cleaning barrel 7.
The intercommunication has inlet tube 12 on the case 11 of intaking, still installs the check valve on the inlet tube 12, through inlet tube 12 toward the leading-in washing water of 11 insides of case of intaking to satisfied the abluent needs of traditional chinese medicine grass, set up the reverse derivation of washing water that the check valve avoided among the cleaning process, further improved the reliability of device.
The working principle of the invention is as follows: during operation, it is inside to be used for abluent chinese herbal medicine to lead to washing barrel 7 through business turn over material mouth 8, later close business turn over material mouth 8, then through inlet tube 12 toward the leading-in washing water of 11 inside of water inlet tank, start motor power 13 simultaneously, motor power 13 has driven power shaft 2 and has rotated, make washing barrel 7 carry out the rotation, and also make spray column 19 at the inside antiport of washing barrel 7, realize the all-round water spray to interior chinese herbal medicine, strike hammer 22 simultaneously and strike washing barrel 7 and strike, avoid the washing in-process chinese herbal medicine adhesion inside washing barrel 7, after treating the washing, inlet tube 12 is closed, business turn over material mouth 8 is opened simultaneously, the effective discharge of chinese herbal medicine has been realized, whole operation is swift convenient, and strong maneuverability.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein.

Claims (9)

1. The utility model provides a chinese herbal medicine cleaning equipment, includes base (1), base (1) upper end both sides fixed mounting support frame (10), its characterized in that rotates between support frame (10) upper end and installs cleaning barrel (7), rotatory ring gear (9) are installed respectively in cleaning barrel (7) outside, rotate between support frame (10) downside and install power shaft (2), be provided with on power shaft (2) with rotatory ring gear (9) intermeshing power gear (3), the subassembly that strikes that is used for striking cleaning barrel (7) is still installed to power shaft (2) both sides, power shaft (2) right side one end is connected with through the band pulley group and is set up the inside water spray subassembly in cleaning barrel (7).
2. The Chinese herbal medicine cleaning device according to claim 1, wherein the knocking assembly comprises a crank (17) arranged on the power shaft (2), a crank sleeve (16) is sleeved on the crank (17), a curved rod (15) is arranged on the crank sleeve (16), a knocking rod (14) is hinged to the curved rod (15), and a knocking hammer (22) is fixedly arranged at one end, far away from the curved rod (15), of the knocking rod (14).
3. The Chinese herbal medicine cleaning device according to claim 2, wherein a limiting frame (18) penetrates through the knocking rod (14), and the limiting frame (18) is fixed on the support frame (10).
4. The Chinese herbal medicine cleaning equipment according to claim 1, wherein a power motor (13) is mounted at one end of the power shaft (2) far away from the pulley set, and the power motor (13) is fixed on the support frame (10).
5. The Chinese herbal medicine cleaning equipment according to claim 1, wherein the cleaning barrel (7) is provided with a feed and discharge port (8), and the feed and discharge port (8) is provided with a switch valve.
6. The Chinese herbal medicine cleaning device according to claim 1, wherein the pulley set comprises a driving pulley (4) fixed at the end of the power shaft (2), and the driving pulley (4) is connected with a driven pulley (6) through a belt (5).
7. The Chinese herbal medicine cleaning device according to claim 1, wherein the water spraying assembly comprises a water spraying column (19) horizontally arranged on a central axis of the cleaning barrel (7), the water spraying column (19) is internally hollow, one end of the water spraying column (19) far away from the driving pulley (4) penetrates out of the outer wall of the cleaning barrel (7) and is arranged inside a water inlet tank (11) fixed on the support frame (10), and a plurality of cleaning blades (20) are arranged outside the water spraying column (19) inside the cleaning barrel (7).
8. The Chinese herbal medicine washing device according to claim 7, characterized in that the washing blade (20) is provided with a plurality of washing holes (21), and the washing blade (20) is communicated with the inside of the water jet column (19).
9. The Chinese herbal medicine cleaning equipment according to claim 7, wherein the water inlet tank (11) is communicated with a water inlet pipe (12), and the water inlet pipe (12) is further provided with a one-way valve.
