Abstract

本发明公开了一种定点图像数据采集装置，包括用于进行图像数据采集的图像采集摄像头和用于对图像采集摄像头进行安装的安装悬架，安装悬架的内侧安装有下螺纹环套，图像采集摄像头的上方设置有安装螺杆，安装螺杆的顶部旋合插接在下螺纹环套内；安装悬架的外侧安装有上螺纹环套，上螺纹环套上方通过螺纹旋合插接有悬杆，悬杆的顶部设置有挂环，挂环用于将悬杆悬挂在图像数据采集点相应的支架上，本发明适用于图像数据采集，装置整体采用分体式结构，主要包括三个部分，分别为图像采集摄像头、安装悬架和悬杆，三个部分之间均采用可拆卸组装连接，这样的结构设置使得该装置在安装时方便快捷，同时在需要对该装置进行维修时方便进行维修。

Figure 202210044253

The invention discloses a fixed-point image data acquisition device, which includes an image acquisition camera for image data acquisition and an installation suspension for installing the image acquisition camera. The inner side of the installation suspension is installed with a lower threaded ring sleeve. A mounting screw is arranged above the acquisition camera, and the top of the mounting screw is screwed and inserted into the lower threaded ring sleeve; an upper threaded ring sleeve is installed on the outside of the mounting suspension, and a suspension rod is threaded and inserted above the upper threaded ring sleeve. The top of the suspension rod is provided with a hanging ring, which is used to hang the suspension rod on the corresponding bracket of the image data collection point. The present invention is suitable for image data collection. The whole device adopts a split structure and mainly includes three parts, namely The image acquisition camera, the installation suspension and the suspension rod are all connected by detachable assembly among the three parts. Such a structural setting makes the installation of the device convenient and fast, and at the same time, it is convenient for maintenance when the device needs to be repaired.

Figure 202210044253

Description

一种定点图像数据采集装置A fixed-point image data acquisition device

技术领域technical field

本发明属于电力系统中图像数据采集技术领域，具体是一种定点图像数据采集装置。The invention belongs to the technical field of image data acquisition in electric power systems, in particular to a fixed-point image data acquisition device.

背景技术Background technique

电力系统是由发电、变电、输电、配电和用电等环节组成的电能生产与消费系统，它的功能是将自然界的一次能源通过发电动力装置(主要包括锅炉、汽轮机、发电机及电厂辅助生产系统等)转化成电能，再经输、变电系统及配电系统将电能供应到各负荷中心；The power system is an electric energy production and consumption system composed of power generation, power transformation, power transmission, power distribution, and power consumption. Auxiliary production system, etc.) into electric energy, and then supply electric energy to each load center through transmission, transformation system and power distribution system;

而定点图像数据采集装置是一种应用于电力系统中，对电力系统中的电力设备进行定点图像采集，达到监测效果的装置；The fixed-point image data acquisition device is a device used in the power system to collect fixed-point images of the power equipment in the power system to achieve the monitoring effect;

然而现有的定点图像数据采集装置结构较为简单，其大多采用一体式结构，在进行安装时大多是直接通过螺栓固定在监测地点预设的支架上方，而采用螺栓就容易产生锈蚀，导致后期需要进行维修时拆卸不方便，难以进行维修，且这样的安装方式容易出现松动的现象，导致存在出现装置整体坠落的隐患，安全性不足。However, the structure of the existing fixed-point image data acquisition devices is relatively simple, and most of them adopt an integrated structure. When installing, most of them are directly fixed on the preset support of the monitoring site by bolts, and the use of bolts is easy to produce corrosion, which leads to later needs. It is inconvenient to disassemble during maintenance, and it is difficult to perform maintenance, and such an installation method is prone to loosening, resulting in the hidden danger of the entire device falling, and the safety is insufficient.

发明内容Contents of the invention

本发明的目的在于克服现有技术的缺陷，提供一种定点图像数据采集装置。The purpose of the present invention is to overcome the defects of the prior art and provide a fixed-point image data acquisition device.

为实现上述目的，本发明采用了如下技术方案：To achieve the above object, the present invention adopts the following technical solutions:

一种定点图像数据采集装置，包括用于进行图像数据采集的图像采集摄像头和用于对所述图像采集摄像头进行安装的安装悬架，所述安装悬架的内侧安装有下螺纹环套，所述图像采集摄像头的上方设置有安装螺杆，所述安装螺杆的顶部旋合插接在所述下螺纹环套内；A fixed-point image data acquisition device, including an image acquisition camera for image data acquisition and an installation suspension for installing the image acquisition camera, the inner side of the installation suspension is installed with a lower threaded ring sleeve, the The top of the image acquisition camera is provided with a mounting screw, and the top of the mounting screw is screwed and inserted into the lower threaded ring sleeve;

所述安装悬架的外侧安装有上螺纹环套，所述上螺纹环套上方通过螺纹旋合插接有悬杆，所述悬杆的顶部设置有挂环，所述挂环用于将所述悬杆悬挂在图像数据采集点相应的支架上。An upper threaded ring is installed on the outside of the mounting suspension, and a suspension rod is threaded and inserted above the upper threaded ring. The top of the suspension rod is provided with a hanging ring, and the hanging ring is used to connect the The suspension rod is suspended on the corresponding bracket of the image data collection point.

优选的，所述图像采集摄像头的顶部设置有顶罩，所述顶罩采用圆盘状结构，所述顶罩的顶部中心处嵌设有旋转盘，所述安装螺杆固定安装在所述旋转盘的顶部中心处。Preferably, the top of the image acquisition camera is provided with a top cover, the top cover adopts a disc-shaped structure, a rotating disk is embedded in the center of the top of the top cover, and the mounting screw is fixedly installed on the rotating disk at the top center of the .

优选的，所述安装悬架采用C型结构，所述上螺纹环套和所述下螺纹环套均设置有两个，两个所述上螺纹环套和所述下螺纹环套分别位于所述安装悬架的两端上方和下方处。Preferably, the mounting suspension adopts a C-shaped structure, and there are two upper threaded collars and two lower threaded collars, and the two upper threaded collars and the lower threaded collars are respectively located at the Above and below both ends of the mounting bracket as described above.

优选的，所述图像采集摄像头的下方处还设置有托环，所述托环呈圆环状，所述托环围合在所述图像采集摄像头的底部，所述安装悬架的内侧下方安装有螺纹柱，所述螺纹柱上套接有调高装置，所述托环的一侧通过连杆与所述调高装置连接。Preferably, a support ring is provided below the image acquisition camera, the support ring is in the shape of a ring, the support ring surrounds the bottom of the image acquisition camera, and the inner side of the installation suspension is installed There is a threaded column, and a height adjustment device is sleeved on the threaded column, and one side of the supporting ring is connected with the height adjustment device through a connecting rod.

优选的，所述调高装置包括调节螺套和升降套，所述调节螺套与所述升降套之间旋转连接，所述连杆的一端固定在所述升降套的外壁。Preferably, the height adjustment device includes an adjusting screw sleeve and a lifting sleeve, the adjusting screw sleeve is connected in rotation with the lifting sleeve, and one end of the connecting rod is fixed on the outer wall of the lifting sleeve.

优选的，所述调节螺套的下方固定安装有连轴管，所述升降套内部上方套接有轴承，所述连轴管套接在所述轴承的内部。Preferably, a coupling tube is fixedly installed under the adjusting screw sleeve, a bearing is sleeved above the inside of the lifting sleeve, and the shaft coupling tube is sleeved inside the bearing.

优选的，所述挂环包括上活动环和下固定环，所述上活动环的一端设置有锁定插件，所述上活动环的另一端设置有旋转插件，所述下固定环的两端均开设有插口，所述旋转插件通过销轴转动安装在其中一个所述插口内，所述锁定插件插接在另一个所述插口内并通过销钉固定。Preferably, the hanging ring includes an upper movable ring and a lower fixed ring, one end of the upper movable ring is provided with a locking insert, the other end of the upper movable ring is provided with a rotating insert, and both ends of the lower fixed ring are Sockets are provided, and the rotating insert is rotatably installed in one of the sockets through a pin shaft, and the locking insert is inserted in the other socket and fixed by a pin.

优选的，所述下固定环的内侧中心处设置有横向限位销柱。Preferably, a transverse limiting pin is arranged at the inner center of the lower fixing ring.

优选的，所述上活动环和所述下固定环均采用直径相同的半圆环形结构。Preferably, both the upper movable ring and the lower fixed ring adopt a semi-circular structure with the same diameter.

优选的，所述上螺纹环套和所述悬杆外壁均固定安装有防护环，两个所述防护环之间连接有防护绳。Preferably, protective rings are fixedly installed on the upper threaded collar and the outer wall of the suspension rod, and a protective rope is connected between the two protective rings.

本发明中，装置整体采用分体式结构，主要包括三个部分，分别为图像采集摄像头、安装悬架和悬杆，三个部分之间均采用可拆卸组装连接，这样的结构设置使得该装置在安装时方便快捷，同时在需要对该装置进行维修时方便进行维修；In the present invention, the device as a whole adopts a split structure, which mainly includes three parts, which are respectively an image acquisition camera, a mounting suspension and a suspension rod. The three parts are all connected by detachable assembly. Such a structural setting makes the device It is convenient and quick to install, and at the same time, it is convenient to repair the device when it needs to be repaired;

本发明中，图像采集摄像头的下方处还设置有托环，托环呈圆环状，托环围合在图像采集摄像头的底部，通过托环可以对图像采集摄像头的底部起到承托的效果，一方面可以保证图像采集摄像头的稳定性，另一方面可以防止图像采集摄像头受外界影响发生坠落，增加该装置的安全性；且托环的一侧通过连杆连接有调高装置，而调高装置活动套接在安装悬架内侧安装的螺纹柱上，这样的结构设置使得托环可以在调高装置的作用下调节水平高度，方便针对不同大小的图像采集摄像头调整位置，保证承托效果，提升了该装置的适用性；In the present invention, a support ring is also provided below the image acquisition camera, the support ring is in the shape of a ring, and the support ring surrounds the bottom of the image acquisition camera, and the bottom of the image acquisition camera can be supported by the support ring On the one hand, it can ensure the stability of the image acquisition camera, on the other hand, it can prevent the image acquisition camera from falling due to external influences, and increase the safety of the device; The height device is movably socketed on the threaded column installed on the inner side of the mounting suspension. This structural setting enables the support ring to adjust the horizontal height under the action of the height adjustment device, which is convenient for adjusting the position of the image acquisition cameras of different sizes to ensure the supporting effect , which improves the applicability of the device;

本发明中，挂环在进行悬挂时，只需要将固定锁定插件的销钉取下，打开上活动环，再通过上活动环和下固定环打开的口将挂环套接到图像数据采集点相应的支架上，重新旋转固定上活动环，即完成挂环的安装，操作方便快捷；且通过在下固定环的内侧中心处设置有横向限位销柱，这样在挂环进行安装后，横向限位销柱会销接固定在支架上相应的销孔内，这样可以防止挂环安装后发生滑动，增加整个装置安装后的稳定性和安全性；In the present invention, when the hanging ring is suspended, it is only necessary to remove the pin that fixes the locking insert, open the upper movable ring, and then connect the hanging ring to the corresponding image data collection point through the openings opened by the upper movable ring and the lower fixed ring. On the bracket, re-rotate and fix the upper movable ring to complete the installation of the hanging ring. The pins will be pinned and fixed in the corresponding pin holes on the bracket, which can prevent the sliding of the hanging ring after installation, and increase the stability and safety of the whole device after installation;

本发明中，上螺纹环套和悬杆外壁均固定安装有防护环，两个防护环之间连接有防护绳，这样当上螺纹环套和悬杆在旋合安装后，通过防护绳将上螺纹环套和悬杆上的防护环连接，这样可以保证上螺纹环套和悬杆连接的稳定，也可以防止当上螺纹环套和悬杆意外脱落时，整个装置发生坠落，提升该装置的安全性。In the present invention, a protective ring is fixedly installed on the upper threaded ring sleeve and the outer wall of the suspension rod, and a protective rope is connected between the two protective rings, so that after the upper threaded ring sleeve and the suspension rod are screwed together and installed, the upper The threaded collar is connected to the protective ring on the suspension rod, which can ensure the stability of the connection between the upper threaded collar and the suspension rod, and can also prevent the entire device from falling when the upper threaded collar and the suspension rod accidentally fall off. safety.

附图说明Description of drawings

图1是本发明的整体结构示意图；Fig. 1 is the overall structural representation of the present invention;

图2是本发明中安装悬架结构示意图；Fig. 2 is a schematic diagram of the installation suspension structure in the present invention;

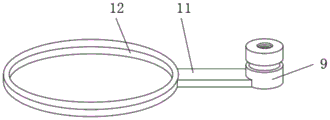

图3是本发明中托环安装结构示意图；Fig. 3 is a schematic diagram of the installation structure of the supporting ring in the present invention;

图4是本发明中调高装置结构示意图；Fig. 4 is a structural schematic diagram of the height adjustment device in the present invention;

图5是本发明中图像采集摄像头结构示意图；Fig. 5 is a structural schematic diagram of an image acquisition camera in the present invention;

图6是本发明中挂环安装结构示意图；Fig. 6 is a schematic diagram of the installation structure of the hanging ring in the present invention;

图7是本发明中挂环结构示意图；Fig. 7 is a schematic diagram of the structure of the hanging ring in the present invention;

图8是本发明图1中A区放大结构示意图。Fig. 8 is a schematic diagram of the enlarged structure of area A in Fig. 1 of the present invention.

附图标记：1、图像采集摄像头；2、顶罩；3、旋转盘；4、上螺纹环套；5、悬杆；6、挂环；601、锁定插件；602、上活动环；603、旋转插件；604、插口；605、下固定环；606、横向限位销柱；7、下螺纹环套；8、安装螺杆；9、调高装置；901、调节螺套；902、连轴管；903、轴承；904、升降套；10、螺纹柱；11、连杆；12、托环；13、安装悬架；14、防护环；15、防护绳。Reference signs: 1, image acquisition camera; 2, top cover; 3, rotating disc; 4, upper threaded ring sleeve; 5, suspension rod; 6, hanging ring; 601, locking plug-in unit; 602, upper movable ring; 603, Rotary plug-in; 604, socket; 605, lower fixed ring; 606, lateral limit pin; 7, lower threaded ring; 8, mounting screw; 9, height adjustment device; 901, adjusting screw sleeve; 902, coupling tube ; 903, bearing; 904, lifting cover; 10, threaded column; 11, connecting rod; 12, supporting ring; 13, mounting suspension; 14, protective ring;

具体实施方式Detailed ways

以下结合附图1-8，进一步说明本发明一种定点图像数据采集装置的具体实施方式。本发明一种定点图像数据采集装置不限于以下实施例的描述。The specific implementation of a fixed-point image data acquisition device of the present invention will be further described below in conjunction with accompanying drawings 1-8. A fixed-point image data acquisition device of the present invention is not limited to the description of the following embodiments.

实施例1：Example 1:

本实施例给出一种定点图像数据采集装置的具体结构，如图1所示，包括用于进行图像数据采集的图像采集摄像头1和用于对图像采集摄像头1进行安装的安装悬架13，安装悬架13的内侧安装有下螺纹环套7，图像采集摄像头1的上方设置有安装螺杆8，安装螺杆8的顶部旋合插接在下螺纹环套7内；This embodiment provides a specific structure of a fixed-point image data acquisition device, as shown in Figure 1, including an image acquisition camera 1 for image data acquisition and an installation suspension 13 for installing the image acquisition camera 1, The inner side of the installation suspension 13 is provided with a lower threaded collar 7, and the top of the image acquisition camera 1 is provided with a mounting screw 8, and the top of the mounting screw 8 is screwed and inserted in the lower threaded collar 7;

安装悬架13的外侧安装有上螺纹环套4，上螺纹环套4上方通过螺纹旋合插接有悬杆5，悬杆5的顶部设置有挂环6，挂环6用于将悬杆5悬挂在图像数据采集点相应的支架上。The outer side of the installation suspension 13 is equipped with an upper threaded ring sleeve 4, the top of the upper threaded ring sleeve 4 is threaded and inserted with a suspension rod 5, and the top of the suspension rod 5 is provided with a hanging ring 6, which is used to connect the suspension rod 5 is suspended on the corresponding bracket of the image data collection point.

通过采用上述技术方案：By adopting the above technical solutions:

该装置在使用时，只需要将图像采集摄像头1上方的安装螺杆8旋合安装到安装悬架13内侧的下螺纹环套7内，然后将悬杆5的底部旋合安装到上螺纹环套4内，再将挂环6悬挂到图像数据采集点相应的支架上即可，操作方便，安装快捷；When the device is in use, it is only necessary to screw the mounting screw 8 above the image acquisition camera 1 into the lower threaded collar 7 on the inside of the mounting suspension 13, and then screw the bottom of the suspension rod 5 into the upper threaded collar 4, then hang the hanging ring 6 on the corresponding bracket of the image data collection point, which is easy to operate and quick to install;

该装置采用分体式结构，主要包括三个部分，分别为图像采集摄像头1、安装悬架13和悬杆5，三个部分之间均采用可拆卸组装连接，这样的结构设置使得该装置在安装时方便快捷，同时在需要对该装置进行维修时方便进行维修。The device adopts a split structure, and mainly includes three parts, which are the image acquisition camera 1, the installation suspension 13 and the suspension rod 5, and the three parts are connected by detachable assembly. It is convenient and fast, and at the same time, it is convenient to maintain the device when it is necessary to maintain it.

实施例2：Example 2:

本实施例给出一种定点图像数据采集装置的具体结构，如图1和图5所示，包括用于进行图像数据采集的图像采集摄像头1和用于对图像采集摄像头1进行安装的安装悬架13，安装悬架13的内侧安装有下螺纹环套7，图像采集摄像头1的上方设置有安装螺杆8，安装螺杆8的顶部旋合插接在下螺纹环套7内；This embodiment provides a specific structure of a fixed-point image data acquisition device, as shown in Figure 1 and Figure 5, including an image acquisition camera 1 for image data acquisition and an installation suspension for installing the image acquisition camera 1 Frame 13, the inner side of the installation suspension 13 is provided with a lower threaded collar 7, the top of the image acquisition camera 1 is provided with a mounting screw 8, and the top of the mounting screw 8 is screwed and inserted into the lower threaded collar 7;

安装悬架13的外侧安装有上螺纹环套4，上螺纹环套4上方通过螺纹旋合插接有悬杆5，悬杆5的顶部设置有挂环6，挂环6用于将悬杆5悬挂在图像数据采集点相应的支架上。The outer side of the installation suspension 13 is equipped with an upper threaded ring sleeve 4, the top of the upper threaded ring sleeve 4 is threaded and inserted with a suspension rod 5, and the top of the suspension rod 5 is provided with a hanging ring 6, which is used to connect the suspension rod 5 is suspended on the corresponding bracket of the image data collection point.

图像采集摄像头1的顶部设置有顶罩2，顶罩2采用圆盘状结构，顶罩2的顶部中心处嵌设有旋转盘3，安装螺杆8固定安装在旋转盘3的顶部中心处。The top of the image acquisition camera 1 is provided with a top cover 2, the top cover 2 adopts a disc-shaped structure, the top center of the top cover 2 is embedded with a rotating disk 3, and the mounting screw 8 is fixedly installed at the top center of the rotating disk 3.

通过采用上述技术方案：By adopting the above technical solutions:

该装置通过在图像采集摄像头1的顶部设置采用圆盘状结构的顶罩2，通过顶罩2可以对图像采集摄像头1起到一定的保护效果。In the device, a disc-shaped top cover 2 is arranged on the top of the image collection camera 1 , and the top cover 2 can protect the image collection camera 1 to a certain extent.

实施例3：Example 3:

本实施例给出一种定点图像数据采集装置的具体结构，如图1-2所示，包括用于进行图像数据采集的图像采集摄像头1和用于对图像采集摄像头1进行安装的安装悬架13，安装悬架13的内侧安装有下螺纹环套7，图像采集摄像头1的上方设置有安装螺杆8，安装螺杆8的顶部旋合插接在下螺纹环套7内；This embodiment provides a specific structure of a fixed-point image data acquisition device, as shown in Figure 1-2, including an image acquisition camera 1 for image data acquisition and an installation suspension for installing the image acquisition camera 1 13. A lower threaded collar 7 is installed on the inner side of the installation suspension 13, and an installation screw 8 is arranged above the image acquisition camera 1, and the top of the installation screw 8 is screwed and inserted into the lower threaded collar 7;

安装悬架13的外侧安装有上螺纹环套4，上螺纹环套4上方通过螺纹旋合插接有悬杆5，悬杆5的顶部设置有挂环6，挂环6用于将悬杆5悬挂在图像数据采集点相应的支架上。The outer side of the installation suspension 13 is equipped with an upper threaded ring sleeve 4, the top of the upper threaded ring sleeve 4 is threaded and inserted with a suspension rod 5, and the top of the suspension rod 5 is provided with a hanging ring 6, which is used to connect the suspension rod 5 is suspended on the corresponding bracket of the image data collection point.

安装悬架13采用C型结构，上螺纹环套4和下螺纹环套7均设置有两个，两个上螺纹环套4和下螺纹环套7分别位于安装悬架13的两端上方和下方处。The mounting suspension 13 adopts a C-shaped structure, and two upper threaded ring sleeves 4 and lower threaded ring sleeves 7 are provided. below.

通过采用上述技术方案：By adopting the above technical solutions:

该装置通过将安装悬架13采用C型结构，使得图像采集摄像头1在进行安装时更加方便(在旋转时不会受到安装悬架13的影响)，而该装置通过将上螺纹环套4和下螺纹环套7均设置有两个，两个上螺纹环套4和下螺纹环套7分别位于安装悬架13的两端上方和下方处，这样的结构设置使得该安装悬架13在安装图像采集摄像头1时，可以根据需要调节安装悬架13的正反，使安装更加方便。The device adopts a C-shaped structure by installing the suspension 13, so that the image acquisition camera 1 is more convenient to install (it will not be affected by the installation suspension 13 when rotating), and the device adopts the upper threaded ring sleeve 4 and There are two lower threaded collars 7, and the two upper threaded collars 4 and the lower threaded collars 7 are respectively located above and below the two ends of the mounting suspension 13. Such a structural setting makes the mounting suspension 13 When the image acquisition camera 1 is used, the pros and cons of the installation suspension 13 can be adjusted as required, making the installation more convenient.

实施例4：Example 4:

本实施例给出一种定点图像数据采集装置的具体结构，如图3-4所示，包括用于进行图像数据采集的图像采集摄像头1和用于对图像采集摄像头1进行安装的安装悬架13，安装悬架13的内侧安装有下螺纹环套7，图像采集摄像头1的上方设置有安装螺杆8，安装螺杆8的顶部旋合插接在下螺纹环套7内；This embodiment provides a specific structure of a fixed-point image data acquisition device, as shown in Figure 3-4, including an image acquisition camera 1 for image data acquisition and an installation suspension for installing the image acquisition camera 1 13. A lower threaded collar 7 is installed on the inner side of the installation suspension 13, and an installation screw 8 is arranged above the image acquisition camera 1, and the top of the installation screw 8 is screwed and inserted into the lower threaded collar 7;

安装悬架13的外侧安装有上螺纹环套4，上螺纹环套4上方通过螺纹旋合插接有悬杆5，悬杆5的顶部设置有挂环6，挂环6用于将悬杆5悬挂在图像数据采集点相应的支架上。The outer side of the installation suspension 13 is equipped with an upper threaded ring sleeve 4, the top of the upper threaded ring sleeve 4 is threaded and inserted with a suspension rod 5, and the top of the suspension rod 5 is provided with a hanging ring 6, which is used to connect the suspension rod 5 is suspended on the corresponding bracket of the image data collection point.

安装悬架13采用C型结构，上螺纹环套4和下螺纹环套7均设置有两个，两个上螺纹环套4和下螺纹环套7分别位于安装悬架13的两端上方和下方处。The mounting suspension 13 adopts a C-shaped structure, and two upper threaded ring sleeves 4 and lower threaded ring sleeves 7 are provided. below.

图像采集摄像头1的下方处还设置有托环12，托环12呈圆环状，托环12围合在图像采集摄像头1的底部，安装悬架13的内侧下方安装有螺纹柱10，螺纹柱10上套接有调高装置9，托环12的一侧通过连杆11与调高装置9连接。The bottom of the image acquisition camera 1 is also provided with a support ring 12, the support ring 12 is circular, the support ring 12 is enclosed at the bottom of the image acquisition camera 1, and a threaded column 10 is installed on the inner side of the installation suspension 13, and the threaded column 10 is sleeved with a height adjustment device 9, and one side of the support ring 12 is connected with the height adjustment device 9 through a connecting rod 11.

调高装置9包括调节螺套901和升降套904，调节螺套901与升降套904之间旋转连接，连杆11的一端固定在升降套904的外壁。The height-adjusting device 9 includes an adjusting screw sleeve 901 and a lifting sleeve 904, which are rotationally connected between the adjusting screw sleeve 901 and the lifting sleeve 904, and one end of the connecting rod 11 is fixed on the outer wall of the lifting sleeve 904.

调节螺套901的下方固定安装有连轴管902，升降套904内部上方套接有轴承903，连轴管902套接在轴承903的内部，连轴管902、升降套904的内径均大于螺纹柱10的内径。A coupling tube 902 is fixedly installed below the adjusting screw sleeve 901, and a bearing 903 is sleeved on the top of the lifting sleeve 904. The coupling tube 902 is sleeved inside the bearing 903. The inner diameters of the coupling tube 902 and the lifting sleeve 904 are larger than the screw thread. The inner diameter of the column 10.

通过采用上述技术方案：By adopting the above technical solutions:

该装置中图像采集摄像头1的下方处还设置有托环12，托环12呈圆环状，托环12围合在图像采集摄像头1的底部，通过托环12可以对图像采集摄像头1的底部起到承托的效果，一方面可以保证图像采集摄像头1的稳定性，另一方面可以防止图像采集摄像头1受外界影响发生坠落，增加该装置的安全性；In this device, the bottom of the image acquisition camera 1 is also provided with a support ring 12, the support ring 12 is circular, and the support ring 12 is enclosed at the bottom of the image acquisition camera 1, and the bottom of the image acquisition camera 1 can be fixed by the support ring 12. It has the effect of supporting, on the one hand, it can ensure the stability of the image acquisition camera 1, and on the other hand, it can prevent the image acquisition camera 1 from falling due to external influences, increasing the safety of the device;

该装置通过在托环12的一侧通过连杆11连接有调高装置9，而调高装置9活动套接在安装悬架13内侧安装的螺纹柱10上，这样的结构设置使得托环12可以在调高装置9的作用下调节水平高度，方便针对不同大小的图像采集摄像头1调整位置，保证承托效果，提升了该装置的适用性；The device is connected with a height adjustment device 9 through a connecting rod 11 on one side of the support ring 12, and the height adjustment device 9 is movably sleeved on the threaded column 10 installed inside the installation suspension 13. Such a structural setting makes the support ring 12 The horizontal height can be adjusted under the action of the height adjustment device 9, which is convenient for adjusting the position of the image acquisition cameras 1 of different sizes, ensures the supporting effect, and improves the applicability of the device;

该装置在需要调节托环12的高度时，只需要旋转调节螺套901，而调节螺套901与螺纹柱10的螺纹向契合，因此调节螺套901旋转时会上下移动，达到调节托环12高度的效果。When the device needs to adjust the height of the support ring 12, it only needs to rotate the adjusting screw sleeve 901, and the adjusting screw sleeve 901 matches the thread direction of the threaded column 10, so the adjusting screw sleeve 901 will move up and down when rotating to reach the height of the adjustment screw sleeve 12. height effect.

实施例5：Example 5:

本实施例给出一种定点图像数据采集装置的具体结构，如图6-7所示，包括用于进行图像数据采集的图像采集摄像头1和用于对图像采集摄像头1进行安装的安装悬架13，安装悬架13的内侧安装有下螺纹环套7，图像采集摄像头1的上方设置有安装螺杆8，安装螺杆8的顶部旋合插接在下螺纹环套7内；This embodiment provides a specific structure of a fixed-point image data acquisition device, as shown in Figure 6-7, including an image acquisition camera 1 for image data acquisition and an installation suspension for installing the image acquisition camera 1 13. A lower threaded collar 7 is installed on the inner side of the installation suspension 13, and an installation screw 8 is arranged above the image acquisition camera 1, and the top of the installation screw 8 is screwed and inserted into the lower threaded collar 7;

安装悬架13的外侧安装有上螺纹环套4，上螺纹环套4上方通过螺纹旋合插接有悬杆5，悬杆5的顶部设置有挂环6，挂环6用于将悬杆5悬挂在图像数据采集点相应的支架上。The outer side of the installation suspension 13 is equipped with an upper threaded ring sleeve 4, the top of the upper threaded ring sleeve 4 is threaded and inserted with a suspension rod 5, and the top of the suspension rod 5 is provided with a hanging ring 6, which is used to connect the suspension rod 5 is suspended on the corresponding bracket of the image data collection point.

安装悬架13采用C型结构，上螺纹环套4和下螺纹环套7均设置有两个，两个上螺纹环套4和下螺纹环套7分别位于安装悬架13的两端上方和下方处。The mounting suspension 13 adopts a C-shaped structure, and two upper threaded ring sleeves 4 and lower threaded ring sleeves 7 are provided. below.

挂环6包括上活动环602和下固定环605，上活动环602的一端设置有锁定插件601，上活动环602的另一端设置有旋转插件603，下固定环605的两端均开设有插口604，旋转插件603通过销轴转动安装在其中一个插口604内，锁定插件601插接在另一个插口604内并通过销钉固定。The hanging ring 6 comprises an upper movable ring 602 and a lower fixed ring 605, one end of the upper movable ring 602 is provided with a locking insert 601, the other end of the upper movable ring 602 is provided with a rotating insert 603, and both ends of the lower fixed ring 605 are provided with sockets 604, the rotating insert 603 is rotatably installed in one of the sockets 604 through a pin shaft, and the locking insert 601 is inserted in the other socket 604 and fixed by a pin.

下固定环605的内侧中心处设置有横向限位销柱606。A transverse limiting pin 606 is disposed at the inner center of the lower fixing ring 605 .

上活动环602和下固定环605均采用直径相同的半圆环形结构。Both the upper movable ring 602 and the lower fixed ring 605 adopt a semi-circular structure with the same diameter.

通过采用上述技术方案：By adopting the above technical solutions:

挂环6在进行悬挂时，首先将固定锁定插件601的销钉取下，此时，锁定插件601可以从插口604内旋出，即上活动环602可以通过旋转打开，再通过上活动环602和下固定环605打开的口将挂环6套接到图像数据采集点相应的支架上，然后再旋转上活动环602，使锁定插件601重新插入插口604，并穿插上销钉，即完成挂环6的安装，操作方便快捷；Hanging ring 6 is when hanging, at first the pin of fixing locking plug-in unit 601 is taken off, and at this moment, locking plug-in unit 601 can be unscrewed from socket 604, promptly upper movable ring 602 can be opened by rotation, then by upper movable ring 602 and The opening of the lower fixed ring 605 connects the hanging ring 6 to the corresponding bracket of the image data collection point, and then rotates the upper movable ring 602 so that the locking plug 601 is reinserted into the socket 604, and the upper pin is inserted to complete the hanging ring 6. Easy installation and quick operation;

该装置通过在下固定环605的内侧中心处设置有横向限位销柱606，这样在挂环6进行安装后，横向限位销柱606会销接固定在支架上相应的销孔内，这样可以防止挂环6安装后发生滑动，增加整个装置安装后的稳定性和安全性。The device is provided with a transverse limit pin 606 at the center of the inner side of the lower fixed ring 605, so that after the hanging ring 6 is installed, the transverse limit pin 606 can be pinned and fixed in the corresponding pin hole on the support, so that Prevent the hanging ring 6 from sliding after installation, and increase the stability and safety of the entire device after installation.

实施例6：Embodiment 6:

本实施例给出一种定点图像数据采集装置的具体结构，如图8所示，包括用于进行图像数据采集的图像采集摄像头1和用于对图像采集摄像头1进行安装的安装悬架13，安装悬架13的内侧安装有下螺纹环套7，图像采集摄像头1的上方设置有安装螺杆8，安装螺杆8的顶部旋合插接在下螺纹环套7内；This embodiment provides a specific structure of a fixed-point image data acquisition device, as shown in Figure 8, including an image acquisition camera 1 for image data acquisition and an installation suspension 13 for installing the image acquisition camera 1, The inner side of the installation suspension 13 is provided with a lower threaded collar 7, and the top of the image acquisition camera 1 is provided with a mounting screw 8, and the top of the mounting screw 8 is screwed and inserted in the lower threaded collar 7;

安装悬架13的外侧安装有上螺纹环套4，上螺纹环套4上方通过螺纹旋合插接有悬杆5，悬杆5的顶部设置有挂环6，挂环6用于将悬杆5悬挂在图像数据采集点相应的支架上。The outer side of the installation suspension 13 is equipped with an upper threaded ring sleeve 4, the top of the upper threaded ring sleeve 4 is threaded and inserted with a suspension rod 5, and the top of the suspension rod 5 is provided with a hanging ring 6, which is used to connect the suspension rod 5 is suspended on the corresponding bracket of the image data collection point.

安装悬架13采用C型结构，上螺纹环套4和下螺纹环套7均设置有两个，两个上螺纹环套4和下螺纹环套7分别位于安装悬架13的两端上方和下方处。The mounting suspension 13 adopts a C-shaped structure, and two upper threaded ring sleeves 4 and lower threaded ring sleeves 7 are provided. below.

上螺纹环套4和悬杆5外壁均固定安装有防护环14，两个防护环14之间连接有防护绳15。A protective ring 14 is fixedly installed on the upper threaded ring sleeve 4 and the outer wall of the suspension rod 5 , and a protective rope 15 is connected between the two protective rings 14 .

通过采用上述技术方案：By adopting the above technical solutions:

当上螺纹环套4和悬杆5在旋合安装后，通过防护绳15将上螺纹环套4和悬杆5上的防护环14连接，这样可以保证上螺纹环套4和悬杆5连接的稳定，也可以防止当上螺纹环套4和悬杆5意外脱落时，整个装置发生坠落，提升该装置的安全性。After the upper threaded ring sleeve 4 and the suspension rod 5 are screwed and installed, the upper threaded ring sleeve 4 and the protective ring 14 on the suspension rod 5 are connected by the protective rope 15, so as to ensure that the upper threaded ring sleeve 4 and the suspension rod 5 are connected. The stability can also prevent the entire device from falling when the upper threaded collar 4 and the suspension rod 5 accidentally fall off, thereby improving the safety of the device.

以上内容是结合具体的优选实施方式对本发明所作的进一步详细说明，不能认定本发明的具体实施只局限于这些说明。对于本发明所属技术领域的普通技术人员来说，在不脱离本发明构思的前提下，还可以做出若干简单推演或替换，都应当视为属于本发明的保护范围。The above content is a further detailed description of the present invention in conjunction with specific preferred embodiments, and it cannot be assumed that the specific implementation of the present invention is limited to these descriptions. For those of ordinary skill in the technical field of the present invention, without departing from the concept of the present invention, some simple deduction or replacement can be made, which should be regarded as belonging to the protection scope of the present invention.

Claims (10)

1. Fixed point image data collection system, including being used for carrying out image data acquisition's image acquisition camera (1) and being used for to image acquisition camera (1) installs suspension (13), its characterized in that: a lower thread ring sleeve (7) is arranged on the inner side of the mounting suspension (13), a mounting screw (8) is arranged above the image acquisition camera (1), and the top of the mounting screw (8) is screwed and spliced in the lower thread ring sleeve (7);
the outside of installation suspension (13) is installed and is gone up screw thread ring cover (4), go up screw thread ring cover (4) top and have pegged graft through the screw thread and have been pegged graft cantilever (5), the top of cantilever (5) is provided with link (6), link (6) are used for with cantilever (5) hang on the corresponding support of image data acquisition point.
2. A fixed point image data acquisition device as claimed in claim 1, characterized in that: the top of image acquisition camera (1) is provided with top cap (2), top cap (2) adopts discoid structure, top center department of top cap (2) inlays and is equipped with rotary disk (3), installation screw rod (8) fixed mounting is in the top center department of rotary disk (3).
3. A fixed point image data acquisition device as claimed in claim 1, characterized in that: the mounting suspension (13) adopts a C-shaped structure, two upper thread loops (4) and two lower thread loops (7) are arranged, and the two upper thread loops (4) and the lower thread loops (7) are respectively positioned above and below two ends of the mounting suspension (13).
4. A fixed point image data acquisition device as claimed in claim 3, characterized in that: the camera is characterized in that a supporting ring (12) is further arranged below the image acquisition camera (1), the supporting ring (12) is in a circular ring shape, the supporting ring (12) encloses the bottom of the image acquisition camera (1), a threaded column (10) is arranged below the inner side of the installation suspension (13), a height adjusting device (9) is sleeved on the threaded column (10), and one side of the supporting ring (12) is connected with the height adjusting device (9) through a connecting rod (11).
5. The fixed point image data acquisition device of claim 4 wherein: the height adjusting device (9) comprises an adjusting screw sleeve (901) and a lifting sleeve (904), the adjusting screw sleeve (901) is rotatably connected with the lifting sleeve (904), and one end of the connecting rod (11) is fixed on the outer wall of the lifting sleeve (904).
6. The fixed point image data acquisition device of claim 5, wherein: the lower part of the adjusting screw sleeve (901) is fixedly provided with a connecting shaft tube (902), a bearing (903) is sleeved on the upper part inside the lifting sleeve (904), and the connecting shaft tube (902) is sleeved inside the bearing (903).
7. A fixed point image data acquisition device as claimed in claim 1, characterized in that: the hanging ring (6) comprises an upper movable ring (602) and a lower fixed ring (605), a locking plug-in (601) is arranged at one end of the upper movable ring (602), a rotary plug-in (603) is arranged at the other end of the upper movable ring (602), inserting holes (604) are formed in two ends of the lower fixed ring (605), the rotary plug-in (603) is rotatably arranged in one of the inserting holes (604) through a pin shaft, and the locking plug-in (601) is inserted into the other inserting hole (604) and fixed through a pin.
8. The fixed point image data acquisition device of claim 7, wherein: a transverse limiting pin (606) is arranged at the inner center of the lower fixing ring (605).
9. The fixed point image data acquisition device of claim 7, wherein: the upper movable ring (602) and the lower fixed ring (605) are both in semicircular structures with the same diameter.
10. A fixed point image data acquisition device as claimed in claim 1, characterized in that: the upper thread ring sleeve (4) and the outer wall of the suspension rod (5) are fixedly provided with protection rings (14), and a protection rope (15) is connected between the two protection rings (14).
CN202210044253.3A 2022-01-14 2022-01-14 Fixed-point image data acquisition device Active CN114500800B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202210044253.3A CN114500800B (en) 2022-01-14 2022-01-14 Fixed-point image data acquisition device

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202210044253.3A CN114500800B (en) 2022-01-14 2022-01-14 Fixed-point image data acquisition device

Publications (2)

Publication Number Publication Date
CN114500800A CN114500800A (en) 2022-05-13
CN114500800B true CN114500800B (en) 2023-06-16

Family

ID=81512605

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202210044253.3A Active CN114500800B (en) 2022-01-14 2022-01-14 Fixed-point image data acquisition device

Country Status (1)

Country Link
CN (1) CN114500800B (en)

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE202004012743U1 (en) * 2004-08-14 2004-10-14 Schlenstedt, Klaus Floating stand for cameras e.g. video cameras has flexible holder bracket between camera fastening and counterweight to prevent transmission of vibrations to cameras
CN206650743U (en) * 2017-03-13 2017-11-17 浙江大华技术股份有限公司 A kind of image capture device
CN212510159U (en) * 2020-05-10 2021-02-09 重庆志强时代科技有限公司 Road traffic information support for image acquisition
CN214947514U (en) * 2021-02-18 2021-11-30 信阳农林学院 An image acquisition device for visual communication

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE202004012743U1 (en) * 2004-08-14 2004-10-14 Schlenstedt, Klaus Floating stand for cameras e.g. video cameras has flexible holder bracket between camera fastening and counterweight to prevent transmission of vibrations to cameras
CN206650743U (en) * 2017-03-13 2017-11-17 浙江大华技术股份有限公司 A kind of image capture device
CN212510159U (en) * 2020-05-10 2021-02-09 重庆志强时代科技有限公司 Road traffic information support for image acquisition
CN214947514U (en) * 2021-02-18 2021-11-30 信阳农林学院 An image acquisition device for visual communication

Also Published As

Publication number Publication date
CN114500800A (en) 2022-05-13

Similar Documents

Publication Publication Date Title
CN103663131B (en) Fixture, maintenance assembly and method for maintaining a wind turbine gearbox
CN103009030B (en) Parts processing system for wind-driven generator
CN105253795A (en) Method and device for blade replacement in wind turbines
CN114500800B (en) Fixed-point image data acquisition device
CN204829795U (en) Can empty formula lamp pole
CN209744218U (en) Street lamp convenient to change bulb
CN208792359U (en) It is a kind of to use advanced composite material (ACM) electric power line pole tower anti-tipping apparatus
CN105947900A (en) Energy-saving hoisting construction device
CN106586914B (en) Pole-climbing lifter
CN208152202U (en) A kind of municipal works drainage inspection well anti-fall device
CN109506175A (en) A kind of portable high-altitude street lamp more changing device
CN108869879B (en) Application of heat collecting pipe mounting tool
CN216243654U (en) Interim lighting apparatus of construction engineering
CN211428770U (en) Universal mounting bracket for power line on-line monitoring device
CN208331443U (en) A kind of nonpetroleum support of pipelines
CN208329819U (en) Power equipment support column
WO2018233786A1 (en) Lifting system for a moment bearing, a method of mounting and dismounting a moment bearing and use of such lifting system
CN209370763U (en) A kind of equipment inspection and nameplate wireless collection device
CN209248124U (en) A kind of outer box installation part of multifiber cable connector box
CN107069560B (en) Power circuit maintenance device
CN220416900U (en) An installation and positioning device for comprehensive energy collection equipment
CN208585870U (en) A kind of cable laying bracket
CN217358965U (en) Graphic display device for urban pipeline detection
CN207132256U (en) Street lamp tilting device
CN216045848U (en) Mounting bracket for fire fighting equipment mounting engineering

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
GR01 Patent grant
GR01 Patent grant
