Abstract
The invention discloses a sealing wool top convenient to embed, which is characterized in that: the sealing device comprises a bottom plate and a sealing wire which extends along the length direction of the bottom plate and is compounded on the bottom plate, wherein the width of the bottom plate is larger than that of the sealing wire so as to reserve clamping edges at two sides; the clamping edge is provided with a plurality of notches arranged along the length direction of the clamping edge, and a clamping bulge matched with the clamping groove is formed between every two adjacent notches. The bottom plate of the sealing wool top can be conveniently embedded into the clamping groove of the door and window, and the possibility that the sealing wool top is broken in the embedding process can be reduced.
Description
Technical Field
The invention relates to the field of sealing elements, in particular to a sealing wool top convenient to embed.
Background
The door and window sealing strip is a bottom plate made of high-quality random polypropylene serving as a raw material, is synthesized with siliconized polypropylene fiber and a polypropylene film, is unique in product design, passes the detection qualification of the national building material test center, and is a high-grade product applied to sealing of doors, windows, furniture, dust collectors and the like.
In the prior art, the sealing wool tops are installed in the clamping grooves of doors and windows in an embedded mode. Specifically, the clamping groove on the door and window is of a T-shaped structure, the bottom plate of the sealing wool top is matched in the clamping groove, and the width of the bottom plate of the sealing wool top is larger than the width of the notch of the clamping groove to form positioning. The sealing wool tops are connected with the clamping grooves in a sealing mode. In the process of embedding the sealing wool tops into the clamping grooves, the two edges of the sealing wool tops, namely the parts of the bottom plate corresponding to the two sides of the sealing wire, need to be clamped into the clamping grooves in an extrusion deformation mode. Because the border length that needs the deformation card slot of impressing on the bottom plate is great, along the whole complete border that bottom plate length direction extended promptly, the required pressure that leads to the bottom plate border to warp is great relatively, also leads to the bottom plate border to be creased the problem in the in-process of buckling easily simultaneously, consequently has the space of improving.
Disclosure of Invention
Aiming at the defects of the prior art, the invention provides the sealing wool top convenient to embed, which not only can facilitate the embedding of the bottom plate of the sealing wool top into the clamping groove of a door and window, but also can reduce the possibility that the sealing wool top is broken in the embedding process.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a sealed top wool convenient to inlay dress, characterized by: the sealing device comprises a bottom plate and a sealing wire which extends along the length direction of the bottom plate and is compounded on the bottom plate, wherein the width of the bottom plate is larger than that of the sealing wire so as to reserve clamping edges at two sides;
the clamping edge is provided with a plurality of notches arranged along the length direction of the clamping edge, and a clamping bulge matched with the clamping groove is formed between every two adjacent notches.
Preferably, the clamping protrusion is of an isosceles trapezoid structure.
Preferably, the notches on the two clamping edges are arranged in a staggered manner.
Preferably, the length of the notch is smaller than that of the clamping protrusion.
Preferably, a sponge layer is compounded on one side of the bottom plate, which is back to the sealing wire.
The invention has the advantages that: the arrangement of the notches on the clamping edge can enable the clamping edge to form clamping bulges which are arranged discontinuously, and in the process of clamping the clamping bulges into the clamping grooves, the clamping bulges which are arranged discontinuously are only required to be clamped into the clamping grooves one by one; the clamping protrusions are clamped one by one, compared with the conventional continuous clamping edge clamping without notches, the required force is small, and meanwhile, the damage is avoided, so that the clamping convenience of operators is obviously improved.
Drawings

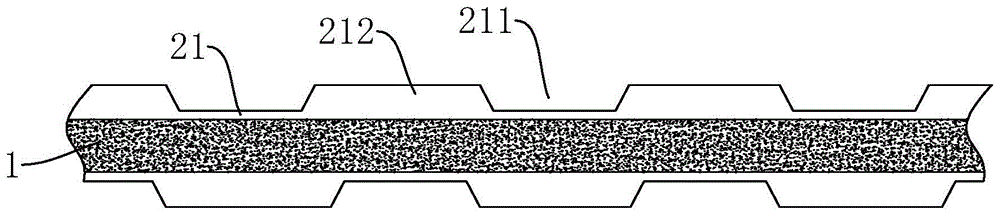

FIG. 1 is a top view of the sealing top wool convenient for embedding provided by the embodiment;
fig. 2 is a schematic view of the sealing top wool provided by the embodiment and convenient to embed in the clamping groove.
Detailed Description
The sealing top strip which is easy to embed according to the present invention will be further described with reference to fig. 1 to 2.
The utility model provides a sealed top wool convenient to inlay dress, characterized by: the sealing device comprises a bottom plate 2 and a sealing wire 1 which extends along the length direction of the bottom plate 2 and is compounded on the bottom plate 2, wherein the width of the bottom plate 2 is greater than that of the sealing wire 1, so that clamping edges 21 are reserved on two sides of the bottom plate 2. The clamping edge 21 is provided with a plurality of notches 211 arranged along the length direction of the clamping edge 21, and a clamping protrusion 212 clamped with the clamping groove 3 is formed between every two adjacent notches 211.
In the process of being clamped into the clamping groove 3, the clamping protrusions 212 which are arranged discontinuously are only required to be clamped into the clamping groove 3 one by one; compared with the conventional continuous clamping edge clamping without notches 211, the clamping protrusions 212 are clamped one by one, the required force is small, and meanwhile, damage cannot be caused or the possibility of damage is relatively low, so that the clamping convenience of operators is remarkably improved. Specifically, in the process of clamping the clamping edge without the notch 211, the clamping edge cannot be clamped into the clamping groove 3 at one time because the extending length of the clamping edge is long, and the clamping edge can only be gradually clamped into the clamping groove 3 along the length direction of the clamping edge. Under the clamping structure, part of the clamping edge 21 is positioned in the clamping groove 3, and the other part of the clamping edge is positioned outside the clamping groove 3, so that the notch 31 of the clamping groove 3 always extrudes the local position of the clamping edge, and the clamping edge which is positioned at the notch 31 and is not entering the clamping groove 3 and is about to enter the clamping groove 3 is easily damaged by pressure by the notch 31 of the clamping groove 3; in the present invention, one clamping edge 21 is inserted into the clamping groove 3, and the clamping protrusions 212 on the other clamping edge 21 are clamped into the clamping grooves 3 one by one. In the process, the clamping protrusion 212 is short in length, so that the clamping protrusion can be clamped into the clamping groove 3 at one time, and the time that the clamping protrusion 212 is positioned at the notch 31 of the clamping groove 3 and is extruded and deformed by the notch of the clamping groove is reduced, so that the clamping protrusion is not easy to damage in the clamping process; meanwhile, the length of the clamping protrusion is short, so that the force required for deformation when the clamping protrusion is clamped into the clamping groove is small, and the operation of an operator is facilitated.
The clamping protrusion 212 is of an isosceles trapezoid structure. The trapezoidal structure has stable in structure, and the characteristics that intensity is high can avoid joint arch 212 to take place the problem of losing deforming and entering into draw-in groove 3 in-process, can promote the stability that clamps in draw-in groove 3 again.
The notches 211 on the two clamping edges 21 are arranged in a staggered mode, and the length of each notch 211 is smaller than that of each clamping protrusion 212. Under this structure, make whole bottom plate 2 all have the protruding 212 joint location of joint on length direction, promote the stability of bottom plate 2 and draw-in groove 3 joint.
And a sponge layer is compounded on one side of the bottom plate 2 back to the sealing wire 1, namely one side of the bottom plate 2 facing the bottom wall of the clamping groove 3. The structure can obviously improve the sealing performance of the matching between the sealing wool tops and the clamping grooves 3. As another embodiment, the sponge layer, the bottom plate 2 and the clamping groove 3 are of a split structure, and the sponge layer is directly padded between the bottom walls of the bottom plate 2 and the clamping groove 3, so that later-stage detachment is facilitated.
Unless otherwise specified, in the present invention, if there is an orientation or positional relationship indicated by terms of "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", etc., based on the orientation or positional relationship shown in the drawings, it is only for convenience of describing the present invention and simplifying the description, rather than to indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, therefore, the terms describing orientation or positional relationship in the present invention are for illustrative purposes only, and should not be construed as limiting the present patent, specific meanings of the above terms can be understood by those of ordinary skill in the art in light of the specific circumstances in conjunction with the accompanying drawings.
Unless expressly stated or limited otherwise, the terms "disposed," "connected," and "connected" are used broadly and encompass, for example, being fixedly connected, detachably connected, or integrally connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The above description is only a preferred embodiment of the present invention, and the protection scope of the present invention is not limited to the above embodiments, and all technical solutions belonging to the idea of the present invention belong to the protection scope of the present invention. It should be noted that modifications and embellishments within the scope of the invention may occur to those skilled in the art without departing from the principle of the invention, and are considered to be within the scope of the invention.
Claims (5)
1. The utility model provides a sealed top wool convenient to inlay dress, characterized by: the sealing device comprises a bottom plate and a sealing wire which extends along the length direction of the bottom plate and is compounded on the bottom plate, wherein the width of the bottom plate is larger than that of the sealing wire so as to reserve clamping edges at two sides;
the clamping edge is provided with a plurality of notches arranged along the length direction of the clamping edge, and a clamping bulge matched with the clamping groove is formed between every two adjacent notches.
2. The sealing top wool easy to embed as set forth in claim 1, wherein: the clamping protrusion is of an isosceles trapezoid structure.
3. The sealing top wool easy to embed as set forth in claim 1, wherein: the notches on the two clamping edges are arranged in a staggered mode.
4. The sealing top wool easy to embed as set forth in claim 3, wherein: the length of the notch is smaller than that of the clamping protrusion.
5. The sealing top wool easy to embed as set forth in claim 1, wherein: and a sponge layer is compounded on one side of the bottom plate back to the sealing wire.
