Abstract
本发明公开了一种具备防洒料功能的烟草喂丝机，包括底架(1)，所述底架(1)的顶部固定安装有机体(2)和传送带机构(3)，所述机体(2)的内部设置有除杂装置(4)，所述底架(1)的两侧分别设置有一个安装块(572)，所述传送带机构(3)的上方设置有防跑料清洁装置(5)，所述防跑料清洁装置(5)与两个所述安装块(572)固定连接。本发明能够在传送烟丝时有效防止烟丝从传送带两侧洒落，减少烟丝的浪费。
The invention discloses a tobacco thread feeding machine with an anti-sprinkling function, comprising a bottom frame (1), a top of the bottom frame (1) is fixedly mounted with an organic body (2) and a conveyor belt mechanism (3), the body ( 2) An impurity removal device (4) is provided inside, a mounting block (572) is provided on both sides of the bottom frame (1), and an anti-running material cleaning device ( 5), the anti-running material cleaning device (5) is fixedly connected with the two mounting blocks (572). The invention can effectively prevent the shredded tobacco from falling from both sides of the conveyor belt when the shredded tobacco is conveyed, and reduce the waste of the shredded tobacco.
Description
Technical Field
The invention relates to a tobacco shred feeder with a material spilling prevention function.
Background
The tobacco shred feeder is a production device which distributes tobacco shreds to a cigarette making machine by adopting the principle of negative pressure air, and before the tobacco shreds are distributed, impurities are mixed in the tobacco shreds, and the tobacco shreds are usually required to be fed after being removed by an impurity removal mechanism.
Common wire feeding machine all is provided with the transport mechanism of conveying pipe tobacco, and transport mechanism is when conveying the pipe tobacco, very takes place to sideslip on the conveyer belt easily, leads to the pipe tobacco unrestrained to ground, and the easy adhesion of impurity in the pipe tobacco is on the conveyer belt, and the clearance is got up very inconveniently.
Disclosure of Invention
The invention aims to provide a tobacco shred feeder with a material spilling prevention function, which can effectively prevent tobacco shreds from spilling from two sides of a conveyor belt when the tobacco shreds are conveyed and reduce the waste of the tobacco shreds.
The invention provides a tobacco shred feeder with a material spilling prevention function, which comprises a bottom frame, wherein a machine body and a conveyor belt mechanism are fixedly arranged at the top of the bottom frame, an impurity removing device is arranged in the machine body, two mounting blocks are respectively arranged on two sides of the bottom frame, a material spilling prevention cleaning device is arranged above the conveyor belt mechanism, and the material spilling prevention cleaning device is fixedly connected with the two mounting blocks through a connecting structure.
In the aforesaid possesses in the tobacco thread feeding machine of anti-spillage material function, preferably, prevent running material cleaning device include the U-shaped frame, prevent running material structure and clean structure, be provided with adjusting part on the U-shaped frame, prevent running material structure with clean structure all with adjusting part connects.
In the aforesaid possesses tobacco wire feeding machine of anti-spillage material function, preferably, adjusting part includes dwang and first operation piece, prevent running the material structure and include rack plate and baffle, the upper portion of dwang pass through the bearing with the roof rotatable coupling of U-shaped frame, the top of dwang with first operation piece fixed connection, the lower extreme fixedly connected with threaded rod of dwang, the bottom fixed mounting of threaded rod has a gear, the quantity of rack plate is two, two rack plate parallel arrangement, and all follow conveyor belt mechanism's width direction arranges, two rack plate all with the gear meshes mutually, two the both ends of rack plate all are provided with the slide bar of horizontal arrangement, the slide bar with the curb plate grafting and the sliding connection of U-shaped frame, the quantity of baffle is two, two the baffle sets up respectively conveyor belt mechanism's both sides, two the baffle is followed conveyor belt mechanism's length direction arranges, and one of them baffle passes through the first connecting rod and one of them rack plate's bottom fixed connection, another the baffle passes through the first connecting rod and another rack plate's bottom fixed connection.
In the tobacco shred feeder with the material sprinkling prevention function, preferably, the cleaning structure comprises a screw hole plate, a brush plate and an auxiliary rod, a screw hole is formed in the center of the screw hole plate, the screw hole plate is in threaded connection with a threaded rod, the screw hole plate is located above a gear, the bottom surfaces of two ends of the screw hole plate are respectively provided with one second connecting rod, the two second connecting rods are fixedly connected with the top surfaces of two ends of the brush plate, the brush plate is located below the gear, and a threaded hole is formed in the top surface of one end of the screw hole plate.
In the tobacco shred feeder with the material sprinkling prevention function, preferably, the auxiliary rod is inserted into the top plate of the U-shaped frame and is connected with the top plate in a sliding manner, the top end of the auxiliary rod is fixedly connected with the second operation block, the bottom end of the auxiliary rod is fixedly connected with the thread block, and the thread block is in threaded connection with the threaded hole.
In the aforesaid tobacco wire feeding machine that possesses anti-spillage material function, preferably, connection structure includes connecting block, forked tail slide bar and kelly, one has set firmly respectively at the both ends of U-shaped frame the connecting block, the rectangular channel has been seted up at the top of installation piece, the connecting block with the rectangular channel plug-in connection, the circular slot has been seted up to one side of connecting block, the inner wall sliding connection of circular slot has the forked tail slide bar, the one end fixedly connected with kelly of forked tail slide bar.
In the tobacco thread feeding machine with the anti-spilling function, preferably, the dovetail slide bar is sleeved with a spring, two ends of the spring are respectively fixedly connected with the circular groove and the clamping rod, one side of the mounting block is provided with a clamping hole, and the size and the shape of the inner wall of the clamping hole are matched with the size and the shape of the outer surface of the clamping rod.
Compared with the prior art, the automatic impurity removing machine comprises an underframe, wherein a machine body and a conveyor belt mechanism are fixedly installed at the top of the underframe, an impurity removing device is arranged inside the machine body, two installation blocks are respectively arranged on two sides of the underframe, a material leakage preventing cleaning device is arranged above the conveyor belt mechanism, and the material leakage preventing cleaning device is fixedly connected with the two installation blocks through a connecting structure. The invention can effectively prevent the tobacco shreds from deviating and leaking from two sides by arranging the material-leakage-preventing cleaning device, and can also effectively remove sundries on the conveyor belt device, thereby saving raw materials and improving the quality of the tobacco shreds.
Drawings

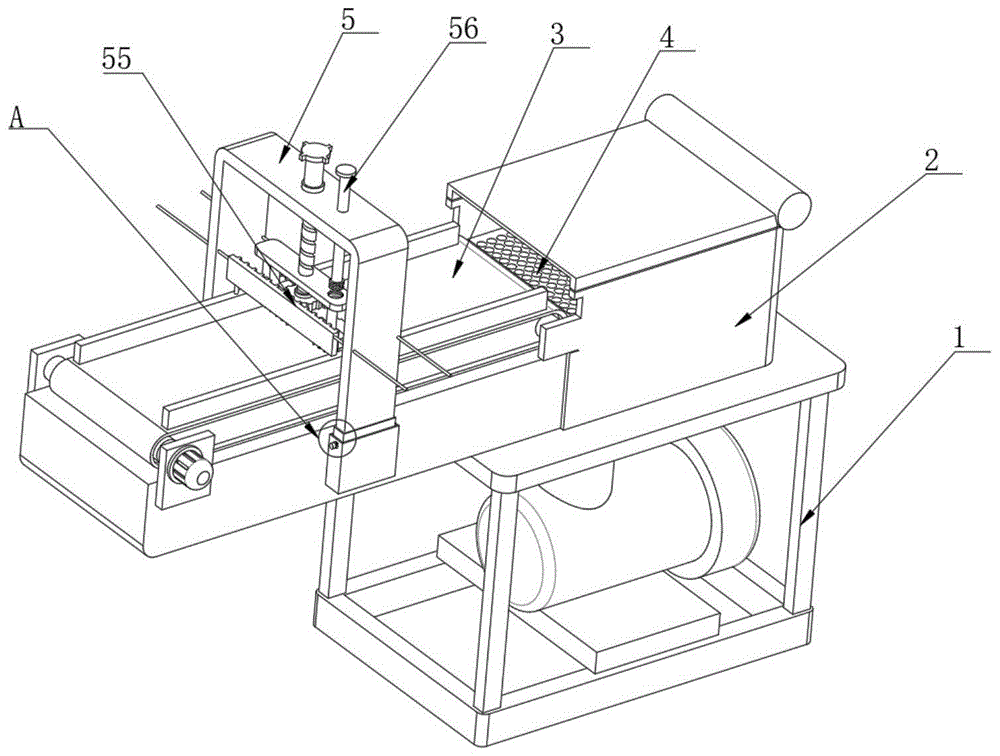

FIG. 1 is an isometric view of the overall structure of the present invention;
FIG. 2 is a schematic view of the construction of the spill-proof cleaning device;
FIG. 3 is an enlarged view at A in FIG. 1;
FIG. 4 is an enlarged view at B in FIG. 2;
description of reference numerals: 1. a chassis; 2. a body; 3. a conveyor belt mechanism; 4. an impurity removal device; 5. a material-leakage prevention cleaning device; 51. a U-shaped frame; 52. rotating the rod; 53. a first operation block; 54. a threaded rod; 55. a material leakage prevention structure; 551. a gear; 552. a rack plate; 553. a slide bar; 554. a first connecting rod; 555. a baffle plate; 56. cleaning the structure; 561. a screw hole plate; 562. a second connecting rod; 563. a brush plate; 564. an auxiliary lever; 565. a second operation block; 566. a thread block; 567. a threaded hole; 57. a connecting structure; 571. connecting blocks; 572. mounting blocks; 573. a rectangular groove; 574. a circular groove; 575. a dovetail slide bar; 576. a clamping rod; 577. a spring; 578. and (6) clamping the hole.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The embodiment of the invention comprises the following steps: as shown in fig. 1-4, a tobacco feeder with anti-spilling function comprises a bottom frame 1, a machine body 2 and a conveyor belt mechanism 3 are fixedly mounted on the top of the bottom frame 1, an impurity removing device 4 is arranged inside the machine body 2, two mounting blocks 572 are respectively arranged on two sides of the bottom frame 1, an anti-spilling cleaning device 5 is arranged above the conveyor belt mechanism 3, and the anti-spilling cleaning device 5 is fixedly connected with the two mounting blocks 572 through a connecting structure 57.
The machine body 2, the conveyor belt mechanism 3 and the impurity removing device 4 are all devices in the prior art, and the main innovation point of the invention is that the material leakage prevention cleaning device 5 is arranged, the material leakage prevention cleaning device 5 comprises a U-shaped frame 51, a material leakage prevention structure 55 and a cleaning structure 56, an adjusting component is arranged on the U-shaped frame 51, and the material leakage prevention structure 55 and the cleaning structure 56 are connected with the adjusting component.
Impurity removal device 4 can get rid of the impurity in the pipe tobacco, prevents running material cleaning device 5 through the setting for the unrestrained condition of sideslip can not appear in the pipe tobacco on the conveyer belt mechanism 3, and can clean its surface after the transportation finishes.
In a specific embodiment, the adjusting assembly comprises a rotating rod 52 and a first operating block 53, the material leakage preventing structure 55 comprises a rack plate 552 and a baffle 555, the opening of the U-shaped frame 51 is arranged downwards, the rotating rod 52 is arranged along the vertical direction, the upper part of the rotating rod 52 is rotatably connected with the top plate of the U-shaped frame 51 through a bearing, the top end of the rotating rod 52 is fixedly connected with the first operating block 53, the first operating block 53 is a disc-shaped structure, in order to prevent the anti-slip bulge arranged on the peripheral wall of the first operating block 53 from slipping, the lower end of the rotating rod 52 is fixedly connected with a threaded rod 54, the bottom of the threaded rod 54 is fixedly provided with a gear 551, the threaded rod 54 is coaxially arranged with the rotating rod 52 and the gear 551, the number of the rack plates 552 is two, the two rack plates 552 are horizontally arranged and parallel to each other, and the two rack plates 552 are arranged along the width direction of the conveyor belt mechanism 3, two rack plate 552 all meshes with gear 551 mutually, and the both ends of two rack plate 552 all are provided with the slide bar 553 of horizontal arrangement, and slide bar 553 pegs graft and sliding connection with the mounting hole on the curb plate of U-shaped frame 51, and the quantity of baffle 555 is two, and two baffles 555 set up the both sides at drive belt mechanism 3 respectively, and two baffles 555 are mutually meshed
Two baffles 555 are arranged along the length direction of the conveyor belt mechanism 3, wherein one baffle 555 is fixedly connected to the bottom of one of the rack plates 552 via a first connecting rod 554, and the other baffle 555 is fixedly connected to the bottom of the other rack plate 552 via the other connecting rod 554.
The distance between the two flaps 555 can be changed by rotating the first operating block 53 to adapt to different widths of the conveyor mechanism 3.
Further, the cleaning structure 56 includes a screw plate 561, a brush plate 563 and an auxiliary rod 564, a screw hole has been opened at the central position of the screw plate 561, the screw plate 561 is in threaded connection with the threaded rod 54, the screw plate 561 is located above the gear 551, the bottom surfaces at the two ends of the screw plate 561 are respectively provided with one second connecting rod 562, the two second connecting rods 562 are fixedly connected with the top surfaces at the two ends of the brush plate 563, the brush plate 563 is located below the gear 551, and a threaded hole 567 is opened on the top surface at one end of the screw plate 561. The auxiliary rod 564 is inserted into and slidably connected to the top plate of the U-shaped frame 51, a second operation block 565 is fixedly connected to the top end of the auxiliary rod 564, a threaded block 566 is fixedly connected to the bottom end of the auxiliary rod 564, and the threaded block 566 is threadedly connected to the threaded hole 567.
Furthermore, the connecting structure 57 includes a connecting block 571, a dovetail slide bar 575 and a clamping bar 576, two ends of the U-shaped frame 51 are respectively and fixedly provided with the connecting block 571, the top of the mounting block 572 is provided with a rectangular groove 573, the connecting block 571 is connected with the rectangular groove 573 in an inserting manner, one side of the connecting block 571 is provided with a circular groove 574, the inner wall of the circular groove 574 is slidably connected with the dovetail slide bar 575, and one end of the dovetail slide bar 575 is fixedly connected with the clamping bar 576. The dovetail slide bar 575 is sleeved with a spring 577, two ends of the spring 577 are respectively fixedly connected with the circular groove 574 and the clamping rod 576, one side of the mounting block 572 is provided with a clamping hole 578, and the size and the shape of the inner wall of the clamping hole 578 are matched with the size and the shape of the outer surface of the clamping rod 576.
The working principle of the invention is as follows: when the tobacco shreds on the conveyor belt mechanism 3 need to be subjected to anti-spilling treatment, the first operation block 53 is rotated, so that the first operation block 53 drives the rotating rod 52 to rotate, the rotating rod 52 rotates to drive the gear 551 to rotate, the gear 551 rotates to drive the two rack plates 552 to move oppositely, the distance between the two baffle plates 555 can be adjusted, and the tobacco shreds can be prevented from spilling; when the outer surface of the conveyor belt mechanism 3 needs to be cleaned, the second operation block 565 is rotated, the second operation block 565 drives the auxiliary rod 564 to rotate, the auxiliary rod 564 rotates to drive the thread block 566 to rotate, and further the thread block 566 rotates into the thread hole 567 to complete fixing, at this time, the first operation block 53 is rotated, so that the first operation block 53 drives the threaded rod 54 to rotate, and further drives the threaded plate 561 to move downwards, and further drives the brush plate 563 to move, so that the brush plate 563 is attached to the conveyor belt mechanism 3, and the outer surface of the conveyor belt mechanism 3 can be cleaned by starting the conveyor belt mechanism 3; when the anti-leakage cleaning device 5 needs to be disassembled, the clamping rod 576 is pressed inwards at the moment, so that the clamping rod 576 drives the dovetail slide rod 575 to slide in the circular groove 574, when the clamping rod 576 is separated from the clamping hole 578, the U-shaped frame 51 is pulled upwards, so that the U-shaped frame 51 drives the connecting block 571 to slide in the rectangular groove 573, and when the connecting block 571 is separated from the rectangular groove 573, the disassembly is completed.
The construction, features and functions of the present invention are described in detail in the embodiments illustrated in the drawings, which are only preferred embodiments of the present invention, but the present invention is not limited by the drawings, and all equivalent embodiments modified or changed according to the idea of the present invention should fall within the protection scope of the present invention without departing from the spirit of the present invention covered by the description and the drawings.
Claims (7)
1. The utility model provides a tobacco thread feeding machine that possesses anti-spillage material function, includes chassis (1), its characterized in that: the top fixed mounting organism (2) and the conveyor belt mechanism (3) of chassis (1), the inside of organism (2) is provided with edulcoration device (4), the both sides of chassis (1) are provided with one respectively and install piece (572), the top of conveyor belt mechanism (3) is provided with prevents running material cleaning device (5), prevent running material cleaning device (5) through connection structure (57) and two installation piece (572) fixed connection.
2. The tobacco feeder with the spill-proof function according to claim 1, wherein: prevent running material cleaning device (5) including U-shaped frame (51), prevent running material structure (55) and clean structure (56), be provided with adjusting part on U-shaped frame (51), prevent running material structure (55) with clean structure (56) all with adjusting part connects.
3. The tobacco feeder with the spill-proof function according to claim 2, wherein: the adjusting assembly comprises a rotating rod (52) and a first operating block (53), the material-leakage-preventing structure (55) comprises rack plates (552) and a baffle plate (555), the upper part of the rotating rod (52) is connected with the top plate of the U-shaped frame (51) in a rotatable manner through a bearing, the top end of the rotating rod (52) is fixedly connected with the first operating block (53), the lower end of the rotating rod (52) is fixedly connected with a threaded rod (54), the bottom of the threaded rod (54) is fixedly provided with a gear (551), the number of the rack plates (552) is two, the rack plates (552) are arranged in parallel and are arranged along the width direction of the conveyor belt mechanism (3), the rack plates (552) are both meshed with the gear (551), and both ends of the rack plates (552) are both provided with horizontally arranged sliding rods (553), the sliding rod (553) is inserted into and slidably connected with the side plate of the U-shaped frame (51), the number of the baffles (555) is two, the two baffles (555) are respectively arranged at two sides of the conveyor belt mechanism (3), the two baffles (555) are arranged along the length direction of the conveyor belt mechanism (3), one baffle (555) is fixedly connected with the bottom of one rack plate (552) through a first connecting rod (554), and the other baffle (555) is fixedly connected with the bottom of the other rack plate (552) through the first connecting rod (554).
4. The tobacco feeder with the spill-proof function according to claim 3, wherein: the cleaning structure (56) comprises a screw hole plate (561), a brush plate (563) and an auxiliary rod (564), a screw hole is formed in the center of the screw hole plate (561), the screw hole plate (561) is in threaded connection with the threaded rod (54), the screw hole plate (561) is located above the gear (551), the bottom surfaces of two ends of the screw hole plate (561) are respectively provided with one second connecting rod (562), the two second connecting rods (562) are fixedly connected with the top surfaces of two ends of the brush plate (563), the brush plate (563) is located below the gear (551), and a threaded hole (567) is formed in the top surface of one end of the screw hole plate (561).
5. The tobacco feeder with the spill-proof function according to claim 4, wherein: the auxiliary rod (564) is connected with the top plate of the U-shaped frame (51) in an inserting and sliding mode, a second operation block (565) is fixedly connected to the top end of the auxiliary rod (564), a thread block (566) is fixedly connected to the bottom end of the auxiliary rod (564), and the thread block (566) is in threaded connection with the thread hole (567).
6. The tobacco feeder with the spill-proof function according to claim 2, wherein: the connecting structure (57) comprises a connecting block (571), a dovetail sliding rod (575) and a clamping rod (576), the two ends of the U-shaped frame (51) are respectively and fixedly provided with the connecting block (571), the top of the mounting block (572) is provided with a rectangular groove (573), the connecting block (571) is in plug-in connection with the rectangular groove (573), one side of the connecting block (571) is provided with a circular groove (574), the inner wall of the circular groove (574) is in sliding connection with the dovetail sliding rod (575), and one end of the dovetail sliding rod (575) is fixedly connected with the clamping rod (576).
7. The tobacco feeder with the spill-proof function according to claim 6, wherein: the cover is equipped with spring (577) on forked tail slide bar (575), the both ends of spring (577) respectively with circular slot (574) with kelly (576) fixed connection, calorie hole (578) have been seted up to one side of installation piece (572), the inner wall size and the shape of calorie hole (578) with the surface size and the shape looks adaptation of kelly (576).
