Abstract
The invention discloses energy-saving and environment-friendly integrated residential domestic sewage treatment equipment, and relates to the technical field of residential domestic sewage treatment. The invention comprises a treatment box, a waste collection box and a lifting base, wherein the waste collection box is fixed on the left side of the treatment box, the right side of the waste collection box is in an open shape, the treatment box and the waste collection box are in an integrated structure, and the lifting base is fixed at the bottom of the whole body of the treatment box and the waste collection box. When the device is maintained, the treatment box and the waste collection box in the pit can be moved to the ground, and the treatment box and the waste collection box are moved downwards into the pit again after being cleaned or maintained.
Description
Technical Field
The invention belongs to the technical field of residential domestic sewage treatment, and particularly relates to energy-saving and environment-friendly integrated residential domestic sewage treatment equipment.
Background
At present, in order to save energy and protect environment, a plurality of districts can not directly discharge domestic sewage, and the sewage can be treated by sewage treatment equipment for secondary use, so that the sewage treatment equipment is arranged in a plurality of districts, the waste and the pollution of resources are reduced, the types of the existing domestic sewage treatment equipment are various, the operation of complete sewage treatment can be realized, and the following defects still exist in the actual use of the equipment:
1. most of the existing domestic sewage treatment equipment is buried underground for long time in order to reduce the occupied area, for example, in the existing published documents, CN 203269732U-a sewage treatment device is publicly arranged and can be buried underground for use, although the occupied area can be reduced, the maintenance is not convenient, during the maintenance, maintenance personnel often need to enter a pit, and the maintenance in the pit has a lot of potential dangers.
2. The existing domestic sewage treatment equipment needs regular personnel to clean dirt in the filter bin of the equipment, wastes time and labor, has weak filtering effect and is not convenient for prolonging the cleaning period.
Therefore, the existing energy-saving and environment-friendly integrated residential domestic sewage treatment equipment cannot meet the requirements in practical use, so that an improved technology is urgently needed in the market to solve the problems.
Disclosure of Invention
The invention aims to provide energy-saving and environment-friendly integrated residential domestic sewage treatment equipment, which solves the problems that the existing sewage treatment equipment buried underground is inconvenient to maintain, maintenance personnel often need to enter a pit during maintenance, maintenance personnel in the pit have many potential dangers, and regular personnel are needed to clean dirt in a filtering bin of the equipment, so that time and labor are wasted, and the cleaning period is inconvenient to prolong.
In order to solve the technical problems, the invention is realized by the following technical scheme:
the invention relates to an energy-saving and environment-friendly integrated residential domestic sewage treatment device which comprises a treatment box, a waste collection box and a lifting base, wherein the waste collection box is fixed on the left side of the treatment box, the right side of the waste collection box is in an open shape, and the treatment box and the waste collection box are in an integrated structure;
the box plate on the front side of the treatment box is detachably connected with the box body through screws, a sealing gasket is arranged on the surface of the box plate connected with the box body, the sealing gasket can prevent water leakage at the connecting part of the box plate and the box body of the treatment box, and the box plate on the front side of the treatment box can be conveniently and simply opened by adopting the mode of detachable connection of the screws, so that the inside of the treatment box can be conveniently cleaned;
the box plate on the front side of the waste collection box is movably connected with the box body through a hinge, a sealing gasket is arranged on the connecting surface of the box plate of the waste collection box and the box body, the sealing gasket can prevent the connecting part of the box plate of the waste collection box and the box body from leaking water, the box plate on the front side of the waste collection box is connected with the box body through a mechanical lock, and by adopting the connecting mode, the box plate on the front side of the waste collection box can be simply opened by using a key, so that dirt accumulated in the waste collection box can be conveniently cleaned;
the interior of the treatment box is divided into a first treatment bin, a second treatment bin, a third treatment bin, a fourth treatment bin and a water outlet bin from top to bottom, the first treatment bin and the second treatment bin are separated by an inclined first filter plate, the second treatment bin and the third treatment bin are separated by an inclined second filter plate, the third treatment bin and the fourth treatment bin and the water outlet bin are separated by welded separation frame plates, filter sponges are placed on the separation frame plates between the third treatment bin and the fourth treatment bin, and a biological packing layer is placed on the separation frame plates between the fourth treatment bin and the water outlet bin;
a door slot is formed in the left side surface of the treatment box, and a bin door is connected to the inside of the door slot in a sliding manner;
two driving assemblies arranged in a mirror image mode are fixed on the top side of the left side face of the treatment box, and the two driving assemblies synchronously drive bin doors in door slots;
two identical pushing assemblies are fixed on the right side surface of the processing box, one pushing assembly is positioned on the right side of the first processing bin, and the other pushing assembly is positioned on the right side of the second processing bin;
a material pressing component is arranged in the waste material collecting box, and a liquid accumulating box is placed at the bottom in the waste material collecting box;
the integral bottom of the treatment box and the waste collection box is fixed with a lifting base.
Furthermore, the top of the first treatment bin is communicated with a water inlet pipe, and the bottom of the water outlet bin is communicated with a water outlet pipe;
the first filter plate and the second filter plate are both composed of a frame plate and a filter screen, and the aperture of the meshes of the first filter plate is larger than that of the meshes of the second filter plate;
the inner walls of the right sides of the first treatment bin and the second treatment bin are both provided with plate grooves, the size of each plate groove is consistent with that of the material pushing plate, two side walls of the divided parts of the first treatment bin and the second treatment bin and two side walls of the divided parts of the second treatment bin and the third treatment bin are both welded with a group of butt straps, the inner side surfaces of the butt straps are provided with inserting grooves matched with the first filter plate and the second filter plate, and a group of butt straps are positioned on the inclined surfaces;
two side edges of the first filter plate are respectively inserted into the slots of the two butt straps at the division positions of the first treatment bin and the second treatment bin, and two side edges of the second filter plate are respectively inserted into the slots of the two butt straps at the division positions of the second treatment bin and the third treatment bin.
Furthermore, a first outlet and a second outlet are respectively formed in the door slot from top to bottom, the first outlet transversely penetrates through the left side wall of the first treatment bin, and the second outlet transversely penetrates through the left side wall of the second treatment bin;
the bin gate is provided with a first through opening and a second through opening from top to bottom respectively, and the first through opening, the second through opening, the first outlet and the second outlet are the same in length and width;
when the bin gate moves up to the highest position in the gate slot, the first through opening coincides with the first outlet and the second through opening coincides with the second outlet, and when the bin gate moves down to the lowest position in the gate slot, the first outlet and the second outlet are both sealed by the bin gate plate.
Furthermore, the driving assembly is composed of a second seat plate, a first electric push rod and a connecting plate, the second seat plate is welded on the left side face of the treatment box, the first electric push rod is fixed at the bottom of the second seat plate, the connecting end of the first electric push rod is connected with the connecting plate, and the connecting plate is welded on the top side of the bin door.
Furthermore, the material pushing assembly is composed of a first seat plate, a second electric push rod, a material pushing plate and a sealing rubber pad, the first seat plate is fixed to the right side face of the treatment box, the second electric push rod is fixed to the first seat plate, the material pushing plate is arranged at the position of the plate groove, a connecting end of the second electric push rod penetrates through a through hole in the right side face of the treatment box and is connected with the back face of the material pushing plate, the sealing rubber pad is fixed to the back face of the material pushing plate, and the material pushing plate can be in closer contact with the inner wall of the plate groove by the aid of the sealing rubber pad, so that the purpose of preventing water leakage is achieved.
Furthermore, the material pressing assembly is composed of a first hydraulic cylinder and a pressing plate, the first hydraulic cylinder is inverted and fixed on the top wall of the waste collection box, and the pressing plate is fixed at the connecting end of the first hydraulic cylinder.
Furthermore, the liquid accumulation box is composed of a box body and a cover plate, the cover plate is arranged on the box body, and water permeable holes are uniformly distributed in the cover plate.
Furthermore, the lifting base is composed of a bottom plate and a second hydraulic cylinder, and the bottom plate is connected with the treatment box and the waste collection box integrally through a group of second hydraulic cylinders.
The invention has the following beneficial effects:
1. the invention is provided with the lifting type base, when in maintenance, the treatment box and the waste collection box in the pit can be moved upwards, moved to the ground, cleaned or maintained and then moved downwards into the pit again, and in this way, maintenance personnel can clean equipment or maintain the equipment without entering the pit, thereby enhancing the safety performance during maintenance.
2. The invention is provided with a door slot, a bin door, a driving component and a pushing component, after a period of time, the left outlets of the first treatment bin and the second treatment bin can be automatically opened under the action of the driving component and the pushing component, and dirt accumulated during filtering in the first treatment bin and the second treatment bin is pushed into the waste material collecting box to be collected, so that the operation of cleaning the dirt in the first treatment bin and the second treatment bin is automatically completed, the filtering effect of the equipment can be kept, and the cleaning mode is very trouble-saving and labor-saving.
3. The waste collecting box is provided with the waste collecting box, the pressing component and the liquid accumulating box, dirt cleared from the first treatment bin and the second treatment bin can be collected through the waste collecting box, the volume of the dirt in the waste collecting box can be compressed through the effect of the pressing component, more dirt can be accumulated in the waste collecting box, and the residual sewage in the dirt can more completely flow into the box body to be collected through the functions of water draining and pressing down, so that the viscera in the collecting box can be dried, the breeding of bacteria is reduced, and the smell is not easy to generate.
4. The box plate on the front side of the treatment box is detachably connected with the box body through screws, the box plate on the front side of the waste collection box is movably connected with the box body through a hinge, and the box plate on the front side of the waste collection box is connected with the box body through a mechanical lock, so that the treatment box and the waste collection box can be conveniently and easily opened during cleaning or maintenance.
5. When the domestic sewage is treated, the domestic sewage sequentially passes through the primary filtration of the first filter plate in the first treatment bin, the secondary filtration of the second filter plate in the second treatment bin, the deep filtration of the filter sponge in the third treatment bin and the final treatment of the biological filler layer in the fourth treatment bin, and the filtering effect is further improved through the multiple filtering structure.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

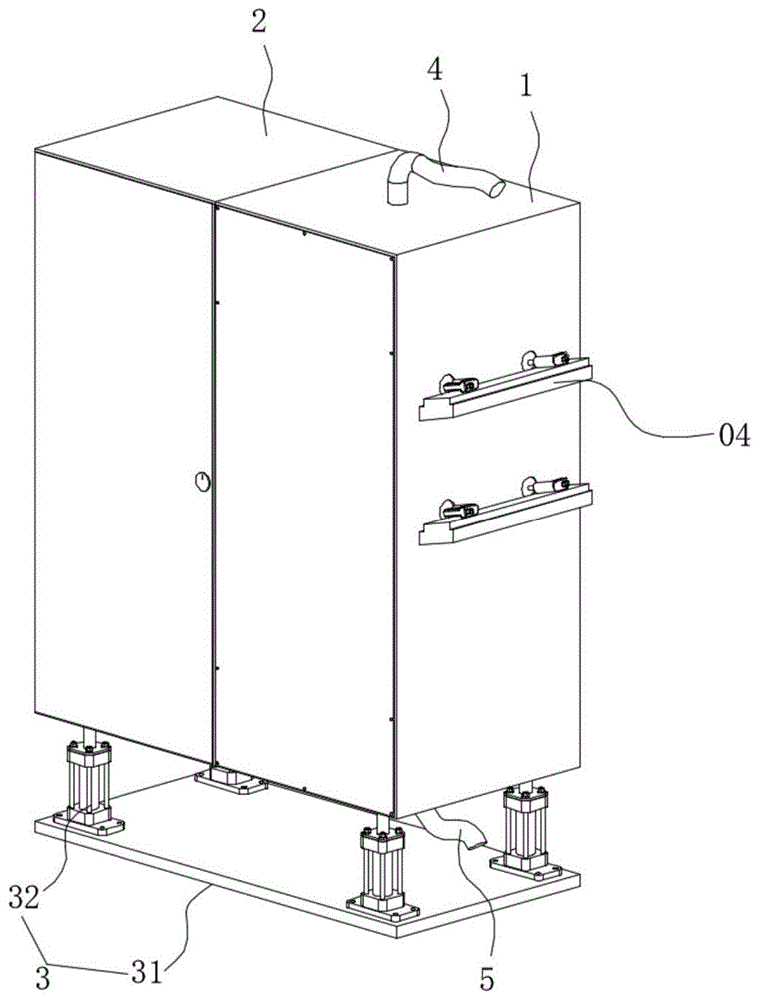

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an internal block diagram of FIG. 1 according to the present invention;
FIG. 3 is a plan view of the present invention shown in FIG. 2 without the first filter plate, the second filter plate, the filter sponge and the bio-filler layer;
FIG. 4 is a view showing a state where the outlet at the left side of the treatment tank of the present invention is closed;
FIG. 5 is a view showing a state where the outlet at the left side of the treatment tank of the present invention is opened;
FIG. 6 is a view showing the structure of a left side door slot of the treatment tank of the present invention;
FIG. 7 is a schematic view of the overall structure of the door and drive assembly of the present invention;
FIG. 8 is a schematic view of the pusher assembly of the present invention;
fig. 9 is a schematic structural view of the effusion cell of the invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a treatment tank; 11. a first processing bin; 12. a second treatment bin; 13. a third treatment bin; 14. a fourth processing bin; 15. a water outlet bin; 101. a first filter plate; 102. a second filter plate; 103. filtering the sponge; 104. a biological filler layer; 111. a plate groove; 112. a butt strap; 01. a door slot; 011. a first outlet; 012. a second outlet; 02. a bin gate; 021. a first port; 022. a second port; 03. a drive assembly; 031. a second seat plate; 032. a first electric push rod; 033. a connecting plate; 04. a material pushing assembly; 041. a first seat plate; 042. a second electric push rod; 043. a material pushing plate; 044. sealing the rubber pad; 05. a material pressing component; 051. a first hydraulic cylinder; 052. pressing a plate; 06. a liquid accumulation box; 061. a box body; 062. a cover plate; 2. a waste collection tank; 3. a lifting base; 31. a base plate; 32. a second hydraulic cylinder; 4. a water inlet pipe; 5. and (5) discharging a water pipe.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Referring to fig. 1-3, the invention is an energy-saving and environment-friendly integrated residential domestic sewage treatment device, which comprises a treatment box 1, a waste collection box 2 and a lifting base 3, wherein the waste collection box 2 is fixed on the left side of the treatment box 1, a box plate on the front side of the treatment box 1 is detachably connected with a box body through screws, a sealing gasket is arranged on the surface of the treatment box 1, which is connected with the box body, a box plate on the front side of the waste collection box 2 is movably connected with the box body through a hinge, a sealing gasket is arranged on the surface of the waste collection box 2, which is connected with the box body, a box plate of the waste collection box 2 is connected with the box body through a mechanical lock, the right side of the waste collection box 2 is open, and the treatment box 1 and the waste collection box 2 are of an integrated structure;
the interior of the treatment box 1 is divided into a first treatment bin 11, a second treatment bin 12, a third treatment bin 13, a fourth treatment bin 14 and a water outlet bin 15 from top to bottom, the first treatment bin 11 and the second treatment bin 12 are separated by an inclined first filter plate 101, the second treatment bin 12 and the third treatment bin 13 are separated by an inclined second filter plate 102, the first filter plate 101 and the second filter plate 102 are both composed of frame plates and filter screens, the aperture of the mesh of the first filter plate 101 is larger than that of the mesh of the second filter plate 102, the third treatment bin 13 and the fourth treatment bin 14 and the water outlet bin 15 are separated by welded separation frame plates, a filter sponge 103 is placed on the separation frame plate between the third treatment bin 13 and the fourth treatment bin 14, a biological filler layer 104 is placed on the separation frame plate between the fourth treatment bin 14 and the water outlet bin 15, the top of the first treatment bin 11 is communicated with the water inlet pipe 4, and the bottom of the water outlet bin 15 is communicated with the water outlet pipe 5.
The specific application of the above setting is as follows: when domestic sewage is treated, the domestic sewage enters the treatment box 1 through the water inlet pipe 4, sequentially passes through the primary filtration of the first filter plate 101 in the first treatment bin 11, the secondary filtration of the second filter plate 102 in the second treatment bin 12, the deep filtration of the filter sponge 103 in the third treatment bin 13 and the final treatment of the biological filler layer 104 in the fourth treatment bin 14, flows into the water outlet bin 15 and is finally discharged through the water outlet pipe 5.
As shown in fig. 2 and 3, a set of straps 112 are welded on two side walls of the divided portion of the first processing bin 11 and the second processing bin 12 and two side walls of the divided portion of the second processing bin 12 and the third processing bin 13, slots matched with the first filter plate 101 and the second filter plate 102 are formed in the inner side surface of each strap 112, the set of straps 112 are arranged on an inclined surface, two side edges of the first filter plate 101 are respectively inserted into the slots of the two straps 112 at the divided portion of the first processing bin 11 and the second processing bin 12, and two side edges of the second filter plate 102 are respectively inserted into the slots of the two straps 112 at the divided portion of the second processing bin 12 and the third processing bin 13.
The specific application of the above setting is as follows: when the first filter plate 101 is installed, two side edges of the first filter plate 101 are directly inserted into the slots of the two butt straps 112 at the division part of the first treatment bin 11 and the second treatment bin 12 and pushed into the treatment box 1, and then the installation operation of the first filter plate 101 can be completed; when the second filter plate 102 is installed, the second filter plate 102 is directly inserted into the slots of the two butt straps 112 at the division part of the second treatment bin 12 and the third treatment bin 13 and pushed into the treatment box 1, and then the installation operation of the second filter plate 102 can be completed; when the first filter plate 101 and the second filter plate 102 are replaced, the first filter plate 101 and the second filter plate 102 are directly drawn out, and the first filter plate 101 and the second filter plate 102 can be taken down.
As shown in fig. 4-8, a door slot 01 is formed on the left side surface of the processing box 1, a first outlet 011 and a second outlet 012 are respectively formed in the door slot 01 from top to bottom, the first outlet 011 traverses the left side wall of the first processing chamber 11, the second outlet 012 traverses the left side wall of the second processing chamber 12, a door 02 is slidably connected in the door slot 01, the door 02 respectively has a first port 021 and a second port 022 from top to bottom, the first port 021, the second port 022, the first outlet 011 and the second outlet 012 have the same length and width, two driving components 03 arranged in mirror image are fixed on the top side of the left side surface of the processing box 1, the driving components 03 are formed by a second seat plate 031, a first electric push rod 032 and a connecting plate 033, the second seat plate 031 is welded on the left side surface of the processing box 1, the first electric push rod 032 is fixed on the bottom of the second seat plate 031, the first electric push rod 032 is a common model in the market, not described in detail, the connecting end of the first electric push rod 032 is connected with a connecting plate 033, the connecting plate 033 is welded on the top side of the bin gate 02, and the two driving assemblies 03 synchronously drive the bin gate 02 in the gate slot 01;
two identical material pushing assemblies 04 are fixed on the right side surface of the treatment box 1, each material pushing assembly 04 is composed of a first seat plate 041, a second electric push rod 042, a material pushing plate 043 and a sealing rubber pad 044, the first seat plate 041 is fixed on the right side surface of the treatment box 1, the second electric push rod 042 is fixed on the first seat plate 041, the type of the second electric push rod 042 is a common type in the market, not described in detail, the right inner walls of the first and second treatment chambers 11 and 12 are each formed with a plate groove 111, the size of the plate groove 111 corresponds to the size of a pusher plate 043, the pusher plate 043 is installed at the plate groove 111, the connecting end of the second electric pusher 042 traverses through a through hole on the right side surface of the treatment chamber 1 and is connected to the back surface of the pusher plate 043, a sealing rubber pad 044 is fixed to the back surface of the pusher plate 043, one of the pushing assemblies 04 is located at the right side of the first processing bin 11, and the other pushing assembly 04 is located at the right side of the second processing bin 12.
The specific application of the above setting is as follows: after a period of time, the driving assembly 03 is started through the switch, the bin door 02 is driven to move upwards in the door slot 01 to the highest position through the action of the first electric push rod 032 in the driving assembly 03, at the moment, the first port 021 coincides with the first outlet 011, the second port 022 coincides with the second outlet 012, the outlets on the left sides of the first treatment bin 11 and the second treatment bin 12 are opened, then the material pushing assembly 04 is started through the switch, and the pushing plate 043 in the plate slot 111 is driven to move obliquely downwards through the action of the second electric push rod 042 in the material pushing assembly 04, so that dirt accumulated in the first treatment bin 11 and the second treatment bin 12 during filtering is pushed into the waste material collecting box 2 to be collected, and the dirt cleaning operation in the first treatment bin 11 and the second treatment bin 12 is completed;
after dirt in the first treatment bin 11 and the second treatment bin 12 is cleaned, the material pushing assembly 04 is started again through the switch, the material pushing plate 043 is driven to move towards the upper inclined direction in a reverse direction under the action of a second electric push rod 042 in the material pushing assembly 04, so that the material pushing plate 043 returns to the original position again and is stored in the plate groove 111, the driving assembly 03 is started again through the switch, the bin door 02 is driven to move downwards in the door groove 01 to the lowest position under the action of a first electric push rod 032 in the driving assembly 03, at the moment, the first outlet 011 and the second outlet 012 are both sealed by the bin door 02 door plate, the left outlets of the first treatment bin 11 and the second treatment bin 12 are sealed, and the left outlets can be normally used for sewage treatment.
As shown in fig. 2, 3 and 9, a material pressing component 05 is arranged in the waste collection box 2, the material pressing component 05 is composed of a first hydraulic cylinder 051 and a pressing plate 052, the first hydraulic cylinder 051 is inverted and fixed on the top wall of the waste collection box 2, the pressing plate 052 is fixed at the connecting end of the first hydraulic cylinder 051, the type of the first hydraulic cylinder 051 is a common type in the market, and the market is not described too much;
the liquid accumulating box 06 is placed at the bottom in the waste collecting box 2, the liquid accumulating box 06 is composed of a box body 061 and a cover plate 062 together, the cover plate 062 is arranged on the upper cover of the box body 061, and water permeable holes are uniformly distributed in the cover plate 062.
The specific application of the above setting is as follows: clear away the in-process of foul in first processing bin 11 and second processing bin 12, the foul pushes waste collecting tank 2 back and can directly fall to accumulation box 06 on the accumulation, remaining sewage can flow into box 061 through the hole of permeating water on apron 062 and collect in the foul, a period of time later, start pressing material subassembly 05 through the switch, through the effect of first pneumatic cylinder 051 in pressing material subassembly 05, can drive clamp plate 052 and move down vertically, push down the foul that accumulates in waste collecting tank 2, compress the volume of foul in waste collecting tank 2, can supply waste collecting tank 2 to accumulate and collect more foul, through waterlogging caused by excessive rainfall and the effect of pushing down, can make the more complete inflow box 061 of sewage remaining in the foul collect, can make collecting tank 2 viscera dry, reduce bacterial growing, be difficult for smelly.
As shown in figure 1, a lifting base 3 is fixed at the bottom of the whole body of the treatment box 1 and the waste collection box 2, the lifting base 3 is composed of a bottom plate 31 and a second hydraulic cylinder 32, the bottom plate 31 is connected with the whole body of the treatment box 1 and the waste collection box 2 through a group of second hydraulic cylinders 32, and the type of the second hydraulic cylinder 32 is a common type in the market and is not described too much.
The specific application of the above setting is as follows: when case 1 and garbage collection box 2 are handled in the clearance, start a set of second hydraulic cylinder 32 in over-and-under type base 3 through the switch to handle case 1 and garbage collection box 2 upwards shifting out in the pit, after the clearance, a set of second hydraulic cylinder 32 in over-and-under type base 3 is started to the rethread switch, thereby will handle case 1 and garbage collection box 2 immigration pit downwards.
The above are only preferred embodiments of the present invention, and the present invention is not limited thereto, and any modification, equivalent replacement, and improvement made to the technical solutions described in the above embodiments, and to some of the technical features thereof, are included in the scope of the present invention.
Claims (8)
1. The utility model provides an energy-concerving and environment-protective integration district domestic sewage treatment device, includes treatment case (1), garbage collection box (2) and over-and-under type base (3), its characterized in that: the waste collection box (2) is fixed on the left side of the treatment box (1), a box plate on the front side of the treatment box (1) is detachably connected with the box body through screws, a sealing gasket is arranged on the surface, connected with the box body, of the box plate, the box plate on the front side of the waste collection box (2) is movably connected with the box body through a hinge, a sealing gasket is arranged on the surface, connected with the box body, of the waste collection box (2), the box plate on the front side of the waste collection box (2) is connected with the box body through a mechanical lock, the right side of the waste collection box (2) is in an open shape, and the treatment box (1) and the waste collection box (2) are of an integrated structure;
wherein the interior of the treatment box (1) is divided into a first treatment bin (11), a second treatment bin (12), a third treatment bin (13), a fourth treatment bin (14) and a water outlet bin (15) from top to bottom, the first processing bin (11) and the second processing bin (12) are separated by an inclined first filter plate (101), the second processing chamber (12) and the third processing chamber (13) are separated by an inclined second filter plate (102), the third treatment bin (13) and the fourth treatment bin (14) and the water outlet bin (15) are separated by welded separation frame plates, a filter sponge (103) is arranged on a separating frame plate between the third processing bin (13) and the fourth processing bin (14), a biological filler layer (104) is arranged on a separation frame plate between the fourth treatment bin (14) and the water outlet bin (15);
a door groove (01) is formed in the left side face of the treatment box (1), a bin door (02) is connected to the inside of the door groove (01) in a sliding mode, two driving assemblies (03) arranged in a mirror image mode are fixed to the top side of the left side face of the treatment box (1), the two driving assemblies (03) synchronously drive the bin door (02) in the door groove (01), two identical pushing assemblies (04) are fixed to the right side face of the treatment box (1), one of the pushing assemblies (04) is located on the right side of a first treatment bin (11), the other pushing assembly (04) is located on the right side of a second treatment bin (12), a material pressing assembly (05) is arranged inside the waste collection box (2), and a liquid accumulating box (06) is placed at the bottom inside the waste collection box (2);
the integral bottom of the treatment box (1) and the waste collection box (2) is fixed with a lifting base (3).
2. The energy-saving and environment-friendly integrated residential domestic sewage treatment equipment as claimed in claim 1, wherein the top of the first treatment bin (11) is communicated with the water inlet pipe (4), and the bottom of the water outlet bin (15) is communicated with the water outlet pipe (5);
the first filter plate (101) and the second filter plate (102) are both composed of a frame plate and a filter screen, and the aperture of the meshes of the first filter plate (101) is larger than that of the meshes of the second filter plate (102);
the inner walls of the right sides of the first treatment bin (11) and the second treatment bin (12) are provided with plate grooves (111), the size of each plate groove (111) is consistent with that of a material pushing plate (043), two side walls of the division part of the first treatment bin (11) and the second treatment bin (12) and two side walls of the division part of the second treatment bin (12) and the third treatment bin (13) are welded with a group of butt straps (112), the inner side surfaces of the butt straps (112) are provided with slots matched with the first filter plate (101) and the second filter plate (102), and the butt straps (112) are arranged on inclined surfaces;
two side edges of the first filter plate (101) are respectively inserted into the slots of the two butt straps (112) at the division parts of the first processing bin (11) and the second processing bin (12), and two side edges of the second filter plate (102) are respectively inserted into the slots of the two butt straps (112) at the division parts of the second processing bin (12) and the third processing bin (13).
3. The energy-saving and environment-friendly integrated residential domestic sewage treatment equipment according to claim 2, wherein the door slot (01) is internally provided with a first outlet (011) and a second outlet (012) from top to bottom, the first outlet (011) traverses the left side wall of the first treatment bin (11), and the second outlet (012) traverses the left side wall of the second treatment bin (12);
door (02) are from last to having seted up first opening (021) and second opening (022) down respectively, the length and width homogeneous phase of first opening (021), second opening (022), first export (011) and second export (012) is the same.
4. The energy-saving and environment-friendly integrated residential quarter domestic sewage treatment equipment according to claim 3, wherein the driving assembly (03) is composed of a second seat plate (031), a first electric push rod (032) and a connecting plate (033), the second seat plate (031) is welded on the left side face of the treatment box (1), the first electric push rod (032) is fixed at the bottom of the second seat plate (031), the connecting end of the first electric push rod (032) is connected with the connecting plate (033), and the connecting plate (033) is welded on the top side of the bin gate (02).
5. The energy-saving and environment-friendly integrated residential domestic sewage treatment equipment as claimed in claim 4, wherein the material pushing assembly (04) is composed of a first seat plate (041), a second electric push rod (042), a material pushing plate (043) and a sealing rubber gasket (044), the first seat plate (041) is fixed on the right side surface of the treatment box (1), the second electric push rod (042) is fixed on the first seat plate (041), the material pushing plate (043) is arranged at the plate groove (111), the connecting end of the second electric push rod (042) penetrates through the through hole on the right side surface of the treatment box (1) and is connected with the back surface of the material pushing plate (043), and the sealing rubber gasket (044) is fixed on the back surface of the material pushing plate (043).
6. The energy-saving and environment-friendly integrated residential domestic sewage treatment equipment as claimed in claim 5, wherein the swaging assembly (05) is composed of a first hydraulic cylinder (051) and a pressing plate (052) together, the first hydraulic cylinder (051) is inverted and fixed on the top wall of the waste collection tank (2), and the pressing plate (052) is fixed at the connecting end of the first hydraulic cylinder (051).
7. The energy-saving and environment-friendly integrated residential domestic sewage treatment equipment as claimed in claim 6, wherein the liquid accumulation box (06) is composed of a box body (061) and a cover plate (062), the cover plate (062) is arranged on the box body (061) in a covering manner, and water permeable holes are uniformly distributed in the cover plate (062).
8. The energy-saving and environment-friendly integrated residential domestic sewage treatment equipment as claimed in claim 1, wherein said lifting base (3) is composed of a bottom plate (31) and a second hydraulic cylinder (32), said bottom plate (31) is connected with the whole of the treatment tank (1) and the waste collection tank (2) through a set of second hydraulic cylinders (32).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111209111.XA CN113788589A (en) | 2021-10-18 | 2021-10-18 | Energy-saving and environment-friendly integrated residential domestic sewage treatment equipment |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111209111.XA CN113788589A (en) | 2021-10-18 | 2021-10-18 | Energy-saving and environment-friendly integrated residential domestic sewage treatment equipment |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN113788589A true CN113788589A (en) | 2021-12-14 |
Family
ID=78877991
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202111209111.XA Pending CN113788589A (en) | 2021-10-18 | 2021-10-18 | Energy-saving and environment-friendly integrated residential domestic sewage treatment equipment |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113788589A (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116177817A (en) * | 2023-04-12 | 2023-05-30 | 陈能海 | Integrated sewage treatment station |
Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN207002422U (en) * | 2017-06-22 | 2018-02-13 | 蓝静 | A kind of effluent treatment and filtering net being convenient to clean |
| CN110451670A (en) * | 2019-08-09 | 2019-11-15 | 王瑞 | A kind of building industry sewage pre-treatment device |
| CN210683436U (en) * | 2019-09-11 | 2020-06-05 | 四川鹏鹞环保设备有限公司 | A agitating unit for integration sewage treatment device |
| CN211416411U (en) * | 2019-12-27 | 2020-09-04 | 李优 | Punching machine convenient to waste material clearance |
| CN212974367U (en) * | 2020-08-14 | 2021-04-16 | 安徽绿佳环保科技有限公司 | Sewage treatment equipment suitable for domestic wastewater treatment |
| CN213707930U (en) * | 2020-11-21 | 2021-07-16 | 上海善夸净水科技有限公司 | Waste water collection device convenient to change |
-
2021
- 2021-10-18 CN CN202111209111.XA patent/CN113788589A/en active Pending
Patent Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN207002422U (en) * | 2017-06-22 | 2018-02-13 | 蓝静 | A kind of effluent treatment and filtering net being convenient to clean |
| CN110451670A (en) * | 2019-08-09 | 2019-11-15 | 王瑞 | A kind of building industry sewage pre-treatment device |
| CN210683436U (en) * | 2019-09-11 | 2020-06-05 | 四川鹏鹞环保设备有限公司 | A agitating unit for integration sewage treatment device |
| CN211416411U (en) * | 2019-12-27 | 2020-09-04 | 李优 | Punching machine convenient to waste material clearance |
| CN212974367U (en) * | 2020-08-14 | 2021-04-16 | 安徽绿佳环保科技有限公司 | Sewage treatment equipment suitable for domestic wastewater treatment |
| CN213707930U (en) * | 2020-11-21 | 2021-07-16 | 上海善夸净水科技有限公司 | Waste water collection device convenient to change |
Non-Patent Citations (1)
| Title |
|---|
| 任瑞云等: "矿山机械与设备", 北京理工大学出版社, pages: 208 - 210 * |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116177817A (en) * | 2023-04-12 | 2023-05-30 | 陈能海 | Integrated sewage treatment station |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN113788589A (en) | Energy-saving and environment-friendly integrated residential domestic sewage treatment equipment | |
| CN217773362U (en) | Water resource recycling and purifying device | |
| CN216968764U (en) | A portable compressor arrangement for rubbish is cleared and transported | |
| CN217889030U (en) | Waste pretreatment temporary storage equipment | |
| CN207174573U (en) | A kind of separate type domestic garbage disposer | |
| CN210236052U (en) | Recoverable garbage compressor for garbage classification | |
| CN211368987U (en) | Domestic wastewater treatment equipment | |
| CN214735074U (en) | Sewage treatment plant for environmental protection engineering | |
| CN211735315U (en) | Based on garbage collection device for river course | |
| CN209834663U (en) | Sanitary worker uses domestic waste compressor arrangement | |
| CN217526590U (en) | Slag is used multipurposely and is handled water filtration filter-pressing structure | |
| CN216806773U (en) | Horizontal press-mounting water-filtering double-mode garbage compressor | |
| CN212854806U (en) | Rainwater filtering and purifying device | |
| CN217017913U (en) | Microorganism organic garbage treatment box | |
| CN217517526U (en) | Water body garbage cleaning device for protecting water ecological environment | |
| CN211942220U (en) | Domestic waste treatment device for environmental pollution treatment | |
| CN214826232U (en) | Garbage truck box that solid-liquid layering was placed | |
| CN213893897U (en) | Garbage loader for recyclable garbage vehicle | |
| CN220276422U (en) | Rainwater pump station filter equipment | |
| CN212269652U (en) | Oil stain separating device for green construction of river channel | |
| CN213863847U (en) | Garbage clearing device | |
| CN213433166U (en) | Primary filtering device for sewage treatment | |
| CN216317374U (en) | Robot dust box arrangement structure | |
| CN220466456U (en) | Household garbage is with transporting compression case | |
| CN221255641U (en) | Daily life kitchen garbage collection equipment |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20211214 |
