A multifunctional panel processing device comprises a processing bin main body, wherein a feeding hole is formed in one end of the processing bin main body, a discharging hole is formed in the other end of the processing bin main body, the multifunctional panel processing device comprises a clamping mechanism, a panel cleaning mechanism, a dust removing mechanism and a paint spraying mechanism, the clamping mechanism comprises a supporting plate, a driving sliding block, a movable clamping plate, an extrusion rod, a top plate, a first side plate and a second side plate, a panel is placed on the upper surface of the supporting plate, one end of the panel abuts against the first side plate, the first side plate is fixedly connected to one end of the supporting plate, and the other end of the panel is abutted against by the movable clamping plate; the panel cleaning mechanism is provided with a cleaning brush plate, and the cleaning brush plate is arranged on the panel cleaning mechanism.
Description
Technical Field
The invention relates to the field of panel processing equipment, in particular to a multifunctional panel processing device.
Background
Wood panels are wood panels made of intact wood. The wooden panel is a plate which is frequently used in furniture such as wooden doors, desks and the like, is firm and durable, has natural grains, and is an excellent choice for manufacturing high-grade furniture. Boards are generally classified by their physical names and do not have a uniform standard specification. Wooden panel often is used for furniture door plant, need spray paint to its surface in to its course of working, and current equipment carries out the panel and sprays paint the unable clearance in advance of carrying out the panel in-process, leads to its remaining dust in surface to influence the effect of spraying paint easily, and adopts the manpower to clear up and then has increaseed working strength, reduces work efficiency.
Disclosure of Invention
The invention mainly aims to provide a multifunctional panel processing device to overcome the defects in the prior art;
in order to solve the technical problems, the invention provides the following technical scheme:
a multifunctional panel processing device comprises a processing bin main body, wherein one end of the processing bin main body is provided with a feed inlet, the other end of the processing bin main body is provided with a discharge outlet, and the multifunctional panel processing device comprises a clamping mechanism, a panel cleaning mechanism, a dust removal mechanism and a paint spraying mechanism, wherein the clamping mechanism comprises a supporting plate, a driving sliding block, a movable clamping plate, an extrusion rod, a top plate, a first side plate and a second side plate, a panel is placed on the upper surface of the supporting plate, one end of the panel is close to the first side plate, the first side plate is fixedly connected to one end of the supporting plate, the other end of the panel is propped by the movable clamping plate, one side of the movable clamping plate is connected to one end of the extrusion rod, the other end of the extrusion rod penetrates through the second side plate to be connected to the top plate, the second side plate is fixedly connected to the other end of the supporting plate, a spring is arranged between the movable clamping plate and the second side plate, the spring is sleeved on the extrusion rod, the driving sliding block is connected to the bottom of the supporting plate, the bottom of the driving sliding block is connected with a linear guide rail, the bottom of the linear guide rail is provided with a workbench, the linear guide rail is fixedly connected to the surface of the workbench, and the workbench is arranged at the bottom in the processing bin main body;
optionally, the panel cleaning mechanism comprises a motor, a driving shaft and a cleaning brush plate, the motor is connected to the top in the processing bin main body through a bolt, the top of the driving shaft is connected to the motor, the bottom of the driving shaft is connected to the cleaning brush plate, the cleaning brush plate is arranged above the workbench, the dust removal mechanism is arranged on one side of the panel cleaning mechanism, the dust removal mechanism comprises an air pump, a first cleaning device and a second cleaning device, the air pump is connected to the upper surface of the processing bin main body through a bolt, the first cleaning device is arranged below the air pump and fixedly connected to the top in the processing bin main body, the second cleaning device is arranged on one side of the first cleaning device, the air pump is connected with the second cleaning device through a conduit, the bottom of the first cleaning device is connected with the first spray nozzle, and the bottom of the second cleaning device is connected with the second spray nozzle;
optionally, the paint spraying mechanism is arranged on one side of the dust removing mechanism, the paint spraying mechanism comprises a paint barrel, a paint spraying pump, a paint spraying pipe, a paint spraying head and a conveying pipe, the paint barrel is connected to the top of the processing bin main body, the paint spraying pump is connected to the paint barrel, one end of the conveying pipe is connected to the paint spraying pump, the other end of the conveying pipe is connected to the paint spraying pipe, the paint spraying pipe is fixedly connected to the inner top of the processing bin main body, and the paint spraying head is fixedly connected to the bottom of the paint spraying pipe;
optionally, a pull rod is installed at the center of one side of the top plate, and a handle is installed on the pull rod;
optionally, a height adjusting device is arranged at the joint of the driving sliding block and the supporting plate, so that the distance between the driving sliding block and the cleaning brush plate can be conveniently adjusted according to panels with different thicknesses;
optionally, the first spray head is inclined towards the direction of the cleaning brush plate, the second spray head is arranged vertically downwards, the surface of the panel brushed by the cleaning brush plate can be cleaned again through the first spray head, and the vertically downwards arranged spray heads blow downwards to form a wind-force curtain wall for separating a front area from a rear paint spraying mechanism area and preventing paint mist from scattering around;
optionally, blocking and shielding cloth is arranged at the feed inlet and the discharge outlet, so that dust paint mist generated by processing in the processing bin main body is prevented from flying around;
has the advantages that: the invention can realize the fixation of the panel in the processing process by a stable and reasonable clamping mechanism, and clean the dirt and dust on the surface of the panel by a panel cleaning mechanism provided with a cleaning brushing plate so as to be convenient for later-stage paint spraying, and further clean the surface of the cleaned panel by high-pressure wind power dust removal again by a dust removal mechanism provided with a first spray nozzle and arranged at the back so as to ensure the later-stage processing quality of the panel, meanwhile, the spray nozzle which is vertically arranged downwards blows downwards forms a wind power curtain wall for separating the front area from the rear paint spraying mechanism area and placing the paint mist to scatter around so as to ensure the stability of the whole processing environment and the processing quality so as to be convenient for the later-stage paint spraying mechanism to spray the surface of the panel, and simultaneously, the feed inlet and the discharge outlet are both provided with blocking and blocking cloth so as to avoid the dust and the paint mist generated by the processing in the processing chamber main body from scattering around, the processing environment is ensured to be good, meanwhile, the participation of manpower labor is reduced, the labor intensity is reduced, and the working efficiency is improved through the integrated flow.
Drawings
FIG. 1 is a schematic structural view of the present invention;

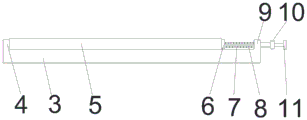

FIG. 2 is a schematic view of a clamping mechanism according to the present invention;
FIG. 3 is a schematic top view of a clamping mechanism according to the present invention;
FIG. 4 is a schematic structural view of a dust removing mechanism according to the present invention;
FIG. 5 is a schematic view of the painting mechanism of the present invention;
the automatic cleaning device comprises a processing bin main body, a clamping mechanism 2, a supporting plate 3, a side plate I4, a panel 5, a movable clamping plate 6, an extrusion rod 7, a spring 8, a side plate II 9, a top plate 10, a pull rod 11, a driving slide block 12, a linear guide rail 13, a cleaning brush plate 14, a driving shaft 15, a motor 16, a feed inlet 17, a blocking shielding cloth 18, a discharge port 19, a paint bucket 21, a paint spraying pipe 22, a paint spraying head 23, a paint spraying pump 24, a conveying pipe 25, an air pump 26, a spray head I27, a cleaning device I28, a guide pipe 29, a cleaning device II 30, a spray head II 31 and a workbench 32.
Detailed Description
The technical solutions of the present invention will be described clearly and completely with reference to the accompanying drawings, and it should be understood that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the context of the present invention will be understood in a specific context to those skilled in the art.
As shown in fig. 1-5, the device comprises a processing bin main body 1, wherein one end of the processing bin main body 1 is provided with a feeding hole 17, the other end of the processing bin main body 1 is provided with a discharging hole 19, and the device comprises a clamping mechanism 2, a panel cleaning mechanism, a dust removing mechanism and a paint spraying mechanism, wherein the clamping mechanism 2 comprises a supporting plate 3, a driving slider 12, a movable clamping plate 6, an extrusion rod 7, a top plate 10, a first side plate 4 and a second side plate 9, a panel 5 is placed on the upper surface of the supporting plate 3, one end of the panel 5 abuts against the first side plate 4, the first side plate 4 is fixedly connected to one end of the supporting plate 3, the other end of the panel 5 is propped by the movable clamping plate 6, one side of the movable clamping plate 6 is connected to one end of the extrusion rod 7, the other end of the extrusion rod 7 penetrates through the second side plate 9 to be connected to the top plate 10, the second side plate 9 is fixedly connected to the other end of the supporting plate 3, and a spring 8 is arranged between the movable clamping plate 6 and the second side plate 9, the spring 8 is sleeved on the extrusion rod 7, the driving sliding block 12 is connected to the bottom of the supporting plate 3, the bottom of the driving sliding block 12 is connected with the linear guide rail 13, the bottom of the linear guide rail 13 is provided with the workbench 32, the linear guide rail 13 is fixedly connected to the surface of the workbench 32, and the workbench 32 is arranged at the bottom in the processing bin main body 1; the panel cleaning mechanism comprises a motor 16, a driving shaft 15 and a cleaning brush plate 14, the motor 16 is connected with the inner top of the processing bin main body 1 through bolts, the top of the driving shaft 15 is connected with a motor 16, the bottom of the driving shaft 15 is connected with a cleaning brush plate 14, the cleaning brush plate 14 is arranged above the workbench 32, the dust removing mechanism is arranged at one side of the panel cleaning mechanism, the dust removal mechanism comprises an air pump 26, a first cleaning device 28 and a second cleaning device 30, the air pump 26 is connected to the upper surface of the processing bin main body 1 through bolts, the first cleaning device 28 is arranged below the air pump 26 and fixedly connected to the top in the processing bin main body 1, the second cleaning device 30 is arranged at one side of the first cleaning device 28, the air pump 26 is connected with the second cleaning device 30 through a conduit 29, the bottom of the first cleaning device 28 is connected with a first spray head 27, and the bottom of the second cleaning device 30 is connected with a second spray head 31; the paint spraying mechanism is arranged on one side of the dust removing mechanism and comprises a paint barrel 21, a paint spraying pump 24, a paint spraying pipe 22, a paint spraying head 23 and a conveying pipe 25, the paint barrel 21 is connected to the top of the processing bin main body 1, the paint spraying pump 24 is connected to the paint barrel 21, one end of the conveying pipe 25 is connected to the paint spraying pump 24, the other end of the conveying pipe is connected to the paint spraying pipe 22, the paint spraying pipe 22 is fixedly connected to the inner top of the processing bin main body 1, and the paint spraying head 23 is fixedly connected to the bottom of the paint spraying pipe 22; a pull rod 11 is arranged at the center of one side of the top plate 10, and a handle is arranged on the pull rod 11; a height adjusting device is arranged at the joint of the driving slide block 12 and the supporting plate 3, so that the distance between the driving slide block and the cleaning brush plate can be conveniently adjusted according to panels with different thicknesses; the first spray head 27 inclines towards the direction of the cleaning brush plate 14, the second spray head 31 is arranged vertically downwards, the surface of the panel brushed by the cleaning brush plate can be cleaned again through the first spray head, and the vertically downwards arranged spray heads blow downwards to form a wind power curtain wall for separating a front area from a rear painting mechanism area and placing paint mist to scatter around; the feed inlet 17 and the discharge outlet 19 are both provided with blocking and shielding cloth 18, so that dust and paint mist generated by processing inside the processing bin main body is prevented from flying around.
The working principle is as follows: when the device is used for spraying paint on the panel, the panel 5 to be sprayed is placed on the supporting plate 3, then the movable clamping plate 6 is pushed open so as to enable the panel 5 to be clamped, then the height adjusting device installed on the driving sliding block 12, in particular to a structure for adjusting the height of a hydraulic rod, enables the surface of the panel 5 to reach the height of contact with the cleaning brush plate 14, then the motor 16 is started to drive the cleaning brush plate 14 to rotate, then the driving sliding block 12 is controlled to slowly advance on the linear guide rail 13, the cleaning brush plate 14 cleans the surface of the panel 5 with cleaning dust in the advancing process, then the panel 5 is moved to the dust removing mechanism, the first spray nozzle 27 cleans the surface of the cleaned panel 5 again through the air pump 26, and then the panel 5 is conveyed to the paint spraying mechanism and then passes through the second spray nozzle 31 which is vertically arranged downwards to form a wind force curtain wall to prevent the paint mist of the paint spraying mechanism from scattering, the paint spraying pump 24 pumps paint inside the paint bucket 21 and conveys the paint to the paint spraying pipe 22, the paint is sprayed through the paint spraying head 23 arranged at the bottom of the paint spraying pipe 22, and the paint is finally conveyed to the discharge port 19 to be taken out.
Claims (7)
1. The utility model provides a multi-functional processingequipment of panel, includes processing storehouse main part (1), processing storehouse main part (1) one end is equipped with feed inlet (17), processing storehouse main part (1) other end is equipped with discharge gate (19), its characterized in that: comprises a clamping mechanism (2), a panel cleaning mechanism, a dust removing mechanism and a paint spraying mechanism, wherein the clamping mechanism (2) comprises a supporting plate (3), a driving sliding block (12), a movable clamping plate (6), an extrusion rod (7), a top plate (10), a first side plate (4) and a second side plate (9), a panel (5) is placed on the upper surface of the supporting plate (3), one end of the panel (5) is close to the first side plate (4), the first side plate (4) is fixedly connected to one end of the supporting plate (3), the other end of the panel (5) is propped against by the movable clamping plate (6), one side of the movable clamping plate (6) is connected to one end of the extrusion rod (7), the other end of the extrusion rod (7) penetrates through the second side plate (9) to be connected to the top plate (10), the second side plate (9) is fixedly connected to the other end of the supporting plate (3), and a spring (8) is arranged between the movable clamping plate (6) and the second side plate (9), spring (8) cup joint in squeeze bar (7), drive slider (12) are connected in layer board (3) bottom, drive slider (12) bottom is connected with linear guide (13), linear guide (13) bottom is equipped with workstation (32), linear guide (13) fixed connection is in workstation (32) surface, bottom in processing storehouse main part (1) is located in workstation (32).
2. The multifunctional panel processing device according to claim 1, wherein: the panel cleaning mechanism comprises a motor (16), a driving shaft (15) and a cleaning brush plate (14), the motor (16) is connected to the inner top of the processing bin main body (1) through bolts, the top of the driving shaft (15) is connected to the motor (16), the bottom of the driving shaft (15) is connected to the cleaning brush plate (14), the cleaning brush plate (14) is arranged above the workbench (32), the dust removing mechanism is arranged on one side of the panel cleaning mechanism, the dust removing mechanism comprises an air pump (26), a first cleaning device (28) and a second cleaning device (30), the air pump (26) is connected to the upper surface of the processing bin main body (1) through bolts, the first cleaning device (28) is arranged below the air pump (26) and fixedly connected to the inner top of the processing bin main body (1), the second cleaning device (30) is arranged on one side of the first cleaning device (28), and the air pump (26) is connected with the second cleaning device (30) through a guide pipe (29), the bottom of the first cleaning device (28) is connected with a first spray head (27), and the bottom of the second cleaning device (30) is connected with a second spray head (31).
3. The multifunctional panel processing device according to claim 1, wherein: mechanism locates dust removal mechanism one side sprays paint, the mechanism of spraying paint includes paint bucket (21), paint spraying pump (24), spray paint pipe (22), spray paint head (23) and conveyer pipe (25), paint bucket (21) are connected in processing storehouse main part (1) top, spray paint pump (24) are connected in paint bucket (21), conveyer pipe (25) one end is connected in spray paint pump (24) and the other end and is connected in spray paint pipe (22), spray paint pipe (22) fixed connection is in processing storehouse main part (1) top, spray paint head (23) fixed connection is in spray paint pipe (22) bottom.
4. The multifunctional panel processing device according to claim 1, wherein: the pull rod (11) is installed at the center of one side of the top plate (10), and a handle is installed on the pull rod (11).
5. The multifunctional panel processing device according to claim 1, wherein: and a height adjusting device is arranged at the joint of the driving sliding block (12) and the supporting plate (3).
6. The multifunctional panel processing device according to claim 1, wherein: the first spray head (27) inclines towards the direction of the cleaning brush plate (14), and the second spray head (31) is vertically arranged downwards.
7. The multifunctional panel processing device according to claim 1, wherein: and the feed inlet (17) and the discharge outlet (19) are both provided with blocking and shielding cloth (18).
