Abstract
The invention relates to the field of power supply systems and discloses a distribution network information management system and a distribution network information management device integrating multiple data architectures, wherein a support is fixedly connected with a base, a shell is fixedly connected with the base, the base is lifted away from a specified height through the support, and a back plate is rotatably connected with the shell; branch and shell fixed connection, the controller sets up on branch, branch lifts the controller and leaves the shell take the altitude to make things convenient for the heat dissipation, fan and shell fixed connection, the heat dissipation piece derives the heat that produces on branch with branch fixed connection, through the fan heat dissipation, keeps off net and shell fixed connection to cover the bottom hole, prevent that the foreign matter from getting into, sliding plate and shell sliding connection, the cylinder sets up on the shell, the telescopic link and the sliding plate fixed connection of cylinder. The sliding plate is driven by the air cylinder, so that the air cylinder can be opened when ventilation is needed, and the sliding plate is closed when ventilation is not needed, so that the controller can be better cooled, and the cooling efficiency is improved.
Description
Technical Field
The invention relates to the field of power supply systems, in particular to a distribution network information management system and device integrating multiple data architectures.
Background
At present, most distribution network information management equipment is located outdoors, such as outdoor switch box cable distribution boxes, box transformers, transformers and the like, most of the distribution network information management equipment are located in the places with relatively severe environments, and the distribution network information management equipment is easily damaged due to overhigh temperature caused by outdoor exposure to the sun and rain.
Disclosure of Invention
The invention aims to provide a distribution network information management system and a distribution network information management device integrating various data architectures, and aims to solve the problem that the existing equipment is poor in heat dissipation capacity and easy to damage.
In order to achieve the above object, in a first aspect, the present invention provides a distribution network information management apparatus fusing multiple data architectures, including a support component, a heat dissipation component, a protection component and a controller, where the support component includes a base, a support, a housing and a back plate, the support is fixedly connected to the base and is located at one side of the base, the housing is fixedly connected to the base and is located at one side of the base away from the support, the housing has a bottom hole and a side hole, the bottom hole and the side hole are distributed at two sides of the housing, and the back plate is rotatably connected to the housing and is located at one side of the side hole;
the heat dissipation assembly comprises a support rod, a fan, a heat dissipation plate, a blocking net, a sliding plate and an air cylinder, wherein the support rod is fixedly connected with the shell and is positioned on one side of the bottom hole, the controller is arranged on the support rod, the fan is fixedly connected with the shell and is positioned on one side of the bottom hole, the heat dissipation plate is fixedly connected with the support rod and is positioned on one side of the controller, the blocking net is fixedly connected with the shell and covers the bottom hole, the sliding plate is slidably connected with the shell and is positioned on one side of the blocking net, the air cylinder is arranged on the shell, and a telescopic rod of the air cylinder is fixedly connected with the sliding plate.
The bracket comprises a bracket body and an installing head, wherein the installing head is fixedly connected with the bracket body and is positioned on one side of the bracket body, which is far away from the base.
The mounting head is of a pointed structure, and the device can be more conveniently mounted on the ground for fixing through the mounting head.
The bracket further comprises a sliding sleeve, and the sliding sleeve is connected with the bracket body in a sliding mode and is positioned on one side of the mounting head.
The installation head causes the damage for the tip structure easily ground or other people, consequently the support body department is provided with the sliding sleeve, through sliding the sliding sleeve is convenient for with the installation head is accomodate.
The heat dissipation assembly further comprises a pressure sensor and a pressing plate, the pressure sensor is arranged on the sliding plate, and the pressing plate is arranged on the pressure sensor.
The pressure plate can increase the wind area, so that the pressure plate can be pressed by the wind blown by the fan, and the pressure sensor can detect signals when being pressed, so that the air cylinder can be automatically controlled to move.
The heat dissipation assembly further comprises a temperature sensor, and the temperature sensor is fixedly connected with the shell and is positioned in the shell.
The temperature sensor can detect the temperature in the shell, so that the opening and closing of the fan can be controlled more conveniently.
The protective assembly comprises a ceiling, a channel and a cooling pipe, the ceiling is fixedly connected with the shell and is positioned on one side, far away from the base, of the shell, the channel is arranged on one side of the ceiling, and the cooling pipe is communicated with the channel and penetrates through the shell.
The ceiling can shield the top of the shell and can simultaneously shield sunlight and rainwater, wherein the rainwater can flow into the channel along the ceiling and then can radiate the space inside the shell through the cooling pipe and the inside of the shell.
The protection assembly further comprises a solar panel, and the solar panel is fixedly connected with the ceiling and is positioned on one side of the ceiling.
Solar panel can absorb solar energy and charge this device.
In a second aspect, the present invention further provides a distribution network information management system fusing multiple data architectures, including a distribution network information management apparatus fusing multiple data architectures, an information receiving module, a processing module, a linear storage module, a tree-shaped storage module, a graph storage module, and an information output module, where the information receiving module is connected to the processing module, the linear storage module, the tree-shaped storage module, the graph storage module, and the information output module are connected to the processing module, and the controller is connected to the processing module.
The information receiving module is used for receiving information such as power consumption transmitted by a power distribution network user, and then the processing module is used for passing through data, the line type storage module, the tree-shaped storage module and the graph storage module are respectively stored, so that the risk resistance can be enhanced, data loss caused by damage of a certain storage module is avoided, and the information output module can transmit the information to an upper computer for use.
According to the distribution network information management system and device integrating multiple data architectures, the support is fixedly connected with the base, the shell is provided with a bottom hole and a side hole, the base can be lifted away from a specified height through the support, the back plate is rotatably connected with the shell, and the back plate is opened and can contact parts in the shell; the support rod is fixedly connected with the shell, the controller is arranged on the support rod, the support rod can lift the controller away from the shell by a certain height so as to facilitate heat dissipation, the fan is fixedly connected with the shell and can rotate to take out air in the shell for heat dissipation, the radiating fin is fixedly connected with the support rod and arranged on one side of the support rod and made of a material with high heat conductivity so as to lead out heat generated on the support rod, then the heat is dissipated through the fan, the blocking net is fixedly connected with the shell and covers the bottom hole to prevent external impurities or animals from entering, the sliding plate is slidably connected with the shell, the air cylinder is arranged on the shell, and the telescopic rod of the air cylinder is fixedly connected with the sliding plate. The sliding plate is driven by the air cylinder, so that the air cylinder can be opened when ventilation is needed, the sliding plate is closed when ventilation is not needed, small animals and dust are prevented from entering and influencing internal circuits, the controller can be better cooled, and the problem that the existing equipment is poor in cooling capacity and easy to damage is solved.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

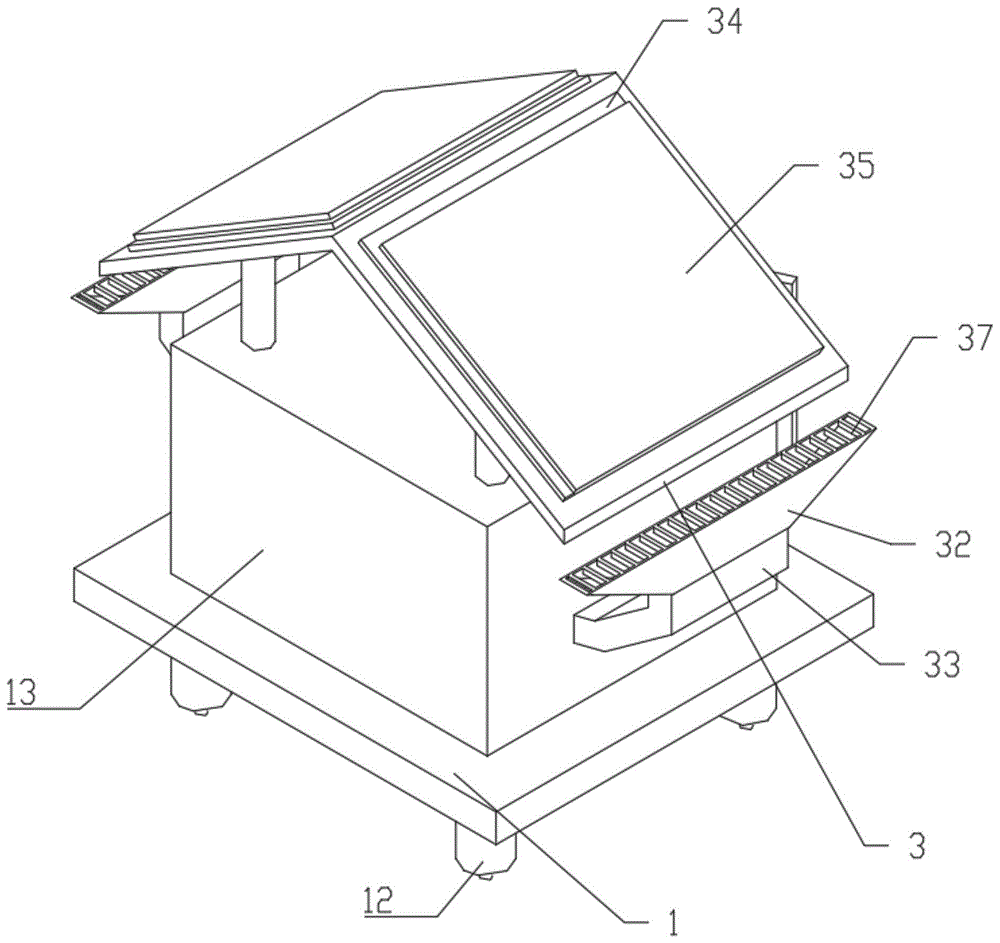

Fig. 1 is a structural diagram of a distribution network information management system and device integrating multiple data architectures according to the present invention;
fig. 2 is a left side structure diagram of the distribution network information management system and apparatus of the present invention which integrates multiple data architectures;
fig. 3 is a right side structure diagram of the distribution network information management system and apparatus of the present invention which integrates multiple data architectures;
fig. 4 is a schematic cross-sectional view of a distribution network information management system and apparatus of the present invention incorporating multiple data architectures;
fig. 5 is a schematic longitudinal cross-sectional view of a distribution network information management system and apparatus of the present invention, which integrates multiple data architectures;
FIG. 6 is an enlarged partial view of detail A of FIG. 4;
fig. 7 is a structural diagram of a distribution network information management system integrating a plurality of data architectures according to the present invention.
1-supporting component, 2-heat dissipation component, 3-protection component, 4-controller, 5-information receiving module, 6-processing module, 7-linear storage module, 8-tree storage module, 9-graphic storage module, 10-information output module, 11-base, 12-bracket, 13-shell, 14-back plate, 21-supporting rod, 22-fan, 23-radiating fin, 24-blocking net, 25-sliding plate, 26-cylinder, 27-pressure sensor, 28-pressing plate, 29-temperature sensor, 31-ceiling, 32-channel, 33-cooling pipe, 34-solar panel, 35-glass cover plate, 36-blocking plate, 37-filtering net, 121-bracket body, 3-protective component, 4-controller, 3-information receiving module, 6-processing module, 3-linear storage module, 8-tree storage module, 9-graphic storage module, 10-information output module, 11-base, 12-bracket, 13-shell, 14-back plate, 21-supporting rod, 22-fan, 23-radiating fin, 24-blocking net, 25-sliding plate, 26-air cylinder, 27-pressure sensor, 28-pressing plate, 29-temperature sensor, 31-ceiling, 32-channel, 33-cooling pipe, 34-solar panel, 35-glass cover plate, 36-baffle plate, 37-filtering net, 1-filtering net, 2-supporting frame body, 2-protecting component, 3-protecting component, 2-protecting component, 4-protecting component, and 3-protecting component, 122-a mounting head, 123-a sliding sleeve, 131-a bottom hole and 132-a side hole.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are illustrative and intended to be illustrative of the invention and are not to be construed as limiting the invention.
In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships illustrated in the drawings, and are used merely for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the devices or elements referred to must have a particular orientation, be constructed in a particular orientation, and be operated, and thus, are not to be construed as limiting the present invention. Further, in the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
Referring to fig. 1 to 7, the present invention provides a distribution network information management system and device that integrates multiple data architectures:
the supporting component 1 comprises a base 11, a bracket 12, a shell 13 and a back plate 14, the bracket 12 is fixedly connected with the base 11 and is positioned on one side of the base 11, the shell 13 is fixedly connected with the base 11 and is positioned on one side of the base 11, which is far away from the bracket 12, the shell 13 is provided with a bottom hole 131 and a side hole 132, the bottom hole 131 and the side hole 132 are distributed on two sides of the shell 13, and the back plate 14 is rotatably connected with the shell 13 and is positioned on one side of the side hole 132; the heat dissipation assembly 2 includes a support rod 21, a fan 22, a heat sink 23, a blocking net 24, a sliding plate 25 and an air cylinder 26, wherein the support rod 21 is fixedly connected to the housing 13 and located at one side of the bottom hole 131, the controller 4 is disposed on the support rod 21, the fan 22 is fixedly connected to the housing 13 and located at one side of the bottom hole 131, the heat sink 23 is fixedly connected to the support rod 21 and located at one side of the controller 4, the blocking net 24 is fixedly connected to the housing 13 and covers the bottom hole 131, the sliding plate 25 is slidably connected to the housing 13 and located at one side of the blocking net 24, the air cylinder 26 is disposed on the housing 13, and a telescopic rod of the air cylinder 26 is fixedly connected to the sliding plate 25.
In this embodiment, the supporting assembly 1 includes a base 11, a bracket 12, a housing 13 and a back plate 14, the bracket 12 is fixedly connected to the base 11 and is located at one side of the base 11, the housing 13 is fixedly connected to the base 11 and is located at one side of the base 11 away from the bracket 12, the housing 13 has a bottom hole 131 and a side hole 132, the base 11 can be lifted off a designated height by the bracket 12, the bottom hole 131 and the side hole 132 are distributed at two sides of the housing 13, the back plate 14 is rotatably connected to the housing 13 and is located at one side of the side hole 132, and the back plate 14 can be contacted with parts inside the housing 13 by opening the back plate 14; the heat dissipation assembly 2 includes a support rod 21, a fan 22, a heat sink 23, a blocking net 24, a sliding plate 25 and an air cylinder 26, the support rod 21 is fixedly connected to the housing 13 and is located at one side of the bottom hole 131, the controller 4 is disposed on the support rod 21, the support rod 21 can lift the controller 4 away from the housing 13 by a certain height so as to facilitate heat dissipation, the fan 22 is disposed at one side of the bottom hole 131 and can rotate to take out air in the housing 13 for heat dissipation, the fan 22 is fixedly connected to the housing 13 and is located at one side of the bottom hole 131, the heat sink 23 is fixedly connected to the support rod 21 and is located at one side of the controller 4, the heat sink 23 is disposed at one side of the support rod 21 and is made of a material with high thermal conductivity, and can lead out heat generated on the support rod 21 and then dissipate heat by the fan 22, the blocking net 24 is fixedly connected with the housing 13 and covers the bottom hole 131, the blocking net 24 is arranged on one side of the bottom hole 131 to prevent external impurities or animals from entering, the sliding plate 25 is slidably connected with the housing 13 and is arranged on one side of the blocking net 24, the air cylinder 26 is arranged on the housing 13, and the telescopic rod of the air cylinder 26 is fixedly connected with the sliding plate 25. However, there may still be small animals climbing through the holes on the blocking net 24, so the sliding plate 25 is set to be driven by the cylinder 26, so that the cylinder 26 can be opened when ventilation is needed, and the sliding plate 25 is closed when ventilation is not needed, so that the controller 4 can be better cooled, and the problem that the existing device is not good in heat dissipation capability and easy to damage is solved.
Further, the bracket 12 comprises a bracket body 121 and a mounting head 122, and the mounting head 122 is fixedly connected with the bracket body 121 and is located on one side of the bracket body 121 away from the base 11; the bracket 12 further includes a sliding sleeve 123, wherein the sliding sleeve 123 is slidably connected to the bracket body 121 and is located at one side of the mounting head 122.
In the present embodiment, the mounting head 122 is a tip structure, and the mounting head 122 can more conveniently mount and fix the device on the ground. The mounting head 122 is a pointed structure which is easy to damage the ground or other people, so a sliding sleeve 123 is disposed at the bracket body 121, and the mounting head 122 can be conveniently stored by sliding the sliding sleeve 123.
Further, the heat dissipation assembly 2 further comprises a pressure sensor 27 and a pressure plate 28, wherein the pressure sensor 27 is disposed on the sliding plate 25, and the pressure plate 28 is disposed on the pressure sensor 27; the heat dissipation assembly 2 further comprises a temperature sensor 29, wherein the temperature sensor 29 is fixedly connected with the shell 13 and is positioned in the shell 13.
In the present embodiment, the pressure plate 28 can increase the wind receiving area, so that the pressure plate 28 can be pressed by the wind blown by the fan 22, and the pressure sensor 27 can detect the pressure, so that the movement of the air cylinder 26 can be automatically controlled. The type of the temperature sensor 29 may be PT100, and the temperature sensor 29 may detect the temperature inside the casing 13, so that the opening and closing of the fan 22 may be more conveniently controlled.
Further, the shielding assembly 3 comprises a ceiling 31, a channel 32 and a cooling pipe 33, the ceiling 31 is fixedly connected with the outer shell 13 and is located on one side of the outer shell 13 far away from the base 11, the channel 32 is arranged on one side of the ceiling 31, and the cooling pipe 33 is communicated with the channel 32 and penetrates through the outer shell 13; the protection component 3 further comprises a solar panel 34, wherein the solar panel 34 is fixedly connected with the ceiling 31 and is positioned on one side of the ceiling 31; the protection component 3 further comprises a glass cover plate 35, wherein the glass cover plate 35 is fixedly connected with the solar panel 34 and covers the solar panel 34.
In the present embodiment, the ceiling 31 may shield the top of the housing 13, and may simultaneously shield sunlight and rainwater, wherein rainwater may flow into the channels 32 along the ceiling 31, and then dissipate heat from the space inside the housing 13 through the inside of the housing 13 through the cooling pipe 33. The solar panel 34 can absorb solar energy to charge the device.
Further, the shielding assembly 3 further includes a plurality of blocking pieces 36 and a filtering net 37, the blocking pieces 36 are alternately arranged in the cooling pipe 33, and the filtering net 37 is fixedly connected with the channel 32 and covers the channel 32.
In this embodiment, the baffle plates 36 are disposed inside the baffle plates 36 to slow down the falling speed of the water flow and increase the heat absorption efficiency inside the housing 13, so as to improve the heat dissipation efficiency, and the filter screen 37 is disposed outside the channel 32 to prevent impurities from entering the cooling pipe 33.
In a second aspect, the present invention further provides a distribution network information management system fusing multiple data architectures, including an information receiving module 5, a processing module 6, a linear storage module 7, a tree storage module 8, a graph storage module 9, and an information output module 10, where the information receiving module 5 is connected to the processing module 6, and the linear storage module 7, the tree storage module 8, the graph storage module 9, and the information output module 10 are connected to the processing module 6.
In this embodiment, the information receiving module 5 is configured to receive information such as power consumption transmitted by a power distribution network user, and then the processing module 6 stores data respectively through the line type storage module, the tree-shaped storage module 8 and the graph storage module 9, so that the risk resistance can be enhanced, data loss due to damage of a certain storage module can be avoided, and the information can be transmitted to an upper computer for use through the information output module 10.
While the invention has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes in form and detail may be made therein without departing from the spirit and scope of the invention as defined by the appended claims.
Claims (8)
1. A distribution network information management device integrating a plurality of data architectures is characterized in that,
the heat dissipation device comprises a supporting component, a heat dissipation component, a protection component and a controller, wherein the supporting component comprises a base, a support, a shell and a back plate, the support is fixedly connected with the base and is positioned on one side of the base, the shell is fixedly connected with the base and is positioned on one side, far away from the support, of the base, the shell is provided with a bottom hole and a side hole, the bottom hole and the side hole are distributed on two sides of the shell, and the back plate is rotatably connected with the shell and is positioned on one side of the side hole;
the heat dissipation assembly comprises a support rod, a fan, a heat dissipation plate, a blocking net, a sliding plate and an air cylinder, wherein the support rod is fixedly connected with the shell and is positioned on one side of the bottom hole, the controller is arranged on the support rod, the fan is fixedly connected with the shell and is positioned on one side of the bottom hole, the heat dissipation plate is fixedly connected with the support rod and is positioned on one side of the controller, the blocking net is fixedly connected with the shell and covers the bottom hole, the sliding plate is slidably connected with the shell and is positioned on one side of the blocking net, the air cylinder is arranged on the shell, and a telescopic rod of the air cylinder is fixedly connected with the sliding plate.
2. The distribution network information management device integrating multiple data architectures of claim 1, wherein: the support comprises a support body and an installing head, wherein the installing head is fixedly connected with the support body and is positioned on one side, far away from the base, of the support body.
3. The distribution network information management device integrating multiple data architectures of claim 2, wherein: the support further comprises a sliding sleeve, and the sliding sleeve is connected with the support body in a sliding mode and located on one side of the mounting head.
4. The distribution network information management device integrating multiple data architectures of claim 1, wherein: the heat dissipation assembly further comprises a pressure sensor and a pressing plate, the pressure sensor is arranged on the sliding plate, and the pressing plate is arranged on the pressure sensor.
5. The distribution network information management device integrating multiple data architectures of claim 4, wherein: the heat dissipation assembly further comprises a temperature sensor, and the temperature sensor is fixedly connected with the shell and is positioned in the shell.
6. The distribution network information management device integrating multiple data architectures of claim 1, wherein: the protective assembly comprises a ceiling, a channel and a cooling pipe, the ceiling is fixedly connected with the shell and is positioned on one side, away from the base, of the shell, the channel is arranged on one side of the ceiling, and the cooling pipe is communicated with the channel and penetrates through the shell.
7. The distribution network information management device integrating multiple data architectures of claim 6, wherein: the protection component further comprises a solar panel, and the solar panel is fixedly connected with the ceiling and is positioned on one side of the ceiling.
8. A distribution network information management system fusing multiple data architectures, which comprises the distribution network information management device fusing multiple data architectures according to any one of claims 1 to 7, and is characterized by further comprising an information receiving module, a processing module, a linear storage module, a tree-shaped storage module, a graph storage module and an information output module, wherein the information receiving module is connected with the processing module, the linear storage module, the tree-shaped storage module, the graph storage module and the information output module are connected with the processing module, and the controller is connected with the processing module.
