Abstract

The invention relates to a chair, in particular to a massage chair. The utility model provides a massage armchair, includes seat portion, elastic plate and backup plate portion, be provided with the elastic plate between seat portion and the backup plate portion, the elastic plate can be crooked. The elastic plate is characterized by further comprising connecting pieces, wherein the two sides of the elastic plate are connected with the connecting pieces, and the two connecting pieces are connected to the seat plate portion and the backrest plate portion respectively. The seat plate part is fixedly connected with the straight rod, the leaning plate part is fixedly connected with the convex seat, and the straight rod is connected to the convex seat in a sliding mode. The elastic rod I is fixedly connected to the straight rod, and the other end of the elastic rod I is fixedly connected to the convex seat. Still include trapezoidal strip, the downside of elastic plate is provided with a plurality of trapezoidal strips from a left side to the right side. The waist massager also comprises a semi-cylinder, a strip-shaped seat and a sliding rod, wherein the strip-shaped seat is fixedly connected to the straight rod, and the sliding rod can slide on the strip-shaped seat.

Description

Massage chair

Technical Field

The invention relates to a chair, in particular to a massage chair.

Background

The massage chair utilizes the mechanical rolling force action and the mechanical force extrusion to carry out massage, and the manual massage can dredge channels and collaterals, lead qi and blood to circulate and keep the yin-yang balance of the organism, so that people can feel relaxed muscles and flexible joints after massage, thus leading people to be excited and eliminating fatigue and playing an important role in ensuring the health of the people.

Patent number 201520009797.1 discloses a back vibration massage armchair, including chassis, the seatpad of taking the seat gasbag, handrail, back and the head rest of taking the side gasbag, the handrail sets up in the seatpad both sides, and the handrail upper end is provided with the arm standing groove, the back sets up in the seatpad rear end, and back front end surface is provided with the dough sheet, and dough sheet upper portion all is equipped with multiunit rubber bag and a plurality of massager, and the dough sheet lower part sets up the waist protruding, is provided with the peripheral piece on the back around the dough sheet, and it is protruding that the back upper end is provided with the neck, be provided with a plurality of rubber bags in the neck arch and the waist arch, and the protruding upper end of neck is provided with the head rest, is provided with the earmuff of taking the earphone on the head rest, inside corresponding rubber bag department, the arm standing groove of back, inside the neck arch and the protruding inside of waist are provided with vibrating motor respectively, this utility model discloses simple structure, reasonable in design, the massage function is comprehensive, but this patent can's can't utilize the elastic plate to carry out the extrusion massage of different degree to the waist.

Disclosure of Invention

In order to overcome the defects of the prior art, the invention provides the massage chair which has the beneficial effect that the waist can be squeezed and massaged to different degrees by utilizing the elastic plate.

The utility model provides a massage armchair, includes seat portion, elastic plate and backup plate portion, be provided with the elastic plate between seat portion and the backup plate portion, the elastic plate can be crooked.

The massage chair further comprises connecting pieces, wherein the two sides of the elastic plate are connected with the connecting pieces, and the two connecting pieces are respectively connected to the seat plate part and the backrest plate part.

The massage chair further comprises a straight rod and a convex seat, the straight rod is fixedly connected to the seat plate portion, the convex seat is fixedly connected to the backrest plate portion, and the straight rod is connected to the convex seat in a sliding mode.

The massage chair also comprises an elastic rod I, wherein the straight rod is fixedly connected with the elastic rod I, and the other end of the elastic rod I is fixedly connected with the convex seat.

The massage chair also comprises a plurality of trapezoidal strips, wherein the lower side of the elastic plate is provided with a plurality of trapezoidal strips from left to right.

The massage chair further comprises a semi-cylinder, a bar-shaped seat and a sliding rod, wherein the bar-shaped seat is fixedly connected to the straight rod, the sliding rod can slide on the bar-shaped seat, the semi-cylinder is fixedly connected to one end of the sliding rod, and the semi-cylinder can be pressed on the trapezoid strips.

The utility model provides a massage armchair still includes the telescopic link, and telescopic link fixed connection is on the bar seat, and the tip fixed connection of telescopic link is at the tip of slide bar.

The massage chair further comprises anti-slip ribs, the seat board portion is arranged to be arc-shaped, and the seat board portion is fixedly connected with the anti-slip ribs from left to right.

The massage chair further comprises a headrest part, the upper part of the backrest part is fixedly connected with the headrest part, and the upper part of the backrest part is in an upward arc shape.

The massage chair also comprises a supporting part, rotating wheels and a bracket, wherein the supporting part is arranged at the lower part of the seat part, the bracket is positioned at the lower part of the leaning plate part, and the rotating wheels are arranged at the lower part of the bracket.

The massage chair has the beneficial effects that:

the elastic plate is used for squeezing and massaging the waist in different degrees.

Drawings

The invention is described in further detail below with reference to the accompanying drawings and specific embodiments.

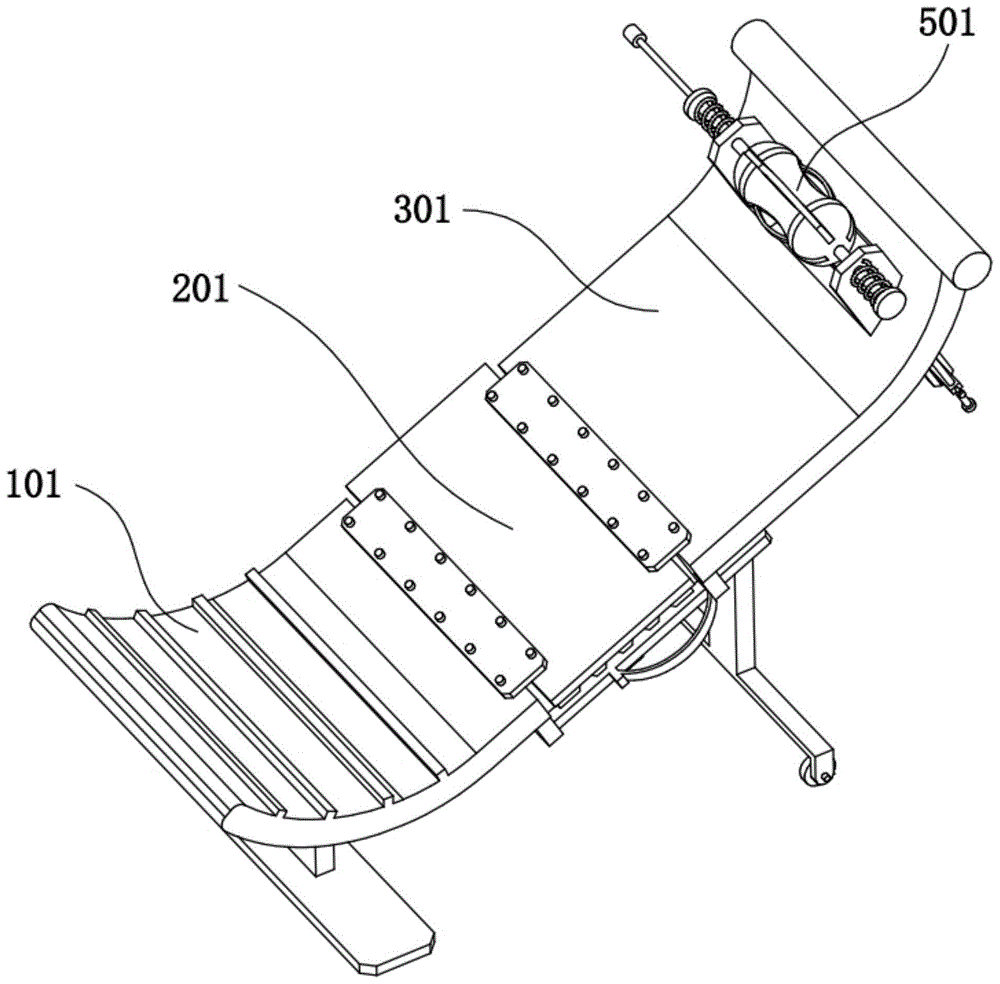

Fig. 1 is a schematic structural view of a massage chair;

FIG. 2 is a first partial schematic structural view of the massage chair;

FIG. 3 is a schematic view of a portion of the massage chair;

FIG. 4 is a first schematic structural view of the seat plate portion;

FIG. 5 is a second schematic structural view of the seat plate portion;

FIG. 6 is a first schematic structural diagram of an elastic plate;

FIG. 7 is a second schematic structural view of the elastic plate;

FIG. 8 is a first schematic view of the structure of the backrest part;

FIG. 9 is a second schematic view of the structure of the backup plate;

FIG. 10 is a first view illustrating a semi-cylinder configuration;

FIG. 11 is a second schematic structural view of a semi-cylinder;

fig. 12 is a schematic structural view of the cervical pillow.

In the figure: a seat plate portion 101; a support portion 102; anti-slip ribs 103; a straight rod 104; an elastic rod I105;

an elastic plate 201; a connecting piece 202; a trapezoidal bar 203;

a back plate portion 301; a headrest portion 302; a slide hole 303; a boss 304; a runner 305; a bracket 306; the adjusting beam 307; a round bar 308; an elastic rod II309;

a semi-cylinder 401; a bar-shaped seat 402; a telescopic rod 403; a slide bar 404;

a cervical pillow 501; an arc-shaped rubber strip 502; a placement groove 503; a soft rod 504; a flap 505; a slide sheet 506; a bar hole 507; a connecting portion 508.

Detailed Description

Referring to fig. 1 and fig. 4-9, an embodiment of the present invention is provided, which solves the main technical problem of performing squeezing massage to different degrees on the waist by using an elastic plate 201, and further,

because the elastic plate 201 is arranged between the seat part 101 and the back plate part 301, and the elastic plate 201 can be bent, the seat part 101 corresponds to the seat part of the chair, the back plate part 301 corresponds to the back part of the chair, the elastic plate 201 can be bent upwards, and then the elastic plate 201 is bent to different degrees, the waist of the person is extruded by the elastic plate 201, and then the waist is extruded and massaged by the elastic plate 201 to different degrees

Referring to fig. 6, an embodiment of the present invention is provided, which solves the main technical problem of connecting the elastic plate 201 between the seat plate portion 101 and the backup plate portion 301, and further,

because the two connecting pieces 202 are respectively fixedly connected to the left side and the right side of the elastic plate 201, the two connecting pieces 202 have a connecting function, and the elastic plate 201 is connected between the seat plate part 101 and the backup plate part 301; the elastic plate 201 may be bent upward to press the waist of the person using the elastic plate 201.

Referring to fig. 1 and 4-9, an embodiment of the present invention is provided, which solves the main technical problem that the seat plate portion 101 and the back plate portion 301 move to adapt to the bending change of the elastic plate 201, and further,

since the straight rod 104 is fixedly connected to the seat board portion 101, and the boss 304 is fixedly connected to the backrest portion 301, and the straight rod 104 is slidably connected to the boss 304, then the seat board portion 101 can slide on the boss 304 on the backrest portion 301 through the straight rod 104, so that the seat board portion 101 can slide relative to the backrest portion 301, and then when the elastic plate 201 bends, the seat board portion 101 can approach the backrest portion 301, so that the seat board portion 101 and the backrest portion 301 move to adapt to the bending change of the elastic plate 201.

Referring to fig. 1 and fig. 4-5, an embodiment of the present invention solves the main technical problem of providing a force between the seat plate portion 101 and the backrest plate portion 301 by the two elastic rods I105 to stretch the elastic plate 201 flat, and further,

because the elastic rod I105 is fixedly connected to the straight rod 104, and the other end of the elastic rod I105 is fixedly connected to the convex base 304, the two elastic rods I105 give a force to the seat plate part 101 and the backup plate part 301 to move away from each other, stretch the elastic plate 201 flat, and bend the elastic plate 201 to perform extrusion type massage on the waist of a person when needed.

Referring to fig. 3 and 7, an embodiment of the present invention is provided, which solves a main technical problem that a plurality of trapezoidal bars 203 can reinforce a bent elastic plate 201, and further,

because the downside of elastic plate 201 is provided with a plurality of trapezoidal strips 203 from a left side to the right side, and then a plurality of trapezoidal strips 203 can consolidate the elastic plate 201 after the bending when elastic plate 201 is crooked, prevent that elastic plate 201 is easy sunken after the bending, prevent that elastic plate 201 from causing the discomfort when massaging to the people.

Referring to fig. 1-12, an embodiment of the present invention is provided to solve the main technical problem of controlling the bending of the elastic plate 201 by adjusting different degrees of the semi-cylinder 401 pressing on the plurality of trapezoidal bars 203, so as to massage the waist of the person, and further,

because fixedly connected with bar seat 402 on the straight-bar 104, sliding connection has slide bar 404 on bar seat 402, half cylinder 401 fixed connection is in the one end of slide bar 404, half cylinder 401 presses on a plurality of trapezoidal strips 203, and then make slide bar 404 slide from top to bottom on bar seat 402, and then adjust half cylinder 401's position, press on a plurality of trapezoidal strips 203 when half cylinder 401, press the bending of the different degree control elastic plate 201 on a plurality of trapezoidal strips 203 through adjusting half cylinder 401, and then massage the waist of people.

Referring to fig. 1-12, an embodiment of the present invention is provided to solve the main technical problem of driving a sliding rod 404 to slide up and down on a bar-shaped seat 402, and further,

because fixedly connected with telescopic link 403 on the bar seat 402, telescopic link 403 can drive slide bar 404 to slide from top to bottom on bar seat 402 when flexible, and then adjusts the position of semicircle tube 401, presses on a plurality of trapezoidal strips 203 when semicircle tube 401, presses the not equidimension control elastic plate 201 bending on a plurality of trapezoidal strips 203 through adjusting semicircle tube 401, and then massages the waist of people.

Referring to fig. 4, an embodiment of the present invention is provided to solve the main technical problem that the movement of the buttocks of a person is not easy to occur during massage to affect the massage effect, and further,

because seat portion 101 is the arc to be provided with a plurality of anti-skidding arris 103 on it, and then be difficult for taking place to remove when making people's buttock sit on seat portion 101, a plurality of anti-skidding arris 103 have also played the effect of increase friction power, and then make the difficult emergence of buttock remove when the people massages and influence massage effect.

Referring to fig. 8-9, an embodiment of the present invention is provided to solve the main technical problem that a person can rest his head on the backrest 301 when lying on the massage chair, and further,

because the upper portion of the backrest plate portion 301 is arc-shaped, the backrest plate portion 301 can be protruded, and because the headrest portion 302 is arranged on the upper portion of the backrest plate portion 301, the head of a person can rest on the backrest plate portion 301 when the person lies on the massage chair.

Referring to fig. 5 and 8, an embodiment of the present invention is provided, which solves the main technical problem of accommodating the sliding between the supporting portion 102 and the backup plate portion 301, and further,

since the supporting portion 102 is disposed at the lower portion of the seat portion 101, the bracket 306 is disposed at the lower portion of the backup plate portion 301, the supporting portion 102 functions to support the seat portion 101, and the bracket 306 functions to support the backup plate portion 301, when sliding occurs between the supporting portion 102 and the backup plate portion 301, the bracket 306 can move left and right by the turning wheel 305 on the lower side thereof, so as to adapt to the sliding between the supporting portion 102 and the backup plate portion 301.

The massage chair further comprises a slide hole 303 and a cervical vertebra pillow 501, the slide hole 303 is formed in the upper portion of the backup plate portion 301, the cervical vertebra pillow 501 is arranged on the slide hole 303, and the middle of the cervical vertebra pillow 501 is thin and the two ends of the cervical vertebra pillow 501 are thick.

Referring to fig. 1-12, an embodiment of the present invention is provided, which solves the main technical problem that the cervical vertebrae can be centered and laid on the cervical pillow 501, and further,

when lying on the massage armchair, the cervical vertebra part of the person needs to lie on the cervical pillow 501, the middle part of the cervical pillow 501 is thin and the two ends are thick, so that the cervical vertebra can lie on the cervical pillow 501 in the middle.

The massage chair further comprises arc-shaped rubber strips 502 and placing grooves 503, a plurality of placing grooves 503 are formed in the backup plate portion 301, and the arc-shaped rubber strips 502 are arranged on the placing grooves 503.

Referring to fig. 1-12, an embodiment of the present invention is provided to solve the main technical problem of massaging the cervical vertebrae of a human, and further,

the plurality of placing grooves 503 are used for arranging a plurality of arc-shaped rubber strips 502 on the cervical pillow 501, and the plurality of arc-shaped rubber strips 502 are used for massaging the cervical vertebra of the human body.

The massage chair further comprises a soft rod 504, a blocking piece 505, a sliding piece 506 and a connecting portion 508, the front portion and the rear portion of the sliding piece 506 are respectively provided with one, the lower portions of the two sliding pieces 506 are connected through the connecting portion 508, the two sliding pieces 506 are all connected to the sliding hole 303 in a sliding mode, the soft rod 504 is fixedly connected to the front end and the rear end of the cervical pillow 501, the two soft rods 504 are respectively inserted to the upper portions of the two sliding pieces 506, the blocking pieces 505 are fixedly connected to the outer ends of the two soft rods 504, compression springs are sleeved on the two soft rods 504, and the compression springs are located between the corresponding blocking pieces 505 and the sliding pieces 506.

Referring to fig. 1 to 12, an embodiment of the present invention is provided to solve the main technical problem that a person lying on a cervical pillow 501 has a feeling of elasticity, so that the cervical vertebra of the person is more comfortable, and further,

when the people lies on cervical vertebra pillow 501, have a decurrent pressure to cervical vertebra pillow 501, and then stimulate two soft poles 504 and inwards move, two soft poles 504 are made for soft materials, and then two soft poles 504 can be crooked, and at this moment cervical vertebra pillow 501 two relative gleitbretters 506 downstream, and the people lies and just has an elastic sensation on cervical vertebra pillow 501, makes people's cervical vertebra position more comfortable. The compression springs on the two soft rods 504 can restore the cervical pillow 501 to its original position.

The massage armchair is still including adjusting roof beam 307, round bar 308, elastic rod II309 and strip hole 507, the equal fixedly connected with round bar 308 in both ends around backup plate portion 301 downside, the lower part of two round bar 308 all is provided with the pin, adjusting roof beam 307 around both ends sliding connection respectively on two round bar 308, it is fixed through the mode that the screw compressed tightly between adjusting roof beam 307 and the round bar 308, the lower part of two gleitbretters 506 all is provided with strip hole 507, adjusting roof beam 307 passes two strip holes 507, adjusting roof beam 307 around both ends equal fixedly connected with two elastic rod II309, two elastic rod II309 of homonymy difference fixed connection are at the middle part and the lower part of gleitbretter 506.

Referring to fig. 1-12, an embodiment of the present invention is provided, which solves the main technical problem that a plurality of elastic rods II309 make the cervical pillow 501 have more elastic movement property, so that a person can lie on it more comfortably, and further,

adjust roof beam 307 and can vertically slide on two round bars 308, and then drive two gleitbretters 506 and reciprocate, and then adjust the people that the height adaptation of cervical vertebra pillow 501 is different and use to two gleitbretters 506 all can adjust roof beam 307 vertical slip relatively through a hole 507 above that, a plurality of elastic rod II309 make cervical vertebra pillow 501 have elastic movement's nature more, make the people lie when above that more comfortable.

A coupling is fixedly connected to the outer side of one of the blocking pieces 505.

Referring to fig. 1 to 12, an embodiment of the present invention is provided to solve a main technical problem in that a cervical pillow 501 rotates while performing rotary massage on a cervical vertebra of a person by means of a plurality of arc-shaped rubber strips 502, and further,

the shaft coupling can connect outside motor for the motor drives soft pole 504 and cervical vertebra pillow 501 and rotates, carries out the rotary massage through a plurality of arc rubber strips 502 to people's cervical vertebra when cervical vertebra pillow 501 rotates.

Claims (4)

1. A massage chair, comprising a seat board part (101), an elastic board (201) and a backup board part (301), characterized in that: an elastic plate (201) is arranged between the seat plate part (101) and the backup plate part (301), and the elastic plate (201) can be bent;

the elastic plate is characterized by further comprising connecting pieces (202), wherein the connecting pieces (202) are connected to two sides of the elastic plate (201), and the two connecting pieces (202) are respectively connected to the seat plate part (101) and the backup plate part (301);

the chair comprises a seat plate part (101), a seat plate part (301), a straight rod (104), a backup plate part (104), a backrest part (304), a seat plate part (104) and a base plate part (304), wherein the straight rod (104) is connected to the boss (304) in a sliding mode;

the elastic rod I (105) is fixedly connected to the straight rod (104), and the other end of the elastic rod I (105) is fixedly connected to the convex seat (304);

the elastic plate is characterized by further comprising a plurality of trapezoidal strips (203), wherein the trapezoidal strips (203) are arranged on the lower side of the elastic plate (201) from left to right;

the device is characterized by further comprising a semi-cylinder (401), a bar-shaped seat (402) and a sliding rod (404), wherein the bar-shaped seat (402) is fixedly connected to the straight rod (104), the sliding rod (404) is slidably connected to the bar-shaped seat (402), the semi-cylinder (401) is fixedly connected to one end of the sliding rod (404), and the semi-cylinder (401) is pressed on the plurality of trapezoidal strips (203);

the telescopic rod (403) is fixedly connected to the strip-shaped seat (402), and the end part of the telescopic rod (403) is fixedly connected to the end part of the sliding rod (404).

2. The massage chair of claim 1, wherein: the anti-skid chair is characterized by further comprising anti-skid ribs (103), the seat plate part (101) is arc-shaped, and the seat plate part (101) is provided with a plurality of anti-skid ribs (103).

3. A massage chair as claimed in claim 2, wherein: still include headrest portion (302), the upper portion of backup plate portion (301) is provided with headrest portion (302), and the upper portion of backup plate portion (301) is the arc.

4. A massage chair as claimed in claim 3, wherein: the chair also comprises a supporting part (102), a rotating wheel (305) and a bracket (306), wherein the supporting part (102) is arranged at the lower part of the seat plate part (101), the bracket (306) is arranged at the lower part of the leaning plate part (301), and the rotating wheels (305) are arranged at the lower part of the bracket (306).
