CN113100574B - Simple and attractive solid wood tea table

Info

Publication number: CN113100574B
Application number: CN202110589079.6A
Authority: CN
Inventors: 陈思; 卢云斌; 吴春红; 熊卫如
Original assignee: Jiangxi Golden Oak Industry Co ltd
Current assignee: Jiangxi Golden Oak Industry Co ltd
Priority date: 2021-05-28
Filing date: 2021-05-28
Publication date: 2022-09-27
Anticipated expiration: 2041-05-28
Also published as: CN113100574A

Abstract

The invention relates to the technical field of tea tables, and discloses a simple and attractive solid wood tea table, which solves the problems of inconvenient transportation and space occupation in the conventional integrated tea table and comprises a tea table frame, wherein the upper end of the tea table frame is connected with a panel, a middle layer plate is clamped below the panel relative to the upper part of the tea table frame, and a bottom plate is clamped below the middle layer plate relative to the lower part of the tea table frame; according to the tea table, the three-layer structure formed by the tea table frame, the panel, the middle layer plate and the bottom plate is arranged, so that the use area of the tea table is greatly increased, the storage space of the tea table is larger, and the phenomenon that more articles are placed in disorder is effectively avoided; the invention has simple structure, convenient assembly, economy, practicality, simplicity, elegant appearance and convenient use, and can meet the use requirements of consumers.

Description

Simple and attractive solid wood tea table

Technical Field

The invention belongs to the technical field of tea tables, and particularly relates to a simple and attractive solid wood tea table.

Background

The tea table is furniture for placing tea sets and the like, generally has two types of square and rectangular shapes, is smaller than a table, has the height equivalent to that of an armrest of an armchair, is generally placed at the position of a sofa in a living room, and mainly plays a role in placing tea cups, tea making utensils, wine cups, fruits, fruit knives, ashtrays, flowers and the like.

Traditional wood tea table landing leg and mesa formula structural design as an organic whole usually, such structure can only wholly carry at the in-process of dispatching from the factory transport, causes the space waste in the handling, and transports inconveniently.

Disclosure of Invention

Aiming at the situation, in order to overcome the defects of the prior art, the invention provides a simple and attractive solid wood tea table, which effectively solves the problems of inconvenient transportation and space occupation in transportation of the conventional integrated tea table.

In order to achieve the purpose, the invention provides the following technical scheme: a simple and attractive solid wood tea table comprises a tea table frame, wherein the upper end of the tea table frame is connected with a panel, a middle layer plate is clamped below the panel relative to the upper part of the tea table frame, and a bottom plate is clamped below the middle layer plate relative to the lower part of the tea table frame;

the tea table frame comprises a first supporting piece, a second supporting piece is clamped at the upper end of the first supporting piece, a first wood nail is inserted between the first supporting piece and the second supporting piece, a third supporting piece is clamped at the upper end of the second supporting piece, and a second wood nail is clamped between the third supporting piece and the second supporting piece.

Preferably, the first supporting piece comprises a first support column, one side of the upper end of the first support column is connected with a first Z-shaped block, one side of the lower portion of the first Z-shaped block is connected with a first pressing block, one side of the first Z-shaped block is connected with a first positioning block relative to the upper end of the first support column, a first positioning groove is formed between the first positioning block and the first Z-shaped block, and a second positioning groove is formed in the middle of the upper end of the first positioning block.

Preferably, the second support piece comprises a second support column, a first Z-shaped groove is formed in one side of the lower portion of the second support column, a first clamping groove is formed in one side of the lower portion of the second support column, which is far away from the first Z-shaped groove, the middle portion of the first clamping groove is connected with a first clamping block, a second pressing block is connected above the first clamping groove relative to the lower portion of the second support column, the upper end of the second support column is connected with a first supporting block, one side of the upper end of the first supporting block is connected with a second Z-shaped block, one side of the lower portion of the second Z-shaped block is connected with a third pressing block, one side of the second Z-shaped block is connected with a second positioning block relative to the upper end of the first supporting block, a third positioning groove is formed between the second positioning block and the second Z-shaped block, and a fourth positioning groove is formed in the middle portion of the upper end of the second positioning block.

Preferably, the third support piece comprises a third support column, a second Z-shaped groove is formed in one side of the lower portion of the third support column, a second clamping groove is formed in one side, far away from the second Z-shaped groove, of the lower portion of the third support column, a second clamping block is connected to the middle of the second clamping groove, a fourth pressing block is connected to the upper portion of the second clamping groove relative to the lower portion of the third support column, and a second supporting block is connected to the upper end of the third support column.

Preferably, the four corners of the upper end of the second support block are provided with connecting holes, and the panel penetrates through the connecting holes through screws to be connected with the second support block.

Preferably, the four corners of the upper ends of the middle layer plate and the bottom plate are provided with clamping holes.

Preferably, the distance between the lower end surfaces of the first pressing block and the second pressing block and the upper end surface of the first support column is the same as the thickness of the bottom plate.

Preferably, the distance between the lower end surfaces of the third pressing block and the fourth pressing block and the upper end surface of the first support block is the same as the thickness of the middle laminate.

Compared with the prior art, the invention has the beneficial effects that:

(1) according to the invention, during assembly, the first support piece, the bottom plate, the second support piece, the first wood nail, the middle layer plate, the third support piece and the second wood nail are sequentially clamped and fixed from bottom to top, and finally the panel is placed at the upper end of the second support block on the third support piece and is fixed by using the screw, so that the device is assembled;

(2) according to the tea table, the three-layer structure formed by the tea table frame, the panel, the middle layer plate and the bottom plate is arranged, so that the use area of the tea table is greatly increased, the storage space of the tea table is larger, and the phenomenon that more articles are placed in disorder is effectively avoided;

(3) the invention has simple structure, convenient assembly, economy, practicality, simplicity, elegant appearance and convenient use, and can meet the use requirements of consumers.

Drawings

The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention.

In the drawings:

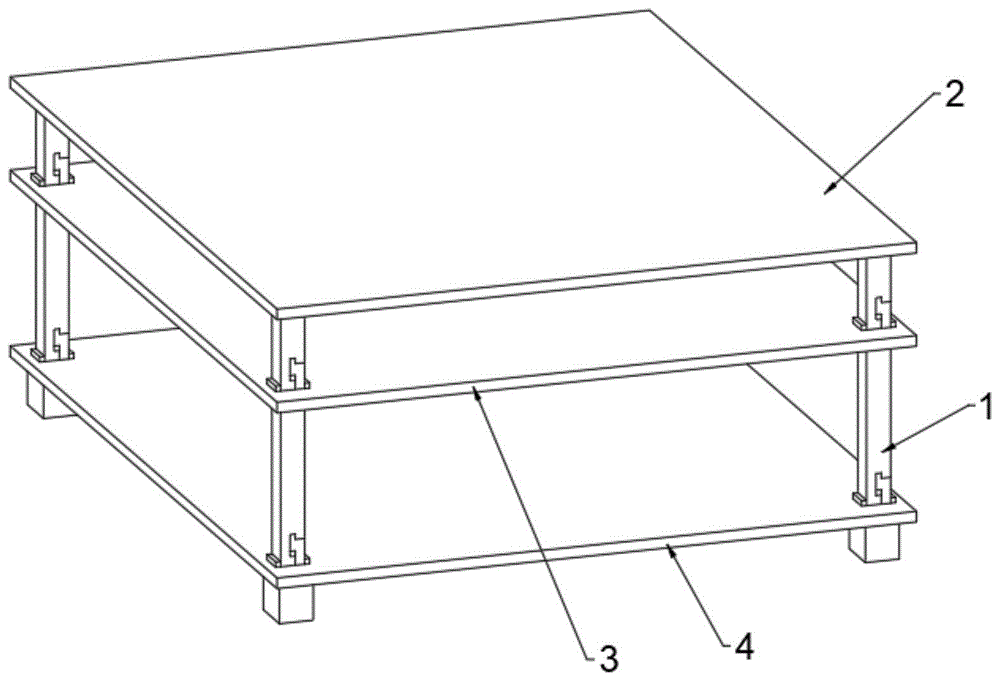

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the tea table frame according to the present invention;

fig. 3 is a schematic view of an exploded structure of the tea table frame according to the present invention;

FIG. 4 is a schematic view of a first support member according to the present invention;

FIG. 5 is a schematic view of a second supporting member according to the present invention;

FIG. 6 is a schematic structural view of a third supporting member according to the present invention;

FIG. 7 is a schematic view of a connecting hole of the present invention;

in the figure: 1. a tea table rack; 101. a first support member; 1011. a first support; 1012. a first Z-shaped block; 1013. a first pressing block; 1014. a first positioning block; 1015. a first positioning groove; 1016. a second positioning groove; 102. a second support member; 1021. a second support; 1022. a first Z-shaped groove; 1023. a first card slot; 1024. a first clamping block; 1025. a second pressing block; 1026. a first support block; 1027. a second Z-shaped block; 1028. a third pressing block; 1029. a second positioning block; 10210. a third positioning groove; 10211. a fourth positioning groove; 103. a first wood nail; 104. a third support member; 1041. a third support; 1042. a second Z-shaped groove; 1043. a second card slot; 1044. a second fixture block; 1045. a fourth briquetting; 1046. a second support block; 105. a second wood nail; 2. a panel; 3. a middle layer plate; 4. a base plate; 5. connecting holes; 6. a clamping hole.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the first embodiment, as shown in fig. 1 to 7, the tea table comprises a tea table frame 1, wherein the upper end of the tea table frame 1 is connected with a panel 2, a middle layer plate 3 is clamped below the panel 2 relative to the upper part of the tea table frame 1, and a bottom plate 4 is clamped below the middle layer plate 3 relative to the lower part of the tea table frame 1;

tea table frame 1 includes first support piece 101, first support piece 101 upper end joint has second support piece 102, it has first peg 103 joint to peg graft between first support piece 101 and the second support piece 102, can peg graft fixedly with the hole that forms between first support piece 101 and the second support piece 102 through first peg 103, avoid becoming flexible, second support piece 102 upper end joint has third support piece 104, the joint has second peg 105 between third support piece 104 and the second support piece 102, can peg graft fixedly with the hole that forms between third support piece 104 and the second support piece 102 through second peg 105, avoid becoming flexible.

In the second embodiment, on the basis of the first embodiment, the first support 101 includes a first support 1011, a first Z-shaped block 1012 is connected to one side of an upper end of the first support 1011, a first pressing block 1013 is connected to one side of a lower portion of the first Z-shaped block 1012, a first positioning block 1014 is connected to one side of the first Z-shaped block 1012 opposite to the upper end of the first support 1011, a first positioning groove 1015 is formed between the first positioning block 1014 and the first Z-shaped block 1012, a second positioning groove 1016 is formed in a middle portion of an upper end of the first positioning block 1014, when the first Z-shaped block 1012 is clamped with the second support 102, the first Z-shaped block 1012 is matched with the first Z-shaped groove 1022, and the first positioning groove 1015 and the second positioning groove 1016 are matched with the first clamping groove 1023 and the first clamping block 1024 at a lower end of the second support 102, so as to clamp the second support 102, so that the bottom plate 4 is clamped between the first support 101 and the second support 102.

In the third embodiment, on the basis of the first embodiment, the second supporting member 102 includes a second supporting column 1021, a first Z-shaped groove 1022 is formed at one side of a lower portion of the second supporting column 1021, a first locking groove 1023 is formed at a side of the lower portion of the second supporting column 1021, a first locking block 1024 is connected to a middle portion of the first locking groove 1023, a second pressing block 1025 is connected to a upper portion of the first locking groove 1023 opposite to the lower portion of the second supporting column 1021, a first supporting block 1026 is connected to an upper end of the second supporting column 1021, a second Z-shaped block 1027 is connected to an upper end side of the first supporting block 1026, a third positioning groove 10210 is formed between the second positioning block 1029 and the second Z-shaped block 1027, a fourth positioning groove 10211 is formed at a middle portion of an upper end of the second positioning block 1029, when the second supporting member is connected to the third supporting member 104, the second Z-shaped block 1027 is matched with the second Z-shaped groove 1042, and the third positioning groove 10210 and the fourth positioning groove 10211 are matched with the second clamping groove 1043 and the second clamping block 1044 at the lower end of the third support 104, so as to clamp the third support 104, and thus the middle layer plate 3 is clamped between the second support 102 and the third support 104.

In a fourth embodiment, on the basis of the first embodiment, the third supporting element 104 includes a third supporting column 1041, a second Z-shaped groove 1042 is formed in one side of the lower portion of the third supporting column 1041, a second clamping groove 1043 is formed in a side of the lower portion of the third supporting column 1041, which is far away from the second Z-shaped groove 1042, a second clamping block 1044 is connected to the middle of the second clamping groove 1043, a fourth pressing block 1045 is connected to the upper portion of the second clamping groove 1043, which is opposite to the lower portion of the third supporting column 1041, and a second supporting block 1046 is connected to the upper end of the third supporting column 1041, and the panel 2 is fixedly mounted on the second supporting block 1046.

In the fifth embodiment, on the basis of the fourth embodiment, the four corners of the upper end of the second supporting block 1046 are provided with connecting holes 5, and the panel 2 passes through the connecting holes 5 through screws to be connected with the second supporting block 1046.

In the sixth embodiment, on the basis of the first embodiment, four corners of the upper ends of the middle layer plate 3 and the bottom plate 4 are respectively provided with a clamping hole 6.

In the seventh embodiment, on the basis of the second embodiment, the distance between the lower end surfaces of the first pressing block 1013 and the second pressing block 1025 and the upper end surface of the first support 1011 is the same as the thickness of the bottom plate 4, so that the bottom plate 4 can be conveniently pressed and fixed on the first support 101.

In the eighth embodiment, on the basis of the third embodiment, the distance between the lower end surfaces of the third pressing block 1028 and the fourth pressing block 1045 and the upper end surface of the first support block 1026 is the same as the thickness of the middle plywood 3, so that the middle plywood 3 is conveniently pressed and fixed on the first support block 1026.

The working principle is as follows: during installation, the bottom plate 4 is firstly clamped with the four groups of first supporting pieces 101, then the four groups of second supporting pieces 102 are respectively clamped with the four groups of first supporting pieces 101, then the first wood nails 103 are used for inserting and fixing the gaps between the first supporting pieces 101 and the second supporting pieces 102, then the middle layer plate 3 is clamped at the upper ends of the first supporting blocks 1026, then the third supporting pieces 104 are clamped with the second supporting pieces 102, then the second wood nails 105 are used for inserting and fixing the gaps between the third supporting pieces 104 and the second supporting pieces 102, finally the panel 2 is arranged at the upper ends of the second supporting blocks 1046, and screws are used for penetrating through the connecting holes 5 for fixing, so that the device is assembled and is convenient and rapid.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a simple pleasing to eye wood tea table, includes tea table frame (1), its characterized in that: the upper end of the tea table frame (1) is connected with a panel (2), a middle layer plate (3) is clamped below the panel (2) relative to the upper part of the tea table frame (1), and a bottom plate (4) is clamped below the middle layer plate (3) relative to the lower part of the tea table frame (1);

the tea table frame (1) comprises a first supporting piece (101), a second supporting piece (102) is clamped at the upper end of the first supporting piece (101), a first wood nail (103) is inserted between the first supporting piece (101) and the second supporting piece (102) in a clamping manner, a third supporting piece (104) is clamped at the upper end of the second supporting piece (102), and a second wood nail (105) is clamped between the third supporting piece (104) and the second supporting piece (102);

the first support part (101) comprises a first support column (1011), one side of the upper end of the first support column (1011) is connected with a first Z-shaped block (1012), one side of the lower part of the first Z-shaped block (1012) is connected with a first pressing block (1013), one side of the first Z-shaped block (1012) is connected with a first positioning block (1014) relative to the upper end of the first support column (1011), a first positioning groove (1015) is formed between the first positioning block (1014) and the first Z-shaped block (1012), and the middle part of the upper end of the first positioning block (1014) is provided with a second positioning groove (1016);

the second supporting piece (102) comprises a second supporting column (1021), a first Z-shaped groove (1022) is formed in one side of the lower portion of the second supporting column (1021), a first clamping groove (1023) is formed in one side, far away from the first Z-shaped groove (1022), of the lower portion of the second supporting column (1021), a first clamping block (1024) is connected to the middle of the first clamping groove (1023), a second pressing block (1025) is connected to the upper portion, opposite to the lower portion of the second supporting column (1021), of the first supporting column (1021), a first supporting block (1026) is connected to the upper end of the second supporting column (1021), a second Z-shaped block (1027) is connected to one side of the upper end of the first supporting block (1026), a third positioning groove (10210) is formed between the second positioning block (1029) and the second Z-shaped block (1027), and a fourth positioning groove (11) is formed in the middle of the upper end of the second positioning block (1029);

third support piece (104) includes third pillar (1041), second Z type groove (1042) have been seted up to third pillar (1041) lower part one side, third pillar (1041) lower part is kept away from second Z type groove (1042) one side and has been seted up second draw-in groove (1043), second draw-in groove (1043) middle part is connected with second fixture block (1044), second draw-in groove (1043) top has fourth briquetting (1045) for third pillar (1041) sub-unit connection, third pillar (1041) upper end is connected with second tray (1046).

2. The simple and attractive solid wood tea table as claimed in claim 1, wherein: connecting holes (5) are formed in four corners of the upper end of the second supporting block (1046), and the panel (2) penetrates through the connecting holes (5) through screws to be connected with the second supporting block (1046).

3. The simple and attractive solid wood tea table according to claim 1, wherein: the four corners of the upper ends of the middle layer plate (3) and the bottom plate (4) are provided with clamping holes (6).

4. The simple and attractive solid wood tea table according to claim 1, wherein: the distance between the lower end faces of the first pressing block (1013) and the second pressing block (1025) and the upper end face of the first strut (1011) is the same as the thickness of the bottom plate (4).

5. The simple and attractive solid wood tea table as claimed in claim 1, wherein: the distance between the lower end surfaces of the third pressing block (1028) and the fourth pressing block (1045) and the upper end surface of the first supporting block (1026) is the same as the thickness of the middle layer plate (3).
