CN112957245A - A private parts cold compress device for gynaecology and obstetrics's postpartum nursing - Google Patents
A private parts cold compress device for gynaecology and obstetrics's postpartum nursing Download PDFInfo
- Publication number
- CN112957245A CN112957245A CN202110274173.2A CN202110274173A CN112957245A CN 112957245 A CN112957245 A CN 112957245A CN 202110274173 A CN202110274173 A CN 202110274173A CN 112957245 A CN112957245 A CN 112957245A
- Authority
- CN
- China
- Prior art keywords
- block
- cold compress
- massage
- compress device
- fixed mounting
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H15/00—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains
- A61H15/0078—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains power-driven
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F7/00—Heating or cooling appliances for medical or therapeutic treatment of the human body
- A61F7/02—Compresses or poultices for effecting heating or cooling
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61G—TRANSPORT, PERSONAL CONVEYANCES, OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
- A61G7/00—Beds specially adapted for nursing; Devices for lifting patients or disabled persons
- A61G7/002—Beds specially adapted for nursing; Devices for lifting patients or disabled persons having adjustable mattress frame
- A61G7/015—Beds specially adapted for nursing; Devices for lifting patients or disabled persons having adjustable mattress frame divided into different adjustable sections, e.g. for Gatch position
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61G—TRANSPORT, PERSONAL CONVEYANCES, OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
- A61G7/00—Beds specially adapted for nursing; Devices for lifting patients or disabled persons
- A61G7/05—Parts, details or accessories of beds
- A61G7/0507—Side-rails
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61G—TRANSPORT, PERSONAL CONVEYANCES, OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
- A61G7/00—Beds specially adapted for nursing; Devices for lifting patients or disabled persons
- A61G7/05—Parts, details or accessories of beds
- A61G7/0507—Side-rails
- A61G7/0508—Side-rails characterised by a particular connection mechanism
- A61G7/0509—Side-rails characterised by a particular connection mechanism sliding or pivoting downwards
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F7/00—Heating or cooling appliances for medical or therapeutic treatment of the human body
- A61F2007/0001—Body part
- A61F2007/0048—Genitals
- A61F2007/005—Genitals female
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61G—TRANSPORT, PERSONAL CONVEYANCES, OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
- A61G2200/00—Information related to the kind of patient or his position
- A61G2200/10—Type of patient
- A61G2200/12—Women
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H15/00—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains
- A61H2015/0007—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains with balls or rollers rotating about their own axis
- A61H2015/0028—Massage by means of rollers, balls, e.g. inflatable, chains, or roller chains with balls or rollers rotating about their own axis disc-like, i.e. diameter substantially greater than width
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H2201/00—Characteristics of apparatus not provided for in the preceding codes
- A61H2201/01—Constructive details
- A61H2201/0119—Support for the device
- A61H2201/0138—Support for the device incorporated in furniture
- A61H2201/0142—Beds
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61H—PHYSICAL THERAPY APPARATUS, e.g. DEVICES FOR LOCATING OR STIMULATING REFLEX POINTS IN THE BODY; ARTIFICIAL RESPIRATION; MASSAGE; BATHING DEVICES FOR SPECIAL THERAPEUTIC OR HYGIENIC PURPOSES OR SPECIFIC PARTS OF THE BODY
- A61H2205/00—Devices for specific parts of the body
- A61H2205/10—Leg
Landscapes
- Health & Medical Sciences (AREA)
- Life Sciences & Earth Sciences (AREA)
- Animal Behavior & Ethology (AREA)
- General Health & Medical Sciences (AREA)
- Public Health (AREA)
- Veterinary Medicine (AREA)
- Nursing (AREA)
- Thermal Sciences (AREA)
- Physics & Mathematics (AREA)
- Engineering & Computer Science (AREA)
- Biomedical Technology (AREA)
- Heart & Thoracic Surgery (AREA)
- Vascular Medicine (AREA)
- Epidemiology (AREA)
- Pain & Pain Management (AREA)
- Physical Education & Sports Medicine (AREA)
- Rehabilitation Therapy (AREA)
- Percussion Or Vibration Massage (AREA)
- Accommodation For Nursing Or Treatment Tables (AREA)
Abstract
The invention discloses a private part cold compress device for postpartum care of obstetrics and gynecology department, and relates to the technical field of medical treatment. This a private parts cold compress device for gynaecology and obstetrics's postpartum care, including the frame shaped plate, fixed box and head board have been placed at the top of frame shaped plate, and four group's draw-in grooves that are the rectangle distribution are seted up at the top of frame shaped plate, and equal fixed mounting has the fixture block in the draw-in groove, wherein the top of two fixture blocks and the bottom fixed mounting of fixed box, the top of two fixture blocks and the bottom fixed mounting of head board in addition. This a private parts cold compress device for gynaecology and obstetrics's postpartum nursing, through the slide rail, the slider, take the pinion rack, electric putter, the gear piece, first turning block, the second turning block, the cooperation of rotary rod and controller is used, make one side of service creeper rise automatically, can promote first body of precious mother, make things convenient for precious mother to carry out sitting of certain angle and lie, make precious mother when using cold compress to apply ointment or plaster, the convenience is pasted to wound, avoid precious mother self to sit straight and lead to the wound fracture to appear.
Description
Technical Field
The invention relates to the technical field of medical treatment, in particular to a private part cold compress device for postpartum care of obstetrics and gynecology department.
Background
Partial pregnant women can carry out the side incision to external genitals when giving birth to, can lead to local small blood vessel to appear breaking, appear obvious hemorrhage, form extravasated blood and swelling to the position of damage can form aseptic inflammation focus, and inflammatory exudate oozes gradually, can aggravate the circumstances of swelling and edema on every side, leads to the pain to further aggravate, adopts the regional cold compress of meeting yin cold compress to the perineum usually, makes the hemostasis of postoperative wound diminish inflammation, the detumescence analgesia.
The pregnant woman is weak after the birth usually, lies in the sick bed usually, when using cold application, because physical factor, can't get up to operate, if through nurse cold application, can't ensure the suitable position of pregnant woman, people contain the sensitive psychology moreover, lead to that most pregnant women all are self and paste.
Disclosure of Invention
The invention aims to provide a pudendum cold compress device for postpartum care of obstetrics and gynecology department, so as to solve at least one problem in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a private parts cold compress device for gynaecology and obstetrics's postpartum care, including the frame shaped plate, fixed box and head board have been placed at the top of frame shaped plate, four group's draw-in grooves that are the rectangle distribution are seted up at the top of frame shaped plate, equal fixed mounting has the fixture block in the draw-in groove, wherein the top of two fixture blocks and the bottom fixed mounting of fixed box, the top of two other fixture blocks and the bottom fixed mounting of head board, the inside of fixed box is provided with massage mechanism, the top fixed mounting of frame shaped plate has the seat, the service creeper has been placed at the top of frame shaped plate, the bottom of service creeper is provided with tilting mechanism, the bottom fixed mounting of frame shaped plate has the rack, the box of excreting has been placed on the rack, frame shaped plate front side is provided with receipts fence mechanism, the top fixed mounting of receipts fence.
Preferably, massage mechanism includes dwang, fixed block, massage box, baffle, motor, axis of rotation, massage axle, massage wheel, gear and soft leather, and the dwang is installed in the inboard top and the bottom rotation of fixed box, and the outer wall fixed mounting of dwang has the fixed block, and one side fixed mounting of fixed block has the massage box, and the inside fixed mounting of massage box has the baffle, and one side fixed mounting of massage box has the motor, and the output shaft of motor passes through shaft coupling fixed mounting and has the axis of rotation, and the one end of axis of rotation rotates the installation with one side of baffle.
Preferably, the opposite side of baffle and the opposite side inner wall of massage box all rotate and install two sets of massage axles, and the outer wall fixed mounting of two sets of massage axles has the massage wheel, and the one end of two sets of massage axles all runs through baffle and fixed mounting has the gear, and the outer wall fixed mounting of axis of rotation has the gear, and three group's gear meshes mutually, and the opposite side of baffle and the opposite side inner wall fixed mounting soft leather of massage box, soft leather are the inside that the U type is located massage box, and the top and the opposite side of massage box all are provided with puts the leg mouth.
Preferably, tilting mechanism includes the slide rail, the slider, take the pinion rack, electric putter, the gear piece, first turning block, second turning block and rotary rod, the adjacent lateral wall fixed mounting of seat and service creeper has two sets of first turning blocks and second turning block, rotate the installation between first turning block and the second turning block, the adjacent lateral wall fixed mounting of two sets of first turning blocks has the rotary rod, the outer wall of rotary rod rotates and installs the gear piece, the both sides inner wall fixed mounting of frame shaped plate has the slide rail, the outer wall slidable mounting of slide rail has the slider, the top fixed mounting of slider has the pinion rack, the bottom fixed mounting of seat has electric putter, electric putter's free end and one side fixed mounting who takes the pinion rack, the gear piece meshes with taking the pinion rack mutually.
Preferably, the clamping mechanism comprises a sliding block, a moving block and a reset spring, the bottom of the object placing plate is provided with a sliding groove, the sliding block is slidably mounted in the sliding groove, the bottom of the sliding block is fixedly provided with the moving block, the rear side of the sliding block is fixedly provided with the reset spring, the reset spring is fixedly mounted with the rear side of the sliding groove, and the bottom of the object placing plate is fixedly provided with the fixing block.
Preferably, receipts fence mechanism includes groove block, dead lever, gag lever post, diaphragm, spring and circular arc piece, and the front side fixed mounting of frame-shaped board has the groove block, and the inside of groove block is provided with the dead lever, and the both sides fixed mounting of dead lever has the gag lever post, and the inside of dead lever sets up porosely, and downthehole fixed mounting has the diaphragm, and the both sides fixed mounting of diaphragm has the spring, and one side fixed mounting of spring has the circular arc piece, and the opening has been seted up to the both sides of groove block, and the open-ended top is the circular arc setting, and gag lever post and circular arc piece all are located the opening.
Preferably, the bottom of the frame-shaped plate is fixedly provided with a supporting leg, and the bottom of the supporting leg is movably provided with a universal wheel.
Preferably, the seat plate is provided with a discharge opening, and a baffle is placed in the discharge opening.
Compared with the prior art, the invention has the beneficial effects that:
(1) this a private parts cold compress device for gynaecology and obstetrics's postpartum nursing, through the slide rail, the slider, take the pinion rack, electric putter, the gear piece, first turning block, the second turning block, the cooperation of rotary rod and controller is used, make one side of service creeper rise automatically, can promote the first body of precious mother, make things convenient for precious mother to carry out sitting of certain angle and lie, make precious mother use cold compress when applying ointment or plaster, the convenience is pasted to wound, avoid precious mother self to sit straight and lead to the wound fracture to appear.
(2) This a private parts cold compress device for gynaecology and obstetrics's postpartum nursing, because partial pregnant woman is pregnant back, the uterus of increase oppresses the inferior vena cava, make the blood reflux of lower half body obstructed, arouse low limbs dropsy, through the dwang, the fixed block, massage box, the baffle, including a motor, an end cap, a controller, and a cover plate, the axis of rotation, the massage axle, the massage wheel, the cooperation of gear and soft leather is used, massage the shank of pregnant woman, can effectively dredge the channels, promote blood circulation, harmonize qi and blood, reduce the dropsy of precious mother's shank, accelerate precious mother's health speed of resuming.
(3) This a private parts cold compress device for gynaecology and obstetrics's postpartum nursing because the several days after precious mother's production, the health is comparatively weak, and bed stool and urine is comparatively difficult from top to bottom, uses through the cooperation of escape orifice, rack and excretion box, need not to make precious mother go on going to bed, can directly make things convenient for on the sick bed, avoids the fracture to appear in precious mother's wound, further improves the result of use of device.
(4) This a private parts cold compress device for gynaecology and obstetrics's postpartum nursing, through the groove piece, the dead lever, the gag lever post, the diaphragm, spring and circular arc piece cooperation are used, protect precious mother both sides, avoid baby and precious mother to roll, the phenomenon of tumbleing appears, the security performance of reinforcing device, when the bed is gone off in precious mother's later stage, carry out the upwards stretching to rail guard and receipts fence mechanism, it receives fence mechanism to rotate again, get to put the rail guard, make things convenient for precious mother to go up and down the bed, through the sliding block, the cooperation of movable block and reset spring is used, to holding on being fixed in the rail guard to putting the thing board clamp, avoid putting the thing board and appear sideslipping and make the article of putting on the thing board drop on baby and precious horse, further strengthen the safety protection performance.
Drawings

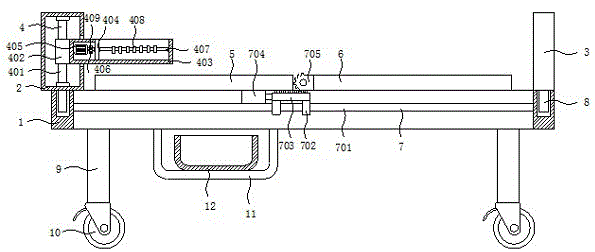

FIG. 1 is a cross-sectional view of the present invention;
FIG. 2 is a front view of the present invention;
FIG. 3 is a schematic view of a fixing rod structure according to the present invention;
FIG. 4 is an enlarged view of portion A of the present invention;
FIG. 5 is a top view of the frame plate of the present invention;
FIG. 6 is a top view of a first rotating block of the present invention;
FIG. 7 is a schematic top view of the massage box of the present invention;
FIG. 8 is a schematic view of the seat plate structure of the present invention;
fig. 9 is a schematic diagram of the right view structure of the reset spring of the present invention.
In the figure: 1 frame-shaped plate, 2 fixed boxes, 3 headboards, 4 massage mechanisms, 401 rotating rods, 402 fixed blocks, 403 massage boxes, 404 partition plates, 405 motors, 406 rotating shafts, 407 massage shafts, 408 massage wheels, 409 gears, 410 soft leather, 5 seats, 6 lying plates, 7 turnover mechanisms, 701 sliding rails, 702 sliding blocks, 703 toothed plates, 704 electric push rods, 705 gear blocks, 706 first rotating blocks, 707 second rotating blocks, 708 rotating rods, 8 clamping blocks, 9 supporting legs, 10 universal wheels, 11 placing racks, 12 excretion boxes, 13 baffles, 14 protective fences, 15 placing plates, 16 clamping mechanisms, 1601 sliding blocks, 1602 moving blocks, 1603 return springs, 17 column collecting mechanisms, 1701 groove blocks, 1702 fixed rods, 1703 limiting rods, 1704 diaphragms, 1705 springs and 1706 circular arc blocks.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-9, the present invention provides a technical solution: a pudendum cold compress device for postpartum care of obstetrics and gynecology department comprises a frame-shaped plate 1, wherein a fixed box 2 and a headboard 3 are placed at the top of the frame-shaped plate 1, four groups of clamping grooves which are distributed in a rectangular shape are formed in the top of the frame-shaped plate 1, clamping blocks 8 are fixedly installed in the clamping grooves, the tops of the two clamping blocks 8 are fixedly installed with the bottom of the fixed box 2, the tops of the other two clamping blocks 8 are fixedly installed with the bottom of the headboard 3, a massage mechanism 4 is arranged in the fixed box 2, a seat plate 5 is fixedly installed at the top of the frame-shaped plate 1, a lying plate 6 is placed at the top of the frame-shaped plate 1, a turnover mechanism 7 is arranged at the bottom of the frame-shaped plate 1, a placing frame 11 is placed on the placing frame 11, a drain box 12 is placed on the placing frame-shaped plate 1, a rail collecting mechanism 17 is arranged at, the bottom of the object placing plate 15 is provided with a clamping mechanism 16, and the object placing plate 15 is clamped and fixed on the protective guard 14.
The massage mechanism 4 comprises a rotating rod 401, a fixed block 402, a massage box 403, a partition 404, a motor 405, a rotating shaft 406, a massage shaft 407, massage wheels 408, gears 409 and soft leather 410, the rotating rod 401 is rotatably installed at the top and the bottom of the inner side of the fixed box 2, the fixed block 402 is fixedly installed on the outer wall of the rotating rod 401, the massage box 403 is fixedly installed at one side of the fixed block 402, the partition 404 is fixedly installed inside the massage box 403, the motor 405 is fixedly installed at one side of the massage box 403, the rotating shaft 406 is fixedly installed on the output shaft of the motor 405 through a coupler, one end of the rotating shaft 406 is rotatably installed with one side of the partition 404, two groups of massage shafts 407 are rotatably installed at the other side of the partition 404 and the inner wall of the other side of the massage box 403, the massage wheels 408 are fixedly installed on the outer walls, the outer wall of the rotating shaft 406 is fixedly provided with gears 409, the three groups of gears 409 are meshed, the other side of the partition 404 and the inner wall of the other side of the massage box 403 are fixedly provided with soft leather 410, the soft leather 410 is U-shaped and is positioned in the massage box 403, and the top and the other side of the massage box 403 are both provided with leg placing openings.
Tilting mechanism 7 includes slide rail 701, slider 702, toothed plate 703, electric putter 704, gear block 705, first rotating block 706, second rotating block 707 and rotary rod 708, seat 5 and lying board 6's adjacent lateral wall fixed mounting has two sets of first rotating block 706 and second rotating block 707, rotate the installation between first rotating block 706 and the second rotating block 707, two sets of first rotating block 706's adjacent lateral wall fixed mounting has rotary rod 708, rotary rod 708's outer wall rotates and installs gear block 705, frame-shaped plate 1's both sides inner wall fixed mounting has slide rail 701, slide rail 701's outer wall slidable mounting has slider 702, slider 702's top fixed mounting has toothed plate 703, seat 5's bottom fixed mounting has electric putter 704, electric putter 704's free end and toothed plate 703's one side fixed mounting, gear block 705 and toothed plate 703 mesh.
The clamping mechanism 16 comprises a sliding block 1601, a moving block 1602 and a reset spring 1603, a sliding groove is formed in the bottom of the object placing plate 15, the sliding block 1601 is installed in the sliding groove in a sliding mode, the moving block 1602 is fixedly installed at the bottom of the sliding block 1601, the reset spring 1603 is fixedly installed on the rear side of the sliding groove, and a retaining block is fixedly installed at the bottom of the object placing plate 15.
The bottom fixed mounting of frame-shaped plate 1 has supporting leg 9, and the bottom movable mounting of supporting leg 9 has universal wheel 10, has seted up the escape orifice on the seat 5, has placed baffle 13 in the escape orifice, need not to make precious mother go up and down the bed, can directly make things convenient for on the sick bed, avoids the precious mother wound fracture to appear, further improves the result of use of device.
The working principle is as follows: when a pregnant woman needs to sit and lie, the electric push rod 704 is started through the controller, the free end of the electric push rod 704 pushes the toothed plate 703, the toothed plate 703 drives the gear block 705 to rotate, one side of the lying plate 6 is made to rotate, a baby mother is pushed, the legs of the baby mother are placed on the soft leather 410, the motor 405 is started, the motor 405 drives the rotating shaft 406 to rotate, the rotating shaft 406 drives the two groups of massage shafts 407 to rotate through the gear 409, the massage wheels 408 on the massage shafts 407 massage the legs of the baby mother, blood circulation of the legs of the baby mother is promoted, the guard rail 14 is vertically pulled to drive the fixing rod 1702 to ascend, the springs 1705 are made to shrink holes in the fixing rod 1702, the guard rail 14 can be rotated, and the guard rail 14 is convenient to shrink.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a private parts cold compress device for gynaecology and obstetrics's postpartum nursing, includes frame-shaped plate (1), its characterized in that: the multifunctional bed is characterized in that a fixed box (2) and a headboard (3) are placed at the top of a frame-shaped plate (1), four groups of clamping grooves which are distributed in a rectangular shape are formed in the top of the frame-shaped plate (1), clamping blocks (8) are fixedly installed in the clamping grooves, the tops of the two clamping blocks (8) are fixedly installed with the bottom of the fixed box (2), the tops of the other two clamping blocks (8) are fixedly installed with the bottom of the headboard (3), a massage mechanism (4) is arranged inside the fixed box (2), a seat plate (5) is fixedly installed at the top of the frame-shaped plate (1), a lying plate (6) is placed at the top of the frame-shaped plate (1), a turnover mechanism (7) is arranged at the bottom of the lying plate (6), a placing frame (11) is fixedly installed at the bottom of the frame-shaped plate (1), a drainage box (12) is placed on the placing frame (11), a railing collecting mechanism (17), the top of the guard rail (14) is provided with an object placing plate (15), and the bottom of the object placing plate (15) is provided with a clamping mechanism (16).
2. The pudendum cold compress device for postpartum care of obstetrics and gynecology department according to claim 1, wherein the pudendum cold compress device comprises: massage mechanism (4) are including dwang (401), fixed block (402), massage box (403), baffle (404), motor (405), axis of rotation (406), massage axle (407), massage wheel (408), gear (409) and soft leather (410), the inboard top and the bottom of fixed box (2) are rotated and are installed dwang (401), the outer wall fixed mounting of dwang (401) has fixed block (402), one side fixed mounting of fixed block (402) has massage box (403), the inside fixed mounting of massage box (403) has baffle (404), one side fixed mounting of massage box (403) has motor (405), the output shaft of motor (405) passes through shaft coupling fixed mounting and has axis of rotation (406), the one end of axis of rotation (406) and the one side rotation installation of baffle (404).
3. The pudendum cold compress device for postpartum care of obstetrics and gynecology department according to claim 2, wherein the pudendum cold compress device comprises: the opposite side of baffle (404) and the opposite side inner wall of massage box (403) all rotate and install two sets of massage axle (407), the outer wall fixed mounting of two sets of massage axle (407) has massage wheel (408), the one end of two sets of massage axle (407) all runs through baffle (404) and fixed mounting has gear (409), the outer wall fixed mounting of axis of rotation (406) has gear (409), three sets of gear (409) mesh mutually, the opposite side of baffle (404) and the opposite side inner wall fixed mounting soft leather (410) of massage box (403), soft leather (410) are the inside that the U type is located massage box (403), the top and the opposite side of massage box (403) all are provided with puts the leg mouth.
4. The pudendum cold compress device for postpartum care of obstetrics and gynecology department according to claim 1, wherein the pudendum cold compress device comprises: the turnover mechanism (7) comprises a sliding rail (701), a sliding block (702), a toothed plate (703), an electric push rod (704), a gear block (705), a first rotating block (706), a second rotating block (707) and a rotating rod (708), two groups of first rotating blocks (706) and second rotating blocks (707) are fixedly installed on adjacent side walls of the seat plate (5) and the lying plate (6), the first rotating blocks (706) and the second rotating blocks (707) are rotatably installed between the first rotating blocks (706) and the second rotating blocks (707), the rotating rod (708) is fixedly installed on adjacent side walls of the two groups of first rotating blocks (706), the gear block (705) is rotatably installed on the outer wall of the rotating rod (708), the sliding rails (701) are fixedly installed on the inner walls of two sides of the frame plate (1), the sliding block (702) is slidably installed on the outer wall of the sliding rail (701), the toothed plate (703) is fixedly installed on the top of the sliding block (, the free end of the electric push rod (704) is fixedly arranged with one side of the toothed plate (703), and the gear block (705) is meshed with the toothed plate (703).
5. The pudendum cold compress device for postpartum care of obstetrics and gynecology department according to claim 1, wherein the pudendum cold compress device comprises: the clamping mechanism (16) comprises a sliding block (1601), a moving block (1602) and a reset spring (1603), a sliding groove is formed in the bottom of the article placing plate (15), the sliding block (1601) is slidably mounted in the sliding groove, the moving block (1602) is fixedly mounted at the bottom of the sliding block (1601), the reset spring (1603) is fixedly mounted at the rear side of the sliding groove, and a fixing block is fixedly mounted at the bottom of the article placing plate (15).
6. The pudendum cold compress device for postpartum care of obstetrics and gynecology department according to claim 1, wherein the pudendum cold compress device comprises: the fence collecting mechanism (17) comprises a groove block (1701), a fixing rod (1702), a limiting rod (1703), a diaphragm (1704), a spring (1705) and an arc block (1706), the front side of a frame-shaped plate (1) is fixedly provided with the groove block (1701), the inside of the groove block (1701) is provided with the fixing rod (1702), the two sides of the fixing rod (1702) are fixedly provided with the limiting rod (1703), the inside of the fixing rod (1702) is provided with a hole, the hole is internally and fixedly provided with the diaphragm (1704), the two sides of the diaphragm (1704) are fixedly provided with the spring (1705), one side of the spring (1705) is fixedly provided with the arc block (1706), openings are formed in the two sides of the groove block (1701), the top of the opening is in an arc shape, and the limiting rod (1703) and the arc block (.
7. The pudendum cold compress device for postpartum care of obstetrics and gynecology department according to claim 1, wherein the pudendum cold compress device comprises: the bottom of the frame-shaped plate (1) is fixedly provided with a supporting leg (9), and the bottom of the supporting leg (9) is movably provided with a universal wheel (10).
8. The pudendum cold compress device for postpartum care of obstetrics and gynecology department according to claim 1, wherein the pudendum cold compress device comprises: the seat plate (5) is provided with a discharge hole, and a baffle plate (13) is arranged in the discharge hole.
