Abstract
The application discloses thyroid gland postoperative care area, it includes: the main backplate, the side guard plate, the bleeder vent, first bandage, collude a magic subsides, the second bandage, the hair side magic subsides, the slot, the shrinkage pool, first magnet piece, the direction through-hole, the guide bar, the soft rubber board, the cotton layer of medicine, the deformation pole, the dog, the intercommunication mouth, spacing gasbag that blocks, the air pump, scrape and collude, the connecting rod, the filter mantle, first hose, the three-way pipe, the second hose, the interface, the third hose, the gasbag grips, first check valve, the second check valve, the silica gel strip, the venthole, the cavity, the fly leaf, the compartment, coupling spring, the second magnet piece, the non-woven fabrics layer, the bamboo charcoal fiber layer, melt and spout cloth layer and active carbon filter screen. The nursing belt has the advantages that the medicine at the wound can be conveniently replaced, the whole nursing belt does not need to be taken down during replacement, and the medicine replacement efficiency is improved; meanwhile, the nursing enclosure is provided with an active air supply structure, active air supply of the nursing enclosure can be performed, and air supply is better through an air pump and manual air supply.
Description
Technical Field
The invention relates to a nursing belt, in particular to a postoperative nursing belt for thyroid, and belongs to the technical field of postoperative nursing application for thyroid.
Background
Thyroidectomy is a medical procedure for the removal of the thyroid gland; during the development of the embryo, the thyroid gland part or all of the thyroid gland does not descend and stays at the blind hole of the tongue, namely the thyroid gland of the tongue; the one with thyroid gland in the normal position in the neck and with hyoid thyroid gland is also called parathyroid; the thyroid tissue is concentrated at the root of the tongue and no thyroid is found at the normal position of the neck, which is also called as the adductor thyroid; the children are rare, and the women in sexual maturity, pregnancy and lactation are common; resection surgery is required.
In patent document "CN 209107696U a postoperative care belt for thyroid gland", the postoperative position is properly pressurized for protection, and the pressurized position has a drug contacting with the wound for nursing, but the pressurized position lacks a design for facilitating drug replacement, is not easy to replace the drug, and needs to be removed as a whole; further, in patent document "CN 212118427U thyroid gland postoperative care belt", although a cover plate capable of being opened and closed is designed for opening and changing the medicine, the opening and closing may be inconvenient, the locking component needs to be unlocked, meanwhile, the medicine changing cannot be realized in one step, and the medicine may need to be uniformly coated and changed after being opened; further the ventilation effect of nursing area among the prior art probably is not good, lacks the structure of initiative air feed, is difficult for carrying out the air feed, solves the vexed effect of nursing surrounding department. At present, no thyroid gland postoperative care belt which is convenient for replacing the medicine at the wound and improves the ventilation effect exists.
Disclosure of Invention
In order to solve the defects of the prior art, the medicine plate with a drawable design is adopted, so that the medicine plate can be conveniently taken out of and inserted into the top of the whole nursing belt, convenience is provided for the whole medicine changing, and the medicine changing efficiency is improved; meanwhile, the active air supply structure can supply active air to the nursing surrounding position, so that the ventilation effect is improved.
More in order to solve the problem among the prior art: the limit structure is lacked after the plug-in, the stability of the installation is insufficient, and the separation is easy to occur; an inter-groove is formed between the movable plate and the bottom of the slot, so that the stop block after being plugged in is blocked, and limiting is realized.
Further in order to solve the problems in the prior art: the movable plate is not easy to move, and a position which is large enough for the medicine plate and the stop block to pass through is formed.
In order to solve the not enough of prior art, this application provides a thyroid gland postoperative care area, and it includes: the main guard plate, the side guard plate, the first bandage, the hook surface magic tape, the second bandage, the hair surface magic tape, the movable plate, the medicine plate, the filter layer, the active air supply structure and the silica gel strip; the two sides of the main guard plate are fixedly connected with the side guard plates, one side edges of the two side guard plates are fixedly connected with three first binding bands and three second binding bands respectively, hook-surface magic tapes are sewn and connected to the surfaces of the first binding bands, wool-surface magic tapes are sewn and connected to the surfaces of the second binding bands, a slot is formed in the middle of the top of the back of the main guard plate, the movable plate is arranged inside the slot, a gap is formed between the bottom of the movable plate and the bottom of the slot, the medicine plates capable of being pulled and removed are arranged in the slot, the medicine plates can be detached and separated, and the medicine changing efficiency is improved; the side guard plate is internally provided with an inner cavity, the main guard plate is internally provided with a cavity, the cavity is of a U-shaped structure, the filter layers are filled and installed in the cavity and the inner cavity, the bottom of the main guard plate is connected with the active air supply structure, and the output end of the active air supply structure is communicated with the cavity; the surface of the side guard plate is provided with a plurality of air holes which are uniformly distributed, the back of the main guard plate is provided with a plurality of air outlet holes, the air outlet holes are enclosed into a U-shaped structure, and the air outlet holes are communicated with the cavity; the silica gel strips are fixedly bonded at the edges around the back surface of the main guard plate and the back surface of the side guard plate.
Furthermore, the surface four corners of the movable plate are fixedly connected with connecting springs, and the tail ends of the connecting springs are fixedly connected with the slot walls of the slots.
Further, the middle part fixed gomphosis of fly leaf is connected with the second magnet piece, the back of second magnet piece is provided with first magnet piece, first magnet piece is connected with the shrinkage pool gomphosis of seting up at the main backplate openly.
Furthermore, two guide rods are fixedly connected to the surface of the movable plate, and the guide rods are in clearance fit connection with guide through holes formed in the main guard plate.
Further, the drug plate comprises: soft rubber board, the cotton layer of medicine, deformation pole and dog, the back fixed bonding of soft rubber board has the cotton layer of medicine, the positive fixed gomphosis of soft rubber board is connected with a plurality of equidistant distributions the deformation pole, it is a plurality of the bottom of deformation pole is connected with the dog.
Further, the stopper includes: the connecting nozzle is fixedly bonded at the top of the limit blocking air bag, the top end of the connecting nozzle is connected with the deformation rod, and the deformation rod is of a hollow tubular structure.
Further, the filter layer includes: the bamboo charcoal fiber fabric comprises a non-woven fabric layer, a bamboo charcoal fiber layer and a melt-blown fabric layer, wherein the non-woven fabric layer and the melt-blown fabric layer are respectively bonded and connected to two surfaces of the bamboo charcoal fiber layer.
Further, the active gas supply structure includes: air pump, first hose, second hose, interface, filter mantle, active carbon filter screen and connecting rod, the air inlet of air pump with the filter mantle is fixed to be cup jointed, one side fixed chimeric of filter mantle installs the active carbon filter screen, the gas outlet of air pump with the fixed cover of one end of first hose connects, the end of first hose with the one end intercommunication installation of second hose, the end of second hose with the interface is fixed to be cup jointed, the bottom fixed connection of interface top and main backplate, and interface and cavity intercommunication installation, the filter mantle with fixedly connected with four between one side of air pump shell the connecting rod, and four connecting rods are the rectangular array and distribute.
Further, the fixedly connected with of shell bottom of air pump scrapes and colludes, scrape and collude the platelike structure who is the L type, the shell back mounted of air pump has battery and control switch.
Furthermore, a three-way pipe is connected between the first hose and the second hose, the three-way pipe is further connected with one end of a third hose, a first one-way valve is fixedly mounted at the tail end of the third hose, the first one-way valve is fixedly mounted at the bottom of the holding air bag, and a second one-way valve is fixedly mounted at the top of the holding air bag.
The application has the advantages that: the thyroid postoperative care belt is convenient for changing the medicine at the wound and improving the ventilation effect, and the medicine plate which can be drawn and pulled is adopted, so that the medicine plate can be conveniently taken out from the top of the whole care belt and plugged in the whole care belt, the convenience is provided for the whole medicine changing, and the medicine changing efficiency is improved; after the medicine plate is installed, the medicine plate has a limiting effect, and is not easy to separate after being installed; the initiative air feed that has the initiative air feed structure simultaneously and can nurse the department of surrounding has improved ventilation effect, avoids nursing department long-term cover, appears sultry, is difficult for breathing freely, and initiative air feed adopts two kinds of schemes simultaneously, and the accessible air pump carries out the air feed and manually holds between the fingers the gasbag and supplies air, and holistic air feed effect is better.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this application, are included to provide a further understanding of the application and to enable other features, objects, and advantages of the application to be more apparent. The drawings and their description illustrate the embodiments of the invention and do not limit it. In the drawings:

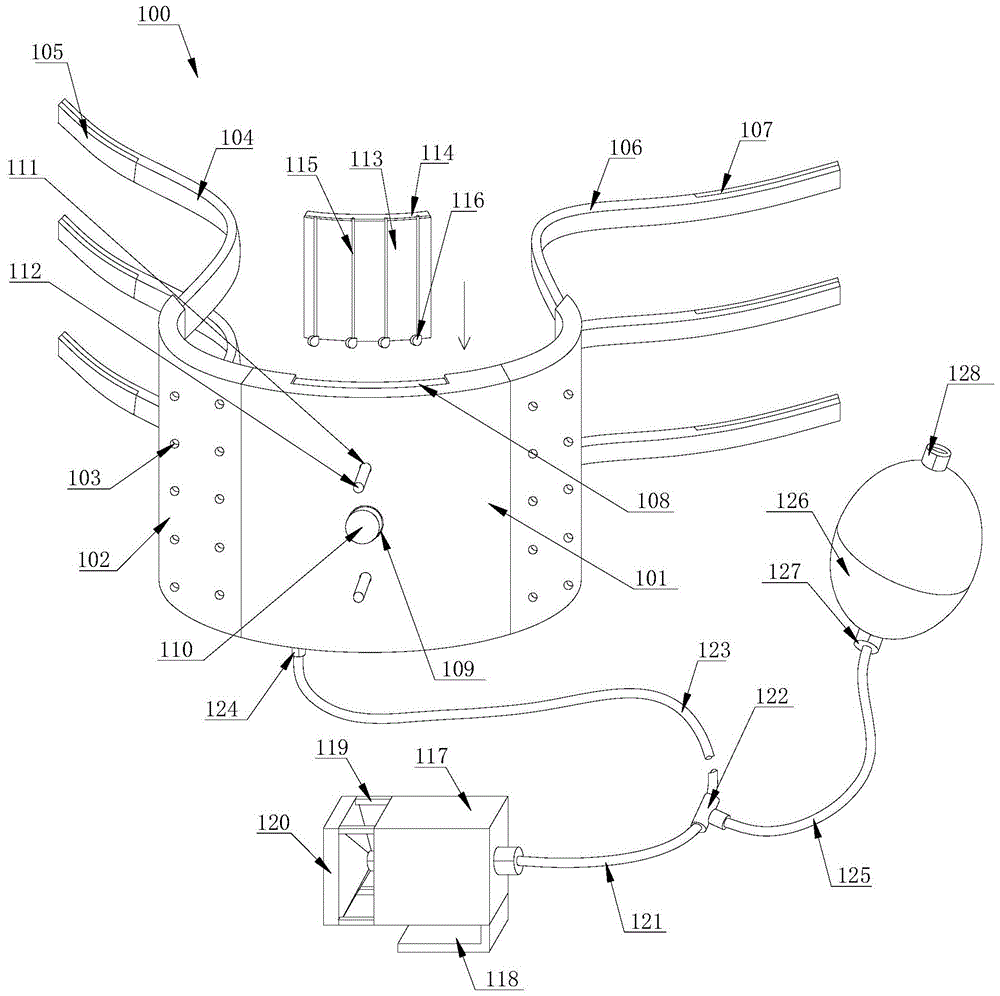

FIG. 1 is a schematic illustration of a post-thyroid care strip according to an embodiment of the present application;
FIG. 2 is a schematic view of the interior of the slot, the back of the main guard and the back of the side guard of the embodiment shown in FIG. 1;
FIG. 3 is a schematic structural view of the main guard plate, the side guard plates and the silicone strip in the embodiment of FIG. 1;
FIG. 4 is a schematic view of the construction of the skirt and filter layer of the embodiment of FIG. 1;
FIG. 5 is a schematic view of the main guard plate and the filter layer of the embodiment shown in FIG. 1;
FIG. 6 is a schematic view of the structure of the surface of the movable plate in the embodiment of FIG. 1;
figure 7 is a schematic view of the construction of the drug plate member of the embodiment of figure 1;
figure 8 is a schematic view of the embodiment of figure 1 showing the mounting of the drug plate member and slot;
FIG. 9 is a schematic structural view of the deformation rod and the stopper in the embodiment of FIG. 1;
fig. 10 is a schematic structural view of the filter cover and the activated carbon filter screen in the embodiment shown in fig. 1.
The meaning of the reference symbols in the figures:
the nursing belt 100, the main guard plate 101, the side guard plate 102, the air vent 103, the first bandage 104, the hook surface magic tape 105, the second bandage 106, the hair surface magic tape 107, the slot 108, the concave hole 109, the first magnet block 110, the guide through hole 111, the guide rod 112, the soft rubber plate 113, the absorbent cotton layer 114, the deformation rod 115, the stopper 116, the communication nozzle 1161, the limit blocking air bag 1162, the air pump 117, the scraping hook 118, the connecting rod 119, the filter cover 120, the first hose 121, the three-way pipe 122, the second hose 123, the interface 124, the third hose 125, the holding air bag 126, the first check valve 127, the second check valve 128, the silica gel strip 129, the air outlet 130, the cavity 131, the movable plate 132, the intermediate groove 133, the connecting spring 134, the second magnet block 135, the non-woven fabric layer 136, the bamboo charcoal fiber layer 137, the melt-blown fabric layer 138, and the activated charcoal filter screen 139.
Detailed Description
In order to make the technical solutions better understood by those skilled in the art, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only partial embodiments of the present application, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It should be understood that the data so used may be interchanged under appropriate circumstances such that embodiments of the application described herein may be used. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed, but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.
In this application, the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", "inner", "outer", "middle", "vertical", "horizontal", "lateral", "longitudinal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings. These terms are used primarily to better describe the present application and its embodiments, and are not used to limit the indicated devices, elements or components to a particular orientation or to be constructed and operated in a particular orientation.
Moreover, some of the above terms may be used to indicate other meanings besides the orientation or positional relationship, for example, the term "on" may also be used to indicate some kind of attachment or connection relationship in some cases. The specific meaning of these terms in this application will be understood by those of ordinary skill in the art as appropriate.
Furthermore, the terms "mounted," "disposed," "provided," "connected," and "sleeved" are to be construed broadly. For example, it may be a fixed connection, a removable connection, or a unitary construction; can be a mechanical connection, or an electrical connection; may be directly connected, or indirectly connected through intervening media, or may be in internal communication between two devices, elements or components. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art as appropriate.
It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present application will be described in detail below with reference to the embodiments with reference to the attached drawings.
Referring to fig. 1 to 10, the nursing belt 100 includes: the main guard board 101, the side guard board 102, the first bandage 104, the hook surface magic tape 105, the second bandage 106, the hair surface magic tape 107, the movable board 132, the medicine board, the filter layer, the active air supply structure and the silica gel strip 129.
Referring to fig. 1, as a specific solution, both sides of a main guard plate 101 are fixedly connected with side guard plates 102, one side of each of the two side guard plates 102 is fixedly connected with three first straps 104 and three second straps 106, hook surface magic tapes 105 are sewn on the surface of the first straps 104, hair surface magic tapes 107 are sewn on the surface of the second straps 106, the main guard plate 101 and the side guard plates 102 can be bound at a neck through the first straps 104 and the second straps 106, after being worn, the nursing place is covered by the main guard plate 101 and the side guard plates 102 and pressed at the nursing place to realize protection, after being worn, the main guard plate 101 and the side guard plates 102 are bonded through the hair surface magic tapes 107 and the hook surface magic tapes 105, and after being mounted and bound, a slot 108 is formed in the middle position of the top of the back of the main guard plate 101, a movable plate 132 is arranged in the slot 108, the movable plate 132 can be moved to adjust the distance between the skin at the neck, thereby providing a plate for inserting medicines, Extract and provide the space, the inside of slot 108 is provided with fly leaf 132, forms groove 133 between the bottom of fly leaf 132 and the bottom of slot 108, is provided with the medicine plate that the pull was demolishd in the slot 108, and the medicine plate has just the dismouting separation, has improved the efficiency of changing dressings, and the dog 116 for medicine plate bottom provides the space of placing after filling in between groove 133, stops, avoids appearing breaking away from, has improved the installation and has filled in the stability after.
Referring to fig. 4 and 5, as a specific scheme, the inside of side guard plate 102 has an inner cavity, the inner cavity provides the space of installation for the filter layer, cavity 131 has been seted up to the inside of main guard plate 101, cavity 131 is the U type structure, cavity 131 provides the space of installation for the filter layer, the filter layer has all been installed to the inside of cavity 131 and the inside packing of inner cavity, the bottom and the initiative air feed structural connection of main guard plate 101, the output and the cavity 131 intercommunication installation of initiative air feed structure, initiative air feed structure can provide the air feed for cavity 131 is inside, the effect of initiative breathing freely is provided, thereby realize breathing freely, the ventilative effect is improved, avoid sultriness, cause the wound to appear damaging, the holistic result of use is improved.
Referring to fig. 1 to 5, as a specific scheme, a plurality of evenly distributed's bleeder vent 103 has been seted up on the surface of side guard plate 102, bleeder vent 103 passes whole side guard plate 102, be used for breathing freely, make nursing regional inside communicate with external space through bleeder vent 103, breathe freely, a plurality of venthole 130 has been seted up at the back of main guard plate 101, and a plurality of venthole 130 encloses into U type structure, the design of venthole 130U type structure, be used for wound surrounding all around, be convenient for breathe freely, improve its ventilative effect, venthole 130 and cavity 131 intercommunication installation, venthole 130 is used for giving vent to anger, cooperation initiative air feed structure uses, carry out the air feed through initiative air feed structure, give vent to anger through venthole 130, realize the initiative air feed, provide ventilative for the processing area, better ventilation effect has.
Referring to fig. 2 to 3, as a specific scheme, a silica gel strip 129 is fixedly bonded at the peripheral edge of the back of the main guard plate 101 and the back of the side guard plate 102, the silica gel strip 129 is used for directly contacting with a human body, the comfort level is improved through the flexibility of the silica gel strip 129, and the skin is prevented from being crushed, wherein the silica gel strip 129 can also be replaced by other soft materials, such as rubber.
Referring to fig. 2 to 6, such a scheme is adopted, the four corners of the surface of the movable plate 132 are fixedly connected with the connecting springs 134, the tail ends of the connecting springs 134 are fixedly connected with the groove walls of the slots 108, elastic connection of the movable plate 132 is realized, under the action of pressure, the movable plate can move, the spacing for plugging in the medicine plates is increased, after the applied pressure is cancelled, the medicine plates can be pressed at the wound through the elastic force of the connecting springs 134, nursing is carried out, meanwhile, the movable plate 132 loses pressure, the position is reset, the slots 133 can be formed with the bottoms of the slots 108, limiting blocking is provided for the stoppers 116 at the bottoms of the medicine plates, separation is avoided, and the limiting effect is improved.
Referring to fig. 1 to 8, according to the above configuration, the middle portion of the movable plate 132 is fixedly fitted and connected with the second magnet block 135, the back surface of the second magnet block 135 is provided with the first magnet block 110, the first magnet block 110 is fitted and connected with the concave hole 109 formed in the front surface of the main protection plate 101, the first magnet block 110 and the second magnet block 135 are additionally provided, and the first magnet block 110 is placed in the concave hole 109 or the first magnet block 110 is taken out, so that the adsorption and the adsorption of the second magnet block 135 are cancelled, the driving and the cancellation of the compression of the connecting spring 134 by the movable plate 132 are realized, and the driving is provided for the movement of the movable plate 132.
Referring to fig. 1, 2, 6 and 8, according to the scheme, two guide rods 112 are fixedly connected to the plate surface of the movable plate 132, the guide rods 112 are in clearance fit with the guide through holes 111 formed in the main guard plate 101, the guide rods 112 are pulled to drive the movable plate 132 and compress the connecting springs 134, so that the space is increased, the medicine plates can be conveniently plugged, after the medicine plates are loosened, the medicine plates can be pressed by the elastic force of the connecting springs 134, the movable plate 132 is reset, the stopper 116 can be blocked and limited, meanwhile, the medicine plates can be pressed to the wound for nursing, and an embodiment is provided for driving the movable plate 132.
With reference to fig. 7, in this arrangement, the drug plate comprises: soft rubber plate 113, absorbent cotton layer 114, deformation pole 115 and dog 116, soft rubber plate 113's the fixed bonding in back has absorbent cotton layer 114, soft rubber plate 113's the positive fixed gomphosis of front is connected with a plurality of equidistant distributions's deformation pole 115, a plurality of deformation pole 115's bottom is connected with dog 116, soft rubber plate 113, absorbent cotton layer 114, deformation pole 115 all has gentle soft, can deform and buckle, be convenient for be in the state of buckling and fill in slot 108, be applicable to the operating environment operation of minizone (the operating space between neck department and chin department is not enough, avoid unable medicine plate that holds), wherein deformation pole 115 can adopt plastics or spring steel to make, can deform, wherein soak the medicine or paint the medicine on the absorbent cotton layer 114, with human contact, wherein dog 116 can adopt the hard piece, optionally: stones, iron blocks, etc.
Referring to fig. 9, in this case, the stopper 116 includes: the connecting nozzle 1161 and the limiting blocking air bag 1162 are fixedly adhered to the top of the limiting blocking air bag 1162, the top end of the connecting nozzle 1161 is connected with the deformation rod 115, the deformation rod 115 is of a hollow tubular structure, the hollow design of the deformation rod 115 and the air bag flexible design of the stop block 116 provide another technical scheme of the stop block 116, after being inflated, the deformation rod is in a larger shape, is embedded into the inter-groove 133 and is blocked, the deformation rod 115 and the connecting nozzle 1161 can be penetrated through an external fine needle to puncture the limiting blocking air bag 1162 for deflation, automatic reduction is achieved, limiting is eliminated, the movable plate component damage is applicable to the movable plate 132, under the accident condition that the movable plate is difficult to move, the medicine plate is pulled out, an implementation scheme is provided for taking out the medicine plate, and the medicine plate is difficult to remove and the medicine changing effect is prevented from being influenced.
Referring to fig. 4 and 5, in such a scheme, the filter layer includes: the bamboo charcoal fiber fabric comprises a non-woven fabric layer 136, a bamboo charcoal fiber layer 137 and a melt-blown fabric layer 138, wherein the non-woven fabric layer 136 and the melt-blown fabric layer 138 are respectively bonded and connected to two surfaces of the bamboo charcoal fiber layer 137, the bamboo charcoal fiber layer has a filtering effect, and the three-layer design of the non-woven fabric layer 136, the bamboo charcoal fiber layer 137 and the melt-blown fabric layer 138 is used for blocking the entrance of droplets or germs, so that the protection effect is achieved, the use effect is improved, meanwhile, the bamboo charcoal fiber layer 137 is added, the antibacterial function is achieved, and the antibacterial effect is improved.
Referring to fig. 1, with this scheme, the active air supply structure includes: an air pump 117, a first hose 121, a second hose 123, a connector 124, a filter cover 120, an activated carbon filter screen 139 and a connecting rod 119, wherein an air inlet of the air pump 117 is fixedly sleeved with the filter cover 120, the activated carbon filter screen 139 is fixedly embedded and installed on one side of the filter cover 120, an air outlet of the air pump 117 is fixedly sleeved and installed on one end of the first hose 121, the tail end of the first hose 121 is communicated and installed with one end of the second hose 123, the tail end of the second hose 123 is fixedly sleeved and installed with the connector 124, the top end of the connector 124 is fixedly connected with the bottom of the main guard plate 101, the connector 124 is communicated and installed with the cavity 131, four connecting rods 119 are fixedly connected between the filter cover 120 and one side of the shell of the air pump 117, the four connecting rods 119 are distributed in a rectangular array, air is supplied through the air pump 117, external air enters the air pump 117 through the filter cover 120, the air pump 139 is filtered, and then enters the first hose 121, enters the second hose 123 through the three-way pipe 122, enters the main guard board 101 through the connector 124, enters the cavity 131, and is filtered through the non-woven fabric layer 136, the bamboo charcoal fiber layer 137 and the melt-blown fabric layer 138, so that the cleanness of the entering air is kept, clean air is provided for nursing places, the air permeability is realized, the air permeability effect is improved, and the air supply effect is good when the air pump 117 is used as a driving element for air delivery.
Referring to fig. 1, according to the scheme, a scraping hook 118 is fixedly connected to the bottom of the housing of the air pump 117, the scraping hook 118 is an L-shaped plate-shaped structure, a battery and a control switch are mounted on the back of the housing of the air pump 117, the scraping hook 118 can be hung on a waistband for hanging, power is supplied through the battery, and the control switch is used for controlling the opening and closing of the air pump 117.
Referring to fig. 1, in this configuration, a three-way pipe 122 is connected between a first hose 121 and a second hose 123, the three-way pipe 122 is further connected to one end of a third hose 125, a first one-way valve 127 is fixedly installed at the end of the third hose 125, the first one-way valve 127 is fixedly installed at the bottom of a holding air bag 126, a second one-way valve 128 is fixedly installed at the top of the holding air bag 126, the second one-way valve 128 and the first one-way valve 127 are used for one-way flow of air, wherein the second one-way valve 128 allows external air to flow into the inside of the holding air bag 126, air inside the holding air bag 126 cannot flow out through the second one-way valve 128, air in the holding air bag 126 can flow out through the first one-way valve 127, air cannot enter into the holding air bag 126 through the first one-way valve 127, so that when the holding air bag 126 is held, air can be driven to allow air to flow into the second hose 123 through the third hose 125, the active air supply is carried out, an implementation scheme is provided for the active air supply, the air permeation effect is improved through manual supply of driving air supply, the overall using effect is good, and the whole implementation scheme is suitable for the condition that the air pump 117 is damaged or is in short of electricity, and manual air supply can be provided.
The technical scheme of this application, whole nursing belt 100 is used for the protection nursing of thyroid gland postoperative, wear on the neck, play the effect of protection through main backplate 101 and nursing belt 100, compare with prior art, it has the function of being convenient for change dressings, the carrier as the medicine through the medicine plate, with the wound contact after the operation, provide the nursing protection, its medicine plate adopts the pull design to be convenient for demolish the change, thereby be convenient for change dressings, when changing dressings, need not to carry out dismantling of whole nursing belt 100, the efficiency of changing dressings is higher.
Meanwhile, the medicine plate is integrally formed by the medicine cotton layer 114, the soft rubber plate 113 and the deformation rod 115, has better deformation capacity, is convenient to be inserted into the slot 108 in a bent state, is suitable for operation in a small-range operating environment (the operating space between the neck and the chin is insufficient to avoid the situation that a medicine plate cannot be accommodated), is provided with a stop block 116 after being plugged in, is embedded into the intermediate groove 133, thereby providing a limit stop, improving the installation stability, preventing separation, and further adding a connecting spring 134 on the movable plate 132 to make the movable plate 132 have elasticity, when the medicine plates are inserted, the medicine plates are elastically deformed, the movable plate 132 is displaced, the medicine plates can be conveniently inserted, and after the medicine plates are installed, the medicine plates can be conveniently inserted into the medicine plates through the elastic pressure of the connecting spring 134, can provide pressure for the medicine plate, is convenient for the medicine to better contact with the wound, and provides better nursing effect.
Meanwhile, the guide rod 112 is additionally arranged on the movable plate 132, the guide rod 112 is directly fixedly connected with the movable plate 132, the movable plate 132 can be driven by pulling the guide rod 112 and the guide through hole 111 to compress the connecting spring 134, so that the movable plate 132 actively generates large displacement, and the medicine plates can be conveniently plugged in, meanwhile, the first magnet block 110 and the second magnet block 135 are additionally arranged, the first magnet block 110 is placed in the concave hole 109 or the first magnet block 110 is taken out, the adsorption and adsorption cancellation of the second magnet block 135 are realized, the movable plate 132 is driven and cancelled by compressing the connecting spring 134, the two modes of moving the movable plate 132 are provided, a space is provided for the plugging in of the medicine plates, particularly, the space is provided for the passing of the stop block 116, and the medicine plates can be conveniently taken out and plugged in.
The further stop block 116 is composed of a limit blocking air bag 1162 and a communication nozzle 1161, the deformation rod 115 is a hollow pipe, after installation, the deformation rod passes through the deformation rod 115 and the communication nozzle 1161 through an external fine needle, puncture of the limit blocking air bag 1162 can be conducted, deflation can be conducted, contraction is conducted, embedding blocking with the inter-groove 133 is eliminated, a medicine plate can be directly drawn out, the movable plate 132 does not need to be moved, convenience is provided for taking out the medicine plate, the limit blocking air bag 1162 is punctured when the movable plate 132 is difficult to move or damage, and therefore the size of the limit blocking air bag 1162 is reduced, and the characteristic of convenience in taking out is achieved.
Meanwhile, the whole air permeability is better, the air holes 103 are additionally arranged on the side guard plate 102 and used for daily air permeability and used for ventilation of nursing places, the filter layer is arranged to play a role of filtering and protecting and reduce the entering of germs, the active air supply structure is further additionally arranged to improve the whole air permeability effect, air is supplied through the air pump 117, air is supplied through the filter cover 120, and is filtered through the activated carbon filter screen 139, so that the external air flows into the cavity 131, further enters the nursing area from the air outlet 130 through the filter layer, the air permeability effect is improved, the nursing device is suitable for being used in sultry, meanwhile, an element for manual air supply is additionally arranged at the active air supply structure, the air bag 126 is held by hand, so that the external air enters the cavity 131 through hand-holding driving, the manual air supply is carried out, two active air supply schemes are provided, and the sultry situation of nursing areas is solved, the use effect is improved, and active air supply that the air pump 117 cannot work due to damage of the air pump 117 or power shortage of the battery is avoided.
The foregoing is illustrative of the present application and is not to be construed as limiting thereof, as numerous modifications and variations will be apparent to those skilled in the art. Any modification, equivalent replacement, improvement and the like made within the spirit and principle of the present application shall be included in the protection scope of the present application.
Claims (7)
1. A postoperative care belt for thyroid gland, which is characterized in that:
the care belt includes: the main guard plate, the side guard plate, the first bandage, the hook surface magic tape, the second bandage, the hair surface magic tape, the movable plate, the medicine plate, the filter layer, the active air supply structure and the silica gel strip;
the two sides of the main guard plate are fixedly connected with the side guard plates, one side edges of the two side guard plates are fixedly connected with three first binding bands and three second binding bands respectively, hook-surface magic tapes are sewn and connected to the surfaces of the first binding bands, wool-surface magic tapes are sewn and connected to the surfaces of the second binding bands, a slot is formed in the middle of the top of the back of the main guard plate, the movable plate is arranged inside the slot, a gap is formed between the bottom of the movable plate and the bottom of the slot, the medicine plates capable of being pulled and removed are arranged in the slot, the medicine plates can be detached and separated, and the medicine changing efficiency is improved;
the side guard plate is internally provided with an inner cavity, the main guard plate is internally provided with a cavity, the cavity is of a U-shaped structure, the filter layers are filled and installed in the cavity and the inner cavity, the bottom of the main guard plate is connected with the active air supply structure, and the output end of the active air supply structure is communicated with the cavity;
the surface of the side guard plate is provided with a plurality of air holes which are uniformly distributed, the back of the main guard plate is provided with a plurality of air outlet holes, the air outlet holes are enclosed into a U-shaped structure, and the air outlet holes are communicated with the cavity;
the silica gel strips are fixedly bonded at the peripheral edges of the back surface of the main guard plate and the back surface of the side guard plate; the four corners of the surface of the movable plate are fixedly connected with connecting springs, and the tail ends of the connecting springs are fixedly connected with the groove walls of the slots; the medicament plate comprises: the medical cotton layer is fixedly bonded on the back surface of the soft rubber plate, the front surface of the soft rubber plate is fixedly connected with a plurality of deformation rods which are distributed at equal intervals in an embedded mode, and the bottom ends of the deformation rods are connected with the stop block; the stopper includes: the connecting nozzle is fixedly bonded at the top of the limit blocking air bag, the top end of the connecting nozzle is connected with the deformation rod, and the deformation rod is of a hollow tubular structure.
2. The postoperative care belt for thyroid gland according to claim 1, wherein: the middle part fixed gomphosis of fly leaf is connected with the second magnet piece, the back of second magnet piece is provided with first magnet piece, first magnet piece is connected with the shrinkage pool gomphosis of seting up at main backplate openly.
3. The postoperative care belt for thyroid gland according to claim 1, wherein: two guide rods are fixedly connected to the surface of the movable plate, and the guide rods are in clearance fit connection with guide through holes formed in the main guard plate.
4. The postoperative care belt for thyroid gland according to claim 1, wherein: the filter layer includes: the bamboo charcoal fiber composite fabric comprises a non-woven fabric layer, a bamboo charcoal fiber layer and a melt-blown fabric layer, wherein the non-woven fabric layer and the melt-blown fabric layer are respectively bonded and connected to two surfaces of the bamboo charcoal fiber layer.
5. The postoperative care belt for thyroid gland according to claim 1, wherein: the active gas supply structure includes: air pump, first hose, second hose, interface, filter mantle, active carbon filter screen and connecting rod, the air inlet of air pump with the filter mantle is fixed to be cup jointed, one side fixed gomphosis of filter mantle is installed the active carbon filter screen, the gas outlet of air pump with the fixed cover of one end of first hose connects, the end of first hose with the one end intercommunication installation of second hose, the end of second hose with the interface is fixed to be cup jointed, the bottom fixed connection of interface top and main backplate, and interface and cavity intercommunication installation, the filter mantle with fixedly connected with four between one side of air pump shell the connecting rod, and four connecting rods are the rectangular array and distribute.
6. The postoperative care belt for thyroid gland according to claim 5, wherein: the air pump is characterized in that the bottom of the shell of the air pump is fixedly connected with a scraping hook, the scraping hook is of an L-shaped plate-shaped structure, and the back of the shell of the air pump is provided with a battery and a control switch.
7. The postoperative care belt for thyroid gland according to claim 5, wherein: the three-way hose is connected between the first hose and the second hose, the three-way hose is further connected with one end of a third hose, a first one-way valve is fixedly mounted at the tail end of the third hose, the first one-way valve is fixedly mounted at the bottom of the holding air bag, and a second one-way valve is fixedly mounted at the top of the holding air bag.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110251464.XA CN112914832B (en) | 2021-03-08 | 2021-03-08 | Thyroid gland postoperative nursing belt |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110251464.XA CN112914832B (en) | 2021-03-08 | 2021-03-08 | Thyroid gland postoperative nursing belt |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN112914832A CN112914832A (en) | 2021-06-08 |
| CN112914832B true CN112914832B (en) | 2022-05-31 |
Family
ID=76171884
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202110251464.XA Expired - Fee Related CN112914832B (en) | 2021-03-08 | 2021-03-08 | Thyroid gland postoperative nursing belt |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112914832B (en) |
Families Citing this family (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116407128B (en) * | 2023-04-28 | 2024-03-08 | 苏州乐普斯电子有限公司 | Adjustable brain electrode fixing band |
Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US6591429B1 (en) * | 1995-04-28 | 2003-07-15 | Burlington Consolidated Limited Incorporation | Physical protector |
| JP2015518927A (en) * | 2011-10-11 | 2015-07-06 | ティービーアイ イノヴェーションズ エルエルシーＴｂｉ Ｉｎｎｏｖａｔｉｏｎｓ， Ｌｌｃ | Method and apparatus for reducing the effects of damage to objects of concussion or blast force |
| CN209186835U (en) * | 2017-11-28 | 2019-08-02 | 解晓荷 | A kind of fast hemostasis device for general surgical nursing |
| CN110151398A (en) * | 2018-03-08 | 2019-08-23 | 孙雪莲 | A kind of obstetrics and gynecology department tightening abdnominal belt device |
| CN209450791U (en) * | 2018-12-18 | 2019-10-01 | 李素梅 | A kind of multi-purpose band of gynecological and obstetrical nursing |
| CN110882107A (en) * | 2019-12-19 | 2020-03-17 | 江云娟 | Incision recovery nursing device for general surgery department |
| CN210843819U (en) * | 2019-07-27 | 2020-06-26 | 华中科技大学同济医学院附属协和医院 | Wound application after cervical vertebra posterior operation |
| CN211610349U (en) * | 2020-01-31 | 2020-10-02 | 连云港市第二人民医院(连云港市临床肿瘤研究所) | Thyroid gland postoperative pressurization fixing device |
| CN112245790A (en) * | 2020-11-13 | 2021-01-22 | 徐树建 | Postoperative protection device for thyroid surgery |
-
2021
- 2021-03-08 CN CN202110251464.XA patent/CN112914832B/en not_active Expired - Fee Related
Patent Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US6591429B1 (en) * | 1995-04-28 | 2003-07-15 | Burlington Consolidated Limited Incorporation | Physical protector |
| JP2015518927A (en) * | 2011-10-11 | 2015-07-06 | ティービーアイ イノヴェーションズ エルエルシーＴｂｉ Ｉｎｎｏｖａｔｉｏｎｓ， Ｌｌｃ | Method and apparatus for reducing the effects of damage to objects of concussion or blast force |
| CN209186835U (en) * | 2017-11-28 | 2019-08-02 | 解晓荷 | A kind of fast hemostasis device for general surgical nursing |
| CN110151398A (en) * | 2018-03-08 | 2019-08-23 | 孙雪莲 | A kind of obstetrics and gynecology department tightening abdnominal belt device |
| CN209450791U (en) * | 2018-12-18 | 2019-10-01 | 李素梅 | A kind of multi-purpose band of gynecological and obstetrical nursing |
| CN210843819U (en) * | 2019-07-27 | 2020-06-26 | 华中科技大学同济医学院附属协和医院 | Wound application after cervical vertebra posterior operation |
| CN110882107A (en) * | 2019-12-19 | 2020-03-17 | 江云娟 | Incision recovery nursing device for general surgery department |
| CN211610349U (en) * | 2020-01-31 | 2020-10-02 | 连云港市第二人民医院(连云港市临床肿瘤研究所) | Thyroid gland postoperative pressurization fixing device |
| CN112245790A (en) * | 2020-11-13 | 2021-01-22 | 徐树建 | Postoperative protection device for thyroid surgery |
Also Published As
| Publication number | Publication date |
|---|---|
| CN112914832A (en) | 2021-06-08 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| JP3106128B1 (en) | mask | |
| CN205923004U (en) | Portable air purification gauze mask | |
| CN112914832B (en) | Thyroid gland postoperative nursing belt | |
| CN108936884A (en) | Multi-functional assistance is closed oral mask | |
| CN215270785U (en) | Multifunctional medical protective clothing | |
| CN102240426B (en) | Nose filter | |
| CN209033447U (en) | A kind of dust-proof humidification hood for protecting rider of tracheal stoma | |
| CN212014549U (en) | Multifunctional biological ion mask | |
| CN207461467U (en) | A kind of Herb medicine gauze mask | |
| CN114631657A (en) | Mask with separated hangers | |
| CN212994574U (en) | Protective facial mask with graphite alkene filter core | |
| CN206081369U (en) | Breathe filter mask | |
| CN213487044U (en) | Antibacterial filtering mask | |
| CN109772059A (en) | A kind of mask being convenient for changing filter core | |
| CN211932009U (en) | Pet mask with filtering inner mask core | |
| CN213307578U (en) | Protective mask with circulating filter element | |
| CN211794454U (en) | Medical replaceable protective mask | |
| CN218773389U (en) | Medical surgical mask with antibacterial function | |
| CN213188239U (en) | Reusable mask | |
| CN214181499U (en) | Integrated knitted mask with replaceable nano high-efficiency filter element | |
| CN210433754U (en) | Traditional Chinese medicine plaster | |
| CN212260554U (en) | Pure silica gel inserted sheet type mask body and mask | |
| CN213307605U (en) | Gauze mask | |
| CN209679743U (en) | A kind of mask being convenient for changing filter core | |
| CN219069544U (en) | High-efficient low-resistance protective mask |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| CF01 | Termination of patent right due to non-payment of annual fee | ||
| CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20220531 |
