CN112747435A - Method and device for controlling direct current ventilation system and direct current ventilation system - Google Patents
Method and device for controlling direct current ventilation system and direct current ventilation system Download PDFInfo
- Publication number
- CN112747435A CN112747435A CN201911054010.2A CN201911054010A CN112747435A CN 112747435 A CN112747435 A CN 112747435A CN 201911054010 A CN201911054010 A CN 201911054010A CN 112747435 A CN112747435 A CN 112747435A
- Authority
- CN
- China
- Prior art keywords
- humidity
- ventilation system
- direct current
- controlling
- indoor
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
- F24—HEATING; RANGES; VENTILATING
- F24F—AIR-CONDITIONING; AIR-HUMIDIFICATION; VENTILATION; USE OF AIR CURRENTS FOR SCREENING
- F24F11/00—Control or safety arrangements
- F24F11/70—Control systems characterised by their outputs; Constructional details thereof
- F24F11/72—Control systems characterised by their outputs; Constructional details thereof for controlling the supply of treated air, e.g. its pressure
-
- F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
- F24—HEATING; RANGES; VENTILATING
- F24F—AIR-CONDITIONING; AIR-HUMIDIFICATION; VENTILATION; USE OF AIR CURRENTS FOR SCREENING
- F24F11/00—Control or safety arrangements
- F24F11/62—Control or safety arrangements characterised by the type of control or by internal processing, e.g. using fuzzy logic, adaptive control or estimation of values
- F24F11/63—Electronic processing
- F24F11/64—Electronic processing using pre-stored data
-
- F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
- F24—HEATING; RANGES; VENTILATING
- F24F—AIR-CONDITIONING; AIR-HUMIDIFICATION; VENTILATION; USE OF AIR CURRENTS FOR SCREENING
- F24F2110/00—Control inputs relating to air properties
- F24F2110/20—Humidity
- F24F2110/22—Humidity of the outside air
-
- F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
- F24—HEATING; RANGES; VENTILATING
- F24F—AIR-CONDITIONING; AIR-HUMIDIFICATION; VENTILATION; USE OF AIR CURRENTS FOR SCREENING
- F24F2130/00—Control inputs relating to environmental factors not covered by group F24F2110/00
- F24F2130/20—Sunlight
Abstract
The application relates to the technical field of smart homes, and discloses a method for controlling a direct current ventilation system, wherein the direct current ventilation system comprises a light passing device and an air exchange device, and the method comprises the following steps: controlling the on and off states of the light-transmitting device according to the outdoor illumination intensity; and when the light-transmitting device is in an opening state, the opening and closing states of the air exchange device are controlled according to the indoor humidity and the outdoor humidity. Through information such as illumination condition, indoor outer air humidity, automatic control leads to opening and closing of light device, breather, realizes leading to light, the optimal control of taking a breath indoor, guarantees that there is suitable sunshine to shine indoor, reduces the harm of strong sunshine to indoor furniture house ornamentation, avoids not ventilating for a long time and leads to indoor environment peculiar smell. The application also discloses a device and direct current ventilation system for controlling direct current ventilation system.
Description
Technical Field
The application relates to the technical field of smart home, for example, to a method and a device for controlling a direct current ventilation system and the direct current ventilation system.
Background
At present, along with the continuous improvement of living standard, more and more families can select different urban lives and vacations according to different seasons, so in the cities with more seasonal scenic spots, more idle rooms can appear in the slack season of traveling. Because nobody live in, can't open curtain, window often and receive sunshine and ventilate, lead to the indoor environment to appear humidity and milden and rot easily, air peculiar smell scheduling problem.
In the process of implementing the embodiments of the present disclosure, it is found that at least the following problems exist in the related art: a large amount of manpower is invested to frequently maintain the unoccupied rooms, so that the house maintenance cost is high, and the convenience is poor; the ventilation system is controlled to be opened and closed at regular time through the household appliance control device, the meteorological conditions of the location of the equipment need to be concerned, and the weather conditions are frequently modified, so that time and labor are wasted.
Disclosure of Invention
The following presents a simplified summary in order to provide a basic understanding of some aspects of the disclosed embodiments. This summary is not an extensive overview nor is intended to identify key/critical elements or to delineate the scope of such embodiments but rather as a prelude to the more detailed description that is presented later.
The embodiment of the disclosure provides a method and a device for controlling a direct current ventilation system and the direct current ventilation system, so as to solve the technical problem of poor convenience due to the fact that manual modification is required according to local meteorological conditions during control of the ventilation system.
In some embodiments, the dc ventilation system includes a light passing device and a ventilation device, the method comprising: controlling the on and off states of the light-transmitting device according to the outdoor illumination intensity; and when the light-transmitting device is in an opening state, the opening and closing states of the air exchange device are controlled according to the indoor humidity and the outdoor humidity.
In some embodiments, the apparatus comprises a processor and a memory storing program instructions, wherein the processor is configured to perform the above-described method when executing the program instructions.
In some embodiments, the dc ventilation system includes a light-transmitting device and a ventilation device, and further includes: the direct current power supply device is used for supplying power to the light transmitting device and the air exchange device; and the above-mentioned apparatus for controlling a direct current ventilation system.
The method and the device for controlling the direct current ventilation system and the direct current ventilation system provided by the embodiment of the disclosure can realize the following technical effects:
through information such as illumination condition, indoor outer air humidity, automatic control leads to opening and closing of light device, breather, realizes leading to light, the optimal control of taking a breath indoor, guarantees that there is suitable sunshine to shine indoor, reduces the harm of strong sunshine to indoor furniture house ornamentation, avoids not ventilating for a long time and leads to indoor environment peculiar smell. The intelligent indoor environment maintenance system can intelligently maintain the indoor environment under the condition of no people living, automatically switch on and off the light-conducting and air-changing equipment, maintain a relatively good indoor environment under the condition of reducing manual intervention, and improve the experience when people live in again.
The foregoing general description and the following description are exemplary and explanatory only and are not restrictive of the application.
Drawings
One or more embodiments are illustrated by way of example in the accompanying drawings, which correspond to the accompanying drawings and not in limitation thereof, in which elements having the same reference numeral designations are shown as like elements and not in limitation thereof, and wherein:

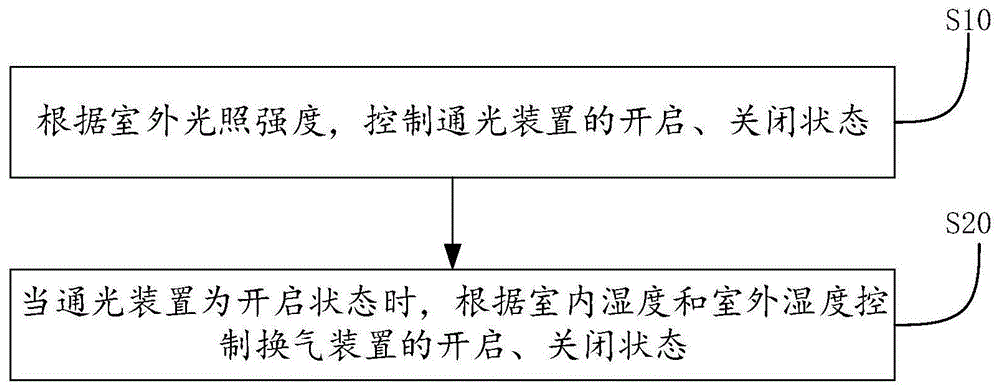

fig. 1 is a schematic flow chart diagram of a method for controlling a dc ventilation system according to an embodiment of the present disclosure;
FIG. 2 is a schematic flow chart of another method for controlling ventilation in a DC ventilation system according to an embodiment of the present disclosure;
FIG. 3 is a schematic diagram of an apparatus for controlling a DC ventilation system according to an embodiment of the present disclosure;
FIG. 4 is a schematic diagram of another apparatus for controlling a DC ventilation system provided by an embodiment of the present disclosure;
fig. 5 is a schematic structural diagram of a direct current ventilation system provided in an embodiment of the present disclosure.
Detailed Description
So that the manner in which the features and elements of the disclosed embodiments can be understood in detail, a more particular description of the disclosed embodiments, briefly summarized above, may be had by reference to the embodiments, some of which are illustrated in the appended drawings. In the following description of the technology, for purposes of explanation, numerous details are set forth in order to provide a thorough understanding of the disclosed embodiments. However, one or more embodiments may be practiced without these details. In other instances, well-known structures and devices may be shown in simplified form in order to simplify the drawing.
The disclosed embodiment provides a method for controlling a direct current ventilation system, the direct current ventilation system comprises a light-transmitting device and a ventilation device, as shown in fig. 1, the method comprises:
step S10, controlling the on/off state of the light-transmitting device according to the outdoor illumination intensity;
and step S20, when the light-transmitting device is in the opening state, the opening and closing state of the ventilation device is controlled according to the indoor humidity and the outdoor humidity.
The light-transmitting device is used for transmitting sunlight to the indoor, and can be an intelligent curtain, a blind window or a window with adjustable transmittance, which are arranged beside a bed. The control of the light-passing means can be controlled by wire or wirelessly.
The ventilation device is communicated with the outdoor and used for ventilating indoor air, and can be a window with controllable opening, a fresh air fan, an exhaust fan and the like. The control of the ventilation device may be by wired control or by wireless control.
Through information such as illumination condition, indoor outer air humidity, automatic control leads to opening and closing of light device, breather, realizes leading to light, the optimal control of taking a breath indoor, guarantees that there is suitable sunshine to shine indoor, reduces the harm of strong sunshine to indoor furniture house ornamentation, avoids not ventilating for a long time and leads to indoor environment peculiar smell. The intelligent indoor environment maintenance system can intelligently maintain the indoor environment under the condition of no people living, automatically switch on and off the light-conducting and air-changing equipment, maintain a relatively good indoor environment under the condition of reducing manual intervention, and improve the experience when people live in again.
In some embodiments, controlling the on/off state of the light passing device according to the illumination intensity includes: when the outdoor illumination intensity is within a preset illumination intensity interval, controlling the light-transmitting device to be in an open state; and when the outdoor illumination intensity is not within the preset sunlight intensity interval, controlling the light-transmitting device to be in a closed state. The illumination intensity is collected through the illumination sensor and the signal sampling circuit by detecting the outdoor illumination intensity as a judgment standard for judging whether the light-transmitting device is started or not, and the illumination intensity is judged by detecting the voltage.
Optionally, before determining whether the outdoor illumination intensity is within the preset illumination intensity interval, the method further includes determining whether the current time is within a preset time period, and acquiring the outdoor illumination intensity under the condition that the current time is within the preset time period. Therefore, the outdoor illumination intensity is obtained only within the preset time period, and the energy-saving effect is achieved. The preset time period is related to the region where the direct current ventilation system is located, and optionally, the preset time period is set to be two hours before sunrise time and two hours after sunset time.
Optionally, the outdoor illumination intensity is obtained according to a preset detection frequency. The preset detection frequency can be detected once every 30 minutes, the frequency of the sampling detection frequency is reduced, the data redundancy of the system is reduced, the real-time performance of the sampling detection is guaranteed, and the indoor environment can be effectively maintained.
In some embodiments, the predetermined solar intensity interval is further related to the solar intensity of the area in which the dc ventilation system is located. For example, the preset sunshine intensity interval is determined by acquiring the sunshine intensity corresponding to the weather information of the region where the direct current ventilation system is located on the network side. Optionally, in cloudy days, including rainy days and snowy days, the maximum outdoor illumination intensity is about 10000lux, and the sunlight intensity interval can be set to be 5000-10000 lux. Under the condition of sunny days, the outdoor maximum illumination intensity is generally more than 30000lux, and the illumination intensity interval can be set to be 20000-30000 lux. In other embodiments of the present disclosure, the sunshine intensity corresponding to the seasonal time information of the region where the direct current ventilation system is located may also be obtained by the network side to determine the preset sunshine intensity interval. Optionally, under the sunny condition in summer, outdoor illumination intensity can reach 300000lux at noon, and such high strength sunshine meeting causes the harm to indoor furniture house ornamentation, tame electric installation, through setting for the sunshine intensity interval, avoids opening the light-passing device when high strength sunshine like this, can effective maintenance indoor environment.
Optionally, the preset sunshine intensity interval is [ Q ]1，Q2](ii) a Wherein Q is1The first solar intensity, Q, of the region in which the DC ventilation system is located2The second solar intensity of the area where the direct current ventilation system is located. The preset sunlight intensity interval needs to be set according to information acquired by a network side, and in the state of network failure or incapability of acquiring position information, the outdoor illumination intensity can be detected as a judgment standard for judging whether the light-transmitting device is started, illumination can be collected through the illumination sensor and the signal sampling circuit, and the illumination intensity is judged through detecting voltage. The first solar radiation intensity Q1And a second solar intensity Q2The setting can be carried out by measuring the illumination intensity condition of the region in advance according to the standard of the intensity of the sunlight. Optionally, the first sunlight intensity is 20% -40% of the highest sunlight intensity value of the region where the direct current ventilation system is located; optionally, the second sunlight intensity is 80% -100% of the highest sunlight intensity value of the region where the direct current ventilation system is located. The maximum sunlight intensity value can be the average value of the maximum intensity of the same day of the previous year in the region, or the maximum sunlight intensity of the same day of the previous year; the maximum solar radiation intensity may be the day before the area where the solar cell is located. Optionally, the preset sunshine intensity interval is [40000, 100000%]。
In some embodiments, a method for controlling an opening/closing state of a ventilator according to an indoor humidity and an outdoor humidity, in other words, a method for controlling a ventilator in a direct current ventilation system, as shown in fig. 2, includes:
step S200, when the light-transmitting device is in the open state, the indoor and outdoor humidity is obtained
Step S201, judging whether the indoor humidity is smaller than a first humidity threshold value; when the indoor humidity is smaller than the first threshold, the step S202 is executed, otherwise, the step S203 is executed;
step S202, judging whether the outdoor humidity is in a preset humidity range, and if the outdoor humidity is in the preset humidity range, entering step S204, otherwise, entering step S205;
step S203, judging whether the outdoor humidity is smaller than a second humidity threshold value; when the outdoor humidity is smaller than the second humidity threshold value, the step S204 is executed, otherwise, the step S205 is executed;
step S204, controlling the air interchanger to be in an opening state;
step S205, the ventilator is controlled to be in the closed state.
When the indoor humidity is smaller than the first humidity threshold value and the outdoor humidity is within a preset outdoor humidity range, controlling the ventilation device to be in an opening state to perform indoor ventilation;
when the indoor humidity is smaller than the first humidity threshold value and the outdoor humidity is outside a preset outdoor humidity interval, controlling the ventilation device to be in a closed state;
when the indoor humidity is greater than or equal to the first humidity threshold value and the outdoor humidity is less than the second humidity threshold value, controlling the air exchange device to be in an opening state to carry out indoor air exchange and ventilation; at the moment, the indoor humidity is higher, the requirement on the outdoor humidity is reduced, and the indoor air is ventilated in time;
when the indoor humidity is greater than or equal to the first humidity threshold value and the outdoor humidity is greater than or equal to the second humidity threshold value, controlling the ventilation device to be in a closed state;
wherein the second humidity threshold is lower than the first humidity threshold.
Through detecting the indoor outer humidity as the judgement condition whether ventilation unit opened, when outdoor humidity was in certain extent, allowed the ventilation, when indoor humidity was too high, reduced the requirement to outdoor humidity.
Wherein, the value range of the first humidity threshold is that the relative humidity reaches 80-100%, and can be 80%, 90% or 100%.
The second humidity threshold value ranges from 70% to 90% of relative humidity, and can be 70%, 80% or 90%, and is always lower than the first humidity threshold value.
The preset outdoor humidity range is related to the weather of the region where the direct current ventilation system is located. For example, in the absence of overcast and rainy weather, in the morning or evening, which is a relatively humid period of the day, the relative humidity of the outdoor air may be high. In a sunny state, the preset outdoor humidity range is such that the relative humidity reaches [ 33%, 55% ], and in a rainy state, the preset outdoor humidity range is such that the relative humidity reaches [ 50%, 70% ]. Alternatively, when the weather of the area cannot be obtained, the preset outdoor humidity range is set to have a relative humidity of [ 30%, 70% ].
The geographical position, weather information, sunrise time, sunset time and the like acquired by the network side in the control method are auxiliary judgment conditions for controlling the direct current ventilation system, and when the information cannot be acquired, such as network failure or no position information, the direct current ventilation system operates in an off-line mode, namely, the control is performed only according to the measured illumination intensity and indoor and outdoor humidity. Therefore, when the user feels that the requirements can be met without weather information, sunrise time and sunset time, the online mode can be forbidden through the panel/app, and the user is forced to operate in the offline mode. After the online mode is forbidden, the system does not automatically acquire meteorological information, sunrise time and sunset time any more, and when the network is accessed and the flow needs to be paid, the operation cost of the system can be reduced.
According to the method for controlling the direct current ventilation system, the opening and closing of the light-transmitting device and the air exchange device are automatically controlled through information such as the illumination condition and the indoor and outdoor air humidity, the indoor light transmission and air exchange are optimally controlled, the indoor light transmission and air exchange are guaranteed to be properly irradiated by sunlight, damage of strong sunlight to indoor furniture home decoration is reduced, and the problem that the indoor environment is peculiar smell due to long-term non-ventilation is avoided. The intelligent indoor environment maintenance system can intelligently maintain the indoor environment under the condition of no people living, automatically switch on and off the light-conducting and air-changing equipment, maintain a relatively good indoor environment under the condition of reducing manual intervention, and improve the experience when people live in again.
An embodiment of the present disclosure also provides an apparatus for controlling a direct current ventilation system, as shown in fig. 3, including:
a first control module 10 for controlling the on/off state of the light transmitting device according to the outdoor illumination intensity;
and the second control module 20 is used for controlling the opening and closing states of the air interchanger according to the indoor humidity and the outdoor humidity when the light-transmitting device is in the opening state.
Through information such as illumination condition, indoor outer air humidity, automatic control leads to opening and closing of light device, breather, realizes leading to light, the optimal control of taking a breath indoor, guarantees that there is suitable sunshine to shine indoor, reduces the harm of strong sunshine to indoor furniture house ornamentation, avoids not ventilating for a long time and leads to indoor environment peculiar smell. The intelligent indoor environment maintenance system can intelligently maintain the indoor environment under the condition of no people living, automatically switch on and off the light-conducting and air-changing equipment, maintain a relatively good indoor environment under the condition of reducing manual intervention, and improve the experience when people live in again.
In some embodiments, the first control module 10 is specifically configured to: when the outdoor illumination intensity is within a preset illumination intensity interval, controlling the light-transmitting device to be in an open state; and when the outdoor illumination intensity is not within the preset sunlight intensity interval, controlling the light-transmitting device to be in a closed state. The illumination intensity is collected through the illumination sensor and the signal sampling circuit by detecting the outdoor illumination intensity as a judgment standard for judging whether the light-transmitting device is started or not, and the illumination intensity is judged by detecting the voltage.
Optionally, before determining whether the outdoor illumination intensity is within the preset illumination intensity interval, the method further includes determining whether the current time is within a preset time period, and acquiring the outdoor illumination intensity under the condition that the current time is within the preset time period. Therefore, the outdoor illumination intensity is obtained only within the preset time period, and the energy-saving effect is achieved. The preset time period is related to the region where the direct current ventilation system is located, and optionally, the preset time period is set to be two hours before sunrise time and two hours after sunset time.
Optionally, the outdoor illumination intensity is obtained according to a preset detection frequency. The preset monitoring frequency can be detected every 30 minutes, the frequency of sampling detection frequency is reduced, system data redundancy is reduced, the real-time performance of sampling detection is guaranteed, and the indoor environment can be effectively maintained.
In some embodiments, the predetermined solar intensity interval is further related to the solar intensity of the area in which the dc ventilation system is located. For example, the preset sunshine intensity interval is determined by acquiring the sunshine intensity corresponding to the weather information of the region where the direct current ventilation system is located on the network side. Optionally, in cloudy days, including rainy days and snowy days, the maximum outdoor illumination intensity is about 10000lux, and the sunlight intensity interval can be set to be 5000-10000 lux. Under the condition of sunny days, the outdoor maximum illumination intensity is generally more than 30000lux, and the illumination intensity interval can be set to be 20000-30000 lux. In other embodiments of the present disclosure, the sunshine intensity corresponding to the seasonal time information of the region where the direct current ventilation system is located may also be obtained by the network side to determine the preset sunshine intensity interval. Optionally, under the sunny condition in summer, outdoor illumination intensity can reach 300000lux at noon, and such high strength sunshine meeting causes the harm to indoor furniture house ornamentation, tame electric installation, through setting for the sunshine intensity interval, avoids opening the light-passing device when high strength sunshine like this, can effective maintenance indoor environment.
Optionally, the preset sunshine intensity interval is [ Q ]1，Q2](ii) a Wherein Q is1The first solar intensity, Q, of the region in which the DC ventilation system is located2The second solar intensity of the area where the direct current ventilation system is located. The preset sunlight intensity interval needs to be set according to information acquired by a network side, and in the state of network failure or incapability of acquiring position information, the outdoor illumination intensity can be detected as a judgment standard for judging whether the light-transmitting device is started, illumination can be collected through the illumination sensor and the signal sampling circuit, and the illumination intensity is judged through detecting voltage. The first solar radiation intensity Q1And a second solar intensity Q2The setting can be carried out by measuring the illumination intensity condition of the region in advance according to the standard of the intensity of the sunlight. Optionally, the highest sunlight intensity value of the region where the first sunlight intensity direct current ventilation system is located is 20% -40%; optionally, the second sunlight intensity is 80% -100% of the highest sunlight intensity of the region where the direct current ventilation system is located. Optionally, the preset sunshine intensity interval is [40000, 100000%]。
In some embodiments, the second control module 20 is specifically configured to:
when the indoor humidity is smaller than the first humidity threshold value and the outdoor humidity is within a preset outdoor humidity range, controlling the ventilation device to be in an opening state to perform indoor ventilation;
when the indoor humidity is smaller than the first humidity threshold value and the outdoor humidity is outside a preset outdoor humidity interval, controlling the ventilation device to be in a closed state;
when the indoor humidity is greater than or equal to the first humidity threshold value and the outdoor humidity is less than the second humidity threshold value, controlling the air exchange device to be in an opening state to carry out indoor air exchange and ventilation; at the moment, the indoor humidity is higher, the requirement on the outdoor humidity is reduced, and the indoor air is ventilated in time.
When the indoor humidity is greater than or equal to the first humidity threshold value and the outdoor humidity is greater than or equal to the second humidity threshold value, controlling the ventilation device to be in a closed state;
wherein the second humidity threshold is lower than the first humidity threshold.
Through detecting the indoor outer humidity as the judgement condition whether ventilation unit opened, when outdoor humidity was in certain extent, allowed the ventilation, when indoor humidity was too high, reduced the requirement to outdoor humidity.
Wherein, the value range of the first humidity threshold is that the relative humidity reaches 80-100%, and can be 80%, 90% or 100%.
The second humidity threshold value ranges from 70% to 90% of relative humidity, and can be 70%, 80% or 90%, and is always lower than the first humidity threshold value.
The preset outdoor humidity range is related to the weather of the region where the direct current ventilation system is located. For example, in the absence of overcast and rainy weather, in the morning or evening, which is a relatively humid period of the day, the relative humidity of the outdoor air may be high. In a sunny state, the preset outdoor humidity range is such that the relative humidity reaches [ 33%, 55% ], and in a rainy state, the preset outdoor humidity range is such that the relative humidity reaches [ 50%, 70% ]. Alternatively, when the weather of the area cannot be obtained, the preset outdoor humidity range is set to have a relative humidity of [ 30%, 70% ].
The geographical position, weather information, sunrise time, sunset time and the like acquired by the network side in the control method are auxiliary judgment conditions for controlling the direct current ventilation system, and when the information cannot be acquired, such as network failure or no position information, the direct current ventilation system operates in an off-line mode, namely, the control is performed only according to the measured illumination intensity and indoor and outdoor humidity. Therefore, when the user feels that the requirements can be met without weather information, sunrise time and sunset time, the online mode can be forbidden through the panel/app, and the user is forced to operate in the offline mode. After the online mode is forbidden, the system does not automatically acquire meteorological information, sunrise time and sunset time any more, and when the network is accessed and the flow needs to be paid, the operation cost of the system can be reduced.
The device for controlling the direct current ventilation system provided by the embodiment of the disclosure automatically controls the opening and closing of the light-transmitting device and the air interchanger through information such as illumination condition, indoor and outdoor air humidity and the like, realizes the optimal control of indoor light transmission and air interchange, ensures that the indoor space has proper sunlight irradiation, reduces the damage of strong sunlight to indoor furniture home decoration, and avoids causing indoor environment peculiar smell due to long-term non-ventilation. The intelligent indoor environment maintenance system can intelligently maintain the indoor environment under the condition of no people living, automatically switch on and off the light-conducting and air-changing equipment, maintain a relatively good indoor environment under the condition of reducing manual intervention, and improve the experience when people live in again.
The structure of the device for controlling a direct current ventilation system provided by the embodiment of the present disclosure is shown in fig. 4, and includes:
a processor (processor)100 and a memory (memory)101, and may further include a Communication Interface (Communication Interface)102 and a bus 103. The processor 100, the communication interface 102, and the memory 101 may communicate with each other via a bus 103. The communication interface 102 may be used for information transfer. The processor 100 may invoke logic instructions in the memory 101 to perform the method for controlling a dc ventilation system of the above-described embodiments.
In addition, the logic instructions in the memory 101 may be implemented in the form of software functional units and stored in a computer readable storage medium when the logic instructions are sold or used as independent products.
The memory 101, which is a computer-readable storage medium, may be used for storing software programs, computer-executable programs, such as program instructions/modules corresponding to the methods in the embodiments of the present disclosure. The processor 100 executes functional applications and data processing, i.e. implements the method for controlling the dc ventilation system in the above-described method embodiments, by executing program instructions/modules stored in the memory 101.
The memory 101 may include a storage program area and a storage data area, wherein the storage program area may store an operating system, an application program required for at least one function; the storage data area may store data created according to the use of the terminal device, and the like. In addition, the memory 101 may include a high-speed random access memory, and may also include a nonvolatile memory.
The embodiment of the present disclosure provides a direct current ventilation system, as shown in fig. 5, including a light-passing device 230 and a ventilation device 220, which is characterized by further including: a dc power supply device 200 for supplying power to the light-passing device 230 and the ventilation device 220; and the apparatus 210 for controlling a direct current ventilation system described above.
The dc power supply device 200 includes:
the solar cell panel 201 is used for converting solar energy into electric energy for the system to use;
a storage battery 202 for storing surplus part of the electric energy converted from the solar energy for use at night or in rainy days;
the electric energy conversion device 203 is used for converting unstable electric energy converted from solar energy into stable electric energy to charge the storage battery 202 or directly supply the stable electric energy to a system for use, and has a charging and discharging protection function of the storage battery 202. When the power supply of the solar panel 201 is insufficient, the power of the storage battery 202 can be directly supplied to the system for use;
the solar cell panel 201 and the electric energy conversion device 203 are sequentially connected with the storage battery 202, and the electric energy conversion device 203 is connected with the device 210 for controlling the direct current ventilation system.
Thus, the direct current ventilation system is used as a set of completely independent working system and does not depend on external power supply. Therefore, the power supply device is particularly suitable for occasions that the power supply is disconnected for a long time without being attended and for safety or other considerations.
In some embodiments, the dc ventilation system further comprises:
a GPS module 260 for acquiring location information of the dc ventilation system;
the network access module 270 is configured to obtain content such as weather information and time through a network side;
an illumination sensor 240 for detecting outdoor illumination conditions; the device can be arranged on the direct current ventilation system, and also can be arranged on other household appliances which communicate with the direct current ventilation system in a wired or wireless way;
a humidity sensor 250 for detecting indoor and outdoor humidity; the device can be arranged on the direct current ventilation system, and also can be arranged on other household appliances which communicate with the direct current ventilation system in a wired or wireless way;
the panel 280 is used for displaying the current sensor detection value, checking the states of the light transmitting device 230 and the ventilation device 220, setting various parameters, manually starting and stopping the device through operation, selecting an online mode and the like.
In some embodiments, the dc ventilation system further comprises a mobile terminal in communication therewith for remote monitoring of the device by a user.
The direct current ventilation system that this disclosed embodiment provided can be through information such as illumination condition, indoor outer air humidity, automatic control leads to opening and closing of light device, breather, realizes leading to the optimal control of light, taking a breath indoor, guarantees that there is suitable sunshine to shine indoor, reduces the harm of strong sunshine to indoor furniture house ornamentation, avoids not ventilating for a long time and leads to indoor environment peculiar smell. The intelligent indoor environment maintenance system can intelligently maintain the indoor environment under the condition of no people living, automatically switch on and off the light-conducting and air-changing equipment, maintain a relatively good indoor environment under the condition of reducing manual intervention, and improve the experience when people live in again.
The disclosed embodiments provide a computer-readable storage medium storing computer-executable instructions configured to perform the above-described method for controlling a direct current ventilation system.
The disclosed embodiments provide a computer program product comprising a computer program stored on a computer readable storage medium, the computer program comprising program instructions which, when executed by a computer, cause the computer to perform the above-described method for controlling a direct current ventilation system.
The computer-readable storage medium described above may be a transitory computer-readable storage medium or a non-transitory computer-readable storage medium.
The technical solution of the embodiments of the present disclosure may be embodied in the form of a software product, which is stored in a storage medium and includes one or more instructions for enabling a computer device (which may be a personal computer, a server, or a network device) to execute all or part of the steps of the method of the embodiments of the present disclosure. And the aforementioned storage medium may be a non-transitory storage medium comprising: a U-disk, a removable hard disk, a Read-Only Memory (ROM), a Random Access Memory (RAM), a magnetic disk or an optical disk, and other various media capable of storing program codes, and may also be a transient storage medium.
The above description and drawings sufficiently illustrate embodiments of the disclosure to enable those skilled in the art to practice them. Other embodiments may incorporate structural, logical, electrical, process, and other changes. The examples merely typify possible variations. Individual components and functions are optional unless explicitly required, and the sequence of operations may vary. Portions and features of some embodiments may be included in or substituted for those of others. The scope of the disclosed embodiments includes the full ambit of the claims, as well as all available equivalents of the claims. As used in this application, although the terms "first," "second," etc. may be used in this application to describe various elements, these elements should not be limited by these terms. These terms are only used to distinguish one element from another. For example, a first element could be termed a second element, and, similarly, a second element could be termed a first element, unless the meaning of the description changes, so long as all occurrences of the first element are renamed consistently and all occurrences of the second element are renamed consistently. The first and second elements are both elements, but may not be the same element. Furthermore, the words used in the specification are words of description only and are not intended to limit the claims. As used in the description of the embodiments and the claims, the singular forms "a", "an" and "the" are intended to include the plural forms as well, unless the context clearly indicates otherwise. Similarly, the term "and/or" as used in this application is meant to encompass any and all possible combinations of one or more of the associated listed. Furthermore, the terms "comprises" and/or "comprising," when used in this application, specify the presence of stated features, integers, steps, operations, elements, and/or components, but do not preclude the presence or addition of one or more other features, integers, steps, operations, elements, components, and/or groups thereof. Without further limitation, an element defined by the phrase "comprising an …" does not exclude the presence of other identical elements in a process, method or device comprising the element. In this document, each embodiment may be described with emphasis on differences from other embodiments, and the same and similar parts between the respective embodiments may be referred to each other. For methods, products, etc. of the embodiment disclosures, reference may be made to the description of the method section for relevance if it corresponds to the method section of the embodiment disclosure.
Those of skill in the art would appreciate that the various illustrative elements and algorithm steps described in connection with the embodiments disclosed herein may be implemented as electronic hardware or combinations of computer software and electronic hardware. Whether such functionality is implemented as hardware or software may depend upon the particular application and design constraints imposed on the solution. Skilled artisans may implement the described functionality in varying ways for each particular application, but such implementation decisions should not be interpreted as causing a departure from the scope of the disclosed embodiments. It can be clearly understood by those skilled in the art that, for convenience and brevity of description, the specific working processes of the system, the apparatus and the unit described above may refer to the corresponding processes in the foregoing method embodiments, and are not described herein again.
In the embodiments disclosed herein, the disclosed methods, products (including but not limited to devices, apparatuses, etc.) may be implemented in other ways. For example, the above-described apparatus embodiments are merely illustrative, and for example, a division of a unit may be merely a division of a logical function, and an actual implementation may have another division, for example, a plurality of units or components may be combined or integrated into another system, or some features may be omitted, or not executed. In addition, the shown or discussed mutual coupling or direct coupling or communication connection may be an indirect coupling or communication connection through some interfaces, devices or units, and may be in an electrical, mechanical or other form. Units described as separate parts may or may not be physically separate, and parts displayed as units may or may not be physical units, may be located in one place, or may be distributed on a plurality of network units. Some or all of the units can be selected according to actual needs to implement the present embodiment. In addition, functional units in the embodiments of the present disclosure may be integrated into one processing unit, or each unit may exist alone physically, or two or more units are integrated into one unit.
The flowchart and block diagrams in the figures illustrate the architecture, functionality, and operation of possible implementations of systems, methods and computer program products according to embodiments of the present disclosure. In this regard, each block in the flowchart or block diagrams may represent a module, segment, or portion of code, which comprises one or more executable instructions for implementing the specified logical function(s). In some alternative implementations, the functions noted in the block may occur out of the order noted in the figures. For example, two blocks shown in succession may, in fact, be executed substantially concurrently, or the blocks may sometimes be executed in the reverse order, depending upon the functionality involved. In the description corresponding to the flowcharts and block diagrams in the figures, operations or steps corresponding to different blocks may also occur in different orders than disclosed in the description, and sometimes there is no specific order between the different operations or steps. For example, two sequential operations or steps may in fact be executed substantially concurrently, or they may sometimes be executed in the reverse order, depending upon the functionality involved. Each block of the block diagrams and/or flowchart illustrations, and combinations of blocks in the block diagrams and/or flowchart illustrations, can be implemented by special purpose hardware-based systems that perform the specified functions or acts, or combinations of special purpose hardware and computer instructions.
Claims (10)
1. A method for controlling a direct current ventilation system, the direct current ventilation system comprising a light passing device and a gas exchanging device, the method comprising:
controlling the on and off states of the light-transmitting device according to the outdoor illumination intensity;
and when the light-transmitting device is in an opening state, the opening and closing states of the air exchange device are controlled according to the indoor humidity and the outdoor humidity.
2. The method according to claim 1, wherein the controlling the on/off state of the light-passing device according to the illumination intensity comprises:
when the outdoor illumination intensity is within a preset illumination intensity interval, controlling the light-transmitting device to be in an open state;
and when the outdoor illumination intensity is not within the preset sunshine intensity interval, controlling the light-passing device to be in a closed state.
3. The method of claim 2, wherein the predetermined solar intensity interval is related to solar intensity of the area in which the dc ventilation system is located.
4. The method according to claim 3, wherein said preset solar intensity interval is [ Q ]1，Q2](ii) a Wherein Q is1Is the first solar intensity, Q, of the region in which the direct current ventilation system is located2And the second sunlight intensity of the region where the direct current ventilation system is located.
5. The method of claim 4, wherein the first solar intensity is 20% to 40% of the highest solar intensity in the area of the DC ventilation system.
6. The method of claim 4, wherein the second solar level is between 80% and 100% of the highest solar level in the area of the DC ventilation system.
7. The method as claimed in claim 1, wherein the controlling of the on and off states of the ventilating device according to the indoor humidity and the outdoor humidity comprises:
when the indoor humidity is smaller than a first humidity threshold value and the outdoor humidity is within a preset outdoor humidity range, controlling the ventilation device to be in an opening state to perform indoor ventilation;
when the indoor humidity is smaller than a first humidity threshold value and the outdoor humidity is outside the preset outdoor humidity interval, controlling the ventilation device to be in a closed state;
when the indoor humidity is greater than or equal to the first humidity threshold value and the outdoor humidity is less than the second humidity threshold value, controlling the ventilation device to be in an opening state to perform indoor ventilation;
when the indoor humidity is greater than or equal to a first humidity threshold value and the outdoor humidity is greater than or equal to a second humidity threshold value, controlling the ventilation device to be in a closed state;
wherein the second humidity threshold is lower than the first humidity threshold.
8. An apparatus for controlling a direct current ventilation system, comprising a processor and a memory having stored thereon program instructions, wherein the processor is configured to perform the method of any one of claims 1 to 7 when executing the program instructions.
9. The utility model provides a direct current ventilation system, includes logical light device and breather, its characterized in that still includes:
the direct current power supply device is used for supplying power to the light transmitting device and the air exchange device; and the combination of (a) and (b),
the apparatus for controlling a direct current ventilation system as claimed in claim 8.
10. The direct current ventilation system of claim 9, wherein the direct current power supply device comprises a solar panel, an electric energy conversion device and a storage battery which are connected in sequence.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201911054010.2A CN112747435B (en) | 2019-10-31 | 2019-10-31 | Method and device for controlling direct current ventilation system and direct current ventilation system |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201911054010.2A CN112747435B (en) | 2019-10-31 | 2019-10-31 | Method and device for controlling direct current ventilation system and direct current ventilation system |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN112747435A true CN112747435A (en) | 2021-05-04 |
| CN112747435B CN112747435B (en) | 2022-07-05 |
Family
ID=75644662
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201911054010.2A Active CN112747435B (en) | 2019-10-31 | 2019-10-31 | Method and device for controlling direct current ventilation system and direct current ventilation system |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112747435B (en) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114484732A (en) * | 2022-01-14 | 2022-05-13 | 南京信息工程大学 | Air conditioning unit sensor fault diagnosis method based on novel voting network |
| CN115127209A (en) * | 2022-06-20 | 2022-09-30 | 海信集团控股股份有限公司 | Indoor humidity adjusting method, device, equipment and storage medium |
Citations (19)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPH0331637A (en) * | 1989-06-29 | 1991-02-12 | Omron Corp | Indoor environment maintaining device |
| JP2007162982A (en) * | 2005-12-12 | 2007-06-28 | Toshiba Corp | Energy management system in dining stores |
| CN101231021A (en) * | 2008-02-13 | 2008-07-30 | 袁宣贵 | Humiture automatic control device and method |
| CN201564238U (en) * | 2009-10-23 | 2010-09-01 | 上海市杨浦区齐齐哈尔路第一小学 | Automatic curtain |
| CN104180486A (en) * | 2014-08-14 | 2014-12-03 | 南通博云物联网技术有限公司 | Intelligent home system and control method |
| CN104344506A (en) * | 2014-11-20 | 2015-02-11 | 无锡科思电子科技有限公司 | Bathroom dehumidification control method |
| KR20160048305A (en) * | 2014-10-23 | 2016-05-04 | 코웨이 주식회사 | Apparatus for dehumidifier and method for controlling the same |
| CN105822212A (en) * | 2016-05-11 | 2016-08-03 | 常州市诚天电子有限公司 | Outside-window sun-shading fabric capable of automatically inducing light |
| CN106382706A (en) * | 2016-08-19 | 2017-02-08 | 李泓胜 | Intelligent household indoor humidity regulating method |
| CN106837120A (en) * | 2016-12-23 | 2017-06-13 | 苏州安飞荣工业科技有限公司 | A kind of intelligent ventilation window for automatically adjusting and its control method |
| CN107252237A (en) * | 2017-07-11 | 2017-10-17 | 合肥青空净化科技有限公司 | A kind of the integration environment regulation and the window system and method for illumination control function |
| US20180031265A1 (en) * | 2016-07-26 | 2018-02-01 | James P. Janniello | Air vent controller |
| CN108105961A (en) * | 2017-12-19 | 2018-06-01 | 广东美的制冷设备有限公司 | The combined adjusting and system of humidity |
| CN108302655A (en) * | 2016-08-19 | 2018-07-20 | 盘锦泓新机器人科技有限公司 | A kind of regulation and control method of smart home indoor humidity |
| CN108433507A (en) * | 2018-04-23 | 2018-08-24 | 广州市设计院 | Daylighting building and light control system |
| CN108534325A (en) * | 2017-09-27 | 2018-09-14 | 缤果可为（北京）科技有限公司 | Indoor and outdoor surroundings parameter monitors regulating device and applies its unmanned convenience store automatically |
| CN108612459A (en) * | 2018-04-20 | 2018-10-02 | 佛山汇众森泰科技有限公司 | A kind of window automatically adjusted according to weather |
| CN108652402A (en) * | 2018-04-24 | 2018-10-16 | 合肥米度信息科技有限公司 | A kind of control system of intelligent curtain |
| CN208294398U (en) * | 2018-04-20 | 2018-12-28 | 邓峥 | A kind of curtain automatically adjusting length shading degree |
-
2019
- 2019-10-31 CN CN201911054010.2A patent/CN112747435B/en active Active
Patent Citations (19)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPH0331637A (en) * | 1989-06-29 | 1991-02-12 | Omron Corp | Indoor environment maintaining device |
| JP2007162982A (en) * | 2005-12-12 | 2007-06-28 | Toshiba Corp | Energy management system in dining stores |
| CN101231021A (en) * | 2008-02-13 | 2008-07-30 | 袁宣贵 | Humiture automatic control device and method |
| CN201564238U (en) * | 2009-10-23 | 2010-09-01 | 上海市杨浦区齐齐哈尔路第一小学 | Automatic curtain |
| CN104180486A (en) * | 2014-08-14 | 2014-12-03 | 南通博云物联网技术有限公司 | Intelligent home system and control method |
| KR20160048305A (en) * | 2014-10-23 | 2016-05-04 | 코웨이 주식회사 | Apparatus for dehumidifier and method for controlling the same |
| CN104344506A (en) * | 2014-11-20 | 2015-02-11 | 无锡科思电子科技有限公司 | Bathroom dehumidification control method |
| CN105822212A (en) * | 2016-05-11 | 2016-08-03 | 常州市诚天电子有限公司 | Outside-window sun-shading fabric capable of automatically inducing light |
| US20180031265A1 (en) * | 2016-07-26 | 2018-02-01 | James P. Janniello | Air vent controller |
| CN106382706A (en) * | 2016-08-19 | 2017-02-08 | 李泓胜 | Intelligent household indoor humidity regulating method |
| CN108302655A (en) * | 2016-08-19 | 2018-07-20 | 盘锦泓新机器人科技有限公司 | A kind of regulation and control method of smart home indoor humidity |
| CN106837120A (en) * | 2016-12-23 | 2017-06-13 | 苏州安飞荣工业科技有限公司 | A kind of intelligent ventilation window for automatically adjusting and its control method |
| CN107252237A (en) * | 2017-07-11 | 2017-10-17 | 合肥青空净化科技有限公司 | A kind of the integration environment regulation and the window system and method for illumination control function |
| CN108534325A (en) * | 2017-09-27 | 2018-09-14 | 缤果可为（北京）科技有限公司 | Indoor and outdoor surroundings parameter monitors regulating device and applies its unmanned convenience store automatically |
| CN108105961A (en) * | 2017-12-19 | 2018-06-01 | 广东美的制冷设备有限公司 | The combined adjusting and system of humidity |
| CN108612459A (en) * | 2018-04-20 | 2018-10-02 | 佛山汇众森泰科技有限公司 | A kind of window automatically adjusted according to weather |
| CN208294398U (en) * | 2018-04-20 | 2018-12-28 | 邓峥 | A kind of curtain automatically adjusting length shading degree |
| CN108433507A (en) * | 2018-04-23 | 2018-08-24 | 广州市设计院 | Daylighting building and light control system |
| CN108652402A (en) * | 2018-04-24 | 2018-10-16 | 合肥米度信息科技有限公司 | A kind of control system of intelligent curtain |
Non-Patent Citations (2)
| Title |
|---|
| 安徽文化音像出版社: "《环境保护设备应用管理与污染控制强制性标准实用手册》", 30 September 2003 * |
| 邹敏纳: "《居室装饰艺术》", 31 March 1989 * |
Cited By (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114484732A (en) * | 2022-01-14 | 2022-05-13 | 南京信息工程大学 | Air conditioning unit sensor fault diagnosis method based on novel voting network |
| CN115127209A (en) * | 2022-06-20 | 2022-09-30 | 海信集团控股股份有限公司 | Indoor humidity adjusting method, device, equipment and storage medium |
| CN115127209B (en) * | 2022-06-20 | 2023-09-08 | 海信集团控股股份有限公司 | Indoor humidity adjusting method, device, equipment and storage medium |
Also Published As
| Publication number | Publication date |
|---|---|
| CN112747435B (en) | 2022-07-05 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN103312827B (en) | Based on home cloud control method and the system of mobile network | |
| CN107505848B (en) | Intelligent household control method with self-learning and dynamic adjustment functions | |
| CN105259882A (en) | Household equipment control method and device and terminal | |
| CN112747435B (en) | Method and device for controlling direct current ventilation system and direct current ventilation system | |
| CN104950686A (en) | System and method for automatically controlling sleeping environment | |
| CN205743434U (en) | A kind of Intelligent casement window family based on Internet of Things | |
| CN205561166U (en) | Unattended substation wisdom economizer system | |
| CN103142120A (en) | Remote controller for solar energy curtain | |
| CN109555459A (en) | A kind of self-adapting intelligent shading system | |
| CN106843345A (en) | A kind of Administrative Area Multi-parameter coupling intelligence control system and method | |
| CN102707703A (en) | Intelligent air conditioner and window control system | |
| CN103669904A (en) | Novel house and control method thereof | |
| CN202720506U (en) | Home furnishing environment intelligent control circuit | |
| CN204418553U (en) | The intelligent control type sunshade that luminous energy drives | |
| CN205263682U (en) | Warmhouse booth environment intelligence control system and control terminal thereof | |
| CN105807625A (en) | Smart window data collecting and monitoring system | |
| CN111427276B (en) | Intelligent household control system | |
| CN209780713U (en) | Self-adaptive intelligent sun-shading system | |
| CN203978879U (en) | A kind of ventilating fan with photo-voltaic power supply | |
| CN204931230U (en) | A kind of Intelligent low-carbon curtain control device | |
| CN204256501U (en) | A kind of potted landscape growing environment automatic detection and control system | |
| CN103114686B (en) | A kind of intelligent rain automatically adjusting telescopic level according to environment is taken | |
| CN104914839A (en) | Smart home environment control method and device | |
| CN213873088U (en) | Equipment room air conditioner control device based on wireless control | |
| CN210345653U (en) | Control system for solar intelligent heating |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
