Abstract
本发明涉及一种边刷组件及清洁机构，具有边刷本体，还包括：连接头，所述连接头被配置为与滚刷活动连接；边刷支架，所述边刷支架用于边刷本体与连接头的连接；以及弹片，所述弹片具有弹性，所述弹片的一侧固定在连接头上，所述弹性的另一侧可延伸至滚刷内部空间。本发明通过在滚刷的侧面设置边刷组件，边刷组件与滚刷连接，滚刷在工作中高速旋转时带动边刷组件一起旋转，从而清理边墙和墙角，然后再通过滚刷将清理出来的垃圾和脏水收集至污水箱内，从而实现全面清扫，大大提升了用户的满意度，边刷组件和滚刷可轻易拆装，清洁机构具有清洗和清洁两种功能可供选择，大大提高了用户的体验感。
The invention relates to a side brush assembly and a cleaning mechanism, which has a side brush body, and further comprises: a connecting head, the connecting head is configured to be movably connected with a rolling brush; a side brush support, the side brush support is used for the side brush body connection with the connecting head; and an elastic sheet, the elastic sheet has elasticity, one side of the elastic sheet is fixed on the connecting head, and the other side of the elastic sheet can extend to the inner space of the rolling brush. In the present invention, a side brush assembly is arranged on the side of the roller brush, the side brush assembly is connected with the roller brush, and the roller brush drives the side brush assembly to rotate together when the roller brush rotates at a high speed during operation, thereby cleaning the side walls and corners, and then cleaning the cleaning by the roller brush. The garbage and dirty water that comes out are collected into the sewage tank, so as to achieve comprehensive cleaning, which greatly improves the satisfaction of users. The side brush assembly and the roller brush can be easily disassembled and assembled. Improve the user experience.
Description
Technical Field
The invention belongs to the technical field of cleaning equipment, and particularly relates to an edge brush assembly and a cleaning mechanism.
Background
The floor cleaning machine is cleaning equipment which is suitable for cleaning hard ground and simultaneously sucking sewage and takes the sewage away from the site, integrates dust absorption and water absorption functions, has the advantages of environmental protection, energy conservation, high efficiency and the like, and has the working principle that in the cleaning process, a rolling brush rotates to clean and simultaneously sewage, dust, sundries and the like are sucked into a sewage tank through a suction motor.
The round brush belongs to the partly of floor cleaning machine cleaning head subassembly, and among the prior art, the round brush rotates the in-process, only can clear up the rubbish of floor cleaning machine bottom, to the rubbish of edge or corner (for example wall limit or corner), because the round brush can't reach, consequently can't realize the purpose of cleaning comprehensively, and user satisfaction is not high.
Disclosure of Invention
The invention aims to provide an edge brush assembly and a cleaning mechanism, and aims to solve the technical problem that a floor washing machine in the prior art cannot realize comprehensive cleaning. The technical scheme used for solving the technical problems of the invention is as follows:
an edge brush assembly having an edge brush body, further comprising:
the connecting head is configured to be movably connected with the rolling brush;
the side brush support is used for connecting the side brush body with the connector; and the number of the first and second groups,
the elastic sheet has elasticity, one side of the elastic sheet is fixed on the connecting head, and the other side of the elasticity can extend to the inner space of the rolling brush.
The further technical scheme of the invention also comprises: one side of the elastic sheet extending to the inner space of the rolling brush is convex.
Further, an edge brush assembly is provided, having an edge brush body, further comprising:
the connecting head is configured to be movably connected with the rolling brush;
the side brush support is used for connecting the side brush body with the connector;
the elastic sheet has elasticity, one side of the elastic sheet is fixed on the connecting head, and the other side of the elasticity can extend to the inner space of the rolling brush;
the rotating roller is arranged on the side brush body, can rotate together with the side brush body and is used for cleaning and collecting garbage; and the number of the first and second groups,
the cleaning part is arranged on one side of the side brush body and used for cleaning garbage.
Further, the cleaning part is made of flannelette or combination of flocking and flannelette.
The invention provides a cleaning mechanism which comprises a rolling brush and the side brush assembly, wherein the side brush assembly is movably connected with the rolling brush.
Further, one side of round brush is provided with the connecting piece, the connecting piece has and holds the chamber, it is used for holding the connector to hold the chamber.
Further, still include round brush axle and first ball bearing, first ball bearing is used for the support of round brush axle, the round brush passes through the connecting piece and drives the rotation of limit brush subassembly.
Furthermore, the round brush is fixed through a round brush support, a round brush right nozzle is arranged on one side of the round brush support, a side brush nozzle is arranged on one side of the side brush assembly, the round brush right nozzle and the side brush nozzle are respectively connected with a clear water tank through water pipes, a ball is arranged between the round brush right nozzle and the side brush nozzle, and the ball is used for shunting clear water.
Further, still include round brush driving motor, second ball bearing, gear shaft and round brush left side nozzle, round brush driving motor passes through the round brush driving head and is connected with one side of round brush, round brush driving motor passes through the gear shaft and drives the round brush rotation, second ball bearing is used for the support of gear shaft, round brush left side nozzle and clear water tank intercommunication are used for the left washing of round brush.
Furthermore, still include drain pan, face lid and transparent window, the transparent window covers on the round brush.
Compared with the prior art, the invention has the beneficial technical effects that: 1. according to the invention, the side brush assembly is arranged on the side surface of the rolling brush and is connected with the rolling brush, and the rolling brush drives the side brush assembly to rotate together when rotating at a high speed in work, so that a side wall and a corner are cleaned, and then the cleaned garbage and dirty water are collected into the sewage tank through the rolling brush, so that comprehensive cleaning is realized, and the satisfaction degree of a user is greatly improved; 2. the side brush assembly is movably connected with the rolling brush through the connector and the elastic sheet, and can be easily disassembled and assembled on the premise of ensuring the connection stability of the side brush assembly and the rolling brush, so that a user can conveniently clean or replace the side brush assembly and the rolling brush by himself, and the side brush assembly and the rolling brush are very simple and convenient; 3. the cleaning mechanism has two functions of cleaning and cleaning, under the cleaning mode, clear water is divided into two paths through a water pipe such as a two-way pipe, the two paths respectively spray water to the side brush assembly and the rolling brush for cleaning, under the blocking action of the balls, most of the clear water is sprayed into the rolling brush cavity, and a small part of the clear water is sprayed onto the cleaning part of the side brush assembly, so that the ground and corners can be cleaned comprehensively; under the clean mode, do not take the water spray effect, can be applicable to the comprehensive cleaning of wastepaper, debris etc. the user can freely select clean mode according to the actual conditions on treating clean ground, has improved user's experience greatly and has felt.
Drawings

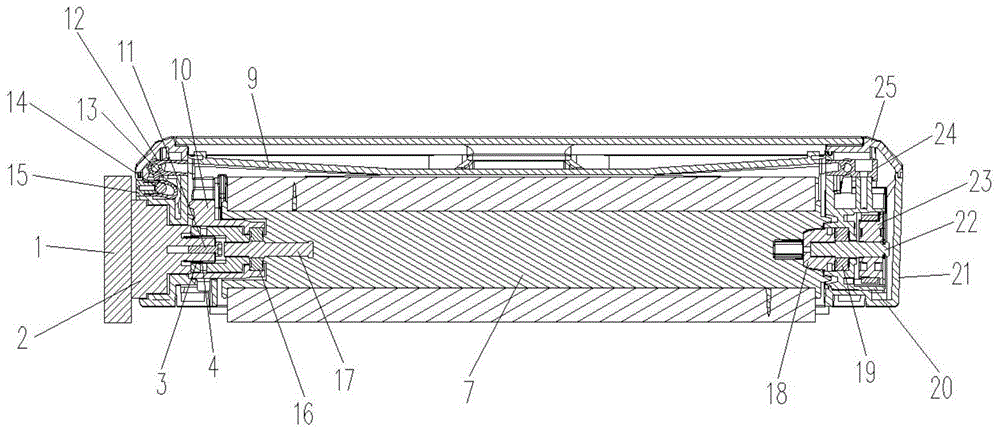

FIG. 1 is a cross-sectional view of a cleaning mechanism according to one embodiment of the present invention;
FIG. 2 is a schematic perspective view of an edge brush assembly according to an embodiment of the present invention;
FIG. 3 is a perspective view of a side brush assembly according to another embodiment of the present invention;
FIG. 4 is a schematic perspective view of a roller brush in a cleaning mechanism according to an embodiment of the present invention;
FIG. 5 is a schematic view of the cleaning mechanism and scrubber of one embodiment of the present invention;
FIG. 6 is a schematic view of the cleaning mechanism and scrubber of yet another embodiment of the present invention;
wherein: 1. the side brush comprises a side brush body 2, a side brush support 3, a connector 4, an elastic sheet 5, a rotating roller 6, a cleaning part 7, a rolling brush 701, a connecting piece 8, a containing cavity 9, a transparent window 10, a rolling brush support 11, a screw 12, a rolling brush right nozzle 13, a water pipe 14, a ball 15, a side brush nozzle 16, a first ball bearing 17, a rolling brush shaft 18, a rolling brush driving head 19, a second ball bearing 20, a motor support 21, a bottom shell 22, a gear shaft 23, a synchronizing wheel 24, a rolling brush left nozzle 25, a face cover 26 and a floor cleaning machine body.
Detailed Description
In order to make the aforementioned objects, features and advantages of the present invention comprehensible, embodiments accompanied with figures are described in detail below. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention. This invention may, however, be embodied in many different forms and should not be construed as limited to the embodiments set forth herein.
In the description of the present invention, it is to be understood that the terms "central," "longitudinal," "lateral," "length," "width," "thickness," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "clockwise," "counterclockwise," "axial," "radial," "circumferential," and the like are used in the orientations and positional relationships indicated in the drawings for convenience in describing the invention and to simplify the description, and are not intended to indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.
Referring to fig. 1 to 6, an edge brush assembly of the present embodiment includes an edge brush body 1, and further includes: the connecting head 3 is configured to be movably connected with the rolling brush 7; the side brush support 2 is used for connecting the side brush body 1 with the connector 3; and the elastic sheet 4 is elastic, one side of the elastic sheet 4 is fixed on the connector 3, and the other side of the elastic sheet 4 can extend to the inner space of the rolling brush 4.
Specifically, the side brush body 1 is located at a side far away from the rolling brush 7, for example, the side brush body 1 may be located at an outermost side, the side brush body 1 is configured to be rotatable along with the rotation of the rolling brush 7, the side brush body 1 may complete a work that the rolling brush 7 cannot clean, such as cleaning at a wall edge, a corner, and the like, during the rotation process, and the side brush body 1 is preferably disc-shaped or cylindrical in shape, so as to facilitate overall cleaning of the edge and the corner.
The connector 3 is used as a connecting part of the side brush assembly and the rolling brush 7, and good connection stability of the side brush assembly and the rolling brush 7 is ensured, so that the side brush assembly is not prone to falling off under the high-speed rotation of the rolling brush 7, for example, a plurality of clamping grooves are formed in the connector 3, the connector 3 is connected with the rolling brush in a clamping mode, the connector 3 is movably connected with the rolling brush 7, and the purpose is to facilitate the dismounting and maintenance of the side brush assembly.
The side brush support 2 is used for connecting the side brush body 1 and the connector 3, specifically, the side brush support 2 and the side brush body 1 are integrally formed, the side brush body 1 is supported, and the stability of the side brush body 1 under the high-speed rotation of the rolling brush 7 can be ensured.
The elastic sheet 4 is mainly used for the connection stability of the side brush assembly and the rolling brush 7, the side brush assembly can be easily disassembled and assembled through the matching of the elastic sheet 4 and the rolling brush 7, the side brush assembly is very convenient for a user to clean or replace by oneself, the elastic sheet 4 can be a metal elastic sheet, the number of the elastic sheet can be 1 group or multiple groups, and the limitation is not made here.
Preferably, one side of the elastic sheet 4 extending to the inner space of the rolling brush 7 is convex, and the elastic sheet 4 has elasticity, so that the side brush assembly and the rolling brush 7 can be connected together more stably after the convex side of the elastic sheet 4 extends to the inner space of the rolling brush 7, the looseness is avoided, and the cleaning efficiency is improved.
In a preferred embodiment, there is also provided an edge brush assembly having an edge brush body 1, further including: the connecting head 3 is configured to be movably connected with the rolling brush 7; the side brush support 2 is used for connecting the side brush body 1 with the connector 3; the elastic sheet 4 has elasticity, one side of the elastic sheet 4 is fixed on the connector 3, and the other side of the elastic sheet 4 can extend to the inner space of the rolling brush 7; the rotating roller 5 is arranged on the side brush body 1, and the rotating roller 5 can rotate together with the side brush body 1 and is used for cleaning and collecting garbage; and a cleaning part 6 installed at one side of the side brush body 1, the cleaning part 6 being used for cleaning garbage.
Specifically, the rotating rollers 5 are long strips, the number of the rotating rollers 5 is at least 2, for example, 2, 3, 4, …, in this embodiment, the number of the rotating rollers 5 is 3, the 3 rotating rollers 5 are uniformly distributed on the edge of the side brush body 1, and the rotating rollers 5 can crush garbage with a large volume in the rotating process, so that the cleaning efficiency is effectively improved.
The garbage collected and crushed by the rotating roller 5 can be cleaned by the cleaning part 6, and the cleaning part 6 may be, for example, a lint or a combination of flocked hair and lint.
The invention also provides a cleaning mechanism which comprises the rolling brush 7 and the side brush assembly, wherein the side brush assembly is movably connected with the rolling brush 7.
Specifically, one side of round brush 7 is provided with connecting piece 701, connecting piece 701 has and holds chamber 8, hold chamber 8 and be used for holding connector 3, connector 3 extends to holding chamber 8 through the mode of buckle, has guaranteed the stability of clean mechanism work.
Preferably, the cleaning mechanism further comprises a rolling brush shaft 17 and a first ball bearing 16, the first ball bearing 16 is used for supporting the rolling brush shaft 17, and the rolling brush 7 drives the side brush assembly to rotate through a connecting piece 701.
In one embodiment, the rolling brush 7 is fixed by a rolling brush support 10, a rolling brush right nozzle 12 is arranged on one side of the rolling brush support 10, an edge brush nozzle 15 is arranged on one side of the edge brush assembly, the rolling brush right nozzle 12 and the edge brush nozzle 15 are respectively connected with a clean water tank (not shown in the figure) through water pipes, and a ball 14 is arranged between the rolling brush right nozzle 12 and the edge brush nozzle 15, and the ball 14 is used for shunting the clean water. The cleaning mechanism can select two functions of cleaning and cleaning, under the cleaning mode, clean water is divided into two paths through a water pipe such as a two-way pipe, the two paths respectively spray water to the side brush assembly and the rolling brush 7 for cleaning, under the blocking action of the ball 14, most of the clean water is sprayed into the cavity of the rolling brush 7, and a small part of the clean water is sprayed onto the cleaning part 6 of the side brush assembly, so that the ground and corners can be cleaned comprehensively; under the clean mode, do not take the water spray effect, can be applicable to cleaning comprehensively of wastepaper, debris etc. other theory of operation are the same with the washing mode, and the user can freely select the mode of operation according to the actual conditions on waiting to clean ground, has improved user's experience greatly and has felt, in this embodiment, ball 14 is the steel ball.
Preferably, the cleaning mechanism further comprises a rolling brush driving motor (not shown in the figure), a second ball bearing 19, a gear shaft 22 and a rolling brush left nozzle 24, the rolling brush driving motor is connected with one side of the rolling brush 7 through a rolling brush driving head 18, the rolling brush driving motor drives the rolling brush 7 to rotate through the gear shaft 22, the second ball bearing 19 is used for supporting the gear shaft 22, and the rolling brush left nozzle 24 is communicated with the clean water tank and is used for cleaning the left side of the rolling brush 7.
In order to better protect the cleaning mechanism, the bottom case 21 can be arranged at the bottom of the side surface of the cleaning mechanism, the surface cover 25 is arranged at the upper part of the cleaning mechanism, the cleaning mechanism preferably further comprises a transparent window 9, the transparent window 9 covers the rolling brush 7, the transparent window 9 plays a certain protection role on the rolling brush 7, and a user can also check the working state of the rolling brush 7 through the transparent window 9 very conveniently.
According to the invention, the side brush assembly is arranged on the side surface of the rolling brush and is connected with the rolling brush, and the rolling brush drives the side brush assembly to rotate together when rotating at a high speed in work, so that a side wall and a corner are cleaned, and then the cleaned garbage and dirty water are collected into the sewage tank through the rolling brush, so that comprehensive cleaning is realized, and the satisfaction degree of a user is greatly improved; the side brush assembly is movably connected with the rolling brush through the connector and the elastic sheet, and can be easily disassembled and assembled on the premise of ensuring the connection stability of the side brush assembly and the rolling brush, so that a user can conveniently clean or replace the side brush assembly and the rolling brush by himself, and the side brush assembly and the rolling brush are very simple and convenient; the cleaning mechanism has two functions of cleaning and cleaning, under the cleaning mode, clear water is divided into two paths through a water pipe such as a two-way pipe, the two paths respectively spray water to the side brush assembly and the rolling brush for cleaning, under the blocking action of the balls, most of the clear water is sprayed into the rolling brush cavity, and a small part of the clear water is sprayed onto the cleaning part of the side brush assembly, so that the ground and corners can be cleaned comprehensively; under the clean mode, do not take the water spray effect, can be applicable to the comprehensive cleaning of wastepaper, debris etc. the user can freely select clean mode according to the actual conditions on treating clean ground, has improved user's experience greatly and has felt.
The above examples merely represent several embodiments of the present invention, which are described in more detail and in more detail, but are not to be construed as limiting the scope of the invention. It should be noted that, for a person skilled in the art, several variations and modifications can be made without departing from the inventive concept, which falls within the scope of the present invention. Therefore, the protection scope of the present invention should be subject to the appended claims.
Claims (10)
1. An edge brush assembly having an edge brush body, further comprising:
the connecting head is configured to be movably connected with the rolling brush;
the side brush support is used for connecting the side brush body with the connector; and the number of the first and second groups,
the elastic sheet has elasticity, one side of the elastic sheet is fixed on the connecting head, and the other side of the elasticity can extend to the inner space of the rolling brush.
2. The edge brush assembly of claim 1, wherein the spring plate is convex on a side extending into the interior space of the roller brush.
3. An edge brush assembly having an edge brush body, further comprising:
the connecting head is configured to be movably connected with the rolling brush;
the side brush support is used for connecting the side brush body with the connector;
the elastic sheet has elasticity, one side of the elastic sheet is fixed on the connecting head, and the other side of the elasticity can extend to the inner space of the rolling brush;
the rotating roller is arranged on the side brush body, can rotate together with the side brush body and is used for cleaning and collecting garbage; and the number of the first and second groups,
the cleaning part is arranged on one side of the side brush body and used for cleaning garbage.
4. An edge brush assembly according to claim 3, wherein the cleaning portion is a fleece or a combination of flocked and fleece.
5. A cleaning mechanism comprising a roller brush, and further comprising an edge brush assembly according to any one of claims 1 to 3, the edge brush assembly being movably connected to the roller brush.
6. A cleaning mechanism according to claim 5, wherein a connecting member is provided on one side of the roller brush, the connecting member having a receiving cavity for receiving the connecting head.
7. The cleaning mechanism as recited in claim 5, further comprising a roller brush shaft and a first ball bearing, wherein the first ball bearing is used for supporting the roller brush shaft, and the roller brush drives the side brush assembly to rotate through the connecting member.
8. The cleaning mechanism according to claim 5 or 7, wherein the rolling brush is fixed by a rolling brush support, a rolling brush right nozzle is arranged on one side of the rolling brush support, a side brush nozzle is arranged on one side of the side brush assembly, the rolling brush right nozzle and the side brush nozzle are respectively connected with the clean water tank through water pipes, and a ball is arranged between the rolling brush right nozzle and the side brush nozzle and used for shunting the clean water.
9. The cleaning mechanism according to claim 5, further comprising a rolling brush driving motor connected to one side of the rolling brush through a rolling brush driving head, a second ball bearing for support of the gear shaft, a gear shaft, and a rolling brush left nozzle communicating with the clean water tank for cleaning of the left side of the rolling brush.
10. The cleaning mechanism of claim 5, further comprising a bottom housing, a face cover, and a transparent window, wherein the transparent window covers the roller brush.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011596544.0A CN112587051A (en) | 2020-12-29 | 2020-12-29 | Side brush assembly and cleaning mechanism |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011596544.0A CN112587051A (en) | 2020-12-29 | 2020-12-29 | Side brush assembly and cleaning mechanism |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN112587051A true CN112587051A (en) | 2021-04-02 |
Family
ID=75203487
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202011596544.0A Pending CN112587051A (en) | 2020-12-29 | 2020-12-29 | Side brush assembly and cleaning mechanism |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112587051A (en) |
Cited By (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113679297A (en) * | 2021-08-27 | 2021-11-23 | 宁波惠士康健康科技有限公司 | Cleaning tool floor brush with rolling type dust scraping and water scraping device |
| CN113796796A (en) * | 2021-09-28 | 2021-12-17 | 深圳市杉川机器人有限公司 | Floor brush and floor washing machine |
| CN113812894A (en) * | 2021-09-28 | 2021-12-21 | 深圳市杉川机器人有限公司 | Ground cleaning equipment |
| CN113876238A (en) * | 2021-09-30 | 2022-01-04 | 添可智能科技有限公司 | Cleaning device, rolling brush assembly and lifting handle |
| CN115530691A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | surface cleaner |
| CN115530689A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | floor cleaning device |
| CN115530692A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | surface cleaning device |
| CN115530690A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | surface cleaning equipment |
| CN115568789A (en) * | 2021-06-21 | 2023-01-06 | 苏州瑞久智能科技有限公司 | Surface cleaning apparatus |
| WO2023015867A1 (en) * | 2021-08-13 | 2023-02-16 | 苏州市春菊电器有限公司 | Edge attachment structure for floor cleaning machine |
Citations (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| KR20080000186A (en) * | 2006-06-27 | 2008-01-02 | 엘지전자 주식회사 | Cleaning member of vacuum cleaner suction nozzle and suction nozzle provided with same |
| CN204181558U (en) * | 2014-05-21 | 2015-03-04 | 苏州鑫荣健身器材有限公司 | A kind of cleaner suction nozzle with crushing function |
| WO2016008763A2 (en) * | 2014-07-16 | 2016-01-21 | Markus Kress | Roller brush, in particular for a cleaning and/or care device and cleaning and/or care device |
| CN205338827U (en) * | 2015-12-10 | 2016-06-29 | 慈溪市附海高圆电器厂 | Household vacuum cleaner who facilitates use |
| CN206659749U (en) * | 2017-01-05 | 2017-11-24 | 颜艳红 | A kind of multifunctional dust vacuum cleaner nozzle unit |
| CN206867179U (en) * | 2017-02-06 | 2018-01-12 | 东莞市欣鑫金属有限公司 | Convenient reassembling type bathroom accessories |
| EP3287061A2 (en) * | 2016-08-25 | 2018-02-28 | Markus Kress | Hand-held cleaning and care device |
| CN110338720A (en) * | 2019-08-19 | 2019-10-18 | 苏州诚河清洁设备有限公司 | Wet type cleaning equipment |
| CN209750010U (en) * | 2019-03-27 | 2019-12-10 | 歌尔科技有限公司 | Wrist-worn device |
| CN210019185U (en) * | 2019-01-31 | 2020-02-07 | 莱克电气股份有限公司 | Robot dust collector transmission structure and robot dust collector |
| CN214549291U (en) * | 2020-12-29 | 2021-11-02 | 深圳森科新创科技有限公司 | A side brush assembly and cleaning mechanism |
-
2020
- 2020-12-29 CN CN202011596544.0A patent/CN112587051A/en active Pending
Patent Citations (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| KR20080000186A (en) * | 2006-06-27 | 2008-01-02 | 엘지전자 주식회사 | Cleaning member of vacuum cleaner suction nozzle and suction nozzle provided with same |
| CN204181558U (en) * | 2014-05-21 | 2015-03-04 | 苏州鑫荣健身器材有限公司 | A kind of cleaner suction nozzle with crushing function |
| WO2016008763A2 (en) * | 2014-07-16 | 2016-01-21 | Markus Kress | Roller brush, in particular for a cleaning and/or care device and cleaning and/or care device |
| CN205338827U (en) * | 2015-12-10 | 2016-06-29 | 慈溪市附海高圆电器厂 | Household vacuum cleaner who facilitates use |
| EP3287061A2 (en) * | 2016-08-25 | 2018-02-28 | Markus Kress | Hand-held cleaning and care device |
| CN206659749U (en) * | 2017-01-05 | 2017-11-24 | 颜艳红 | A kind of multifunctional dust vacuum cleaner nozzle unit |
| CN206867179U (en) * | 2017-02-06 | 2018-01-12 | 东莞市欣鑫金属有限公司 | Convenient reassembling type bathroom accessories |
| CN210019185U (en) * | 2019-01-31 | 2020-02-07 | 莱克电气股份有限公司 | Robot dust collector transmission structure and robot dust collector |
| CN209750010U (en) * | 2019-03-27 | 2019-12-10 | 歌尔科技有限公司 | Wrist-worn device |
| CN110338720A (en) * | 2019-08-19 | 2019-10-18 | 苏州诚河清洁设备有限公司 | Wet type cleaning equipment |
| CN214549291U (en) * | 2020-12-29 | 2021-11-02 | 深圳森科新创科技有限公司 | A side brush assembly and cleaning mechanism |
Cited By (12)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115568789A (en) * | 2021-06-21 | 2023-01-06 | 苏州瑞久智能科技有限公司 | Surface cleaning apparatus |
| CN115530691A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | surface cleaner |
| CN115530689A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | floor cleaning device |
| CN115530692A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | surface cleaning device |
| CN115530690A (en) * | 2021-06-30 | 2022-12-30 | 苏州瑞久智能科技有限公司 | surface cleaning equipment |
| CN115530690B (en) * | 2021-06-30 | 2025-11-25 | 苏州瑞久智能科技有限公司 | Surface cleaning equipment |
| WO2023015867A1 (en) * | 2021-08-13 | 2023-02-16 | 苏州市春菊电器有限公司 | Edge attachment structure for floor cleaning machine |
| CN113679297A (en) * | 2021-08-27 | 2021-11-23 | 宁波惠士康健康科技有限公司 | Cleaning tool floor brush with rolling type dust scraping and water scraping device |
| CN113796796A (en) * | 2021-09-28 | 2021-12-17 | 深圳市杉川机器人有限公司 | Floor brush and floor washing machine |
| CN113812894A (en) * | 2021-09-28 | 2021-12-21 | 深圳市杉川机器人有限公司 | Ground cleaning equipment |
| CN113876238A (en) * | 2021-09-30 | 2022-01-04 | 添可智能科技有限公司 | Cleaning device, rolling brush assembly and lifting handle |
| CN113876238B (en) * | 2021-09-30 | 2023-12-01 | 添可智能科技有限公司 | Cleaning device, rolling brush assembly and handle |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN112587051A (en) | Side brush assembly and cleaning mechanism | |
| CN112205930B (en) | Sweep and drag workstation of integrative robot | |
| EP1949840B1 (en) | Double sided suction nozzle for use in vacuum cleaner | |
| CN215457669U (en) | Sweeping and mopping integrated robot | |
| CN215838755U (en) | Double-roller brush sweeping and mopping integrated floor washing machine | |
| CN211834223U (en) | a cleaning tool | |
| CN216317406U (en) | Rolling brush type cleaning base and floor washing machine | |
| CN113171032B (en) | Sweeping and mopping integrated separated floor washing machine and sweeping and mopping method | |
| CN207270314U (en) | Driving type sweeping and washing all-in-one machine | |
| KR20180135676A (en) | Manual Vacuum Cleaner | |
| CN214549291U (en) | A side brush assembly and cleaning mechanism | |
| CN215937228U (en) | Double-rolling brush type cleaning device | |
| CN215424445U (en) | Sweeping and mopping integrated separated floor washing machine | |
| CN211408187U (en) | Cabinet convenient to clean | |
| CN113498999A (en) | Double-rolling brush type cleaning device | |
| CN219089147U (en) | Base station and cleaning device | |
| CN219089121U (en) | Cleaning apparatus | |
| CN218186673U (en) | Dirty effectual surface cleaning device of collection | |
| CN208481281U (en) | A kind of domestic cleaning tool | |
| CN218832665U (en) | A floor brush and a floor washing machine | |
| CN216675651U (en) | Rolling rod mopping robot | |
| CN213821252U (en) | Suction-mopping integrated double-wheel-disc mopping machine | |
| CN112137494B (en) | Dust collector with dust removal structure of metal mesh filtering structure | |
| CN2155801Y (en) | Wet type washing device | |
| CN214017394U (en) | Electric cleaner without cleaning dead angle |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| TA01 | Transfer of patent application right |
Effective date of registration: 20210507 Address after: Room 402, shentengyao business building, building 1, baoxianghe Industrial Park, 68 Hexiu West Road, Heping community, Fuhai street, Bao'an District, Shenzhen, Guangdong 518000 Applicant after: Shenzhen Senke Xinchuang Technology Co.,Ltd. Address before: 408 shentengyao business building, building 1, baoxianghe Industrial Park, 68 Hexiu West Road, Heping community, Fuhai street, Bao'an District, Shenzhen, Guangdong 518000 Applicant before: Honghan Technology (Shenzhen) Co.,Ltd. |
|
| TA01 | Transfer of patent application right |
