Abstract
The invention discloses an acupuncture disinfection storage device for traditional Chinese medicine treatment, and relates to the field of traditional Chinese medicine acupuncture equipment disinfection storage. This acupuncture disinfection storage device is used in traditional chinese medical science treatment, the last surface rotation of disinfection bin is connected with sealed case lid, the inside fixedly connected with axis of rotation of disinfection bin, the fixed cover in top surface of axis of rotation has first gear, the last surface activity joint of first gear has the second gear, the lower fixed surface of second gear is connected with the transmission shaft, the surface transmission of first gear is connected with the driving chain, the fixed surface of driving chain is connected with the snap ring, the side activity snap ring of sealed case lid has the sliding block, fixedly connected with three hornblocks on the inside wall of sliding block, the promotion draw-in groove has been seted up at the middle part of three hornblocks, the inner wall fixedly connected with drive rack of sliding block, drive rack meshes with. This acupuncture disinfection storage device is used in traditional chinese medical treatment, the convenience avoids inside needle utensil and external contact to cause the pollution when taking.
Description
Technical Field
The invention relates to the technical field of disinfection and storage of traditional Chinese medicine acupuncture equipment, in particular to an acupuncture disinfection and storage device for traditional Chinese medicine treatment.
Background
Acupuncture is a method of treating diseases by inserting an acupuncture tool into a patient's body at a certain angle under the guidance of the theory of traditional Chinese medicine and stimulating specific parts of the body by using acupuncture techniques such as twirling, lifting and inserting, etc. the acupuncture is a method of burning and fumigating pre-made moxibustion cones or moxibustion herbs on certain points of the body surface and preventing and treating diseases by using thermal stimulation, and acupuncture is composed of needles and moxibustion and is one of the important components of oriental medicine.
The prior needle sterilization method is to wipe the surface of the needle and then sterilize the needle by high temperature or alcohol, but bacteria are easily grown on the surface of the needle in the storage process, if the needle is not thoroughly sterilized in the next use, the patient is easily infected by germs, and now many modern doctors store the needle in a portable sterilization cabinet during the visit and directly take the needle out of the sterilization cabinet during the use, in the process, because different needles are usually used for different parts during acupuncture, the sterilization cabinet needs to be opened for many times, and the needle needs to be searched during the use, at the moment, the hands of the doctors can be directly contacted with the needles in the sterilization cabinet, so the needle is not only inconvenient to take, but also increases the chance of contamination of the interior of the disinfection cabinet and improvements are needed.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention discloses an acupuncture disinfection storage device for traditional Chinese medicine treatment, which aims to solve the problems in the background technology.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: the utility model provides a traditional chinese medical treatment is with acupuncture disinfection storage device, includes the disinfection bin, the upper surface rotation of disinfection bin is connected with sealed case lid, the equal fixedly connected with sterilamp in inner wall both sides of disinfection bin, surface one side fixedly connected with regulating switch of disinfection bin, the interior bottom fixedly connected with axis of rotation of disinfection bin, the fixed first gear that has cup jointed of top surface of axis of rotation, the upper surface activity joint of first gear has the second gear, the lower fixed surface of second gear is connected with the transmission shaft, the bottom of transmission shaft extends to the inside of first gear and the bottom surface activity joint of transmission shaft has the pawl, the ratchet groove has been seted up to the inside of first gear, the pawl is connected with the transmission of ratchet groove, the surface transmission of first gear is connected with the driving chain, the outer fixed surface of driving chain is connected with the snap ring, the discharge gate has been seted up to the upper surface of sealed case lid, the side activity joint of sealed case lid has the sliding block, three hornblocks of fixedly connected with on the inside wall of sliding block, the promotion draw-in groove has been seted up at the middle part of three hornblocks, the both sides that just are located three hornblocks on the inside wall of sliding block all are equipped with reset spring, just be located the below one side fixedly connected with drive rack of three hornblocks on the inside wall of sliding block, drive rack meshes with the second gear mutually.
Preferably, the ultraviolet germicidal lamp is electrically connected with an external power supply through an adjusting switch, and a transparent moisture-proof plate is fixedly connected to the outer surface of the ultraviolet germicidal lamp.
Preferably, the upper surface of the sealed box cover is provided with a sealing baffle plate, the sealing baffle plate is rotatably connected inside the discharge hole, and the discharge hole is over against the lifting clamping groove.
Preferably, fixedly connected with fixed sleeve on the inside wall of sliding block, reset spring activity joint is in fixed sleeve's inside, the inside slip grafting of the one end that the sliding block was kept away from to fixed sleeve has the slip inserted bar, the one end fixed connection that the fixed sleeve was kept away from to the slip inserted bar is on the inside wall of sealed case lid, reset spring's one end and fixed sleeve's inner bottom wall offset, reset spring's the other end offsets with the tip of slip inserted bar.
Preferably, the side face of the driving rack is fixedly connected with a sliding block, a sliding groove is formed in the inner side wall of the sealed box cover, and the sliding block is connected inside the sliding groove in a sliding mode.
Preferably, the bottom fixedly connected with circular carousel of transmission shaft, the side fixedly connected with fixed block of circular carousel, the pawl rotates the upper surface of connecting the fixed block, the quantity of fixed block is four groups and is annular array distribution about the transmission shaft.
Preferably, equal fixedly connected with sealing strip all around the lower surface of sealed case lid, the inside wall of sealing strip and disinfection bin is closely laminated.
Preferably, the inside water receiving tank that pegs graft of bottom of disinfection storage box, one side of water receiving tank runs through the lateral wall of disinfection storage box and extends to the outside of disinfection storage box.
The invention discloses an acupuncture disinfection storage device for traditional Chinese medicine treatment, which has the following beneficial effects:
1. the acupuncture disinfection storage device for the traditional Chinese medicine treatment is characterized in that the sliding block is pressed towards the inside of the sealed box cover, so that the sliding block drives the triangular block to move inwards, the needle enters the lifting clamping groove, the needle is jacked upwards under the action of the triangular block, the return spring is compressed, the driving rack drives the second gear to rotate anticlockwise, the pawl follows the transmission shaft to rotate anticlockwise and does not transmit with the ratchet groove, the doctor can take out the needle from the discharge hole by hand at the moment, then the sliding block is loosened, the sliding block moves outwards under the action of the return spring at the moment, the driving rack drives the second gear to rotate clockwise, the pawl rotates clockwise and is clamped with the ratchet groove at the moment, the second gear is driven to rotate clockwise, the second gear drives the transmission chain to rotate clockwise, and the sliding block is static when the return spring is completely unfolded, at the moment, the transmission chain drives the snap rings with the needles to move to the front side of the triangular block, so that the needles can be conveniently taken and used while the pollution caused by the contact between the needles and the outside is avoided.
2. This acupuncture disinfection storage device is used in traditional chinese medical treatment, after the acupuncture, will make used needle utensil wash, then will seal the case lid and open, the driving chain surface has partial snap ring inside to have no needle utensil this moment, then classify the needle utensil of different specifications and insert inside the corresponding snap ring, when making things convenient for next use, and the driving chain sets up for the annular, guarantees that each needle utensil uses by turns, avoids some needle utensils to obtain the condition that the use takes place the oxidation for a long time.
3. This acupuncture disinfection storage device is used in traditional chinese medical science treatment, disinfect the disinfection through regulating switch control sterilamp to the needle utensil, accomplish the back at the disinfection, the needle utensil just stores in the inside of disinfection bin, remaining washing liquid falls to the inside of water receiving tank under the action of gravity on the needle utensil this moment, emptys through taking off the water receiving tank this moment, then inserts the inside of disinfection bin again with the water receiving tank, avoids sewage to stay in the inside pollution that forms of disinfection bin.
Drawings

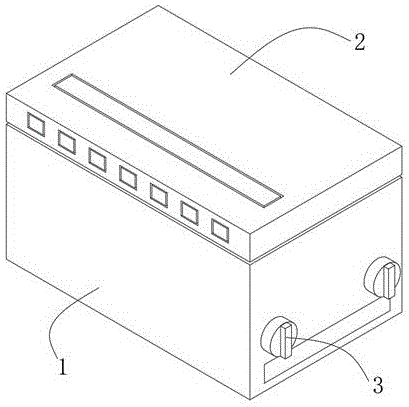

FIG. 1 is a schematic view of the main structure of the present invention;
FIG. 2 is an exploded view of the main structure of the present invention;
FIG. 3 is a schematic view of the internal structure of the storage case for sterilization according to the present invention;
FIG. 4 is a schematic view of the outer surface structure of the rotating shaft according to the present invention;
FIG. 5 is a schematic view of the internal structure of the first gear of the present invention;
FIG. 6 is a schematic view of the outer surface structure of a second gear of the present invention;
FIG. 7 is a schematic view of the outer surface structure of the slider of the present invention.
In the figure: 1. sterilizing the storage tank; 2. sealing the box cover; 3. an adjustment switch; 4. a rotating shaft; 5. a sealing strip; 6. sealing the baffle; 7. a slider; 8. an ultraviolet germicidal lamp; 9. a water receiving tank; 10. a first gear; 11. a drive chain; 12. a snap ring; 14. a second gear; 15. a ratchet groove; 16. a drive shaft; 17. a circular turntable; 18. a fixed block; 19. a pawl; 20. a triangular block; 21. lifting the clamping groove; 22. fixing the sleeve; 23. a return spring; 24. a sliding insertion rod; 25. a drive rack; 26. a slide block.
Detailed Description
The embodiment of the invention discloses an acupuncture disinfection storage device for traditional Chinese medicine treatment, and as shown in fig. 1-7, in order to make the purpose, technical scheme and advantages of the embodiment of the invention clearer, the technical scheme in the embodiment of the invention will be clearly and completely described below by combining the embodiment of the invention and the attached drawings.
The first embodiment,
An acupuncture disinfection storage device for traditional Chinese medicine treatment, as shown in figures 1-7, comprises a disinfection storage box 1, the upper surface of the disinfection storage box 1 is rotatably connected with a sealed box cover 2, both sides of the inner wall of the disinfection storage box 1 are fixedly connected with ultraviolet germicidal lamps 8, one side of the outer surface of the disinfection storage box 1 is fixedly connected with an adjusting switch 3, the inner bottom of the disinfection storage box 1 is fixedly connected with a rotating shaft 4, the outer surface of the top end of the rotating shaft 4 is fixedly sleeved with a first gear 10, the upper surface of the first gear 10 is movably clamped with a second gear 14, the lower surface of the second gear 14 is fixedly connected with a transmission shaft 16, the bottom end of the transmission shaft 16 extends into the first gear 10, the outer surface of the bottom end of the transmission shaft 16 is movably clamped with a pawl 19, the inside of the first gear 10 is provided with a ratchet groove 15, the pawl 19 is in transmission connection, the outer surface of the transmission chain 11 is fixedly connected with a snap ring 12, the upper surface of the sealed case cover 2 is provided with a discharge hole, the side surface of the sealed case cover 2 is movably clamped with a sliding block 7, the inner side wall of the sliding block 7 is fixedly connected with a triangular block 20, the middle part of the triangular block 20 is provided with a lifting clamping groove 21, the inner side wall of the sliding block 7 and two sides of the triangular block 20 are respectively provided with a reset spring 23, the inner side wall of the sliding block 7 and one side below the triangular block 20 are fixedly connected with a driving rack 25, the driving rack 25 is meshed with a second gear 14, the inner side wall of the sliding block 7 is fixedly connected with a fixed sleeve 22, the reset spring 23 is movably clamped in the fixed sleeve 22, the inner part of one end of the fixed sleeve 22 far away from the sliding block 7 is slidably inserted with a sliding inserted rod 24, and, one end of a return spring 23 is abutted against the inner bottom wall of the fixed sleeve 22, the other end of the return spring 23 is abutted against the end of a sliding inserted bar 24, a sliding block 26 is fixedly connected to the side surface of a driving rack 25, a sliding groove is formed in the inner side wall of the sealed box cover 2, the sliding block 26 is slidably connected to the inside of the sliding groove, a round turntable 17 is fixedly connected to the bottom end of the transmission shaft 16, a fixed block 18 is fixedly connected to the side surface of the round turntable 17, a pawl 19 is rotatably connected to the upper surface of the fixed block 18, the fixed blocks 18 are four groups and are distributed in an annular;
in the invention, a sealing baffle 6 is shielded on the upper surface of a discharge port in an initial state, needles with different specifications are movably inserted in clamping rings 12 on the outer surfaces of different transmission chains 11, a pawl 19 rotates clockwise and is movably clamped with the inner part of a ratchet groove 15, the pawl 19 does not transmit with the ratchet groove 15 when rotating anticlockwise, when the novel needle box is used, the sealing baffle 6 is firstly rotated and opened, then a corresponding sliding block 7 is selected according to the required needle, then the sliding block 7 is pressed towards the inner part of a sealing box cover 2, so that the sliding block 7 drives a triangular block 20 to move inwards, the top end of the needle contacts with a lifting clamping groove 21 in the middle of the triangular block 20, the needle enters the lifting clamping groove 21, and the sliding block 7 drives a fixed sleeve 22 to move towards one end close to a sliding insertion rod 24 in the process, so that a return spring 23 is compressed, meanwhile, the driving rack 25 slides along the sliding groove, at this time, the driving rack 25 drives the second gear 14 to rotate anticlockwise, the second gear 14 rotates anticlockwise on the upper surface of the first gear 10 through the transmission shaft 16, at this time, the pawl 19 rotates anticlockwise along with the transmission shaft 16 and does not transmit with the ratchet groove 15, at this time, the first gear 10 keeps a static state, then the sliding block 7 is continuously pushed, so that the triangular block 20 continuously moves, at this time, the needle tool is jacked up upwards under the action of the triangular block 20, so that the tail end of the needle tool is jacked up from the discharge hole, at this time, a doctor can take out the needle tool by hand, then the sliding block 7 is released, at this time, the sliding block 7 moves outwards under the action of the return spring 23, at this time, the driving rack 25 is driven by the sliding block 7 to move outwards, so that the second gear 14 rotates clockwise, at this time, the second gear 14 is driven to rotate clockwise, meanwhile, the second gear 14 drives the transmission chain 11 to rotate clockwise, when the return spring 23 is completely unfolded, the sliding block 7 is static, at the moment, the transmission chain 11 drives the snap ring 12 with the next group of needles to move to the front side of the triangular block 20, and the next needle is ready to be taken.
Example II,
An acupuncture disinfection storage device for traditional Chinese medicine treatment, as shown in figures 1-7, comprises a disinfection storage box 1, the upper surface of the disinfection storage box 1 is rotatably connected with a sealed box cover 2, both sides of the inner wall of the disinfection storage box 1 are fixedly connected with ultraviolet germicidal lamps 8, one side of the outer surface of the disinfection storage box 1 is fixedly connected with an adjusting switch 3, the inner bottom of the disinfection storage box 1 is fixedly connected with a rotating shaft 4, the outer surface of the top end of the rotating shaft 4 is fixedly sleeved with a first gear 10, the upper surface of the first gear 10 is movably clamped with a second gear 14, the lower surface of the second gear 14 is fixedly connected with a transmission shaft 16, the bottom end of the transmission shaft 16 extends into the first gear 10, the outer surface of the bottom end of the transmission shaft 16 is movably clamped with a pawl 19, the inside of the first gear 10 is provided with a ratchet groove 15, the pawl 19 is in transmission connection, the outer surface of the transmission chain 11 is fixedly connected with a snap ring 12, the upper surface of the sealed box cover 2 is provided with a discharge hole, the side surface of the sealed box cover 2 is movably clamped with a sliding block 7, the inner side wall of the sliding block 7 is fixedly connected with a triangular block 20, the middle part of the triangular block 20 is provided with a lifting clamping groove 21, the inner side wall of the sliding block 7 is provided with a reset spring 23 on both sides of the triangular block 20, the inner side wall of the sliding block 7 is fixedly connected with a driving rack 25 on one side below the triangular block 20, the driving rack 25 is meshed with a second gear 14, the ultraviolet sterilizing lamp 8 is electrically connected with an external power supply through an adjusting switch 3, the outer surface of the ultraviolet sterilizing lamp 8 is fixedly connected with a transparent damp-proof plate, the upper surface of the sealed box cover 2 is provided with a sealing baffle 6;
after the acupuncture, will make used needle utensil wash, then will seal case lid 2 and open, 11 surfaces of driving chain have partial snap ring 12 inside to have no needle utensil this moment, then classify the needle utensil of different specifications and insert inside corresponding snap ring 12, when making things convenient for next use, and driving chain 11 is the annular setting, guarantees that each needle utensil carries out the use by turns, avoids some needle utensils to obtain not using for a long time and takes place the condition of oxidation.
Example III,
An acupuncture disinfection storage device for traditional Chinese medicine treatment, as shown in figures 1-7, comprises a disinfection storage box 1, the upper surface of the disinfection storage box 1 is rotatably connected with a sealed box cover 2, both sides of the inner wall of the disinfection storage box 1 are fixedly connected with ultraviolet germicidal lamps 8, one side of the outer surface of the disinfection storage box 1 is fixedly connected with an adjusting switch 3, the inner bottom of the disinfection storage box 1 is fixedly connected with a rotating shaft 4, the outer surface of the top end of the rotating shaft 4 is fixedly sleeved with a first gear 10, the upper surface of the first gear 10 is movably clamped with a second gear 14, the lower surface of the second gear 14 is fixedly connected with a transmission shaft 16, the bottom end of the transmission shaft 16 extends into the first gear 10, the outer surface of the bottom end of the transmission shaft 16 is movably clamped with a pawl 19, the inside of the first gear 10 is provided with a ratchet groove 15, the pawl 19 is in transmission connection, the outer surface of the transmission chain 11 is fixedly connected with a snap ring 12, the upper surface of the sealed box cover 2 is provided with a discharge hole, the side surface of the sealed box cover 2 is movably clamped with a sliding block 7, a triangular block 20 is fixedly connected on the inner side wall of the sliding block 7, a lifting clamping groove 21 is formed in the middle of the triangular block 20, two sides of the triangular block 20 on the inner side wall of the sliding block 7 are respectively provided with a reset spring 23, a driving rack 25 is fixedly connected on one side of the inner side wall of the sliding block 7 below the triangular block 20, the driving rack 25 is meshed with a second gear 14, sealing strips 5 are fixedly connected around the lower surface of the sealed box cover 2, the sealing strips 5 are tightly attached to the inner side wall of the disinfection storage box 1, a water receiving groove 9 is inserted into the bottom end of the disinfection storage box 1 in a sliding mode;
through closing sealed case lid 2, make sealing strip 5 laminate mutually with the inboard wall of disinfection bin 1, carry out electric connection through carrying out the device with external power source this moment, then disinfect the disinfection through regulating switch 3 control sterilamp 8 to the needle utensil, after the disinfection is accomplished, the needle utensil just stores in the inside of disinfection bin 1, wait for next use after the disinfection is accomplished, remaining washing liquid falls the inside of water receiving tank 9 under the action of gravity on the needle utensil this moment, topple over through taking off water receiving tank 9 this moment, then insert disinfection bin 1's inside again with water receiving tank 9, wait for next use.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (8)
1. The utility model provides a traditional chinese medical science treatment is with acupuncture disinfection storage device, includes disinfection bin (1), its characterized in that: the upper surface of disinfection bin (1) rotates and is connected with sealed case lid (2), the equal fixedly connected with sterilamp (8) in inner wall both sides of disinfection bin (1), surface one side fixedly connected with regulating switch (3) of disinfection bin (1), the interior bottom fixedly connected with axis of rotation (4) of disinfection bin (1), the top surface mounting of axis of rotation (4) has cup jointed first gear (10), the upper surface activity joint of first gear (10) has second gear (14), the lower fixed surface of second gear (14) is connected with transmission shaft (16), the bottom of transmission shaft (16) extends to the inside of first gear (10) and the bottom surface activity joint of transmission shaft (16) has pawl (19), ratchet groove (15) have been seted up to the inside of first gear (10), pawl (19) are connected with ratchet groove (15) transmission, the surface transmission of first gear (10) is connected with driving chain (11), the surface fixed connection of driving chain (11) has snap ring (12), the discharge gate has been seted up to the upper surface of sealed case lid (2), the side activity joint of sealed case lid (2) has sliding block (7), three hornblocks (20) of fixedly connected with on the inside wall of sliding block (7), lifting clamping groove (21) have been seted up at the middle part of three hornblocks (20), the both sides that just are located three hornblocks (20) on the inside wall of sliding block (7) all are equipped with reset spring (23), just be located below one side fixedly connected with drive rack (25) of three hornblocks (20) on the inside wall of sliding block (7), drive rack (25) mesh with second gear (14).
2. The acupuncture disinfection storage device for traditional Chinese medicine treatment according to claim 1, characterized in that: the ultraviolet germicidal lamp (8) is electrically connected with an external power supply through the adjusting switch (3), and a transparent damp-proof plate is fixedly connected to the outer surface of the ultraviolet germicidal lamp (8).
3. The acupuncture disinfection storage device for traditional Chinese medicine treatment according to claim 1, characterized in that: the upper surface of sealed case lid (2) is equipped with seal baffle (6), seal baffle (6) rotate to be connected in the inside of discharge gate, the discharge gate is just to the top of promoting draw-in groove (21).
4. The acupuncture disinfection storage device for traditional Chinese medicine treatment according to claim 1, characterized in that: fixedly connected with fixed sleeve (22) on the inside wall of sliding block (7), reset spring (23) activity joint is in the inside of fixed sleeve (22), the inside slip grafting of one end that sliding block (7) were kept away from in fixed sleeve (22) has slip inserted bar (24), the one end fixed connection that fixed sleeve (22) were kept away from in slip inserted bar (24) is on the inside wall of sealed case lid (2), the one end of reset spring (23) offsets with the inner bottom wall of fixed sleeve (22), the other end of reset spring (23) offsets with the tip of slip inserted bar (24).
5. The acupuncture disinfection storage device for traditional Chinese medicine treatment according to claim 1, characterized in that: the side face of the driving rack (25) is fixedly connected with a sliding block (26), the inner side wall of the sealed box cover (2) is provided with a sliding groove, and the sliding block (26) is connected to the inside of the sliding groove in a sliding mode.
6. The acupuncture disinfection storage device for traditional Chinese medicine treatment according to claim 1, characterized in that: the bottom fixedly connected with circular carousel (17) of transmission shaft (16), the side fixedly connected with fixed block (18) of circular carousel (17), pawl (19) rotate to be connected in the upper surface of fixed block (18), the quantity of fixed block (18) is four groups and is the annular array distribution about transmission shaft (16).
7. The acupuncture disinfection storage device for traditional Chinese medicine treatment according to claim 1, characterized in that: the lower surface of sealed case lid (2) all fixedly connected with sealing strip (5) all around, sealing strip (5) closely laminates with the inside wall of disinfection bin (1).
8. The acupuncture disinfection storage device for traditional Chinese medicine treatment according to claim 1, characterized in that: the inside water receiving tank (9) of pegging graft of bottom of disinfection bin (1) is slided, one side of water receiving tank (9) runs through the lateral wall of disinfection bin (1) and extends to the outside of disinfection bin (1).
