Abstract
The invention discloses a sewage treatment filter convenient to clean, which comprises a main body and a backing plate, wherein the backing plate is fixedly arranged at four corners of the bottom of the main body, a pretreatment tank is fixedly arranged at one end inside the main body, a purification part is fixedly arranged at one end of the main body, which is far away from the pretreatment tank, and is fixedly connected with the pretreatment tank, a cleaning mechanism convenient to clean is fixedly arranged inside the pretreatment tank, water inlet mechanisms are symmetrically and fixedly arranged at the outer side of the main body, a water outlet mechanism rapid in water outlet is arranged at the bottom end of the pretreatment tank, and the water outlet mechanism is fixedly arranged at the bottom of the main body, so that the sewage treatment filter convenient to clean is simple in structure and convenient to operate, the side wall in the pretreatment tank can be cleaned through the mutual matching of the water inlet mechanism and the cleaning head, and is prevented from being exposed to an air hole for, therefore, the air is polluted, the health of personnel is threatened, and the practicability of the equipment is higher.
Description
Technical Field
The invention relates to the technical field of sewage treatment filters, in particular to a sewage treatment filter convenient to clean.
Background
Sewage treatment is a process of purifying sewage to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people.
There are many middle-size and small-size sewage treatment filter equipment in present daily excesses to carry out the quick sewage treatment work of minim scope, but the inner wall in pretreatment area can appear piling up the sediment of filth because of long-time work among the present sewage treatment filter equipment, when not using equipment to the utmost, can appear pungent gas, cause the pollution to the environment, make personnel's on every side healthy have the hidden danger, for this reason, we provide a sewage treatment filter convenient to clearance.
Disclosure of Invention
The invention aims to provide a sewage treatment filter convenient to clean so as to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a sewage treatment filter convenient to clearance, includes main part and backing plate, the equal fixed mounting in bottom four corners of main part has the backing plate, the inside one end fixed mounting of main part has preliminary treatment pond, the one end fixed mounting that preliminary treatment pond was kept away from to the main part has the purification unit, purification unit and preliminary treatment pond fixed connection, the inside fixed mounting in preliminary treatment pond has the convenient clean mechanism of washing, the outside symmetry fixed mounting of main part has water inlet mechanism, the bottom in preliminary treatment pond is equipped with the swift play water mechanism of play water, and goes out water mechanism fixed mounting in the bottom of main part.
Preferably, clean mechanism includes the mounting bracket, rotates motor, rolling disc, transmission post, base, spliced pole, sliding seat, wash rack and cleaning head, the equal fixed mounting in inside of mounting bracket has the rotation motor, the equal fixed mounting of output that rotates the motor has the rolling disc, the one end of rolling disc all rotates through the pivot and is connected with the transmission post, the below of rotating the motor all is equipped with the base, the spout has all been seted up to the inside of base, the inside sliding connection of base has the spliced pole, the one end of spliced pole all rotates through the pivot and is connected with the one end of transmission post, the below of base all is equipped with the sliding seat, the inside sliding connection of sliding seat has the wash rack, the equal equidistance fixed mounting in one side of wash rack has the cleaning head.
Preferably, the mechanism of intaking includes mount, inlet tube, shower nozzle and connecting pipe, the equal fixed mounting in both sides of main part has the mount, the equal fixed mounting in one side of mount has the inlet tube, the equal equidistance fixed mounting in one side of inlet tube has the connecting pipe, and the lateral wall fixed mounting that the one end of connecting pipe all passed the main part has the shower nozzle.
Preferably, the water outlet mechanism comprises a water outlet, a conduit and a water valve, the water outlet is formed in the bottom end of the pretreatment tank, the conduit is fixedly mounted at the bottom of the water outlet, and the water valve is fixedly mounted at one end, far away from the water outlet, of the conduit.
Preferably, the two ends of the cleaning frame are provided with sliding blocks, and the cleaning heads are installed in a crossed mode.
Preferably, the bottom end of the pretreatment tank is inclined.
Preferably, the one end of inlet tube communicates through communicating pipe, one side and the water source fixed connection of communicating pipe.
Preferably, a ladder is fixedly installed at one side of the main body.
Compared with the prior art, the invention has the beneficial effects that:
when the device works normally, the pretreatment tank and the purification component are matched with each other to purify sewage, when the device is not used, the water is sprayed to the side wall of the pretreatment tank through the water inlet mechanism, the purification component is closed, in addition, the cleaning mechanism is matched with the water inlet mechanism to clean the side wall of the pretreatment tank, after the cleaning work is finished, the cleaning is discharged out of the device through the water outlet mechanism, so that the pollution to the surrounding air environment and the health of surrounding personnel are prevented due to the accumulation of a large amount of stains in the device, the structure of the sewage treatment filter convenient to clean is simple, the operation is convenient, the side wall in the pretreatment tank can be cleaned through the mutual matching of the water inlet mechanism and the cleaning head, the long-time exposure to air holes is prevented when the device is not used, the pollution to air is generated, and the health of the personnel is threatened, the utility of this equipment is higher.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic cross-sectional view of the present invention;
FIG. 3 is a schematic view of the cleaning mechanism of the present invention;
FIG. 4 is a schematic structural diagram of a water inlet mechanism according to the present invention;

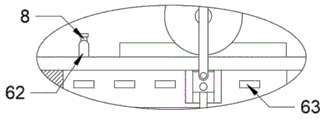

FIG. 5 is a second schematic structural view of the water inlet mechanism of the present invention;
FIG. 6 is a third schematic view of the water inlet mechanism of the present invention;
fig. 7 is a schematic structural view of the water outlet mechanism of the present invention.
In the figure: 1. a main body; 2. a base plate; 3. a pretreatment tank; 4. a purification component; 5. a cleaning mechanism; 51. a mounting frame; 52. rotating the motor; 53. rotating the disc; 54. a drive post; 55. a base; 56. connecting columns; 57. a sliding seat; 58. a cleaning frame; 59. a cleaning head; 6. a water inlet mechanism; 61. a fixed mount; 62. a water inlet pipe; 63. a spray head; 64. a connecting pipe; 7. a water outlet mechanism; 71. a water outlet; 72. a conduit; 73. a water valve; 8. a communicating pipe; 9. and (4) a ladder.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 and 2, a sewage treatment filter convenient to clean in the figure comprises a main body 1 and backing plates 2, wherein the backing plates 2 are fixedly mounted at four corners of the bottom of the main body 1, the main body 1 is convenient to mount sewage treatment components, and the backing plates 2 are convenient to support the main body 1.
Referring to fig. 1 and 2, a pretreatment tank 3 is fixedly mounted at one end inside the main body 1, a purification component 4 is fixedly mounted at one end of the main body 1 far away from the pretreatment tank 3, the purification component 4 is fixedly connected with the pretreatment tank 3, a cleaning mechanism 5 convenient and fast to clean is fixedly mounted inside the pretreatment tank 3, a water inlet mechanism 6 is symmetrically and fixedly mounted at the outer side of the main body 1, a water outlet mechanism 7 fast and convenient to discharge water is arranged at the bottom end of the pretreatment tank 3, the water outlet mechanism 7 is fixedly mounted at the bottom of the main body 1, when the device normally works, the pretreatment tank 3 and the cleaning component 4 are matched with each other to conveniently purify sewage, when the device is not used, the water is sprayed to the side wall of the pretreatment tank 3 through the water inlet mechanism 6, the cleaning component 4 is closed, in addition, the cleaning mechanism 5 is matched with the water inlet mechanism 6 to start cleaning the side wall of the pretreatment tank 3, after the cleaning work is finished, the water outlet mechanism 7 is used for discharging the cleaning water out of the equipment, so that a large amount of dirt is prevented from being accumulated in the equipment to pollute the surrounding air environment, and the health of surrounding personnel is not facilitated.
Referring to fig. 3, the cleaning mechanism 5 includes a mounting frame 51, a rotating motor 52, a rotating disc 53, a transmission column 54, a base 55, a connection column 56, a sliding seat 57, a cleaning frame 58 and a cleaning head 59, the rotating motor 52 is fixedly installed inside the mounting frame 51, the rotating disc 53 is fixedly installed at an output end of the rotating motor 52, one end of the rotating disc 53 is rotatably connected with the transmission column 54 through a rotating shaft, the base 55 is arranged below the rotating motor 52, sliding grooves are formed inside the base 55, the connection column 56 is slidably connected inside the base 55, one end of the connection column 56 is rotatably connected with one end of the transmission column 54 through a rotating shaft, the sliding seat 57 is arranged below the base 55, the cleaning frame 58 is slidably connected inside the sliding seat 57, the cleaning heads 59 are fixedly installed on one side of the cleaning frame 58 at equal intervals, when the cleaning mechanism 5 starts to work, the rotating motor 52 is matched with the rotating disc 53 and the transmission column 54 to realize the up-and-down reciprocating motion of the connection column 56, so that the cleaning frame 58 is driven to move up and down, the cleaning head 59 on the cleaning frame 58 is attached to the side wall of the pretreatment tank 3, and the connection column 56 is matched to realize the up-and-down reciprocating motion, so that the cleaning head 59 cleans the side wall of the pretreatment tank 3.
Referring to fig. 4, 5 and 6, the water inlet mechanism 6 includes a fixing frame 61, a water inlet pipe 62, a spray nozzle 63 and a connecting pipe 64, the fixing frame 61 is fixedly mounted on both sides of the main body 1, the water inlet pipe 62 is fixedly mounted on one side of the fixing frame 61, the connecting pipes 64 are fixedly mounted on one side of the water inlet pipe 62 at equal intervals, the spray nozzle 63 is fixedly mounted on one end of each connecting pipe 64 penetrating through the side wall of the main body 1, the fixing frame 61 is convenient for fixedly mounting the rest working components of the water inlet mechanism 6, the water inlet pipe 62 is convenient for guiding water, then the water is sent to the spray nozzle 63 through the connecting pipe 64, and the spray nozzle 63 is convenient for spraying water to the side wall of the pretreatment tank 3.
Referring to fig. 7, the water outlet mechanism 7 includes a water outlet 71, a conduit 72 and a water valve 73, the water outlet 71 is disposed at the bottom end of the pretreatment tank 3, the conduit 72 is fixedly mounted at the bottom of the water outlet 71, the water valve 73 is fixedly mounted at one end of the conduit 72 far away from the water outlet 71, when the cleaning water in the pretreatment tank 3 needs to be discharged, the water valve 73 is opened, the cleaning water and the impurities are conveniently discharged through the mutual cooperation of the water outlet 71 and the conduit 72, the discharge of the sewage through the purification component 4 is avoided, and the residual cleaning sewage inside the purification component 4 is avoided.
Referring to fig. 3, the cleaning frame 58 is provided with sliding blocks at two ends, the cleaning heads 59 are installed in a cross manner, the sliding blocks facilitate sliding connection of the cleaning frame 58, so that convenience in use is improved, and the cleaning heads 59 are designed in a cross manner to facilitate cleaning of the side wall of the pretreatment tank 3.
Referring to fig. 2, the bottom end of the pretreatment tank 3 is inclined to facilitate the discharge of the cleaned sewage.
Referring to fig. 4 and 5, one end of the water inlet pipe 62 is communicated through the communicating pipe 8, and one side of the communicating pipe 8 is fixedly connected with a water source, so that water can be conveniently fed into the water inlet mechanism 6.
Referring to fig. 1, a ladder 9 is fixedly installed at one side of the main body 1, so that a user can climb up the main body 1 through the ladder 9.
In this scheme
When the device works normally, the pretreatment tank 3 and the purification component 4 are matched with each other to realize purification treatment of sewage, when the device is not used, the water is sprayed to the side wall of the pretreatment tank 3 through the water inlet mechanism 6, the fixed frame 61 is arranged to realize the fixed installation of the other working components of the water inlet mechanism 6, the water is guided through the water inlet pipe 62, then the water is sent to the spray head 63 through the connecting pipe 64, the spray head 63 is arranged to spray the water to the side wall of the pretreatment tank 3, meanwhile, the purification component 4 is closed, in addition, the cleaning mechanism 5 is matched with the water inlet mechanism 6 to start cleaning the side wall of the pretreatment tank 3, when the cleaning mechanism 5 starts working, the rotating motor 52 is matched with the rotating disc 53 and the transmission column 54 to realize the up-and-down reciprocating motion of the connecting column 56, thereby driving the cleaning frame 58 to move up and down, and the cleaning head 59 on the wash rack 58 is attached to the side wall of the pretreatment tank 3, the upper and lower reciprocating motion is realized by matching the connecting column 56, the cleaning head 59 is enabled to clean the side wall of the pretreatment tank 3, after the cleaning work is completed, the discharging equipment is cleaned through the water outlet mechanism 7, when the cleaning water in the pretreatment tank 3 needs to be discharged, the water valve 73 is opened, the cleaning water and the impurities are conveniently discharged through the mutual matching of the water outlet 71 and the conduit 72, the sewage is prevented from being discharged through the purifying part 4, the residual cleaning sewage in the purifying part 4 is avoided, thereby preventing a large amount of stains from being accumulated in the equipment to cause pollution to the surrounding air environment, and being not beneficial to the health of surrounding personnel.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a sewage treatment filter convenient to clearance, includes main part (1) and backing plate (2), the equal fixed mounting in bottom four corners of main part (1) has backing plate (2), its characterized in that: the inside one end fixed mounting of main part (1) has preliminary treatment pond (3), the one end fixed mounting that preliminary treatment pond (3) were kept away from in main part (1) has purifying part (4), purifying part (4) and preliminary treatment pond (3) fixed connection, the inside fixed mounting of preliminary treatment pond (3) has the convenient clean mechanism (5) of washing, the outside symmetry fixed mounting of main part (1) has mechanism (6) of intaking, the bottom in preliminary treatment pond (3) is equipped with the swift play water mechanism (7) of play water, and goes out water mechanism (7) fixed mounting in the bottom of main part (1).
2. The sewage treatment filter of claim 1, wherein the filter further comprises: the cleaning mechanism (5) comprises a mounting frame (51), a rotating motor (52), a rotating disc (53), a transmission column (54), a base (55), a connecting column (56), a sliding seat (57), a cleaning frame (58) and a cleaning head (59), wherein the rotating motor (52) is fixedly mounted in the mounting frame (51), the rotating disc (53) is fixedly mounted at the output end of the rotating motor (52), the transmission column (54) is rotatably connected to one end of the rotating disc (53) through a rotating shaft, the base (55) is arranged below the rotating motor (52), a sliding groove is formed in the base (55), the connecting column (56) is slidably connected to the inside of the base (55), one end of the connecting column (56) is rotatably connected with one end of the transmission column (54) through a rotating shaft, the sliding seat (57) is arranged below the base (55), the inside sliding connection of sliding seat (57) has wash rack (58), the equal equidistance fixed mounting in one side of wash rack (58) has cleaning head (59).
3. The sewage treatment filter of claim 1, wherein the filter further comprises: intake mechanism (6) include mount (61), inlet tube (62), shower nozzle (63) and connecting pipe (64), the equal fixed mounting in both sides of main part (1) has mount (61), the equal fixed mounting in one side of mount (61) has inlet tube (62), the equal equidistance fixed mounting in one side of inlet tube (62) has connecting pipe (64), and the lateral wall fixed mounting that the one end of connecting pipe (64) all passed main part (1) has shower nozzle (63).
4. The sewage treatment filter of claim 1, wherein the filter further comprises: go out water mechanism (7) and include delivery port (71), pipe (72) and water valve (73), delivery port (71) have been seted up to the bottom in preliminary treatment pond (3), the bottom fixed mounting of delivery port (71) has pipe (72), the one end fixed mounting that delivery port (71) were kept away from in pipe (72) has water valve (73).
5. A sewage treatment filter for facilitating cleaning according to claim 2 wherein: the two ends of the cleaning frame (58) are provided with sliding blocks, and the cleaning heads (59) are installed in a crossed mode.
6. The sewage treatment filter of claim 1, wherein the filter further comprises: the bottom end of the pretreatment tank (3) is inclined at a certain degree.
7. A sewage treatment filter for facilitating cleaning according to claim 3 wherein: one end of the water inlet pipe (62) is communicated through a communicating pipe (8), and one side of the communicating pipe (8) is fixedly connected with a water source.
8. The sewage treatment filter of claim 1, wherein the filter further comprises: a ladder (9) is fixedly arranged on one side of the main body (1).
