Abstract

The invention discloses an environment-friendly permeable brick grinding and polishing device with drying function, which relates to the technical field of production and processing of permeable bricks; in order to solve the problem of easy displacement of permeable bricks during grinding and polishing; the device specifically includes a protection frame, the The protection frame has a U-shaped structure, a transmission plate is arranged on the outer wall of one side of the protection frame, a sponge buffer pad is arranged on the outer wall of the top of the transmission plate, a control panel is arranged on the outer wall of one side of the protection frame, and the inner wall of the protection frame is respectively provided with a conveyor belt, a dust cleaning mechanism, a polishing Polishing mechanism and drying mechanism. In the present invention, the conveyor belt, the fixing plate and the buffer block are arranged, and the fixing plate is fixed on the threaded hole on the surface of the conveyor belt by screws, so that the distance between the two fixing plates can be adjusted by disassembling the screws, so that the fixing plate can be used for different sizes. The permeable brick is fixed, which improves the applicability of the equipment, and the buffer block can buffer the permeable brick between the two fixed plates.

Description

An environmental protection permeable brick grinding and polishing device with drying function

technical field

The invention relates to the technical field of production and processing of permeable bricks, in particular to an environmental protection permeable brick grinding and polishing device with drying function.

Background technique

Permeable bricks are made of aggregates, cement, cement and water through a specific process. Due to the special aggregate gradation, the concrete contains a large number of connected pores. When it rains or the road surface is flooded, the water can smoothly infiltrate into the ground or in the roadbed along these through "lines"; the existing permeable bricks are basically all It is a cuboid component made of stone with a certain particle size as aggregate, fine sand as filler, and cement as connecting material. Due to only conventional vibrating and flattening treatment, its surface is relatively rough, although it has Larger frictional force helps to prevent slipping, but its surface is dull and unsightly, and it is not very decorative when used for paving parks and residential roads. It is also not possible to simply use existing building materials such as polished stone or glazed tiles to replace permeable bricks.

After searching, the Chinese patent application number is CN210818812U, which discloses a permeable brick grinding and polishing device, including a base, a brick feeding roller is arranged on the top surface of the base, and the upper part of the base is sequentially provided with a direction from the input end to the output end. Dust-cleaning mechanism, grinding mechanism, polishing mechanism and hot air tank; dust-sweeping rollers are arranged in the dust-cleaning mechanism, but the above technical solution does not have a corresponding permeable brick limit device, so there are also permeable bricks that are prone to occur when grinding and polishing. The displacement leads to the problem that the surface of the permeable brick cannot be uniformly polished.

SUMMARY OF THE INVENTION

The purpose of the present invention is to solve the shortcomings existing in the prior art, and proposes an environmentally friendly permeable brick grinding and polishing device with drying function.

In order to achieve the above object, the present invention adopts the following technical solutions:

An environmental protection permeable brick grinding and polishing device with drying function, comprising a protection frame, the protection frame is in a U-shaped structure, a transmission plate is arranged on the outer wall of one side of the protection frame, a sponge buffer pad is arranged on the outer wall of the top of the transmission plate, and a protection frame is provided. The side and outer walls are provided with a control panel, and the inner walls of the protection frame are respectively provided with a conveyor belt, a dust cleaning mechanism, a grinding and polishing mechanism and a drying mechanism. The outer walls of the conveyor belt are respectively provided with more than three threaded holes, and two threaded holes located on the same axis form a group. , the top outer wall of the conveyor belt is respectively fixed with more than three fixed plates by screws, the spacing between each fixed plate is the same, and the outer walls of the two sides of the fixed plate are respectively provided with two buffer blocks, the buffer blocks are made of elastic rubber, the conveyor belt and the conveyor plate They are respectively electrically connected to the control panel.

Preferably: the dust cleaning mechanism includes a first rotating motor, a cleaning roller, bristles, two exhaust fans, a third support frame, a filter dust collecting box and an air outlet, the third support frame is arranged on the inner wall of the protection frame, the third support frame is A rotating motor is arranged on the outer wall of one side of the protection frame. Two circular through holes are respectively opened on the outer wall of one side of the protection frame and the outer wall of one side of the third support frame. The two circular through holes are located on the same axis. The output shaft of the motor passes through the protection frame and one side outer wall of the third support frame respectively through the two circular through holes. The cleaning roller is rotatably connected to the outer wall of the output shaft of the first rotating motor through the coupling, and the bristles are arranged on the cleaning roller. The outer wall of one side of the cleaning drum is connected to the inner wall of one side of the third support frame through bearings, and the protection frame and the outer wall of one side of the third support frame are respectively provided with four circular through holes, and the two are located on the same axis. The circular through holes are one group, two exhaust fans are respectively arranged on the inner walls of the two groups of circular through holes, the filter dust box is arranged on the outer wall of one side of the protection frame, and the air outlet is arranged on one side of the filter box. On the side outer wall, the first rotating motor and the exhaust fan are respectively electrically connected with the control panel.

Further: the grinding and polishing mechanism includes a fine grinding roller, a rough grinding roller, two rotating shaft fixing blocks, two rotating columns, a second rotating motor, a third rotating motor, a second supporting frame, two output shaft fixing blocks and Two motor mounting plates, the second support frame is arranged on the inner wall of the protection frame, the outer walls of the protection frame and the second support frame are respectively provided with four guide grooves, and the guide grooves penetrate through the protection frame and the outer wall of the second support frame, and the four The inner wall of the guide groove is respectively provided with eight first T-shaped chutes, two output shaft fixing blocks and two rotating shaft fixing blocks are respectively slidably connected to the inner walls of the eight first T-shaped chutes, and two motor mounting plates are respectively provided on the protection On the outer wall of one side of the frame, the second rotating motor and the third rotating motor are respectively arranged on the top outer wall of the two motor mounting plates, the bottom outer wall of the motor mounting plate is respectively provided with two stiffening ribs, the motor mounting plate and the two stiffening ribs are respectively arranged. The outer wall of the rib is respectively provided with two fixing pieces, the outer wall of one side of the protection frame is respectively provided with four second T-shaped chutes and more than three threaded holes, and the two motor mounting plates and the four stiffening ribs are respectively slidably connected to the four second T-shaped slides. On the inner wall of the second T-shaped chute, the inner wall of one side of the fixing plate is fixed on the outer wall of one side of the protection frame by screws, and the outer wall of one side of the output shaft fixing block has a circular through hole. The output shaft passes through the two output shaft fixing blocks through two circular through holes respectively, and the two rotating columns are respectively connected to the outer wall of the output shaft of the second rotating motor and the third rotating motor through the coupling, and the fine grinding roller and the rough grinding roller are respectively connected. The grinding rollers are respectively arranged on the outer walls of the two rotating columns, the outer walls of one side of the two rotating shaft fixing blocks are respectively provided with two circular through holes, and the two rotating columns are respectively connected to the inner walls of the two rotating shaft fixing blocks through bearings. The rotating shaft fixing block is in a T-shaped structure, and one side outer wall of the rotating shaft fixing block is fixed on one side outer wall of the protection frame by screws.

Further preferably: the drying mechanism includes a blower and a first support frame; the first support frame is arranged on the inner wall of the protection frame, and the blower is arranged on the top outer wall of the first support frame, and the blower is electrically connected to the control panel.

As a preferred option of the present invention: the outer wall of the top of the second support frame is provided with a first nozzle liquid inlet pipe, a spray liquid inlet pipe and a second nozzle liquid inlet pipe, the outer wall of the bottom of the second support frame is provided with a spray pipe, the first nozzle liquid inlet pipe, the spray liquid inlet pipe and the second nozzle liquid inlet pipe are respectively arranged A first spray head and a second spray head are respectively arranged on one inner wall of the two support frames.

As a further preferred aspect of the present invention: a water storage tank is arranged on the inner wall of the bottom of the protection frame, a liquid outlet pipe is arranged on the outer wall of one side of the protection frame, a protection frame is arranged on the inner wall of the bottom of the water storage tank, and a groove is formed on the inner wall of the bottom of the protection frame. The top outer wall and the bottom inner wall of the water storage tank form an included angle of 30 degrees, the liquid outlet pipe is arranged on the inner wall of one side of the groove, and the outer wall of one side of the protection frame is fixed with a sealing door through hinges.

As a further solution of the present invention: the inner wall of the protection frame is respectively provided with two reinforcing plates, the reinforcing plates are located in the middle of the conveyor belt, the top outer wall of the reinforcing plate is in contact with the bottom outer wall of the conveyor belt, and the two reinforcing plates are respectively connected with the fine grinding roller and the roughing roller. The grinding rollers are on the same axis.

On the basis of the aforementioned solution: the inner wall of the protection frame is respectively provided with two telescopic rods, the outer wall of the telescopic rod is respectively provided with more than three threaded holes, the outer wall of one side of the two telescopic rods is respectively provided with two guide plates, the two guide The outer wall of one side of the plate is respectively provided with four connecting plates, and the two opposite connecting plates form a group. The two sets of connecting plates are respectively arranged on the outer wall of one side of the two guide plates, and the connecting plates and the guide plates form an included angle of 30 degrees. , the bottom and top outer walls of the two connecting plates are respectively connected with more than three guide wheels through bearings.

On the basis of the foregoing solution, it is preferable that the outer walls of the first support frame, the second support frame and the third support frame are respectively provided with six shielding plates, and the outer wall of the bottom of the shielding plates is provided with a shielding curtain.

The beneficial effects of the present invention are:

1. By setting the conveyor belt, the fixing plate and the buffer block, the fixing plate is fixed on the threaded holes on the surface of the conveyor belt by screws, so that the distance between the two fixing plates can be adjusted by removing the screws, so that the fixing plate can be used for different sizes. The permeable brick is fixed, which improves the applicability of the equipment. At the same time, the buffer block can buffer the permeable brick between the two fixed plates, so as to prevent the permeable brick from being damaged by hard contact with the fixed plate during grinding and polishing. situation occurs.

2. By setting the cleaning drum, the exhaust fan and the filter dust box, the cleaning drum is rotated by the first rotating motor, and the rotating cleaning drum cleans the permeable bricks on the conveyor belt through the bristles. A large amount of dust is sucked into the filter dust box, and the filter dust box discharges the filtered gas from the equipment through the air outlet, avoiding the phenomenon of dust flying around the equipment, and improving the cleanliness of the working environment of the staff.

3. By setting the fine grinding roller, rough grinding roller, guide groove, output shaft fixing block, rotating shaft fixing block and T-shaped chute, the fine grinding roller and rough grinding roller can effectively grind and polish the permeable brick, the motor mounting plate and the rotating shaft The fixed block can be moved up and down on the T-shaped chute, so that the upper and lower positions of the fine grinding roller and the rough grinding roller can be adjusted, so that the fine grinding roller and the rough grinding roller can shape and polish the permeable bricks of different thicknesses. At the same time, the output shaft fixing block and the rotating shaft fixing block can play a good role in fixing the rotating column, so that the fine grinding roller and the rough grinding roller will not shake violently during work, which effectively improves the grinding of the fine grinding roller and the rough grinding roller. As a result, the guide groove can provide guidance when the output shaft fixing block and the rotating shaft fixing block move up and down, so that the entire device is more stable during operation.

4. By setting the spray pipe, the first spray head and the second spray head, the external water supply equipment sends the water flow through the spray liquid inlet pipe, the first spray head liquid inlet pipe and the second spray head liquid inlet pipe into the spray pipe, the first spray head and the second spray head respectively. In the second nozzle, the water mist sprayed by the spray pipe can be combined with the dust generated inside the grinding and polishing mechanism, so that the dust falls on the surface of the conveyor belt, avoiding excessive dust around the grinding and polishing mechanism. The first nozzle and the second nozzle can be Clean up the dust falling on the conveyor belt, keep the cleanliness of the conveyor belt, and improve the transmission efficiency of the conveyor belt.

5. By setting the water storage tank and the protective frame, the water with a lot of dust generated inside the grinding and polishing mechanism will flow into the water storage tank for recycling through the gap between the conveyor belt and the protective frame, and the protective frame can effectively avoid the mud deposited at the bottom of the water storage tank. The sand blocks the liquid outlet pipe, so that the liquid outlet pipe can be drained normally all the time. The staff regularly opens the sealing door to clean the sediment deposited on the inner wall of the water storage tank, so as to effectively recover the water with a large amount of dust generated inside the grinding and polishing mechanism. , to avoid the problem of cross flow of mud and water around the equipment.

Description of drawings

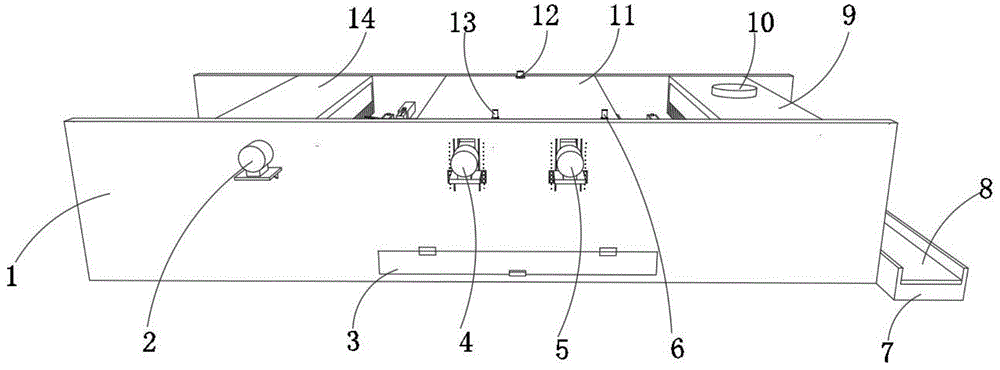

Fig. 1 is the front view structure schematic diagram of a kind of environmental protection permeable brick grinding and polishing device with drying function proposed by the present invention;

2 is a schematic side view of the structure of an environmentally friendly permeable brick grinding and polishing device with a drying function proposed by the present invention;

Fig. 3 is the top view structure schematic diagram of a kind of environmental protection permeable brick grinding and polishing device with drying function proposed by the present invention;

4 is a schematic structural diagram of a cleaning mechanism of an environmentally friendly permeable brick grinding and polishing device with a drying function proposed by the present invention;

5 is a schematic structural diagram of a grinding and polishing mechanism of an environmentally friendly permeable brick grinding and polishing device with drying function proposed by the present invention;

6 is a schematic side sectional structural diagram of a grinding and polishing mechanism of an environmentally friendly permeable brick grinding and polishing device with a drying function proposed by the present invention;

7 is a schematic structural diagram of a water storage tank of an environmentally friendly permeable brick grinding and polishing device with drying function proposed by the present invention;

8 is a schematic structural diagram of a rotating shaft fixing block of an environmentally friendly permeable brick grinding and polishing device with drying function proposed by the present invention;

9 is a schematic structural diagram of a motor mounting plate of an environmentally friendly permeable brick grinding and polishing device with a drying function proposed by the present invention;

10 is a schematic circuit flow diagram of an environmentally friendly permeable brick grinding and polishing device with a drying function proposed by the present invention.

In the figure: 1 protective frame, 2 first rotating motor, 3 sealing door, 4 second rotating motor, 5 third rotating motor, 6 first nozzle liquid inlet pipe, 7 conveying plate, 8 sponge cushion, 9 first support Rack, 10 blower, 11 second support frame, 12 spray liquid inlet pipe, 13 second nozzle liquid inlet pipe, 14 third support frame, 15 buffer block, 16 fixed plate, 17 conveyor belt, 18 liquid outlet pipe, 19 guide groove , 20 rotating column, 21 filter dust box, 22 air outlet, 23 control panel, 24 guide plate, 25 connecting plate, 26 telescopic rod, 27 cleaning roller, 28 guide wheel, 29 exhaust fan, 30 bristles, 31 motor mounting plate , 32 blocking plates, 33 blocking curtains, 34 first nozzles, 35 spray pipes, 36 second nozzles, 37 fine grinding rollers, 38 rough grinding rollers, 39 shaft fixing blocks, 40 water storage tanks, 41 reinforcing plates, 42 protective frames, 43 The first T-shaped chute, 44 Stiffeners, 45 Fixed piece, 46 Output shaft fixing block, 47 The second T-shaped chute.

Detailed ways

The technical solution of the present patent will be described in further detail below in conjunction with specific embodiments.

Embodiments of the present patent are described in detail below, examples of which are illustrated in the accompanying drawings, wherein the same or similar reference numerals refer to the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary and are only used to explain the present patent, but should not be construed as a limitation on the present patent.

In the description of this patent, it should be understood that the terms "center", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", The orientation or positional relationship indicated by "top", "bottom", "inner", "outer", etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present patent and simplifying the description, rather than indicating or implying The device or element referred to must have, be constructed, and operate in a particular orientation and is not to be construed as a limitation of this patent.

In the description of this patent, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected", "connected" and "arranged" should be understood in a broad sense. , it can also be detachably connected and set, or integrally connected and set. For those of ordinary skill in the art, the specific meanings of the above terms in this patent can be understood according to specific situations.

An environmentally friendly permeable brick grinding and polishing device with drying function, as shown in Figures 1-10, includes a protection frame 1, the protection frame 1 is in a U-shaped structure, and the outer wall of one side of the protection frame 1 is provided with a conveying plate 7, which transmits The outer wall of the top of the plate 7 is provided with a sponge buffer pad 8, the outer wall of one side of the protection frame 1 is provided with a control panel 23, and the inner wall of the protection frame 1 is respectively provided with a conveyor belt 17, a dust cleaning mechanism, a grinding and polishing mechanism and a drying mechanism. There are more than three threaded holes, two threaded holes located on the same axis are a group, and the outer wall of the top of the conveyor belt 17 is respectively fixed with more than three fixed plates 16 by screws. The distance between each fixed plate 16 is the same, and the fixed plate 16 Two buffer blocks 15 are respectively disposed on the outer walls on both sides, the buffer blocks 15 are made of elastic rubber, and the conveyor belt 17 and the conveyor plate 7 are respectively electrically connected to the control panel 23 .

In order to effectively clean the permeable bricks before polishing; as shown in Figure 1, Figure 2, Figure 4, the cleaning mechanism includes a first rotating motor 2, a cleaning drum 27, bristles 30, two exhaust fans 29, Three supporting frames 14 , filter dust box 21 and air outlet 22 , the third supporting frame 14 is arranged on the inner wall of the protection frame 1 , the first rotating motor 2 is arranged on the outer wall of one side of the protection frame 1 , and the protection frame 1 side The outer wall and the outer wall of one side of the third support frame 14 are respectively provided with two circular through holes, the two circular through holes are located on the same axis, and the output shaft of the first rotating motor 2 is penetrated and protected by the two circular through holes respectively. One side outer wall of the frame 1 and the third support frame 14, the cleaning roller 27 is rotatably connected to the outer wall of the output shaft of the first rotating motor 2 through the coupling, and the bristles 30 are arranged on the outer wall of the cleaning roller 27, and one side of the cleaning roller 27 is The outer wall is rotatably connected to the inner wall on one side of the third support frame 14 through bearings. The outer walls of the protection frame 1 and the third support frame 14 are respectively provided with four circular through holes, and two circular through holes located on the same axis. As a group, two exhaust fans 29 are respectively arranged on the inner walls of the two groups of circular through holes, the filter dust box 21 is arranged on the outer wall of one side of the protection frame 1, and the air outlet 22 is arranged on one side of the filter box 21. On the side outer wall, the first rotating motor 2 and the exhaust fan 29 are respectively electrically connected with the control panel 23; by setting the cleaning drum 27, the exhaust fan 29 and the filter dust box 21, the cleaning drum 27 is rotated by the first rotating motor 2, The rotating cleaning roller 27 cleans the permeable bricks on the conveyor belt 17 through the bristles 30, and the exhaust fan 29 can suck a large amount of dust generated during the cleaning into the filter dust box 21, and the filter dust box 21 will filter the gas. The outside of the equipment is excluded through the air outlet 22, so as to avoid the phenomenon of dust floating around the equipment, and improve the cleanliness of the working environment of the staff.

In order to effectively grind and polish the permeable brick; as shown in Figure 1, Figure 5, Figure 8, Figure 9, the grinding and polishing mechanism includes a fine grinding roller 37, a rough grinding roller 38, two rotating shaft fixing blocks 39, two rotating The column 20, the second rotating motor 4, the third rotating motor 5, the second support frame 11, the two output shaft fixing blocks 46 and the two motor mounting plates 31, the second support frame 11 is arranged on the inner wall of the protection frame 1, The outer walls of the protection frame 1 and the second support frame 11 are respectively provided with four guide grooves 19. The guide grooves 19 penetrate through the outer walls of the protection frame 1 and the second support frame 11. The inner walls of the four guide grooves 19 are respectively provided with eight first T-shaped strips. The chute 43 , the two output shaft fixing blocks 46 and the two rotating shaft fixing blocks 39 are respectively slidably connected to the inner walls of the eight first T-shaped chutes 43 , and the two motor mounting plates 31 are respectively arranged on the outer wall of one side of the protection frame 1 . On the top, the second rotating motor 4 and the third rotating motor 5 are respectively arranged on the top outer walls of the two motor mounting plates 31, the bottom outer walls of the motor mounting plates 31 are respectively provided with two stiffening ribs 44, the motor mounting plate 31 and the two The outer wall of the stiffening rib 44 is respectively provided with two fixing pieces 45, the outer wall of one side of the protection frame 1 is respectively provided with four second T-shaped chute 47 and more than three threaded holes, two motor mounting plates 31 and four stiffening ribs 44 are slidably connected to the inner walls of the four second T-shaped chutes 47 respectively, the inner wall of one side of the fixing piece 45 is fixed on the outer wall of one side of the protection frame 1 by screws, and the outer wall of one side of the output shaft fixing block 46 is provided with a circular through hole. , the output shafts of the second rotating motor 4 and the third rotating motor 5 respectively pass through the two output shaft fixing blocks 46 through two circular through holes, and the two rotating columns 20 are respectively rotatably connected to the second rotating motor 4 through a coupling. And on the outer wall of the output shaft of the third rotating motor 5, the fine grinding roller 37 and the rough grinding roller 38 are respectively arranged on the outer walls of the two rotating columns 20, and the outer walls of the two rotating shaft fixing blocks 39 are respectively provided with two circular passages. The two rotating columns 20 are respectively connected to the inner walls of the two rotating shaft fixing blocks 39 through bearings. The rotating shaft fixing blocks 39 have a T-shaped structure. By setting the fine grinding roller 37, the rough grinding roller 38, the guide groove 19, the output shaft fixing block 46, the rotating shaft fixing block 39 and the T-shaped chute, the fine grinding roller 37 and the rough grinding roller 38 can effectively grind the permeable brick For polishing, the motor mounting plate 31 and the shaft fixing block 39 can move up and down on the T-shaped chute, so that the up and down positions of the fine grinding roller 37 and the rough grinding roller 38 can be adjusted, so that the fine grinding roller 37 and the rough grinding roller can be adjusted. The roller 38 can shape, polish and polish the permeable bricks of different thicknesses. At the same time, the output shaft fixing block 46 and the rotating shaft fixing block 39 can play a very good role in fixing the rotating column 20, so that the fine grinding roller 37 and the rough grinding roller 38 can be used when working. Violent shaking will not occur, which effectively improves the grinding effect of the fine grinding roller 37 and the rough grinding roller 38. The guide groove 19 can provide a guiding function when the output shaft fixing block 46 and the rotating shaft fixing block 39 move up and down, so that the entire device can be More stable operation; by setting stiffeners 44 And the fixing piece 45, the stiffening rib 44 can effectively support the motor mounting plate 31 to avoid excessive shaking of the rotating motor during operation, and at the same time the fixing piece 45 can firmly install the motor mounting plate 31 and the stiffening rib 44 on the protective frame 1. On the outer wall of the machine, the rotating motor is more stable during operation, and the polishing effect of the grinding and polishing mechanism is improved.

In order to quickly dry the permeable bricks; as shown in FIG. 1, the drying mechanism includes a blower 10 and a first support frame 9; the first support frame 9 is arranged on the inner wall of the protection frame 1, and the blower 10 is arranged on the first support frame 9. The blower 10 on the top outer wall of the support frame 9 is electrically connected to the control panel 23; by setting the blower 10, the permeable bricks can be quickly dried, so that the staff can quickly recycle the permeable bricks and improve work efficiency.

In order to deal with the dust generated inside the grinding and polishing mechanism; as shown in FIG. 1 and FIG. 5 , the outer wall of the top of the second support frame 11 is respectively provided with a first nozzle liquid inlet pipe 6 , a spray liquid inlet pipe 12 and a second nozzle nozzle The liquid inlet pipe 13, the bottom outer wall of the second support frame 11 is provided with a spray pipe 35, and the inner wall of one side of the second support frame 11 is provided with a first spray head 34 and a second spray head 36 respectively; and the second nozzle 36, the external water supply equipment sends the water flow through the spray inlet pipe 12, the first nozzle inlet pipe 6 and the second nozzle inlet pipe 13 into the spray pipe 35, the first nozzle 34 and the second nozzle 36 respectively. , the water mist sprayed by the spray pipe 35 can be combined with the dust generated inside the grinding and polishing mechanism, so that the dust falls on the surface of the conveyor belt 17 to avoid excessive dust around the grinding and polishing mechanism. The first nozzle 34 and the second nozzle 36 The dust falling on the conveyor belt 17 can be cleaned, the cleanliness of the conveyor belt 17 can be maintained, and the transmission efficiency of the conveyor belt 17 can be improved.

In order to recover the water with a large amount of dust generated inside the grinding and polishing mechanism; as shown in Figure 1, Figure 6, Figure 7, the inner wall of the bottom of the protection frame 1 is provided with a water storage tank 40, and the outer wall of one side of the protection frame 1 is provided with a water storage tank 40. The liquid outlet pipe 18, the bottom inner wall of the water storage tank 40 is provided with a protective frame 42, the bottom inner wall of the protective frame 42 is provided with a groove, the top outer wall of the groove and the bottom inner wall of the water storage tank 40 are at an included angle of 30 degrees, and the liquid outlet pipe 18 is provided with On the inner wall of one side of the groove, the outer wall of one side of the protection frame 1 is fixed with a sealing door 3 through hinges; by arranging the water storage tank 40 and the protection frame 42, the water with a large amount of dust generated inside the grinding and polishing mechanism will pass through the conveyor belt 17. The gap between it and the protection frame 1 flows into the water storage tank 40 for recycling. The protection frame 42 can effectively prevent the sediment deposited at the bottom of the water storage tank 40 from blocking the liquid outlet pipe 18, so that the liquid outlet pipe 18 can be drained normally all the time, and the staff can open it regularly. The sealing door 3 cleans the sediment deposited on the inner wall of the water storage tank 40, so as to effectively recover the water with a large amount of dust generated inside the grinding and polishing mechanism, and avoid the problem of cross flow of mud and water around the equipment.

In order to avoid the concavity of the conveyor belt 17 when the permeable brick is ground and polished, which will affect the grinding of the permeable brick; as shown in FIG. The top outer wall of the reinforcing plate 41 is in contact with the bottom outer wall of the conveyor belt 17, and the two reinforcing plates 41 are respectively on the same axis as the fine grinding roll 37 and the rough grinding roll 38; 38 When the permeable bricks are polished, the reinforcing plate 41 can effectively support the permeable bricks, so as to prevent the conveyor belt 17 from being stressed and dented when the permeable bricks are ground and polished, which affects the polishing of the permeable bricks.

In order to guide the permeable bricks before entering the grinding and polishing mechanism; as shown in Figure 3, Figure 4, Figure 5, the inner wall of the protection frame 1 is respectively provided with two telescopic rods 26, and the outer walls of the telescopic rods 26 are respectively provided with more than three threaded holes, two guide plates 24 are respectively provided on the outer wall of one side of the two telescopic rods 26, four connecting plates 25 are respectively arranged on the outer wall of one side of the two guide plates 24, and the two opposite connecting plates 25 are one group, two groups The connecting plates 25 are respectively arranged on one side outer wall of the two guide plates 24. The connecting plates 25 and the guide plates 24 are at an included angle of 30 degrees. Guide wheel 28; by setting the guide wheel 28, the guide plate 24 and the telescopic rod 26, the guide wheel 28 can guide the permeable bricks between the two fixed plates 16, so that the permeable bricks can be moved as far as possible to the middle part of the transmission plate 17, The distance between the two guide plates 24 can be adjusted by the telescopic rod 26, so that the guide plates 24 can guide the permeable bricks of different sizes.

In order to further improve the sealing effect of the grinding and polishing device; as shown in FIG. 5 , the outer walls of the first support frame 9 , the second support frame 11 and the third support frame 14 are respectively provided with six shielding plates 32 , and the outer walls of the bottom of the shielding plates 32 are respectively provided with six shielding plates 32 . A blocking curtain 33 is provided; by setting the blocking plate 32 and the blocking curtain 33, the sealing effect of the grinding and polishing device can be further improved, so that the dust generated during grinding and polishing will not be scattered into the surrounding air in large quantities, and the surrounding natural environment is protected. Improve the surrounding air quality.

When in use in this embodiment, the permeable bricks to be ground and polished are placed between the two fixed plates 16 on the conveyor belt 17, and then the conveyor belt 17, the dust cleaning mechanism, the grinding and polishing mechanism and the drying mechanism are opened through the control panel 23, Let the grinding and polishing equipment start running. At this time, the conveyor belt 17 transports the permeable bricks to the cleaning mechanism once for cleaning, then to the grinding and polishing mechanism for grinding and polishing, and then to the drying mechanism for rapid drying. When the permeable bricks are transported When reaching the other end of the conveyor belt 17, the permeable bricks will fall to the conveyor plate 7 by their own gravity, and finally be sent out through the conveyor plate 7 to be recovered by the staff. By setting the conveyor belt 17, the fixed plate 16 and the buffer block 15, the fixed plate 16 The screws are fixed to the threaded holes on the surface of the conveyor belt 17, so that the distance between the two fixing plates 16 can be adjusted by removing the screws, so that the fixing plates 16 can fix the permeable bricks of different sizes, and the buffer block 15 can Buffer the permeable bricks located between the two fixed plates 16 to prevent the permeable bricks from being damaged due to hard contact with the fixed plates 16 during grinding and polishing. The sponge cushion 8 can prevent the permeable bricks from falling. The problem of damage to the conveyor plate 7 occurs. The cleaning roller 27 is rotated by the first rotating motor 2. The rotating cleaning roller 27 cleans the permeable bricks on the conveyor belt 17 through the bristles 30. The exhaust fan 29 can remove the dust. A large amount of dust generated during ash is sucked into the filter dust box 21, and the filter dust box 21 discharges the filtered gas from the equipment through the air outlet 22. The fine grinding roller 37 and the rough grinding roller 38 can effectively grind and polish the permeable bricks. The motor mounting plate 31 and the shaft fixing block 39 can move up and down on the T-shaped chute, so that the up and down positions of the fine grinding roller 37 and the rough grinding roller 38 can be adjusted, so that the fine grinding roller 37 and the rough grinding roller 38 can be adjusted. The permeable bricks of different thicknesses can be shaped, polished and polished. At the same time, the output shaft fixing block 46 and the rotating shaft fixing block 39 can play a good role in fixing the rotating column 20. The stiffening rib 44 can effectively support the motor mounting plate 31, while the fixing plate 45 can firmly install the motor mounting plate 31 and the stiffening rib 44 on the outer wall of the protection frame 1, so that the motor can be rotated. It is more stable during operation. By setting the blower 10, the permeable brick can be quickly dried, so that the staff can quickly recycle the permeable brick. The pipe 6 and the second nozzle liquid inlet pipe 13 are respectively fed into the spray pipe 35, the first nozzle 34 and the second nozzle 36. The water mist sprayed by the spray pipe 35 can be combined with the dust generated inside the grinding and polishing mechanism, so that the dust The first nozzle 34 and the second nozzle 36 can clean up the dust falling on the conveyor belt 17, maintain the cleanliness of the conveyor belt 17, and grind and polish the inside of the polishing mechanism. produced with a large amount of ash The dusty water will flow into the water storage tank 40 through the gap between the conveyor belt 17 and the protection frame 1 for recovery. The protection frame 42 can effectively prevent the sediment deposited at the bottom of the water storage tank 40 from blocking the liquid outlet pipe 18, so that the liquid outlet pipe 18 can always be used. For normal drainage, the staff regularly opens the sealing door 3 to clean up the sediment deposited on the inner wall of the water storage tank 40. When the fine grinding roller 37 and the rough grinding roller 38 grind the permeable bricks, the reinforcing plate 41 can effectively support the permeable bricks. The guide wheel 28 can guide the permeable bricks between the two fixed plates 16, so that the permeable bricks can move as far as possible to the middle part of the conveying plate 17, and the distance between the two guide plates 24 can be adjusted by the telescopic rod 26, thereby The guide plate 24 can be used to guide the permeable bricks of different sizes. By setting the blocking plate 32 and the blocking curtain 33, the sealing effect of the grinding and polishing device can be further improved, so that the dust generated during grinding and polishing will not be scattered into the surrounding air. .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (9)

1. An environmental protection permeable brick grinding and polishing device with drying function, comprising a protective frame (1), characterized in that the protective frame (1) is in a U-shaped structure, and the outer wall of one side of the protective frame (1) is provided with a transmission Plate (7), the top outer wall of the transmission plate (7) is provided with a sponge buffer pad (8), the outer wall of one side of the protection frame (1) is provided with a control panel (23), and the inner wall of the protection frame (1) is respectively provided with a conveyor belt (17) , cleaning mechanism, grinding and polishing mechanism and drying mechanism, the outer wall of the conveyor belt (17) is respectively provided with three or more threaded holes, and the two threaded holes located on the same axis form a group, and the top outer wall of the conveyor belt (17) is respectively fixed by screws There are more than three fixing plates (16), and the distance between each fixing plate (16) is the same. Two buffer blocks (15) are respectively provided on the outer walls of both sides of the fixing plate (16), and the buffer blocks (15) are made of elastic rubber. The conveyor belt (17) and the conveyor plate (7) are respectively electrically connected with the control panel (23). 2. The environmental protection water-permeable brick grinding and polishing device with drying function according to claim 1, wherein the dust cleaning mechanism comprises a first rotating motor (2), a cleaning drum (27), a brush (30). ), two exhaust fans (29), a third support frame (14), a filter dust box (21) and an air outlet (22), the third support frame (14) is arranged on the inner wall of the protection frame (1), The first rotating motor (2) is arranged on the outer wall of one side of the protection frame (1), and the outer wall of one side of the protection frame (1) and the outer wall of one side of the third support frame (14) are respectively provided with two circular through holes. The two circular through holes are located on the same axis, and the output shaft of the first rotating motor (2) respectively penetrates through the two circular through holes through the outer wall of one side of the protective frame (1) and the third support frame (14) to clean the drum. (27) is rotatably connected to the outer wall of the output shaft of the first rotating motor (2) through a coupling, the bristles (30) are arranged on the outer wall of the cleaning drum (27), and the outer wall of one side of the cleaning drum (27) is rotatably connected by a bearing On the inner wall of one side of the third support frame (14), the protection frame (1) and the outer wall of one side of the third support frame (14) are respectively provided with four circular through holes, two circular through holes located on the same axis. There are one group of holes, two exhaust fans (29) are respectively arranged on the inner walls of the two groups of circular through holes, the filter dust box (21) is arranged on the outer wall of one side of the protection frame (1), and the air outlet (22) The first rotating motor (2) and the exhaust fan (29) are electrically connected to the control panel (23) respectively, which are arranged on one side outer wall of the filter dust collecting box (21). 3. The environmental protection permeable brick grinding and polishing device with drying function according to claim 2, wherein the grinding and polishing mechanism comprises a fine grinding roller (37), a rough grinding roller (38), two rotating shafts A fixed block (39), two rotating columns (20), a second rotating motor (4), a third rotating motor (5), a second support frame (11), two output shaft fixing blocks (46) and two The motor mounting plate (31), the second support frame (11) is arranged on the inner wall of the protection frame (1), and the outer walls of the protection frame (1) and the second support frame (11) are respectively provided with four guide grooves (19) , the guide groove (19) runs through the outer wall of the protection frame (1) and the second support frame (11), the inner walls of the four guide grooves (19) are respectively provided with eight first T-shaped sliding grooves (43), and the two output shafts are fixed The block (46) and the two rotating shaft fixing blocks (39) are respectively slidably connected to the inner walls of the eight first T-shaped chutes (43), and the two motor mounting plates (31) are respectively arranged on one side of the protection frame (1) On the outer wall, the second rotating motor (4) and the third rotating motor (5) are respectively arranged on the top outer walls of the two motor mounting plates (31), and the bottom outer walls of the motor mounting plates (31) are respectively provided with two stiffening ribs ( 44), the motor mounting plate (31) and the outer walls of the two stiffening ribs (44) are respectively provided with two fixing pieces (45), and the outer wall of one side of the protection frame (1) is respectively provided with four second T-shaped chute (47) ) and more than three threaded holes, two motor mounting plates (31) and four stiffening ribs (44) are respectively slidably connected to the inner walls of the four second T-shaped sliding grooves (47), and one side of the fixing plate (45) The inner wall is fixed on the outer wall of one side of the protection frame (1) by screws, the outer wall of one side of the output shaft fixing block (46) is provided with a circular through hole, and the output of the second rotating motor (4) and the third rotating motor (5) The shafts respectively pass through the two output shaft fixing blocks (46) through two circular through holes, and the two rotating columns (20) are respectively rotatably connected to the second rotating motor (4) and the third rotating motor (5) through a coupling. On the outer wall of the output shaft, the fine grinding roller (37) and the rough grinding roller (38) are respectively arranged on the outer walls of the two rotating columns (20), and the two outer walls of the two rotating shaft fixing blocks (39) are respectively provided with two circles on one side. The two rotating columns (20) are respectively connected to the inner walls of the two rotating shaft fixing blocks (39) through bearings. The screws are fixed on one side outer wall of the protection frame (1). 4. The environmental protection permeable brick grinding and polishing device with drying function according to claim 3, wherein the drying mechanism comprises a blower (10) and a first support frame (9); the first support frame (9) is arranged on the inner wall of the protective frame (1), the blower (10) is arranged on the top outer wall of the first support frame (9) and the blower (10) is electrically connected with the control panel (23). 5. The environmental protection permeable brick grinding and polishing device with drying function according to claim 4, wherein the top outer wall of the second support frame (11) is respectively provided with a first nozzle liquid inlet pipe (6) , the spray liquid inlet pipe (12) and the second nozzle liquid inlet pipe (13), the bottom outer wall of the second support frame (11) is provided with a spray pipe (35), and the inner wall of one side of the second support frame (11) is respectively provided with A first spray head (34) and a second spray head (36). 6. The environmental protection permeable brick grinding and polishing device with drying function according to claim 5, characterized in that, a water storage tank (40) is provided on the inner wall of the bottom of the protection frame (1), and the protection frame (1) is a The side and outer walls are provided with a liquid outlet pipe (18), the bottom inner wall of the water storage tank (40) is provided with a protective frame (42), and the bottom inner wall of the protective frame (42) is provided with a groove, and the top outer wall of the groove is in contact with the water storage tank (40). The inner wall of the bottom is at an included angle of 30 degrees, the liquid outlet pipe (18) is arranged on the inner wall of one side of the groove, and the outer wall of one side of the protection frame (1) is fixed with a sealing door (3) through hinges. 7 . The environmental protection permeable brick grinding and polishing device with drying function according to claim 6 , wherein two reinforcing plates ( 41 ) are respectively provided on the inner wall of the protection frame ( 1 ), and the reinforcing plates ( 41 ). 8 . ) is located in the middle of the conveyor belt (17), the top outer wall of the reinforcing plate (41) is in contact with the bottom outer wall of the conveyor belt (17), and the two reinforcing plates (41) are in the same position with the fine grinding roller (37) and the rough grinding roller (38) respectively. on the axis. 8. The environmental protection permeable brick grinding and polishing device with drying function according to claim 7, characterized in that two telescopic rods (26) are respectively provided on the inner wall of the protection frame (1), and the telescopic rods (26) ) The outer wall is respectively provided with more than three threaded holes, two guide plates (24) are respectively arranged on the outer wall of one side of the two telescopic rods (26), and four connecting plates (24) are respectively arranged on the outer wall of one side of the two guide plates (24). 25), two opposite connecting plates (25) are a group, two groups of connecting plates (25) are respectively arranged on one side outer wall of the two guide plates (24), the connecting plates (25) and the guide plates (24) At an included angle of thirty degrees, the bottom and top outer walls of the two connecting plates (25) are respectively connected with more than three guide wheels (28) through bearings for rotation. 9. The environmental protection permeable brick grinding and polishing device with drying function according to claim 8, wherein the first support frame (9), the second support frame (11) and the third support frame ( 14) The outer walls are respectively provided with six shielding plates (32), and the outer walls at the bottom of the shielding plates (32) are provided with shielding curtains (33).
