CN111972870A

CN111972870A - Component type cabinet convenient to install

Info

Publication number: CN111972870A
Application number: CN202010992895.7A
Authority: CN
Inventors: 陆晓朋; 徐学艇; 王涛; 吴晋飞; 陈令明; 黄计想; 赵飞; 韩伟虎; 陈汉伟; 陈向峰; 徐娜; 梁猛; 司博; 王淑婷
Original assignee: Gold Mantis Fine Decoration Technology Suzhou Co Ltd
Current assignee: Gold Mantis Fine Decoration Technology Suzhou Co Ltd
Priority date: 2020-09-21
Filing date: 2020-09-21
Publication date: 2020-11-24

Abstract

The invention discloses a component type cabinet convenient to install, and relates to the technical field of cabinet installation. The cabinet comprises a cabinet, a mounting plate and a base, wherein the cabinet is provided with a plurality of clamping blocks, one side surface of the cabinet is fixedly connected with the clamping blocks, the clamping blocks are T-shaped, and the other side surface of the cabinet is provided with a clamping groove matched with the clamping blocks. According to the invention, the cabinet can be spliced by inserting the clamping block on one cabinet into the clamping groove on the other cabinet, so that the use space of the cabinets is enlarged, the cabinets can be adjusted to a high position through the lifting mechanism, the cabinets can be installed without being lifted by workers, the installation difficulty of the cabinet installation work is reduced, and when articles need to be taken, the heights of the cabinets can be adjusted by the lifting mechanism so as to be convenient for taking the articles.

Description

Component type cabinet convenient to install

Technical Field

The invention belongs to the technical field of cabinet installation, and particularly relates to a component type cabinet convenient to install.

Background

The cupboard is a platform for storing kitchenware and cooking operation in a kitchen, and consists of five parts, namely a cupboard body, a door plate, hardware, a table board and electric appliances.

The existing cabinet installation mode is that a hanging plate is generally installed on a wall, a hook is installed on the rear end surface of a cabinet, and then the hook is hung on the hanging plate to complete the installation of the cabinet, so that although the cabinet can be installed, the cabinet is heavy in weight, a worker needs to lift the cabinet to install the cabinet, the labor intensity of the worker is increased, and the cabinet is inconvenient to install and is inconvenient to take articles in the cabinet.

To solve the above problems, the present invention provides a modular cabinet which is easy to install.

Disclosure of Invention

The invention aims to provide a component type cabinet convenient to mount, and solves the problem that the existing cabinet is inconvenient to mount.

In order to solve the technical problems, the invention is realized by the following technical scheme:

the invention relates to a component type cabinet convenient to install, which comprises a cabinet, an installation plate and a base, wherein the cabinet is provided with a plurality of clamping blocks, one side face of the cabinet is fixedly connected with the clamping blocks, each clamping block is T-shaped, the other side face of the cabinet is provided with a clamping groove matched with the clamping block, the lower surface of the cabinet is fixedly connected with a connecting block, the two sides of each connecting block are provided with inserting grooves, the front end face of the installation plate is provided with a lifting mechanism, the rear end face of the base is fixedly connected with a sliding block, the sliding block is in threaded connection with the lifting mechanism, the upper surface of the base is provided with a groove matched with the connecting block, the two sides of the base are both penetrated and slidably connected with a bolt, one end of the bolt extends into the groove, the surface of the bolt is.

Further, elevating system includes the threaded rod, a plurality of evenly distributed's spout has been seted up to the preceding terminal surface of mounting panel, the upper and lower both ends of spout rotate with the both ends of threaded rod respectively and are connected, the threaded rod runs through the slider on the base and with slider threaded connection, the preceding terminal surface fixedly connected with connecting plate of mounting panel, run through and rotate in the connecting plate and be connected with the pivot, the upper end fixedly connected with crank of pivot, the lower extreme fixedly connected with master gear of pivot, the fixed cover of the lower extreme of threaded rod is equipped with the pinion, it can drive the threaded rod through master gear and pinion to rotate the crank during the use, because threaded rod and slider threaded connection can reach the effect of heightening the base with this.

Further, the threaded rod is sleeved with a threaded sleeve, the threaded sleeve is in threaded connection with the threaded rod, a reinforcing rib is fixedly connected to one side face of the threaded sleeve, one end of the reinforcing rib is fixedly connected with the lower surface of the base, and the base is fixed better through the reinforcing rib, so that the base is firmer in structure.

Furthermore, the fixed cover in the below surface of threaded rod is equipped with the stopper, can play the spacing effect of thread bush through the stopper, can avoid the strengthening rib to touch the connecting plate, the effectual connecting plate that has protected.

Furthermore, a plurality of symmetrical mounting holes are formed in the front end face of the mounting plate, and the mounting plate can be conveniently mounted on the wall surface through the mounting holes.

Furthermore, the front end face of the cabinet is rotatably connected with two symmetrically arranged cabinet doors, the front end face of each cabinet door is provided with an observation window, and articles inside the cabinet can be seen through the observation windows, so that the articles are convenient to take.

Furthermore, the front end face of the cabinet door is fixedly connected with a handle, and the cabinet door can be conveniently rotated through the handle.

Furthermore, a plurality of air holes are uniformly formed in the two side faces of the cabinet, so that the ventilation effect can be achieved through the air holes, and the ventilation and air dissipation in the cabinet can be realized, and the mildew can be avoided.

Furthermore, two opposite inner side surfaces of the cabinet are fixedly connected with filter screens, so that the effect of filtering dust can be achieved through the filter screens, and the interior of the cabinet can be kept clean.

Further, the interior bottom surface fixedly connected with of cupboard holds the box, has placed the drier in holding the box, can play dry effect to the cupboard is inside through the drier, avoids the inside moisture of cupboard too heavy and leads to going mildy.

The invention has the following beneficial effects:

according to the invention, the mounting plate is mounted on the wall surface through the mounting hole, the connecting block on the cabinet is placed in the groove on the base by pulling the bolt of the connecting block on the cabinet, the bolt is inserted into the slot on the connecting block after the handle is loosened, so that the cabinet can be mounted, the cabinet can be spliced by inserting the clamping block on one cabinet into the clamping slot on the other cabinet, so that the use space of the cabinet is enlarged, the cabinet can be adjusted to a high position through the lifting mechanism, the cabinet can be mounted without being lifted by a worker, the mounting difficulty of the cabinet mounting work is reduced, and when the cabinet needs to be taken, the height of the cabinet can be adjusted through the lifting mechanism, so that the cabinet is convenient to take the articles.

Of course, it is not necessary for any product in which the invention is practiced to achieve all of the above-described advantages at the same time.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

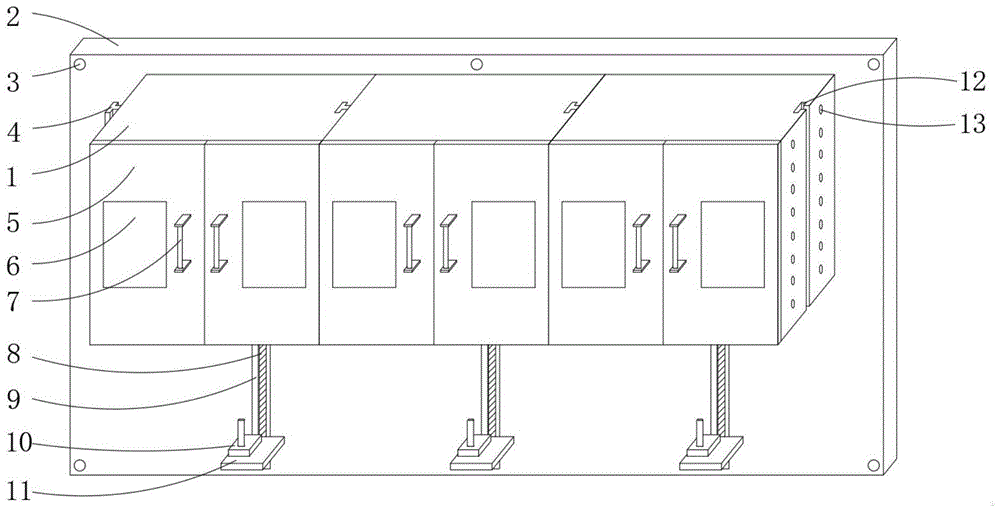

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic side view of the present invention;

FIG. 3 is a schematic cross-sectional view of the base;

fig. 4 is a sectional structure view of the cabinet.

In the drawings, the components represented by the respective reference numerals are listed below: 1. a cabinet; 2. mounting a plate; 3. mounting holes; 4. a clamping block; 5. a cabinet door; 6. an observation window; 7. a handle; 8. a threaded rod; 9. a chute; 10. a crank; 11. a connecting plate; 12. a card slot; 13. air holes are formed; 14. connecting blocks; 15. a base; 16. a threaded sleeve; 17. reinforcing ribs; 18. a limiting block; 19. a pinion gear; 20. a main gear; 21. a rotating shaft; 22. a bolt; 23. a spring; 24. a groove; 25. a slot; 26. accommodating the box; 27. and (4) a filter screen.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "upper", "middle", "outer", "inner", and the like, indicate orientations or positional relationships, are used for convenience in describing the present invention and simplifying the description, but do not indicate or imply that the referenced components or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.

Referring to fig. 1-4, the invention is a modular cabinet convenient to install, comprising a cabinet 1, an installation plate 2 and a base 15, wherein the cabinet 1 is provided with a plurality of clamping blocks 4 fixedly connected to one side surface of the cabinet 1, each clamping block 4 is in a "T" shape, the other side surface of the cabinet 1 is provided with a clamping groove 12 matched with the clamping block 4, the lower surface of the cabinet 1 is fixedly connected with a connecting block 14, the two sides of the connecting block 14 are both provided with slots 25, the front end surface of the installation plate 2 is provided with a lifting mechanism, the rear end surface of the base 15 is fixedly connected with a sliding block, the sliding block is in threaded connection with the lifting mechanism, the upper surface of the base 15 is provided with a groove 24 matched with the connecting block 14, the two sides of the base 15 are both penetrated and slidably connected with bolts 22, one end of each bolt 22 extends into the groove 24, the surface of each bolt 22, the other end of the spring 23 is fixedly connected with one side surface of the base 15.

Preferably, elevating system includes threaded rod 8, a plurality of evenly distributed's spout 9 has been seted up to the preceding terminal surface of mounting panel 2, the upper and lower both ends of spout 9 rotate with the both ends of threaded rod 8 respectively and are connected, threaded rod 8 runs through the slider on the base 15 and with slider threaded connection, the preceding terminal surface fixedly connected with connecting plate 11 of mounting panel 2, run through in the connecting plate 11 and rotate and be connected with pivot 21, the upper end fixedly connected with crank 10 of pivot 21, the lower extreme fixedly connected with master gear 20 of pivot 21, the fixed cover of the lower extreme of threaded rod 8 is equipped with pinion 19, it can drive threaded rod 8 to rotate through master gear 20 and pinion 19 to rotate crank 10 during the use, because threaded rod 8 and slider threaded connection can reach the effect of heightening base 15 with this.

Preferably, the threaded rod 8 is sleeved with a threaded sleeve 16, the threaded sleeve 16 is in threaded connection with the threaded rod 8, a reinforcing rib 17 is fixedly connected to one side face of the threaded sleeve 16, one end of the reinforcing rib 17 is fixedly connected with the lower surface of the base 15, and the base 15 can be better fixed through the reinforcing rib 17, so that the base 15 is firmer in structure.

Preferably, the fixed cover in the below surface of threaded rod 8 is equipped with stopper 18, can play the spacing effect to thread bush 16 through stopper 18, can avoid strengthening rib 17 to touch connecting plate 11, the effectual connecting plate 11 that has protected.

Preferably, a plurality of symmetrically arranged mounting holes 3 are formed in the front end face of the mounting plate 2, and the mounting plate 2 can be conveniently mounted on the wall surface through the mounting holes 3

Preferably, the front end face of the cabinet 1 is rotatably connected with two symmetrically arranged cabinet doors 5, the front end face of each cabinet door 5 is provided with an observation window 6, and articles inside the cabinet 1 can be seen through the observation windows 6, so that the articles can be conveniently taken.

Preferably, the front end face of the cabinet door 5 is fixedly connected with a handle 7, and the cabinet door 5 can be conveniently rotated through the handle 7.

Preferably, both sides of the cabinet 1 are provided with a plurality of uniformly arranged air holes 13, so that the air holes 13 can play a role in ventilation, and the ventilation and air dissipation in the cabinet 1 can be realized to avoid mildewing.

Preferably, the two opposite inner sides of the cabinet 1 are fixedly connected with filter screens 27, and the filter screens 27 can filter dust, so as to keep the interior of the cabinet 1 clean.

Preferably, the accommodating box 26 is fixedly connected to the inner bottom surface of the cabinet 1, and a drying agent is placed in the accommodating box 26, so that the drying agent can dry the inside of the cabinet 1, and mildew caused by too heavy moisture in the inside of the cabinet 1 is avoided.

The first embodiment is as follows: the present embodiment, as shown in fig. 1-4, is a method of using a modular cabinet for easy installation: when the cabinet is used, the mounting plate 2 is mounted on a wall surface through the mounting hole 3, the connecting block 14 on the cabinet 1 is placed in the groove 24 on the base 15 by pulling the plug 22 of the connecting block 14 on the cabinet 1, the plug 22 is inserted into the slot 25 on the connecting block 14 after hands are released, so that the cabinet 1 can be mounted, the cabinet 1 can be spliced by inserting the clamping block 4 on one cabinet 1 into the clamping slot 12 on the other cabinet 1, and therefore the using space of the cabinet 1 is enlarged.

In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the invention disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and the practical application, to thereby enable others skilled in the art to best utilize the invention. The invention is limited only by the claims and their full scope and equivalents.

Claims

1. A modular cabinet for easy installation, comprising a cabinet (1), a mounting plate (2) and a base (15), characterized in that: the cabinet (1) is provided with a plurality of clamping blocks (4) fixedly connected with one side face of the cabinet (1), each clamping block (4) is T-shaped, a clamping groove (12) matched with each clamping block (4) is formed in the other side face of the cabinet (1), a connecting block (14) is fixedly connected with the lower surface of the cabinet (1), slots (25) are formed in the two sides of each connecting block (14), a lifting mechanism is arranged on the front end face of each mounting plate (2), a sliding block is fixedly connected with the rear end face of each base (15) and is in threaded connection with the lifting mechanism, grooves (24) matched with the connecting blocks (14) are formed in the upper surface of each base (15), bolts (22) are connected with the two sides of each base (15) in a penetrating and sliding mode, one ends of the bolts (22) extend into the grooves (24), springs (23) are sleeved on the surfaces of the bolts (22), one ends of the springs (23), the other end of the spring (23) is fixedly connected with one side surface of the base (15).

2. The modular cabinet convenient to install as claimed in claim 1, wherein the lifting mechanism comprises a threaded rod (8), the front end surface of the mounting plate (2) is provided with a plurality of evenly distributed sliding grooves (9), the upper and lower ends of the sliding grooves (9) are respectively rotatably connected with two ends of the threaded rod (8), the threaded rod (8) penetrates through the slider on the base (15) and is in threaded connection with the slider, the front end surface of the mounting plate (2) is fixedly connected with a connecting plate (11), the connecting plate (11) penetrates through and is rotatably connected with a rotating shaft (21), the upper end of the rotating shaft (21) is fixedly connected with a crank (10), the lower end of the rotating shaft (21) is fixedly connected with a main gear (20), and the lower end of the threaded rod (8) is fixedly sleeved with a secondary gear (.

3. The modular cabinet convenient to install as claimed in claim 2, wherein the threaded rod (8) is sleeved with a threaded sleeve (16), the threaded sleeve (16) is in threaded connection with the threaded rod (8), a reinforcing rib (17) is fixedly connected to one side surface of the threaded sleeve (16), and one end of the reinforcing rib (17) is fixedly connected to the lower surface of the base (15).

4. An easily installable modular cabinet as claimed in claim 2, wherein the threaded rod (8) is fixed with a stop (18) under its surface.

5. An easily mountable modular cabinet as claimed in claim 1, wherein the front face of the mounting plate (2) is provided with a plurality of symmetrically arranged mounting holes (3).

6. The modular cabinet easy to install as claimed in claim 1, wherein the front end of the cabinet (1) is rotatably connected with two symmetrically arranged cabinet doors (5), and the front end of each cabinet door (5) is provided with a viewing window (6).

7. An easily installable modular cabinet as claimed in claim 6 wherein the cabinet door (5) is fixedly connected to a handle (7) at the front face thereof.

8. The modular cabinet easy to install as claimed in claim 1, wherein the cabinet (1) has a plurality of air holes (13) uniformly formed on both sides.

9. An easy-to-install modular cabinet as claimed in claim 1, wherein a filtering screen (27) is fixedly attached to each of two opposite inner sides of the cabinet (1).

10. An easily installable modular cabinet according to claim 1 wherein a containment box (26) is fixedly attached to the inner bottom surface of the cabinet (1), and a desiccant is placed in the containment box (26).
