Abstract

The utility model discloses a combined wooden door and window installation frame, which belongs to the technical field of door and window frames. The utility model comprises a frame body. The left and right sides of the front of the frame body are provided with storage cavities, and the right side of the inner wall of the storage cavity is clamped. A first pin is connected. The combined wooden door and window installation frame is provided with a supporting frame plate, a first pin, a second pin, a third pin, a folding rod and a king pin, and the two supporting frames can be connected by the action of the first pin. The board rotates, and the folding rod, through the cooperation of the second pin, the third pin and the king pin, enables the folding rod to be folded and unfolded, so that the support frame board can be rotated and unfolded to 90°. The structure can place wooden boards on the two unfolded support frames for drying shoes and other items, so that the frame has diversified functions, is more humanized, and provides convenience for users.

Description

A combined wooden door and window installation frame

technical field

The utility model belongs to the technical field of door and window frames, in particular to a combined wooden door and window installation frame.

Background technique

Doors and windows are an indispensable installation structure in living buildings, which play a great role in the lighting and ventilation of buildings. The window frame is used by us to install glass panels, etc., and is installed and fixed with doors and windows. The structure of the door and window installation frame is usually fixed and single. It does not have a combined structure and can only be installed with glass. Therefore, it has a single function and is not humanized enough. When people use it, it cannot provide convenience.

Utility model content

(1) Technical problems solved

In order to overcome the above-mentioned defects of the prior art, the utility model provides a combined wooden door and window installation frame, which solves most of the door and window installation frames, whose structure is usually fixed and single, does not have a combined structure, and can only be installed Glass, so it has a single function and is not humane enough. When people use it, it cannot provide convenience for it.

(2) Technical solutions

In order to achieve the above purpose, the utility model provides the following technical solutions: a combined wooden door and window installation frame, comprising a frame body, the left and right sides of the front of the frame body are provided with storage cavities, and the right side of the inner wall of the storage cavity is provided with cavities. A first pin shaft is clamped, and the left and right ends of the first pin shaft are respectively fixedly connected with the left and right sides of the inner wall of the receiving cavity. The outer wall of the first pin shaft is provided with a support frame plate, and the first pin shaft It is clamped in the support frame plate, the back of the support frame plate is provided with a folding rod, the left side of the folding rod is provided with a kingpin shaft, the kingpin shaft is clamped in the folding rod, and the folding rod One end of the back is clamped with a third pin, the left and right ends of the third pin are respectively fixedly connected with the left and right sides of the inner wall of the storage cavity, and one end of the front of the folding rod is clamped with a second pin. The left and right ends of the second pin shaft are respectively fixedly connected with the left and right side surfaces of the inner wall of the support frame plate.

The front surface of the inner wall of the frame body is fixedly connected with two chute plates, the upper surfaces of the two chute plates are both clamped with storage boxes, and the lower surfaces of the storage boxes are fixedly connected with two sliders. The lower end of the slider is clamped in the upper surface of the chute plate, a number of hooks are fixedly connected to the front of the frame body, the hooks are located below the chute plate, and the front of the frame body is clamped with a pull plate, The pull plate is located below the hook, the left and right sides of the back of the pull plate are fixedly connected with inserts, the left and right sides of the front of the frame body are provided with sliding cavities, and the sliding cavities are located on the left and right sides of the hook, The insert block is clamped in the sliding cavity.

As a further solution of the present invention, the support frame plate is movably connected with the folding rod through the second pin, and the support frame plate is movably connected with the receiving cavity through the first pin.

As a further solution of the present invention: the length of the receiving cavity is less than the length of the frame body, the left and right sides of the frame body are threadedly connected with a screw handle, and one end of the screw handle is fixedly connected to a limit block, The left side of the support frame plate is provided with a clamping slot, and the radius of the clamping slot is larger than the radius of the limit clamping block.

As a further solution of the present invention, the storage box is movably connected to the chute plate through a sliding block, and the depth of the storage box is smaller than the thickness of the frame body.

As a further solution of the present invention, the horizontal center line of the pull plate is parallel to the horizontal center line of the hook.

As a further solution of the present invention, the upper surface of the inner wall of the sliding cavity is provided with a rubber groove, and the central axis of the rubber groove coincides with the central axis of the insert.

(3) Beneficial effects

Compared with the prior art, the beneficial effects of the present utility model are:

1. The combined wooden door and window installation frame, by setting the support frame plate, the first pin, the second pin, the third pin, the folding rod and the king pin, can connect the two The support frame plate rotates, and the folding rod can be folded and unfolded through the cooperation of the second pin, the third pin and the king pin, so that the support frame plate can be rotated and unfolded to 90°. It is a structure that can place wooden boards on the two unfolded support frames for drying shoes and other items, so that the frame has diversified functions, is more user-friendly, and provides convenience for users.

2. The combined wooden door and window installation frame is provided with a storage box, a slider and a chute plate. The storage box can be slid out through the cooperation of the slider and the chute plate to store small parts such as screws, which is easy to use. The operator can take parts for maintenance at any time.

3. The combined wooden door and window installation frame is provided with a pull plate, a hook, a sliding cavity and an insert, and the sliding cavity and the insert block cooperate to make the pull plate slide open and close. When the hook is not used, The pull plate is closed to cover the hook, so that the human body can be prevented from accidentally colliding with the hook and being damaged, so that it has the function of hanging clothes, and at the same time, it can also reduce the existing safety hazards.

Description of drawings

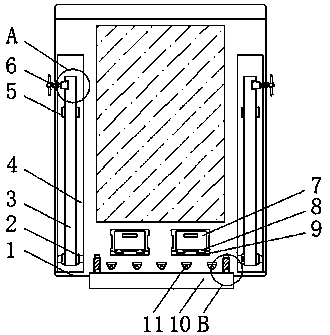

Fig. 1 is the structural representation of the front view of the utility model;

Fig. 2 is the structural representation of the utility model side view;

Fig. 3 is the enlarged structural representation at A in Fig. 1 of the utility model;

Fig. 4 is the enlarged structural representation at B in Fig. 1 of the utility model;

In the figure: 1 frame body, 2 first pin shaft, 3 support frame plate, 4 storage cavity, 5 second pin shaft, 6 screw handle, 7 storage box, 8 slider, 9 chute plate, 10 pull plate, 11 hook, 12 third pin, 13 card slot, 14 folding rod, 15 king pin, 16 limit block, 17 rubber groove, 18 sliding cavity, 19 insert.

Detailed ways

The technical solution of the present patent will be described in further detail below in conjunction with specific embodiments.

As shown in Figures 1-4, the present utility model provides a technical solution: a combined wooden door and window installation frame, comprising a frame body 1, and the left and right sides of the front of the frame body 1 are provided with storage cavities 4. The length is less than the length of the frame body 1. The left and right sides of the frame body 1 are threadedly connected with a screw handle 6, one end of the screw handle 6 is fixedly connected to the limit block 16, and the left side of the support frame plate 3 is provided with a slot. 13. The radius of the card slot 13 is larger than the radius of the limit block 16. Through the function of the storage cavity 4, the two support frame plates 3 can be rotated and stored into its interior, and at the same time, the limit block 16 on the screw handle 6 can be used. , embedded in the card slot 13 to fix the support frame plate 3, so that it can be stored and fixed when the support frame plate 3 is not in use, which is convenient for operation. The left and right ends of the first pin shaft 2 are respectively fixedly connected to the left and right sides of the inner wall of the receiving cavity 4 , the outer wall of the first pin shaft 2 is provided with a support frame plate 3 , and the first pin shaft 2 is clamped in the support frame plate 3 , the back of the support frame board 3 is provided with a folding rod 14, the support frame board 3 is movably connected with the folding rod 14 through the second pin shaft 5, the support frame board 3 is movably connected with the storage cavity 4 through the first pin shaft 2, The cooperation of the pin 5, the third pin 12 and the king pin 15 enables the folding rod 14 to be folded and unfolded, so that the support frame plate 3 can be rotated and unfolded to 90°. A wooden board is placed on each unfolded support frame board 3 for drying shoes and other items. The left side of the folding rod 14 is provided with a kingpin shaft 15. The kingpin shaft 15 is clamped in the folding rod 14, and the back of the folding rod 14 One end of the folding rod 14 is clamped with a third pin shaft 12, the left and right ends of the third pin shaft 12 are respectively fixedly connected with the left and right sides of the inner wall of the storage cavity 4, and one end of the front of the folding rod 14 is clamped with the second pin shaft 5, the second The left and right ends of the pin shaft 5 are respectively fixedly connected to the left and right side surfaces of the inner wall of the support frame plate 3 .

The front surface of the inner wall of the frame body 1 is fixedly connected with two chute plates 9, and the upper surfaces of the two chute plates 9 are clipped with a storage box 7, and the storage box 7 is movably connected with the chute plate 9 through the slider 8, and the storage box The depth of 7 is less than the thickness of the frame body 1. The storage box 7 can be slid out through the cooperation of the slider 8 and the chute plate 9 to store small parts such as screws, so that the user can take the parts for maintenance at any time. Two sliders 8 are fixedly connected to the lower surface of the storage box 7 , the lower ends of the sliders 8 are clamped in the upper surface of the chute plate 9 , and a number of hooks 11 are fixedly connected to the front of the frame body 1 , and the hooks 11 are located in the chute. Below the plate 9, the front of the frame body 1 is clamped with a pull plate 10, the pull plate 10 is located below the hook 11, the left and right sides of the back of the pull plate 10 are fixedly connected with inserts 19, and the left and right sides of the front of the frame body 1 are fixedly connected. A sliding cavity 18 is opened, and the horizontal center line of the pull plate 10 is parallel to the horizontal center line of the hook 11. The cooperation of the sliding cavity 18 and the insert 19 enables the pull plate 10 to slide open and close without using the hook. 11, close the pull plate 10 to cover the hook 11 to prevent the human body from accidentally colliding with the hook 11 and being damaged. The sliding cavity 18 is located on the left and right sides of the hook 11. The upper surface of the inner wall is provided with a rubber groove 17, and the central axis of the rubber groove 17 coincides with the central axis of the insert 19. When the pull plate 10 is closed, the insert 19 slides in the sliding cavity 18, and one end of the insert 19 is embedded in the rubber groove 17. , Due to the rubber material of the inner wall of the rubber groove 17, the friction force between objects is increased, so that the closed structure of the pull plate 10 is stable and prevents slipping.

The working principle of the utility model is:

S1. When it is necessary to use the sufficient sunlight of doors and windows to dry items, the user can rotate the screw handle 6 to rotate and unfold the two support frame plates 3, and at the same time, the folding rod 14 passes through the second pin 5 and the third pin. 12 and the king pin 15 cooperate to limit the position where the support frame 3 is unfolded, and then place a wooden board on the unfolded support frame 3 for drying shoes and other items, and use the hook 11 hanging clothes for drying;

S2. Second, after drying, the user rotates the support frame plate 3, and stores it together with the folding rod 14 in the storage cavity 4, and rotates the screw handle 6 inward to let the limit clip at one end of the screw handle 6 The block 16 is embedded in the card slot 13 to fix the support frame plate 3, and then the user slides the pull plate 10 upwards, so that the insert block 19 connected on the back is embedded in the rubber groove 17, and the hook 11 is blocked. back;

S3. In daily use, the user slides the storage box 7 through the slider 8 to store or take small parts for maintenance such as screws.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a connectable connection. Detachable connection, or integral connection; may be mechanical connection or electrical connection; may be direct connection, or indirect connection through an intermediate medium, or internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood through specific situations.

The preferred embodiments of the present patent have been described in detail above, but the present patent is not limited to the above-mentioned embodiments. Within the scope of knowledge possessed by those of ordinary skill in the art, various modifications can be made without departing from the purpose of the present patent. kind of change.

Claims (6)

1. A combined wooden door and window installation frame, comprising a frame body (1), characterized in that: the left and right sides of the front of the frame body (1) are provided with storage cavities (4), and the storage cavities (4) A first pin shaft (2) is clamped on the right side of the inner wall, and the left and right ends of the first pin shaft (2) are respectively fixedly connected with the left and right sides of the inner wall of the receiving cavity (4). The outer wall of (2) is provided with a support frame plate (3), the first pin shaft (2) is clamped in the support frame plate (3), and the back of the support frame plate (3) is provided with a folding rod (14). ), the left side of the folding rod (14) is provided with a kingpin shaft (15), the kingpin shaft (15) is clamped in the folding rod (14), and one end of the back of the folding rod (14) A third pin shaft (12) is clamped, and the left and right ends of the third pin shaft (12) are respectively fixedly connected with the left and right sides of the inner wall of the storage cavity (4), and one end of the front of the folding rod (14) is clamped A second pin shaft (5) is connected, and the left and right ends of the second pin shaft (5) are respectively fixedly connected with the left and right side surfaces of the inner wall of the support frame plate (3); Two chute plates (9) are fixedly connected to the front of the inner wall of the frame body (1), and storage boxes (7) are clipped on the upper surfaces of the two chute plates (9). 7) Two sliders (8) are fixedly connected to the lower surface, the lower ends of the sliders (8) are clamped in the upper surface of the chute plate (9), and the front surface of the frame body (1) is fixedly connected There are several hooks (11), the hooks (11) are located below the chute plate (9), and a pull plate (10) is snapped on the front of the frame body (1), and the pull plate (10) is located at the front of the frame body (1). Below the hook (11), insert blocks (19) are fixedly connected to the left and right sides of the back of the pull plate (10), and sliding cavities (18) are opened on the left and right sides of the front of the frame body (1), so The sliding cavity (18) is located on the left and right sides of the hook (11), and the insert block (19) is clamped in the sliding cavity (18). 2. A combined wooden door and window installation frame according to claim 1, characterized in that: the support frame plate (3) is movably connected with the folding rod (14) through the second pin (5), and the support The shelf plate (3) is movably connected with the receiving cavity (4) through the first pin shaft (2). 3. A combined wooden door and window installation frame according to claim 1, characterized in that: the length of the receiving cavity (4) is less than the length of the frame body (1), and the left and right sides of the frame body (1) A screw handle (6) is threadedly connected to the side surface, one end of the screw handle (6) is fixedly connected to a limit block (16), and a card slot (13) is opened on the left side of the support frame plate (3). ), the radius of the card slot (13) is larger than the radius of the limit block (16). 4. A combined wooden door and window installation frame according to claim 1, characterized in that: the storage box (7) is movably connected with the chute plate (9) through the slider (8), and the storage box ( 7) The depth is less than the thickness of the frame body (1). 5. A combined wooden door and window installation frame according to claim 1, characterized in that: the horizontal center line of the pull plate (10) is parallel to the horizontal center line of the hook (11). 6. A combined wooden door and window installation frame according to claim 1, characterized in that: a rubber groove (17) is provided on the upper surface of the inner wall of the sliding cavity (18), and the middle of the rubber groove (17) is provided with a rubber groove (17). The axis coincides with the central axis of the insert (19).
