CN111957127A - Skid-mounted purification equipment and method for organic solid waste gasification-incineration flue gas - Google Patents
Skid-mounted purification equipment and method for organic solid waste gasification-incineration flue gas Download PDFInfo
- Publication number
- CN111957127A CN111957127A CN202010845366.4A CN202010845366A CN111957127A CN 111957127 A CN111957127 A CN 111957127A CN 202010845366 A CN202010845366 A CN 202010845366A CN 111957127 A CN111957127 A CN 111957127A
- Authority
- CN
- China
- Prior art keywords
- flue gas
- organic solid
- solid waste
- gasification
- skid
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D46/00—Filters or filtering processes specially modified for separating dispersed particles from gases or vapours
- B01D46/10—Particle separators, e.g. dust precipitators, using filter plates, sheets or pads having plane surfaces
- B01D46/12—Particle separators, e.g. dust precipitators, using filter plates, sheets or pads having plane surfaces in multiple arrangements
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D53/00—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols
- B01D53/02—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols by adsorption, e.g. preparative gas chromatography
- B01D53/04—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols by adsorption, e.g. preparative gas chromatography with stationary adsorbents
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D53/00—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols
- B01D53/14—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols by absorption
- B01D53/1456—Removing acid components
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D53/00—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols
- B01D53/14—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols by absorption
- B01D53/1456—Removing acid components
- B01D53/1468—Removing hydrogen sulfide
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D53/00—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols
- B01D53/14—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols by absorption
- B01D53/1456—Removing acid components
- B01D53/1481—Removing sulfur dioxide or sulfur trioxide
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D53/00—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols
- B01D53/14—Separation of gases or vapours; Recovering vapours of volatile solvents from gases; Chemical or biological purification of waste gases, e.g. engine exhaust gases, smoke, fumes, flue gases, aerosols by absorption
- B01D53/18—Absorbing units; Liquid distributors therefor
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D2253/00—Adsorbents used in seperation treatment of gases and vapours
- B01D2253/10—Inorganic adsorbents
- B01D2253/102—Carbon
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D2257/00—Components to be removed
- B01D2257/20—Halogens or halogen compounds
- B01D2257/204—Inorganic halogen compounds
- B01D2257/2045—Hydrochloric acid
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D2257/00—Components to be removed
- B01D2257/40—Nitrogen compounds
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D2257/00—Components to be removed
- B01D2257/60—Heavy metals or heavy metal compounds
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D2257/00—Components to be removed
- B01D2257/90—Odorous compounds not provided for in groups B01D2257/00 - B01D2257/708
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
- B01D—SEPARATION
- B01D2258/00—Sources of waste gases
- B01D2258/02—Other waste gases
- B01D2258/0283—Flue gases
Landscapes
- Chemical & Material Sciences (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Engineering & Computer Science (AREA)
- Analytical Chemistry (AREA)
- General Chemical & Material Sciences (AREA)
- Oil, Petroleum & Natural Gas (AREA)
- Treating Waste Gases (AREA)
Abstract
The invention discloses skid-mounted purification equipment and method for organic solid waste gasification-incineration flue gas, and relates to the technical field of flue gas dust removal and purification. This sled dress formula integration is equipped to concentrate on the container with flue gas purification's processing unit with modular form in, including high temperature resistant filter module, active carbon adsorption module, two-stage spray module, exhaust emission module etc.. After organic solid waste gasification flue gas enters the purification equipment from the air inlet, the organic solid waste gasification flue gas is subjected to flue gas dust removal and purification through the high-temperature-resistant filtering module, the activated carbon adsorption module and the two-stage spraying device in sequence, and finally is discharged from a chimney air pipe. The skid-mounted treatment equipment has the advantages that the skid-mounted treatment equipment is flexible and mobile, and is suitable for flue gas purification of organic solid waste distributed or dispersive in-situ pyrolysis gasification treatment or emergency treatment; each processing unit is assembled in the container in a modular form, so that the installation, maintenance, overhaul and consumable replacement are facilitated; the skid-mounted equipment also has the advantages of low investment cost, low operation and maintenance cost, simple operation and the like.
Description
Technical Field
The invention belongs to the technical field of flue gas dust removal and purification, and particularly relates to skid-mounted purification equipment and method for organic solid waste gasification-incineration flue gas.
Background
With the rapid development of the economic society of China, the organic solid waste yield of China is gradually increased. The gasification-incineration technology of the organic solid waste is a novel heat treatment technology, and can realize the reduction, recycling and harmless treatment of the organic solid waste. The gasification-incineration technology refers to the process that the pretreated organic solid waste is dried, pyrolyzed, oxidized and reduced in a pyrolysis gasification furnace, the generated synthesis gas or combustible gas is introduced into a combustion chamber for combustion, and the generated heat is subjected to thermoelectric combination through a waste heat boiler or an internal combustion engine. Compared with the traditional incineration technology, the traditional incineration technology is easy to cause the problem of secondary pollution represented by dioxin due to insufficient reaction, and the organic solid waste gasification-incineration technology can reduce the generation of pollutants such as dioxin in principle by controlling the reaction conditions such as oxygen deficiency and the like, and has the advantages of low smoke emission, high energy utilization rate and the like.
The components of the flue gas generated in the thermochemical treatment process of the organic solid waste are very complex, and secondary pollutants such as dust particles, acid gases, heavy metals, organic pollutants and the like are included. Therefore, when organic solid waste is treated by adopting the gasification-incineration technology, the organic solid waste must be subjected to the treatment of dust removal and purification of flue gas so as to reach the emission standard and avoid secondary pollution. Unlike the flue gas from direct incineration, the gasification-incineration flue gas has relatively low content of pollutants such as sulfur dioxide and nitrogen oxides, because during the pyrolysis and gasification of organic solid wastes, nitrogen and sulfur elements are rarely oxidized and remain in solid ash and slag, and do not enter a secondary combustion chamber along with volatile matters.
Most of the existing flue gas dust removal and purification equipment aims at the traditional incineration technology, and few treatment equipment and methods aim at the organic solid waste gasification technology, and the existing technology and equipment have the problems of low flue gas treatment efficiency and incomplete purification effect. In addition, the existing treatment equipment is mostly fixed, is complex to install and inconvenient to move, and is not suitable for emergency treatment or on-site disposal facilities which need to be moved.
Disclosure of Invention
In order to overcome the defects of the prior art, the invention aims to provide skid-mounted purification equipment and a skid-mounted purification method for organic solid waste gasification-incineration flue gas, which can be flexibly applied to flue gas/waste gas treatment of pyrolysis gasification emergency treatment facilities such as domestic garbage, medical waste, organic hazardous waste, industrial organic solid waste and the like, so as to solve the environmental protection problem of emergency treatment or on-site treatment facilities.
In order to achieve the purpose, the invention adopts the technical scheme that:
a skid-mounted purification device for organic solid waste gasification-incineration flue gas, wherein a treatment unit for flue gas purification is centralized in a container in a modular manner and along the flow direction of the organic solid waste gasification flue gas, the treatment unit comprises:
the high-temperature resistant filtering module consists of a plate type filter;
the active carbon adsorption module consists of an air inlet section, a carbon fiber filtering section and an air outlet section, wherein the carbon fiber filtering section consists of a plurality of active carbon fiber filtering cylinders;
the two-stage spraying module comprises a first-stage spraying washing tower and a second-stage spraying washing tower which are connected in series;
the tail gas emission module consists of a glass fiber reinforced plastic centrifugal fan, a detachable chimney air pipe and a standby replaceable air pipe.
The plate filter is a plate filter with a filter material framework laid in an aluminum oxide extruded section on the surface, the filter material is made of polyester synthetic fiber, the air inlet surface of the plate filter is fluffy, the air outlet surface of the plate filter is compact, the plate filter is perpendicular to the flow direction of organic solid waste gasification smoke, and the edge of the plate filter can be arranged on the inner wall of the container through structures such as bolts and screws.
The thickness of the filter layer of the activated carbon fiber filter cartridge is 50-100 mm, the axial direction of the activated carbon fiber filter cartridge is perpendicular to the flow direction of the organic solid waste gasification flue gas, and the activated carbon fiber filter cartridges are distributed in an array mode.
The air inlet section of the activated carbon adsorption module is positioned at the middle lower part of the container in the vertical direction, and the air outlet section is positioned below the air inlet section in the vertical direction.
The structure of the first-stage spraying washing tower is the same as that of the second-stage spraying washing tower, the main body is made of glass fiber reinforced plastic, the surface of the tower body is provided with an imported ultraviolet-resistant gel coat, the spray nozzle is a low-pressure large-flow fine-mist spiral spray nozzle, the spray pipe is a PVC pipe, and the filler is a pure PP terai barbed garland.
The flue gas inlet of the first-level spraying washing tower is located at the middle upper part of the container in the vertical direction, the flue gas outlet is located at the middle upper part of the container in the vertical direction, the flue gas inlet of the second-level spraying washing tower is located at the middle lower part of the container in the vertical direction, and the flue gas outlet is located at the middle upper part of the container in the vertical direction.
The casing of the glass fiber reinforced plastic centrifugal fan is of a volute structure made of high-strength and acid-alkali-resistant Fiber Reinforced Plastic (FRP) materials; the air inlet is of an integral convergent type made of glass fiber reinforced plastics and is fixed on the side of the machine shell by bolts; the impeller adopts carbon steel as a framework, and the outer surface of the impeller is compositely protected by an acid-base-resistant Fiber Reinforced Plastic (FRP) material; the motor and the belt pulley are provided with the protective covers, the detachable chimney air pipe and the standby replaceable air pipe are made of acid and alkali resistant Fiber Reinforced Plastic (FRP) materials, and the outer surface of the detachable chimney air pipe is protected by an imported ultraviolet resistant gel coat.
The container of the invention adopts 40 feet containers, and the inner diameter size is as follows: 12032mm in length, 2352mm in width and 2393mm in height.
The invention also provides a purification method based on the skid-mounted purification equipment for the gasification-incineration flue gas of the organic solid waste, wherein the gasification flue gas of the organic solid waste passes through a treatment unit in the container under the action of a draught fan, and is extracted by a centrifugal fan to reach the standard of an air pipe chimney for emission after sequentially carrying out high-temperature-resistant primary filtration, activated carbon fiber adsorption and two-stage spraying acid mist washing.
The temperature of the organic solid waste gasification flue gas is controlled to be 150-200 ℃ before entering the container, if the temperature is higher than 200 ℃, air cooling is firstly carried out, fresh air is supplied to reduce the temperature, particulate matters in the flue gas are effectively treated after high temperature resistant primary filtration, then the flue gas enters activated carbon fibers for adsorption, heavy metals in the flue gas are removed, the flue gas is washed by two stages of spraying acid mist to absorb gases such as sulfur dioxide, nitrogen oxides, hydrogen sulfide, hydrogen chloride and the like, and finally the purified flue gas is discharged through a chimney after reaching the standard.
Compared with the prior art, the invention has the advantages that: the skid-mounted smoke purification treatment equipment has stronger maneuverability, can be flexibly applied to small-scale decentralized organic solid waste (comprising domestic garbage, organic hazardous waste, medical waste, industrial organic solid waste and the like) treatment facilities or emergency treatment facilities, and ensures that the tail gas reaches the standard and is discharged; each processing component is integrated in the container in a modular form, so that medicine addition, consumable part replacement and equipment overhaul or replacement are facilitated; compared with the traditional complete equipment for treating the organic solid waste gasified or incinerated flue gas, the skid-mounted equipment also has the advantages of small occupied area, convenience in operation, low operation and maintenance cost, high efficiency, energy conservation and the like.
Drawings

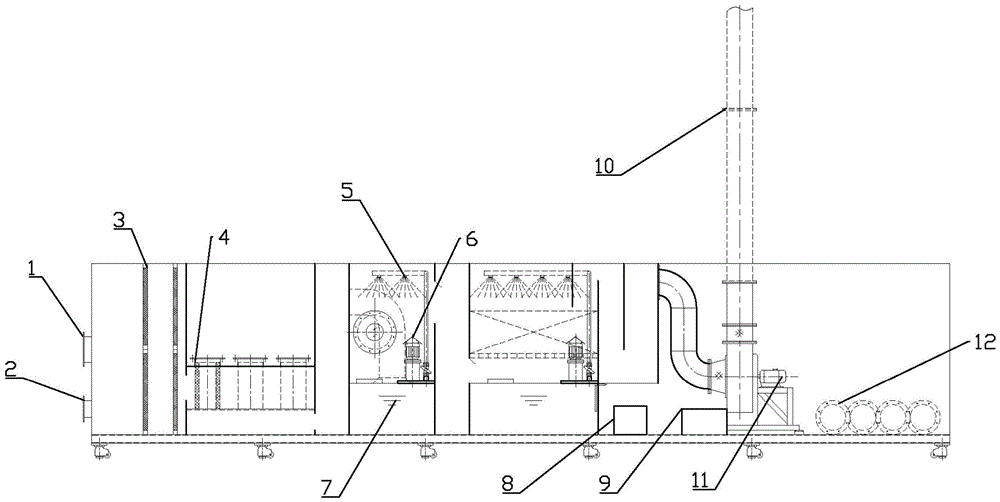

FIG. 1 is a schematic view of the overall structure of the skid-mounted purification equipment for organic solid waste gasification-incineration flue gas provided by the invention.
FIG. 2 is a top view of the skid-mounted purification equipment for organic solid waste gasification-incineration flue gas provided by the invention.
The relevant references in the above figures are: 1 air inlet, 2 tonifying qi mouths, 3 high temperature resistant filter module, 4 active carbon adsorption modules, 5 spray set, 6 circulating pumps, 7 spray water tank, 8 dosing tank, 9 electrical system, 10 detachable chimney tuber pipe, 11 fans, 12 reserve chimney tuber pipes.
Detailed Description
The embodiments of the present invention will be described in detail below with reference to the drawings and examples.
The utility model provides an organic solid useless gasification-incineration flue gas sled dress formula purification equipment, the processing unit of gas cleaning concentrates on the container in the form of modularization in, along the flow direction of organic solid useless gasification flue gas, wherein, processing unit includes:
the high temperature resistant filtering module consists of a plate type filter with a surface alumina extruded material and a filter material framework laid inside. The filter material adopts high-quality polyester synthetic fiber, and its air inlet face is fluffy, and the air-out face is compact, when guaranteeing efficiency, provides great dust holding capacity, reasonable filter core pleat number design, has increased effectual filter area. After the filter is used for a period of time, the filter is disassembled and cleaned by blowing with an air gun, and the filter can be repeatedly used. The plate filter is perpendicular to the flow direction of the organic solid waste gasification flue gas, and the edge of the plate filter can be arranged on the inner wall of the container through structures such as bolts, screws and the like.
The active carbon adsorption module comprises an air inlet section, a carbon fiber filtering section and an air outlet section, wherein the air inlet section is positioned at the middle lower part of the container in the vertical direction, and the air outlet section is positioned below the air inlet section in the vertical direction. The carbon fiber filtering section consists of a plurality of activated carbon fiber filtering cartridges, the thickness of the filtering cartridge is 50-100 mm, the adsorption performance of the activated carbon fiber is superior to that of activated carbon, the activated carbon fiber filtering section has a highly developed microporous structure, the adsorption speed is high, the purification effect is good, and the activated carbon fiber filtering section also has the corrosion resistance of carbon and alkali. Organic solid waste gasification-incineration flue gas enters the box body from the air inlet section, is adsorbed and purified by the filter cylinder, and then is introduced into the next module from the air outlet section. The axial direction of the activated carbon fiber filter cartridges is perpendicular to the flow direction of the organic solid waste gasification flue gas, and the activated carbon fiber filter cartridges are distributed in an array manner.
And the two-stage spraying module comprises a first-stage spraying washing tower and a second-stage spraying washing tower which are connected in series. The primary spray washing tower and the secondary spray washing tower have the same structure, the main body is made of glass fiber reinforced plastic, and the surface of the tower body is provided with an imported ultraviolet-resistant gel coat; the spray nozzle in the spray system of the washing tower is a low-pressure large-flow fine-mist spiral spray nozzle, and the spray pipe adopts a high-quality PVC pipe, so that better gas-liquid contact and spraying effects are ensured; the packing of the washing tower is pure PP teramer with thorn garland, the packing has large specific surface area, can fully resolve the problem of gas-liquid exchange, and has the characteristics of small resistance, large operation elasticity and the like. The flue gas inlet of the first-level spraying washing tower is located at the middle upper part of the container in the vertical direction, the flue gas outlet is located at the middle upper part of the container in the vertical direction, the flue gas inlet of the second-level spraying washing tower is located at the middle lower part of the container in the vertical direction, and the flue gas outlet is located at the middle upper part of the container in the vertical direction.
The tail gas emission module consists of a glass fiber reinforced plastic centrifugal fan, a detachable chimney air pipe and a standby replaceable air pipe. The casing of the glass fiber reinforced plastic centrifugal fan is of a volute structure formed by high-strength acid-base-resistant fiber reinforced material (FRP); the air inlet is of an integral convergent type made of glass fiber reinforced plastics and is fixed on the side of the machine shell by bolts after finish machining; the impeller adopts carbon steel as a framework, and the outer surface of the impeller is protected by FRP materials; the motor, the belt pulley and the like are provided with a protective cover. Can dismantle chimney tuber pipe and reserve removable tuber pipe all adopt the FRP material, and the surface uses the protection of import ultraviolet resistance gel coat.
The core components related to the skid-mounted flue gas purification equipment are placed in a container (40-foot container, the inner diameter dimension is 12032mm (length) multiplied by 2352mm (width) multiplied by 2393mm (height), and the outer dimension is 12192mm (length) multiplied by 2438mm (width) multiplied by 2438mm (height)) in a modular form according to the sequence of filtering, adsorbing, spraying and discharging. The container with the size meets the existing national standard of 'external size and rated quality of container' (GB 1413-2008) in China, and can be directly transported by a truck. Compare in fixed gas cleaning equipment, sled dress formula is equipped and is passed through the transportation, can apply to the gas cleaning of emergency treatment facility or on-the-spot processing facility in a flexible way for tail gas emission up to standard.
In the purification method, organic solid waste gasification flue gas (tail gas/flue gas of a gasification furnace) passes through a treatment unit in a container under the action of a draught fan, and is sequentially subjected to high-temperature-resistant primary filtration, activated carbon fiber adsorption and two-stage spraying acid mist washing, and then is pumped out by a centrifugal fan until reaching the standard of an air pipe chimney and is discharged.
The specific process is as follows: the temperature of the flue gas is required to be controlled between 150 ℃ and 200 ℃ before the flue gas enters the skid-mounted flue gas purification device, and the gas is introduced into a treatment and purification facility through an air pipe under the action of an induced draft fan. If the gas temperature is still higher than 200 ℃, air cooling is needed to be carried out firstly, and the temperature of the flue gas is reduced by supplying fresh air. Particulate matters in the flue gas are effectively treated after passing through the high-temperature-resistant primary-effect filtering section, then enter the activated carbon fiber for adsorption, heavy metals in the flue gas are removed, gases such as sulfur dioxide, nitrogen oxides, hydrogen sulfide and hydrogen chloride are absorbed through the two-stage spraying and washing section, and finally the purified flue gas is discharged through a chimney up to the standard.
The invention further provides a specific embodiment as follows:
referring to fig. 1 and 2, an air inlet 1 is arranged at the middle position of the left side of the container and used for introducing flue gas or waste gas, and an air supplementing port 2 is reserved at the position below the air inlet and is used for supplementing fresh air to air-cool flue gas with too high temperature. After the flue gas enters the purification equipment, the flue gas is primarily filtered through the high-temperature resistant filtering module 3 to remove particles in the flue gas; the filtered flue gas enters an activated carbon fiber filtering and adsorbing cylinder through an air pipe arranged at the middle lower part of the left side of the activated carbon adsorption module 4, and heavy metal and peculiar smell in the flue gas are removed.
The treated flue gas is discharged from an air pipe below the right side of the activated carbon adsorption module 4 and enters a two-stage spray washing tower; the first-stage spraying washing tower and the second-stage spraying washing tower have no difference in structure, and are mainly composed of a spraying device 5, a circulating pump 6, a spraying water tank 7 and a dosing tank 8; flue gas enters the primary spraying section through the middle-upper part of the left side of the primary spraying washing tower and then is discharged from the upper part of the right side, flue gas after primary spraying enters the secondary spraying section through the lower part of the secondary spraying washing tower and is fully contacted with gas and liquid, the flue gas is led out by an air pipe above the right side of the secondary spraying washing tower, and gases such as sulfur dioxide, nitrogen oxide, hydrogen sulfide, hydrogen chloride and the like are absorbed in the stage.
The flue gas after being filtered, adsorbed and sprayed is introduced into a detachable chimney 10 to be discharged at high altitude under the action of a chimney fan 11. The design height of the detachable chimney air pipe 10 is 20m, and the detachable chimney air pipe can be detachably placed at the spare chimney air pipe 12 in a segmented mode in the transportation process or the non-working state of equipment. Detection points are reserved in the detachable chimney air pipe 10 and the spare chimney air pipe 12 and used for detecting and analyzing whether the emission of nitrogen oxides, sulfur dioxide, particulate matters and the like in the discharged flue gas is lower than a discharge limit value or not.
The electric control system 9 is positioned between the dosing tank 8 and the detachable chimney air pipe 10 and is used for controlling a circulating pump 6 of the spraying and washing tower, the dosing tank 8, a fan 11 of the chimney and matched lighting and fire-fighting facilities.
Corresponding to the flue gas purification equipment, the skid-mounted purification method of the organic solid waste gasification-incineration flue gas provided by the invention comprises the following steps:
1) primary filtering of flue gas;
2) activated carbon adsorption of the flue gas;
3) two-stage spray washing of flue gas.
Specifically, the skid-mounted purification method of organic solid waste gasification-incineration flue gas is implemented by combining with flue gas purification equipment as follows: gasification-incineration flue gas enters the purification equipment through the gas inlet 1, and if the temperature of the flue gas is too high, the gas supplementing port 2 is opened to supplement fresh air so as to reduce the temperature of the gas to below 200 ℃; flue gas passes through a high-temperature resistant filtering module 3, an activated carbon adsorption module 4 and a spraying device 5 in sequence through an air pipe arranged in the container to be purified, and dust particles, acid gases, heavy metals, organic pollutants and the like in the flue gas are removed; and finally, the purified flue gas is discharged through a detachable chimney 10 in high altitude up to the standard.
The equipment and the method provided by the invention can be applied to the purification of the flue gas after gasification-incineration treatment of various organic solid wastes, including household garbage, medical wastes, organic hazardous wastes, industrial organic solid wastes and the like. The skid-mounted treatment device has the advantages that the skid-mounted treatment device is flexible and mobile, and is suitable for flue gas purification of organic solid waste distributed or dispersive in-situ pyrolysis gasification treatment or emergency treatment; each processing unit is assembled in the container in a modular form, so that the installation, maintenance, overhaul and consumable replacement are facilitated; the skid-mounted equipment also has the advantages of low investment cost, low operation and maintenance cost, simple operation and the like.
Claims (10)
1. The utility model provides an organic solid useless gasification-incineration flue gas sled dress formula purification is equipped which characterized in that, the processing unit of gas cleaning concentrates on the container in the form of modularization in, along the flow direction of organic solid useless gasification flue gas, processing unit includes:
the high-temperature resistant filtering module consists of a plate type filter;
the active carbon adsorption module consists of an air inlet section, a carbon fiber filtering section and an air outlet section, wherein the carbon fiber filtering section consists of a plurality of active carbon fiber filtering cylinders;
the two-stage spraying module comprises a first-stage spraying washing tower and a second-stage spraying washing tower which are connected in series;
the tail gas emission module consists of a glass fiber reinforced plastic centrifugal fan, a detachable chimney air pipe and a standby replaceable air pipe.
2. The skid-mounted purification equipment for organic solid waste gasification-incineration flue gas as recited in claim 1, wherein the plate filter is a plate filter with a surface alumina extruded section bar and a filter material framework laid inside, the filter material is made of polyester synthetic fiber, an air inlet surface of the plate filter is fluffy, an air outlet surface of the plate filter is compact, and the plate filter is perpendicular to the flow direction of the organic solid waste gasification flue gas.
3. The skid-mounted purification equipment for the organic solid waste gasification-incineration flue gas as claimed in claim 1, wherein the thickness of the filter layer of the activated carbon fiber filter cartridge is 50-100 mm, the axial direction of the activated carbon fiber filter cartridge is perpendicular to the flow direction of the organic solid waste gasification flue gas, and the activated carbon fiber filter cartridges are distributed in an array manner.
4. The organic solid waste gasification-incineration flue gas skid-mounted purification equipment as claimed in claim 1 or 3, wherein the air inlet section of the activated carbon adsorption module is located at the middle lower part of the container in the vertical direction, and the air outlet section is located below the air inlet section in the vertical direction.
5. The skid-mounted purification equipment for gasification-incineration flue gas of organic solid waste according to claim 1, wherein the first-stage spray washing tower and the second-stage spray washing tower have the same structure, the main body is made of glass fiber reinforced plastic, the surface of the tower body is made of an inlet anti-ultraviolet gel coat, the nozzles are low-pressure large-flow fine mist spiral nozzles, the spray pipes are made of PVC pipes, and the filler is made of pure PP terai with barbed wreath.
6. The organic solid waste gasification-incineration flue gas skid-mounted purification equipment as claimed in claim 1 or 5, wherein the flue gas inlet of the primary spray washing tower is located at the middle upper part of the container in the vertical direction, the flue gas outlet of the primary spray washing tower is located at the middle upper part of the container in the vertical direction, the flue gas inlet of the secondary spray washing tower is located at the middle lower part of the container in the vertical direction, and the flue gas outlet of the secondary spray washing tower is located at the middle upper part of the container in the vertical direction.
7. The skid-mounted purification equipment for organic solid waste gasification-incineration flue gas as recited in claim 1, wherein the casing of the glass fiber reinforced plastic centrifugal fan is of a volute structure made of high-strength, acid and alkali resistant Fiber Reinforced Plastic (FRP) material; the air inlet is of an integral convergent type made of glass fiber reinforced plastics and is fixed on the side of the machine shell by bolts; the impeller adopts carbon steel as a framework, and the outer surface of the impeller is compositely protected by an acid-base-resistant Fiber Reinforced Plastic (FRP) material; the motor and the belt pulley are provided with the protective covers, the detachable chimney air pipe and the standby replaceable air pipe are made of acid and alkali resistant Fiber Reinforced Plastic (FRP) materials, and the outer surface of the detachable chimney air pipe is protected by an imported ultraviolet resistant gel coat.
8. The skid-mounted purification equipment for organic solid waste gasification-incineration flue gas as claimed in claim 1, wherein the container is a 40-foot container, and the inside diameter size is as follows: length × width × height 12032mm × 2352mm × 2393 mm.
9. The purification method of the skid-mounted purification equipment for the gasification-incineration flue gas of organic solid waste according to claim 1, wherein the gasification flue gas of organic solid waste passes through a treatment unit in the container under the action of a draught fan, and after high temperature resistant primary filtration, activated carbon fiber adsorption and two-stage spraying acid mist washing are sequentially carried out, the gasification flue gas of organic solid waste is pumped out by a centrifugal fan to an air pipe chimney to reach the standard and be discharged.
10. The purification method of claim 1, wherein the temperature of the organic solid waste gasification flue gas is controlled to be 150-200 ℃ before entering the container, if the temperature is higher than 200 ℃, air cooling is performed firstly, fresh air is supplied to reduce the temperature, particulate matters in the flue gas are effectively treated after high temperature resistant primary filtration, then the flue gas enters activated carbon fibers for adsorption, heavy metals in the flue gas are removed, two-stage spraying acid mist washing is performed to absorb gases such as sulfur dioxide, nitrogen oxides, hydrogen sulfide and hydrogen chloride, and finally the purified flue gas is discharged through a chimney after reaching standards.
