Abstract
The invention discloses a groove type efficient drying system, which relates to the field of silicon wafer drying equipment, wherein a drying groove is made of PVDF (polyvinylidene fluoride), the drying groove is provided with a main groove and an auxiliary groove, the bottom of the auxiliary groove is provided with a uniform flow pipe, small holes are uniformly distributed on the inner wall of the uniform flow pipe, a heating device uniformly feeds heated air into the groove through the small holes, holes are uniformly distributed on two sides of a groove cover, so that humid air can be normally discharged, and the heating device is arranged outside the drying groove.
Description
Technical Field
The invention relates to the technical field of silicon wafer drying equipment, in particular to a groove type efficient drying system.
Background
In the preparation process of the crystalline silicon battery, the silicon wafer needs to be reacted with various chemicals in a groove type cleaning machine table and then dried, and the conventional drying system is poor in drying efficiency and easy to produce metal pollution. The prior art is that the stoving groove designs into the vice structure of operating of main tank cover, and the heating fluorescent tube is installed in both sides inside and outside groove intermediate layer, and the air forms the inner loop and heats through the fluorescent tube under the motor action, and stoving groove stainless steel spouts fluorine design, and the fluorescent tube is installed at the inslot, is close to the cell wall and uses yielding surface fluorine spraying thing also easily to drop for a long time, leads to metal contamination, and heating efficiency is low, and the energy consumption is high, inconvenient installation maintenance. Therefore, it is necessary to design an efficient drying system to solve the above problems.
Disclosure of Invention
The invention aims to overcome the defects in the prior art and avoid pollution and influence on battery efficiency in order to improve the drying effect. The mode that the independent heating structure is arranged externally is adopted, and the air blower is combined to form a combined uniform flow plate by directly rushing air flow from bottom to top in the groove, so that the silicon wafer flower basket is fully dried.
In order to achieve the purpose, the invention adopts the following technical scheme:
the utility model provides a high-efficient drying system of slot type, including drying bath, air heater, the drying bath includes main tank, auxiliary tank, capping, the auxiliary tank sets up in the main tank, and auxiliary tank bottom is equipped with even flow tube, even flow tube inner wall evenly distributed aperture, the air after heating device will heat sends into the inslot through the aperture is even, capping both sides evenly distributed hole for humid air can normally discharge, air heater arranges the drying bath outside in.
According to the further technical scheme, the flow equalizing plate is arranged above the flow equalizing pipe, so that broken silicon wafers in the auxiliary groove are prevented from falling into the bottom of the groove, and the groove body is convenient to clean.
Further technical scheme, in the air-blower sent into air heating device from outside air suction, air-blower convulsions end, convulsions end connection high efficiency filter guaranteed the air cleanliness factor, and the filter screen is equipped with in the pump suction opening simultaneously, avoids debris such as granule to draw in the pump.
In a further technical scheme, the drying groove and the uniform flow pipe are preferably made of PVDF materials.
Compared with the prior art, the invention has the beneficial effects that:
the stoving groove adopts the PVDF material, air heating device arranges the stoving groove outside in, vice tank bottoms portion is equipped with even flow tube, even flow tube inner wall evenly distributed aperture, heating device sends into the inslot through the aperture is even after with the air after the heating, capping both sides evenly distributed hole, make humid air can normally discharge, even flow tube top is equipped with even flow plate, prevent that the garrulous silicon chip of vice inslot from falling into tank bottoms portion, the cell body clearance of being convenient for, above-mentioned design has improved traditional stoving groove and has adopted the stainless steel to spout fluorine design, the heating fluorescent tube is installed at the inslot, it also easily drops to be close to the easy deformation surface fluorine thing of cell wall long-time use, lead to metal pollution energy consumption height, the technical problem of inconvenient installation and maintenance.
Drawings

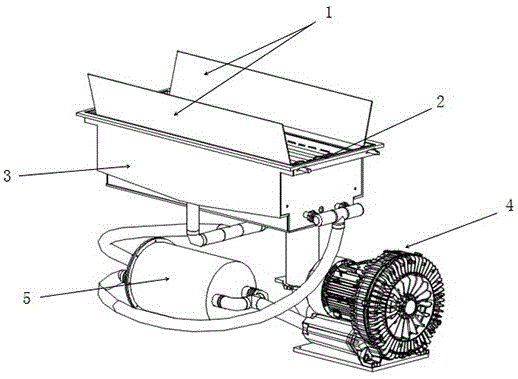

FIG. 1 is a schematic structural diagram of a slot-type efficient drying system according to the present invention;
fig. 2 is a schematic diagram of an internal structure of a slot-type efficient drying system provided by the invention.
In the figure: 1 groove cover, 2 flower baskets, 3 main grooves, 4 blowers, 5 air heating devices, 6 groove covers, 7 inner groove blowing holes, 8 uniform flow pipes, 10 auxiliary grooves and 11 uniform flow plates.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Example 1;
referring to fig. 1-2, a high-efficient drying system of slot type, including drying bath, air heater, the drying bath includes main trough 3, auxiliary tank 10, capping 1, and the preferred PVDF material cell body that adopts of drying bath, air heater 5 is for being independent of the outside heating structure of cell body, and air-blower 4 takes in the air from the outside, send into in air heater 5, 4 convulsions ends of air-blower, convulsions trailing end connection filter guarantee the air cleanliness factor, and the pump suction inlet is equipped with a filter screen simultaneously, avoids debris suction pumps such as granule in the pump. Air-blower 4 sends the air after the heating into the inslot through even flow tube 8, the hollow tube of the preferred adoption PVDF material of even flow tube 8, hollow tube lateral wall evenly distributed aperture, aperture size are in 1~5mm within range, and the hole interval control is in 1~20mm within range, and the aperture is used for evenly sending the air after the heating into the inslot, and high-speed high temperature air current can be with the flower basket in the inslot and the water droplet on the silicon chip weathered fast. Holes are uniformly distributed on two sides of the drying groove cover 1, so that moist air can be normally discharged, and the whole drying system has a good drying effect on the flower basket and the silicon wafer;
even flow tube 8 top is equipped with even flow plate 11, even flow plate 11 is used for guaranteeing the even logical inslot of the hot-blast of effluvium on the one hand, and on the other hand has the filtering action and avoids garrulous silicon chip to fall into the tank bottom portion, has avoided the stoving in-process, and the hot-blast piece of effluvium is beaten the piece to silicon chip in the stoving, causes further piece, the cell body clearance of also being convenient for.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (4)
1. The utility model provides a high-efficient drying system of slot type, its characterized in that, including drying bath, air heater, the drying bath includes main tank, auxiliary tank, capping, the auxiliary tank sets up in the main tank, and auxiliary tank bottom is equipped with the uniform flow pipe, uniform flow pipe inner wall evenly distributed aperture, capping both sides evenly distributed hole for humid air can normally discharge, air heater arranges the drying bath outside in.
2. The groove type efficient drying system as claimed in claim 1, wherein a flow equalizing plate is arranged above the flow equalizing pipe to prevent broken silicon chips in the auxiliary groove from falling into the bottom of the groove, so that the groove body is convenient to clean.
3. The trough type efficient drying system of claim 1, wherein the air blower draws air from the outside and sends the air into the air heating device, the air suction end and the air suction tail end of the air blower are connected with the efficient filter to ensure air cleanliness, and meanwhile, the air suction opening of the air blower is provided with a filter screen to prevent particles from being sucked into the air suction pump.
4. The trough-type efficient drying system according to claim 1, wherein the drying trough and the uniform flow pipe are preferably made of PVDF.
