Abstract
The invention provides a wood polishing device in the field of furniture production and a use method thereof, and the wood polishing device comprises a table board, wherein a support is fixedly arranged on one side of the top of the table board, a material discharging plate is arranged on the top of the support through a conveying mechanism, sliding blocks are connected on two sides of the material discharging plate in a sliding manner, two rotating shafts are arranged on the top of the sliding blocks, first rolling wheels are fixedly arranged on the top of the two rotating shafts, and the bottom end of the material discharging plate is fixedly connected with one end of a supporting surface. The efficiency of pay-off is improved, the efficiency of work is improved simultaneously.
Description
Technical Field
The invention belongs to the technical field of wood processing, and particularly relates to a wood polishing device in the field of furniture production and a using method thereof.
Background
The traditional polishing mode is that the sanding cloth is manually held to reciprocate on the surface of the wood, so that polishing is realized. The labor intensity of manual work is high, and certain errors exist in manual grinding, so that the surface of the wood is uneven. The wood polishing equipment comprises a driving device, a transmission device and a polishing device arranged above the transmission device, wherein a polishing channel is arranged between the polishing device and the transmission device. During the use, place timber on transmission device, transport timber to the passageway of polishing through transmission device in, rethread drive grinding device polishes to ligneous surface.
1) The existing polishing devices for producing furniture boards mostly need to manually convey and take materials, safety accidents are easily caused in the polishing process, more labor force can be wasted, polishing needs to be manually carried out, the polishing effect is poor, the working efficiency is low, and excessive labor time is consumed;
2) the existing furniture of polishing can't polish wooden deckle edge in the manufacturing process, can lead to the timber to polish the back finished product rate low, influences the pleasing to the eye degree of house use, and the part is used for producing the grinding device of furniture plank simultaneously, can not carry out the regulation edging of avris to the plank of equidimension not, and the edge part of panel can not effectually be polished.
Disclosure of Invention
The invention aims to provide a wood polishing device in the field of furniture production and a using method thereof, and aims to solve the problems that sliding polishing cannot be performed, the speed of conveyed objects is low, and edge polishing cannot be performed in the prior art.
In order to achieve the purpose, the invention provides the following technical scheme: a wood polishing device in the field of furniture production comprises a table top, wherein a support is fixedly mounted on one side of the top of the table top, a material placing plate is mounted on the top of the support through a conveying mechanism, sliding blocks are connected to two sides of the material placing plate in a sliding mode, two rotating shafts are mounted on the top of each sliding block, first idler wheels are fixedly mounted on the tops of the two rotating shafts, the bottom end of the material placing plate is fixedly connected with one end of a supporting surface, polishing mechanisms are mounted at two ends of the supporting surface, a supporting frame is fixedly mounted in the middle of the supporting surface, and an edge polishing mechanism is mounted at the top of the supporting;
conveying mechanism include with the first bull stick of the top fixedly connected with of support, the top outside cover of first bull stick is equipped with three pay-off L template, and is three the fluting has been seted up to the one end of pay-off L template, grooved internally mounted has the second gyro wheel, one side fixed mounting of support has the pay-off frame, one side fixed mounting of pay-off frame has the backup pad, the one end of first bull stick and first servo motor's transmission end fixed connection.
In order to enable the polishing rod to polish two sides of the furniture plate, as a preferable choice of the invention, a second servo motor is fixedly arranged at the top of the table board, a driving turntable is fixedly arranged at the transmission end of the second servo motor, a belt is sleeved on the outer side of the driving turntable, one end of the belt is in transmission connection with a driven turntable, one side of the driven turntable is fixedly connected with one end of a second rotating rod, the second rotating rod is arranged in the conveying frame and is movably connected with a bearing embedded in the inner wall, the outer side of the second rotating rod is in transmission connection with the outer side of a rotating roller through a feeding belt, two ends of the rotating roller are movably connected with the bearing embedded in two sides of the inner wall of the conveying frame, an installation frame is fixedly arranged at the top of the table board, a third servo motor is arranged at the top of the installation frame, and a transverse plate is fixedly arranged at one side of the, the driving gear is installed at the top of the transverse plate and is fixedly connected with the transmission end of the third servo motor, the outer side of the driving gear is in transmission connection with the driven gear through a chain, and the driven gear is sleeved on the outer side of the shaft rod and is fixedly connected with the top of the transverse plate.
In order to facilitate the grinding of the edge sides of the furniture board, as a preferred mode of the invention, the grinding mechanism comprises a collection table top fixedly connected with the tops of the two supporting surfaces, the bottom end of the collection table top is provided with a collection box, the top of the collection table is provided with a plurality of waste chip collecting grooves, a polishing frame is fixedly arranged on two sides of the top of the supporting surface, a first electric telescopic rod is fixedly arranged at the bottom of the top end of the polishing frame, the bottom end of the first electric telescopic rod is fixedly provided with a fixed block, four corners of the fixed block are fixedly provided with telescopic rods, the bottom end of the fixed mounting block is fixedly provided with a driving motor, the transmission end of the driving motor is fixedly connected with the top of the sanding disc, and second electric telescopic rods are fixedly mounted on two sides of the bottom end of the inner wall of the polishing frame, and the telescopic ends of the second electric telescopic rods are fixedly connected with one side of the polishing block.
In order to further polish the furniture board horizontally, the edge polishing mechanism preferably comprises an edge polishing frame fixedly mounted on the top of the support frame, sliding grooves are mounted on two sides of the top of the edge polishing frame, sliding blocks are connected inside the two sliding grooves in a sliding mode, a polishing shell is fixedly connected to the top of each sliding block, a stepping motor is fixedly mounted at the bottom end inside the polishing shell, an abrasive disk is fixedly mounted on the top of the stepping motor, a third rotating rod and a rotating roller are mounted at two ends of the top of the edge polishing frame, the outer side of the third rotating rod is in transmission connection with one side of the rotating roller through a conveying material belt, and a fourth servo motor is fixedly mounted at one end of the third rotating rod.
In order to facilitate the illumination of night personnel, as a preferable mode of the invention, an LED illuminating lamp is fixedly arranged on one side of the top of the table board.
In order to facilitate the handling of the electrically operated equipment on the wood-grinding device, it is preferred, as one aspect of the invention, a switch panel is fixedly arranged at the top of the table board, a first servo motor switch, a second servo motor switch, a third servo motor switch, a first electric telescopic switch, a driving motor switch, a second electric telescopic switch, an LED illuminating lamp switch and a stepping motor switch are fixedly arranged on the surface of the switch panel, the LED illuminating lamp comprises a first servo motor, a second servo motor, a third servo motor, a first electric telescopic device, a driving motor, a second electric telescopic device, an LED illuminating lamp and a stepping motor, wherein the first servo motor, the second servo motor, the third servo motor, the driving motor, the second servo motor switch, the third servo motor switch, the first electric telescopic switch, the driving motor switch, the second electric telescopic switch, the LED illuminating lamp switch and the stepping motor switch are respectively electrically connected with an external power supply.
A wood grinding device in the furniture production field and a use method thereof, wherein the wood grinding device comprises the wood grinding device as claimed in any one of claims 1 to 6, and comprises the following concrete steps:
s1, conveying;
s2, edging and grinding;
and S3, pressing and grinding.
In order to convey the furniture board, as a preferable aspect of the present invention, the feeding in step S1 includes: firstly, a first servo motor is arranged to rotate to drive three feeding L-shaped plates on a first rotating rod, and furniture plate polishing and edging plates are conveyed to a feeding belt.
In order to enable the furniture plate to be edged, it is preferable that the edging step in the S2 step includes: the first step, drive the belt through second servo motor's rotation, and the pay-off area rotates and makes house polishing plate drive the edging stick and polish to furniture board's both sides under the rotation of chain, and the second step, drives the dull polish dish through first electric telescopic handle's flexible horizontal plane of polishing furniture board, and the flexible avris that drives the piece furniture board of polishing of second electric telescopic handle polishes.
In order to press-grind the furniture boards, it is preferable that the press-grinding step in S3 includes: the rotation through step motor drives the third bull stick and rotates, through the mutually supporting of conveying material area and abrasive disc for polish to furniture board further level, through the grinding machanism who sets up, polish furniture board once more.
Compared with the prior art, the invention has the beneficial effects that:
1) the horizontal plane of the furniture board is polished by the aid of the polishing disc driven by the first electric telescopic rod to stretch, the side of the furniture board of the polishing block is polished by the aid of the second electric telescopic rod which stretches and retracts, the polishing block is matched with the sliding block through the arranged sliding groove, sliding polishing of the polishing shell is facilitated, the third rotating rod is driven to rotate through rotation of the stepping motor, the furniture board is further horizontally polished through mutual matching of the conveying material belt and the polishing disc, feeding efficiency is improved, and meanwhile working efficiency is improved;
2) cooperate through the spout and the slider that set up, be convenient for slide to polish the casing, drive the third bull stick through step motor's rotation and rotate, through the mutually supporting of conveying material area and dull polish disc for polish to furniture board further level, be convenient for polish ligneous deckle edge, improve the pleasing to the eye degree after timber is polished, drive the dull polish disc through the slip of spout simultaneously, carry out the regulation edging of avris to the plank of equidimension not.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention. In the drawings:

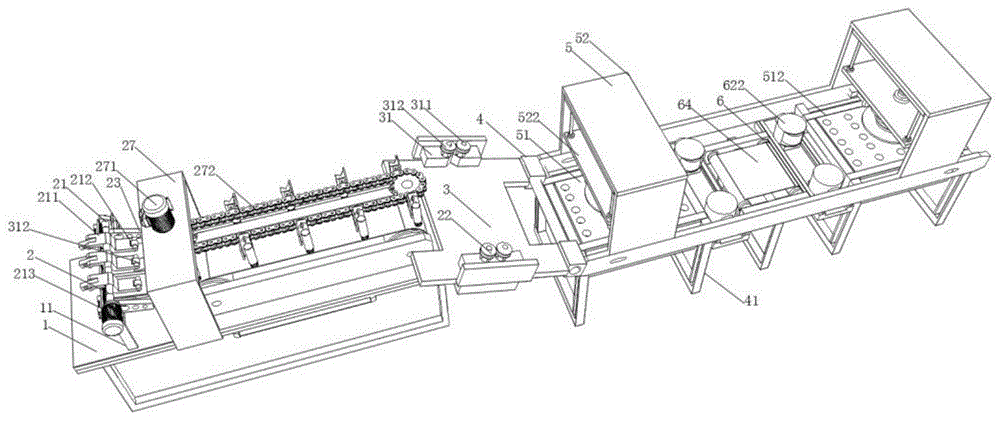

FIG. 1 is a schematic view of the present invention;
FIG. 2 is a schematic view of the present invention;
FIG. 3 is a second schematic structural diagram of the present invention;
FIG. 4 is a schematic view of the chain structure of the present invention;
FIG. 5 is a schematic view of a grinding mechanism according to the present invention;
fig. 6 is a schematic structural view of the edge grinding mechanism of the present invention.
In the figure: 1. a table top; 11. a support; 2. a conveying mechanism; 21. a first rotating lever; 211. feeding an L-shaped plate; 212. grooving; 213. a first servo motor; 22. a second roller; 23. a feeding frame; 24. a support plate; 25. a second servo motor; 251. an active turntable; 252. a belt; 253. a driven turntable; 254. a second rotating rod; 255. a feed belt; 26. a conveying frame; 27. a mounting frame; 271. a third servo motor; 272. a transverse plate; 273. a driving gear; 274. a chain; 275. a driven gear; 3. a material placing plate; 31. a slider; 311. a rotating shaft; 312. a first roller; 4. a support surface; 41. a support frame; 5. a polishing mechanism; 51. collecting the desktops; 511. a collection box; 512. a scrap collecting tank; 52. a polishing frame; 521. first electric extension and retraction; 522. a fixed block; 523. shrinking the rod; 524. fixing the mounting block; 53. a drive motor; 531. a sanding disc; 54. second electric extension and retraction; 541. grinding blocks; 6. an edge grinding mechanism; 61. an edging frame; 62. a chute; 621. a slider; 622. polishing the shell; 623. a stepping motor; 624. a sanding disc; 63. a third rotating rod; 64. and conveying the material belt.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Examples
Referring to fig. 1-6, the present invention provides the following technical solutions: a wood polishing device in the field of furniture production comprises a table top 1, wherein a support 11 is fixedly mounted on one side of the top of the table top 1, a material discharging plate 3 is mounted on the top of the support 11 through a conveying mechanism 2, sliders 31 are slidably connected to two sides of the material discharging plate 3, two rotating shafts 311 are mounted on the top of each slider 31, first idler wheels 312 are fixedly mounted on the tops of the two rotating shafts 311, the bottom end of the material discharging plate 3 is fixedly connected with one end of a supporting surface 4, polishing mechanisms 5 are mounted at two ends of the supporting surface 4, a supporting frame 41 is fixedly mounted in the middle of the supporting surface 4, and an edge polishing mechanism 6 is mounted at the top;
conveying mechanism 2 includes with the first bull stick 21 of the top fixedly connected with of support 11, the top outside cover of first bull stick 21 is equipped with three pay-off L template 211, fluting 212 has been seted up to the one end of three pay-off L template 211, the internally mounted of fluting 212 has second gyro wheel 22, one side fixed mounting of support 11 has pay-off frame 23, one side fixed mounting of pay-off frame 23 has backup pad 24, the one end of first bull stick 21 and first servo motor 213's drive end fixed connection.
A second servo motor 25 is fixedly arranged on the top of the table board 1, a driving turntable 251 is fixedly arranged at the driving end of the second servo motor 25, a belt 252 is sleeved on the outer side of the driving turntable 251, one end of the belt 252 is in transmission connection with a driven turntable, one side of the driven turntable 253 is fixedly connected with one end of a second rotating rod 254, the second rotating rod 254 is arranged in the conveying frame 26 and is movably connected with a bearing embedded in the inner wall, the outer side of the second rotating rod 254 is in transmission connection with the outer side of a rotating roller through a feeding belt 255, two ends of the rotating roller are movably connected with bearings embedded in two sides of the inner wall of the conveying frame 26, a mounting frame 27 is fixedly arranged on the top of the table board 1, a third servo motor 271 is arranged on the top of the mounting frame 27, a transverse plate 272 is fixedly arranged on one side of the mounting frame 27, a driving gear 273 is arranged on the top of, the driving gear 273 is connected to the driven gear 275 through the chain 274, and the driven gear 275 is fixed to the top of the horizontal plate 272.
When specifically using, at first, carry the preparation to furniture panel, open first servo motor switch through flush mounting plate of switch, second servo motor switch and third servo motor switch, the rotation through the first servo motor 213 that sets up drives first bull stick 21 and rotates, and drive a plurality of pay-off L template 211 on the first bull stick 21 and carry furniture panel, the rotation through second servo motor 25 drives pay-off area 255 and carries out the pay-off to furniture panel simultaneously, the rotation through third servo motor 271 drives initiative carousel 251 and driven carousel 253 and drives the both sides of the furniture panel that the stick of polishing of one side of chain 274 bottom was right and polish.
Grinding machanism 5 includes and collects desktop 51 with the top fixedly connected with of two holding surface 4, collect the bottom of desktop 51 and install collection box 511, collect the top of platform 51 and seted up a plurality of sweeps collecting vat 512, 4 top both sides fixed mounting of holding surface have grinding frame 52, the bottom fixed mounting on grinding frame 52 top has first electric telescopic handle 521, the bottom fixed mounting of first electric telescopic handle 521 has fixed block 522, the equal fixed mounting in four corners of fixed block 522 has telescopic link 523, the bottom fixed mounting of fixed mounting piece 524 has driving motor 53, driving motor 53's transmission end and the top fixed connection of dull polish disc 531, the both sides fixed mounting of grinding frame 52 inner wall bottom has second electric telescopic handle 54, the flexible end of two second electric telescopic handle 54 and one side fixed connection of grinding block 541.
During the specific use, offer sweeps collecting vat 512 on the collection desktop 51 through setting up, be convenient for polish furniture board, be convenient for collect the sweeps through the collection box 511 that sets up, drive the dull polish dish 531 through the flexible of first electric telescopic handle 521 and polish furniture board's horizontal plane, and the avris of the flexible drive of second electric telescopic handle 54 piece 541 furniture board of polishing.
During specific use, cooperate through the spout 62 and the slider 621 that set up, be convenient for slide to polish casing 622, drive third bull stick 63 through step motor's rotation and rotate, through the mutually supporting of conveying material area 64 and dull polish dish 624 for further level to furniture board is polished.
An LED illuminating lamp is fixedly arranged on one side of the top of the table board 1.
During specific use, the LED illuminating lamp is convenient for illuminating operators at night.
The top fixed mounting of mesa has switch panel, switch panel's fixed surface installs first servo motor switch, the second servo motor switch, the third servo motor switch, first electronic flexible switch, the driving motor switch, the electronic flexible switch of second, LED light switch and step motor switch, first servo motor 213, second servo motor 25, third servo motor 271, first electronic flexible 521, driving motor 53, the electronic flexible 54 of second, LED light and step motor 623 are respectively through first servo motor switch, the second servo motor switch, the third servo motor switch, first electronic flexible switch, the driving motor switch, the electronic flexible switch of second, LED light switch and step motor switch and external power supply electric connection.
A use method of a wood polishing device in the furniture production field comprises any one of the wood polishing devices in the furniture production field, and specifically comprises the following steps:
s1, conveying;
s2, edging and grinding;
and S3, pressing and grinding.
The material conveying in the step S1 includes: firstly, the three feeding L-shaped plates 211 on the first rotating rod 21 are driven by the rotation of the arranged first servo motor 213, and the furniture plate polishing edging plate is conveyed to the feeding belt 255.
The edging step in the step S2 includes: first, drive belt 252 through the rotation of second servo motor 25, and pay-off area 255 rotates and makes house sanding plate drive the edging stick and polish to furniture board's both sides at the rotation of chain 274, and second step, drives through the flexible emery disc 531 that grinds of first electric telescopic handle 521 to furniture board's horizontal plane, and the flexible avris that drives sanding block 541 furniture board of second electric telescopic handle 54 polishes.
The press grinding step in the step S3 includes: the rotation through step motor drives third bull stick 63 and rotates, through the mutually supporting of conveying material area 64 and dull polish disc 624 for polish further level of furniture panel, through the grinding machanism 5 that sets up, polish furniture panel once more.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. The wood polishing device in the field of furniture production comprises a table top (1) and is characterized in that a support (11) is fixedly mounted on one side of the top of the table top (1), a material discharging plate (3) is mounted on the top of the support (11) through a conveying mechanism (2), sliders (31) are connected to two sides of the material discharging plate (3) in a sliding mode, two rotating shafts (311) are mounted on the tops of the sliders (31), first idler wheels (312) are fixedly mounted on the tops of the two rotating shafts (311), the bottom end of the material discharging plate (3) is fixedly connected with one end of a supporting surface (4), polishing mechanisms (5) are mounted at two ends of the supporting surface (4), a support frame (41) is fixedly mounted in the middle of the supporting surface (4), and an edging mechanism (6) is mounted at the top of the support frame (41);
conveying mechanism (2) include with the first bull stick (21) of the top fixedly connected with of support (11), the top outside cover of first bull stick (21) is equipped with three pay-off L template (211), and is three fluting (212) have been seted up to the one end of pay-off L template (211), the internally mounted of fluting (212) has second gyro wheel (22), one side fixed mounting of support (11) has pay-off frame (23), one side fixed mounting of pay-off frame (23) has backup pad (24), the one end of first bull stick (21) and the transmission end fixed connection of first servo motor (213).
2. The wood grinding device in the furniture production field according to claim 1, characterized in that: the top fixed mounting of mesa (1) has second servo motor (25), the transmission end fixed mounting of second servo motor (25) has initiative carousel (251), the outside cover of initiative carousel (251) is equipped with belt (252), the one end and the driven turntable transmission of belt (252) are connected, one side of driven turntable (253) and the one end fixed connection of second bull stick (254), second bull stick (254) are arranged in the inside of carrying frame (26) and are inlayed the bearing swing joint who establishes with the inner wall, the outside of second bull stick (254) is passed through pay-off area (255) and is connected with the outside transmission of rotor, the bearing swing joint that establishes is inlayed with the both sides of carrying frame (26) inner wall at the both ends of rotor, the top fixed mounting of mesa (1) has mounting bracket (27), third servo motor (271) is installed at the top of mounting bracket (27), one side fixed mounting of mounting bracket (27) has diaphragm (272), driving gear (273) and with the transmission end fixed connection of third servo motor (271) are installed to the top of diaphragm (272), the outside of driving gear (273) is passed through chain (274) and is connected with driven gear (275) transmission, driven gear (275) cover is located the outside of axostylus axostyle and the top fixed connection of diaphragm (272).
3. The wood grinding device in the furniture production field according to claim 2, characterized in that: the polishing mechanism (5) comprises a collecting desktop (51) fixedly connected with the tops of two supporting surfaces (4), a collecting box (511) is installed at the bottom end of the collecting desktop (51), a plurality of scrap collecting tanks (512) are formed in the top of the collecting platform (51), polishing frames (52) are fixedly installed on two sides of the top of each supporting surface (4), a first electric telescopic rod (521) is fixedly installed at the bottom of the top end of each polishing frame (52), a fixing block (522) is fixedly installed at the bottom end of each first electric telescopic rod (521), telescopic rods (523) are fixedly installed at four corners of each fixing block (522), a driving motor (53) is fixedly installed at the bottom end of each fixed installation block (524), a driving end of each driving motor (53) is fixedly connected with the top of a polishing disc (531), and second electric telescopic rods (54) are fixedly installed on two sides of the bottom end of the inner wall of each polishing frame (52), the telescopic ends of the two second electric telescopic rods (54) are fixedly connected with one side of the polishing block (541).
4. The wood grinding device in the furniture production field according to claim 3, characterized in that: edging mechanism (6) include with the top fixed mounting of support frame (41) have edging frame (61), spout (62), two are installed to edging frame (61) top both sides the inside sliding connection of spout (62) has slider (621), the top fixedly connected with of slider (621) casing (622) of polishing, the inside bottom fixed mounting of casing (622) of polishing has step motor (623), the top fixed mounting of step motor (623) has dull polish dish (624), third bull stick (63) and rotor are installed at edging frame (61) top both ends, the outside of third bull stick (63) is connected with one side transmission of rotor through conveying material area (64), the one end fixed mounting of third bull stick (63) has fourth servo motor (65).
5. The wood grinding device in the furniture production field according to claim 4, characterized in that: and an LED illuminating lamp is fixedly arranged on one side of the top of the table top (1).
6. The wood grinding device in the furniture production field according to claim 5, characterized in that: the utility model discloses a LED illuminating lamp, including mesa, fixed surface, first servo motor switch, second servo motor switch, third servo motor switch, first electronic flexible switch, driving motor switch, the electronic flexible switch of second, LED light switch and step motor switch, first servo motor (213), second servo motor (25), third servo motor (271), first electronic flexible (521), driving motor (53), the electronic flexible (54) of second, LED light and step motor (623) are respectively through first servo motor switch, second servo motor switch, third servo motor switch, first electronic flexible switch, driving motor switch, the electronic flexible switch of second, LED light switch and step motor switch and external power supply electric connection.
7. A method for using a wood grinding device in the furniture production field, which comprises the wood grinding device in the furniture production field of any one of claims 1 to 6, and comprises the following specific steps:
s1, conveying;
s2, edging and grinding;
and S3, pressing and grinding.
8. The use method of the wood grinding device in the furniture production field according to claim 7, characterized in that: the material conveying in the step S1 includes: firstly, a first servo motor (213) is arranged to rotate to drive three feeding L-shaped plates (211) on a first rotating rod (21), and the furniture plate polishing and edging plate is conveyed to a feeding belt (255).
9. The use method of the wood grinding device in the furniture production field according to claim 7, characterized in that: the edging step in the step S2 includes: the furniture polishing device comprises a first step, a belt (252) is driven through rotation of a second servo motor (25), a feeding belt (255) rotates to enable a household polishing plate to drive an edge polishing rod to polish two sides of furniture plates through rotation of a chain (274), a second step is conducted, a polishing disc (531) is driven through stretching of a first electric telescopic rod (521) to polish the horizontal plane of the furniture plates, and the stretching of a second electric telescopic rod (54) drives a polishing block (541) to polish the side of the furniture plates.
10. The use method of the wood grinding device in the furniture production field according to claim 7, characterized in that: the press grinding step in the step S3 includes: rotation through step motor drives third bull stick (63) and rotates, through the mutually supporting of conveying material area (64) and dull polish dish (624) for polish further level of furniture board, through grinding machanism (5) that set up, polish furniture board once more.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010797113.4A CN111922868B (en) | 2020-08-10 | 2020-08-10 | Wood polishing device in furniture production field and use method thereof |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010797113.4A CN111922868B (en) | 2020-08-10 | 2020-08-10 | Wood polishing device in furniture production field and use method thereof |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN111922868A true CN111922868A (en) | 2020-11-13 |
| CN111922868B CN111922868B (en) | 2022-01-07 |
Family
ID=73308179
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202010797113.4A Active CN111922868B (en) | 2020-08-10 | 2020-08-10 | Wood polishing device in furniture production field and use method thereof |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN111922868B (en) |
Cited By (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113084664A (en) * | 2021-05-11 | 2021-07-09 | 青岛华谊优品智能家具股份有限公司 | Furniture board production line loading attachment |
| CN114290714A (en) * | 2021-12-20 | 2022-04-08 | 魏石运 | Surfboard inner core water repellent equipment |
| CN116141789A (en) * | 2023-03-03 | 2023-05-23 | 上海博悠实业有限公司 | PVC composite board and processing technology thereof |
Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2003136381A (en) * | 2001-10-30 | 2003-05-14 | Amitec Corp | Sanding machine |
| CN103769980A (en) * | 2013-12-31 | 2014-05-07 | 重庆凌达磁材科技有限公司 | Production line for grinding of tile-shaped magnet |
| CN104191331A (en) * | 2014-09-04 | 2014-12-10 | 浙江天竹工贸有限公司 | Full-automatic edge-sanding polisher |
| CN204607219U (en) * | 2015-04-27 | 2015-09-02 | 武汉欣捷数控机械有限公司 | A kind of automatic location hay stacker of disk material |
| CN107263285A (en) * | 2017-07-11 | 2017-10-20 | 信丰迅捷兴电路科技有限公司 | A kind of wiring board welding resistance automatic nog plate system and nog plate method |
| CN107877616A (en) * | 2017-10-13 | 2018-04-06 | 浙江传媒学院 | Wood furniture plate processing device |
| CN107932228A (en) * | 2017-11-24 | 2018-04-20 | 广西荔浦安吉利木业有限公司 | A kind of wood sheet automatic sander |
| CN208729410U (en) * | 2018-08-17 | 2019-04-12 | 浙江庆元真诚竹木有限公司 | A kind of efficient edging device of bamboo wood furniture processing |
| CN209889943U (en) * | 2019-03-20 | 2020-01-03 | 安丘市林河包装制品有限公司 | Conveying production line for processing plastic hollow plates |
-
2020
- 2020-08-10 CN CN202010797113.4A patent/CN111922868B/en active Active
Patent Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2003136381A (en) * | 2001-10-30 | 2003-05-14 | Amitec Corp | Sanding machine |
| CN103769980A (en) * | 2013-12-31 | 2014-05-07 | 重庆凌达磁材科技有限公司 | Production line for grinding of tile-shaped magnet |
| CN104191331A (en) * | 2014-09-04 | 2014-12-10 | 浙江天竹工贸有限公司 | Full-automatic edge-sanding polisher |
| CN204607219U (en) * | 2015-04-27 | 2015-09-02 | 武汉欣捷数控机械有限公司 | A kind of automatic location hay stacker of disk material |
| CN107263285A (en) * | 2017-07-11 | 2017-10-20 | 信丰迅捷兴电路科技有限公司 | A kind of wiring board welding resistance automatic nog plate system and nog plate method |
| CN107877616A (en) * | 2017-10-13 | 2018-04-06 | 浙江传媒学院 | Wood furniture plate processing device |
| CN107932228A (en) * | 2017-11-24 | 2018-04-20 | 广西荔浦安吉利木业有限公司 | A kind of wood sheet automatic sander |
| CN208729410U (en) * | 2018-08-17 | 2019-04-12 | 浙江庆元真诚竹木有限公司 | A kind of efficient edging device of bamboo wood furniture processing |
| CN209889943U (en) * | 2019-03-20 | 2020-01-03 | 安丘市林河包装制品有限公司 | Conveying production line for processing plastic hollow plates |
Cited By (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN113084664A (en) * | 2021-05-11 | 2021-07-09 | 青岛华谊优品智能家具股份有限公司 | Furniture board production line loading attachment |
| CN114290714A (en) * | 2021-12-20 | 2022-04-08 | 魏石运 | Surfboard inner core water repellent equipment |
| CN114290714B (en) * | 2021-12-20 | 2024-02-09 | 义乌市海博体育用品有限公司 | Waterproof treatment equipment for inner core of surfing board |
| CN116141789A (en) * | 2023-03-03 | 2023-05-23 | 上海博悠实业有限公司 | PVC composite board and processing technology thereof |
| CN116141789B (en) * | 2023-03-03 | 2024-01-09 | 上海博悠实业股份有限公司 | PVC composite board and processing technology thereof |
Also Published As
| Publication number | Publication date |
|---|---|
| CN111922868B (en) | 2022-01-07 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN111922868B (en) | Wood polishing device in furniture production field and use method thereof | |
| CN205968521U (en) | Marginal polisher is used in glass production with adjustable width | |
| CN112659388A (en) | Deburring device for gypsum brick production | |
| CN213858592U (en) | Grinding device for wood working | |
| CN207480290U (en) | One kind processes edging device for plank | |
| CN209566268U (en) | A kind of edge banding machine turning spur in the same direction | |
| CN215281220U (en) | A equipment of polishing for bamboo plank | |
| CN214080594U (en) | Wood furniture grinding device who facilitates use | |
| CN115555962A (en) | Floor type dust absorption sander and veneer wood surface processing method | |
| CN213673396U (en) | Polishing device for furniture manufacturing | |
| CN212444417U (en) | A grinding device for PC stone material brick | |
| CN211490849U (en) | Wooden plywood's equipment of polishing | |
| CN211361668U (en) | Automatic burnishing device of plank | |
| CN202780774U (en) | Polishing processing apparatus for stainless steel casing of submersible motor | |
| CN112975622A (en) | Sander used in wooden floor processing | |
| CN206029543U (en) | Two -way polisher of adjustable | |
| CN218620874U (en) | Leather grinding machine for leather processing | |
| CN218427410U (en) | Glass four corners grinding device | |
| CN211541532U (en) | Floor smooth surface board sawing device | |
| CN214393634U (en) | Portable grinding device | |
| CN219819152U (en) | Edging machine for hollow plastic plate production | |
| CN205184478U (en) | Floor processing is with belt dull polish machine dull polish mechanism | |
| CN212946936U (en) | Plank grinding device before plank mends ash | |
| CN219684843U (en) | Polishing device with brush heads convenient to replace for glass product production | |
| CN218488027U (en) | A grinding device for aluminum alloy door and window processing |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20231128 Address after: Xiang Zhu Zhen Si Kou Lu Cun, Yongkang City, Jinhua City, Zhejiang Province Patentee after: Yongkang Xinguang Lighting Co.,Ltd. Address before: 322206 Jiangqiao village, zhengjiawu Town, Pujiang County, Jinhua City, Zhejiang Province Patentee before: Huang Shufang |
