Abstract
The invention relates to a vertical main frame of a lifting operation safety protection platform for high-rise building construction, which relates to the technical field of buildings, wherein a walkway plate connecting piece is arranged at the upper end of a vertical rod of a machine position triangular support and is fixed at the end part of a cross rod of the machine position triangular support; one side of the machine position triangular support is connected with the guide rail by a guide rail connecting sheet, and the guide rail connecting sheet is connected with the guide rail by a connecting bolt; the other side of the machine position triangular support is fixedly connected with the outer vertical rod through a connecting bolt; the walkway plate is arranged on the machine position triangular support, one side of the walkway plate is fixedly connected with the walkway plate connecting piece through a connecting bolt, and the other side of the walkway plate is fixedly connected with the outer vertical rod through a connecting bolt. The lifting operation can be carried out integrally or in groups by depending on the power of the frame body, the frame body has an operation platform for providing standing people for placing objects and protecting the edge for the main body of a high-rise building and the decoration construction of an outer wall, and the frame body has the functions of falling prevention, overturn prevention, overload alarm, self shutdown and the like in the lifting process.
Description
Technical Field
The invention relates to the technical field of buildings, in particular to a vertical main frame of a lifting operation safety protection platform for high-rise building construction.
Background
Because the high-rise building construction can promote the mechanized level of high-rise building construction by a wide margin with lift operation safety protection platform (being all steel attached lift scaffold), set up the operation into ground operation with a large amount of artifical high altitude, unsettled and danger that face the limit, the security performance is good, safe civilized construction effect is showing, so at present the high-rise building construction safety protection of china has generally used all steel attached lift scaffold to replace traditional ordinary fastener formula steel pipe scaffold. The all-steel attached lifting scaffold on the market at present is complex in structure, various specifications and types of equipment are more, and the following figure 1 shows that: the vertical main frame of support body is by the guide rail, outer pole setting, walk the guidance tape, three corner brace, the machine position connecting piece is constituteed, its guide rail is through walking the guidance tape, three corner brace are connected with outer pole setting, the lateral surface of walking the guidance tape is connected with outer pole setting, the medial surface of walking the guidance tape passes through the machine position connecting piece and is connected with the guide rail, three corner brace install the below at the guidance tape, a vertical main frame is because the walking board that the polylith is parallel to each other is installed and is constituted on guide rail and outer pole setting, arrange the vertical frame of installation multiunit interconnect at the building periphery and constitute a whole all steel inserted lift scaffold support body promptly.
The existing all-steel attached lifting scaffold in the current market has the technical defects that: 1) the number of types of parts is large, the installation is inconvenient, the installation consumes more working hours, the installation efficiency is low, the production cost is high, and the materials are inconvenient to manage; 2) because the triangular supports and the walkway plate are separately and independently installed, the stability of the walkway plate is poor, and the overall strength of the frame body can be influenced.
Disclosure of Invention
The invention aims to provide a lifting operation safety protection platform vertical main frame for high-rise building construction, which is reasonable in design, can be lifted and operated integrally or in groups by means of self power, has an operation platform for providing standing people for placing objects and protecting the side edges for high-rise building main bodies and outer wall decoration construction, has the functions of falling prevention, overturn prevention, overload alarm, self halt and the like during lifting, and is suitable for the lifting operation safety protection platform for high-rise building construction with any structure with vertical faces or small inclination.
In order to achieve the purpose, the invention adopts the following technical scheme: it comprises a guide rail, an outer upright post, a walkway plate, a machine position triangular support and a connecting bolt; a plurality of machine position triangular supports are sequentially arranged between the guide rail and the outer vertical rod from top to bottom, guide rail connecting pieces are fixed at the upper and lower ends of a vertical rod of each machine position triangular support, and a walkway plate connecting piece is arranged at the upper end of the vertical rod of each machine position triangular support and is fixed at the end part of a transverse rod of each machine position triangular support; one side of the machine position triangular support is connected with the guide rail by a guide rail connecting sheet, and the guide rail connecting sheet is connected with the guide rail by a connecting bolt; the other side of the machine position triangular support is fixedly connected with the outer vertical rod through a connecting bolt; the walkway plate is arranged on the machine position triangular support, one side of the walkway plate is fixedly connected with the walkway plate connecting piece through a connecting bolt, and the other side of the walkway plate is fixedly connected with the outer vertical rod through a connecting bolt.
Furthermore, the guide rail is fixedly connected with the bottom of the outer vertical rod through a walkway plate.
Further, the outside of the vertical main frame of the lifting operation safety protection platform for high-rise building construction is provided with a plurality of vertical upright posts and a protection net, and the protection net is connected between the adjacent vertical upright posts.
The working principle of the invention is as follows: the lifting operation safety protection platform comprises a plurality of lifting operation safety protection platform vertical main frames, a plurality of horizontal trusses, a lifting mechanism, an attachment mechanism and an intelligent control system, wherein the lifting operation safety protection platform is integrally or separately arranged, the lifting operation safety protection platform is integrally or separately driven by self power, and the lifting operation can be integrally or separately carried out.
After adopting the structure, the invention has the beneficial effects that: the invention provides a vertical main frame of a lifting operation safety protection platform for high-rise building construction, which can be lifted and operated integrally or in groups by means of self power, has an operation platform for providing standing people for placing objects and protecting the objects near the edge for the high-rise building main body and the outer wall decoration construction, has the functions of falling prevention, overturn prevention, overload alarm, self shutdown and the like during the lifting process, and is suitable for the lifting operation safety protection platform of the high-rise building construction with any structure with vertical elevation or small inclination.
Description of the drawings:

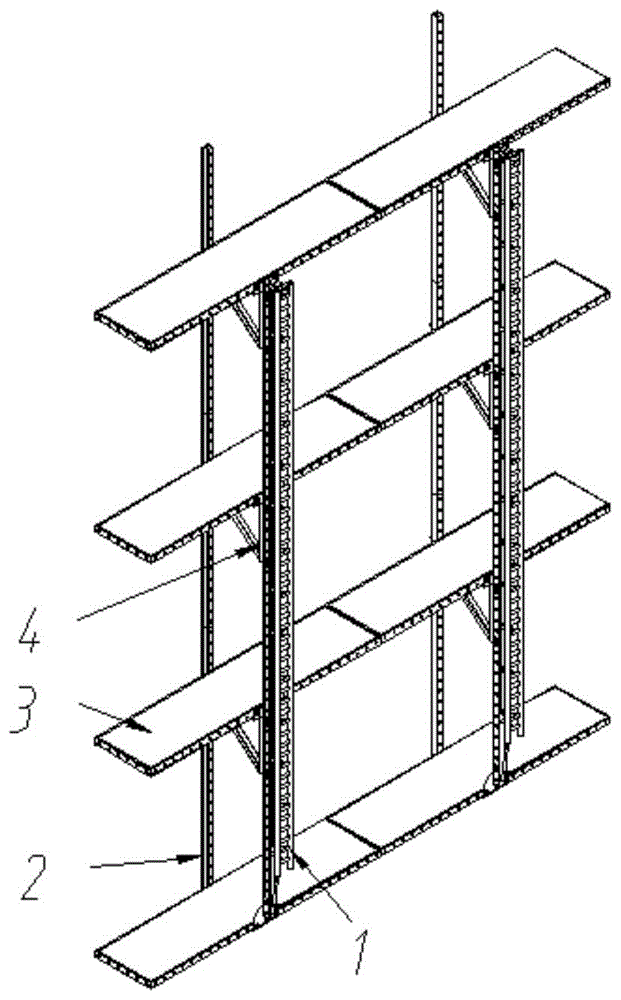

fig. 1 is a schematic structural view of the present invention.
Fig. 2 is a schematic structural diagram of the machine position triangular support.
Fig. 3 is a side view of the present invention.
Fig. 4 is a state diagram of the use of the present invention.
Fig. 5 is a side view of the present invention in use.
Description of reference numerals:
the device comprises a guide rail 1, an outer vertical rod 2, a walkway plate 3, a machine position triangular support 4, a guide rail connecting sheet 4-1, a walkway plate connecting sheet 4-2, a connecting bolt 5, a vertical rod 6, a protective net 7, a lifting mechanism 8 and an attachment mechanism 9.
The specific implementation mode is as follows:
the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1 to 5, the following technical solutions are adopted in the present embodiment: the device comprises a guide rail 1, an outer upright rod 2, a walkway plate 3, a machine position triangular support 4 and a connecting bolt 5; the guide rail 1 and the bottom of the outer upright rod 2 are fixedly connected through a walkway plate 3; three machine position triangular supports 4 are sequentially arranged between the guide rail 1 and the outer vertical rod 2 from top to bottom, guide rail connecting sheets 4-1 are fixedly welded at the upper and lower ends of a vertical rod of each machine position triangular support 4, a walkway plate connecting sheet 4-2 is arranged at the upper end of the vertical rod of each machine position triangular support 4, and the walkway plate connecting sheet 4-2 is fixedly welded at the end part of a cross rod of each machine position triangular support 4; one side of the machine position triangular support 4 is connected with the guide rail 1 by a guide rail connecting sheet 4-1, and the guide rail connecting sheet 4-1 is connected with the guide rail 1 by a connecting bolt 5; the other side of the machine position triangular support 4 is fixedly connected with the outer upright rod 2 by a connecting bolt 5; the walkway plate 3 is arranged on the machine position triangular support 4, one side of the walkway plate 3 is fixedly connected with a walkway plate connecting sheet 4-2 by a connecting bolt 5, and the other side of the walkway plate 3 is fixedly connected with the outer upright rod 2 by the connecting bolt 5.
The working principle of the specific embodiment is as follows: a plurality of vertical main frames of the lifting operation safety protection platform for high-rise building construction are attached to a peripheral structure of the high-rise building side by side, a vertical upright rod 6 and a protective net 7 are installed on the outer side of a walkway plate 3 of the vertical main frame of the lifting operation safety protection platform for high-rise building construction, the protective net 7 is fixed on the vertical upright rods 6 at two sides in a bolt connection mode, the vertical main frames of the lifting operation safety protection platform for high-rise building construction side by side are connected into a whole by utilizing horizontal trusses arranged in the inner and outer rows, a lifting mechanism 8, an attachment mechanism 9 and an intelligent control system are arranged on a guide rail 1, namely, the lifting operation safety protection platform of a space-invariant system is formed, and the lifting operation can be carried out integrally or in groups.
After adopting above-mentioned structure, this embodiment's beneficial effect is: this embodiment provides a high-rise building construction is with vertical main frame of lift operation safety protection platform, rely on self power, can wholly or the operation of grouping goes up and down, has for high-rise building main part and outer wall decoration construction provide the operation platform that the people of standing put the thing and face the frontier defense and protect, its support body has in the lift process prevents falling, prevents toppling, overload warning and function such as shut down oneself, it is applicable to the elevation type operation safety protection platform of the high-rise building construction of the little arbitrary structure of facade vertical or gradient.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the invention can be made, and equivalents and modifications of some features of the invention can be made without departing from the spirit and scope of the invention.
Claims (4)
1. The utility model provides a high-rise building construction is with vertical main frame of lift operation safety protection platform which characterized in that: the device comprises a guide rail (1), an outer upright rod (2), a walkway plate (3), a machine position triangular support (4) and a connecting bolt (5); a plurality of machine position triangular supports (4) are sequentially arranged between the guide rail (1) and the outer upright rod (2) from top to bottom, guide rail connecting pieces (4-1) are fixed at the upper and lower ends of a vertical rod of each machine position triangular support (4), a walkway plate connecting piece (4-2) is arranged at the upper end of the vertical rod of each machine position triangular support (4), and the walkway plate connecting piece (4-2) is fixed at the end part of a cross rod of each machine position triangular support (4); one side of the machine position triangular support (4) is connected with the guide rail (1) by a guide rail connecting sheet (4-1), and the guide rail connecting sheet (4-1) is connected with the guide rail (1) by a connecting bolt (5); the other side of the machine position triangular support (4) is fixedly connected with the outer upright rod (2) by a connecting bolt (5); the walkway plate (3) is arranged on the machine position triangular support (4), one side of the walkway plate (3) is fixedly connected with a walkway plate connecting sheet (4-2) through a connecting bolt (5), and the other side of the walkway plate (3) is fixedly connected with the outer vertical rod (2) through the connecting bolt (5).
2. The vertical main frame of the lifting operation safety protection platform for the high-rise building construction according to claim 1, characterized in that: the guide rail (1) is fixedly connected with the bottom of the outer upright rod (2) through a walkway plate (3).
3. The vertical main frame of the lifting operation safety protection platform for the high-rise building construction according to claim 1, characterized in that: the outside of the vertical main frame of the lifting operation safety protection platform for the high-rise building construction is provided with a plurality of vertical upright rods (6) and a protective net (7), and the protective net (7) is connected between the adjacent vertical upright rods (6).
4. The vertical main frame of the lifting operation safety protection platform for the high-rise building construction according to claim 1, characterized in that: the working principle is as follows: the lifting operation safety protection platform comprises a plurality of lifting operation safety protection platform vertical main frames for high-rise building construction, wherein the main frames are attached to the peripheral structure of the high-rise building side by side, vertical upright rods (6) and a protective net (7) are installed on the outer sides of walkway plates (3) of the lifting operation safety protection platform vertical main frames for the high-rise building construction, the plurality of lifting operation safety protection platform vertical main frames for the high-rise building construction side by side are connected into a whole by utilizing inner and outer horizontal trusses, a lifting mechanism (8) is arranged on a guide rail (1), an attachment mechanism (9) and an intelligent control system are arranged on the guide rail, namely, the lifting operation safety protection platform of a space-invariant system is formed, and the lifting operation is carried out integrally or in.
