Abstract

The invention discloses a pouring machine for a building template, relates to the technical field of pouring machines, and particularly relates to a pouring machine for a building template. This building templates is with watering machine, first slide and the setting of second slide through, make this building templates is with watering machine possess nimble regulation watering position, the effect that degree of automation is high, cooperation setting through first servo motor and second servo motor, the in-process that uses can be through controlling first servo motor and second servo motor's positive and negative rotation, it removes about moving around driving the discharging pipe realization, deuterogamy support ring and screw hole can realize realizing adjusting the effect of different pay-off heights through screw hole cooperation set screw according to the building templates of co-altitude, thereby use flexibility has been played, the effect that degree of automation is high, the range of application is wide, the purpose that availability factor is high.

Description

Irrigation machine for building wallboard
Technical Field
The invention relates to the technical field of irrigation machines, in particular to an irrigation machine for a building template.
Background
The prestressed high-strength concrete pipe pile is a novel pile foundation material popularized and applied in construction engineering in the present year, has the characteristics of high concrete strength, large bearing capacity, quick and convenient construction, small environmental pollution, reliable pile forming quality, good comprehensive technical and economic benefits and the like, and is greatly popularized and used in China, coastal provinces and cities.
The existing process for producing the prestressed concrete pipe pile sequentially comprises the following steps: weaving a reinforcement cage, filling and feeding, closing the mold, tensioning the reinforcement, centrifugally forming, and performing steam curing. The filling and feeding process is to place the braided reinforcement cage into a pipe die and then fill the pipe die with concrete. The existing feeder is funnel-shaped equipment which is hoisted on a track above a pipe die, and concrete materials are filled into the pipe die by the back-and-forth walking of the feeder. Such a feeder requires that the concrete is stirred at ground level in advance and then transferred to the hopper of the feeder. By using the feeding machine, the labor intensity of workers is higher, concrete is easy to overflow out of the pipe die and is easy to block outside the reinforcement cage, the concrete cannot be quickly filled into the reinforcement cage, and the production efficiency is lower.
Although the casting mechanism of the tubular pile mould disclosed in the chinese patent application publication CN207841701U has the disadvantages that the parting surface of the casting mechanism of the tubular pile mould compacts the concrete, the roller slightly protrudes from the parting surface, so as to facilitate the extrusion of the concrete into the gap of the steel wire cage, fully complete the filling, prevent the concrete from overflowing outwards, and open the pneumatic vibrators on the two sides of the pushing trolley, so as to promote the uniform flow of the concrete in the tubular pile, and ensure the uniform casting of the concrete in each part of the tubular pile, the casting mechanism of the tubular pile mould has the disadvantages of inconvenient concrete feeding, low flexibility, low use efficiency, inconvenient adjustment and wide application range.
Disclosure of Invention
Aiming at the defects of the prior art, the invention provides a pouring machine for a building template, which solves the problems in the background technology.
In order to realize the purpose, the invention discloses a pouring machine for a building template, which adopts the technical scheme that: building templates is with watering machine, including the roof, the bottom fixed mounting of roof has the stand, one side sliding connection of stand has the support ring, one side fixed mounting of support ring has the bracing piece, the inside set screw hole of support ring, the top welding of bracing piece has first slide, there is first support one side of first slide through gyro wheel sliding connection, one side fixed mounting of first support has a servo motor, a servo motor's bottom fixed mounting has the fixed block, the inside threaded connection of fixed block has the screw.
Optionally, a second slide is welded at the bottom of the first support, a second support is movably connected to one side of the second slide through a small roller, a cushion block is fixedly mounted on one side of the second support, and a second servo motor is fixedly mounted at the top of the cushion block.
Optionally, the bottom of the second support is fixedly provided with a holding block, a discharge pipe is fixedly arranged inside the holding block, and the discharge pipe is made of stainless steel.
Optionally, a stirring barrel is fixedly installed inside the top plate, a damping ring is fixedly installed on one side of the stirring barrel, and the damping ring is made of rubber; the stirring device is characterized in that a valve is fixedly mounted at the bottom of the stirring barrel, a feeding pipe is fixedly mounted inside the valve, and the feeding pipe is made of a plastic hose.
Optionally, one side butt joint of stand bottom has the building templates, the building templates is for dismantling the template, the quantity of stand is four, the quantity of support ring is two, and the symmetric distribution is in the both sides of roof.
Optionally, the number of screw hole is four, and evenly distributed is in one side of four support rings, first slide and second slide are the I-steel construction.
The invention has the beneficial effects that: this building templates is with watering machine, first slide and the setting of second slide through, make this building templates is with watering machine possess nimble regulation watering position, the effect that degree of automation is high, cooperation setting through first servo motor and second servo motor, the in-process that uses can be through controlling first servo motor and second servo motor's positive and negative rotation, it removes about moving around driving the discharging pipe realization, deuterogamy support ring and screw hole can realize realizing adjusting the effect of different pay-off heights through screw hole cooperation set screw according to the building templates of co-altitude, thereby use flexibility has been played, the effect that degree of automation is high, the range of application is wide, the purpose that availability factor is high.
Drawings

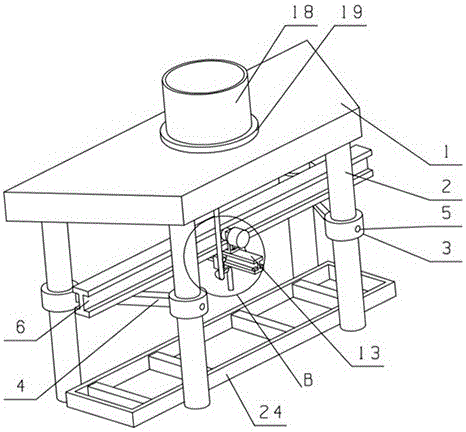

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic front view of the present invention;
FIG. 3 is a schematic view of the valve of the present invention;
FIG. 4 is a schematic view of the structure of FIG. 1B according to the present invention;
FIG. 5 is a schematic view of the structure of FIG. 3C according to the present invention.
In the figure: 1. a top plate; 2. a column; 3. a support ring; 4. a support bar; 5. a threaded hole; 6. a first slideway; 8. a roller; 9. a first bracket; 10. a first servo motor; 11. a fixed block; 12. a screw; 13. a second slideway; 14. a small roller; 15. a second bracket; 16. cushion blocks; 17. a second servo motor; 18. a stirring barrel; 19. a shock-absorbing ring; 20. a valve; 21. a holding block; 22. a discharge pipe; 23. a feed pipe; 24. building templates.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
As shown in fig. 1 to 5, the irrigation machine for the building template comprises a top plate 1, wherein a stirring barrel 18 is fixedly installed inside the top plate 1, a damping ring 19 is fixedly installed on one side of the stirring barrel 18, and the damping ring 19 is made of rubber. A valve 20 is fixedly installed at the bottom of the stirring barrel 18, a feeding pipe 23 is fixedly installed inside the valve 20, the feeding pipe 23 is made of a plastic hose, a building template 24 is abutted against one side of the bottom of the upright post 2, the building template 24 is a detachable template, the number of the upright posts 2 is four, the number of the support rings 3 is two, the two support rings are symmetrically distributed on two sides of the top plate 1, the bottom of the top plate 1 is fixedly installed with the upright posts 2, one side of the upright post 2 is slidably connected with the support rings 3, one side of the support rings 3 is fixedly installed with a support rod 4, threaded holes 5 are formed in the support rings 3, the four threaded holes 5 are uniformly distributed on one side of the four support rings 3, the first slide 6 and the second slide 13 are of an I-shaped steel structure, a first slide 6 is welded on the top of the support rod 4, the first slide 6 passes through the first slide 6 and the second slide 13, and, The effect of high degree of automation is achieved, through the matched arrangement of the first servo motor 10 and the second servo motor 17, the discharge pipe 22 can be driven to move front and back and left and right by controlling the positive and negative rotation of the first servo motor 10 and the second servo motor 17 in the using process, the effect of adjusting different feeding heights can be achieved by matching the support ring 3 and the threaded hole 5 with the threaded hole and the positioning screw according to building templates with different heights, so that the effects of flexible use and high degree of automation are achieved, one side of the first slide 6 with wide application range and high use efficiency is achieved, the first support 9 is connected with the first slide way 13 in a sliding mode through the roller 8, the second slide way 13 is welded at the bottom of the first support 9, the second support 15 is movably connected with one side of the second slide way 13 through the small roller 14, the cushion block 16 is fixedly installed at one side of the second support 15, and the second servo motor 17 is, the bottom fixed mounting of second support 15 has the piece 21 of keeping, and the material that keeps the inside fixed mounting of piece 21 to have discharging pipe 22 is stainless steel, and one side fixed mounting of first support 9 has first servo motor 10, and the bottom fixed mounting of first servo motor 10 has fixed block 11, and the internal thread of fixed block 11 is connected with screw 12.
When the automatic discharging device is used, the valve 20 is firstly opened, concrete or other pouring materials which are well stirred in the stirring barrel 18 are conveyed to the discharging pipe 22 through the feeding pipe 23 to be discharged, the feeding pipe 23 is a plastic hose and has higher ductility, the discharging pipe 22 can be moved, the automatic discharging device is convenient to use, the discharging pipe 22 is made of stainless steel, concrete in a pipeline can be prevented from flowing in a accumulated manner, the first slide way 6 is arranged at the bottom of the first support 9 and matched with the first support 9, the first servo motor 10 and the roller 8, the effect of horizontally adjusting the discharging position of the discharging pipe 22 can be realized by controlling the forward and reverse rotation of the first servo motor 10, the second slide way 13 is fixedly arranged at the bottom of the first support 9 and matched with the cushion block 16, the second servo motor 17 and the small roller 14, the forward and backward movement of the discharging pipe 22 can be realized by controlling the forward and reverse rotation of the second servo motor 17, owing to be provided with support ring 3 and screw hole 5, can realize adjusting the height of first slide 6 through screw hole 5 and set screw according to the different heights of building templates 24 of difference to the height of adjustment discharging pipe 22, in order to realize improving the purpose of range of application, owing to be provided with damping ring 19, and damping ring 19's material is rubber, can make agitator 18 reduce vibrations in the course of the work, operate steadily, reach simple structure, convenient to use's purpose.
In summary, the following steps: this building templates is with watering machine, first slide 6 and the setting of second slide 13 through, make this building templates is with watering machine possess nimble regulation watering position, the effect that degree of automation is high, cooperation through first servo motor 10 and second servo motor 17 sets up, the in-process that uses can be through controlling first servo motor 10 and second servo motor 17 positive and negative rotation, it removes about driving discharging pipe 22 realization front and back, deuterogamy support ring 3 and screw hole 5 can realize realizing adjusting the effect of different pay-off heights through screw hole cooperation set screw according to the building templates of co-altitude, thereby it is nimble to have played the use, the effect that degree of automation is high, wide range of application has been reached, the purpose that the availability factor is high.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.

Claims (6)

1. The utility model provides a building templates is with watering machine, includes roof (1), its characterized in that: the utility model discloses a support for a motor vehicle, including roof (1), one side sliding connection have support ring (3) the bottom fixed mounting of roof (1), one side fixed mounting of support ring (3) has bracing piece (4), threaded hole (5) are seted up to the inside of support ring (3), the top welding of bracing piece (4) has first slide (6), one side of first slide (6) has first support (9) through gyro wheel (8) sliding connection, one side fixed mounting of first support (9) has first servo motor (10), the bottom fixed mounting of first servo motor (10) has fixed block (11), the inside threaded connection of fixed block (11) has screw (12).
2. The irrigation machine for building templates of claim 1, characterized in that: the bottom welding of first support (9) has second slide (13), there is second support (15) one side of second slide (13) through trundle (14) swing joint, one side fixed mounting of second support (15) has cushion (16), the top fixed mounting of cushion (16) has second servo motor (17).
3. The irrigation machine for building templates of claim 2, characterized in that: the bottom fixed mounting of second support (15) has and keeps piece (21), the inside fixed mounting who keeps piece (21) has discharging pipe (22) the material of discharging pipe (22) is the stainless steel.
4. The irrigation machine for building templates of claim 1, characterized in that: a stirring barrel (18) is fixedly arranged in the top plate (1), a damping ring (19) is fixedly arranged on one side of the stirring barrel (18), and the damping ring (19) is made of rubber; the stirring device is characterized in that a valve (20) is fixedly mounted at the bottom of the stirring barrel (18), a feeding pipe (23) is fixedly mounted inside the valve (20), and the feeding pipe (23) is made of a plastic hose.
5. The irrigation machine for building templates of claim 1, characterized in that: one side butt joint of stand (2) bottom has building templates (24), building templates (24) are for dismantling the template, the quantity of stand (2) is four, prop the quantity of ring (4) and be two, the symmetric distribution is in the both sides of roof (1).
6. The irrigation machine for building templates of claim 1, characterized in that: the quantity of screw hole (5) is four, and evenly distributed is in one side of four support rings (3), first slide (7) and second slide (13) are the I-steel structure.
