CN111768557B

CN111768557B - Intelligent vegetable vending machine

Info

Publication number: CN111768557B
Application number: CN202010508736.5A
Authority: CN
Inventors: 程秀翠; 姚远
Original assignee: Hubei Boli Special Automobile Equipment Co ltd
Current assignee: Hubei Boli Special Automobile Equipment Co ltd
Priority date: 2020-06-06
Filing date: 2020-06-06
Publication date: 2023-03-21
Anticipated expiration: 2040-06-06
Also published as: CN111768557A

Abstract

The invention discloses an intelligent vegetable vending machine which comprises a shell, a vegetable storage box, a driving wheel, a driving motor, a conveying belt, a vegetable taking and weighing platform, an intelligent operation panel device, a vegetable taking window lock, a vegetable taking window, a vegetable returning and weighing platform, a vegetable returning window lock, a vegetable returning window, a vegetable returning slideway, a vegetable filling window and a filling window lock. Has the advantages that: the invention adopts an unmanned vending mode, saves the labor cost and the booth cost and improves the vending efficiency; the invention has small volume, is convenient to install and place, and can effectively save the occupied space and the booth cost; the invention adopts the intelligent goods returning and changing design, so that the customers can meet various requirements more quickly, and the intelligent degree is high.

Description

Intelligent vegetable vending machine

Technical Field

The invention relates to the technical field of vending machines, in particular to an intelligent vegetable vending machine.

Background

At present, vegetable retail businesses in the market are divided into supermarket retail and vegetable market retail, and customers have to gather, queue, weigh and pay at a specified place in two sales modes. This sales method requires a specially-assigned person to watch the product, both for the merchant and for the customer, which is time-consuming and laborious.

At present, the intelligent vending machine on the market can not automatically complete the functions of changing goods and returning goods, and when customers disagree with the quantity and quality of bought goods, the intelligent vending machine can not be changed. There is a need for a smart device to meet the various needs of customers.

Disclosure of Invention

In order to comprehensively solve the problems, particularly the defects in the prior art, the invention provides an intelligent vegetable vending machine which can comprehensively solve the problems.

In order to achieve the purpose, the invention adopts the following technical means:

an intelligent vegetable vending machine comprises a machine shell, wherein a belt conveying device is arranged at the bottom end inside the machine shell, the belt conveying device comprises a driving wheel, a driving motor and a conveying belt, the driving motor drives the conveying belt to rotate circularly through the driving wheel, the top end of the conveying belt is provided with a vegetable storage box which is a hollow cubic structure with an upper opening and a lower opening, the side wall of the vegetable storage box is connected with the inner wall of the shell, a vegetable taking and weighing platform is arranged at the transmission end on one side of the conveying belt, the vegetable taking and weighing platform is arranged in the shell, the weighing end of the vegetable taking and weighing platform corresponds to the transmission end at one side of the transmission belt, one side of the vegetable taking and weighing platform is provided with an intelligent operation panel device which is embedded at the side part of the casing and connected with the casing, a dish returning weighing platform is arranged on one side of the top end of the dish storage box and is arranged in the casing, the vegetable returning weighing platform is connected with the vegetable storage box through a vegetable returning slideway, the top of the casing is provided with a vegetable returning window and a vegetable filling window, one end of the vegetable returning window and one end of the vegetable filling window are respectively hinged with the machine shell, the other end of the vegetable returning window is movably connected with the machine shell through a vegetable returning window lock, the other end of the vegetable filling window is movably connected with the shell through a filling window lock, the vegetable returning window corresponds to the vegetable returning weighing platform, the vegetable filling window corresponds to the vegetable storage box, one side of the shell is provided with a vegetable taking window, one end of the vegetable taking window is hinged with the shell, the other end of the dish taking window is movably connected with the shell through a dish taking window lock, and the driving motor, the dish taking and weighing platform, the dish taking window lock, the dish returning and weighing platform, the dish returning window lock and the filling window lock are respectively in control connection with the intelligent operation panel device.

Furthermore, an opening at the bottom end of the vegetable storage box corresponds to the transmission end on the other side of the conveying belt.

The beneficial effect lies in that the vegetables in the vegetable storage box can accurately and quickly fall into the top end of the conveying belt by the arrangement, and the working efficiency of the belt conveying device is effectively improved.

Furthermore, the intelligent operation panel device is composed of a control panel, an intelligent display and a PLC controller, wherein the control panel and the intelligent display are respectively in electric control connection with the PLC controller.

The control panel can be used for facilitating a customer or a user to send an instruction to the PLC, so that an external signal of the PLC can be conveniently acquired; the intelligent display can display the payment code or the dish information, so that a user can complete transaction work smoothly; the PLC is a miniature intelligent controller, and can complete a plurality of intelligent controls through instructions, thereby effectively improving the working efficiency during transaction.

Furthermore, the PLC is designed by adopting a ladder diagram program.

The beneficial effects are that, this kind of setting can be convenient for the user to programme control, can effectively improve user's programming efficiency.

Furthermore, the dish returning slide way is in an inclined state.

The beneficial effects are that the arrangement can enable the vegetables in the dish returning weighing platform to rapidly slide into the dish storing box along the inclined plane, and the recovery efficiency of the vegetables is effectively improved.

Furthermore, the dish taking window lock, the dish returning window lock and the filling window lock are respectively electric control locks.

The electric control lock has the beneficial effects of simple structure, convenience in use, high safety level and capability of effectively facilitating the control of the PLC.

The invention has the beneficial effects that:

1. the invention adopts an unmanned vending mode, saves the labor cost and the booth cost and improves the vending efficiency;

2. the invention has small volume, is convenient to install and place, and can effectively save the occupied space and the booth cost;

3. the intelligent goods returning and changing design is adopted, so that customers can meet various requirements more quickly, and the intelligent degree is high.

Drawings

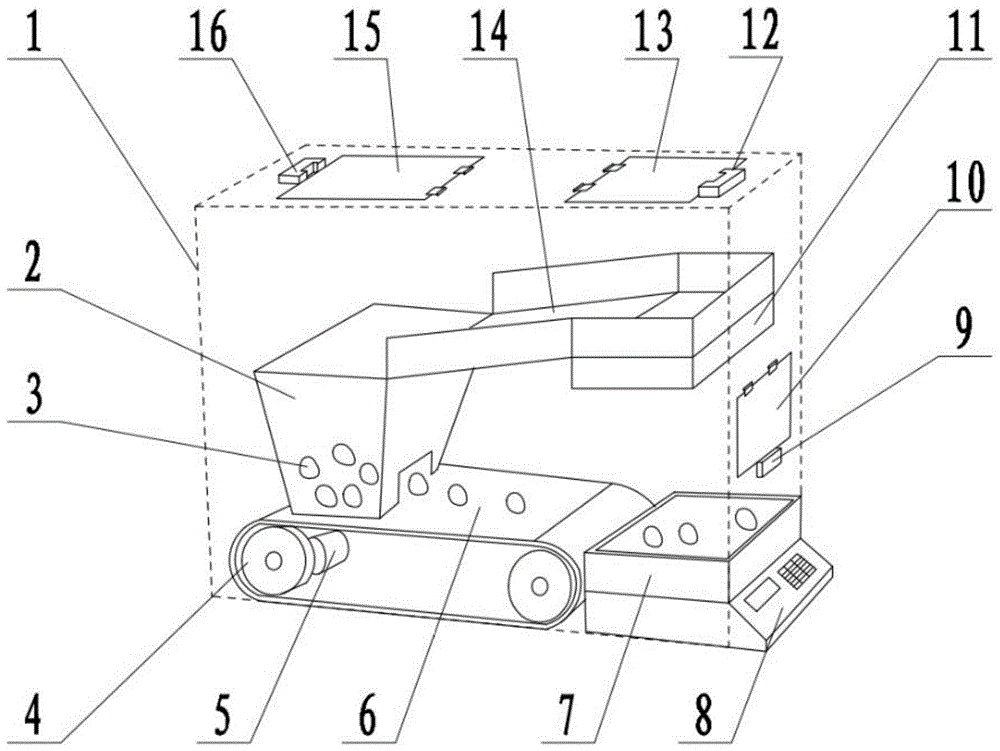

FIG. 1 is a first schematic structural diagram of the present invention;

FIG. 2 is a second structural diagram of the present invention;

fig. 3 is a schematic structural diagram of the smart operating panel device of the present invention.

Detailed Description

The technical solutions of the present invention will be described clearly and completely with reference to the accompanying drawings, and it should be understood that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

As shown in figure 1, the invention relates to an intelligent vegetable vending machine which comprises a shell 1, a vegetable storage box 2, a conveying belt 6, a vegetable taking weighing platform 7 and a vegetable returning weighing platform 11. The dish taking window 10 and the intelligent operation panel device 8 are positioned at the front part of the machine shell 1, and the dish returning window 13 and the vegetable filling window 15 are positioned at the top part of the machine shell 1. The rear part of the dish returning weighing platform 11 is provided with a dish returning slide way 14 so that the vegetables 3 can slide back to the dish storing box 2.

Filling vegetables 3 by a merchant as shown in figure 1, opening the filling window lock 16, turning over the vegetable filling window 15, and pouring the vegetables 3 into the vegetable storage box 2. The vegetable filling window 15 and the filling window lock 16 are closed, and the corresponding vegetable 3 price is set on the intelligent operation panel device 8.

As shown in figure 1, when a customer purchases vegetables 3, the weight of the vegetables 3 to be purchased is set on the intelligent operation panel device 8, the driving motor 5 is started to drive the driving wheel 4 to rotate, the conveying belt 6 drives the vegetables 3 to slide forwards from the outlet of the vegetable storage box 2 and fall into the vegetable taking weighing platform 7, and when the weighing mass of the vegetable taking weighing platform 7 is close to the input mass of the customer, the driving motor 5 is turned off. After the customer pays the corresponding payment through the code scanning, the dish taking window lock 9 is opened, the customer takes the vegetables 3 out of the dish taking window 10, and the dish taking window lock 9 is closed automatically after the numerical value of the dish taking weighing platform 7 returns to zero, so that the transaction is completed.

As shown in fig. 2, when the customer wants to return vegetables 3, the customer clicks a dish return button on the smart operation panel device 8. After the customer pays the corresponding payment of the existing vegetables by scanning the code, the dish taking window lock 9 and the dish returning window lock 12 are opened simultaneously. The customer takes the vegetables 3 out of the vegetable taking window 10 and puts the vegetables into the vegetable returning weighing platform 11 through the vegetable returning window 13. The system automatically compares the number of the dish taking weighing platform 7 to be reduced with the number of the dish returning weighing platform 11 to be increased, and checks whether the quality of each dish returning is completely equal. After the operation is finished, the customer clicks a dish returning completion button on the intelligent operation panel device 8 to close the dish returning window lock 12, and money to be returned is automatically returned to the customer account. The returned vegetables 3 return to the vegetable storage box 2 through the vegetable return slide way 14, and the customer takes the needed vegetables 3 out of the vegetable taking window 10.

As shown in fig. 2, when a customer needs to replace a vegetable 3, a replacement button is clicked on the smart operation panel device 8. After the customer pays the corresponding payment of the existing vegetables by scanning the code, the dish taking window lock 9 and the dish returning window lock 12 are opened simultaneously. The customer takes the vegetables 3 out of the vegetable taking window 10, puts the vegetables 3 into the vegetable returning weighing platform 11 through the vegetable returning window 13, and simultaneously the conveyor belt 6 starts to supplement the vegetables 3 with the same quality as the vegetable returning weighing platform 11. After the customer is satisfied with all the vegetables 3, the dish returning window lock 12 is closed by clicking the replacement completion button on the intelligent operation panel device 8. The replaced vegetables 3 are returned to the vegetable storage box 2 through the vegetable return slide way 14, and the customer takes the needed vegetables 3 out of the vegetable taking window 10.

The opening at the bottom end of the vegetable storage box 2 corresponds to the other transmission end of the transmission belt 6. The vegetable 3 in the vegetable storage box 2 can accurately and quickly fall into the top end of the conveying belt 6, and the working efficiency of the belt conveying device is effectively improved.

As shown in fig. 3, the smart operation panel device 8 includes a control panel 801, a smart display 802, and a PLC controller 803, and the control panel 801 and the smart display 802 are electrically connected to the PLC controller 803. The control panel 801 can facilitate a customer or a user to send instructions to the PLC controller 803, and facilitate acquisition of signals external to the PLC controller 803; the intelligent display 802 can display the payment code or the dish information, so that the user can complete the transaction smoothly; the PLC controller 803 is a micro intelligent controller, which can perform a plurality of intelligent controls by instructions, effectively improving the work efficiency during transactions.

The PLC controller 803 is programmed using a ladder diagram. The arrangement can facilitate the programming control of a user and effectively improve the programming efficiency of the user.

The dish returning slide way 14 is in an inclined state. The arrangement can ensure that the vegetables 3 in the dish returning weighing platform 11 slide into the dish storage box 2 along the inclined plane rapidly, thereby effectively improving the recovery efficiency of the vegetables 3.

The dish taking window lock 9, the dish returning window lock 12 and the filling window lock 16 are respectively electric control locks. The electric control lock is simple in structure, convenient to use, high in safety level and capable of effectively facilitating control of the PLC 803.

The present invention is illustrated by way of example and not by way of limitation. Other variants and modifications will be apparent to those skilled in the art in light of the foregoing description, and it is not necessary or exhaustive to have all embodiments disclosed, and obvious variations and modifications are possible within the scope of the invention.

Claims

1. The intelligent vegetable vending machine is characterized by comprising a casing (1), a belt conveying device is arranged at the bottom end inside the casing (1), the belt conveying device comprises a driving wheel (4), a driving motor (5) and a conveying belt (6), the driving motor (5) drives the conveying belt (6) to rotate circularly through the driving wheel (4), a vegetable storage box (2) is arranged at the top end of the conveying belt (6), the vegetable storage box (2) is of a hollow cube structure with an upper opening and a lower opening, the side wall of the vegetable storage box (2) is connected with the inner wall of the casing (1), a vegetable taking weighing platform (7) is arranged at one side transmission end of the conveying belt (6), the vegetable taking weighing platform (7) is arranged in the casing (1), the weighing end of the vegetable taking weighing platform (7) corresponds to one side transmission end of the conveying belt (6), an intelligent operating panel device (8) is arranged at one side of the vegetable taking platform (7), the intelligent operating panel device (8) is embedded at the side of the casing (1) and connected with the casing (1), the vegetable storage box (2) is connected with a vegetable taking slideway (11) through a vegetable storage box (11), the vegetable storage and taking device is characterized in that a vegetable returning window (13) and a vegetable filling window (15) are arranged at the top of the casing (1), one end of the vegetable returning window (13) and one end of the vegetable filling window (15) are respectively hinged to the casing (1), the other end of the vegetable returning window (13) is movably connected with the casing (1) through a vegetable returning window lock (12), the other end of the vegetable filling window (15) is movably connected with the casing (1) through a filling window lock (16), the vegetable returning window (13) corresponds to the vegetable returning weighing platform (11), the vegetable filling window (15) corresponds to the vegetable storage box (2), a vegetable taking window (10) is arranged on one side of the casing (1), one end of the vegetable taking window (10) is hinged to the casing (1), the other end of the vegetable taking window (10) is movably connected with the casing (1) through a vegetable taking window lock (9), and the driving motor (5), the vegetable taking weighing platform (7), the vegetable taking window lock (9), the vegetable returning platform (11), the vegetable returning window lock (12), the vegetable filling window lock (12) and an intelligent vegetable filling window lock (16) are respectively connected with an operation control panel (8).

2. An intelligent vegetable vending machine according to claim 1, characterized in that the opening at the bottom end of the vegetable storage box (2) corresponds to the other side transmission end of the conveyor belt (6).

3. An intelligent vegetable vending machine according to claim 1, wherein the intelligent operation panel device (8) is composed of a control panel (801), an intelligent display (802) and a PLC controller (803), and the control panel (801) and the intelligent display (802) are respectively connected with the PLC controller (803) in an electric control mode.

4. An intelligent vegetable vending machine as claimed in claim 3, wherein the PLC controller (803) is programmed using a ladder diagram.

5. An intelligent vegetable vending machine as claimed in claim 1, wherein the vegetable return chute (14) is inclined.

6. An intelligent vegetable vending machine as claimed in claim 1, wherein the vegetable taking window lock (9), the vegetable returning window lock (12) and the vegetable filling window lock (16) are respectively electrically controlled locks.
