Abstract

The invention is applicable to the technical field of medical auxiliary equipment, and provides a neck cover; it comprises: two side neck pillows symmetrically arranged on both sides; an observation part, the two ends are respectively connected to the two side neck pillows; wherein, The side neck pillow body and the internal main body of the observation part are all made of memory foam, and gel is arranged in the memory foam inside the side neck pillow body; the observation part is provided with an observation window, and the observation window is made of gel. And, a connecting part is also arranged between the two side neck pillows for installing the present invention on the patient's neck. The invention creatively adopts the idea of combining memory foam and gel, with complementary advantages, which can not only meet the requirements of "ergonomics", perfectly fit the neck curve of the patient, but also increase the pressure and make up for the memory foam "with the increase of body temperature". High and Elevated Characteristics".

Description

a neck cover

technical field

The invention relates to the technical field of medical auxiliary equipment, in particular to a neck sleeve.

Background technique

In order to prevent bleeding after thyroid nodule ablation, patients are usually instructed to press the anterior neck ablation site after operation. Some centers also use ice packs to cool the wound after operation to reduce edema and pain. However, because the patient is in a state of exhaustion after surgery, self-compression can easily lead to problems such as patient fatigue and inaccurate effect. In addition, most of the clinical application of ice pack cold packs are self-made ice packs, which cannot meet the requirements of sterility; various types of ice packs sold in the market It also does not fully meet the requirements of the physiological curvature of the human neck, so it is easy to cause pressure and discomfort. In order to more effectively prevent the occurrence of bleeding after thyroid nodule ablation, effectively reduce postoperative pain and local edema, and help patients to rest and recover, a neck sleeve is now provided.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a neck cover to solve the above-mentioned problems in the background art.

To achieve the above object, the present invention provides the following technical solutions:

A neck cover, comprising: two side neck pillows, which are symmetrically arranged on both sides, and the two are arranged protruding toward the inside;

The observation part, the two ends are respectively connected to the two lateral neck pillows;

Wherein, the side neck pillow body and the internal main body of the observation part are all made of memory foam, and gel is provided in the memory foam inside the side neck pillow body; an observation window is provided on the observation part.

As a further solution of the present invention, a plurality of gels are arranged at intervals in the memory foam inside the side neck pillow body.

As a further solution of the present invention: the observation window is made of transparent material.

As a further solution of the present invention, the ends of the two side neck pillows away from the observation window are integrally formed and connected.

As a further solution of the present invention, a connecting member is further arranged between the two side neck pillow bodies.

As a further solution of the present invention, the connecting member is an elastic band, and both ends of the elastic band are respectively fixed and installed on the ends of the two side neck pillows away from the observation window.

As a further solution of the present invention, the connecting member includes a connecting belt, one end of the connecting belt is fixedly connected to one of the side neck pillows, and the other end of the connecting belt is detachably connected to the other side neck pillow.

As a further solution of the present invention, the connecting belt is provided with a Velcro A part, and the other side neck pillow body is provided with a Velcro B part matched with the Velcro A part.

As a further solution of the present invention: the connecting band is connected to the other side neck pillow body through buttons.

As a further solution of the present invention: the connecting belt is made of breathable mesh cloth.

Compared with the prior art, the beneficial effects of the present invention are as follows: the present invention creatively adopts the idea of combining memory foam and gel, with complementary advantages, which can not only meet the requirements of "ergonomics", but also perfectly fit the curve of the patient's neck. , which can increase the pressure and make up for the "characteristic of memory foam that increases with the increase of body temperature".

Description of drawings

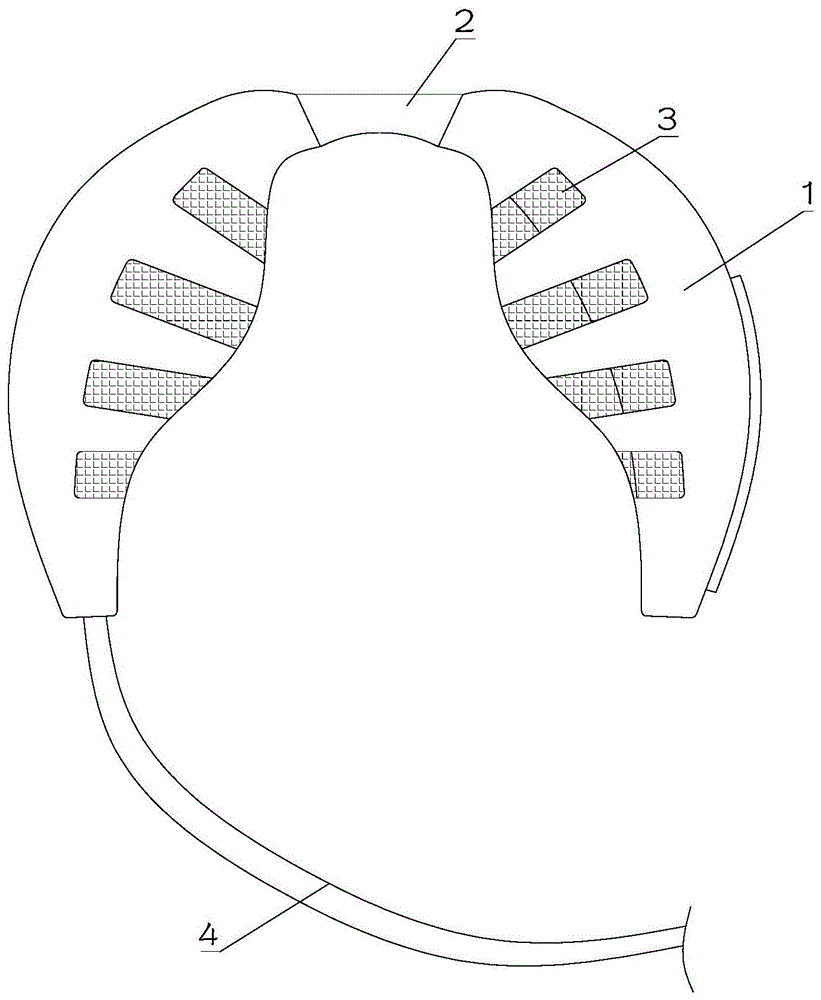

Figure 1 is a schematic diagram of the structure of the neck sleeve.

FIG. 2 is a schematic view of the structure of the observation part in the neck sleeve.

In the figure: side neck pillow-1, observation part-2, gel-3, connecting belt-4.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

As shown in FIG. 1 , which is a structural diagram of a neck cover provided by an embodiment of the present invention, it includes: two side neck pillows 1 , which are symmetrically arranged on both sides, and both are arranged protruding toward the inside;

The observation part 2, the two ends are respectively connected to the two side neck pillow bodies 1;

Wherein, the inner body of the side neck pillow 1 and the observation part 2 are made of memory foam, and the memory foam inside the side neck pillow 1 is provided with gel 3; the observation part 2 is provided with observation window.

The observation window is made of transparent material, specifically, the observation window is made of gel 3 .

In an example of the present invention, the main body of the present invention adopts memory foam, because the memory foam has an open cell structure, has the characteristics of temperature-sensing and decompression, and is breathable and hygroscopic. Memory foam conforms well to the curvature of the neck and has a certain amount of pressure. The polymer gel has good flexibility and shock absorption and compression resistance. On the basis of memory foam, the embedded gel can slightly increase some pressure on the basis of memory foam, and at the same time, the gel can make up for the disadvantage of memory foam that increases with temperature; install the observation part 2 on the male At the Adam’s apple, the transparent properties of the gel can be used to observe whether the dressing is exuding, which is conducive to the progress of nursing work; and the top of the observation window is still made of memory foam to avoid discomfort for male patients with prominent Adam’s apple, and the pressure on the neck from the front and middle of the neck is less than On both sides, it can also avoid excessive pressure on the trachea and make the patient feel difficult to breathe.

Commonly used methods to prevent bleeding and postoperative pain and edema after microwave/radiofrequency ablation of thyroid nodules. However, they all have their drawbacks and limitations: most of the patients are afraid of invasive procedures, and they are always in a state of tension during the operation and even before the operation, so the patients are mostly tired after ablation. At this time, if the patient is instructed to press the ablation site for 30 minutes, it is not only unfavorable for the patient to rest, but even when the patient's strength is insufficient or the hand accidentally touches the ablation site, it will cause bleeding from the wound surface. Although ice packs can replace the pressure on the neck to stop bleeding to a certain extent, it also has its drawbacks: most of the ice packs used in clinics are "self-made ice packs" - tap water, normal saline, normal saline + tap water, normal saline plus ethanol, etc. Put it into degradable plastic bags, sterile gloves, balloons and other containers, freeze it in the refrigerator for a certain period of time, and apply it to the patient's neck after it becomes solid; in order to prevent liquid from soaking sterile dressings, patient clothes or quilts, bed sheets, etc. Items, some centers sandwich two layers of towels on this basis, and then apply them directly over the sterile patch at the patient's puncture site.

The neck skin is thin and tender, and the trachea is very close to the skin. Although there is tracheal cartilage support, these materials will undoubtedly make patients feel "compressed and uncomfortable", and in severe cases will cause patients to feel respiratory distress. In addition, if the amount of ice cubes and the duration of the cold compress are not well controlled, complications such as blood clots or pressure ulcers may occur. What's more: living items such as towels do not meet the "sterile" requirements! This is a potential source of infection for patients who have just undergone ablation.

The neck has its structural specificity: from the front, it is anterior neck skin-soft tissue-muscle-thyroid-trachea; from the side, it is anterior neck skin-soft tissue-muscle-carotid sheath-thyroid-trachea/esophagus ; From this, we can know that when compressing the wound surface to prevent bleeding after thyroid nodule ablation, if the force is too small, it will not be enough to achieve the purpose; if the force is too large, it is easy for the patient to feel short of breath and a sense of oppression.

The present invention takes the anatomical structure of the neck into consideration, and the lateral neck occipital body 1 is arranged to protrude inwardly, which increases the pressure on the thyroid and carotid artery sheath. The pressure in the anterior center of the neck is slightly lower than on the sides to avoid excessive compression of the trachea.

The invention can effectively prevent the occurrence of hemorrhage after thyroid nodule ablation, effectively reduce postoperative pain and local edema, and is more helpful for patients to rest and recover. Special cervical sleeve after thyroid ablation.

A plurality of gels 3 are arranged in the memory foam inside the side neck pillow 1 at intervals, which can make the pressure received by the entire side neck pillow 1 more uniform and improve wearing comfort.

The side neck pillow body 1 and the observation part 2 are designed according to the curves of various parts of the human body, which conforms to the ergonomic principle, so that the entire memory foam pillow core is more compliant and conforms to the comfortable experience of the human body.

The two side neck pillows 1 are integrally connected with the ends away from the observation window.

A connecting part is also arranged between the two side neck pillow bodies 1 for installing the present invention on the neck of a patient.

The connecting member is an elastic band, and both ends of the elastic band are respectively fixed and installed on the ends of the two side neck pillows 1 away from the observation window.

In order to connect the neck pillows 1 on both sides together, the connecting member includes a connecting belt 4, one end of the connecting belt 4 is fixedly connected to one of the side neck pillows 1, and the other end of the connecting belt 4 is connected to the other side neck The pillow body 1 is detachably connected.

Preferably, specifically, the connecting belt 4 is provided with a Velcro A part, and the other side neck pillow body 1 is provided with a Velcro B part matched with the Velcro A part. This arrangement is convenient for connecting the two side neck pillows 1 together, and for putting the present invention on the neck of a patient.

As another preferred embodiment of the present invention, the connecting belt 4 is connected to the other side neck pillow 1 through a button, so as to connect the two side neck pillows 1 together.

In order to improve the ventilation effect of the connecting belt 4, the connecting belt 4 is made of a breathable mesh cloth, and specifically, the connecting belt 4 is a honeycomb-shaped breathable mesh cloth.

Because the neck circumference of healthy people is 35 cm for women and 38 cm for men; the width of the neck circumference is generally between 10 and 14 cm. The size of each lobe of the thyroid is generally 5cmX gel 3cmX observation part 2cm and the right lobe is slightly larger than the left lobe, and the upper pole of the right lobe is higher than the left lobe, while the lower pole is lower than the left lobe. The thyroid isthmus is generally lower in men, mostly at the level of the upper sternum; obese women, the elderly, and those with shorter necks also have a lower thyroid isthmus. The normal thyroid area is 12~18cm2. The thyroid gland is often atrophied in the elderly. Therefore, the total length of the neck pillow part 1 on both sides of the neck sleeve is 26-28cm, the width is 2.5-3.5m, and the height is 6-8cm. -4.5cm (the remaining height of about 3cm is replaced by memory foam, so as to avoid pressure on those with prominent Adam's apple). The connecting belt 4 is 35-45cm long to facilitate the use of patients with different neck circumferences.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, but that the present invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the invention is defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the appended claims. All changes within the meaning and range of the equivalents of , are included in the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (10)

1. A neck cover, characterized in that it comprises: two side neck pillows, symmetrically arranged on both sides, and both are arranged protruding to the inside; The observation part, the two ends are respectively connected to the two lateral neck pillows; Wherein, the side neck pillow body and the internal main body of the observation part are all made of memory foam, and gel is provided in the memory foam inside the side neck pillow body; an observation window is provided on the observation part. 2 . The neck cover according to claim 1 , wherein a plurality of gels are arranged at intervals in the memory foam inside the side neck pillow. 3 . 3. The neck cover of claim 1, wherein the viewing window is made of a transparent material. 4 . The neck cover according to claim 1 , wherein the two side neck pillows are integrally formed and connected at the ends away from the observation window. 5 . 5 . The neck cover according to claim 1 , wherein a connecting member is further provided between the two side neck pillows. 6 . 6 . The neck cover according to claim 5 , wherein the connecting member is an elastic band, and two ends of the elastic band are respectively fixed and installed on the ends of the two side neck pillows away from the observation window. 7 . 7 . The neck cover according to claim 5 , wherein the connecting member comprises a connecting belt, one end of the connecting belt is fixedly connected to one of the side neck pillows, and the other end of the connecting belt is connected to the other side neck. 8 . Pillow body detachable connection. 8 . The neck cover according to claim 7 , wherein the connecting belt is provided with a Velcro A part, and the other side neck pillow body is provided with a Velcro B part matched with the Velcro A part. 9 . 9 . The neck cover according to claim 7 , wherein the connecting band is connected to the other side neck pillow body through buttons. 10 . 10 . The neck cover according to claim 7 , wherein the connecting band is made of breathable mesh cloth. 11 .
