Abstract
The invention discloses a multifunctional ventilating window of an anti-theft door, which comprises a fixed mounting frame, a switching frame and a ventilating door, wherein the fixed mounting frame, the switching frame and the ventilating door are embedded on the anti-theft door, the switching frame is opened and closed at an inner opening of the fixed mounting frame in a horizontal rotating or horizontal pushing mode, the outer edge of the switching frame is matched with the inner opening of the fixed mounting frame in a sealing mode, a movable ventilating door capable of sealing the inner opening of the switching frame is arranged at the inner opening of the switching frame, the opening and closing mode of the ventilating door at the inner opening of the switching frame is different from the opening and closing mode of the switching frame at the inner opening of the fixed mounting frame, and a door lock of the switching frame is arranged between the fixed mounting frame and. This burglary-resisting door ventilation window can be with two kinds of different mode switches, and the user can select the mode of opening according to oneself hobby and actual demand, when improving ventilation comfort, protection privacy, can also regard as the delivery opening of smallclothes such as express delivery, takeaway to use, has convenient to use, opens advantages such as the mode conversion is nimble.
Description
Technical Field
The invention relates to a ventilating window arranged on an anti-theft door, in particular to a multifunctional anti-theft door ventilating window with two opening modes.
Background
The anti-theft door produced in the early stage is not provided with the ventilation window, and when the anti-theft door is used for a house with a non-permeable house, the house ventilation effect is poor. In order to overcome the defect, the company develops a plurality of antitheft door ventilation windows for modifying old antitheft doors, such as the antitheft door ventilation window which is opened or closed in a horizontal rotating mode and the horizontal pushing type ventilation door which is disclosed by CN 203742401U, CN 204457284U and is opened or closed in a horizontal moving mode in a vertical direction with an antitheft door panel, wherein the application number of the horizontal pushing type ventilation door is 201920960602X. Adopt burglary-resisting door ventilation window of horizontal rotation mode to have and open the convenience, can discern visitor's guest through the ventilation window, however, can occupy indoor space when the ventilation door is opened, the indoor circumstances that can peep outside the door, reveal individual privacy easily, and the air current is direct to be got into indoorly by the ventilation window during the ventilation, the air current direction receives the influence of ventilation door opening angle, there is the ventilation dead angle, when entering into indoor ventilation air current when great, the air current can directly blow on indoor article, lead to article to scatter easily, influence people's comfort level. When the flat-pushing type anti-theft door ventilation window is adopted, airflow can enter an indoor space from multiple angles, ventilation dead angles do not exist, the ventilation effect is good, the airflow is soft, the human body comfort is good, outdoor personnel can be prevented from directly viewing indoor conditions, however, the flat-pushing type anti-theft door ventilation window is difficult to identify outdoor visitors, cannot be used as a delivery opening, the opening operation resistance is large, the operation difficulty of children and old people is large, and a great deal of inconvenience exists. The prior art does not have an anti-theft door ventilation window which can be opened or closed in a horizontal rotation mode and in a horizontal pushing mode.
Disclosure of Invention
The technical problem to be solved by the invention is as follows: the utility model provides a multi-functional burglary-resisting door ventilation window, this burglary-resisting door ventilation window can be with two kinds of different mode switches, and the user can select the mode of opening according to oneself hobby and actual demand, when improving ventilation comfort, protection privacy, can also regard as the delivery opening of smallclothes such as express delivery, takeaway to use, has convenient to use, opens advantages such as the mode conversion is nimble.
The technical scheme for solving the technical problem is as follows: the utility model provides a multi-functional burglary-resisting door ventilation window, is including inlaying the fixed mounting frame on the burglary-resisting door and one install in the fixed mounting frame internal orifice, can be at the switching frame of fixed mounting frame internal orifice switch, the switching frame adopts horizontal rotation or horizontal push mode at the fixed mounting frame internal orifice switch, and the outward flange and the fixed mounting frame internal orifice of switching frame seal the cooperation, installs at the internal orifice of switching frame and can be with switching frame internal orifice confined movable ventilation door, the ventilation door is different at the switching mode of switching frame internal orifice and the switching mode of switching frame internal orifice, is equipped with switching frame lock between fixed mounting frame and switching frame.
As a modified scheme of the invention: the switching frame adopts the horizontal rotation mode at fixed mounting frame internal orifice switch, and the switching frame is connected with the fixed mounting frame through rotatory hinge, the activity ventilation door adopts the flat push mode at switching frame internal orifice switch, and the ventilation door passes through the translation sliding support to be connected with the switching frame.
As a modified scheme of the invention: the switching frame adopts the flat push mode at fixed mounting frame internal orifice switch, and the switching frame passes through the translation sliding support to be connected with the fixed mounting frame, the activity ventilation door adopts the horizontal rotation mode at switching frame internal orifice switch, and the ventilation door is connected with the switching frame through rotatory hinge.
As a modified scheme of the invention: the switching frame adopts the flat push mode at fixed mounting frame internal orifice switch, and the switching frame passes through the translation sliding support to be connected with the fixed mounting frame, the activity ventilation door adopts the vertical lift mode at switching frame internal orifice switch, and the ventilation door hangs elevating system, rack and pinion elevating system or rack and pawl elevating system through the steel wire and is connected with the switching frame.
As a modified scheme of the invention: and a ventilation door lock is arranged between the adapter frame and the ventilation door.
As a modified scheme of the invention: the outdoor side of the fixed mounting frame is provided with a protective grating which can be opened.
As a modified scheme of the invention: the fixed mounting frame comprises a frame body embedded in the ventilation opening of the anti-theft door, a ventilation window panel which is mounted on the ventilation opening of the anti-theft door from the outer side of the anti-theft door and is matched and fixed with the frame body, and a protective grating which can be opened is arranged on the ventilation window panel.
Has the advantages that: the multifunctional ventilating window of the anti-theft door creatively uses the switching frame which is arranged at the inner opening of the fixed mounting frame and can be opened and closed at the inner opening of the fixed mounting frame, the switching frame adopts a horizontal rotating or horizontal pushing mode to be opened and closed at the inner opening of the fixed mounting frame, the outer edge of the switching frame is in closed fit with the inner opening of the fixed mounting frame, the inner opening of the switching frame is provided with the movable ventilating door which can close the inner opening of the switching frame, the opening and closing modes of the ventilating door at the inner opening of the switching frame are different from those of the switching frame at the inner opening of the fixed mounting frame, the technical scheme of the door lock of the switching frame is arranged between the fixed mounting frame and the switching frame, when in use, a user can select to open or close the ventilating window between the switching frame and the ventilating door, so that the ventilating window of the anti-theft door can be opened or closed in two different modes, and the user can select the opening mode according to own favor and actual requirements, and can realize fast switch opening mode, improve ventilation comfort, protect privacy, can also regard as the delivery opening of smallclothes such as express delivery, takeaway to use, have advantages such as convenient to use, opening mode conversion are nimble. Because adopted the switching frame adopts the horizontal rotation mode at fixed mounting frame internal orifice switch, and the switching frame is connected with the fixed mounting frame through rotatory hinge, the technical characterstic of activity ventilation door adoption flat push mode at switching frame internal orifice switch, during the factory production install the activity ventilation door in advance on the switching frame, the fixed mounting frame can be installed with the switching frame to the hinge at the installation site for the site erection construction is more convenient. Because the switching frame is opened and closed in the fixed mounting frame in a horizontal pushing mode, the switching frame is connected with the fixed mounting frame through the horizontal sliding support, and the movable ventilation door is opened and closed in the switching frame in a horizontal rotating mode or a vertical lifting mode, the multifunctional security door ventilation window can be combined in two opening modes to adjust the air volume and the ventilation angle, so that the differentiated ventilation requirements of users are met. Due to the technical characteristic that the door lock of the ventilation door is arranged between the switching frame and the ventilation door, the ventilation door and the switching frame are independently locked, so that the ventilation door is more convenient to use and has better safety. The multifunctional ventilating window of the anti-theft door has the technical characteristics that the protective grating capable of being opened is arranged on the outdoor side of the fixed mounting frame, so that the safety protection performance of the multifunctional ventilating window of the anti-theft door is further improved, and the multifunctional ventilating window of the anti-theft door is safer to use. The fixed mounting frame comprises a frame body embedded in the ventilation opening of the anti-theft door, a ventilation window panel which is arranged on the ventilation opening of the anti-theft door from the outer side of the anti-theft door and is matched and fixed with the frame body, and the ventilation window panel is provided with the protective grating which can be opened, so that the ventilation window panel has the fixing function of the fixed mounting frame, and the multifunctional anti-theft door ventilation window is more convenient to install on site.
Drawings
The multifunctional ventilating window of the anti-theft door of the invention is further explained in detail with reference to the attached drawings.

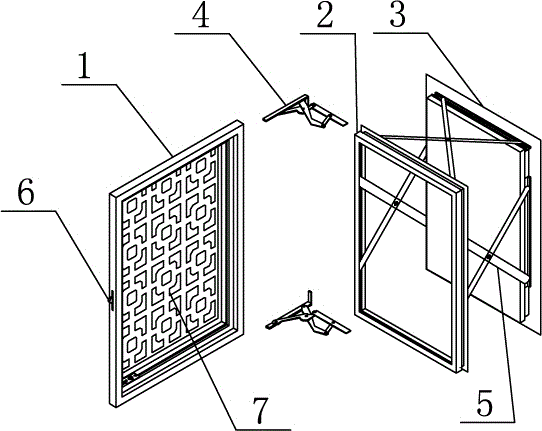

FIG. 1 is an exploded view of a multifunctional ventilating window of an anti-theft door with a horizontally rotating switch frame;
FIG. 2 is a view showing a state of the multifunctional anti-theft door/window of FIG. 1 opened in a horizontally rotated manner;
FIG. 3 is a view showing a state of the multifunctional anti-theft door and window of FIG. 1 opened by horizontal pushing;
FIG. 4 is a schematic structural view of a multifunctional security door ventilation window with a switching frame opened and closed in a horizontal pushing mode and a ventilation door opened and closed in a horizontal rotating mode;
fig. 5 is an exploded view of the multifunctional security door ventilation window with a switching frame opened and closed in a horizontal pushing mode and a ventilation door opened and closed in a vertical lifting mode.
Detailed Description
As shown in figure 1, the multifunctional ventilating window of the anti-theft door comprises a fixed mounting frame 1 embedded on the anti-theft door and a switching frame 2 which is arranged at an inner opening of the fixed mounting frame 1 and can be opened and closed at the inner opening of the fixed mounting frame 1, wherein the switching frame 2 is opened and closed at the inner opening of the fixed mounting frame 1 in a horizontal rotating mode, the switching frame 2 is connected with the fixed mounting frame 1 through a rotating hinge 4, the outer edge of the switching frame 2 is in closed fit with the inner opening of the fixed mounting frame 1, a movable ventilating door 3 which can close the inner opening of the switching frame 2 is arranged at the inner opening of the switching frame 2, the ventilating door 3 is opened and closed at the inner opening of the switching frame 2 in a horizontal pushing mode in the direction vertical to the anti-theft door panel, the ventilating door 3 is connected with the switching frame 2 through a horizontal moving sliding support 5, the horizontal moving sliding supports 5 are arranged on two vertical edges and the upper edge or the bottom edge of the ventilating door 3, the horizontal, be equipped with between fixed mounting frame 1 and adapter frame 2 and can lock adapter frame lock 6 on fixed mounting frame 1 with adapter frame 2, be equipped with between adapter frame 2 and air door 3 and can lock the air door lock 8 on adapter frame 2 with air door 3.
Fig. 2 is a usage state diagram of the multifunctional security door ventilation window of the embodiment of fig. 1 opened in a horizontal rotation manner, the multifunctional security door ventilation window is opened between the adapter frame 2 and the fixed mounting frame 1, the ventilation door 3 is fixed on the adapter frame 2 and horizontally rotates together with the adapter frame 2 when opened, and the ventilation window is opened by the adapter frame 2 and the ventilation door 3 together.
Fig. 3 is a usage state diagram of the multifunctional security door ventilation window in the embodiment of fig. 1 opened in a horizontal pushing manner, the multifunctional security door ventilation window in the diagram is opened between the adapting frame 2 and the ventilation door 3, the adapting frame 2 is fixed on the fixed mounting frame 1 through the adapting frame door lock 6 during opening, and the ventilation opening is opened only through the ventilation door 3.
As another embodiment of the present invention, as shown in fig. 4, the adapting frame 2 is opened and closed at the inner opening of the fixed installation frame 1 in a horizontal pushing manner, the adapting frame 2 is connected with the fixed installation frame 1 through a horizontal sliding support 5, the movable ventilation door 3 is opened and closed at the inner opening of the adapting frame 2 in a horizontal rotating manner, and the ventilation door 3 is connected with the adapting frame 2 through a rotating hinge 4. In fig. 4, the transfer frame 2 and the ventilation door 3 are both in an open state.
As another embodiment of the present invention, as shown in fig. 5, the adaptor frame 2 is opened and closed at the inner opening of the fixed mounting frame 1 by a horizontal pushing method, the ventilation door 3 is opened and closed at the inner opening of the adaptor frame 2 by a vertical lifting method, in order to clearly show the assembly method of the ventilation door 3 and the adaptor frame 2, in fig. 5, a decomposition drawing method is adopted between the ventilation door 3 and the adaptor frame 2, the ventilation door 3 is translated in a direction perpendicular to the door panel, in this embodiment, the adaptor frame 2 is connected with the fixed mounting frame 1 by a translation sliding support 5, the movable ventilation door 3 is opened and closed at the inner opening of the adaptor frame 2 by a vertical lifting method, two vertical guiding grooves with opposite openings are respectively arranged at two vertical edges inside the adaptor frame 2, two vertical edges of the ventilation door 3 are inserted into two vertical guiding grooves 35, and the ventilation door forms a shutter structure at the ventilation window. The ventilation door 3 is connected with the transfer frame 2 through a steel wire suspension lifting mechanism, a rack and gear lifting mechanism or a rack and pawl lifting mechanism, and the opening and closing of a ventilation window or the air volume is controlled through the lifting of the ventilation door 3.
The embodiment shown in fig. 5 is a ventilating door 3 adopting a steel wire suspension lifting mechanism to lift, a fixed pulley 32 is arranged at the top of each vertical guide groove, a steel wire winch 33 is arranged in a door body of the ventilating door 3, one end of a suspension steel wire 31 is fixed on one vertical edge of the door body, the other end of the suspension steel wire 31 bypasses two fixed pulleys at the top of the vertical guide groove, enters the interior of the door body from the other edge of the door body and is fixed on a winding drum of the steel wire winch, and a steel wire winch rocking handle 34 is arranged on the ventilating door.
When the lifting mechanism is a rack and gear lifting mechanism, racks are arranged in the two vertical guide grooves, gears matched with the racks are arranged on the two vertical edges of the door body, a direct-current power supply, a driving motor and a necessary transmission device are further arranged in the door body, and a driving motor control switch is arranged on the indoor side of the ventilation door 3.
When the lifting mechanism is a rack and pawl lifting mechanism, racks are arranged in the two vertical guide grooves, pawls or spring positioning bolts matched with the racks are arranged on the two vertical edges of the door body, and a pawl or spring positioning bolt control handle is arranged on the indoor side of the ventilation door 3.
As a modified scheme of the invention: the fixed mounting frame 1 comprises a frame body embedded in the ventilation opening of the anti-theft door, a ventilation window panel 9 which is mounted on the ventilation opening of the anti-theft door from the outer side of the anti-theft door and is matched and fixed with the frame body, and a protective grille 7 which can be opened is arranged on the ventilation window panel. The outdoor side of the fixed mounting frame 1 is provided with a protective grating 7 which can be opened, the protective grating can be opened by adopting the structure and the mounting mode of a protective guard and an insect-proof net in the ventilating window of the anti-theft door with a safe delivery opening disclosed by CN 204457284U, and the detailed description is not provided herein.
The rotary hinge and the translational sliding support used in the multifunctional ventilating window of the anti-theft door are preferably a rotary hinge and a translational sliding support with a hiding effect, so that when the ventilating door is closed or the adapter frame is closed, the rotary hinge and the translational sliding support can be hidden between the fixed mounting frame and the adapter frame or between the adapter frame and the ventilating door, and the multifunctional ventilating window of the anti-theft door is smoother in surface, tidier in appearance and more attractive in appearance.
In the use process, the multifunctional ventilating window of the anti-theft door can be independently opened as shown in fig. 2 and 3 or can be opened in a combined manner as shown in fig. 4. When the mobile terminal is opened in a vertical lifting or horizontal rotating mode, small articles such as takeoffs, express packages and the like can be conveniently received through the ventilation window.
Claims (7)
1. The utility model provides a multi-functional burglary-resisting door ventilation window, is including inlaying the fixed mounting frame on the burglary-resisting door and one install in the fixed mounting frame internal orifice, can be at the switching frame of fixed mounting frame internal orifice switch, the switching frame adopts horizontal rotation or horizontal push mode at the fixed mounting frame internal orifice switch, and the outward flange and the fixed mounting frame internal orifice of switching frame seal the cooperation, installs at the internal orifice of switching frame and can be with switching frame internal orifice confined movable ventilation door, the ventilation door is different at the switching mode of switching frame internal orifice and the switching mode of switching frame internal orifice, is equipped with switching frame lock between fixed mounting frame and switching frame.
2. The multifunctional ventilating window of an anti-theft door as claimed in claim 1, wherein: the switching frame adopts the horizontal rotation mode at fixed mounting frame internal orifice switch, and the switching frame is connected with the fixed mounting frame through rotatory hinge, the activity ventilation door adopts the flat push mode at switching frame internal orifice switch, and the ventilation door passes through the translation sliding support to be connected with the switching frame.
3. The multifunctional ventilating window of an anti-theft door as claimed in claim 1, wherein: the switching frame adopts the flat push mode at fixed mounting frame internal orifice switch, and the switching frame passes through the translation sliding support to be connected with the fixed mounting frame, the activity ventilation door adopts the horizontal rotation mode at switching frame internal orifice switch, and the ventilation door is connected with the switching frame through rotatory hinge.
4. The multifunctional ventilating window of an anti-theft door as claimed in claim 1, wherein: the switching frame adopts the flat push mode at fixed mounting frame internal orifice switch, and the switching frame passes through the translation sliding support to be connected with the fixed mounting frame, the activity ventilation door adopts the vertical lift mode at switching frame internal orifice switch, and the ventilation door hangs elevating system, rack and pinion elevating system or rack and pawl elevating system through the steel wire and is connected with the switching frame.
5. The multifunctional security door ventilation window according to any one of claims 1 to 4, characterized in that: and a ventilation door lock is arranged between the adapter frame and the ventilation door.
6. The multifunctional ventilating window of an anti-theft door as claimed in claim 5, wherein: the outdoor side of the fixed mounting frame is provided with a protective grating which can be opened.
7. The multifunctional ventilating window of an anti-theft door as claimed in claim 6, wherein: the fixed mounting frame comprises a frame body embedded in the ventilation opening of the anti-theft door, a ventilation window panel which is mounted on the ventilation opening of the anti-theft door from the outer side of the anti-theft door and is matched and fixed with the frame body, and a protective grating which can be opened is arranged on the ventilation window panel.
