CN111568777A - A practical and convenient nursing device for upper gastrointestinal bleeding in gastroenterology department - Google Patents

Abstract

The invention relates to the technical field of medical devices, in particular to a practical and convenient nursing device for upper gastrointestinal bleeding in the department of gastroenterology. There is a storage box, and the right side of the front and rear surfaces of the storage box is provided with a chute, the inside of the chute is slidably connected with a supporting plate, and a negative pressure box is fixedly installed on the right side of the lower surface of the supporting plate, which is inconvenient to move. The patient can slide the base under the bed, so that the patient can take care while sitting on the bed, so that the patient can take care more comfortably, and the wipes used in the nursing process can be discarded and disposed under the cover. Put the used nursing tools in the sealed box in the storage cavity, and also reduce the spread of bacteria as little as possible before the used nursing tools are not sterilized, so as to ensure the hygiene of the nursing environment. .

Description

A practical and convenient nursing device for upper gastrointestinal bleeding in gastroenterology department

technical field

The invention relates to the technical field of medical devices, in particular to a practical and convenient nursing device for upper gastrointestinal bleeding in the department of gastroenterology.

Background technique

Upper gastrointestinal bleeding is a common clinical symptom in the department of gastroenterology. Patients will experience vomiting and other symptoms during daily nursing. The upper gastrointestinal bleeding nursing device can facilitate daily nursing of patients with upper gastrointestinal bleeding. Reduce the workload of medical staff's daily work, while also making patients more comfortable.

However, the existing nursing device for upper gastrointestinal bleeding cannot easily perform nursing according to the condition of the patient during use, and at the same time, the vomit of the patient cannot be treated in time during the nursing process, which easily pollutes the nursing environment and spreads bacteria. Therefore, Those skilled in the art provide a practical and convenient upper gastrointestinal bleeding nursing device in gastroenterology to solve the problems raised in the above background art.

SUMMARY OF THE INVENTION

The purpose of the present invention is to solve the above-mentioned problems in the background art, and to provide a practical and convenient nursing device for upper gastrointestinal bleeding in the department of gastroenterology.

A practical and convenient nursing device for upper gastrointestinal bleeding in the department of gastroenterology includes a base, a first box body is fixedly installed on the right side of the upper surface of the base, and universal wheels are fixedly installed at four corners of the lower surface of the base. A storage box is fixedly installed on the left side of the upper surface of the base, an electric telescopic rod is fixedly installed on the upper surface of the base, and the electric telescopic rod is located between the storage box and the base, and a handle is fixedly installed on the upper left side of the storage box, The upper surface of the storage box is rotatably connected with a cover plate through a rotating shaft, and a chute is provided on the right side of the front and rear surfaces of the storage box. A storage tank is fixedly installed on the side, a negative pressure box is fixedly installed on the right side of the lower surface of the support plate, a sprinkler head is fixedly installed on the inner surface of the storage tank, and the storage box includes a second box body and a storage cavity and processing chamber, the interior of the second box is divided into a storage chamber and a processing chamber, the interior of the processing chamber is movably connected with a garbage bin, the inner wall of the processing chamber is fixedly installed with an ultraviolet lamp, and the inner wall of the processing chamber is The rear end is rotatably connected with a first closed door through a hinge, a sealing box is slidably connected to the inner right side of the storage cavity, a storage compartment is arranged on the inner left side of the storage cavity, and the rear of the storage cavity is A second closed door is rotatably connected to the end through a hinge. The first box body includes a water storage cavity and a storage cavity. The first box body is divided into a water storage cavity and a storage cavity. The interior of the water storage cavity is fixedly installed. There is a water pump, the upper end of the water storage cavity is connected with a water inlet pipe, the top end of the water inlet pipe is connected with a second sealing cover through threads, the front end of the water storage cavity is connected with a water delivery pipe, and the right side of the storage cavity is connected with a water supply pipe. A cleaning pipe is connected through the side, the right side of the cleaning pipe is connected with a first sealing cover through a thread, a drain pipe is connected through the top of the receiving cavity, and the outer surface of the drain pipe is uniformly provided with a first fixed cover. The outer surface of the water delivery pipe is evenly provided with the second fixing seat of the dividing plate;

The negative pressure box includes a casing, a vacuum pump, a dividing plate, a valve and a connecting pipe. A dividing plate is arranged inside the casing, and a vacuum pump is fixedly installed on the front side of the dividing plate. A connecting pipe is connected through the upper surface of the rear side, the bottom end of the connecting pipe is fixedly installed with a valve, and the valve controls the opening and closing of the valve through a control button;

As an optimization, one end of the sewage pipe is penetratingly connected to the storage cavity, and the other end of the sewage pipe is penetratingly connected to the lower surface of the negative pressure tank. slide;

As an optimization, one end of the water delivery pipe is penetratingly connected to the front end of the water storage cavity, and the other end of the water delivery pipe is penetratingly connected to the front surface of the storage tank. slide;

As an optimization, the negative pressure box is connected to the storage tank through a connecting pipe, and the connecting pipe runs through the upper and lower surfaces of the pallet;

As an optimization, the lower surface of the shower head is provided with water spray holes, and the water spray holes fit with the inner surface of the storage tank.

Beneficial effects of the present invention:

1. The invention is a convenient nursing device for upper gastrointestinal bleeding in the department of gastroenterology. Some patients with inconvenience can slide the base under the bed, adjust the height of the support plate through the electric telescopic rod, and place the support plate above the bed, so that the patient can sit Nursing can be performed on the hospital bed, so that the patient can be more comfortably nursed, and at the same time, the present invention can be better applied to the nursing of patients with upper respiratory tract hemorrhage.

2. The invention is a convenient nursing device for upper gastrointestinal bleeding in the department of gastroenterology. The wipes used in the nursing process can be collectively discarded into the trash can of the processing chamber under the cover plate, and a part of bacteria can be removed by the ultraviolet disinfection of the ultraviolet lamp. Kill, and then put the used nursing tools in the sealed box in the storage cavity, and thoroughly sterilize the nursing tools after the nursing is completed, so as to facilitate the next use, and also reduce the use of nursing tools after use. Before disinfection, spread as little bacteria as possible to ensure the hygiene of the nursing environment.

3. The convenient nursing device for upper gastrointestinal bleeding in the department of gastroenterology of the invention controls the water pump to pump water through the control button, then supplies water through the water pipe, and washes and cleans the vomit in the storage tank through the sprinkler head. The inside of the shell is evacuated to generate negative pressure in the shell, and then the valve is opened while the sprinkler head flushes the inside of the storage tank, and the vomit and water in the storage tank are quickly entered into the storage cavity through the sewage pipe. The rapid recovery of vomitus ensures the hygiene of the nursing environment while reducing the spread of bacteria.

Description of drawings

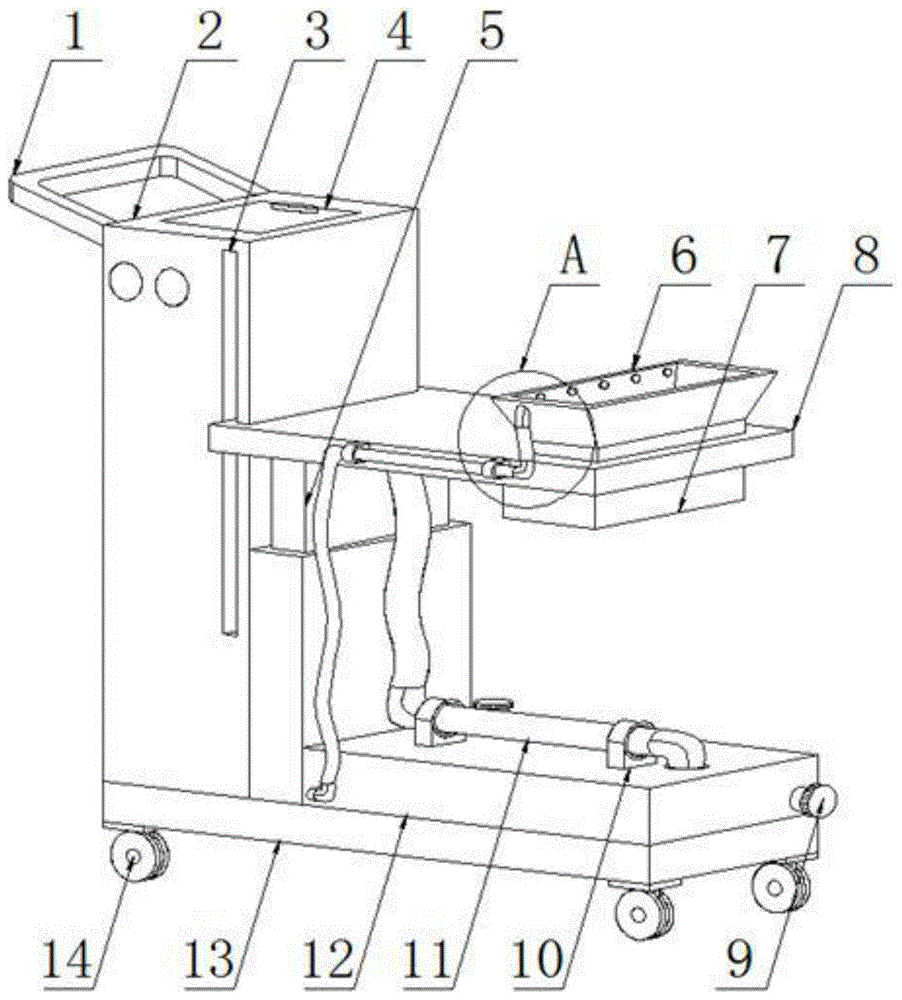

1 is a schematic diagram of the three-dimensional structure of the present invention;

Fig. 2 is the rear view three-dimensional structure schematic diagram of the storage box of the present invention;

Fig. 3 is the right side sectional view of the negative pressure box of the present invention;

Fig. 4 is the front sectional view of the first box of the present invention;

Fig. 5 is an enlarged view of part A in Fig. 1 of the present invention

In the picture: 1. Handle; 2. Storage box; 3. Chute; 4. Cover plate; 5. Electric telescopic rod; 6. Storage pool; 7. Negative pressure box; 8. Support plate; 9. First sealing cover ; 10, the first fixed seat; 11, the sewage pipe; 12, the first box body; 13, the base; 14, the universal wheel; 15, the second box body; A closed door; 19, the second closed door; 20, storage compartment; 21, sealed box; 22, storage chamber; 23, processing chamber; 24, shell; 25, vacuum pump; 26, partition plate; 27, Valve; 28, connecting pipe; 29, second sealing cover; 30, water inlet pipe; 31, water pump; 32, water storage cavity; 33, storage cavity; 34, cleaning pipe; 35, sprinkler head; 36, second Fixed seat; 37. Water pipe.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1 to 5 , a practical and convenient nursing device for upper gastrointestinal bleeding in gastroenterology, including a base 13 . The universal wheel 14 is fixedly installed, the storage box 2 is fixedly installed on the left side of the upper surface of the base 13, the electric telescopic rod 5 is fixedly installed on the upper surface of the base 13, and the electric telescopic rod 5 is located between the storage box 2 and the base 13. , a handle 1 is fixedly installed on the upper left side of the storage box 2, the upper surface of the storage box 2 is connected with a cover plate 4 through a rotating shaft, and a chute 3 is provided on the right side of the front and rear surfaces of the storage box 2, and the inside of the chute 3 slides A support plate 8 is connected, a storage tank 6 is fixedly installed on the right side of the upper surface of the support plate 8, a negative pressure box 7 is fixedly installed on the right side of the lower surface of the support plate 8, and a shower head 35 is fixedly installed on the inner surface of the storage tank 6. , the storage box 2 includes a second box body 15, a storage cavity 22 and a treatment cavity 23, the interior of the second box body 15 is divided into a storage cavity 22 and a treatment cavity 23, and the interior of the treatment cavity 23 is movably connected with a garbage box 16, The inner wall of the processing chamber 23 is fixedly installed with the ultraviolet lamp 17, the rear end of the processing chamber 23 is rotatably connected with the first closed door 18 through the hinge, and the inner right side of the storage chamber 22 is slidably connected with the sealing box 21. A storage compartment 20 is provided on the left side of the interior. The rear end of the storage cavity 22 is connected with a second closed door 19 through hinges. The first box 12 includes a water storage cavity 32 and a storage cavity 33. The first box 12 is divided into The water storage chamber 32 and the storage chamber 33 are the water storage chamber 32, the water pump 31 is fixedly installed in the water storage chamber 32, the water inlet pipe 30 is connected through the upper end of the water storage chamber 32, and the top end of the water inlet pipe 30 is connected with a second sealing cover 29 through threads. The front end of the water storage chamber 32 is connected with a water delivery pipe 37, the right side of the storage chamber 33 is connected with a cleaning pipe 34, the right side of the cleaning pipe 34 is connected with a first sealing cover 9 through threads, and the top of the storage chamber 33 is penetrated through A sewage pipe 11 is connected, the outer surface of the sewage pipe 11 is evenly provided with a first fixing seat 10, the outer surface of the water delivery pipe 37 is evenly provided with a second fixing seat 36 of a partition plate, and one end of the sewage pipe 11 is connected to the receiving cavity 33 through , the other end of the sewage pipe 11 is connected with the lower surface of the negative pressure tank 7, one end of the water pipe 37 is connected with the front end of the water storage cavity 32, and the other end of the water pipe 37 is connected with the front surface of the storage tank 6. The lower surface of the head 35 is provided with a water spray hole, and the water spray hole is fitted with the inner surface of the storage tank 6, and the model of the water pump is: 100WL80-8-4;

In FIGS. 1 and 3 : the negative pressure tank 7 includes a housing 24 , a vacuum pump 25 , a partition plate 26 , a valve 27 and a connecting pipe 28 , a partition plate 26 is arranged inside the housing 24 , and the front side of the partition plate 26 A vacuum pump 25 is fixedly installed, a connecting pipe 28 is connected through the upper surface of the rear side of the partition plate 26, a valve 27 is fixedly installed at the bottom end of the connecting pipe 28, and the negative pressure tank 7 is connected with the storage tank 6 through the connecting pipe 28, and is connected The pipe 28 runs through the upper and lower surfaces of the support plate 8, and the model of the vacuum pump 25 is: SK-12;

The working principle and process of the present invention:

When in use, first select the appropriate placement position of the present invention according to the patient's physical condition, and then take care of the patient. Some patients with inconvenience can slide the base 13 under the bed, and adjust the position of the support plate 8 through the electric telescopic rod. Height, the pallet 8 is placed above the bed, so that the patient can take care while sitting on the bed, which is more convenient for the patient to take care of. Under the action of the press box, it is stored into the storage cavity 33 in the first box body 12, and then the wipes used in the nursing process can be collectively discarded into the garbage box 16 of the processing cavity under the cover plate 4, and the ultraviolet light The ultraviolet disinfection of 17 can kill a part of the bacteria, avoid the spread of bacteria as much as possible, and then place the used nursing tools in the sealed box 21 in the storage cavity 22, and thoroughly sterilize the nursing tools after the nursing is completed. In order to facilitate the next use, and also reduce the spread of germs as little as possible before the nursing utensils are not disinfected, ensure the hygiene of the nursing environment, and uniformly dispose of the wipes in the trash can after nursing. The disposition of the cover plate 4 can reduce the spread of bacteria when the wipes are discarded. During the nursing process of the patient, if the patient vomits, the vomit is firstly received through the storage tank 6, and then the storage tank 6 is collected through the control button. The vomit in the vomit is recycled in time to avoid the spread of more bacteria, the water pump 31 is controlled by the control button to pump water, and then the water is supplied through the water pipe 37, and the vomit in the storage tank 6 is washed and cleaned by the sprinkler head 35, At the same time, the vacuum pump 25 works to evacuate the inside of the casing 24 to generate negative pressure in the casing 24, and then the valve 27 is opened while the shower head 35 flushes the inside of the storage tank 6, and the vomit in the storage tank 6 is opened. Together with the water, it can quickly enter the storage cavity 33 through the sewage pipe 11, and the vomit can be quickly recovered to avoid the spread of bacteria as little as possible.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. The utility model provides a practical convenient gastroenterology upper gastrointestinal hemorrhage nursing device, includes base (13), its characterized in that: the automatic feeding device is characterized in that a first box body (12) is fixedly mounted on the right side of the upper surface of a base (13), universal wheels (14) are fixedly mounted on four corners of the lower surface of the base (13), a containing box (2) is fixedly mounted on the left side of the upper surface of the base (13), an electric telescopic rod (5) is fixedly mounted on the upper surface of the base (13), the electric telescopic rod (5) is located between the containing box (2) and the base (13), a handle (1) is fixedly mounted on the upper portion of the left side of the containing box (2), a cover plate (4) is rotatably connected to the upper surface of the containing box (2) through a rotating shaft, sliding grooves (3) are formed in the right side of the front surface and the rear surface of the containing box (2), a supporting plate (8) is slidably connected to the inside of the sliding grooves (3), a containing pool (6) is fixedly mounted on the right side of the upper, the inner surface of the storage pool (6) is fixedly provided with a spray head (35), the storage box (2) comprises a second box body (15), a storage chamber (22) and a treatment chamber (23), the inside of the second box body (15) is divided into the storage chamber (22) and the treatment chamber (23), the inside of the treatment chamber (23) is movably connected with a dustbin (16), the inner wall of the treatment chamber (23) is fixedly provided with an ultraviolet lamp (17), the rear end of the treatment chamber (23) is rotatably connected with a first closed door (18) through a hinge, the inside right side of the storage chamber (22) is slidably connected with a sealing box (21), the inside left side of the storage chamber (22) is provided with a storage lattice (20), the rear end of the storage chamber (22) is rotatably connected with a second closed door (19) through the hinge, the first box body (12) comprises a water storage chamber (32) and a storage chamber (33), the first box body (12) is divided into a water storage cavity (32) and a storage cavity (33), a water pump (31) is fixedly mounted inside the water storage cavity (32), the upper end of the water storage cavity (32) is connected with a water inlet pipe (30) in a penetrating manner, the top end of the water inlet pipe (30) is connected with a second sealing cover (29) through threads, the front end of the water storage cavity (32) is connected with a water pipe (37) in a penetrating manner, the right side of the storage cavity (33) is connected with a sewage cleaning pipe (34) in a penetrating manner, the right side of the sewage cleaning pipe (34) is connected with a first sealing cover (9) through threads, the top end of the storage cavity (33) is connected with a sewage discharge pipe (11) in a penetrating manner, first fixing seats (10) are uniformly arranged on the outer surface of the sewage discharge pipe (11), and;

negative pressure tank (7) include casing (24), vacuum pump (25), division board (26), valve (27) and connecting pipe (28), the inside of casing (24) is provided with division board (26), division board (26) front side fixed mounting has vacuum pump (25), the rear side upper surface through connection of division board (26) has connecting pipe (28), the bottom fixed mounting of connecting pipe (28) has valve (27).

2. The practical and convenient upper gastrointestinal hemorrhage nursing device for the department of gastroenterology according to claim 1, wherein: one end of the sewage draining pipe (11) is in through connection with the containing cavity (33), and the other end of the sewage draining pipe (11) is in through connection with the lower surface of the negative pressure box (7).

3. The practical and convenient upper gastrointestinal hemorrhage nursing device for the department of gastroenterology according to claim 1, wherein: one end of the water conveying pipe (37) is in through connection with the front end of the water storage cavity (32), and the other end of the water conveying pipe (37) is in through connection with the front surface of the storage pool (6).

4. The practical and convenient upper gastrointestinal hemorrhage nursing device for the department of gastroenterology according to claim 1, wherein: the negative pressure box (7) is connected with the storage pool (6) through a connecting pipe (28), and the connecting pipe (28) penetrates through the upper surface and the lower surface of the supporting plate (8).

5. The practical and convenient upper gastrointestinal hemorrhage nursing device for the department of gastroenterology according to claim 1, wherein: the lower surface of the spray header (35) is provided with a water spraying hole, and the water spraying hole is attached to the inner surface of the storage pool (6).
