Abstract
本实用新型属于消化内科技术领域，公开了一种消化内科呕吐物接收架，包括底板，底板的上表面安装有电控室，电控室的内部安装有电机，电控室的上方设置有收集箱，收集箱的内部安装有搅拌器，搅拌器与电机通过转轴转动连接，收集箱的上方安装有清洗池，清洗池与收集箱通过管道连接，管道的内部安装有管道控制阀；本实用新型设置了收集箱、电机和搅拌器，收集箱为可持续使用装置，不用反复更换，而收集物沉淀到收集箱后，容易粘在收集箱上面，电机带动搅拌器可带动水流运动，冲刷收集箱内部脏物，再将其排出，可以保持收集箱内部的清洁，不会滋生病菌，造成人员的感染。
The utility model belongs to the technical field of gastroenterology, and discloses a gastroenterology vomit receiving rack, which comprises a bottom plate, an electric control room is installed on the upper surface of the bottom plate, a motor is installed inside the electric control room, and a collector is arranged above the electric control room The inside of the collection box is equipped with a stirrer, the agitator and the motor are rotatably connected through a rotating shaft, a cleaning pool is installed above the collection box, the cleaning pool and the collection box are connected through a pipeline, and a pipeline control valve is installed inside the pipeline; the utility model A collection box, a motor and a stirrer are set up. The collection box is a sustainable device and does not need to be replaced repeatedly. After the collected material settles into the collection box, it is easy to stick to the collection box. The motor drives the agitator to drive the water flow to flush the collection box. The internal dirt, and then discharged, can keep the inside of the collection box clean, and will not breed bacteria and cause infection of personnel.
Description
Technical Field
The utility model belongs to the technical field of gastroenterology vomitus receives the clearance, concretely relates to gastroenterology vomitus receiving frame.
Background
With the progress and development of society, the living standard of human beings is gradually increased, and medical diseases such as intestines and stomach are more and more due to irregular dietary habits, and the most adverse reaction brought by the medical diseases is vomiting. Because vomitus is often accompanied by large peculiar smell and is troublesome to treat, bacteria can easily grow if the vomitus is not treated in time, and the vomitus receiving rack is very unfavorable for the recovery of patients and the work of hospital cleaning personnel, so the vomitus receiving rack for the digestive system department can be produced.
However, the conventional vomit receiving rack generally directly uses a disposable collecting device for processing the vomit, so that the vomit receiving rack needs to be immediately processed after being used, which causes resource waste and inconvenience in use, and has peculiar smell emission and germ breeding when the vomit receiving rack is not processed in time, so that the height of the vomit receiving rack cannot be adjusted when the vomit receiving rack is used.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a gastroenterology vomitus receiving frame to solve current vomitus and collect and use disposable device, extravagant serious, vomitus distributes the peculiar smell and breeds the germ easily and receive the unable problem of adjusting of frame height.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a gastroenterology vomitus receiving frame, includes the bottom plate, the last surface mounting of bottom plate has automatically controlled room, the internally mounted of automatically controlled room has the motor, the top of automatically controlled room is provided with the collecting box, the internally mounted of collecting box has the agitator, the agitator rotates through the pivot with the motor to be connected, the top of collecting box is installed and is washd the pond, wash the pond and pass through pipe connection with the collecting box, the internally mounted of pipeline has the pipeline control valve.
Preferably, the pipeline control valve comprises fixed block, rubber seal, ball valve and handle, the internally mounted of pipeline has the fixed block, two the centre of fixed block is provided with rubber seal, rubber seal's inside is provided with the ball valve, the handle is installed to the outside one end that the ball valve extends to the pipeline.
Preferably, a hydraulic chamber is formed below the bottom plate, and four hydraulic cylinders are arranged in the hydraulic chamber.
Preferably, the storage cabinet is arranged above the bottom plate, a door body is arranged on the front surface wall of the storage cabinet, and a handle is arranged on the outer surface wall of the door body.
Preferably, the water storage tank is installed above the bottom plate, the water injection pipe and the water pump chamber are installed above the water storage tank, the water pump is installed inside the water pump chamber, one end of the water pump extending into the water storage tank is connected with a water inlet through a water suction pipe, the faucet is installed above the water pump chamber, the water pump is connected with the faucet through a water suction pipe, a second control valve is arranged between the faucet and the water suction pipe, and the controller is installed on the front surface wall of the water pump chamber.
Preferably, the bottom of the hydraulic chamber is provided with four universal wheels.
Preferably, the hand push rods are installed above the bottom plate, the number of the hand push rods is two, and the handles are installed at one ends of the two hand push rods.
Preferably, a discharge pipe is installed at one side of the collection tank, and a first control valve is provided inside the discharge pipe.
Compared with the prior art, the utility model, following beneficial effect has:
(1) the utility model discloses set up collecting box, motor and agitator, the collecting box is sustainable use device, need not change repeatedly, and the collection deposit is glued on the collecting box after collecting the box easily, and the motor drives the agitator and can drive the rivers motion, erodees the inside foul of collecting box, discharges it again, can keep the inside cleanness of collecting box, can not breed the germ, causes personnel's infection.
(2) The utility model discloses set up the pipeline control valve, opened the pipeline control valve before patient uses, after patient uses, can close the pipeline control valve after in time using water to rush into the collecting box with the vomitus, can make the vomitus peculiar smell can not distribute out also difficult the breeding germ.
(3) The utility model discloses set up hydraulic pressure room, hydraulic pump, can adjust the height that the vomitus collected the frame through the hydraulic pump according to patient's demand.
Drawings

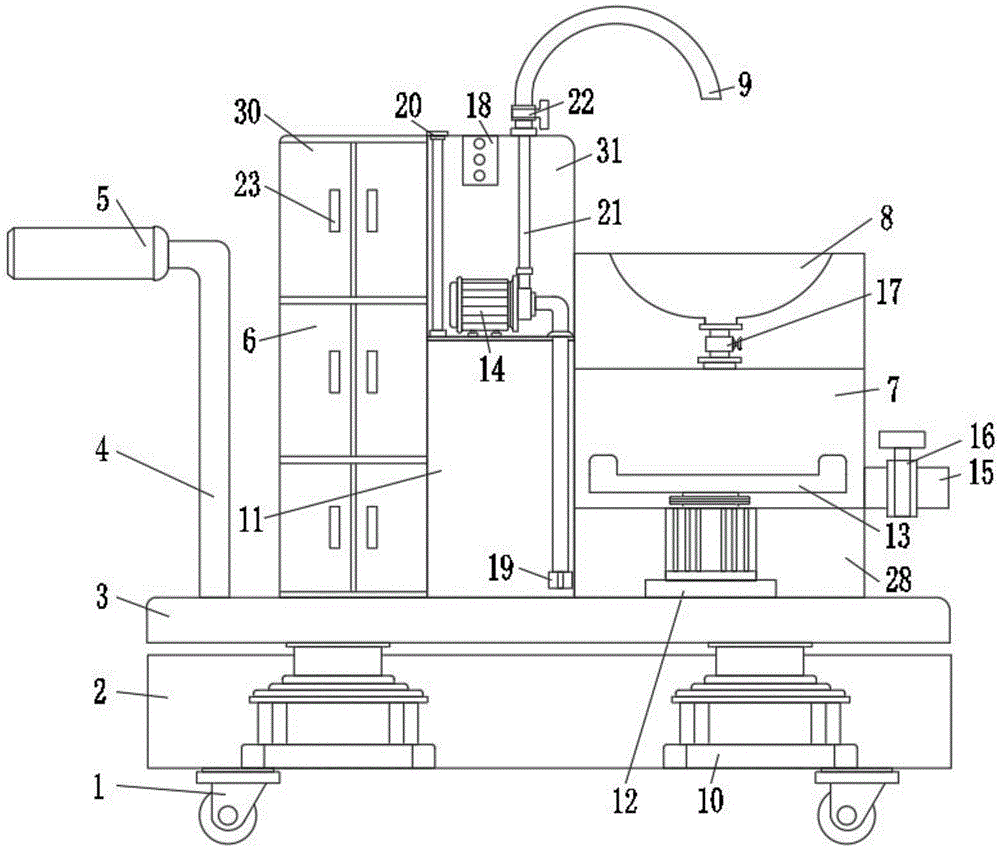

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a cross-sectional view of the pipe control valve of the present invention;
FIG. 3 is a top view of the collection box of the present invention;
fig. 4 is a top view of the hydraulic cylinder of the present invention;
in the figure: 1. a universal wheel; 2. a hydraulic chamber; 3. a base plate; 4. a handspike; 5. a handle; 6. a storage cabinet; 7. a collection box; 8. a cleaning tank; 9. a faucet; 10. a hydraulic cylinder; 11. a water storage tank; 12. a motor; 13. a stirrer; 14. a water pump; 15. a discharge pipe; 16. a first control valve; 17. a pipeline control valve; 18. a controller; 19. a water inlet; 20. a water injection pipe; 21. a suction pipe; 22. a second control valve; 23. a handle; 24. a ball valve; 25. a rubber seal ring; 26. a fixed block; 27. a grip; 28. an electric control chamber; 29. a pipeline; 30. a door body; 31. a water pump chamber.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides the following technical solutions: the utility model provides a gastroenterology vomitus receiving frame, including bottom plate 3, the last surface mounting of bottom plate 3 has automatically controlled room 28, the internally mounted of automatically controlled room 28 has motor 12, motor 12 uses YVFE2-132M-8 small-size motor, rated voltage is 380V, rated power is 3KW, collecting box 7 is installed to the top of automatically controlled room 28, the internally mounted of collecting box 7 has agitator 13, agitator 13 uses stainless steel material preparation, and is sturdy and durable, agitator 13 rotates through the pivot with motor 12 to be connected, wash pond 8 is installed to the top of collecting box 7, it is connected through pipeline 29 with collecting box 7 to wash pond 8, the internally mounted of pipeline 29 has pipeline control valve 17.
Further, the pipeline control valve 17 comprises fixed block 26, rubber seal 25, ball valve 24 and handle 27, the internally mounted of pipeline 29 has fixed block 26, the centre of two fixed blocks 26 is provided with rubber seal 25, rubber seal 25's inside is provided with ball valve 24, handle 27 is installed to the outside one end that ball valve 24 extends to pipeline 29, drive ball valve 24's rotation through rotatory handle 27, with the laminating of rubber seal 25 or dislocation, realize wasing the UNICOM of pond 8 and collecting box 7 and block.
Furthermore, hydraulic chamber 2 has been seted up to the below of bottom plate 3, and the internally mounted of hydraulic chamber 2 has pneumatic cylinder 10, and pneumatic cylinder 10 uses small-size telescopic pneumatic cylinder, and the flexible height-adjusting function of accomplishing the device through pneumatic cylinder 10, pneumatic cylinder 10 are provided with four altogether, evenly distributed, and the atress is even, is difficult for empting.
Specifically, locker 6 is installed to bottom plate 3's top, and locker 6 can place the thing, is infected with the filth when preventing to vomit, has still placed the paper handkerchief in locker 6 and has supplied the personnel to use, and a body 30 is installed to the preceding table wall of locker 6, and handle 23 is installed to the outward appearance wall of a body 30, and handle 23 uses the stainless steel material preparation.
It is worth to be noted that, a water storage tank 11 is installed above the bottom plate 3, a water injection pipe 20 and a water pump chamber 31 are installed above the water storage tank 11, a water pump 14 is installed inside the water pump chamber 31, the water pump 14 uses a QDX10-12-0.55S stainless steel water pump, the power is 0.25KW, the volume is small, the flow rate is large, one end of the water pump 14 extending into the water storage tank 11 is connected with a water inlet 19 through a water suction pipe 21, a water tap 9 is installed above the water pump chamber 31, the water pump 14 is connected with the water tap 9 through the water suction pipe 21, a second control valve 22 is arranged between the water tap 9 and the water suction pipe 21, a controller 18 is installed on the front surface wall of the water pump chamber 31, and the controller 18 uses a PLC programmable controller.
Further, universal wheel 1 is installed to the bottom of hydraulic pressure room 2, and universal wheel 1 uses stainless steel material to make, can change the direction of travel, and universal wheel 1 is provided with four altogether.
Still further, the hand push rods 4 are installed above the bottom plate 3, the two hand push rods 4 are arranged, the handles 5 are installed at one ends of the two hand push rods 4, and the anti-skid protrusions or the wrapping anti-skid pads are arranged on the handles 5, so that the toilet is used by toilet people.
Further, a discharge pipe 15 is installed at one side of the collection tank 7, a first control valve 16 is provided inside the discharge pipe 15, the first control valve 16 is opened, and the filth inside the collection tank 7 can flow out through the discharge pipe 15 for a subsequent sterilization process.
The utility model discloses a theory of operation and use flow: when the utility model is used, the handle 5 is held by hand to drive the handspike 4, the universal wheel 1 rotates to push the device to a specified place in the department of gastroenterology, clear water is injected into the water storage tank 11 through the water injection pipe 20, after the water storage tank 11 is full of water, the subsequent use can be carried out, or the water pipe is directly connected on the water injection pipe 20 to inject the clear water;
before the device is used, the door body 30 of the storage cabinet 6 is opened by pulling the handle 23 with a hand, redundant articles are put into the storage cabinet 6 for storage, the articles are prevented from splashing during vomiting, and then the paper towel is taken out from the storage cabinet 6 and can be wiped after vomiting;
before vomiting, the pipeline control valve 17 is opened, namely the handle 27 is rotated by hands, so that the ball valve 24 in the pipeline 29 and the rubber sealing ring 25 fixed by the fixing block 26 are staggered, vomit is spitted into the cleaning pool 8 during vomiting, the vomit can flow into the collecting box 7 through the pipeline 29, after vomiting, the controller 18 is used for controlling the water pump 14 in the water pump chamber 31 to work, the water pump 14 pumps clean water in the water storage tank 11 up through the water inlet 19 and enters the water suction pipe 21, the second control valve 22 is opened, the clean water flows out of the water faucet 9, and people clean the water;
after the washing is finished, the controller 18 is used for controlling the water pump 14 to be closed, the second control valve 22 is closed, the pipeline control valve 17 is closed, and the communication between the collecting box 7 and the washing pool 8 is blocked, so that the peculiar smell of vomitus cannot be emitted, the vomitus cannot be contacted with the outside, the germs cannot be easily bred, and the safety is higher;
after the device is used, the vomit in the collecting box 7 needs to be subsequently treated, the device is pushed to a vomit treatment place, the first control valve 16 is opened, the dirt in the collecting box 7 flows out from the discharge pipe 15, the next step of disinfection and other treatment is carried out, the controller 18 is used for opening the water pump 14, the second control valve 22 and the pipeline control valve 17 are opened, clean water is used for washing, the cleaning pool 8 is cleaned, the controller 18 is used for controlling the motor 12 in the electric control chamber 28 to work, the stirrer 13 in the collecting box 7 is driven to rotate, water rotates in the collecting box 7, dirt in the collecting box 7 is washed down and is discharged from the discharge pipe 15, meanwhile, the collecting box 7 is cleaned, the cleanness of the collecting box 7 is guaranteed, and infection caused by pathogenic bacteria is prevented;
when personnel use, still can carry out the regulation of device height according to the height of self, adjust to the height that is most suitable for oneself, use pneumatic cylinder 10 work in controller 18 control hydraulic chamber 2, pneumatic cylinder 10 can stretch out and draw back from top to bottom, drives all structures that set up on bottom plate 3 and the bottom plate 3 and accomplishes the regulation of device height, easy operation makes things convenient for the personnel of different heights to use, and the suitability improves greatly.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. A gastroenterology vomitus receiving frame which characterized in that: including bottom plate (3), the last surface mounting of bottom plate (3) has automatically controlled room (28), the internally mounted of automatically controlled room (28) has motor (12), the top of automatically controlled room (28) is provided with collecting box (7), the internally mounted of collecting box (7) has agitator (13), agitator (13) are connected through the pivot rotation with motor (12), wash pond (8) are installed to the top of collecting box (7), wash pond (8) and collecting box (7) and be connected through pipeline (29), the internally mounted of pipeline (29) has pipeline control valve (17).
2. The vomit receiving rack for the gastroenterology according to claim 1, wherein: pipeline control valve (17) comprises fixed block (26), rubber seal (25), ball valve (24) and handle (27), the internally mounted of pipeline (29) has fixed block (26), two the centre of fixed block (26) is provided with rubber seal (25), the inside of rubber seal (25) is provided with ball valve (24), handle (27) are installed to the outside one end that extends to pipeline (29) ball valve (24).
3. The vomit receiving rack for the gastroenterology according to claim 1, wherein: the hydraulic pressure chamber (2) is arranged below the bottom plate (3), the hydraulic cylinders (10) are arranged inside the hydraulic pressure chamber (2), and the number of the hydraulic cylinders (10) is four.
4. The vomit receiving rack for the gastroenterology according to claim 1, wherein: the storage cabinet (6) is installed above the bottom plate (3), a door body (30) is installed on the front surface wall of the storage cabinet (6), and a handle (23) is installed on the outer surface wall of the door body (30).
5. The vomit receiving rack for the gastroenterology according to claim 1, wherein: water storage tank (11) are installed to the top of bottom plate (3), water injection pipe (20) and water pump room (31) are installed to the top of water storage tank (11), the internally mounted of water pump room (31) has water pump (14), water pump (14) extend to the inside one end of water storage tank (11) and are connected with water inlet (19) through absorbing water pipe (21), tap (9) are installed to the top of water pump room (31), water pump (14) are connected through absorbing water pipe (21) with tap (9), be provided with second control valve (22) between tap (9) and the pipe (21) that absorbs water, controller (18) are installed to the preceding table wall of water pump room (31).
6. A gastroenterology vomitus receiving rack according to claim 3, wherein: the bottom of the hydraulic chamber (2) is provided with four universal wheels (1), and the number of the universal wheels (1) is four.
7. The vomit receiving rack for the gastroenterology according to claim 1, wherein: hand push rods (4) are installed above the bottom plate (3), two hand push rods (4) are arranged, and a handle (5) is installed at one end of each hand push rod (4).
8. The vomit receiving rack for the gastroenterology according to claim 1, wherein: a discharge pipe (15) is installed on one side of the collection box (7), and a first control valve (16) is arranged inside the discharge pipe (15).
