The invention belongs to the technical field of textile machinery, in particular to a pattern comb yarn guide of a warp knitting machine, which comprises a fixed box, wherein a positioning cylinder is embedded in the center of the top of the fixed box, a base is clamped in the inner cavity of the positioning cylinder, and by arranging a rotating handle, when the yarn guide plate is damaged, the rotating handle is rotated to enable the rotating rod to drive the gear to rotate, the gear drives the upper driving plate and the lower driving plate to move left and right, meanwhile, the driving plate drives the first connecting plate and the second connecting plate to move left and right, so that the first connecting plate and the second connecting plate drive the sliding plate to move in the direction far away from the positioning cylinder, thereby the slide plate drives the clamping block to slide in the inner cavity of the cylinder body to extrude the pressure spring, the clamping block enters the inner cavity of the cylinder body, the positioning cylinder unlocks the base, then will lead the yarn board and drive the base and shift out a location section of thick bamboo, through setting up above structure, possess when the feed carrier damages, the advantage of being convenient for change has effectually reduced maintenance personal's intensity of labour.
Description
Technical Field
The invention belongs to the technical field of textile machinery, and particularly relates to a pattern comb yarn guide of a warp knitting machine.
Background
Knitting is carried out by simultaneously looping one or more sets of parallel arranged yarns on all the working needles of a warp-feed machine, called warp knitting, which is called warp knit, and machines for carrying out this warp knitting, called warp knitting machines, whose main looping elements are needles, guide needles, sinkers and presser plates (for crochet machines). The knitting needles are arranged in a row on the needle bed and move together with the needle bed. The guide needles are mounted on the slats to form guide bars. The warp yarns pass through the eyelets of the guide needles, are fed with the guide bar to be wound around the needles, and are knitted into a fabric by the cooperative movement of knitting members such as knitting needles and sinkers.
The existing warp knitting machine generally needs to guide yarns when yarns are produced into knitted fabrics, in the yarn guiding process, in order to ensure smooth advancing of the yarns and avoid the phenomena of mutual interference among the yarns and disordered arrangement, the yarns are usually combed, guided and positioned through a yarn guide seat device, but when a yarn guide is damaged, the traditional yarn guide seat device needs to replace the whole yarn guide device, time and labor are wasted, the defect of inconvenient replacement is caused, the labor intensity of maintenance personnel is increased, and the warp knitting machine pattern comb yarn guide is provided for solving the problems.
Disclosure of Invention
To solve the problems set forth in the background art described above. The invention provides a jacquard comb yarn guide of a warp knitting machine, which has the advantage of convenience in replacement when the yarn guide is damaged, and solves the problem that the original device is inconvenient to replace when the yarn guide is damaged.
In order to achieve the purpose, the invention provides the following technical scheme: the pattern-combing yarn guide of the warp knitting machine comprises a fixing box, wherein a positioning cylinder is embedded in the center of the top of the fixing box, a base is clamped in an inner cavity of the positioning cylinder, a yarn guide plate is fixedly connected to the top of the base, a yarn guide hole is formed in the inner cavity of the yarn guide plate, a cylinder body is fixedly connected to the left side and the right side of the positioning cylinder, one side of the cylinder body, away from the positioning cylinder, is welded to the joint of the fixing box, a sliding plate is slidably connected to the inner cavity of the cylinder body, clamping blocks are fixedly connected to the opposite sides of the two sliding plates, one end, away from the sliding plate, of each clamping block penetrates through the positioning cylinder and extends to the inner cavity of the base, pin holes matched with the clamping blocks are formed in the left side and the right side of the base, a driving box is fixedly connected to the center of the bottom of the inner cavity of the fixing box, and rotating rods are rotatably connected to the front surface and the back surface of the inner cavity of the driving box through bearings, the outer surface of bull stick has cup jointed the gear, the equal sliding connection in top and the bottom of drive box inner chamber has the drive plate, two one side that the gear was kept away from to the drive plate runs through the drive box and extends to the outside of drive box, the first connecting plate of left side fixedly connected with at drive plate top, the top of first connecting plate run through the barrel and with the junction welding of slide, the right side fixedly connected with second connecting plate at drive plate top, the top of second connecting plate run through the barrel and with the junction welding of slide.
Preferably, teeth are welded on the opposite sides of the two driving plates, and the outer surfaces of the teeth are meshed with the outer surface of the gear.
Preferably, two the slider has all been welded to one side that the drive plate looked from the back, the drive slot that uses with the slider cooperation is all seted up to the top and the bottom of drive box inner chamber, the surface sliding connection of slider at the internal surface of drive slot.
Preferably, a pressure spring is welded on one side of each of the two sliding plates viewed from the back, and the joint of one side of each pressure spring, which is far away from the corresponding sliding plate, and the cylinder body is welded.
Preferably, the bottom of the cylinder body is provided with a movable opening, and an inner cavity of the yarn guide hole is bonded with a rubber sleeve.
Preferably, the front surface of the rotating rod penetrates through the fixing box and extends to the outer side of the fixing box, and the rotating handle is fixedly connected to the front surface of the rotating rod.
Preferably, the bottom fixedly connected with fixed plate of fixed box, the mounting hole has all been seted up at the top of fixed plate and the left and right sides that is located fixed box.
Compared with the prior art, the invention has the beneficial effects that:
1. according to the yarn guide device, the rotating handle is arranged, when the yarn guide plate is damaged, the rotating handle is rotated, the rotating rod drives the gear to rotate, the gear drives the upper driving plate and the lower driving plate to move left and right, the sliding block slides on the inner surface of the driving groove, meanwhile, the driving plates drive the first connecting plate and the second connecting plate to move left and right, the first connecting plate and the second connecting plate drive the sliding plate to move in the direction away from the positioning cylinder, the sliding plate drives the clamping block to slide in the inner cavity of the cylinder to extrude the pressure spring, the clamping block enters the inner cavity of the cylinder, the positioning cylinder unlocks the base, and then the yarn guide plate drives the base to move out of the positioning cylinder.
2. According to the invention, the driving plate can conveniently move left and right in the inner cavity of the driving box by arranging the sliding block and the driving groove; the fixture block can be restored to the initial position by arranging the pressure spring; the first connecting plate and the second connecting plate can conveniently drive the sliding plate to move left and right through the moving port, and the rubber sleeve is arranged, so that the yarn can be conveniently protected against friction; the rotating handle is arranged, so that maintenance personnel can conveniently rotate the rotating rod; through setting up fixed plate and mounting hole, can be with fixed box and frame fixed mounting.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention and not to limit the invention. In the drawings:
FIG. 1 is a schematic structural view of the present invention;

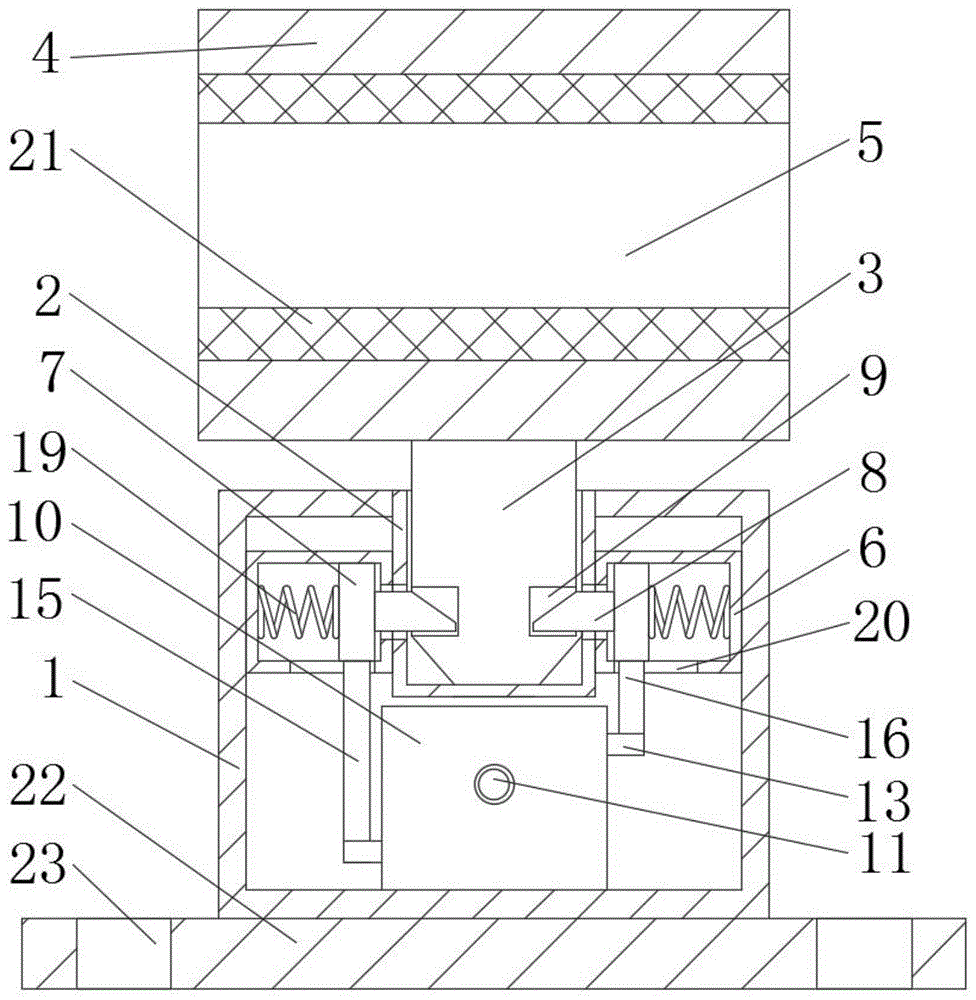

FIG. 2 is a cross-sectional view of the drive cartridge structure of the present invention;
FIG. 3 is a perspective view of the connection of the gear and drive plate arrangement of the present invention;
fig. 4 is a side view of the cassette structure of the present invention.
In the figure: 1. a fixing box; 2. a positioning cylinder; 3. a base; 4. a yarn guide plate; 5. a yarn guide hole; 6. a barrel; 7. a slide plate; 8. a clamping block; 9. a pin hole; 10. a drive cartridge; 11. a rotating rod; 12. a gear; 13. a drive plate; 14. teeth; 15. a first connecting plate; 16. a second connecting plate; 17. a slider; 18. a drive slot; 19. a pressure spring; 20. moving the port; 21. a rubber sleeve; 22. a fixing plate; 23. and (7) installing holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides the following technical solutions: a pattern comb yarn guide of a warp knitting machine comprises a fixed box 1, a positioning cylinder 2 is embedded in the center of the top of the fixed box 1, a base 3 is clamped in the inner cavity of the positioning cylinder 2, a yarn guide plate 4 is fixedly connected to the top of the base 3, a yarn guide hole 5 is formed in the inner cavity of the yarn guide plate 4, cylinder bodies 6 are fixedly connected to the left side and the right side of the positioning cylinder 2, one side, away from the positioning cylinder 2, of each cylinder body 6 is welded to the joint of the fixed box 1, a sliding plate 7 is slidably connected to the inner cavity of each cylinder body 6, a clamping block 8 is fixedly connected to each side, opposite to each other, of the two sliding plates 7, one end, away from the sliding plate 7, of each clamping block 8 penetrates through the positioning cylinder 2 and extends to the inner cavity of the base 3, pin holes 9 matched with the clamping blocks 8 are formed in the left side and the right side of the base 3, a driving box 10 is fixedly connected to the center of the bottom of the inner cavity of the fixed box 1, and the front and the back of the inner cavity of the driving box 10 are rotatably connected with rotating rods 11 through bearings, the outer surface of the rotating rod 11 is sleeved with a gear 12, the top and the bottom of the inner cavity of the driving box 10 are both connected with driving plates 13 in a sliding manner, teeth 14 are welded on one sides of the two driving plates 13 which are opposite to each other, the outer surfaces of the teeth 14 are meshed with the outer surfaces of the gear 12, one sides of the two driving plates 13 which are far away from the gear 12 penetrate through the driving box 10 and extend to the outer side of the driving box 10, a first connecting plate 15 is fixedly connected on the left side of the top of the driving plate 13 on the left side, the top of the first connecting plate 15 penetrates through the barrel 6 and is welded with the joint of the sliding plate 7, a second connecting plate 16 is fixedly connected on the right side of the top of the driving plate 13 on the right side, the top of the second connecting plate 16 penetrates through the barrel 6 and is welded with the joint of the sliding plate 7, through the arrangement of the rotating handle, when the yarn guide plate 4 is damaged, the rotating handle is rotated, the rotating rod 11 drives the gear 12 to rotate, the gear 12 drives the upper driving plate 13 and the lower driving plates 13 to move left and right, and the sliding block 17 slides on the inner surface of the driving groove 18, meanwhile, the drive plate 13 drives the first connecting plate 15 and the second connecting plate 16 to move left and right, so that the first connecting plate 15 and the second connecting plate 16 drive the sliding plate 7 to move towards the direction far away from the positioning cylinder 2, the sliding plate 7 drives the clamping block 8 to slide and extrude the pressure spring 19 in the inner cavity of the cylinder 6, the clamping block 8 enters the inner cavity of the cylinder 6, the positioning cylinder 2 is unlocked from the base 3, then the yarn guide plate 4 is driven to drive the base 3 to move out of the positioning cylinder 2, the structure is arranged above, the yarn guide device has the advantages of being convenient to replace when being damaged, the problem that the original device is inconvenient to replace when the yarn guide device is damaged is solved, and the labor intensity of maintenance personnel is effectively reduced.
Referring to fig. 1 and 2, the two driving plates 13 are welded with sliding blocks 17 on opposite sides, the top and bottom of the inner cavity of the driving box 10 are both provided with driving grooves 18 matched with the sliding blocks 17, the outer surfaces of the sliding blocks 17 are connected with the inner surfaces of the driving grooves 18 in a sliding manner, and the driving plates 13 can be conveniently moved left and right in the inner cavity of the driving box 10 by arranging the sliding blocks 17 and the driving grooves 18.
Referring to fig. 1, a compression spring 19 is welded on each of two opposite sides of the sliding plates 7, a connection portion between one side of the compression spring 19 away from the sliding plate 7 and the cylinder 6 is welded, and the compression spring 19 is arranged to restore the fixture block 8 to an initial position.
Referring to fig. 1, a moving opening 20 is formed in the bottom of a cylinder 6, a rubber sleeve 21 is bonded to an inner cavity of a yarn guide hole 5, the first connecting plate 15 and the second connecting plate 16 can drive the sliding plate 7 to move left and right conveniently by arranging the moving opening 20, and yarn anti-friction protection can be facilitated by arranging the rubber sleeve 21.
Referring to fig. 1, 3 and 4, the front surface of the rotating rod 11 penetrates through the fixing box 1 and extends to the outer side of the fixing box 1, and the rotating handle is fixedly connected to the front surface of the rotating rod 11, so that the rotating rod 11 can be conveniently rotated by a maintenance worker through the rotating handle.
Referring to fig. 1 and 4, a fixing plate 22 is fixedly connected to the bottom of the fixing box 1, mounting holes 23 are formed in the top of the fixing plate 22 and located on the left side and the right side of the fixing box 1, and the fixing box 1 can be fixedly mounted on the rack by arranging the fixing plate 22 and the mounting holes 23.
The working principle and the using process of the invention are as follows: fixing plate 22 and tricot machine frame are fixed through fastening bolt, during the installation, it moves base 3 to the inner chamber of a positioning cylinder 2 to drive yarn guide plate 4, when base 3 moves down in the inner chamber of a positioning cylinder 2, base 3 extrudes clamping block 8, clamping block 8 drives slide 7 to slide in the inner chamber of cylinder 6 and extrude pressure spring 19, thereby make clamping block 8 enter the inner chamber of cylinder 6, when base 3 moves down to the assigned position, pinhole 9 moves to the position corresponding with clamping block 8, meanwhile, pressure spring 19 promotes slide 7 to slide in the inner chamber of cylinder 6 under the reaction force, slide 7 drives clamping block 8 to move to the direction of pinhole 9, thereby make clamping block 8 get into the inner chamber of pinhole 9, make positioning cylinder 2 lock base 3.
When the yarn guide plate 4 is damaged, the rotating handle is rotated to enable the rotating handle to drive the rotating rod 11 to rotate, the rotating rod 11 drives the gear 12 to rotate, the gear 12 drives the upper driving plate 13 and the lower driving plate 13 to move left and right, the sliding block 17 slides on the inner surface of the driving groove 18, meanwhile, the driving plates 13 drive the first connecting plate 15 and the second connecting plate 16 to move left and right, the first connecting plate 15 and the second connecting plate 16 drive the sliding plate 7 to move in the direction away from the positioning cylinder 2, the sliding plate 7 drives the clamping block 8 to slide in the inner cavity of the cylinder 6 to extrude the pressure spring 19, the clamping block 8 enters the inner cavity of the cylinder 6, the positioning cylinder 2 unlocks the base 3, then the yarn guide plate 4 drives the base 3 to move out of the positioning cylinder 2, the yarn guide plate 4 is replaced, the effect of convenient replacement is achieved, and labor intensity of maintenance personnel is effectively reduced.
