本发明涉及一种聚氨酯胶粘剂应用施工涂刷处理工艺，主要包括以下步骤，表面处理、粗糙处理、喷涂作业以及粘接处理等多种工序，使用到的粗糙处理设备包括底板、粗糙装置、夹持装置和吸尘装置，本发明可以解决现有木质板材进行粗糙化处理时存在的以下难题，a,传统的木质板材进行粗糙化处理时，大多是人工使用气动锤进行敲凿处理，敲凿处理的木质板材效果差，敲凿质量不规范，难以达到木质板材光滑表面所需粗糙处理的要求，并且工作效率低下、人工劳动强度大且在工作中，木质粉尘对人体危害较大；b，现有的粗糙化机器不能对在敲凿作业过程中产生的粉尘进行处理和回收，严重影响工作人员健康及环境。

Figure 202010139276

The invention relates to a polyurethane adhesive application construction brushing treatment process, which mainly includes the following steps: surface treatment, rough treatment, spraying operation, bonding treatment and other procedures. The rough treatment equipment used includes a base plate, a roughening device, a clamping The device and the dust collector, the present invention can solve the following problems existing in the roughening treatment of the existing wooden boards. The effect of the wood board is poor, the quality of knocking and chiseling is not standardized, it is difficult to meet the requirements of rough treatment for the smooth surface of the wood board, and the work efficiency is low, the labor intensity is high, and the wood dust is more harmful to the human body during work; b, now Some roughening machines cannot process and recycle the dust generated during the chiseling operation, which seriously affects the health of workers and the environment.

Figure 202010139276

Description

Coating treatment process for application construction of polyurethane adhesive
Technical Field
The invention relates to the technical field of polyurethane adhesives, in particular to a coating treatment process for application construction of a polyurethane adhesive.
Background
Polyurethane adhesives are adhesives with strong bonding capability and excellent performance, have excellent chemical bonding force in various aspects of life and are widely applied to substrates containing active hydrogen, such as foam, plastic, wood, leather, fabric, paper, ceramic and other porous materials, and metal, glass, rubber, plastic and other smooth materials, and the smooth surfaces generally need to be roughened to increase the contact area of the adhesive and the substrates, and the adhesives permeate into the recesses or pores on the surfaces of the substrates to firmly bond the substrates together.
However, the following problems exist when the existing wood board is subjected to roughening treatment, a, when the traditional wood board is subjected to roughening treatment, most of the traditional wood board is manually subjected to knocking and chiseling treatment by using a pneumatic hammer, the knocking and chiseling treatment has poor effect, the knocking and chiseling quality is not standard, the requirement of roughening treatment required by the smooth surface of the wood board is difficult to achieve, the working efficiency is low, the manual labor intensity is high, and wood dust has great harm to human bodies during working; and b, the existing roughening machine cannot treat and recover dust generated in the knocking and chiseling operation process, seriously influences the health and environment of workers, is easy to generate the phenomenon of uneven knocking and chiseling, and has the advantages of good knocking and chiseling effect, no gap and simple operation.
Disclosure of Invention
In order to solve the problems, the invention provides a coating treatment process for applying a polyurethane adhesive, which can solve the problems existing in the roughening treatment of the wood board.
In order to achieve the purpose, the invention adopts the following technical scheme to realize the purpose: a polyurethane adhesive application construction brushing treatment process mainly comprises the following steps:
step one, surface treatment: manually cleaning dust, oil stains and open water on the surface of the wooden board by using a cleaning tool to obtain a clean wooden board;
step two, rough treatment: manually placing the clean wood board obtained in the step one into a roughening treatment device to roughen the smooth surface to obtain a rough wood board;
step three, spraying operation, namely manually spraying a polyurethane adhesive on the rough surface of the wood board obtained in the step two to obtain a sprayed wood board;
and step four, bonding treatment, namely bonding the bonding surfaces of the sprayed wood boards obtained in the step three, so that the bonding surfaces are completely bonded and positioned, and obtaining the bonded wood boards.
The rough treatment equipment used in the steps comprises a bottom plate, a rough device, a clamping device and a dust suction device, wherein the rough device is installed at the middle end of the bottom plate, the dust suction device is installed on the rough device, and the clamping device is installed on the bottom plate.
The roughing device comprises a first air cylinder, a top plate, a straight plate, a square plate, a first motor, a sliding block, a U-shaped plate and a movable threaded rod, wherein the first air cylinder is symmetrically arranged at the left end and the right end of the bottom plate, the top plate is arranged at the output end of the first air cylinder, the straight plate is arranged at the upper end of the top plate, the square plate is symmetrically arranged between the inner walls of the left end and the right end of the straight plate, a straight groove is formed in the straight plate, the sliding block is arranged in the straight groove in a sliding fit manner, the sliding blocks are connected with each other through the U-shaped plate, a movable threaded groove is formed in the middle end of the U-shaped plate, the movable threaded rod is arranged between the inner walls of the front end and the rear end of the square plate through a bearing, the movable threaded rod is arranged in the movable threaded groove in a threaded engagement manner, the first motor is arranged on the outer wall of the front end square plate, the output end of the first motor is connected to the movable threaded rod, a roughing mechanism is arranged at the lower end of the U-shaped plate and the movable threaded rod, so that the U-shaped plate can drive the rough mechanism and the rough branched chain to do linear reciprocating motion.
The coarse mechanism comprises a second cylinder, a flat plate, a flat rod, a square rod, a flat slide block and a power rod, the inner walls of the left and right ends of the front side of the U-shaped plate are provided with flat grooves, the lower end of the U-shaped plate is provided with a second cylinder, the output end of the second cylinder is provided with a flat plate, the flat plate is arranged in the flat groove in a sliding fit manner, the flat plate is provided with a telescopic groove, square rods are uniformly arranged between the inner walls of the left end and the right end of the rear side of the U-shaped plate, the square groove is arranged on the square rod, the flat sliding blocks are arranged in the square groove in a sliding fit manner, the flat sliding blocks at the upper end and the lower end are connected through the flat rods, the flat rods are provided with power rods, the power rod is arranged in the telescopic groove in a sliding fit mode, the lower end of the flat rod is provided with a rough branched chain, through the mutual cooperation operation between dull and stereotyped and the power pole for the flat bar can drive coarse branch chain and carry out equidistant slip simultaneously.
The rough branched chain comprises a second motor, a clamping plate, a first gear, a second gear, an internal toothed belt, a rotating roller, a polishing head, a rotating roller and cleaning blades, wherein the clamping plate is installed at the lower end of a flat rod, a hollow groove is formed in the clamping plate, circular grooves are symmetrically formed in the left side and the right side of the upper end and the lower end of the hollow groove, a clamping groove is formed in the lower end of the flat rod, the second motor is installed on the inner wall of the upper end of the clamping groove, the first gear is installed at the output end of the second motor in the hollow groove, the second gear is installed in the hollow groove through a bearing on a front end circular groove, the first gear is connected with the second gear through the internal toothed belt, the lower end of the first gear penetrates through the circular groove to be installed with the rotating roller, the polishing head is evenly installed on the rotating roller from top to bottom along the circumferential direction of the rotating roller, the rotating roller is provided with the cleaning blades evenly along the circumferential direction of the rotating roller, through mutually supporting use between a gear, No. two gears and the internal tooth belt for when the head of polishing carries out the operation of chiseling on wooden board, clean the flabellum and clean the processing to the dust that produces in time when chiseling.
Clamping device include grip block, centre gripping slide, grip block, two-way threaded rod and Z type pole, the bottom plate on around both ends left and right sides both ends symmetry seted up the spout, install the centre gripping slide through sliding fit's mode in the spout, the grip block is installed to centre gripping slide upper end, the centre gripping thread groove has been seted up to centre gripping slide lower extreme, the bottom plate lower extreme is located the spout outside and installs the grip block, install two-way threaded rod through the bearing on the grip block, and two-way threaded rod passes through the mode of thread engagement and installs in the centre gripping thread groove, Z type pole is all installed to two-way threaded rod right-hand member and rear end, use through the mutually supporting between centre gripping slide and the two-way threaded rod, make the grip block can fix a position the operation to wooden board.
Dust extraction include rectangular board, dust absorption head, dust absorption pipe, connecting pipe and dust catcher, U template front end outer wall on the bilateral symmetry install the rectangular board, install the dust catcher on the rectangular board of left end, the connecting pipe is installed to the dust catcher output, the dust absorption pipe is evenly installed to the connecting pipe lower extreme, the dust absorption head is installed to dust absorption pipe lower extreme, can effectually collect dust, the impurity that produces after knocking the chisel, reduce the harm of wooden dust to the human body.
As a preferable technical scheme of the invention, the lower end of the bottom plate is uniformly provided with the supporting rods, so that a stable environment is provided for the knocking and chiseling of the wood board.
As a preferable technical scheme of the invention, the middle end of the telescopic groove formed on the flat plate is a straight groove, and two sides of the telescopic groove are symmetrical inclined grooves which are gradually inclined outwards, so that the flat rod can drive the rough branched chain to slide at equal intervals.
As a preferable technical scheme of the invention, the inner wall of the clamping plate is in an inclined plane shape, so that the wood board can be better positioned.
As a preferred technical scheme of the invention, the bidirectional threaded rods are installed in a vertically crossed manner, and the bidirectional threaded rods connected between the inner walls of the front end and the rear end of the clamping block are positioned at the lower ends of the bidirectional threaded rods connected between the inner walls of the left end and the right end of the clamping block, so that the bidirectional threaded rods cannot interfere with each other in use.
As a preferred technical scheme of the invention, the dust collection head is in a funnel shape with a larger opening end and a smaller opening end, the larger opening end is close to the bottom plate, and the smaller opening end is connected with the dust collection pipe, so that dust generated when the surface of a wooden board is knocked and chiseled can be absorbed, and the dust can be prevented from flying out.
The invention has the beneficial effects that:
1. the invention can solve the following problems existing in the prior roughening treatment of the wood board, a, when the traditional wood board is roughened, most of the traditional wood board is manually knocked by using a pneumatic hammer, the effect of the knocked and chiseled wood board is poor, the knocking and chiseling quality is not standard, the requirement of roughening treatment required by the smooth surface of the wood board is difficult to achieve, the working efficiency is low, the manual labor intensity is high, and the wood dust has great harm to human bodies in the working process; and b, the existing roughening machine cannot treat and recover dust generated in the knocking and chiseling operation process, seriously influences the health and environment of workers, is easy to generate the phenomenon of uneven knocking and chiseling, and has the advantages of good knocking and chiseling effect, no gap and simple operation.
2. The rough device, the rough mechanism and the rough branched chain are matched with each other through the U-shaped plate and the movable threaded rod, so that the movable threaded rod can drive the rough mechanism and the rough branched chain to do linear reciprocating motion, the flat rod can do linear motion at equal intervals when the flat plate moves towards the lower end through the mutual matching operation among the flat plate, the flat rod, the square rod, the flat sliding block and the power rod, the density of a chiseling can be adjusted, the chiseling uniformity is realized, and the cleaning fan blades can timely perform cleaning operation on dust generated during chiseling while the chiseling head performs chiseling through the mutual matching operation among the first gear, the second gear, the internal toothed belt, the rotating roller, the polishing head, the rotating roller and the cleaning fan blades.
3. The clamping device and the dust collection device are matched with each other through the clamping plate, the clamping sliding plate, the clamping block, the bidirectional threaded rod and the Z-shaped rod, so that the bidirectional threaded rod can drive the clamping plate to position a wooden plate, a stable working environment is provided for the knocking and chiseling operation of the wooden plate, dust generated when the surface of the wooden plate is knocked and chiseled is absorbed through the dust collector and the dust collection head, the dust is prevented from flying out, the dust and impurities generated after knocking and chiseling can be effectively collected, and the harm of the wooden dust to a human body is reduced.
Drawings
The invention is further illustrated with reference to the following figures and examples.

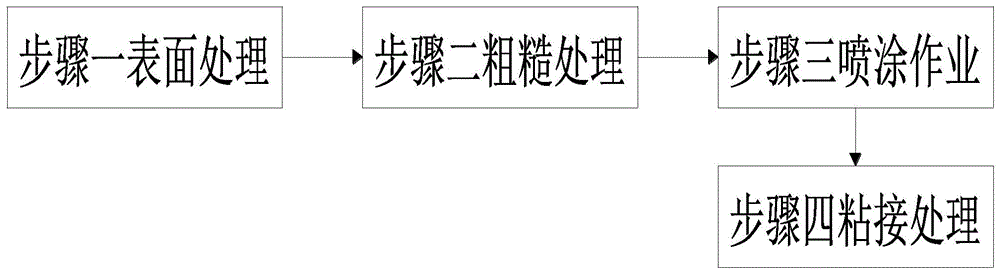

FIG. 1 is a flow chart of the operation of the present invention;
FIG. 2 is a schematic view of a first perspective structure of the roughening apparatus according to the present invention;
FIG. 3 is a schematic view of a second perspective structure of the roughening apparatus according to the present invention;
FIG. 4 is a cross-sectional view of FIG. 3 of the present invention;
FIG. 5 is a cross-sectional view taken along line A-A of FIG. 4 in accordance with the present invention;
FIG. 6 is a schematic view of the asperity mechanism of the present invention;
FIG. 7 is a schematic diagram of the structure of the rough branches of the present invention.
Detailed Description
The embodiments of the invention will be described in detail below with reference to the drawings, but the invention can be implemented in many different ways as defined and covered by the claims.
As shown in fig. 1 to 7, a polyurethane adhesive applying construction brushing treatment process mainly comprises the following steps:
step one, surface treatment: manually cleaning dust, oil stains and open water on the surface of the wooden board by using a cleaning tool to obtain a clean wooden board;
step two, rough treatment: manually placing the clean wood board obtained in the step one into a roughening treatment device to roughen the smooth surface to obtain a rough wood board;
step three, spraying operation, namely manually spraying a polyurethane adhesive on the rough surface of the wood board obtained in the step two to obtain a sprayed wood board;
and step four, bonding treatment, namely bonding the bonding surfaces of the sprayed wood boards obtained in the step three, so that the bonding surfaces are completely bonded and positioned, and obtaining the bonded wood boards.
The rough treatment equipment used in the steps comprises a bottom plate 1, a rough device 2, a clamping device 3 and a dust suction device 4, wherein the rough device 2 is installed at the middle end of the bottom plate 1, the dust suction device 4 is installed on the rough device 2, and the clamping device 3 is installed on the bottom plate 1.
Clamping device 3 include grip block 31, centre gripping slide 32, grip block 33, two-way threaded rod 34 and Z type pole 35, bottom plate 1 on around both ends left and right ends symmetry seted up the spout, install centre gripping slide 32 through sliding fit's mode in the spout, grip block 31 is installed to centre gripping slide 32 upper end, the centre gripping thread groove has been seted up to centre gripping slide 32 lower extreme, 1 lower extreme of bottom plate is located the spout outside and installs grip block 33, install two-way threaded rod 34 through the bearing on the grip block 33, and two-way threaded rod 34 installs in the centre gripping thread groove through thread engagement's mode, Z type pole 35 is all installed to two-way threaded rod 34 right-hand member and rear end.
The inner wall of the clamping plate 31 is in an inclined plane shape.
The bidirectional threaded rod 34 is installed in a vertically crossed mode, and the bidirectional threaded rod 34 connected between the inner walls of the front end and the rear end of the clamping block 33 is located at the lower end of the bidirectional threaded rod 34 connected between the inner walls of the left end and the right end of the clamping block 33.
During specific work, the wooden board is manually placed on the bottom plate 1, the Z-shaped rod 35 is manually rotated to drive the bidirectional threaded rod 34 to rotate, the bidirectional threaded rod 34 drives the clamping sliding plate 32 to slide towards the central position, and the clamping sliding plate 32 drives the clamping plate 31 to slide towards the central position, so that the clamping plate 31 can perform positioning operation on the wooden board.
The roughing device 2 comprises a first air cylinder 21, a top plate 22, a straight plate 23, a square plate 24, a first motor 25, a sliding block 26, a U-shaped plate 27 and a movable threaded rod 28, wherein the first air cylinder 21 is symmetrically installed at the middle end of the bottom plate 1 in the left-right direction, the top plate 22 is installed at the output end of the first air cylinder 21, the straight plate 23 is installed at the upper end of the top plate 22, the square plate 24 is symmetrically installed between the inner walls of the left end and the right end of the straight plate 23 in the front-back direction, a straight groove is formed in the straight plate 23, the sliding block 26 is installed in the straight groove in a sliding fit mode, the sliding blocks 26 are connected through the U-shaped plate 27, a movable threaded groove is formed at the middle end of the U-shaped plate 27, the movable threaded rod 28 is installed between the inner walls of the front end and the rear end of the square plate 24 through a bearing, the movable threaded rod 28 is installed in the movable threaded groove in a threaded engagement mode, the outer wall of the front-end square plate 24 is provided with the first motor 25, the output end of the first motor 25 is connected to the movable threaded rod 28, the lower end of the U-shaped plate 27 is fitted with a roughening mechanism 29.
The rough mechanism 29 comprises a second cylinder 291, a flat plate 292, a flat rod 293, a square rod 294, a flat sliding block 295 and a power rod 296, flat grooves are formed in the inner walls of the left end and the right end of the front side of the U-shaped plate 27, the second cylinder 291 is installed at the lower end of the U-shaped plate 27, the flat plate 292 is installed at the output end of the second cylinder 291, the flat plate 292 is installed in the flat grooves in a sliding fit mode, telescopic grooves 2921 are formed in the flat plate 292, the square rods 294 are evenly installed between the inner walls of the left end and the right end of the rear side of the U-shaped plate 27, the square rod 294 is formed in the square groove, the flat sliding block 295 is installed in the square groove in a sliding fit mode, the flat sliding blocks 295 at the upper end and the lower end are connected through the flat rod 293, the power rod 296 is installed on the flat rod 293, the power rod 296 is installed in the telescopic grooves 2921 in a sliding fit mode, and a rough branched chain 297 is installed at the lower end of the flat rod 293.
The middle end of a telescopic groove 2921 formed in the flat plate 292 is a straight groove, and two sides of the telescopic groove are symmetrical inclined grooves which gradually incline outwards.
The rough branched chain 297 comprises a second motor 2971, a clamping plate 2972, a first gear 2973, a second gear 2974, an internally toothed belt 2975, a rotating roller 2976, a polishing head 2977, a rotating roller 2978 and cleaning fan blades 2979, the clamping plate 2972 is mounted at the lower end of a flat rod 293, a hollow groove is formed in the clamping plate 2972, circular grooves are symmetrically formed in the left side and the right side of the upper end and the lower end of the hollow groove, a clamping groove is formed in the lower end of the flat rod 293, the second motor 2971 is mounted on the inner wall of the upper end of the clamping groove, the first gear 2973 is mounted in the hollow groove at the output end of the second motor 2971, the second gear 2974 is mounted in the hollow groove through a bearing on the circular groove at the front end, the first gear 2973 is connected with the second gear 2974 through the internally toothed belt 2975, the rotating roller 2976 is mounted at the lower end of the first gear 2973, the rotating roller 2976 is uniformly mounted in the circumferential direction of the rotating roller 2976 from top to bottom, and the lower end of the second gear 2974 penetrates through the circular groove, the rotating roller 2978 is uniformly provided with cleaning fan blades 2979 in the circumferential direction thereof.
After the wood plate is positioned, the second air cylinder 291 pushes the flat plate 292 to move downwards, the flat plate 292 drives the flat slide block 295 to slide towards the left end and the right end through the power rod 296, the flat slide block 295 drives the flat rod 293 to slide towards the left end and the right end to a proper position, the first air cylinder 21 drives the top plate 22 to move downwards to a proper position, the second motor 2971 drives the first gear 2973 to rotate, the first gear 2973 drives the second gear 2974 to rotate through the internal tooth belt 2975, the first gear 2973 and the second gear 2974 drive the rotating roller 2976 and the rotating roller 2978 to rotate simultaneously, the first motor 25 drives the U-shaped plate 27 to move rightwards through the movable threaded rod 28, the polishing head 2977 conducts rough treatment on the wood plate, and meanwhile, the cleaning fan blades 2979 conduct cleaning operation on dust generated by the rough treatment.
Dust extraction 4 include rectangular board 41, dust absorption head 42, dust absorption pipe 43, connecting pipe 44 and dust catcher 45, U template 27 front end outer wall on the bilateral symmetry install rectangular board 41, install dust catcher 45 on the rectangular board 41 of left end, connecting pipe 44 is installed to dust catcher 45 output, dust absorption pipe 43 is evenly installed to connecting pipe 44 lower extreme, dust absorption head 42 is installed to dust absorption pipe 43 lower extreme.
The dust suction head 42 is in the shape of a funnel having a larger opening end and a smaller opening end, the larger opening end is close to the bottom plate 1, and the smaller opening end is connected with the dust suction pipe 43.
When the sanding head 2977 roughens the wooden board, the dust collector 45 drives the dust collection head 42 through the dust collection pipe 43 and the connection pipe 44 to collect dust generated during the roughening.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are given by way of illustration of the principles of the present invention, and that various changes and modifications may be made without departing from the spirit and scope of the invention as defined by the appended claims. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (8)

1.一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：主要包括以下步骤：1. a polyurethane adhesive application construction brushing treatment process is characterized in that: mainly comprise the following steps: 步骤一，表面处理：人工使用清理工具对木质板材表面存在的灰尘、油污及明水进行清理作业，得到干净的木质板材；Step 1, surface treatment: manually use a cleaning tool to clean up the dust, oil stains and open water existing on the surface of the wooden board to obtain a clean wooden board; 步骤二，粗糙处理：人工将步骤一中得到的干净的木质板材放置到粗糙处理设备内对光滑表面进行粗糙化处理，得到粗糙的木质板材；Step 2, rough treatment: manually place the clean wooden board obtained in step 1 into the rough treatment equipment to roughen the smooth surface to obtain a rough wooden board; 步骤三，喷涂作业，人工将聚氨酯胶粘剂喷涂在步骤二中得到粗糙的木质板材粗糙面上，得到喷涂完成的木质板材；Step 3, spraying operation, manually spray the polyurethane adhesive on the rough surface of the rough wooden board obtained in step 2, and obtain the sprayed wooden board; 步骤四，粘接处理，将步骤三中得到的喷涂完成的木质板材的粘接面贴合起来，使得粘接面完全贴合定位，得到粘接完成的木质板材；Step 4, bonding treatment, the bonding surfaces of the sprayed wood boards obtained in step 3 are bonded together, so that the bonding surfaces are completely fit and positioned, and the bonded wood boards are obtained; 上述步骤中使用到的粗糙处理设备包括底板(1)、粗糙装置(2)、夹持装置(3)和吸尘装置(4)，所述的底板(1)中端安装有粗糙装置(2)，粗糙装置(2)上安装有吸尘装置(4)，底板(1)上安装有夹持装置(3)；The roughening treatment equipment used in the above steps includes a bottom plate (1), a roughening device (2), a clamping device (3) and a dust suction device (4), and a roughening device (2) is installed at the middle end of the bottom plate (1). ), a dust suction device (4) is installed on the roughing device (2), and a clamping device (3) is installed on the bottom plate (1); 所述的粗糙装置(2)包括一号气缸(21)、顶板(22)、直板(23)、方板(24)、一号电机(25)、滑动块(26)、U型板(27)和移动螺纹杆(28)，所述的底板(1)中端左右对称安装有一号气缸(21)，一号气缸(21)输出端安装有顶板(22)，顶板(22)上端安装有直板(23)，直板(23)左右两端内壁之间前后对称安装方板(24)，直板(23)上开设有直槽，直槽内通过滑动配合的方式安装有滑动块(26)，滑动块(26)之间通过U型板(27)相连接，U型板(27)中端开设有移动螺纹槽， 方板(24)前后两端内壁之间通过轴承安装有移动螺纹杆(28)，且移动螺纹杆(28)通过螺纹啮合的方式安装在移动螺纹槽内，前端方板(24)外壁上安装有一号电机(25)，且一号电机(25)输出端连接在移动螺纹杆（28）上，U型板(27)下端安装有粗糙机构(29)；The roughening device (2) comprises a No. 1 cylinder (21), a top plate (22), a straight plate (23), a square plate (24), a No. 1 motor (25), a sliding block (26), and a U-shaped plate (27) ) and the moving threaded rod (28), a No. 1 cylinder (21) is installed symmetrically at the middle end of the bottom plate (1), a top plate (22) is installed at the output end of the No. 1 cylinder (21), and a top plate (22) is installed on the upper end. A straight plate (23), a square plate (24) is installed symmetrically between the inner walls at the left and right ends of the straight plate (23), a straight groove is formed on the straight plate (23), and a sliding block (26) is installed in the straight groove by sliding fit. The sliding blocks (26) are connected by a U-shaped plate (27), a movable thread groove is provided at the middle end of the U-shaped plate (27), and a movable thread rod ( 28), and the moving threaded rod (28) is installed in the moving thread groove by means of threaded engagement, a No. 1 motor (25) is installed on the outer wall of the front-end square plate (24), and the output end of the No. On the threaded rod (28), a rough mechanism (29) is installed at the lower end of the U-shaped plate (27); 所述的粗糙机构(29)包括二号气缸(291)、平板(292)、平杆(293)、方杆(294)、平滑块(295)和动力杆(296)，所述的U型板(27)前侧左右两端的内壁上开设有平槽，U型板(27)下端安装有二号气缸(291)，二号气缸(291)输出端安装有平板(292)，且平板(292)通过滑动配合的方式安装在平槽内，平板(292)上开设有伸缩槽（2921），U型板(27)后侧左右两端的内壁之间均匀安装有方杆(294)，方杆(294)上开设有方槽，方槽内通过滑动配合的方式安装有平滑块(295)，上下两端的平滑块(295)之间通过平杆(293)相连接，平杆(293)上安装有动力杆(296)，且动力杆(296)通过滑动配合的方式安装在伸缩槽（2921）内，平杆(293)下端安装有粗糙支链(297)；The rough mechanism (29) includes a No. 2 cylinder (291), a flat plate (292), a flat rod (293), a square rod (294), a smooth block (295) and a power rod (296). Flat grooves are formed on the inner walls of the left and right ends of the front side of the plate (27), a No. 2 cylinder (291) is installed at the lower end of the U-shaped plate (27), a flat plate (292) is installed at the output end of the No. 2 air cylinder (291), and the flat plate ( 292) is installed in the flat groove by sliding fit, the flat plate (292) is provided with a telescopic groove (2921), and square rods (294) are evenly installed between the inner walls of the left and right ends of the rear side of the U-shaped plate (27). The rod (294) is provided with a square groove, a smooth block (295) is installed in the square groove by sliding fit, and the smooth blocks (295) at the upper and lower ends are connected by a flat rod (293), and the flat rod (293) A power rod (296) is installed on the top, and the power rod (296) is installed in the telescopic groove (2921) by sliding fit, and a rough branch chain (297) is installed at the lower end of the flat rod (293); 所述的粗糙支链(297)包括二号电机(2971)、卡板(2972)、一号齿轮(2973)、二号齿轮(2974)、内齿皮带(2975)、转动辊(2976)、打磨头(2977)、旋转辊(2978)和清扫扇叶(2979)，所述的平杆(293)下端安装有卡板(2972)，卡板(2972)上开设有空心槽，空心槽上下两端左右两侧对称开设有圆槽，平杆(293)下端开设有卡槽，卡槽上端内壁上安装有二号电机(2971)，二号电机(2971)输出端位于空心槽内安装有一号齿轮(2973)，前端圆槽上位于空心槽内通过轴承安装有二号齿轮(2974)，一号齿轮(2973)和二号齿轮(2974)之间通过内齿皮带(2975)相连接，一号齿轮(2973)下端穿过圆槽安装有转动辊(2976)，转动辊(2976)从上到下沿其周向方向均匀安装有打磨头(2977)，二号齿轮(2974)下端穿过圆槽安装有旋转辊(2978)，旋转辊(2978)上沿其周向方向均匀安装有清扫扇叶(2979)。The rough branch chain (297) includes a No. 2 motor (2971), a clamping plate (2972), a No. 1 gear (2973), a No. 2 gear (2974), an internally toothed belt (2975), a rotating roller (2976), Grinding head (2977), rotating roller (2978) and cleaning fan blade (2979), a clamping plate (2972) is installed at the lower end of the flat rod (293), the clamping plate (2972) is provided with a hollow groove, the hollow groove is up and down The two ends are symmetrically provided with circular grooves on the left and right sides, the lower end of the flat rod (293) is provided with a card slot, the upper end of the card slot is provided with a No. The No. 2 gear (2973) is installed on the front circular groove in the hollow groove through the bearing. A rotating roller (2976) is installed at the lower end of the No. 1 gear (2973) through the circular groove. The grinding head (2977) is evenly installed on the rotating roller (2976) along its circumferential direction from top to bottom. A rotating roller (2978) is installed on the round groove, and a cleaning fan blade (2979) is evenly installed on the rotating roller (2978) along its circumferential direction. 2.根据权利要求1所述的一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：所述的夹持装置(3)包括夹持板(31)、夹持滑板(32)、夹持块(33)、双向螺纹杆(34)和Z型杆(35)，所述的底板(1)上前后两端左右两端对称开设有滑槽，滑槽内通过滑动配合的方式安装有夹持滑板(32)，夹持滑板(32)上端安装有夹持板(31)，夹持滑板(32)下端开设有夹持螺纹槽，底板(1)下端位于滑槽外侧安装有夹持块(33)，夹持块(33)上通过轴承安装有双向螺纹杆(34)，且双向螺纹杆(34)通过螺纹啮合的方式安装在夹持螺纹槽内，双向螺纹杆(34)右端和后端均安装有Z型杆(35)。2. A polyurethane adhesive application construction brushing treatment process according to claim 1, characterized in that: the clamping device (3) comprises a clamping plate (31), a clamping slide plate (32), a clamping The block (33), the two-way threaded rod (34) and the Z-shaped rod (35), the bottom plate (1) is provided with chutes symmetrically at the front and rear ends, left and right ends, and clips are installed in the chutes by sliding fit. The holding slide plate (32) is provided with a clamping plate (31) at the upper end of the clamping slide plate (32), a clamping thread groove is provided at the lower end of the clamping slide plate (32), and a clamping block is installed at the lower end of the bottom plate (1) outside the chute. (33), a bidirectional threaded rod (34) is installed on the clamping block (33) through a bearing, and the bidirectional threaded rod (34) is installed in the clamping threaded groove by means of threaded engagement, and the right end of the bidirectional threaded rod (34) and the Z-bars (35) are installed at the rear ends. 3.根据权利要求1所述的一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：所述的吸尘装置(4)包括长条板(41)、吸尘头(42)、吸尘管(43)、连接管(44)和吸尘器(45)，所述的U型板(27)前端外壁上左右对称安装有长条板(41)，左端长条板(41)上安装有吸尘器(45)，吸尘器(45)输出端安装有连接管(44)，连接管(44)下端均匀安装有吸尘管(43)，吸尘管(43)下端安装有吸尘头(42)。3. A polyurethane adhesive application construction brushing treatment process according to claim 1, characterized in that: the dust suction device (4) comprises a long strip (41), a dust suction head (42), a dust collector A pipe (43), a connecting pipe (44) and a vacuum cleaner (45), the front end outer wall of the U-shaped plate (27) is provided with a left-right symmetrical long strip (41), and a vacuum cleaner is mounted on the left long strip (41) (45), a connection pipe (44) is installed at the output end of the vacuum cleaner (45), a dust suction pipe (43) is evenly installed at the lower end of the connection pipe (44), and a dust suction head (42) is installed at the lower end of the dust suction pipe (43). 4.根据权利要求1所述的一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：所述的底板(1)下端均匀安装有支撑杆。4. A polyurethane adhesive application construction brushing treatment process according to claim 1, characterized in that: the lower end of the bottom plate (1) is evenly installed with support rods. 5.根据权利要求1所述的一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：所述的平板(292)上开设的伸缩槽（2921）中端为直状槽，两边为对称的逐渐向外侧倾斜的斜状槽。5. A polyurethane adhesive application construction brushing treatment process according to claim 1, characterized in that: the middle end of the expansion groove (2921) opened on the flat plate (292) is a straight groove, and the two sides are symmetrical A sloping groove that slopes gradually to the outside. 6.根据权利要求2所述的一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：所述的夹持板(31)内壁为斜面状。6. A polyurethane adhesive application construction brushing treatment process according to claim 2, characterized in that: the inner wall of the clamping plate (31) is in the shape of an inclined plane. 7.根据权利要求2所述的一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：所述的双向螺纹杆(34)为上下交叉安装，夹持块(33)前后两端内壁之间连接的双向螺纹杆(34)位于夹持块(33)左右两端内壁之间连接的双向螺纹杆(34)下端。7. A polyurethane adhesive application construction brushing treatment process according to claim 2, characterized in that: the two-way threaded rod (34) is installed vertically and crossed, and between the inner walls of the front and rear ends of the clamping block (33) The connected bidirectional threaded rods (34) are located at the lower ends of the bidirectional threaded rods (34) connected between the inner walls of the left and right ends of the clamping block (33). 8.根据权利要求3所述的一种聚氨酯胶粘剂应用施工涂刷处理工艺，其特征在于：所述吸尘头(42)呈具有开口较大端和开口较小端的漏斗状，其开口较大端靠近底板(1)，开口较小端与吸尘管(43)相连接。8. A polyurethane adhesive application construction brushing treatment process according to claim 3, characterized in that: the dust suction head (42) is in the shape of a funnel with a larger opening and a smaller opening, and its opening is larger The end is close to the bottom plate (1), and the smaller end of the opening is connected with the dust suction pipe (43).
CN202010139276.3A 2020-03-03 2020-03-03 A kind of polyurethane adhesive application construction brushing treatment process Active CN111300216B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202010139276.3A CN111300216B (en) 2020-03-03 2020-03-03 A kind of polyurethane adhesive application construction brushing treatment process

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202010139276.3A CN111300216B (en) 2020-03-03 2020-03-03 A kind of polyurethane adhesive application construction brushing treatment process

Publications (2)

Publication Number Publication Date
CN111300216A CN111300216A (en) 2020-06-19
CN111300216B true CN111300216B (en) 2021-08-03

Family

ID=71161968

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202010139276.3A Active CN111300216B (en) 2020-03-03 2020-03-03 A kind of polyurethane adhesive application construction brushing treatment process

Country Status (1)

Country Link
CN (1) CN111300216B (en)

Families Citing this family (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN114123071A (en) * 2021-11-26 2022-03-01 上海宝冶集团有限公司 BIM technology-based pipeline reserved pre-buried leakage detection device and leakage detection method thereof
CN117300819A (en) * 2023-09-28 2023-12-29 福建省碧诚工贸有限公司 A method of vacuum spraying on the surface of bamboo products

Citations (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH0466168A (en) * 1990-07-05 1992-03-02 Yamashiyou Sangyo Kk Method for forming rough surface due to adhesion of granular material to surface of synthetic resin product
CN204585440U (en) * 2015-01-20 2015-08-26 桃江县福森木业有限公司 For the timber splicing abrasive brush adhesive dispenser in high planarization wood board technique
CN106272762A (en) * 2016-08-18 2017-01-04 巴洛克木业(中山)有限公司 Surface treatment method for antique wood floor
CN107283554A (en) * 2017-06-24 2017-10-24 合肥集知网信息技术有限公司 A kind of automation processing and fabricating equipment for wood shavings wood plank
CN206925667U (en) * 2017-05-22 2018-01-26 无锡同生金刚石工具有限公司 A kind of sander feather plucking wheel
CN109483663A (en) * 2018-12-29 2019-03-19 江苏嘉瑞木业有限公司 A kind of preparation method of flame-retardant plywood
CN110480463A (en) * 2019-08-26 2019-11-22 张羽 A kind of particieboard manufacturing automation processing equipment

Patent Citations (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH0466168A (en) * 1990-07-05 1992-03-02 Yamashiyou Sangyo Kk Method for forming rough surface due to adhesion of granular material to surface of synthetic resin product
CN204585440U (en) * 2015-01-20 2015-08-26 桃江县福森木业有限公司 For the timber splicing abrasive brush adhesive dispenser in high planarization wood board technique
CN106272762A (en) * 2016-08-18 2017-01-04 巴洛克木业(中山)有限公司 Surface treatment method for antique wood floor
CN206925667U (en) * 2017-05-22 2018-01-26 无锡同生金刚石工具有限公司 A kind of sander feather plucking wheel
CN107283554A (en) * 2017-06-24 2017-10-24 合肥集知网信息技术有限公司 A kind of automation processing and fabricating equipment for wood shavings wood plank
CN109483663A (en) * 2018-12-29 2019-03-19 江苏嘉瑞木业有限公司 A kind of preparation method of flame-retardant plywood
CN110480463A (en) * 2019-08-26 2019-11-22 张羽 A kind of particieboard manufacturing automation processing equipment

Also Published As

Publication number Publication date
CN111300216A (en) 2020-06-19

Similar Documents

Publication Publication Date Title
CN111300216B (en) A kind of polyurethane adhesive application construction brushing treatment process
CN108818254A (en) A kind of sander for vehicle glass
CN219234790U (en) Furniture board polisher
CN215201221U (en) Metal surface treatment device with adjustable clamping structure
CN221985267U (en) A cutting device with dust-proof function for building decoration and renovation engineering
CN221436006U (en) Building material equipment of polishing
CN221338828U (en) Planer for furniture manufacturing
CN219444566U (en) Panel grinding device
CN216830223U (en) Rust removal device for composite steel plate machining
CN218234246U (en) Adjustable vertical wall tile device for building construction
CN111113261A (en) Precise metal product surface treatment device
CN116394088A (en) Straightening device for steel structure column beam
CN214186469U (en) Sanding device for plate
CN222244222U (en) Wooden door polishing equipment capable of preventing wood dust from splashing
CN220296787U (en) Multi-angle grinding, positioning and polishing device for metal guard rail
CN114102345A (en) Grinding machine for machining steel structure and using method thereof
CN219189765U (en) Grinding wheel cutting machine
CN214979947U (en) A grinding device for steel structure processing
CN222662211U (en) Polishing equipment for ceramic water permeable brick production
CN218312392U (en) Printing roller grinding device with dust removal function
CN217619846U (en) Ingot casting polishing device
CN221337891U (en) Deckle edge grinding device for metalworking
CN221387290U (en) Powder spreader
CN211681506U (en) Polishing machine for marble processing
CN219379978U (en) chip cleaning device

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
TA01 Transfer of patent application right
TA01 Transfer of patent application right

Effective date of registration: 20210712

Address after: Room 107, building 8, rongchuang Taohuayuan, No.9, Gaohe Road, Suzhou Industrial Park, 215000, Jiangsu Province

Applicant after: Miao Zhenlu

Address before: 315211 Ningbo University, 818 Fenghua Road, Jiangbei District, Ningbo, Zhejiang

Applicant before: Sheng Shiyong

GR01 Patent grant
GR01 Patent grant
TR01 Transfer of patent right
TR01 Transfer of patent right

Effective date of registration: 20240827

Address after: Building 2, No. 1008 Xihong Road, Wuzhong District, Suzhou City, Jiangsu Province 215100

Patentee after: Suzhou Barlot New Materials Technology Co.,Ltd.

Country or region after: China

Address before: Room 107, building 8, rongchuang Taohuayuan, No.9, Gaohe Road, Suzhou Industrial Park, 215000, Jiangsu Province

Patentee before: Miao Zhenlu

Country or region before: China

TR01 Transfer of patent right
TR01 Transfer of patent right

Effective date of registration: 20251121

Address after: 441100 Hubei Province, Fancheng District, Shipu Street, Qilihe West Road, No. 615

Patentee after: Hubei Xurui New Material Technology Co.,Ltd.

Country or region after: China

Address before: Building 2, No. 1008 Xihong Road, Wuzhong District, Suzhou City, Jiangsu Province 215100

Patentee before: Suzhou Barlot New Materials Technology Co.,Ltd.

Country or region before: China
