CN111288754A

CN111288754A - Food drying box capable of monitoring temperature through uniform air outlet

Info

Publication number: CN111288754A
Application number: CN201811490667.9A
Authority: CN
Inventors: 莫云辉
Original assignee: Guilin Hongtai Farming Farmers Professional Cooperative
Current assignee: Guilin Hongtai Farming Farmers Professional Cooperative
Priority date: 2018-12-07
Filing date: 2018-12-07
Publication date: 2020-06-16

Abstract

The invention discloses a food drying box capable of uniformly discharging air and monitoring temperature, which comprises a drying box body, wherein slide bar blocks matched with sliding grooves are welded on the left side wall and the right side wall of a food placing drawer, a temperature sensor is installed at the inner top of the drying box body, a temperature display is installed at the left end of the top of the drying box body, heating resistance wires are uniformly arranged on the inner top and the inner bottom of the drying box body from front to back, a temperature regulator is arranged at the upper end of the right side wall of the drying box body, and the temperature regulator is electrically connected with the heating resistance wires. This but food stoving case of even air-out monitoring temperature through the inside temperature sensor who is equipped with of stoving box, can monitor the inside temperature of stoving box in real time, recycles the heating temperature of temperature regulator to the inside heating resistor silk of stoving box and controls to reach the effectual characteristics of food processing, reduced the defective rate of food and workman's the work degree of difficulty.

Description

Food drying box capable of monitoring temperature through uniform air outlet

Technical Field

The invention relates to the technical field of food drying monitoring, in particular to a food drying box capable of uniformly discharging air and monitoring temperature.

Background

In food processing, can often use the stoving case, dry food, however current food stoving case, its stoving structure is too simple, its heat gives off inhomogeneously, food scorching's phenomenon appears easily, stoving single structure, its drying efficiency is slower, and the stoving case can not carry out real-time control and regulation and control to the temperature of incasement in real time, not only improved the artificial work degree of difficulty, and the defective rate that makes the article improves, certain loss has been brought for the enterprise, in order to solve these problems, therefore, we provide a food stoving case that even air-out can monitor temperature.

Disclosure of Invention

The invention aims to provide a food drying box capable of uniformly discharging air and monitoring temperature, so as to solve the problems in the background technology.

In order to achieve the purpose, the invention provides the following technical scheme: a food drying box capable of uniformly discharging air and monitoring temperature comprises a drying box body, wherein supporting frames are arranged on the left side wall and the right side wall of the drying box body, a smooth shaft and a transmission screw rod are arranged in each of the two supporting frames, the lower end of the transmission screw rod is connected with the lower inner wall of each supporting frame through a bearing seat, a motor is installed at the upper end of the transmission screw rod and is positioned at the top of each supporting frame, a moving platform matched with the transmission screw rod is arranged on the transmission screw rod, an air blower is installed on the front end face of the moving platform, an air outlet of the air blower is communicated with an air supply pipe penetrating through the inner wall of the drying box body, an air outlet of the air supply pipe is connected with two air outlet heads, two hollow plates are arranged between the two air outlet heads, the upper ends of the hollow plates are connected with the upper inner wall of the drying box body, two the inside wall of fretwork board is from last to evenly distributed down has the spout, and is equipped with food and places the drawer about high parallel and level between the spout, the food place the drawer about the lateral wall all weld with spout assorted draw runner, temperature sensor is installed at the interior top of stoving box, the top left end of stoving box install with temperature monitor, and temperature monitor and temperature sensor electric connection, the interior top and the interior bottom of stoving box evenly are equipped with the heating resistor silk in the past to the back, the right side wall upper end of stoving box is equipped with the temperature modulator, and temperature modulator electric connection heating resistor silk.

Preferably, first fluting has all been seted up to the lateral wall about the stoving box, two the inside wall of carriage all sets up the second fluting the same with first fluting height, and the blast pipe runs through first fluting and second fluting.

Preferably, air outlet holes are uniformly distributed on the air outlet head.

Preferably, the bottom evenly distributed of drawer is placed to food has first ventilation hole, the food is placed the front and back terminal surface of drawer and is evenly seted up the second ventilation hole the same with first ventilation hole size from a left side to the right side, the food is placed the preceding terminal surface of drawer and is installed the arc handle.

Preferably, four travelling wheels are installed at the bottom of the drying box body.

Preferably, the inner wall of the drying box body is filled with an insulating layer.

Compared with the prior art, the invention has the beneficial effects that: this but food stoving case of even air-out monitoring temperature, the starter motor drives drive screw and rotates, make the mobile station of looks adaptation with it can drive the air-blower and reciprocate and ventilate for stoving box inside, deuterogamy heating resistor silk, so produce hot-blastly, place the food in the drawer and dry to food, guarantee that food can thermally equivalent and the speed of drying is very fast, thereby reach convection drying's purpose, wherein this food stoving case, through the inside temperature sensor that is equipped with of stoving box, can monitor stoving box inside temperature in real time, recycle temperature modulator controls the heating temperature of the heating resistor silk of stoving box inside, thereby reach the characteristics effectual to food processing, the defective rate of food and workman's the work degree of difficulty have been reduced.

Drawings

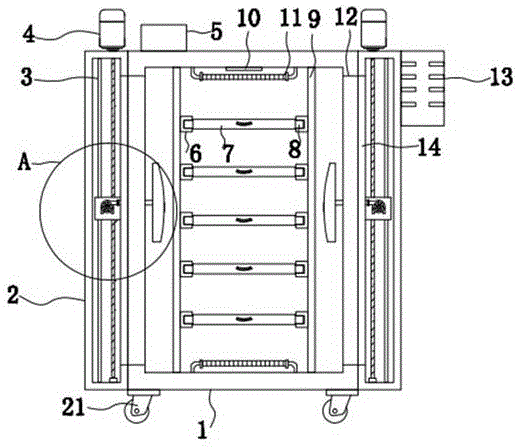

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic top view of the food holding drawer according to the present invention;

FIG. 3 is an enlarged schematic view of the structure at A of the present invention.

In the figure: the food drying machine comprises a drying box body 1, a supporting frame 2, a smooth shaft 3, a motor 4, a temperature display 5, a sliding chute 6, a food placing drawer 7, a sliding strip block 8, a hollow-out plate 9, a temperature sensor 10, a heating resistance wire 11, a first groove 12, a temperature regulator 13, a second groove 14, a second ventilation hole 15, a transmission screw 16, an air outlet 17, an air supply pipe 18, a moving platform 19, an air blower 20, a travelling wheel 21 and a first ventilation hole 22.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a food drying box capable of uniformly discharging air and monitoring temperature comprises a drying box body 1, wherein supporting frames 2 are arranged on the left side wall and the right side wall of the drying box body 1, a smooth shaft 3 and a transmission screw 16 are arranged in each of the two supporting frames 2, the lower end of the transmission screw 16 is connected with the lower inner wall of each supporting frame 2 through a bearing seat, a motor 4 is installed at the upper end of the transmission screw 16, the motor 4 is positioned at the top of each supporting frame 2, a mobile platform 19 matched with the transmission screw 16 is arranged on the transmission screw 16, an air blower 20 is installed on the front end face of the mobile platform 19, an air outlet of the air blower 20 is communicated with an air supply pipe 18 penetrating through the inner wall of the drying box body 1, air outlet heads 17 are connected to the air outlet of the air supply pipe 18, the number of the air outlet heads 17 is two, two hollow plates 9 are arranged between the two air outlet heads 17, the upper, the lower extreme inner wall of stoving box 1 is connected to the lower extreme of fretwork board 9, two the inside wall of fretwork board 9 is from last to evenly distributed down has spout 6, and high parallel and level about be equipped with food between the spout 6 and place drawer 7, the lateral wall all welds have with spout 6 assorted draw runner 8 about the drawer 7 is placed to food, temperature sensor 10 is installed at the interior top of stoving box 1, the top left end of stoving box 1 install with temperature display 5, and temperature display 5 and temperature sensor 10 electric connection, the interior top and the interior bottom of stoving box 1 evenly are equipped with heating resistor silk 11 after to in the past, the right side wall upper end of stoving box 1 is equipped with temperature regulator 13, and temperature regulator 13 electric connection heating resistor silk 11.

Specifically, the left side wall and the right side wall of the drying box body 1 are both provided with first slots 12, the inner side walls of the two supporting frames 2 are both provided with second slots 14 which are the same as the first slots 12 in height, and the air supply pipe 18 penetrates through the first slots 12 and the second slots 14.

Specifically, air outlet holes are uniformly distributed on the air outlet head 17.

Specifically, the bottom evenly distributed that drawer 7 was placed to food has first ventilation hole 22, the front and back terminal surface that drawer 7 was placed to food has evenly seted up from a left side to the right side with the second ventilation hole 15 that first ventilation hole 22 size is the same, the preceding terminal surface that drawer 7 was placed to food is installed the arc handle.

Specifically, four traveling wheels 21 are installed at the bottom of the drying box body 1.

Specifically, the inner wall of the drying box body 1 is filled with a heat insulation layer.

During the specific use, starter motor 4 drives drive screw 16 and rotates, make the mobile station 19 with it looks adaptation can drive air-blower 20 and reciprocate and ventilate for drying inside the box 1, deuterogamy heating resistor silk 11, so produce hot-blastly, place the food in drawer 7 and dry to food, guarantee that food can thermally equivalent and the speed of drying is very fast, thereby reach the purpose of convection drying, wherein this food stoving case, through the inside temperature sensor 10 that is equipped with of drying inside the box 1, can monitor the inside temperature of drying inside the box 1 in real time, recycle temperature modulator 13 and control the heating temperature of the heating resistor silk 11 of drying inside the box 1, thereby reach the characteristics effectual to food processing, the defective rate of food and workman's the work degree of difficulty have been reduced.

In the present invention, unless otherwise expressly specified or limited, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a but food stoving case of even air-out monitoring temperature, includes stoving box (1), its characterized in that: the drying oven is characterized in that supporting frames (2) are arranged on the left side wall and the right side wall of the drying oven body (1), two supporting frames (2) are arranged inside the supporting frames (3) and transmission screw rods (16), the lower ends of the transmission screw rods (16) are connected with the lower inner wall of the supporting frames (2) through bearing seats, motors (4) are installed at the upper ends of the transmission screw rods (16), the motors (4) are located at the tops of the supporting frames (2), mobile platforms (19) matched with the transmission screw rods (16) are arranged on the transmission screw rods (16), air blowers (20) are installed on the front end faces of the mobile platforms (19), air outlets of the air blowers (20) are communicated with air supply pipes (18) penetrating through the inner wall of the drying oven body (1), air outlets of the air supply pipes (18) are connected with air outlet heads (17), the number of the air outlet heads (17) is two, and two hollow plates (, the upper end of the hollow plate (9) is connected with the upper inner wall of the drying box body (1), the lower end of the hollow plate (9) is connected with the lower inner wall of the drying box body (1), sliding grooves (6) are uniformly distributed on the inner side walls of the two hollow plates (9) from top to bottom, a food placing drawer (7) is arranged between the left sliding groove (6) and the right sliding groove (6) which are highly parallel and level, sliding strip blocks (8) matched with the sliding grooves (6) are welded on the left side wall and the right side wall of the food placing drawer (7), a temperature sensor (10) is installed at the inner top of the drying box body (1), a temperature display (5) is installed at the left end of the top of the drying box body (1), the temperature display (5) is electrically connected with the temperature sensor (10), heating resistance wires (11) are uniformly arranged on the inner top and the inner bottom of the drying box body (1) from front to back, a temperature controller (13) is, and the temperature regulator (13) is electrically connected with the heating resistance wire (11).

2. The food drying box capable of uniformly exhausting and monitoring temperature according to claim 1, is characterized in that: first fluting (12) have all been seted up to the lateral wall about stoving box (1), two the inside wall of carriage (2) all sets up second fluting (14) the same with first fluting (12) height, and blast pipe (18) run through first fluting (12) and second fluting (14).

3. The food drying box capable of uniformly exhausting and monitoring temperature according to claim 1, is characterized in that: air outlet holes are uniformly distributed on the air outlet head (17).

4. The food drying box capable of uniformly exhausting and monitoring temperature according to claim 1, is characterized in that: food places the bottom evenly distributed of drawer (7) and has first ventilation hole (22), food places the front and back terminal surface of drawer (7) and evenly offers second ventilation hole (15) the same with first ventilation hole (22) size from a left side to the right side, food places the preceding terminal surface of drawer (7) and installs the arc handle.

5. The food drying box capable of uniformly exhausting and monitoring temperature according to claim 1, is characterized in that: four traveling wheels (21) are installed at the bottom of the drying box body (1).

6. The food drying box capable of uniformly exhausting and monitoring temperature according to claim 1, is characterized in that: the inner wall of the drying box body (1) is filled with a heat insulation layer.
