Abstract
A rectangular aluminum profile slot sawing machine comprises a frame, and also comprises 2 power units, a cutting mechanism, a slot sawing mechanism, 2 limiting mechanisms, an unloading mechanism, 2 pressing mechanisms and a feeding mechanism, wherein the first limiting mechanism, the unloading mechanism, the second limiting mechanism, the first pressing mechanism, the second pressing mechanism and the feeding mechanism are sequentially fixed on a working table top from left to right and are positioned on a straight line, the slot sawing mechanism operates to perform 2-time slot cutting on aluminum profiles at intervals, the cutting mechanism cuts off the aluminum profiles after slot cutting, the feeding mechanism conveys unprocessed aluminum profiles forwards, the unprocessed aluminum profiles push the first pressing mechanism forwards out the cut aluminum profiles, the unloading mechanism acts to push out and unload the processed aluminum profiles, and the unloading mechanism resets, so that the invention solves the production mode that the traditional rectangular aluminum profiles rely on manual processing, the labor intensity is high, the size precision is low after processing, the production efficiency and the processing precision are improved, and the product yield is improved.
Description
Technical Field
The invention relates to the field of section bar sawing processing, in particular to a rectangular aluminum section bar slot sawing machine.
Background
When aluminum alloy door and window processing manufacturing, often use as the window frame as the rectangle aluminium alloy shown in fig. 9, the rectangle aluminium alloy is the integrative shape by two cuboid combinations, it has the round hole to open on little cuboid, carry out secondary operation to its length and shape according to the demand, it has round hole one side to saw out two notches at a distance from the certain distance to saw cut, obtain as the window frame structure shown in fig. 11, and then articulate the assembly with the round pin axle, current processing mode mainly saw cuts for the manual work, need measure many times when adding man-hour, the unloading is slow, measuring error is big, inefficiency, workman intensity of labour is big, the size precision is low after the processing, saw cut the degree of depth inconsistent, the product yield is low, product quality is difficult to guarantee.
Disclosure of Invention
Based on the defects, the invention provides the rectangular aluminum profile grooving machine, which solves the problems of high labor intensity and low dimensional precision after processing of the traditional rectangular aluminum alloy by means of a manual processing production mode.
The technology adopted by the invention is as follows: a rectangular aluminum profile slot sawing machine comprises a machine frame, wherein a workbench is arranged on the machine frame, the rectangular aluminum profile slot sawing machine also comprises a cutting power unit, a slot sawing power unit, a cutting mechanism, a slot sawing mechanism, a first limiting mechanism, an unloading mechanism, a second limiting mechanism, a first pressing mechanism, a second pressing mechanism and a feeding mechanism, the cutting power unit and the slot sawing power unit are arranged below the inner part of the machine frame, the cutting power unit provides power for the cutting mechanism, the slot sawing power unit provides power for the slot sawing mechanism,
the first limiting mechanism, the discharging mechanism, the second limiting mechanism, the first pressing mechanism, the second pressing mechanism and the feeding mechanism are sequentially fixed on the worktable from left to right and are positioned on a straight line,
the cutting mechanism is positioned in the frame and below the second pressing mechanism, a cutting opening is formed in the working table surface corresponding to the lower part of the second pressing mechanism, the cutting mechanism moves in the cutting opening along the direction vertical to the aluminum profile,
the saw groove mechanism is positioned in the frame and below the first pressing mechanism, a saw groove opening is formed in the working table surface corresponding to the lower part of the first pressing mechanism, the saw groove mechanism moves in the saw groove opening along the direction vertical to the aluminum profile,
the groove sawing mechanism comprises a saw blade group, the saw blade group is formed by coaxially installing a plurality of saw blades with the same diameter, saw teeth between adjacent saw blades form a certain included angle, the number of the saw blades to be installed is selected according to the width of a notch formed by the aluminum profile, the rectangular aluminum profile is processed into a saw groove and a cutting-off two-pass processing technology, when the rectangular aluminum profile is processed, the rectangular aluminum profile is placed on the profile lifting frame, the feeding mechanism sends the aluminum profile into the second pressing mechanism and passes through the first pressing mechanism, the limiting end of the second limiting mechanism operates to align and position the aluminum profile, so that the front end of the aluminum profile is flush with the right side face of the limiting end of the second limiting mechanism, then the first pressing mechanism presses the aluminum profile, the groove sawing mechanism operates to perform first grooving on the aluminum profile, after the first grooving is finished, the first limiting mechanism operates, and the second limiting mechanism and the first pressing mechanism reset, then the aluminum profile is fed forwards under the action of the feeding mechanism, when the front end of the aluminum profile contacts the positioning end of the first limiting mechanism, the first pressing mechanism and the second pressing mechanism simultaneously press the aluminum profile, the groove sawing mechanism performs secondary grooving on the aluminum profile, after the groove is opened for the second time, the cutting mechanism cuts off the aluminum profile which is opened completely, a section of the aluminum profile is cut off, after the aluminum profile is cut off, the first pressing mechanism, the second pressing mechanism and the first limiting mechanism reset, the feeding mechanism conveys the unprocessed aluminum profile forwards, the unprocessed aluminum profile pushes the cut aluminum profile forwards out of the first pressing mechanism, the discharging mechanism acts to push out and discharge the processed aluminum profile, the discharging mechanism resets to complete one working action, and then the operation is executed circularly.
The invention also has the following technical characteristics:
1. the first or second limiting mechanism comprises a limiting base, a slider guide rail mechanism, a limiting plate and a limiting cylinder, wherein the limiting base is fixed on the upper portion of the workbench, the limiting plate and the limiting base are in linear sliding connection through the slider guide rail mechanism, the cylinder body of the limiting cylinder is fixedly connected with the limiting base, and the piston rod of the limiting cylinder is fixedly connected with the limiting plate. The moving direction of the limiting plate is perpendicular to the working table surface.
2. The discharging mechanism comprises the discharging plate and the discharging cylinder, wherein the cylinder body of the discharging cylinder is fixed on the workbench, and the discharging plate is fixedly connected with the piston rod of the discharging cylinder. The moving direction of the stripper plate is parallel to the working table surface.
3. The first or second pressing mechanism comprises guide blocks, pressing blocks and pressing cylinders, wherein the guide blocks are fixed on the workbench, the pressing blocks are located between the guide blocks, the bottom of a cylinder body of each pressing cylinder is fixedly connected with the guide blocks, a piston rod of each pressing cylinder is fixedly connected with the pressing block, and the pressing cylinders drive the pressing blocks to move up and down to release and press the aluminum profiles.
4. The feeding mechanism comprises a feeding motor, a conveyor belt, a left friction roller, a right friction roller and two sets of friction roller connecting plates, wherein the feeding motor is fixed in the frame and below the working table, the two sets of friction roller connecting plates are fixedly connected on the working table respectively, the left friction roller and the right friction roller are respectively installed on the friction roller connecting plates, and the feeding motor is connected with the left friction roller through the conveyor belt.
5. The profile lifting frame is fixed on the side surface of the machine frame, and the position of the profile lifting frame corresponds to the position of the feeding mechanism.
6. A material collecting box is arranged on the side surface of the workbench corresponding to the discharging mechanism.
7. The included angle formed by the saw teeth between the adjacent saw blades is 8 degrees.
The invention has the advantages and beneficial effects that: the invention changes the production mode of manual processing of the traditional rectangular aluminum alloy into the production mode of automatic processing, can perform distance and depth setting processing on a plurality of aluminum profiles at one time, improves the production efficiency and the processing precision, and improves the product yield.
Drawings

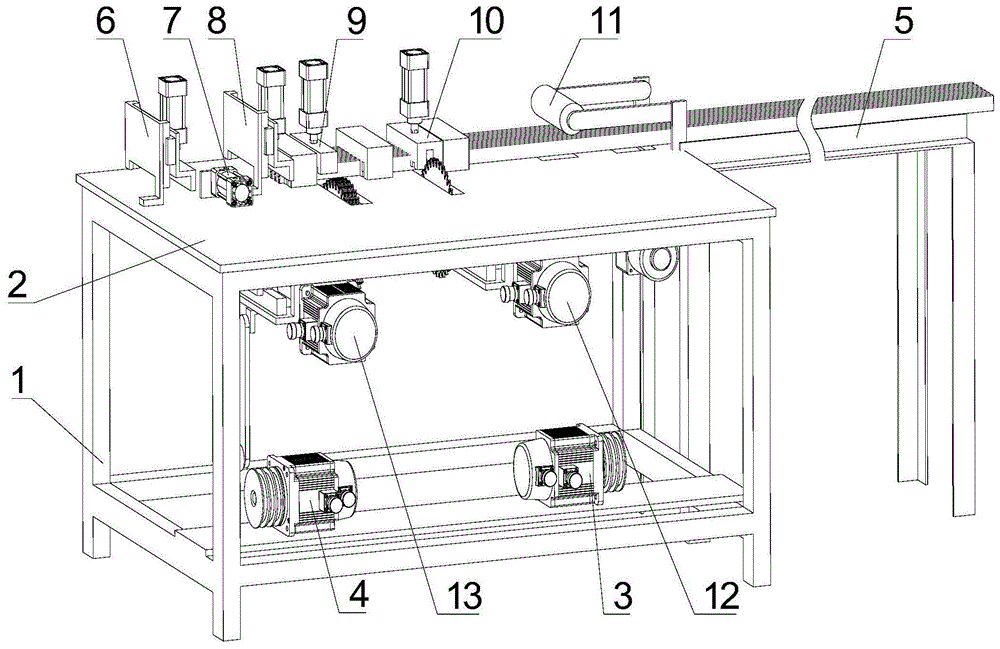

Fig. 1 is a schematic perspective view of a rectangular aluminum profile grooving machine.
Fig. 2 is a schematic view of the first or second stop mechanism.
Fig. 3 is a schematic view of the discharge mechanism.
Fig. 4 is a schematic view of a first hold-down mechanism.
Fig. 5 is a schematic view of a second hold-down mechanism.
Fig. 6 is a schematic view of the feed mechanism.
FIG. 7 is a schematic view of the cutting mechanism.
FIG. 8 is a schematic view of the kerf sawing mechanism.
Fig. 9 is a schematic structural view of an aluminum profile.
Fig. 10 is a schematic view of a first-time slotted aluminum profile structure.
Fig. 11 is a schematic structural diagram of the finished aluminum profile.
Detailed Description
The invention is further illustrated by way of example in the accompanying drawings of the specification:
example 1
As shown in fig. 1-8, a rectangular aluminum profile slot sawing machine comprises a frame 1, a worktable is arranged on the frame 1, and the rectangular aluminum profile slot sawing machine further comprises a cutting power unit 3, a slot sawing power unit 4, a cutting mechanism 12, a slot sawing mechanism 13, a first limiting mechanism 6, a discharging mechanism 7, a second limiting mechanism 8, a first pressing mechanism 9, a second pressing mechanism 10 and a feeding mechanism 11,
the cutting power unit 3 and the saw groove power unit 4 are arranged at the lower part in the frame 1, the cutting power unit 3 provides power for the cutting mechanism 12, the saw groove power unit 4 provides power for the saw groove mechanism 13,
the first limiting mechanism 6, the discharging mechanism 7, the second limiting mechanism 8, the first pressing mechanism 9, the second pressing mechanism 10 and the feeding mechanism 11 are sequentially fixed on the working table from left to right and are positioned on a straight line,
the cutting mechanism 12 is positioned in the frame 1 and below the second pressing mechanism 10, a cutting opening is formed on the working table surface corresponding to the lower part of the second pressing mechanism 10, the cutting mechanism 12 moves in the cutting opening along the direction vertical to the aluminum profile,
the saw groove mechanism 13 is positioned in the frame 1 and below the first pressing mechanism 9, a saw groove opening is formed in the working table surface corresponding to the lower part of the first pressing mechanism 9, the saw groove mechanism 13 moves in the saw groove opening along the direction vertical to the aluminum profile,
the saw groove mechanism 13 comprises a saw blade group 13-7, the saw blade group 13-7 is formed by coaxially mounting a plurality of saw blades with the same diameter, the included angle formed by the saw teeth between the adjacent saw blades is 8 degrees, the number of the saw blades to be mounted is selected according to the width of the groove opening formed by the aluminum profile,
the rectangular aluminum profile processing comprises two processing steps of groove sawing and cutting off, when the rectangular aluminum profile is processed, the rectangular aluminum profile is placed on the profile lifting frame 5, the feeding mechanism 11 sends the aluminum profile into the second pressing mechanism 10 and passes through the first pressing mechanism 9, the limiting end of the second limiting mechanism 8 operates to align and position the aluminum profile 10, so that the front end of the aluminum profile is flush with the right side surface of the limiting end of the second limiting mechanism 8, then the first pressing mechanism 9 presses the aluminum profile, the groove sawing mechanism 13 operates to perform first grooving on the aluminum profile, after the first grooving is finished, the first limiting mechanism 6 acts, the second limiting mechanism 8 and the first pressing mechanism 9 reset, then the aluminum profile is fed forwards under the action of the feeding mechanism 11, and after the front end of the aluminum profile 10 contacts the positioning end of the first limiting mechanism 6, the first pressing mechanism 9 and the second pressing mechanism 10 simultaneously press the aluminum profile, the groove sawing mechanism 13 is used for grooving the aluminum profile for the second time, after the groove is opened for the second time, the cutting mechanism 12 is used for cutting off the aluminum profile with the opened groove, one section of aluminum profile is cut off, after the aluminum profile is cut off, the first pressing mechanism 9, the second pressing mechanism 10 and the first limiting mechanism 6 are reset, the feeding mechanism 11 is used for conveying the unprocessed aluminum profile forwards, the unprocessed aluminum profile pushes the cut aluminum profile forwards by the first pressing mechanism 9, the discharging mechanism 7 acts to push the processed aluminum profile out for discharging, the discharging mechanism 7 is reset to complete one working action, and then the operation is circularly executed.
As shown in fig. 2, the first or second limiting mechanism 6 comprises a limiting base 6-1, a slider guide rail mechanism 6-2, a limiting plate 6-3, and a limiting cylinder 6-4, wherein the limiting base 6-1 is fixed on the upper portion of the workbench, the limiting plate 6-3 is linearly slidably connected with the limiting base 6-1 through the slider guide rail mechanism 6-2, a cylinder body of the limiting cylinder 6-4 is fixedly connected with the limiting base 6-1, and a piston rod of the limiting cylinder 6-4 is fixedly connected with the limiting plate 6-3. The moving direction of the limiting plate 6-3 is vertical to the working table surface.
As shown in figure 3, the discharging mechanism 7 comprises a discharging plate 7-1 and a discharging cylinder 7-2, wherein the cylinder body of the discharging cylinder 7-2 is fixed on a workbench, the discharging plate 7-1 is fixedly connected with a piston rod of the discharging cylinder 7-2, the moving direction of the discharging plate 7-1 is parallel to the workbench surface, and a material collecting box is arranged on the side surface of the workbench corresponding to the discharging mechanism 5.
As shown in fig. 4, the first pressing mechanism 9 includes a first side wall plate 9-4, two first guide blocks 9-1, a first pressing block 9-2 and a first pressing cylinder 9-3, the lower end of the first side wall plate 9-4 is fixedly mounted on the workbench, two ends of the same side surface of the first side wall plate 9-4 are respectively and fixedly connected with the two first guide blocks 9-1, the first pressing block 9-2 is located between the two first guide blocks 9-1, a cylinder body base of the first pressing cylinder 9-3 is fixedly connected with the upper end of the first side wall plate 9-4, a piston rod of the first pressing cylinder 9-3 is fixedly connected with the first pressing block 9-2, and the first pressing cylinder 9-3 drives the first pressing block 9-2 to move up and down, so as to release and press the aluminum profile.
As shown in fig. 5, the second pressing mechanism 10 includes a second side wall plate 10-4, a second guide block 10-1, a second pressing block 10-2 and a second pressing cylinder 10-3, the lower end of the second side wall plate 10-4 is fixedly mounted on the workbench, the side surface of the second side wall plate 10-4 is fixedly connected with the second guide block 10-1, the second pressing block 10-2 is located on the left side of the second guide block 10-1, the cylinder body base of the second pressing cylinder 10-3 is fixedly connected with the upper end of the second side wall plate, the piston rod of the second pressing cylinder 10-3 is fixedly connected with the second pressing block 10-2, and the second pressing cylinder 10-3 drives the second pressing block 10-2 to move up and down to release and press the aluminum profile.
As shown in figure 6, the feeding mechanism 11 comprises a feeding motor 11-1, a conveyor belt 11-6, a left friction roller 11-3, a right friction roller 11-4 and two groups of friction roller connecting plates 11-5, wherein the feeding motor 11-1 is fixed in the frame 1 and below the working table, the two groups of friction roller connecting plates 11-5 are respectively fixedly connected on the working table, the left friction roller 11-3 and the right friction roller 11-4 are respectively arranged on the friction roller connecting plates 11-5, and the feeding motor 11-1 is connected with the left friction roller 11-3 through the conveyor belt 11-6.
As shown in FIG. 7, the cutting mechanism 12 comprises a cutting feed motor 12-1, a cutting base 12-2, a cutting guide rail mechanism 12-3, a sawing shaft base 12-4, a cutting screw mechanism 12-5, a cutting shaft 12-6 and a saw blade 12-7, wherein the cutting base 12-2 is fixed below the worktable 2, the cutting screw mechanism 12-5 is rotationally connected with the cutting base 12-2, the cutting feed motor 12-1 is fixed on the side surface of the cutting base 12-2 and fixedly connected with the cutting screw mechanism 12-5, the cutting guide rail mechanism 12-3 is fixedly connected with the cutting base 12-2, the cutting shaft base 12-4 is linearly and slidably connected with the cutting screw mechanism 12-5 through the cutting guide rail mechanism 12-3, the cutting shaft 12-6 is rotationally connected with the cutting shaft base 12-4, the saw blade 12-7 is fixed at one end of the cutting shaft 12-6, the cutting feed motor 12-1 drives the cutting base 12-2 to move linearly along the cutting guide rail mechanism 12-3 through the cutting lead screw mechanism 12-5, the cutting power source 3 is connected with the cutting shaft 12-6 through belt transmission, the rotating action of the saw blade 12-7 is realized, and the cutting of the aluminum profile is completed.
As shown in FIG. 8, the kerf mechanism 13 comprises a kerf feeding motor 13-1, a kerf base 13-2, a kerf guide rail mechanism 13-3, a kerf shaft base 13-4, a kerf lead screw mechanism 13-5, a kerf shaft 13-6 and a combined saw blade 13-7, wherein the kerf base 13-2 is fixed below the worktable 2, the kerf lead screw mechanism 13-5 is rotationally connected with the kerf base 13-2, the kerf feeding motor 13-1 is fixed on the side surface of the base 13-2 and is fixedly connected with the kerf lead screw mechanism 13-5, the kerf guide rail mechanism 13-3 is fixedly connected with the kerf base 13-2, the kerf shaft base 13-4 is linearly and slidably connected with the kerf lead screw mechanism 13-5 through the kerf guide rail mechanism 13-3, the kerf shaft 13-6 is rotationally connected with the kerf shaft base 13-4, the combined saw blade 13-7 is fixed at one end of the saw groove shaft 13-6, the saw groove feeding motor 13-1 drives the saw groove base 13-2 to move linearly along the saw groove guide rail mechanism 13-3 through the saw groove lead screw mechanism 13-5, and the saw groove power source 4 is connected with the saw groove shaft 13-6 through belt transmission, so that the rotary action of the combined saw blade 13-7 is realized, and the slotting of the aluminum profile is completed.
Claims (9)
1. The utility model provides a rectangle aluminium alloy slot sawing machine, includes frame (1), frame (1) above be the workstation, its characterized in that: also comprises a cutting power unit (3), a slot sawing power unit (4), a cutting mechanism (12), a slot sawing mechanism (13), a first limiting mechanism (6), a discharging mechanism (7), a second limiting mechanism (8), a first pressing mechanism (9), a second pressing mechanism (10) and a feeding mechanism (11),
the cutting power unit (3) and the saw groove power unit (4) are arranged at the lower part in the frame (1), the cutting power unit (3) provides power for the cutting mechanism (12), the saw groove power unit (4) provides power for the saw groove mechanism (13),
the first limiting mechanism (6), the discharging mechanism (7), the second limiting mechanism (8), the first pressing mechanism (9), the second pressing mechanism (10) and the feeding mechanism (11) are sequentially fixed on the working table from left to right and are positioned on a straight line,
the cutting mechanism (12) is positioned in the frame (1) and below the second pressing mechanism (10), a cutting opening is formed in the working table surface corresponding to the lower part of the second pressing mechanism (10), the cutting mechanism (12) moves in the cutting opening along the direction vertical to the aluminum profile,
the saw groove mechanism (13) is positioned in the frame (1) and below the first pressing mechanism (9), a saw groove opening is formed in the working table surface corresponding to the lower part of the first pressing mechanism (9), the saw groove mechanism (13) moves in the saw groove opening along the direction vertical to the aluminum profile,
the saw groove mechanism (13) comprises a saw blade group (13-7), the saw blade group (13-7) is formed by coaxially mounting a plurality of saw blades with the same diameter, saw teeth between adjacent saw blades form a certain included angle, the number of the saw blades to be mounted is selected according to the width of the groove opening formed by the aluminum profile,
when rectangular aluminum profiles are processed, the rectangular aluminum profiles are placed on a profile lifting frame (5), the feeding mechanism (11) sends the aluminum profiles into a second pressing mechanism (10) and penetrates through a first pressing mechanism (9), the limiting ends of the second limiting mechanism (8) operate to align and position the aluminum profiles, so that the front ends of the aluminum profiles are flush with the right side face of the limiting end of the second limiting mechanism (8), then the aluminum profiles are pressed by the first pressing mechanism (9), a groove sawing mechanism (13) operates to perform first grooving on the aluminum profiles, after the first grooving is finished, the first limiting mechanism (6) acts, the second limiting mechanism (8) and the first pressing mechanism (9) reset, then the aluminum profiles are fed forwards under the action of the feeding mechanism (11), after the front ends of the aluminum profiles contact the positioning end of the first limiting mechanism (6), the first pressing mechanism (9) and the second pressing mechanism (10) simultaneously press the aluminum profiles, the groove sawing mechanism (13) is used for grooving the aluminum profile for the second time, after the groove is cut for the second time, the cutting mechanism (12) is used for cutting off the aluminum profile with the cut groove, one section of aluminum profile is cut off, after the aluminum profile is cut off, the first pressing mechanism (9), the second pressing mechanism (10) and the first limiting mechanism (6) are reset, the feeding mechanism (11) is used for conveying the unprocessed aluminum profile forwards, the unprocessed aluminum profile is pushed forwards by the unprocessed aluminum profile to be cut off, the discharging mechanism (7) acts to push out and discharge the processed aluminum profile, the discharging mechanism (7) is reset to complete one-time working action, and then the circular execution is carried out.
2. The rectangular aluminum profile slot sawing machine according to claim 1 is characterized in that the first or second limiting mechanism comprises a limiting base (6-1), a slider guide rail mechanism (6-2), a limiting plate (6-3) and a limiting cylinder (6-4), the limiting base (6-1) is fixed on the upper portion of the workbench, the limiting plate (6-3) and the limiting base (6-1) are in linear sliding connection through the slider guide rail mechanism (6-2), a cylinder body of the limiting cylinder (6-4) is fixedly connected with the limiting base (6-1), a piston rod of the limiting cylinder (6-4) is fixedly connected with the limiting plate (6-3), and the moving direction of the limiting plate (6-3) is perpendicular to the workbench surface.
3. The rectangular aluminum profile grooving saw according to claim 1 or 2, wherein the first pressing mechanism (9) comprises a first side wall plate (9-4), two first guide blocks (9-1), a first pressing block (9-2) and a first pressing cylinder (9-3), the lower end of the first side wall plate (9-4) is fixedly installed on the workbench, two ends of the same side surface of the first side wall plate (9-4) are respectively and fixedly connected with the two first guide blocks (9-1), the first pressing block (9-2) is positioned between the two first guide blocks (9-1), a cylinder body base of the first pressing cylinder (9-3) is fixedly connected with the upper end of the first side wall plate (9-4), a piston rod of the first pressing cylinder (9-3) is fixedly connected with the first pressing block (9-2), the first pressing cylinder (9-3) drives the first pressing block (9-2) to move up and down to release and press the aluminum profile.
4. The rectangular aluminum profile slot sawing machine according to claim 3, wherein the first pressing mechanism (9) comprises a first side wall plate (9-4), two first guide blocks (9-1), a first pressing block (9-2) and a first pressing cylinder (9-3), the lower end of the first side wall plate (9-4) is fixedly arranged on the workbench, two ends of the first side wall plate (9-4) on the same side are respectively and fixedly connected with the two first guide blocks (9-1), the first pressing block (9-2) is positioned between the two first guide blocks (9-1), a cylinder body base of the first pressing cylinder (9-3) is fixedly connected with the upper end of the first side wall plate (9-4), a piston rod of the first pressing cylinder (9-3) is fixedly connected with the first pressing block (9-2), the first pressing cylinder (9-3) drives the first pressing block (9-2) to move up and down to release and press the aluminum profile.
5. The rectangular aluminum profile slot sawing machine according to claim 4, wherein the discharging mechanism (7) comprises a discharging plate (7-1) and a discharging cylinder (7-2), a cylinder body of the discharging cylinder (7-2) is fixed on the workbench, the discharging plate (7-1) is fixedly connected with a piston rod of the discharging cylinder (7-2), and the moving direction of the discharging plate (7-1) is parallel to the workbench surface.
6. The rectangular aluminum profile slot sawing machine according to claim 4 is characterized in that the feeding mechanism (11) comprises a feeding motor (11-1), a conveyor belt (11-6), a left friction roller (11-3), a right friction roller (11-4) and two sets of friction roller connecting plates (11-5), the feeding motor (11-1) is fixed in the rack (1) and below the working table, the two sets of friction roller connecting plates (11-5) are fixedly connected on the working table respectively, the left friction roller (11-3) and the right friction roller (11-4) are installed on the friction roller connecting plates (11-5) respectively, and the feeding motor (11-1) is connected with the left friction roller (11-3) through the conveyor belt (11-6).
7. The rectangular aluminum profile slot sawing machine according to claim 4, further comprising a profile lifting frame (5), wherein the profile lifting frame (5) is fixed on the side surface of the machine frame and corresponds to the feeding mechanism.
8. The rectangular aluminum profile slot sawing machine as claimed in claim 5, wherein a material collecting box is mounted on the side surface of the workbench corresponding to the discharging mechanism (7).
9. The rectangular aluminum profile slot sawing machine as claimed in claim 1, wherein an included angle formed by saw teeth between adjacent saw blades is 8 degrees.
