Abstract
本发明涉及一种计算机网络安全安全防护领域，具体是一种大数据计算机网络安全防护装置，包括外箱体，外箱体内部中端设置于内箱体，内箱体左右两侧上下两端设置有空腔，空腔内部设置有滑槽，左端的滑槽内部固定安装有限位杆，右端的滑槽内部通过轴承座安装有丝杆，丝杆和限位杆上安装有滑块，滑槽内侧固定安装有连接块，连接块之间设置有放置板，内箱体顶部左右两端设置有吹风罩，吹风罩上侧设置有吹风管，吹风管上设置有吹风泵，内箱体下端的隔板左右两端设置有排风罩，排风罩下侧设置有排风管，排风管上固定安装有排风泵，内箱体下侧左右两端固定安装有过滤网，本发明可以有效地方便对设备内部进行通风，这样保证设备的安全使用。
The invention relates to the field of computer network security security protection, in particular to a big data computer network security protection device, comprising an outer box body, the inner middle end of the outer box body is arranged in the inner box body, and the upper and lower ends of the left and right sides of the inner box body A cavity is provided, a chute is arranged inside the cavity, a limit rod is fixedly installed in the chute at the left end, a screw rod is installed in the chute at the right end through a bearing seat, and a slider is installed on the screw rod and the limit rod, and the slide A connecting block is fixedly installed on the inner side of the groove, a placing plate is arranged between the connecting blocks, a blowing hood is arranged on the left and right ends of the top of the inner box, a blowing pipe is arranged on the upper side of the blowing cover, a blowing pump is arranged on the blowing pipe, and the lower end of the inner box is provided with The left and right ends of the clapboard are provided with an exhaust hood, the lower side of the exhaust hood is provided with an exhaust pipe, an exhaust pump is fixedly installed on the exhaust pipe, and a filter screen is fixedly installed at the left and right ends of the lower side of the inner box. It can effectively and conveniently ventilate the inside of the equipment, so as to ensure the safe use of the equipment.
Description
Technical Field
The invention relates to the field of computer network safety protection, in particular to a big data computer network safety protection device.
Background
Big data, which refers to a data set that cannot be captured, managed and processed by a conventional software tool within a certain time range, is a massive, high-growth-rate and diversified information asset that needs a new processing mode to have stronger decision-making power, insight discovery power and process optimization capability.
The network security refers to that the hardware, software and data in the system of the network system are protected and are not damaged, changed and leaked due to accidental or malicious reasons, the system continuously, reliably and normally operates, and the network service is not interrupted. The system has the characteristics of confidentiality, integrity, availability, controllability and auditability.
Although the currently published Chinese patent No. CN108541157A discloses a big data computer network safety device, the equipment of equipment can be protected, but equipment often can give out heat in the course of the work, does not pass through timely processing like this, can lead to the inside high temperature of equipment to influence the safe handling of equipment.
Disclosure of Invention
The present invention is directed to a big data computer network security device, so as to solve the problems mentioned in the background art.
In order to achieve the purpose, the invention provides the following technical scheme:
a big data computer network safety protection device comprises an outer box body, wherein the middle end inside the outer box body is arranged on the inner box body, cavities are arranged at the upper end and the lower end of the left side and the right side of the inner box body, sliding grooves are formed inside the cavities, a limiting rod is fixedly arranged inside the sliding groove at the left end, a lead screw is arranged inside the sliding groove at the right end through a bearing seat, a second motor is arranged at the lower side of the lead screw, sliding blocks are arranged on the lead screw and the limiting rod, connecting blocks are fixedly arranged on the inner sides of the sliding grooves, a placing plate is arranged between, both ends are provided with the blower housing about the interior box top, and the blowing covers the upper side and is provided with the blowing pipe, is provided with the blowing pump on the blowing pipe, and both ends are provided with the exhaust hood about the baffle of interior box lower extreme, and the exhaust hood downside is provided with the exhaust pipe, and fixed mounting has the exhaust pump on the exhaust pipe, both ends fixed mounting has the filter screen about interior box downside.
As a preferred embodiment of the present invention, the supporting seats are fixedly installed at four corners of the lower side of the outer box, and the friction pads are embedded at the lower ends of the supporting seats, so that the friction force between the equipment and the ground can be effectively increased, and the stability of the equipment can be ensured.
In a preferred embodiment of the present invention, the connection covers are fixedly mounted on the left and right side walls of the outer box, and the connection gears are fixedly mounted on the inner walls of the connection covers.
In a preferred embodiment of the present invention, a first motor is fixedly mounted on a lower side of the connecting gear, and the first motor is connected to the connecting gear through a belt and can drive the connecting gear to rotate.
In a preferred embodiment of the present invention, a connecting rack is engaged with the inside of the connecting gear, the connecting rack is fixedly mounted on an L-shaped connecting plate, and the L-shaped connecting plate is closely attached to the outer housing inside the connecting cover.
As a preferred embodiment of the invention, rollers are fixedly arranged at the front end and the rear end of the lower side of the L-shaped connecting plate, so that the movement of the equipment can be facilitated.
In a preferred embodiment of the present invention, a sealing door is connected to the outer box located in front of the filter screen through a hinge, and a door is provided above the sealing door, so that the internal equipment can be conveniently inspected.
Compared with the prior art, the invention has the beneficial effects that: the screw rod is driven to rotate by the second motor, so that the sliding block is driven to move up and down, the placing plate is driven to be adjusted up and down, and the space inside the inner box body can be effectively adjusted, so that the space inside the inner box body can be better and reasonably utilized, and the use of equipment is facilitated; the invention blows air to the inner box body through the air draft cover and exhausts air to the inner box body through the exhaust cover, so that the air in the inner box body can flow, the cleanness of the inner part can be effectively ensured, the heat radiation treatment can be effectively carried out, and the safe use of the equipment can be ensured.
Drawings

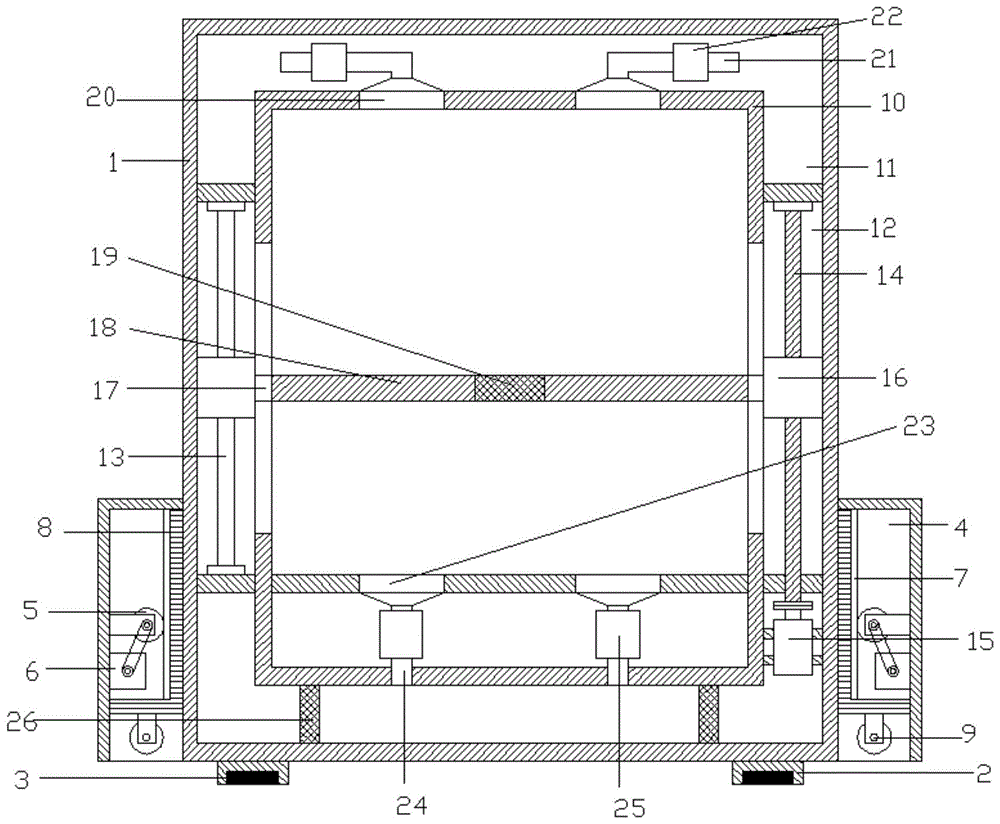

Fig. 1 is a schematic structural diagram of a big data computer network security device according to the present invention.
Fig. 2 is a schematic structural diagram of a front view of a big data computer network security device according to the present invention.
Fig. 3 is a schematic structural diagram of a top view of a big data computer network security device according to the present invention.
1-an outer box body, 2-a supporting seat, 3-a friction pad, 4-a connecting cover, 5-a connecting gear, 6-a first motor, 7-a connecting rack, 8-L-shaped connecting plates, 9-rollers, 10-an inner box body, 11-a cavity, 12-a chute, 13-a limiting rod, 14-a screw rod, 15-a second motor, 16-a sliding block, 17-a connecting block, 18-a placing plate, 19-a ventilation net opening, 20-a blowing cover, 21-a blowing pipe, 22-a blowing pump, 23-an exhaust cover, 24-an exhaust pipe, 25-an exhaust pump, 26-a filter screen, 27-a sealing door and 28-a box door.
Detailed Description
It should be noted that the embodiments and features of the embodiments may be combined with each other without conflict.
In order to make the objects, technical solutions and advantages of the embodiments of the present invention more apparent, the embodiments of the present invention will be described in detail below with reference to the accompanying drawings. However, it will be appreciated by those of ordinary skill in the art that numerous technical details are set forth in order to provide a better understanding of the present application in various embodiments of the present invention. However, the technical solution claimed in the present application can be implemented without these technical details and various changes and modifications based on the following embodiments.
The present invention will be described in detail below with reference to the embodiments with reference to the attached drawings.
Example one
Referring to fig. 1 to 3, in the embodiment of the invention, a big data computer network safety protection device comprises an outer box body 1, connecting covers 4 are fixedly installed on the left side wall and the right side wall of the outer box body 1, connecting gears 5 are fixedly installed on the inner walls of the connecting covers 4, a first motor 6 is fixedly installed on the lower sides of the connecting gears 5, the first motor 6 is connected with the connecting gears 5 through a belt, connecting racks 7 are meshed on the inner sides of the connecting gears 5, the connecting racks 7 are fixedly installed on an L-shaped connecting plate 8, the L-shaped connecting plate 8 is tightly attached to an outer shell body 1 inside the connecting covers 4, rollers 9 are fixedly installed at the front end and the rear end of the lower side of the L-shaped connecting plate 8, the connecting gears 5 are driven to rotate through the first motor 6, the L-shaped connecting plate 8 is driven to move up and down due to the meshing of the connecting gears, this effectively facilitates movement of the device.
The middle end in the outer box body 1 is arranged in the inner box body 10, the upper end and the lower end of the left side and the right side of the inner box body 10 are provided with cavities 11, a sliding groove 12 is arranged in each cavity 11, a limiting rod 13 is fixedly arranged in the sliding groove 12 at the left end and can limit the equipment in the up-and-down moving process, so that the equipment is stably adjusted up and down, a screw rod 14 is arranged in the sliding groove 12 at the right end through a bearing seat, a second motor 15 is arranged at the lower side of the screw rod 14, a sliding block 16 is arranged on each screw rod 14 and the limiting rod 13, a connecting block 17 is fixedly arranged on the inner side of each sliding groove 16, a placing plate 18 is arranged between the connecting blocks 17, the screw rod 14 is driven to rotate through the second motor 15, so that the sliding block 16 is driven to move up and down, the convenience is brought to the use of equipment, and the middle part of the placing plate 18 is provided with a ventilation net opening 19, so that the ventilation in the equipment can be facilitated.
The inner box body 10 is characterized in that blowing hoods 20 are arranged at the left end and the right end of the top of the inner box body 10, a blowing pipe 21 is arranged on the upper side of the blowing hood 20, a blowing pump 22 is arranged on the blowing pipe 21, exhaust hoods 23 are arranged at the left end and the right end of a partition plate at the lower end of the inner box body 10, an exhaust pipe 24 is arranged on the lower side of each exhaust hood 23, an exhaust pump 25 is fixedly arranged on each exhaust pipe 24, the inner part of the inner box body 10 is blown through the blowing hoods 20, the inner part of the inner box body 10 is exhausted through the exhaust hoods 24, air in the inner part of the inner box body 10 can flow, therefore, the inner part can be effectively guaranteed to be clean, heat dissipation treatment can be effectively carried out, and safe use of equipment is guaranteed, filter screens 16 are fixedly arranged at the left end and the right end of the lower side, the upper side of the sealing door 27 is provided with a door 28, which is convenient for the maintenance of the inside of the equipment.
Example two
The difference from the first embodiment is that: outer 1 downside four corners fixed mounting of box has supporting seat 2, and the inside lower extreme of supporting seat 2 is inlayed and is had friction pad 3, can increase the frictional force between equipment and the ground effectively, can guarantee the stability of equipment like this.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, unless otherwise specified, "a plurality" means two or more, and it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected", and "connected" are to be interpreted broadly, e.g., as being fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
1. A big data computer network safety protection device comprises an outer box body (1), wherein the middle end inside the outer box body (1) is arranged on an inner box body (10), cavities (11) are arranged at the upper end and the lower end of the left side and the right side of the inner box body (10), a sliding chute (12) is arranged inside the cavity (11), a limiting rod (13) is fixedly arranged inside the sliding chute (12) at the left end, a lead screw (14) is arranged inside the sliding chute (12) at the right end through a bearing seat, a second motor (15) is arranged at the lower side of the lead screw (14), the big data computer network safety protection device is characterized in that sliding blocks (16) are arranged on the lead screw (14) and the limiting rod (13), connecting blocks (17) are fixedly arranged on the inner side of the sliding chute (16), a placing plate (18) is arranged between the connecting blocks (17), a ventilation net opening (19, the upper side of the blowing cover (20) is provided with a blowing pipe (21), a blowing pump (22) is arranged on the blowing pipe (21), exhaust covers (23) are arranged at the left end and the right end of a partition plate at the lower end of the inner box body (10), an exhaust pipe (24) is arranged at the lower side of each exhaust cover (23), an exhaust pump (25) is fixedly arranged on each exhaust pipe (24), and filter screens (16) are fixedly arranged at the left end and the right end of the lower side of the inner box body (10).
2. The big data computer network safety protection device according to claim 1, wherein the supporting seats (2) are fixedly installed at four corners of the lower side of the outer box body (1), and the friction pads (3) are embedded at the lower ends of the inner parts of the supporting seats (2).
3. A big data computer network safety device according to claim 1 or 2, characterized in that, the connection cover (4) is fixedly installed on the left and right side walls of the outer box (1), and the connection gear (5) is fixedly installed on the inner wall of the connection cover (4).
4. A big data computer network safety guard device according to claim 3, characterized in that, the first motor (6) is fixedly installed at the lower side of the connecting gear (5), and the first motor (6) is connected with the connecting gear (5) through a belt.
5. A big data computer network safety device according to claim 4, characterized in that, the inside of the connecting gear (5) is engaged with a connecting rack (7), the connecting rack (7) is fixedly installed on an L-shaped connecting plate (8), and the L-shaped connecting plate (8) is tightly attached to the outer shell (1) inside the connecting cover (4).
6. A big data computer network safety guard device according to claim 5, characterized in that the front and back ends of the lower side of the L-shaped connecting plate (8) are fixedly provided with rollers (9).
7. The big data computer network safety device according to claim 1, wherein the outer box (1) in front of the filter screen (26) is connected with a sealing door (27) through a hinge, and a door (28) is arranged on the upper side of the sealing door (27).
