Abstract

本发明涉及一种可调节两用墙壁插座，包括墙壁植入盒、墙面安装面板插座，所述墙面安装面板插座通过螺钉安装在墙壁植入盒内，所述墙面安装面板插座由绝缘外壳、面板固定框、接电装置组成，所述接电装置嵌在面板固定框的中心，所述绝缘外壳固定在面板固定框的顶面。本发明有利且优化了墙壁插座的设置，改变传统的墙壁插座只可以采用10A和16A分开安装的设置，改进为一种可以对插座插孔进行调整的设置，设备采用手动调整的方法，可以根据使用情况进行单独的调整，方便了不同规格插头的使用，设备所使用的材料相较于传统的墙壁插座没有太多的改变，造价偏差不大，可以适用于家庭和工业的墙壁插座进行使用，应用范围更加广泛，宜推广使用。

Figure 202010063697

The invention relates to an adjustable dual-purpose wall socket, comprising a wall implant box and a wall-mounted panel socket, wherein the wall-mounted panel socket is installed in the wall implant box by screws, and the wall-mounted panel socket is insulated by an insulating It consists of a shell, a panel fixing frame, and a power connection device. The power connection device is embedded in the center of the panel fixing frame, and the insulating shell is fixed on the top surface of the panel fixing frame. The present invention is advantageous and optimizes the setting of the wall socket, changing the setting that the traditional wall socket can only be installed with 10A and 16A separately, and improving it to a setting that can adjust the socket jack. The device adopts a manual adjustment method, which can be adjusted according to The usage conditions are individually adjusted, which facilitates the use of plugs of different specifications. Compared with traditional wall sockets, the materials used in the equipment have not changed much, and the cost deviation is not large. It can be used in household and industrial wall sockets. It has a wider range of applications and should be widely used.

Figure 202010063697

Description

Adjustable dual-purpose wall socket
Technical Field
The invention relates to the field of electricity, in particular to an adjustable dual-purpose wall socket.
Background
In daily life, a 10A socket is a five-hole socket which we often say; the 16A socket is a three-jack socket, and the two sockets are different in number of jacks, the five-jack socket can be used for inserting two-pin plugs and three-pin plugs, the three-jack socket can only be used for inserting three-pin plugs, and although the three-jack socket is called as a three-pin plug, the three-pin plug of 10A is different from the three-pin plug of 16A. The 16A three pin plug, either pin pitch or pin size, is one set larger than the 10A plug. In other words, a three-prong plug that can be plugged into a 10A receptacle cannot be plugged into a 16A receptacle; on the contrary, the plug capable of being plugged into the 16A socket can not be plugged into the 10A socket, and in order to change the current situation and enable the universal performance of the 16A socket in the 10A socket box, an adjustable dual-purpose wall socket is designed.
Disclosure of Invention
The invention aims to provide an adjustable dual-purpose wall socket, which aims to solve the technical problems and adopts the following technical scheme for realizing the aim:
the utility model provides an adjustable dual-purpose wall socket, includes that the wall implants box, wall installation panel socket passes through the mounting screw and implants the box in the wall, the interior bottom surface that the box was implanted to the wall is equipped with two sets of screw installation heads, and two sets of screw installation heads are the interior bottom surface of establishing at the wall implantation box of symmetry, and screw installation head and wall implantation box integrated into one piece, the screw connection is in screw installation head, wall installation panel socket comprises the fixed frame of insulating casing, panel, connects the electric installation and constitutes, connect the electric installation and inlay the center at the fixed frame of panel, the top surface at the fixed frame of panel is fixed to insulating casing.
On the basis of the technical scheme, the insulating shell consists of an insulating outer panel, an electric control switch insulating plate, a sliding socket plate and a socket plate sliding button, the electric control switch insulating plate is connected to the rear top surface of the insulating outer panel, the top surface of the insulating outer panel is provided with a single upper socket, socket plate sliding holes and sliding button sliding holes, the single upper socket is arranged in the center of the top surface of the insulating outer panel, the socket plate sliding holes are provided with two groups, the two groups of socket plate sliding holes are symmetrically arranged on the front side of the top surface of the insulating outer panel, the sliding button sliding holes are arranged on the front sides of the centers of the two groups of socket plate sliding holes, the sliding socket plate is embedded in the socket plate sliding holes, the sliding socket plate can transversely slide in the socket plate sliding holes, the inner side wall of the sliding button sliding holes is provided with sliding grooves, the socket plate sliding button is embedded in the sliding button sliding holes, and the socket plate sliding button can slide along the sliding groove, and the front side surface of the insulating outer panel is provided with a dismounting hole.
On the basis of the technical scheme, the fixed frame of panel is by frame, the fixed tang of outer panel, connect the fixed protruding of electric installation and touch and constitute, the fixed tang of outer panel is equipped with a plurality of groups, and the fixed tang of a plurality of groups outer panel is symmetrical establishes respectively at the top surface front side and the top surface rear side of frame, connect the fixed protruding of electric installation and touch and be equipped with four groups, and four groups connect the fixed protruding of electric installation and touch and fix respectively at the inboard edge of frame, the fixed tang of frame, outer panel, connect the fixed protruding integrated into one piece that touches of electric installation, the screw hole that a plurality of groups are symmetrical has been seted up on the top surface left side and the top surface right side of frame, the screw passes the screw hole and fixes.
On the basis of the technical scheme, connect the electric installation and constitute by connecing electric bottom plate, panel board, connect the bottom surface that the electric bottom plate was established at the panel board, the outer top surface of panel board is equipped with electric control switch, sliding socket, socket groove, socket slider, socket sliding tray, electric control switch establishes the top surface rear side at the panel board, the socket groove is equipped with two sets ofly, and two sets of socket grooves are the top surface front side of seting up at the panel board of symmetry, sliding socket inlays at the socket inslot, and sliding socket can slide in the socket inslot, the socket sliding tray is seted up between two sets of socket grooves, and socket sliding tray intercommunication two sets of socket grooves, socket slider establishes in the socket sliding tray, and socket slider is connected with sliding socket.
On the basis of the technical scheme, the inside plug contact, distribution contact, the contact lantern ring, contact set screw of being equipped with of panel board, plug contact fixes the center at sliding socket, the distribution contact is fixed in the interior bottom of panel board, and the both ends of distribution contact are fixed at the interior bottom of panel board through contact fixing bolt respectively, the contact lantern ring cup joints on distribution contact, and the contact lantern ring can slide on distribution contact, the contact lantern ring is established in plug contact's bottom, and plug contact, contact lantern ring integrated into one piece.
On the basis of the technical scheme, the socket plate sliding button is composed of a hand contact, an embedded ring and a bottom plug, the embedded ring is arranged on the outer side face of the bottom end of the hand contact, the bottom plug is arranged on the bottom face of the embedded ring, and the hand contact, the embedded ring and the bottom plug are integrally formed.
On the basis of the technical scheme, the sliding socket plate is composed of a sliding thin plate and a thin plate fixing plug, the thin plate fixing plug is arranged on the bottom surface of the sliding thin plate, the sliding thin plate and the thin plate fixing plug are integrally formed, and the center of the top surface of the sliding thin plate is provided with a through oblique socket for inserting electricity.
On the basis of the technical scheme, the top surface of the sliding socket is provided with a jack corresponding to the thin plate fixing plug, the thin plate fixing plug is inserted in the jack, the sliding socket plate slides along with the sliding of the sliding socket, the top surface of the socket sliding device is provided with a plug hole corresponding to the bottom plug, the bottom plug is inserted in the plug hole, and the sliding button of the socket plate slides along with the sliding of the socket sliding device.
On the basis of the technical scheme, socket slider comprises connection tentacle, fixed head sliding ring, the outside at the fixed head is established to the fixed head sliding ring, connect and tentacle and be equipped with two sets ofly, two sets of connections tentacles are the rear side of establishing at the fixed head of symmetry, connect tentacle, fixed head sliding ring integrated into one piece, connect and tentacle and connect the side at two sets of sliding socket respectively.
On the basis of the technical scheme, connect tentacle, fixed head sliding ring and make by the nylon material that possesses elasticity, the fixed frame of panel is made by the cast iron material, and surface spraying insulating paint, plug electric contact, distribution contact, contact lantern ring, contact set screw are made by metal copper material, box, screw installation head are implanted to the wall, are made by engineering plastics material by insulating outer panel, electric control switch insulation board, slip socket board, socket board sliding button.
Compared with the prior art, the invention has the following advantages: the invention optimizes the setting of the wall socket, changes the traditional wall socket which can only adopt the setting of separately installing 10A and 16A, and improves the setting into the setting which can adjust the jack of the socket, the equipment adopts a manual adjusting method, can be independently adjusted according to the use condition, is convenient for the use of plugs with different specifications, the material used by the equipment does not change too much compared with the traditional wall socket, the cost deviation is not large, and the invention can be suitable for the use of the wall socket in families and industries, has wider application range and is suitable for popularization and use.
Drawings

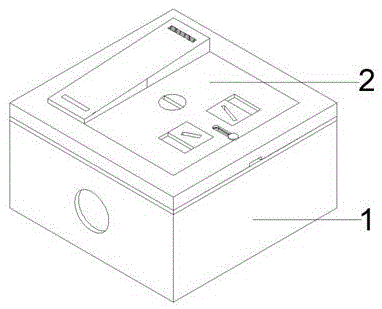

Fig. 1 is a general appearance state diagram of the present invention.
Fig. 2 is a schematic view of the wall implant box of the present invention.
FIG. 3 is a schematic view of the wall mount panel socket of the present invention being disassembled.
Fig. 4 is a schematic view of an insulating housing of the present invention.
Fig. 5 is a schematic view of the panel fixing frame of the present invention.
FIG. 6 is a schematic diagram of the power connection apparatus according to the present invention.
FIG. 7 is a top plan view of the power connection device of the present invention.
FIG. 8 is a schematic drawing of a tangent line AB of the power connection device of the present invention.
FIG. 9 is a schematic view of a portion of the power connection apparatus according to the present invention.
Fig. 10 is a schematic view of the sliding button structure of the socket plate of the present invention.
Fig. 11 is a schematic view of a sliding socket plate structure according to the present invention.
FIG. 12 is a schematic view of the structure of the sliding device of the present invention
Fig. 13 is a schematic plane view of the structural connection of the present invention.
In the figure: the wall embedding box 1, the wall surface mounting panel socket 2, the screw 3, the screw mounting head 4, the insulating shell 5, the panel fixing frame 6, the electric connecting device 7, the insulating outer panel 8, the electric control switch insulating plate 9, the sliding socket plate 10, the socket plate sliding button 11, the single upper socket 12, the socket plate sliding hole 13, the sliding button sliding hole 14, the sliding groove 15, the dismounting hole 16, the frame 17, the outer panel fixing convex opening 18, the electric connecting device fixing convex contact 19, the screw hole 20, the electric connecting bottom plate 21, the distribution board assembly 22, the electric control switch 23, the sliding socket 24, the socket groove 25, the socket sliding device 26, the socket sliding groove 27, the electric plug contact piece 28, the distribution contact piece 29, the contact piece lantern ring 30, the contact piece fixing screw 31, the ring 32, the bottom end plug 33, the sliding thin plate 34, the thin plate fixing plug 35, the electric plug inclined socket 36, the socket 37, the connecting contact hand 38, the fixing head, Fixed head sliding ring 40, hand contact 41, plug hole 42.
Detailed Description
The invention is described in further detail below with reference to the figures and the detailed description.
The utility model provides an adjustable dual-purpose wall socket, includes that the wall implants box 1, wall installation panel socket 2, box 1 is implanted at the wall through screw 3 to wall installation panel socket 2, box 1 is implanted to the wall interior bottom is equipped with two sets of screw installation heads 4, and two sets of screw installation heads 4 are the interior bottom surface of establishing at box 1 is implanted to the wall of symmetry, and screw installation head 4 implants box 1 integrated into one piece with the wall, screw 3 is connected in screw installation head 4, wall installation panel socket 2 comprises the fixed frame 6 of insulating casing 5, panel, meets electric installation 7, it inlays at the center of the fixed frame 6 of panel to connect electric installation 7, the top surface at the fixed frame 6 of panel is fixed to insulating casing 5.
The insulating shell 5 is composed of an insulating outer panel 8, an electric control switch insulating plate 9, a sliding socket plate 10 and a socket plate sliding button 11, the electric control switch insulating plate 9 is connected with the rear top surface of the insulating outer panel 8, the top surface of the insulating outer panel 8 is provided with a single upper socket 12, socket plate sliding holes 13 and sliding button sliding holes 14, the single upper socket 12 is arranged at the center of the top surface of the insulating outer panel 8, the socket plate sliding holes 13 are provided with two groups, the two groups of socket plate sliding holes 13 are symmetrically arranged at the front side of the top surface of the insulating outer panel 8, the sliding button sliding holes 14 are arranged at the front sides of the centers of the two groups of socket plate sliding holes 13, the sliding socket plate 13 is embedded in the socket plate sliding holes 14, the sliding socket plate 10 can transversely slide in the socket plate sliding holes 13, the inner side wall of the sliding button sliding holes 14 is provided with a sliding groove 15, the socket plate sliding button 11 is embedded in the sliding button sliding hole 14, the socket plate sliding button 11 can slide along the sliding groove 15, and the front side surface of the insulating outer panel 8 is provided with a dismounting hole 16.
The fixed frame 6 of panel comprises frame 17, the fixed tang 18 of outer panel, the fixed protruding 19 of power connection device, the fixed tang 18 of outer panel is equipped with a plurality of groups, and a plurality of groups of fixed tangs 18 of outer panel are symmetrical and establish respectively at the top surface front side and the top surface rear side of frame 17, the fixed protruding 19 of power connection device is equipped with four groups, and four groups of fixed protruding 19 of power connection device are fixed respectively at the inboard edge of frame 17, the fixed tang 18 of frame 17, outer panel, the fixed protruding 19 integrated into one piece that touches of power connection device, the screw hole 20 that a plurality of groups are symmetrical has been seted up on the top surface left side and the top surface right side of frame 17, screw 3 passes screw hole 20 and fixes the fixed frame 6 of panel at the top surface that box 1 was implanted.
Connect electric installation 7 to constitute 22 by connecing electric bottom plate 21, switchboard, connect electric bottom plate 21 to establish the bottom surface at switchboard 22, switchboard 22 outer top surface is equipped with electric control switch 23, sliding socket 24, socket groove 25, socket slider 26, socket sliding tray 27, electric control switch 23 is established at switchboard 22's top surface rear side, socket groove 25 is equipped with two sets ofly, and two sets of socket grooves 25 are symmetrical and establish the top surface front side at switchboard 22, sliding socket 24 inlays in socket groove 25, and sliding socket 24 can slide in socket groove 25, socket sliding tray 27 is seted up between two sets of socket grooves 25, and socket sliding tray 27 intercommunication two sets of socket grooves 25, socket slider 26 establishes in socket sliding tray 27, and socket slider 27 is connected with sliding socket 24.
The inside plug-in contact 28, distribution contact 29, contact lantern ring 30, contact set screw 31 that is equipped with of switchboard 22, plug-in contact 28 fixes at the center of sliding socket 24, distribution contact 29 fixes the interior bottom at switchboard 22, and distribution contact 29's both ends are fixed at switchboard 22's interior bottom through contact set screw 31 respectively, contact lantern ring 30 cup joints on distribution contact 29, and contact lantern ring 30 can slide on distribution contact 29, contact lantern ring 30 establishes the bottom at plug-in contact 28, and plug-in contact 28, contact lantern ring 30 integrated into one piece.
Socket board sliding button 11 comprises hand contact 41, embedded circle 32, bottom plug 33, embedded circle 32 establishes at hand contact 41 bottom lateral surface, bottom plug 33 establishes the bottom surface at embedded circle 32, hand contact 41, embedded circle 32, bottom plug 33 integrated into one piece. The sliding button 11 of the socket plate is designed to slightly protrude out of the surface of the insulating shell 5, preferably within 0.5 cm, and can be operated so as not to influence the insertion stability of the plug.
The sliding socket plate 10 is composed of a sliding thin plate 34 and a thin plate fixing plug 35, the thin plate fixing plug 35 is arranged on the bottom surface of the sliding thin plate 34, the sliding thin plate 34 and the thin plate fixing plug 35 are integrally formed, and a through electric-inserting inclined socket 36 is formed in the center of the top surface of the sliding thin plate 34.
The top surface of the sliding socket 24 is provided with a jack 37 corresponding to the thin plate fixing plug 35, the thin plate fixing plug 35 is plugged in the jack 37, the sliding socket plate 10 slides along with the sliding of the sliding socket 24, the top surface of the socket sliding device 26 is provided with a plug hole 42 corresponding to the bottom plug 33, the bottom plug 33 is plugged in the plug hole 42, and the socket plate sliding button 11 slides along with the sliding of the socket sliding device 26.
Socket slider 26 comprises connection tentacle 38, fixed head 39, fixed head sliding ring 40 establishes in the outside of fixed head 39, connection tentacle 38 is equipped with two sets ofly, and two sets of connection tentacles 38 are the rear side of establishing at fixed head 39 of symmetry, connection tentacle 38, fixed head 39, fixed head sliding ring 40 integrated into one piece, connection tentacle 38 connects the side at two sets of sliding socket 24 respectively.
Connect tentacle 38, fixed head 39, fixed head sliding ring 40 and make by the nylon materials that possesses elasticity, the fixed frame 6 of panel is made by cast iron material, and surface spraying insulating varnish, plug-in contact 28, distribution contact 29, contact lantern ring 30, contact set screw 31 are made by metal copper material, box 1, screw installation head 4 are implanted to the wall, by insulating outer panel 8, automatically controlled switch insulation board 9, slip socket board 10, socket board sliding button 11 by engineering plastics material.
The working principle of the invention is as follows: the socket is simple in use mode and comprises wall installation and specific use, wherein the first wall installation process is a wall installation process, when the socket is installed, firstly, a wall implantation box needs to be implanted into a wall, then, the wall surface installation panel socket is disassembled and installed, specifically, the socket is disassembled into three parts, namely an insulating shell, a panel fixing frame and a power connection device, the power connection device is installed in the panel fixing frame, then, a screw hole in the panel fixing frame is aligned to a screw installation head, then, a screw is connected into the screw installation head, so that the panel fixing frame is fixed, and then, the insulating shell is connected and fixed onto the panel fixing frame, so that the wall installation process is; and the second part is a specific use process, the use time is divided into two parts of switch use and socket adjustment use, the switch use needs to manually adjust an electric control switch insulating plate, and the electric control switch insulating plate can automatically touch an internal electric control switch, so that the socket can complete the switch and the closing work. The socket adjustment is manual adjustment socket plate sliding button, thereby completing the internal automatic conversion, the concrete steps are that when the socket plate sliding button is pushed upwards, the socket plate sliding button slides in the sliding button sliding hole, because the socket plate sliding button is connected on the top side of the socket sliding device, the socket sliding device slides along the socket plate sliding button, the internal connecting tentacle is relatively hard, so the socket sliding device can be pushed to slide in parallel, when the socket sliding device slides in parallel, the plug contact inside the socket sliding device can slide along the socket sliding device, and the contact lantern ring integrated with the plug contact can move along the plug contact, thereby the plug contact can slide on the distribution contact closely, because the contact lantern ring and the distribution contact are contacted all the time, no open circuit can be formed, thereby completing the internal work of pushing the socket plate sliding button upwards, can insert the plug of big specification this moment, when stirring socket board sliding button downwards, inside structure slides towards opposite direction, and socket slider connects with connecting the tentacle, consequently can be connected the tentacle pulling to pull back original position, can insert the plug of little specification, this is concrete use.
The foregoing is a preferred embodiment of the present invention, and it will be apparent to those skilled in the art that variations, modifications, substitutions and alterations can be made in the embodiment without departing from the principles and spirit of the invention.

Claims (8)

1.一种可调节两用墙壁插座，其特征在于，包括墙壁植入盒（1）、墙面安装面板插座（2），所述墙面安装面板插座（2）通过螺钉（3）安装在墙壁植入盒（1）内，所述墙壁植入盒（1）的内底面设有两组螺钉安装头（4），两组螺钉安装头（4）呈对称的设在墙壁植入盒（1）的内底面，且螺钉安装头（4）与墙壁植入盒（1）一体成型，所述螺钉（3）连接在螺钉安装头（4）内，所述墙面安装面板插座（2）由绝缘外壳（5）、面板固定框（6）、接电装置（7）组成，所述接电装置（7）嵌在面板固定框（6）的中心，所述绝缘外壳（5）固定在面板固定框（6）的顶面；1. An adjustable dual-purpose wall socket, characterized in that it comprises a wall implant box (1), a wall-mounted panel socket (2), and the wall-mounted panel socket (2) is mounted on the wall by screws (3). In the wall implant box (1), the inner bottom surface of the wall implant box (1) is provided with two sets of screw mounting heads (4), and the two sets of screw mounting heads (4) are symmetrically arranged on the wall implant box ( 1), and the screw mounting head (4) is integrally formed with the wall implant box (1), the screw (3) is connected in the screw mounting head (4), and the wall mounting panel socket (2) It consists of an insulating casing (5), a panel fixing frame (6), and an electrical connection device (7), the electrical connection device (7) is embedded in the center of the panel fixing frame (6), and the insulating casing (5) is fixed in the center of the panel fixing frame (6). the top surface of the panel fixing frame (6); 所述绝缘外壳（5）由绝缘外面板（8）、电控开关绝缘板（9）、滑动插口板（10）、插口板滑动按钮（11）组成，所述电控开关绝缘板（9）连接在绝缘外面板（8）的后侧顶面，所述绝缘外面板（8）顶面开设有单上插口（12）、插口板滑动孔（13）、滑动按钮滑动孔（14），所述单上插口（12）开设在绝缘外面板（8）的顶面中心，所述插口板滑动孔（13）开设有两组，两组插口板滑动孔（13）呈对称的开设在绝缘外面板（8）的顶面前侧，所述滑动按钮滑动孔（14）开设在两组插口板滑动孔（13）的中心前侧，所述滑动插口板（13）嵌在插口板滑动孔（14）内，且滑动插口板（10）可在插口板滑动孔（13）内横向滑动，所述滑动按钮滑动孔（14）的内侧壁上开设有滑动槽（15），所述插口板滑动按钮（11）嵌在滑动按钮滑动孔（14）内，且插口板滑动按钮（11）可沿着滑动槽（15）滑动，所述绝缘外面板（8）的前侧面开设有拆卸孔（16）。The insulating shell (5) is composed of an insulating outer panel (8), an insulating panel (9) of an electrically controlled switch, a sliding socket panel (10), and a sliding button (11) of the socket panel, and the insulating panel (9) of the electrically controlled switch It is connected to the top surface of the rear side of the insulating outer panel (8). The single upper socket (12) is opened in the center of the top surface of the insulating outer panel (8). On the top front side of the panel (8), the sliding button sliding hole (14) is opened on the center front side of the two sets of socket plate sliding holes (13), and the sliding socket plate (13) is embedded in the socket plate sliding hole (14) ), and the sliding socket board (10) can slide laterally in the socket board sliding hole (13). (11) is embedded in the sliding button sliding hole (14), and the socket plate sliding button (11) can slide along the sliding groove (15), and the front side of the insulating outer panel (8) is provided with a dismounting hole (16) . 2.根据权利要求1所述的一种可调节两用墙壁插座，其特征在于，所述面板固定框（6）由框架（17）、外面板固定凸口（18）、接电装置固定凸触（19）组成，所述外面板固定凸口（18）设有若干组，若干组外面板固定凸口（18）呈对称的分别设在框架（17）的顶面前侧和顶面后侧，所述接电装置固定凸触（19）设有四组，四组接电装置固定凸触（19）分别固定在框架（17）的内侧边缘，所述框架（17）、外面板固定凸口（18）、接电装置固定凸触（19）一体成型，所述框架（17）的顶面左侧和顶面右侧开设有若干组呈对称的螺钉孔（20），所述螺钉（3）穿过螺钉孔（20）将面板固定框（6）固定在墙壁植入盒（1）的顶面。2. An adjustable dual-purpose wall socket according to claim 1, characterized in that the panel fixing frame (6) consists of a frame (17), an outer panel fixing protrusion (18), a power connection device fixing protrusion Contact (19), the outer panel fixing protrusions (18) are provided with several groups, and several groups of outer panel fixing protrusions (18) are symmetrically arranged on the top front side and the top rear side of the frame (17). There are four groups of the fixed convex contacts (19) of the power connection device, and the four groups of fixed convex contacts (19) of the power connection device are respectively fixed on the inner edge of the frame (17). The mouth (18) and the fixing convex contact (19) of the power connection device are integrally formed, and several groups of symmetrical screw holes (20) are provided on the left side and the right side of the top surface of the frame (17). 3) Fix the panel fixing frame (6) on the top surface of the wall implant box (1) through the screw holes (20). 3.根据权利要求1所述的一种可调节两用墙壁插座，其特征在于，所述接电装置（7）由接电底板（21）、配电板（22）组成，所述接电底板（21）设在配电板（22）的底面，所述配电板（22）外顶面设有电控开关（23）、滑动插口（24）、插口槽（25）、插口滑动装置（26）、插口滑动槽（27），所述电控开关（23）设在配电板（22）的顶面后侧，所述插口槽（25）设有两组，两组插口槽（25）呈对称的开设在配电板（22）的顶面前侧，所述滑动插口（24）嵌在插口槽（25）内，且滑动插口（24）可在插口槽（25）内滑动，所述插口滑动槽（27）开设在两组插口槽（25）的之间，且插口滑动槽（27）连通两组插口槽（25），所述插口滑动装置（26）设在插口滑动槽（27）内，且插口滑动装置（27）与滑动插口（24）连接。3. An adjustable dual-purpose wall socket according to claim 1, characterized in that the power connection device (7) is composed of a power connection base plate (21) and a power distribution board (22), and the power connection The bottom plate (21) is arranged on the bottom surface of the power distribution board (22), and the outer top surface of the power distribution board (22) is provided with an electric control switch (23), a sliding socket (24), a socket slot (25), and a socket sliding device (26), a socket sliding groove (27), the electric control switch (23) is arranged on the rear side of the top surface of the power distribution board (22), the socket groove (25) is provided with two groups, and the two groups of socket grooves ( 25) Symmetrically opened on the top front side of the power distribution board (22), the sliding socket (24) is embedded in the socket groove (25), and the sliding socket (24) can slide in the socket groove (25), The socket sliding groove (27) is opened between the two sets of socket grooves (25), and the socket sliding groove (27) communicates with the two sets of socket grooves (25), and the socket sliding device (26) is arranged in the socket sliding groove (27), and the socket sliding device (27) is connected with the sliding socket (24). 4.根据权利要求3所述的一种可调节两用墙壁插座，其特征在于，所述配电板（22）内部设有插电触片（28）、配电触片（29）、触片套环（30）、触片固定螺钉（31），所述插电触片（28）固定在滑动插口（24）的中心，所述配电触片（29）固定在配电板（22）的内底部，且配电触片（29）的两端分别通过触片固定螺栓（31）固定在配电板（22）的内底部，所述触片套环（30）套接在配电触片（29）上，且触片套环（30）可在配电触片（29）上滑动，所述触片套环（30）设在插电触片（28）的底端，且插电触片（28）、触片套环（30）一体成型。4. An adjustable dual-purpose wall socket according to claim 3, characterized in that the power distribution board (22) is provided with a plug-in contact (28), a power distribution contact (29), a contact A piece collar (30), a contact piece fixing screw (31), the plug-in contact piece (28) is fixed on the center of the sliding socket (24), and the power distribution contact piece (29) is fixed on the power distribution board (22) ), and the two ends of the power distribution contact piece (29) are respectively fixed on the inner bottom of the power distribution board (22) by the contact piece fixing bolts (31), and the contact piece collar (30) is sleeved on the power distribution board (22). on the electrical contact piece (29), and the contact piece collar (30) can slide on the power distribution contact piece (29), the contact piece collar (30) is arranged on the bottom end of the plug-in contact piece (28), And the plug-in contact piece (28) and the contact piece collar (30) are integrally formed. 5.根据权利要求1所述的一种可调节两用墙壁插座，其特征在于，所述插口板滑动按钮（11）由手触头（31）、内嵌圈（32）、底端插头（33）组成，所述内嵌圈（32）设在手触头（31）底端外侧面，所述底端插头（33）设在内嵌圈（32）的底面，所述手触头（31）、内嵌圈（32）、底端插头（33）一体成型。5. The adjustable dual-purpose wall socket according to claim 1, wherein the socket board sliding button (11) is composed of a hand contact (31), an inner ring (32), a bottom plug ( 33), the inner ring (32) is arranged on the outer side of the bottom end of the hand contact (31), the bottom plug (33) is arranged on the bottom surface of the inner ring (32), the hand contact (31) 31), the inner ring (32), and the bottom plug (33) are integrally formed. 6.根据权利要求1所述的一种可调节两用墙壁插座，其特征在于，所述滑动插口板（10）由滑动薄板（34）、薄板固定插头（35）组成，所述薄板固定插头（35）设在滑动薄板（34）的底面，且滑动薄板（34）、薄板固定插头（35）一体成型，所述滑动薄板（34）的顶面中心开设有通透的插电斜插口（36）。6 . The adjustable dual-purpose wall socket according to claim 1 , wherein the sliding socket plate ( 10 ) is composed of a sliding thin plate ( 34 ) and a thin plate fixing plug ( 35 ), and the thin plate fixing plug (35) is arranged on the bottom surface of the sliding sheet (34), and the sliding sheet (34) and the sheet fixing plug (35) are integrally formed, and a transparent plug-in oblique socket ( 36). 7.根据权利要求3所述的一种可调节两用墙壁插座，其特征在于，所述滑动插口（24）的顶面开设有与薄板固定插头（35）对应的插孔（37），所述薄板固定插头（35）插接在插孔（37）内，且滑动插口板（10）跟随滑动插口（24）的滑动而滑动，所述插口滑动装置（26）的顶面开设有与底端插头（33）相对应的插头孔（42），所述底端插头（33）插接在插头孔（42）内，且插口板滑动按钮（11）跟随插口滑动装置（26）的滑动而滑动。7 . The adjustable dual-purpose wall socket according to claim 3 , wherein the top surface of the sliding socket ( 24 ) is provided with a socket ( 37 ) corresponding to the thin plate fixed plug ( 35 ), so that the The thin plate fixing plug (35) is inserted into the jack (37), and the sliding socket plate (10) slides following the sliding of the sliding socket (24). The plug hole (42) corresponding to the end plug (33), the bottom plug (33) is inserted into the plug hole (42), and the socket board sliding button (11) follows the sliding of the socket sliding device (26) to move slide. 8.根据权利要求4所述的一种可调节两用墙壁插座，其特征在于，所述插口滑动装置（26）由连接触手（38）、固定头（39）、固定头滑动圈（40）组成，所述固定头滑动圈（40）设在固定头（39）的外侧，所述连接触手（38）设有两组，两组连接触手（38）呈对称的设在固定头（39）的后侧，所述连接触手（38）、固定头（39）、固定头滑动圈（40）一体成型，所述连接触手（38）分别连接在两组滑动插口（24）的侧面。8 . The adjustable dual-purpose wall socket according to claim 4 , wherein the socket sliding device ( 26 ) consists of a connecting tentacle ( 38 ), a fixed head ( 39 ), and a fixed head sliding ring ( 40 ). 9 . The fixed head sliding ring (40) is arranged on the outer side of the fixed head (39), the connecting tentacles (38) are provided with two groups, and the two groups of connecting tentacles (38) are symmetrically arranged on the fixed head (39) On the rear side of the device, the connecting tentacles (38), the fixed head (39), and the fixed head sliding ring (40) are integrally formed, and the connecting tentacles (38) are respectively connected to the sides of the two sets of sliding sockets (24).
