Abstract
The invention discloses a door trim edge assembly which comprises a door trim and a metal plate, wherein the door trim is detachably and fixedly connected to the metal plate, a flanging is arranged at the lower edge of the door trim, the interval between the outer surface of the flanging and the metal plate is more than or equal to 0.75mm, an outwards-protruding rib is arranged on the door trim, and the rib and the metal plate can be in releasable abutting contact. The door trim edge assembly can effectively control the contact gap between the door trim and a metal plate, and improve the appearance perception quality; simple structure, high production efficiency and difficult deformation.
Description
Technical Field
The present invention relates to an automotive body assembly, and more particularly to a door trim edge assembly.
Background
In most motorcycle types at present, there is about 0.5mm interference at door plant/threshold edge and panel beating mating structure, and this kind of mating structure has some not enoughly: the door plate/threshold edge is tightly attached to the metal plate, so that the metal plate is subjected to friction of the door plate/threshold edge for a long time, and the risk of paint removal of the metal plate exists; and (II) the stripped metal plate is penetrated by water vapor, silt, stones and the like to cause the metal plate to rust.
Disclosure of Invention
The invention is accomplished in order to solve the deficiency in the prior art, the purpose of the invention is to provide a door trim edge assembly, its advantage is that it can control the door trim and contact gap of the sheet metal effectively, improve the apparent perception quality; simple structure, high production efficiency and difficult deformation.
The door trim edge assembly comprises a door trim and a metal plate, wherein the door trim is detachably and fixedly connected to the metal plate, a flanging is arranged at the lower edge of the door trim, the interval between the outer surface of the flanging and the metal plate is larger than or equal to 0.75mm, an outward protruding rib is arranged on the door trim, and the rib and the metal plate can be in releasable abutting contact.
A door trim edge assembly of the present invention may also be:
the rib is positioned at the position of 3-15mm above the lower edge of the door trim.
Be provided with the non-woven fabrics layer on the rib, the non-woven fabrics layer with the panel beating offsets.
The bottom of the flanging is arc-shaped.
The radius of the circular arc fillet is less than or equal to 3.75 mm.
And the inner surface of the turned-over edge is provided with a dustproof cotton layer.
The upper part of the door trim plate is spaced from the metal plate by more than or equal to 6.5 mm.
The metal plate is provided with an adhesive tape which is abutted to the turned-over edge.
The rubber strip is made of ethylene propylene diene monomer rubber material, and the door trim is made of polypropylene material.
The door trim is provided with a buckle, the metal plate is provided with a buckle hole, and the door trim is clamped in the buckle hole through the buckle.
The door trim edge assembly comprises a door trim and a metal plate, wherein the door trim is detachably and fixedly connected to the metal plate, a flanging is arranged at the lower edge of the door trim, the interval between the outer surface of the flanging and the metal plate is larger than or equal to 0.75mm, an outward protruding rib is arranged on the door trim, and the rib and the metal plate can be in releasable abutting contact. Therefore, the door trim is connected to the metal plate, the connection between the door trim and the metal plate can be released, and the door trim is convenient to mount and dismount. The lower edge of the door trim panel is provided with a flanging, the rigidity of the door trim panel is improved by the flanging, and the displacement of the door trim panel is reduced; wherein, the distance more than or equal to 0.75mm between turn-ups and the panel beating guarantees that door plaque and panel beating do not produce the interference friction at the driving in-process, and then reduces the possibility of fish tail panel beating. The door trim is provided with the ribs, the door trim abuts against the metal plate through the ribs, and the contact gap between the door trim and the metal plate can be effectively controlled, so that the appearance sensing quality between the door trim and the metal plate is good, and the problem of poor appearance sensing caused by the fact that the door trim and the metal plate are separated is solved; the problem of structure tolerance error is solved, the problem that the long-term friction of door decorative plate edge and panel beating leads to the depainting rust is avoided. Wherein, set up the rib on the door plaque, later stage adjustment mould is with low costs, and the heavy no obvious change of part solves later stage adjustment mould's cost increase problem. In the door trim edge component, the flanging and the ribs are arranged on the door trim, so that the door trim edge component is simple and reliable in design, high in production efficiency and not easy to deform. Compared with the prior art, the door trim edge assembly has the advantages that: the contact gap between the door trim and the metal plate can be effectively controlled, and the appearance perception quality is improved; simple structure, high production efficiency and difficult deformation.
Drawings

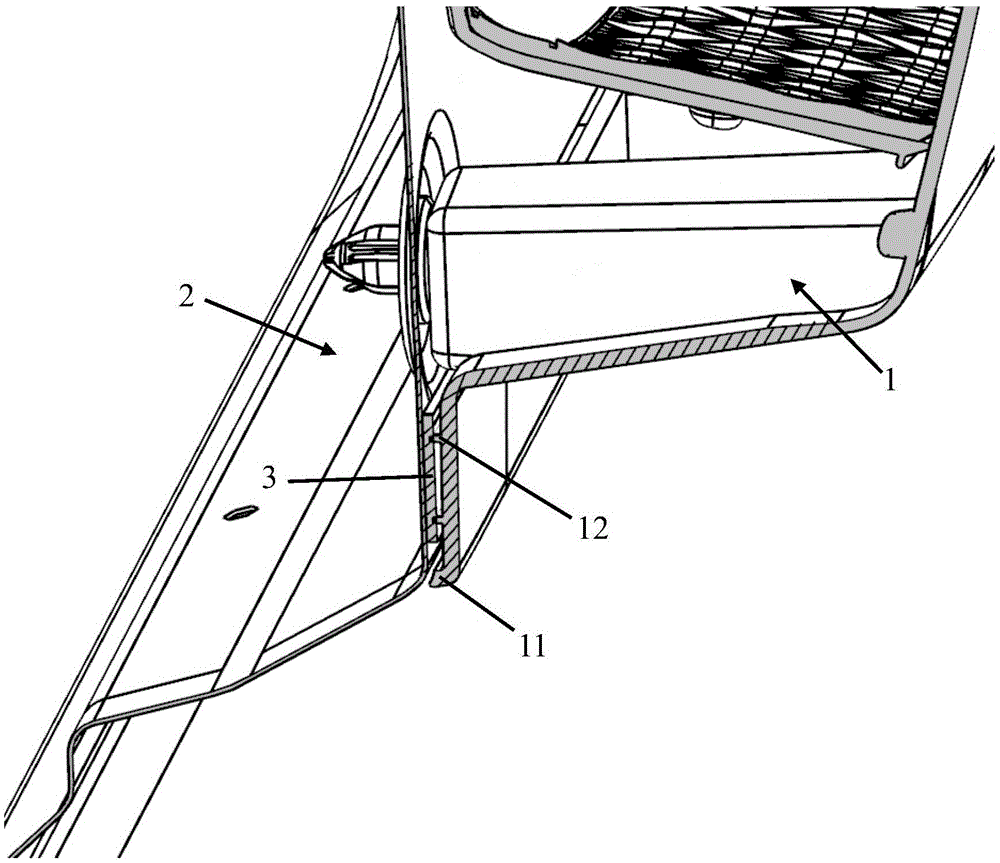

FIG. 1 is a schematic view of a door trim edge assembly of the present invention.
Description of the figures
1. A door trim panel; 11. flanging; 12. ribs; 2. metal plates; 3. a non-woven fabric layer.
Detailed Description
A door trim edge assembly of the present invention is described in further detail below with reference to fig. 1 of the drawings.
Referring to fig. 1, the door trim edge assembly of the present invention includes a door trim 1 and a metal plate 2, wherein the door trim 1 is detachably and fixedly connected to the metal plate 2, a flange 11 is disposed at a lower edge of the door trim 1, a space between an outer surface of the flange 11 and the metal plate 2 is greater than or equal to 0.75mm, a rib 12 protruding outward is disposed on the door trim 1, and the rib 12 is detachably abutted to the metal plate 2. Like this, door plaque 1 is connected on panel beating 2, also can relieve the connection between door plaque 1 and the panel beating 2, easy to assemble and dismantlement. The lower edge of the door trim 1 is provided with a flange 11, and the flange 11 improves the rigidity of the door trim 1 and reduces the displacement of the door trim 1; wherein, the distance more than or equal to 0.75mm between 11 surfaces of turn-ups and the panel beating 2 guarantees that door plaque 1 and panel beating 2 do not produce the interference friction at the driving in-process, and then reduces the possibility of fish tail panel beating 2. The minimum clearance between the flanging 11 and the metal plate 2 is 0.75mm, and the minimum clearance is obtained through tests and is the minimum value which does not generate interference friction. The door trim 1 is provided with the ribs 12 protruding outwards, the door trim 1 abuts against the metal plate 2 through the ribs 12, and the contact gap between the door trim 1 and the metal plate 2 can be effectively controlled, so that the appearance sensing quality between the door trim 1 and the metal plate 2 is good, and the problem of poor appearance sensing caused by the fact that the door trim 1 is separated from the metal plate 2 is solved; the problem of structure contain the error is solved, the long-term friction of door facings board 1 edge and panel beating 2 has been avoided and has been caused the rust problem of depainting. Wherein, set up rib 12 on the door plaque 1, later stage adjustment mould is with low costs, and the heavy no obvious change of part solves the cost-push problem of later stage adjustment mould. In the door trim edge assembly, the flanging 11 and the ribs 12 are arranged on the door trim 1, so that the door trim edge assembly is simple and reliable in design, high in production efficiency and not easy to deform. Compared with the prior art, the door trim edge assembly has the advantages that: the contact gap between the door trim 1 and the metal plate 2 can be effectively controlled, and the appearance perception quality is improved; simple structure, high production efficiency and difficult deformation.
Referring to fig. 1, the door trim edge assembly according to the present invention may further include a rib 12 located 3-15mm above a lower edge of the door trim 1. Therefore, the ribs 12 are arranged at the position 3-15mm above the lower edge of the door trim 1, so that the door trim 1 can be completely abutted against the metal plate 2 through the ribs 12, the contact gap between the door trim 1 and the metal plate 2 can be effectively controlled, the appearance sensing quality between the door trim 1 and the metal plate 2 is good, and the problem of poor appearance sensing caused by the fact that the door trim 1 is separated from the metal plate 2 is solved; the problem of structure contain the error is solved, the long-term friction of door facings board 1 edge and panel beating 2 has been avoided and has been caused the rust problem of depainting. The minimum value of 3mm is to ensure that the ribs 12 can support the non-woven fabric layer and prevent the non-woven fabric layer from leaking out of the upper flanging 11 of the door trim panel 1; the highest value of 15mm is to ensure that the ribs 12 can support the non-woven fabric layer and the non-woven fabric layer can control the gap of the turnup 11. Preferably, when the ribs 12 are in abutment with the sheet metal 2, the ribs 12 are in abutment with the surface of the sheet metal 2 by 0.25 mm. The further preferred technical scheme is as follows: a non-woven fabric layer 3 is arranged on the ribs 12, and the non-woven fabric layer 3 is abutted to the metal plate 2. Like this, non-woven fabrics layer 3 sets up on rib 12, and when rib 12 offseted with panel beating 2, non-woven fabrics layer 3 offseted with panel beating 2, reduces door plaque 1 and panel beating 2's friction abnormal sound. When the ribs 12 are arranged at the upper 10mm position of the lower edge of the door trim 1, the non-woven fabric layer 3 exceeds the ribs by 5mm, and meanwhile, the non-woven fabric layer is 5mm away from the boundary of the turned edge 11, so that the non-woven fabric layer 3 can be firmly adhered to the ribs 12, and the non-woven fabric layer 3 is prevented from leaking out of the boundary.
Referring to fig. 1, the edge assembly of a door trim panel of the present invention may further include a bottom of the flange 11 being arc-shaped. Thus, the arc-shaped flanging 11 can be better matched with the metal plate 2, and the strength of the door trim 1 can be improved. The further preferred technical scheme is as follows: the radius of the circular arc fillet is less than or equal to 3.75 mm. Like this, turn-ups 11 are the fillet transition, are less than or equal to 3.75mm with 11 fillet radius settings of turn-ups, are favorable to the transition between 1 turn-ups 11 structure of door facings board to panel beating 2, further improve interior plaque lower limb intensity. Meanwhile, the flanging 11 is in arc transition, so that the possibility that the lower edge of the door trim 1 is scratched by the metal plate 2 is reduced. Wherein, 3.75mm is according to the minimum distance between plaque 2 and interior plaque 1, is according to experiment and actual conditions survey. The further preferred technical scheme is as follows: and a dustproof cotton layer is arranged on the inner surface of the turned-over edge 11. Like this, the dustproof cotton layer is arranged on door plaque 1 lower limb turn-ups 11 for the dustproof cotton layer is located between door plaque 1 lower limb and rib 12, and then has reduced the possibility that water stone, sand and soil got into between door plaque 1 and the panel beating 2, has solved steam, silt, stone etc. and has got into interior plaque, leads to interior plaque and the emergence of the 2 rust problems of panel beating. Wherein, there is not direct connection between non-woven fabrics layer and the dustproof cotton.
Referring to fig. 1, the door trim edge assembly according to the present invention may further include a gap between the upper portion of the door trim 1 and the metal plate 2, which is greater than or equal to 6.5mm, based on the foregoing technical solution. Like this, 1 upper portion of door plaque sets up interval more than or equal to 6.5mm with panel beating 2, can satisfy and set up rib 12 on the door plaque 1, also reduces door plaque 1 and 2 direct contact of panel beating simultaneously, leads to the later stage driving because the friction leads to the rusty problem of panel beating. The upper part of the door trim 1 is the edge of the large surface of the door trim 1. Wherein, the minimum clearance between the edge of the large surface of the door trim 1 and the metal plate 2 is 6.5mm, which is obtained according to the test and the actual situation measurement.
Referring to fig. 1, on the basis of the foregoing technical solution, the metal plate 2 may be provided with an adhesive tape, and the adhesive tape abuts against the flange 11. Thus, the adhesive tape is disposed between the door trim 1 and the metal plate 2. When the door is closed, the rubber strip can play a role in air tightness between the door trim 1 and the metal plate 2. Wherein, the adhesive tape offsets with the turn-ups 11 that the lower limb department of door facings 1 set up, and then guarantees the gas tightness. Preferably, the rubber strip abuts against the surface of the flange 11 for a depth of 2.5mm, so that the stability of the rubber strip abutting against the flange 11 is further improved, and the air tightness of the door closed is further improved. The further preferred technical scheme is as follows: the rubber strip is made of ethylene propylene diene monomer rubber material, and the door trim panel 1 is made of polypropylene material. Therefore, the ethylene propylene diene monomer rubber has elasticity and adhesiveness, and the rubber strip is made of the ethylene propylene diene monomer rubber material, so that the rubber strip has energy absorption and buffering properties. The adhesive tape is arranged between the edges of the door trim 1 and the metal plate 2, and when the door is closed, the door-closing air tightness between the door trim 1 and the metal plate 2 can be ensured. The polypropylene has high impact resistance and mechanical property toughness. The door trim 1 made of the original ethylene propylene diene monomer rubber material is changed into the door trim 1 made of the polypropylene material, so that the door trim 1 has good flexibility, the friction force with the metal plate 2 is reduced, and the door trim 1 is prevented from whitening and cracking after being used for a long time.
Referring to fig. 1, on the basis of the foregoing technical solution, the door trim panel 1 of the present invention may further include a buckle, the metal plate 2 is provided with a buckle hole, and the door trim panel 1 is clamped in the buckle hole through the buckle. Like this, be provided with the buckle on the door plaque 1, the buckle hole has been seted up to panel beating 2, and door plaque 1 passes through the buckle joint in the buckle hole of panel beating 2, connects door plaque 1 on panel beating 2, easy to assemble and firm in connection.
The above description is only for the purpose of illustrating a few embodiments of the present invention, and should not be taken as limiting the scope of the present invention, in which equivalent changes, modifications, or scaling up or down, etc. made in accordance with the spirit of the present invention should be considered as falling within the scope of the present invention.
Claims (10)
1. A door trim panel edge assembly characterized by: including door plaque (1) and panel beating (2), the detachable fixed connection of door plaque (1) in on panel beating (2), door plaque (1) lower limb is provided with turn-ups (11), turn-ups (11) surface with panel beating (2) interval more than or equal to 0.75mm, be provided with outside bellied rib (12) on door plaque (1), rib (12) with panel beating (2) releasable counterbalance.
2. A door trim edge assembly according to claim 1, wherein: the rib (12) is positioned at the position of 3-15mm above the lower edge of the door trim (1).
3. A door trim edge assembly according to claim 1, wherein: be provided with non-woven fabrics layer (3) on rib (12), non-woven fabrics layer (3) with panel beating (2) offset.
4. A door trim edge assembly according to claim 1, wherein: the bottom of the flanging (11) is arc-shaped.
5. A door trim edge assembly according to claim 4, wherein: the radius of the circular arc fillet is less than or equal to 3.75 mm.
6. A door trim edge assembly according to claim 4, wherein: and a dustproof cotton layer is arranged on the inner surface of the turned-over edge (11).
7. A door trim edge assembly according to any one of claims 1 to 6, wherein: the upper part of the door trim (1) is spaced from the metal plate (2) by more than or equal to 6.5 mm.
8. A door trim edge assembly according to any one of claims 1 to 6, wherein: the metal plate (2) is provided with an adhesive tape which is abutted against the turned-over edge (11).
9. A door trim edge assembly according to claim 8, wherein: the rubber strip is made of ethylene propylene diene monomer rubber material, and the door trim (1) is made of polypropylene material.
10. A door trim edge assembly according to any one of claims 1 to 6, wherein: the door trim panel is characterized in that a buckle is arranged on the door trim panel (1), a buckle hole is formed in the metal plate (2), and the door trim panel (1) is clamped in the buckle hole through the buckle.
